Domain Name Resolution with the Domain Name System

Domain Name Resolution with the Domain Name System. “I want to visit abc.com.”. 1. http://abc.com “Please find abc.com and show it to me.”. 6. ISP (BellSouth). 4. 2. “Do we already know where abc.com is?”. 5. Caching Name Server Operated by ISP. Web Server hosting the abc.com web site

orlando-wolf
Télécharger la présentation

Domain Name Resolution with the Domain Name System

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Domain Name Resolution with the Domain Name System “I want to visit abc.com.” 1 http://abc.com “Please find abc.com and show it to me.” 6 ISP (BellSouth) 4 2 “Do we already know where abc.com is?” 5 Caching Name Server Operated by ISP Web Server hosting the abc.com web site at IP address 12.231.87.9 “Yes. Here’s the IP address for abc.com: 12.231.87.9.” 3

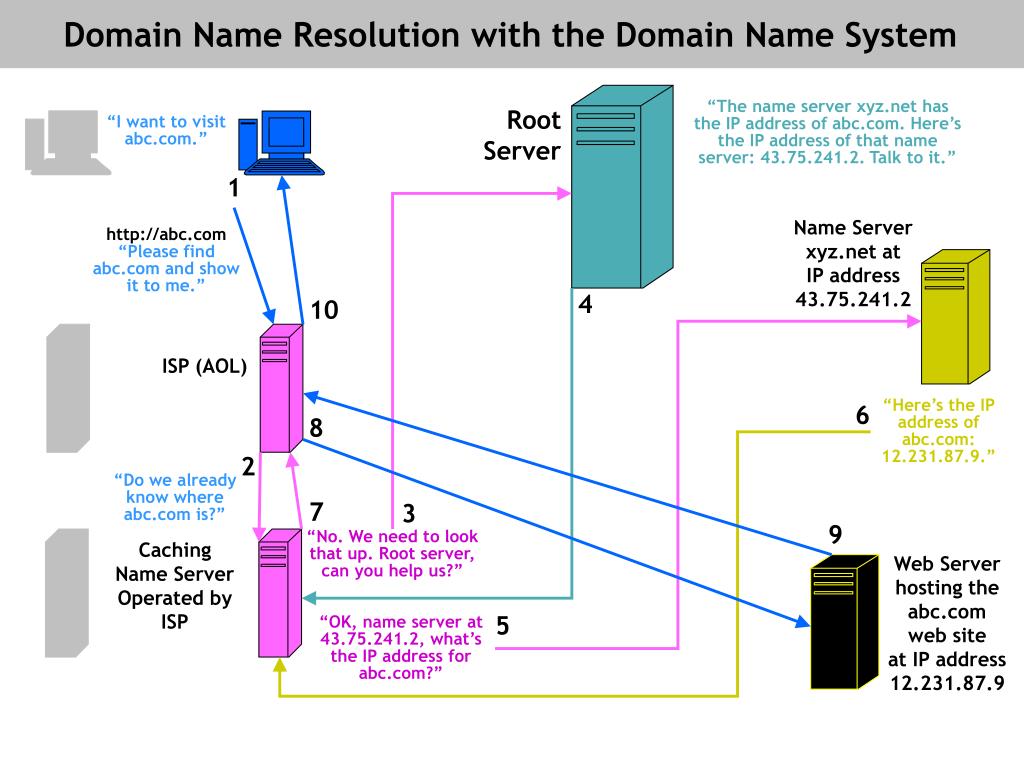

  2. Domain Name Resolution with the Domain Name System “The name server xyz.net has the IP address of abc.com. Here’s the IP address of that name server: 43.75.241.2. Talk to it.” Root Server “I want to visit abc.com.” 1 Name Server xyz.net at IP address 43.75.241.2 http://abc.com “Please find abc.com and show it to me.” 4 10 ISP (AOL) “Here’s the IP address of abc.com: 12.231.87.9.” 6 8 2 “Do we already know where abc.com is?” 7 3 9 “No. We need to look that up. Root server, can you help us?” Caching Name Server Operated by ISP Web Server hosting the abc.com web site at IP address 12.231.87.9 5 “OK, name server at 43.75.241.2, what’s the IP address for abc.com?”
