  1. Concurrent Predicates: A Debugging Technique for Every Parallel Programmer PACT ‘13 Justin Gottschlich Gilles Pokam Cristiano Pereira Youfeng Wu Intel Corporation

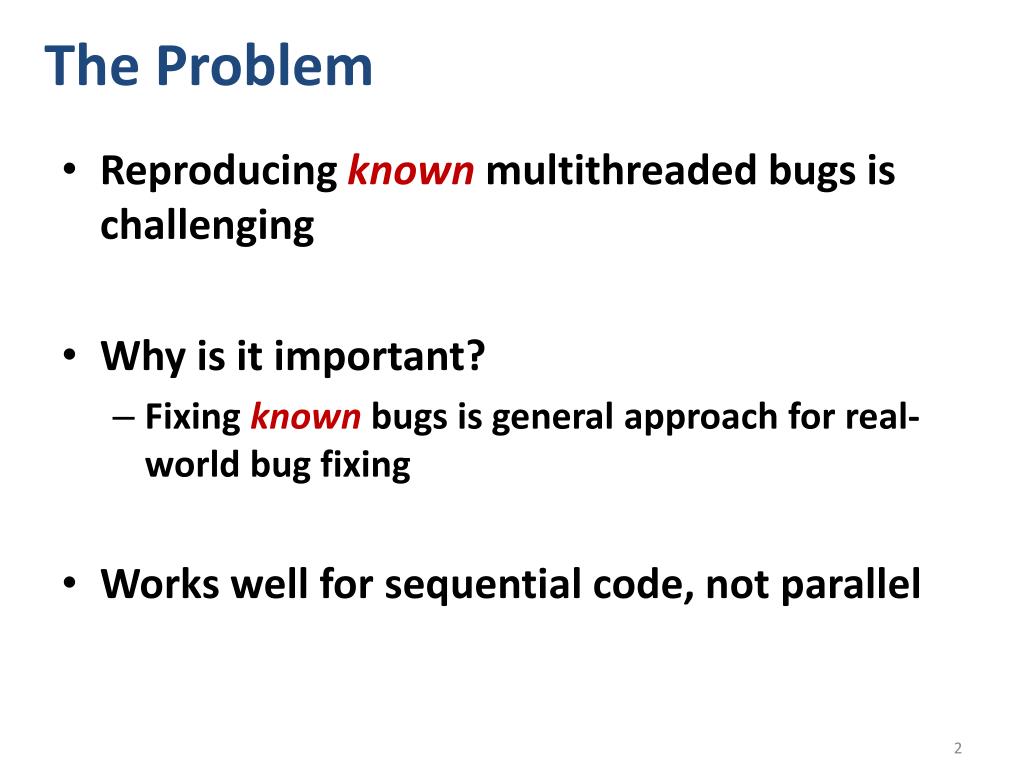

  2. The Problem • Reproducing knownmultithreaded bugs is challenging • Why is it important? • Fixing knownbugs is general approach for real-world bug fixing • Works well for sequential code, not parallel

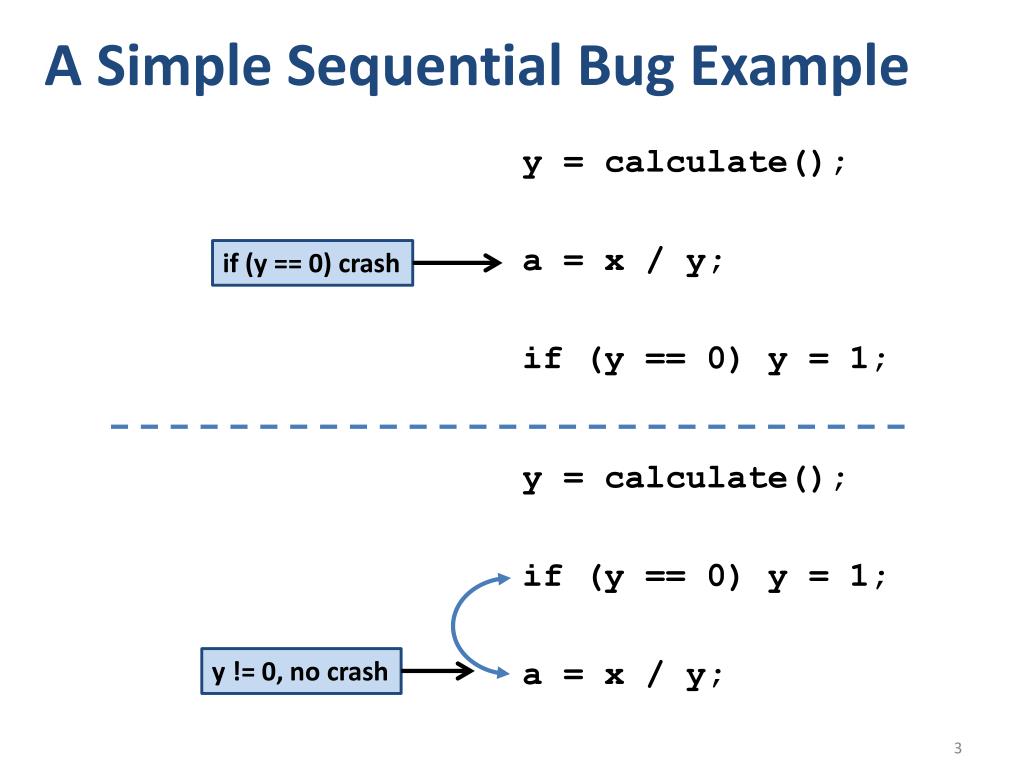

  3. A Simple Sequential Bug Example if (y == 0) crash y = calculate(); if (y == 0) y = 1; a = x / y; y != 0, no crash y = calculate(); a = x / y; if (y == 0) y = 1;

  4. A Not-So Simple Parallel Bug Example Parallel Bug Reproduction Needs Buggy program state Buggy program schedule

  5. The CP Solution 100mil loops, 0-999 calc(), occurs 1 out of 20executions. 100mil loops, 0-999 calc(), occurs 20 out of 20 executions.

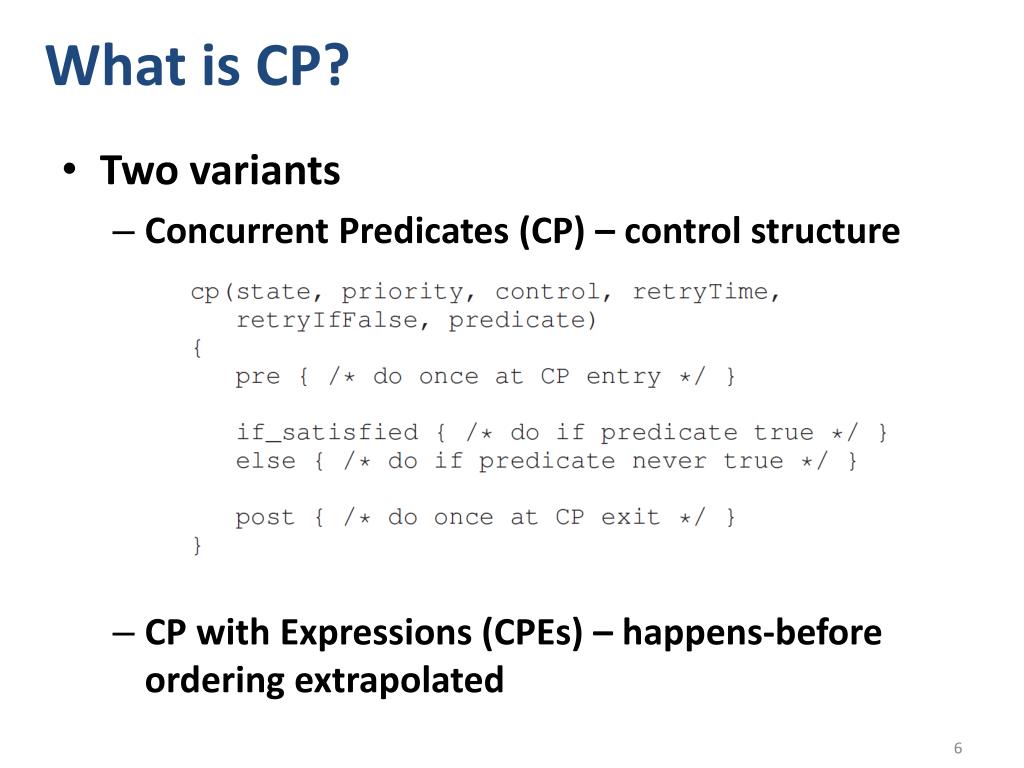

  6. What is CP? • Two variants • Concurrent Predicates (CP) – control structure • CP with Expressions (CPEs) – happens-before ordering extrapolated

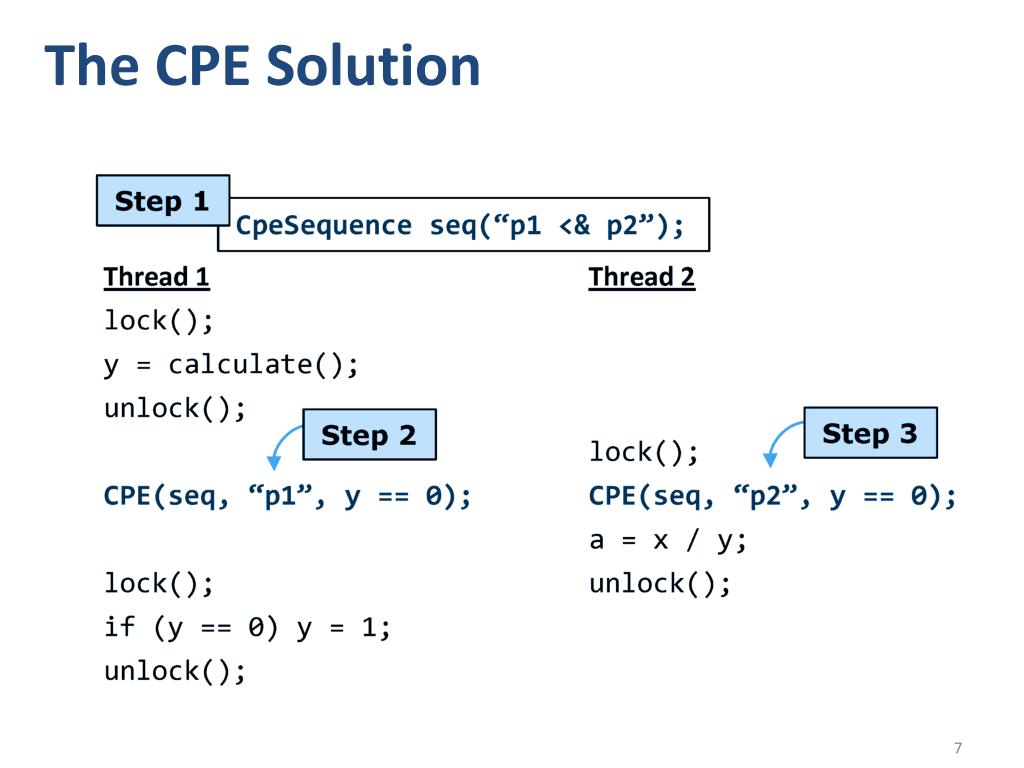

  7. The CPE Solution

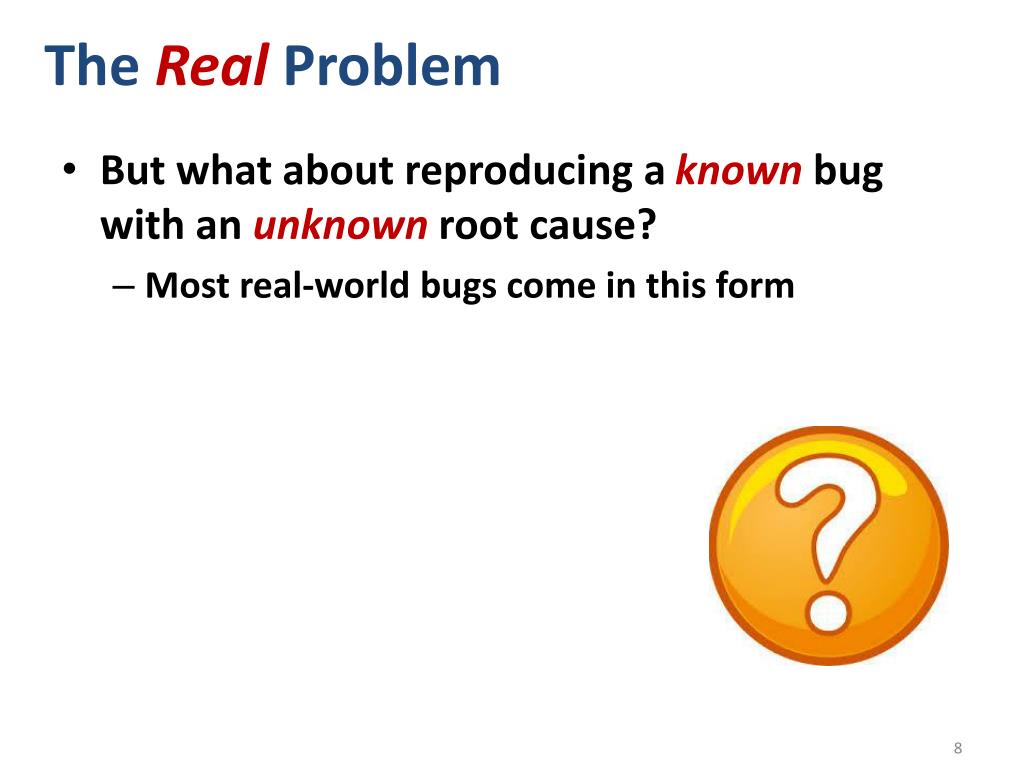

  8. The RealProblem • But what about reproducing a known bug with an unknown root cause? • Most real-world bugs come in this form

  9. Recipes and Experimental Data

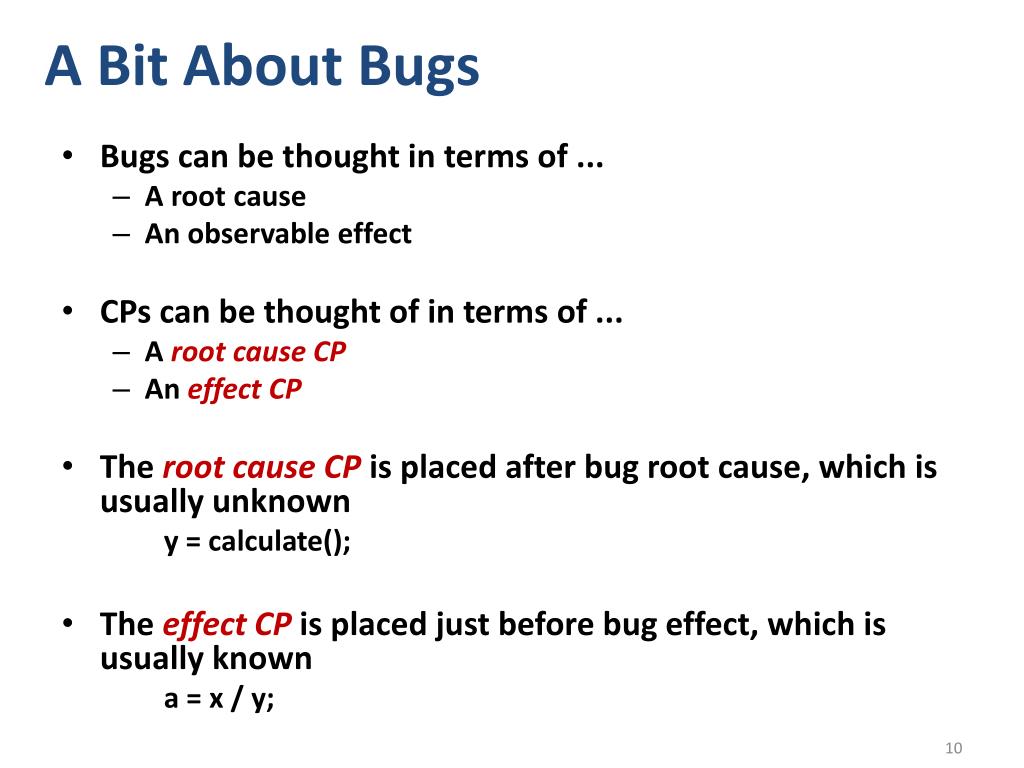

  10. A Bit About Bugs • Bugs can be thought in terms of ... • A root cause • An observable effect • CPs can be thought of in terms of ... • A root cause CP • An effect CP • The root cause CP is placed after bug root cause, which is usually unknown y = calculate(); • The effect CP is placed just before bug effect, which is usually known a = x / y;

  11. Recipe: Data Race • CP can automatically find data races • Early implementation in PIN • Verified results found by Thread Checker • Identified true positives

  12. Recipe: Atomicity Violation Same structure as divide by zero example

  13. Recipe: Deadlock Expression operators in paper

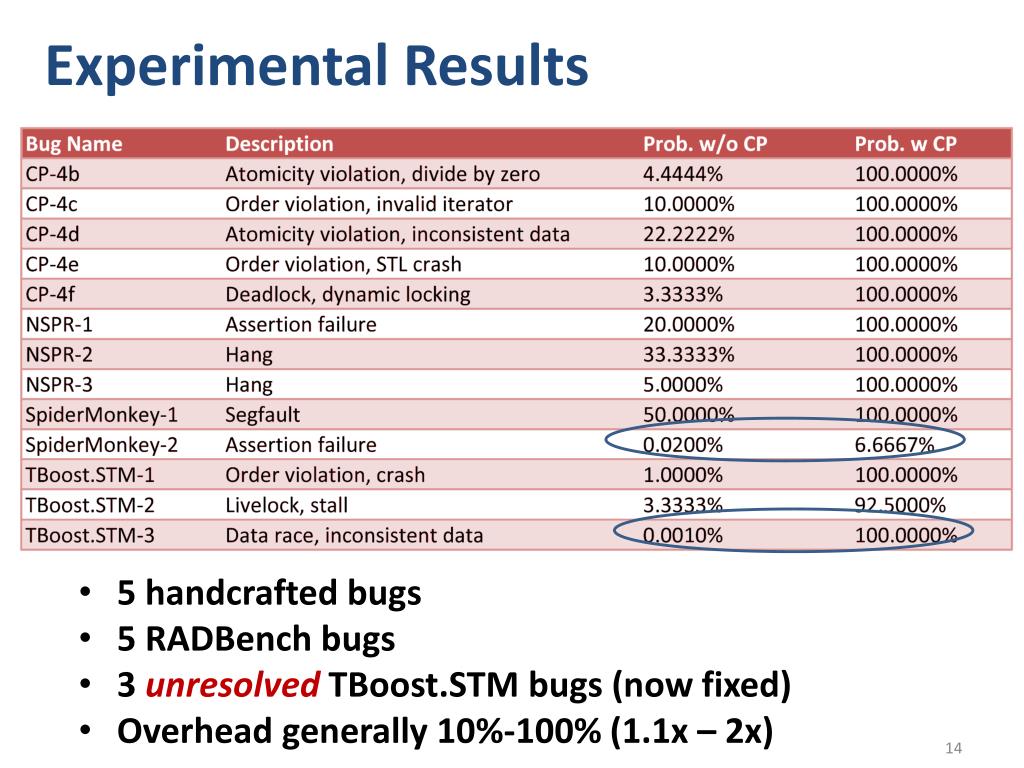

  14. Experimental Results 5 handcrafted bugs 5 RADBench bugs 3 unresolved TBoost.STM bugs (now fixed) Overhead generally 10%-100% (1.1x – 2x)

  15. Conclusions and Future Directions • CP and CPE: • Can improve known bug reproduction • Can identify unknown root causes of known bugs using recipes (we’ve used them) • What’s next? • Simplify model; direct debugger integration • Automated CPE injection for certain types of bugs • Usage experience data from novice programmers

  16. Questions? Concurrent Predicates: A Debugging Technique for Every Parallel Programmer PACT ‘13 Justin Gottschlich (justin.e.gottschlich@intel.com) Gilles Pokam Cristiano Pereira Youfeng Wu Intel Corporation
