# 5 Normal Probability Distributions

5 Normal Probability Distributions. Elementary Statistics Larson Farber. Properties of a Normal Distribution. x. The mean, median, and mode are equal. Bell shaped and is symmetric about the mean. The total area that lies under the curve is one or 100%.

Télécharger la présentation

## 5 Normal Probability Distributions

E N D

### Presentation Transcript

1. 5 Normal Probability Distributions Elementary Statistics Larson Farber

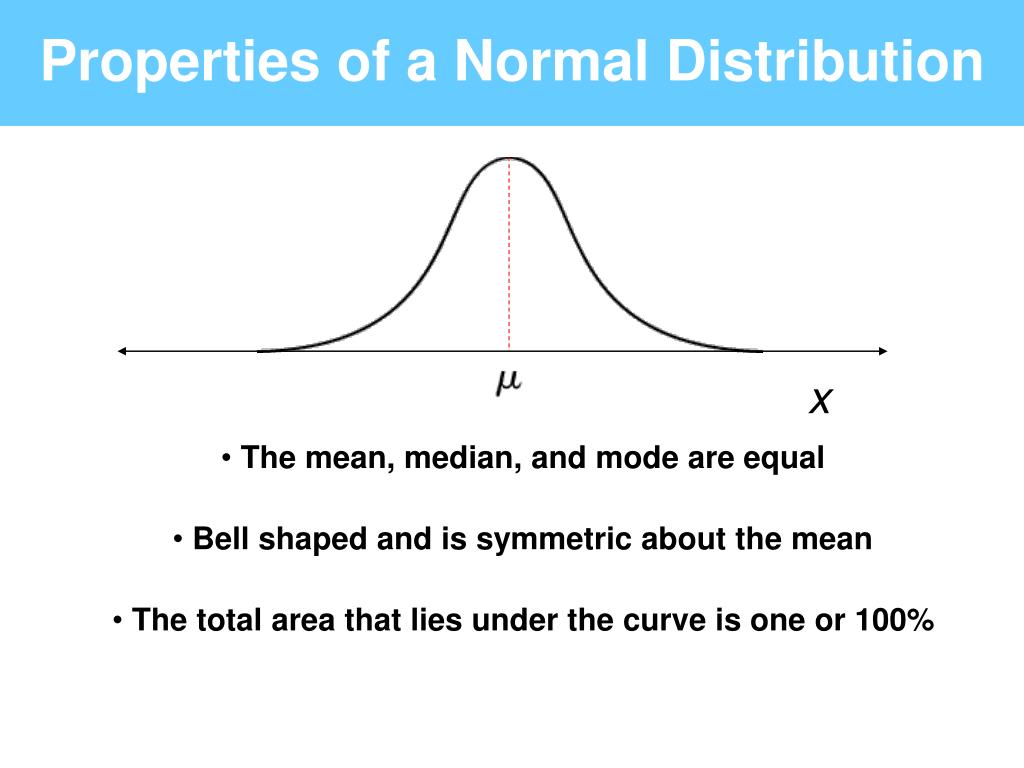

2. Properties of a Normal Distribution x • The mean, median, and mode are equal • Bell shaped and is symmetric about the mean • The total area that lies under the curve is one or 100%

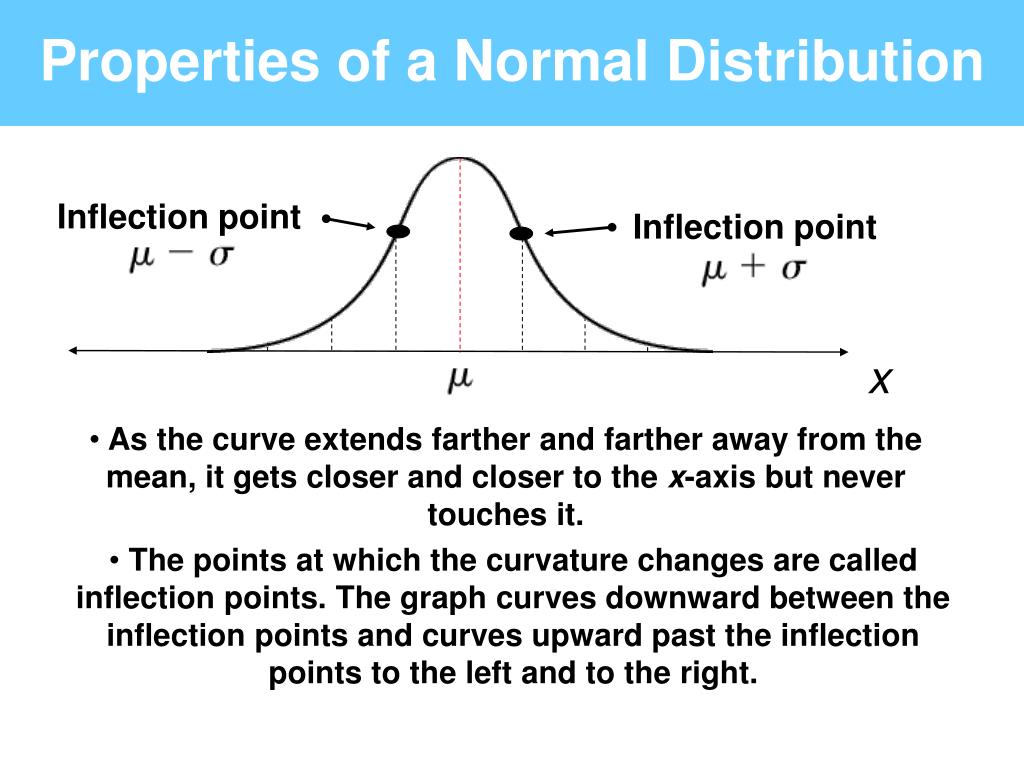

3. Properties of a Normal Distribution Inflection point Inflection point x • As the curve extends farther and farther away from the • mean, it gets closer and closer to the x-axis but never touches it. • The points at which the curvature changes are called inflection points. The graph curves downward between the inflection points and curves upward past the inflection points to the left and to the right.

4. Means and Standard Deviations Curves with different means, same standard deviation 10 11 12 13 14 15 16 17 18 19 20 Curves with different means, different standard deviations 9 10 11 12 13 14 15 16 17 18 19 20 21 22

5. Empirical Rule About 95% of the area lies within 2 standard deviations About 99.7% of the area lies within 3 standard deviations of the mean About 68% of the area lies within 1 standard deviation of the mean 68%

6. Determining Intervals x 3.3 3.6 3.9 4.2 4.5 4.8 5.1 An instruction manual claims that the assembly time for a product is normally distributed with a mean of 4.2 hours and standard deviation 0.3 hour. Determine the interval in which 95% of the assembly times fall. 95% of the data will fall within 2 standard deviations of the mean. 4.2 – 2 (0.3) = 3.6 and 4.2 + 2 (0.3) = 4.8. 95% of the assembly times will be between 3.6 and 4.8 hrs.

7. The Standard Normal Distribution

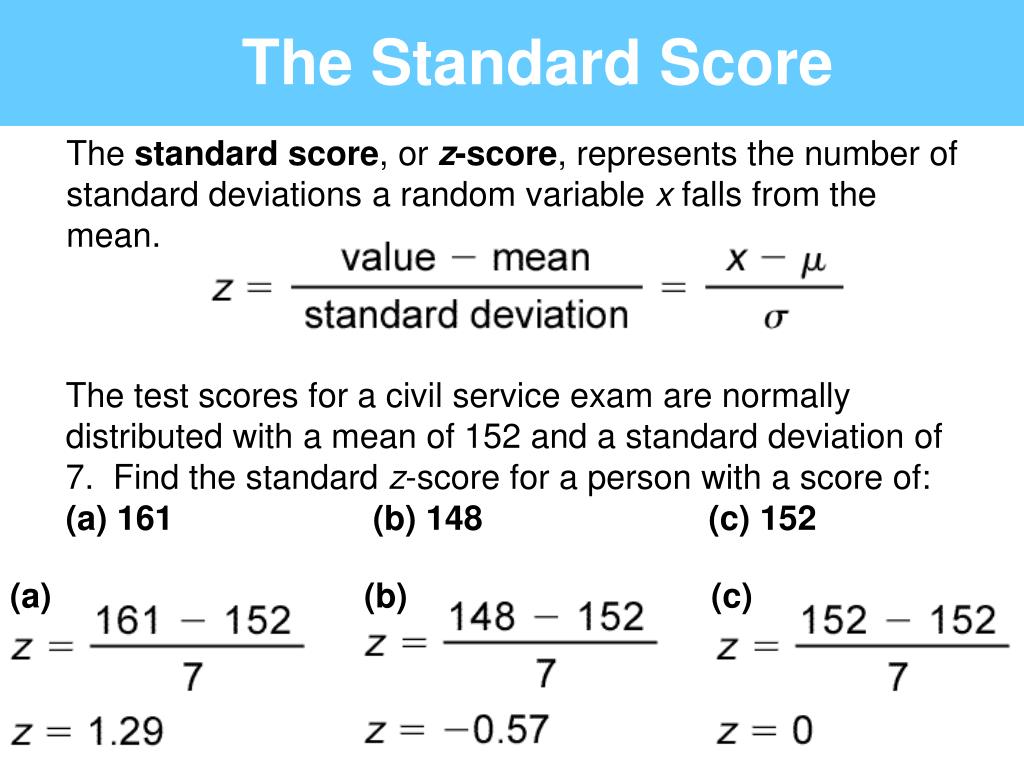

8. The Standard Score The standard score, or z-score, represents the number of standard deviations a random variable x falls from the mean. The test scores for a civil service exam are normally distributed with a mean of 152 and a standard deviation of 7. Find the standard z-score for a person with a score of: (a) 161 (b) 148 (c) 152 (a) (b) (c)

9. The Standard Score The standard score, or z-score, represents the number of standard deviations a random variable x falls from the mean. The test scores for a civil service exam are normally distributed with a mean of 152 and a standard deviation of 7. Find the standard z-score for a person with a score of: (a) 161 (b) 148 (c) 152 (a) (b) (c)

10. The Standard Normal Distribution The standard normal distribution has a mean of 0 and a standard deviation of 1. Using z-scores any normal distribution can be transformed into the standard normal distribution. z –4 –3 –2 –1 0 1 2 3 4

11. Cumulative Areas The total area under the curve is one. z –3 –2 –1 0 1 2 3 The cumulative area for z = 0 is 0.5000, indicating that the probability of getting a z value of 0 or less is .5

12. Cumulative Areas - Finding Find the cumulative area for a z-score of –1.25. 0.1056 z –3 –2 –1 0 1 2 3 • Table in Appendix • Table on fold-out card • Excel • Internet calculator

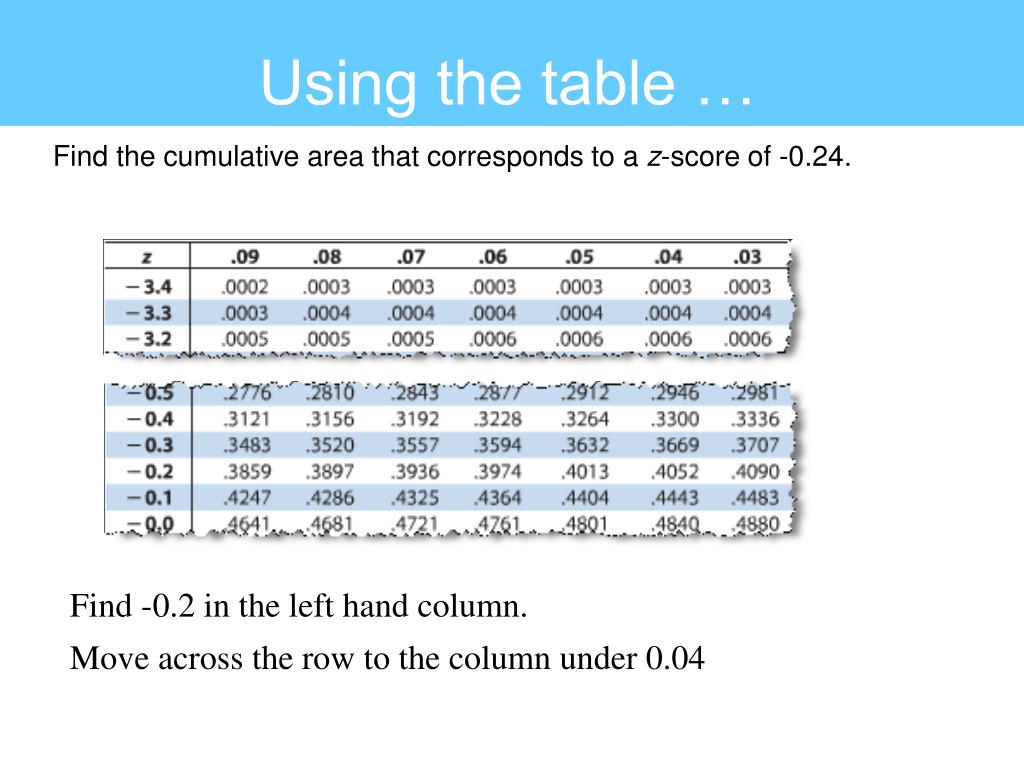

13. Using the table … Find the cumulative area that corresponds to a z-score of -0.24. Solution: Find -0.2 in the left hand column. Move across the row to the column under 0.04

14. Using the table … Find the cumulative area that corresponds to a z-score of -0.24. Solution: Find -0.2 in the left hand column. Move across the row to the column under 0.04 The area to the left of z = -0.24 is 0.4052.

15. Using Excel standard deviation mean x value of interest

16. Online: Rossman-Chance http://www.rossmanchance.com/applets/NormalCalcs/NormalCalculations.html

17. Online: SurfStat http://surfstat.anu.edu.au/surfstat-home/tables/normal.php

18. Cumulative Areas Find the cumulative area for a z-score of –1.25. 0.1056 z –3 –2 –1 0 1 2 3 Read down the z column on the left to z = –1.25 and across to the column under .05. The value in the cell is 0.1056, the cumulative area. The probability that z is at most –1.25 is 0.1056.

19. “Less than” To find the probability that z is less than a given value, read the cumulative area in the table corresponding to that z-score. Find P(z < –1.45). P (z < –1.45) = 0.0735 z –3 –2 –1 0 1 2 3 Read down the z-column to –1.4 and across to .05. The cumulative area is 0.0735.

20. “Greater than” To find the probability that z is greater than a given value, subtract the cumulative area in the table from 1. Find P(z > –1.24). 0.1075 0.8925 z –3 –2 –1 0 1 2 3 The cumulative area (area to the left) is 0.1075. So the area to the right is 1 – 0.1075 = 0.8925. P(z > –1.24) = 0.8925

21. “Between” To find the probability z is between two given values, find the cumulative areas for each and subtract the smaller area from the larger. Find P(–1.25 < z < 1.17). z –3 –2 –1 0 1 2 3 2. P(z < –1.25) = 0.1056 1. P(z < 1.17) = 0.8790 3. P(–1.25 < z < 1.17) = 0.8790 – 0.1056 = 0.7734

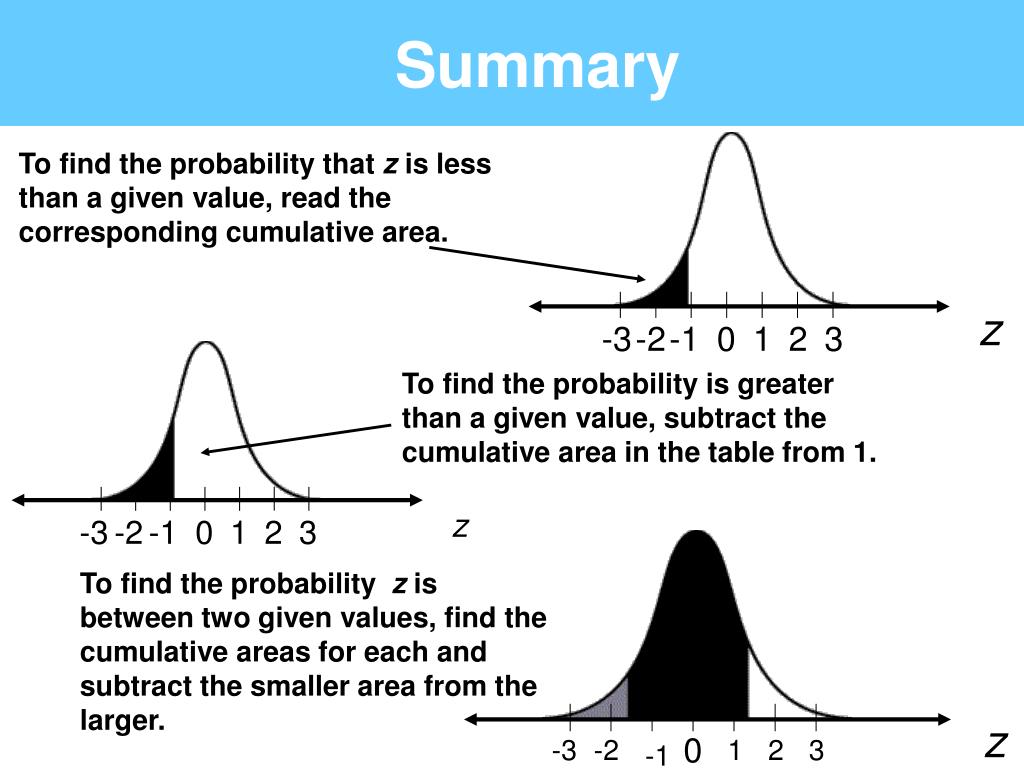

22. Summary To find the probability that z is less than a given value, read the corresponding cumulative area. z -3 -2 -1 0 1 2 3 To find the probability is greater than a given value, subtract the cumulative area in the table from 1. z -3 -2 -1 0 1 2 3 To find the probability z is between two given values, find the cumulative areas for each and subtract the smaller area from the larger. z 0 -3 -2 -1 1 2 3

23. Normal Distributions Finding Probabilities

24. Probability and Normal Distributions μ = 500 σ = 100 x μ =500 600 • If a random variable x is normally distributed, you can find the probability that x will fall in a given interval by calculating the area under the normal curve for that interval. Remember that the total area under the curve is 1.0 (equal to 100%).

25. Probability and Normal Distributions μ = 500 σ = 100 P(x < 600) = Area x μ =500 600 • If a random variable x is normally distributed, you can find the probability that x will fall in a given interval by calculating the area under the normal curve for that interval. Remember that the total area under the curve is 1.0 (equal to 100%).

26. Probability and Normal Distributions Normal Distribution μ = 500 σ = 100 P(x < 600) x μ =500 600

27. Probability and Normal Distributions Normal Distribution Standard Normal Distribution μ = 500 σ = 100 μ = 0 σ = 1 P(x < 600) P(z < 1) z x Same Area μ =500 600 μ = 0 1 P(x < 500) = P(z < 1)

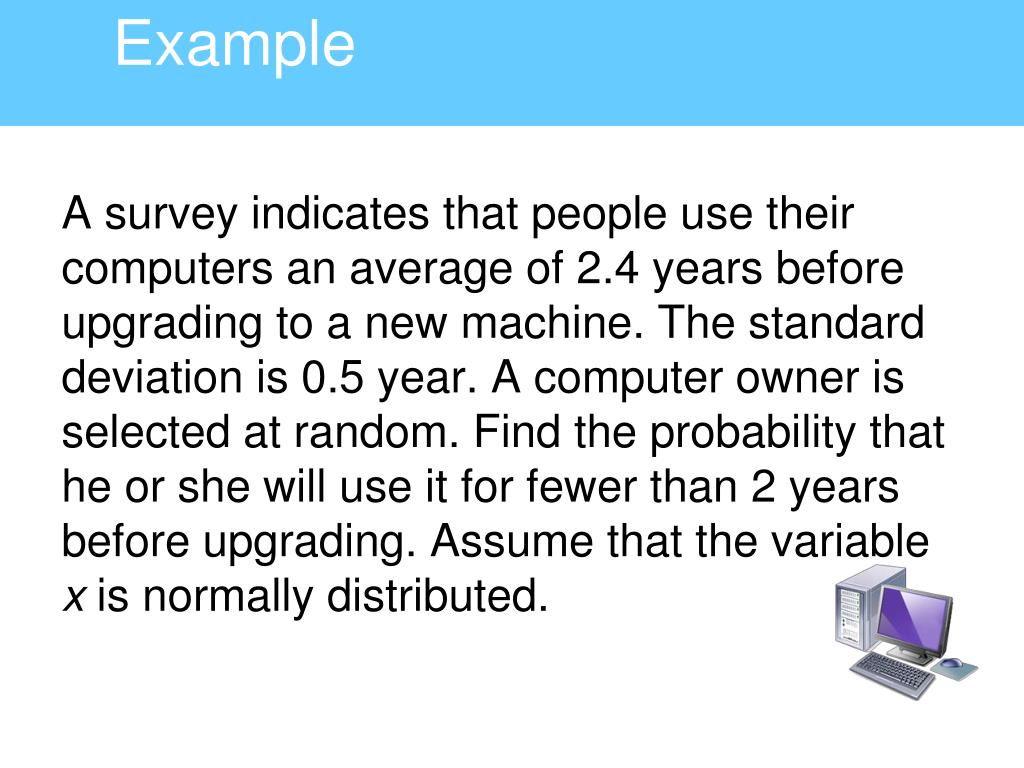

28. Example A survey indicates that people use their computers an average of 2.4 years before upgrading to a new machine. The standard deviation is 0.5 year. A computer owner is selected at random. Find the probability that he or she will use it for fewer than 2 years before upgrading. Assume that the variable x is normally distributed.

29. Solution Normal Distribution Standard Normal Distribution μ = 2.4 σ = 0.5 μ = 0 σ = 1 P(z < -0.80) P(x < 2) 0.2119 z x 2 2.4 -0.80 0 P(x < 2) = P(z < -0.80) = 0.2119

30. Example: A survey indicates that for each trip to the supermarket, a shopper spends an average of 45 minutes with a standard deviation of 12 minutes in the store. The length of time spent in the store is normally distributed and is represented by the variable x. A shopper enters the store. Find the probability that the shopper will be in the store for between 24 and 54 minutes.

31. Solution: Finding Probabilities for Normal Distributions P(-1.75 < z < 0.75) P(24 < x < 54) x z -1.75 24 45 0 Normal Distributionμ = 45 σ = 12 Standard Normal Distributionμ = 0 σ = 1 0.0401 0.7734 0.75 54 P(24 < x < 54) = P(-1.75 < z < 0.75) = 0.7734 – 0.0401 = 0.7333

32. Example: Find the probability that the shopper will be in the store more than 39 minutes. (Recall μ = 45 minutes and σ = 12 minutes)

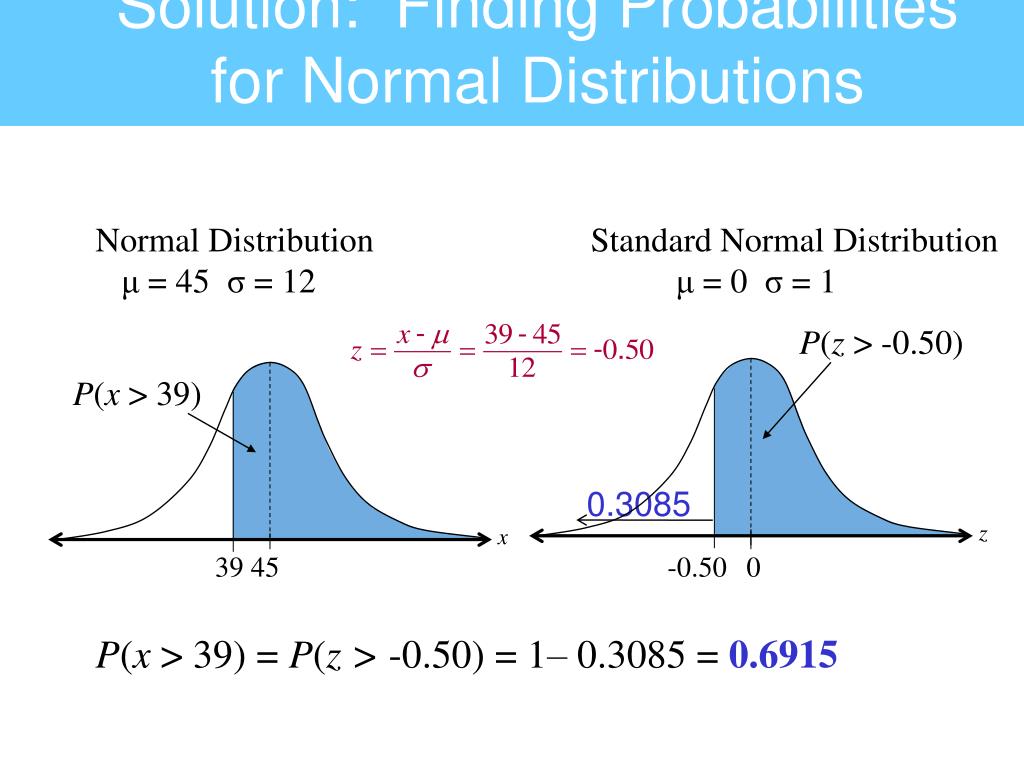

33. Solution: Finding Probabilities for Normal Distributions P(z > -0.50) P(x > 39) x z 39 45 0 Normal Distributionμ = 45 σ = 12 Standard Normal Distributionμ = 0 σ = 1 0.3085 -0.50 P(x > 39) = P(z > -0.50) = 1– 0.3085 = 0.6915

34. Section 5.4 Normal Distributions Finding Values

35. From Areas to z-Scores Find the z-score corresponding to a cumulative area of 0.9803. z = 2.06 corresponds roughly to the 98th percentile. 0.9803 –4 –3 –2 –1 0 1 2 3 4 z Locate 0.9803 in the area portion of the table. Read the values at the beginning of the corresponding row and at the top of the column. The z-score is 2.06.

36. Finding z-Scores from Areas Find the z-score corresponding to the 90th percentile. .90 z 0 The closest table area is .8997. The row heading is 1.2 and column heading is .08. This corresponds to z = 1.28. A z-score of 1.28 corresponds to the 90th percentile.

37. Finding z-Scores from Areas Find the z-score with an area of .60 falling to its right. .40 .60 z 0 z With .60 to the right, cumulative area is .40. The closest area is .4013. The row heading is 0.2 and column heading is .05. The z-score is 0.25. A z-score of 0.25 has an area of .60 to its right. It also corresponds to the 40th percentile

38. 0 Finding z-Scores from Areas Find the z-score such that 45% of the area under the curve falls between –z and z. .275 .275 .45 –z z The area remaining in the tails is .55. Half this area is in each tail, so since .55/2 = .275 is the cumulative area for the negative z value and .275 + .45 = .725 is the cumulative area for the positive z. The closest table area is .2743 and the z-score is 0.60. The positive z score is 0.60.

39. From z-Scores to Raw Scores To find the data value, x when given a standard score, z: The test scores for a civil service exam are normally distributed with a mean of 152 and a standard deviation of 7. Find the test score for a person with a standard z-score of: (a) 2.33 (b) –1.75 (c) 0

40. From z-Scores to Raw Scores To find the data value, x when given a standard score, z: The test scores for a civil service exam are normally distributed with a mean of 152 and a standard deviation of 7. Find the test score for a person with a standard z-score of: (a) 2.33 (b) –1.75 (c) 0 (a) x = 152 + (2.33)(7) = 168.31 (b) x = 152 + (–1.75)(7) = 139.75 (c) x = 152 + (0)(7) = 152

41. Finding Percentiles or Cut-off Values Monthly utility bills in a certain city are normally distributed with a mean of \$100 and a standard deviation of \$12. What is the smallest utility bill that can be in the top 10% of the bills? \$115.36 is the smallest value for the top 10%. 90% 10% z Find the cumulative area in the table that is closest to 0.9000 (the 90th percentile.) The area 0.8997 corresponds to a z-score of 1.28. To find the corresponding x-value, use x = 100 + 1.28(12) = 115.36.

42. Sampling Distributions & The Central Limit Theorem

43. Sampling Distributions A sampling distribution is the probability distribution of a sample statistic that is formed when samples of size n are repeatedly taken from a population. If the sample statistic is the sample mean, then the distribution is the sampling distribution of sample means. Sample Sample Sample Sample Sample Sample The sampling distribution consists of the values of the sample means,

44. Sampling Distribution of x-bar Population with μ, σ Sample 3 The sampling distribution consists of the values of the sample means, Sample 1 Sample 2 Sample 4 Sample 5

45. The Central Limit Theorem If a sample n>= 30 is taken from a population with any type distributionthat has a mean = and standard deviation = x the sample means will have a normal distribution and standard deviation

46. The Central Limit Theorem If a sample of any size is taken from a population with a normal distributionwith mean = and standard deviation = x the distribution of means of sample size n, will be normal with a mean standard deviation

47. Application The mean height of American men (ages 20-29) is inches. Random samples of 60 such men are selected. Find the mean and standard deviation (standard error) of the sampling distribution. mean 69.2 Distribution of means of sample size 60, will be normal. Standard deviation

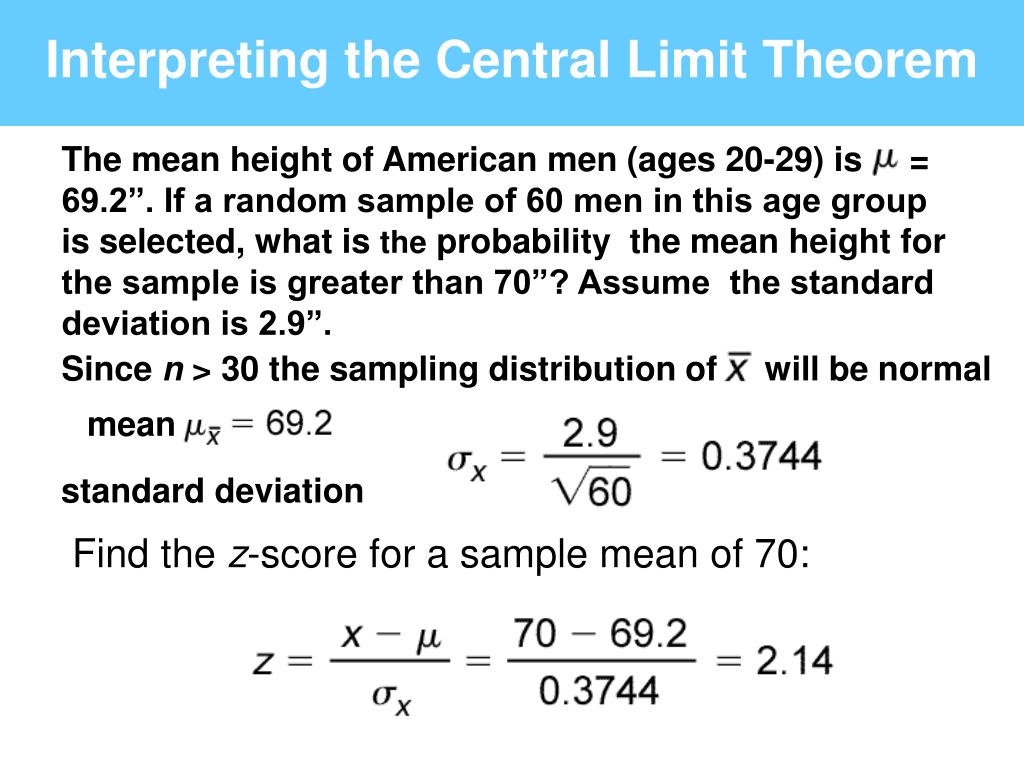

48. Interpreting the Central Limit Theorem The mean height of American men (ages 20-29) is = 69.2”. If a random sample of 60 men in this age group is selected, what is the probability the mean height for the sample is greater than 70”? Assume the standard deviation is 2.9”. Since n > 30 the sampling distribution of will be normal mean standard deviation Find the z-score for a sample mean of 70:

49. Interpreting the Central Limit Theorem 2.14 z There is a 0.0162 probability that a sample of 60 men will have a mean height greater than 70”.

50. Application Central Limit Theorem During a certain week the mean price of gasoline in California was \$1.164 per gallon. What is the probability that the mean price for the sample of 38 gas stations in California is between \$1.169 and \$1.179? Assume the standard deviation = \$0.049. Since n > 30 the sampling distribution of will be normal mean standard deviation Calculate the standard z-score for sample values of \$1.169 and \$1.179.
