Non-Dimmable 8W Power Supply 35V with Selectable Output Current

The PIDA-J201A.5W is a non-dimmable power supply with a compact size of 70×40×25mm, designed for reliable performance. It offers selectable output current options of 150mA and 240mA, ensuring flexibility for various applications. With a power factor greater than 0.55 and low total harmonic distortion (Class C), it meets stringent efficiency standards. Additionally, it features essential protection functions such as Over Voltage Protection (OVP) and Short Circuit Protection (SCP). This power supply is also Class 2, SELV certified, making it safe for use. Mass production began in March 2013, and samples were available since November 2012.

ogden
Télécharger la présentation

Non-Dimmable 8W Power Supply 35V with Selectable Output Current

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

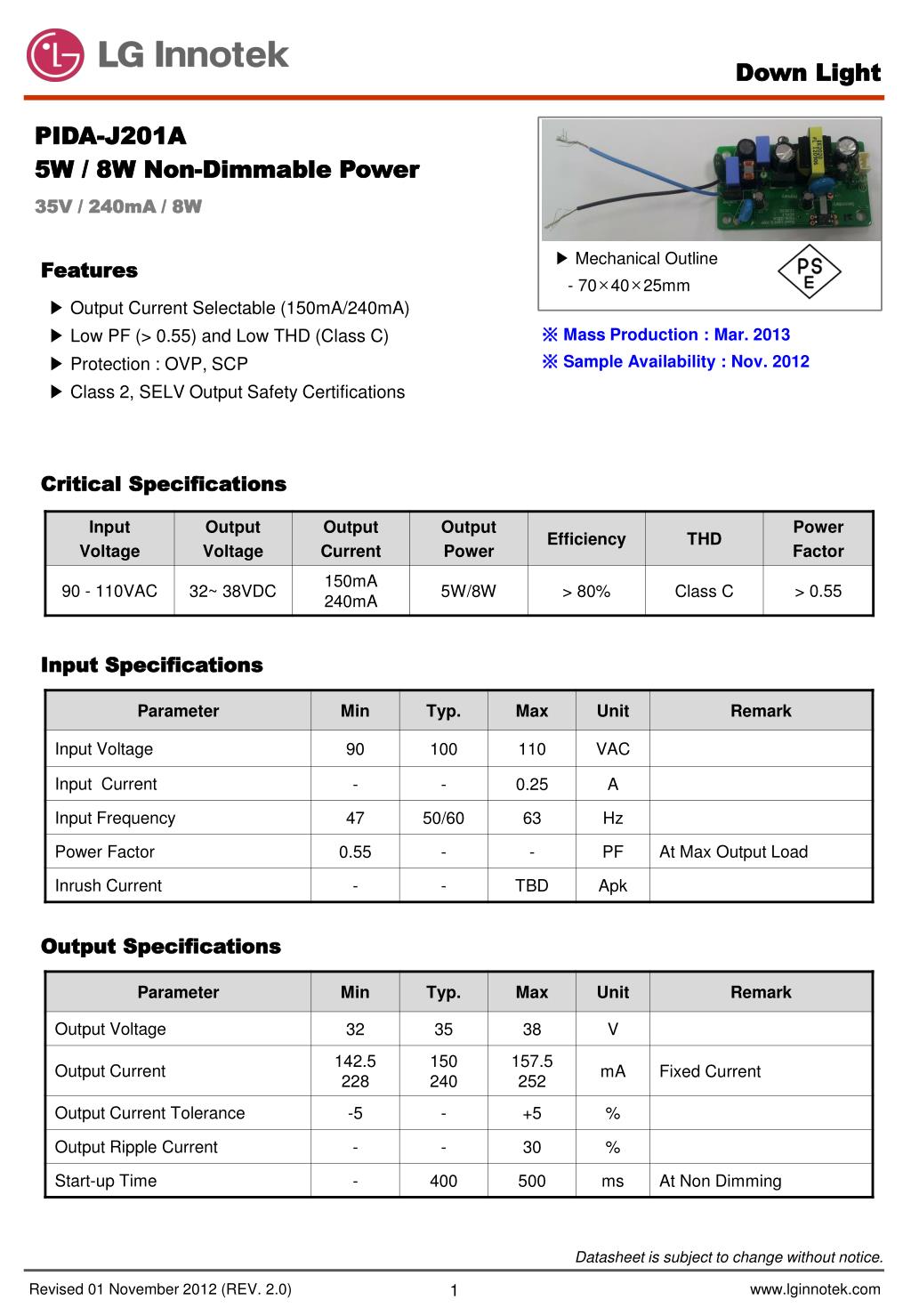

  1. PIDA-J201A 5W / 8W Non-Dimmable Power 35V / 240mA / 8W ▶ Mechanical Outline - 70×40×25mm Features ▶ Output Current Selectable (150mA/240mA) ▶ Low PF (> 0.55) and Low THD (Class C) ▶ Protection : OVP, SCP ▶ Class 2, SELV Output Safety Certifications ※ Mass Production : Mar. 2013 ※ Sample Availability : Nov. 2012 Critical Specifications Input Specifications Output Specifications 1

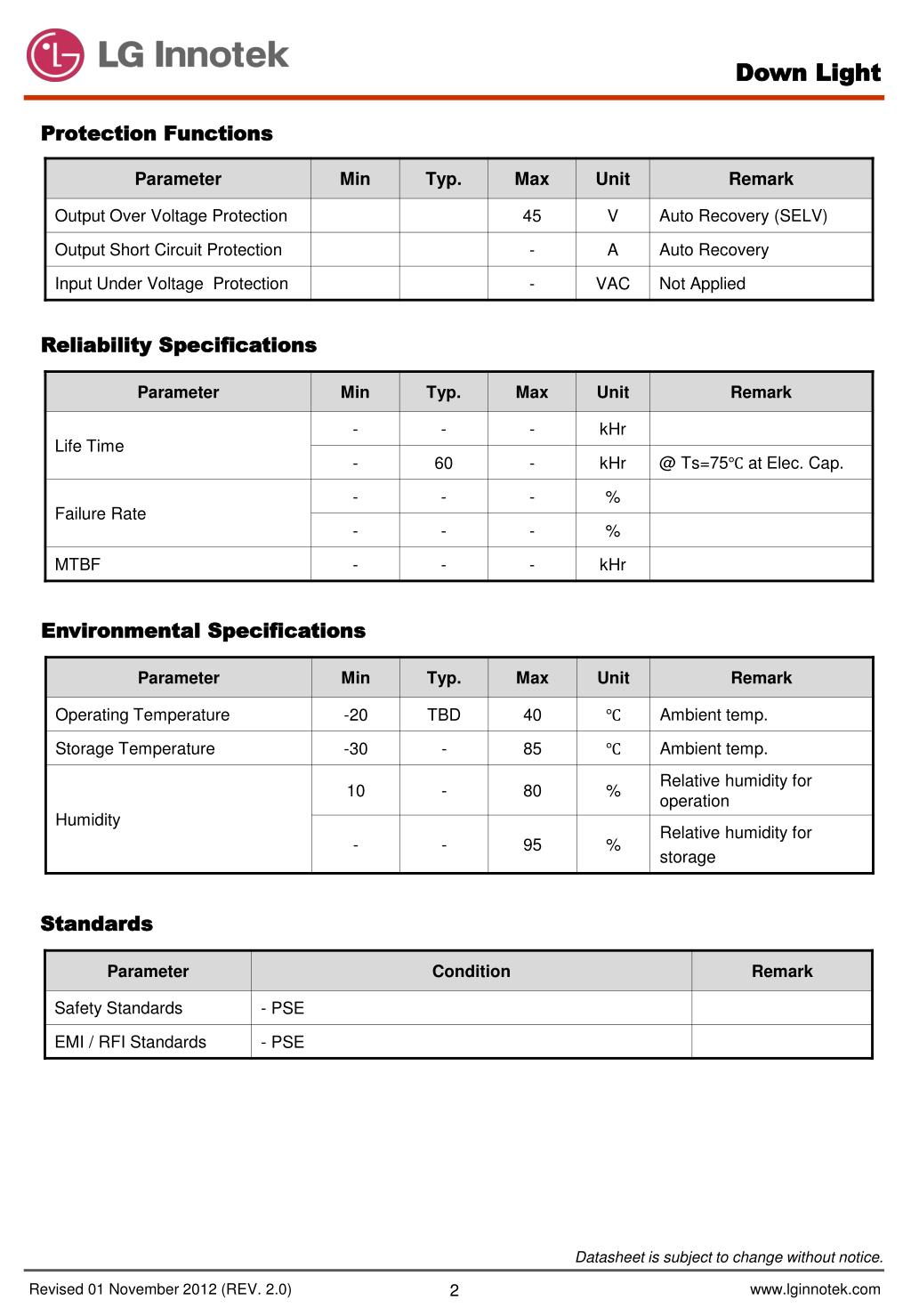

  2. Protection Functions ReliabilitySpecifications EnvironmentalSpecifications Standards 2
