Project Demonstration

This demonstration, led by Craig Dowie on June 28, 1998, investigates improvements in data transmission security and reliability by utilizing multiple physically disjoint communication links between hosts. The project showcases secure data transmission using separate paths, illustrating potential vulnerabilities when one path is compromised without impacting overall data security. Key components include three Pentium MMX laptops running Windows NT 4.0, utilizing Ricochet RF wireless modems and null modems for connections. This work precedes further research into wireless technologies and multiple-path communication strategies.

oki
Télécharger la présentation

Project Demonstration

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Project Demonstration Mobile Adaptive Computing Craig Dowie 28th June 1998

  2. Project Goals • Investigation into improving the security and reliability of data transmissions between hosts by the use of multiple, physically disjoint communications links • E.g. naturally disjoint wireless links ( RF modems, Infra-Red, etc) , distinct network links on WAN (e.g. Internet)

  3. This demo... • … demonstrates some concepts behind project work • … demonstrates secure transmission of data between hosts using two physically disjoint paths • …illustrates how a single path can be compromised without affecting data security • … uses a trivial (XOR) encryption scheme

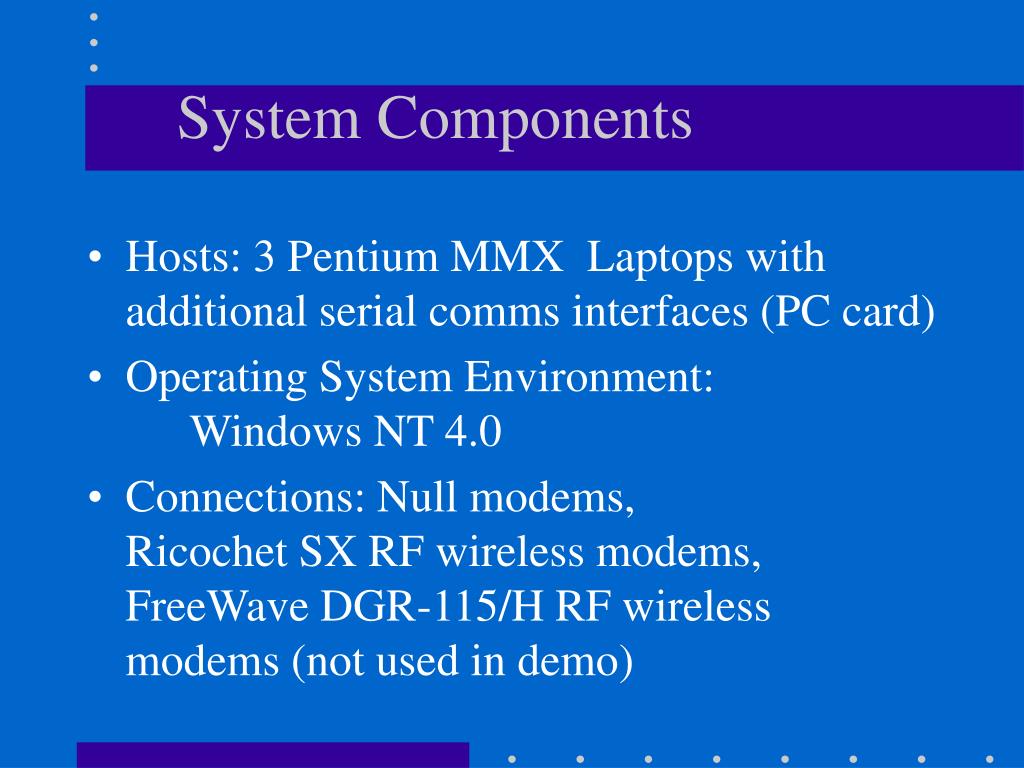

  4. System Components • Hosts: 3 Pentium MMX Laptops with additional serial comms interfaces (PC card) • Operating System Environment: Windows NT 4.0 • Connections: Null modems, Ricochet SX RF wireless modems, FreeWave DGR-115/H RF wireless modems (not used in demo)

  5. Physical Configuration • 3 physical connections:- • Arapahoe to Cree : Wireless Ricochet • Sioux to Cree : Wireless Ricochet • Arapahoe to Sioux : Null Modem (RS-232) • Additional possible paths: Telephone connections, ethernet LAN connections, Freewave wireless connections

  6. Physical Configuration Ricochet Cree Ricochet Ricohet Arapahoe Null Ricochet Sioux Null

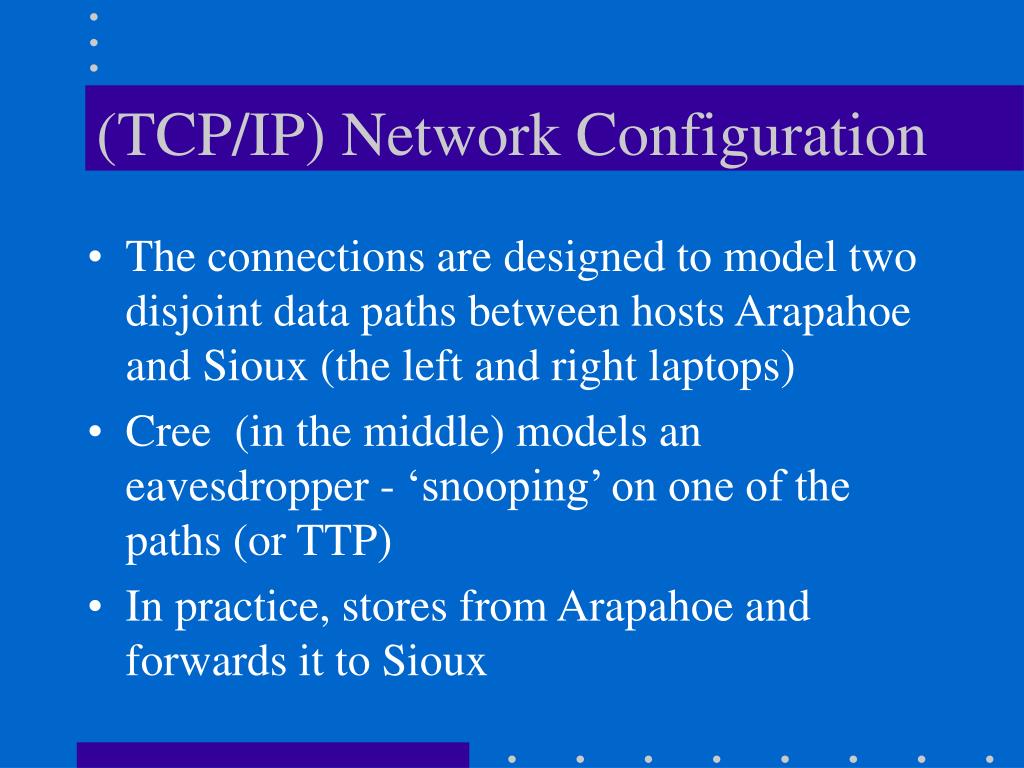

  7. (TCP/IP) Network Configuration • The connections are designed to model two disjoint data paths between hosts Arapahoe and Sioux (the left and right laptops) • Cree (in the middle) models an eavesdropper - ‘snooping’ on one of the paths (or TTP) • In practice, stores from Arapahoe and forwards it to Sioux

  8. (TCP/IP) Network Configuration Cree 1.1.1.11 1.1.1.13 Arapahoe 1.1.1.3 1.1.1.12 Sioux 1.1.1.2

  9. Demo Information Flow • Arapahoe: reads data to be sent from a file; generates a key and encrypts the data • Transmits the data along null modem connection (directly to Sioux) • Transmits the key along the wireless (Ricochet) path to Sioux (via Cree) • Cree ‘intercepts’ and displays the key

  10. Security Configuration Cree (Eve) Arapahoe (Alice) Sioux (Bob)

  11. Demo Information flow Cree KEY KEY Arapahoe DATA KEY Sioux DATA

  12. Continuing Work • Multiple path socket class based on TCP/IP sockets • Multiple path and node management software (COMPASS) • Further investigation of wireless and communications hardware (e.g. wireless ethernet technology)

  13. Thank You! • Please feel free to ask any unanswered questions!
