  1. Computing development projectsGRIDSM. Turala The Henryk Niewodniczanski Instytut of Nuclear Physics PAN and the Academic Computing Center Cyfronet AGH, Kraków Warszawa, 25 February 2005

  2. Outline- computing requirements of the future HEP experiments- HEP world wide computing models and related grid projects- Polish computing projects: PIONIER and GRIDS- Polish participation in the LHC Computing Grid (LCG) project Warszawa, 25 February 2005

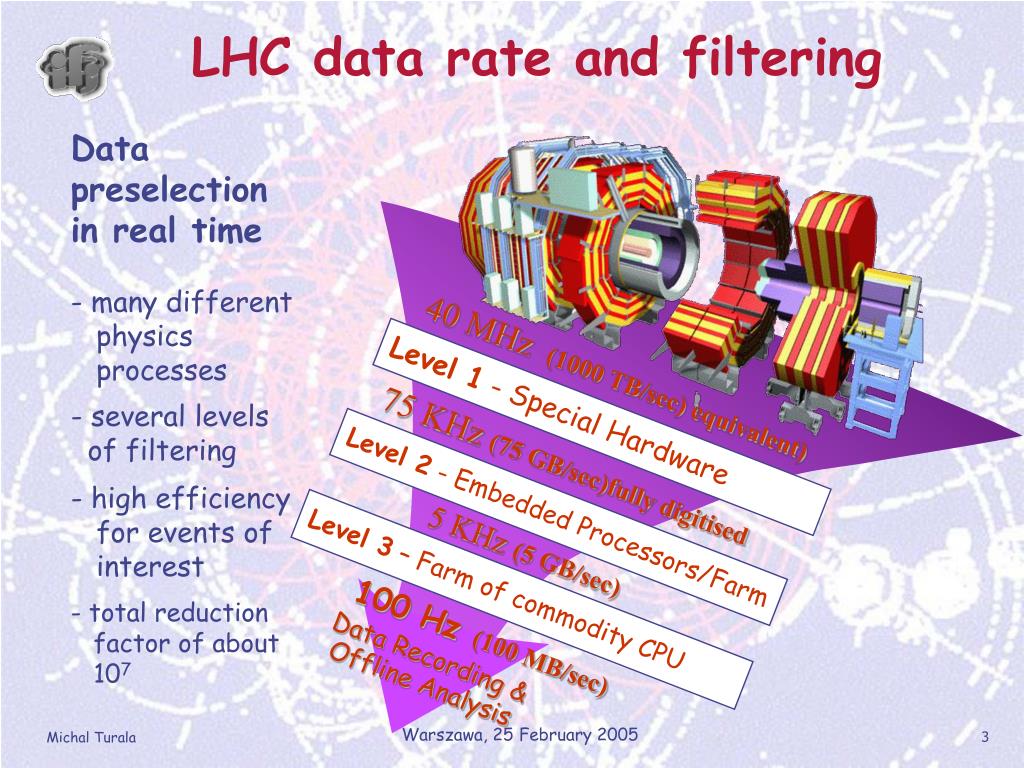

  3. LHC data rate and filtering Data preselection in real time- many different physics processes- several levels of filtering- high efficiency for events of interest- total reduction factor of about 107 40 MHz (1000 TB/sec) equivalent) Level 1 - Special Hardware 75 KHz (75 GB/sec)fully digitised Level 2 - Embedded Processors/Farm 5 KHz(5 GB/sec) Level 3 – Farm of commodity CPU 100 Hz(100 MB/sec) Data Recording & Offline Analysis Warszawa, 25 February 2005

  4. Data rate for LHC p-p events Typical parameters: Nominal rate - 109 events/s (luminosity 1034/cm2s, collision rate 40MHz) Registration rate - ~100 events/s(270 events/s) Event size - ~1 M Byte/ event (2 M Byte/ event) Running time ~ 107 s/ year Raw data volume ~2 Peta Byte/year/experiment Monte Carlo’s ~1 Peta Byte/year/experiment The rate and volume of HEP data doubles every 12 months !!! Already today BaBar, Belle, CDF, DO experiments produce 1 TB/ day Warszawa, 25 February 2005

  5. 35K SI95 250K SI95 350K SI95 64 GB/sec 0.1 to 1GB/sec Data analysis scheme 1-100 GB/sec One Experiment 200 TB / year Event Filter (selection & reconstruction) Detector ~200 MB/sec Event Summary Data 1 PB / year Raw data Batch Physics Analysis 500 TB Processed Data Event Reconstruction ~100 MB/sec analysis objects Event Simulation Interactive Data Analysis Thousands of scientists from M. Delfino Warszawa, 25 February 2005

  6. Multi-tier model of data analysis Warszawa, 25 February 2005

  7. Lab m Uni x USA Brookhaven Uni a UK USA FermiLab Lab a France Tier 1 Physics Department Uni n CERN Tier2 ………. Italy Desktop Lab b Germany NL Lab c  Uni y Uni b   LHCcomputing model (Cloud) The LHC Computing Centre

  8. ICFA Network Task Force (1998): required network bandwidth (Mbps) 100–1000 X Bandwidth Increase Foreseen for 1998-2005 See the ICFA-NTF Requirements Report: http://l3www.cern.ch/~newman/icfareq98.html

  9. LHC computing – specifications for Tier0 and Tier1 CERN ALICE ATLAS CMS LHCb CPU (kSI95) 824 690 820 225 Disk Pool (TB) 535 410 1143 330 Aut. Tape (TB) 3200 8959 1540 912 Shelf Tape (TB) - - 2632 310 Tape I/O (MB/s) 1200 800 800 400 Cost 2005-7 (MCHF) 18.1 23.7 23.1 7.0 Tier 1 CPU (kSI95) 234 209 417 140 Disk Pool (TB) 273 360 943 150 Aut. Tape (TB) 400 1839 590 262 Shelf Tape (TB) - - 683 55 Tape I/O (MB/s) 1200 800 800 400 # Tier 4 6 5 5 Cost av (MCHF) 7.1 8.5 13.6 4.0 Warszawa, 25 February 2005

  10. Development of Grid projects Warszawa, 25 February 2005

  11. EU FP5 Grid Projects 2000-2004 (EU Funding: 58 M€) from M. Lemke at CGW04 • Infrastructure • DataTag • Computing • EuroGrid, DataGrid, Damien • Tools and Middleware • GridLab, GRIP • Applications • EGSO, CrossGrid,BioGrid, FlowGrid, Moses, COG, GEMSS, Grace, Mammogrid, OpenMolGrid, Selene, • P2P / ASP / Webservices • P2People, ASP-BP,GRIA, MMAPS, GRASP, GRIP, WEBSI • Clustering • GridStart Applications Middleware Infrastructure

  12. Strong Polish Participation in FP5 Grid Research Projects 2 Polish-led Projects (out of 12) • CrossGrid • CYFRONET Cracow • ICM Warsaw • PSNC Poznan • INP Cracow • INS Warsaw • GridLab • PSNC Poznan Significant share of funding to Poland versus EU25 • FP5 IST Grid Research Funding: 9.96 % • FP5 wider IST Grid Project Funding: 5 % • GDP: 3.8 % • Population: 8.8 % from M. Lemke at CGW04 CROSSGRID partners

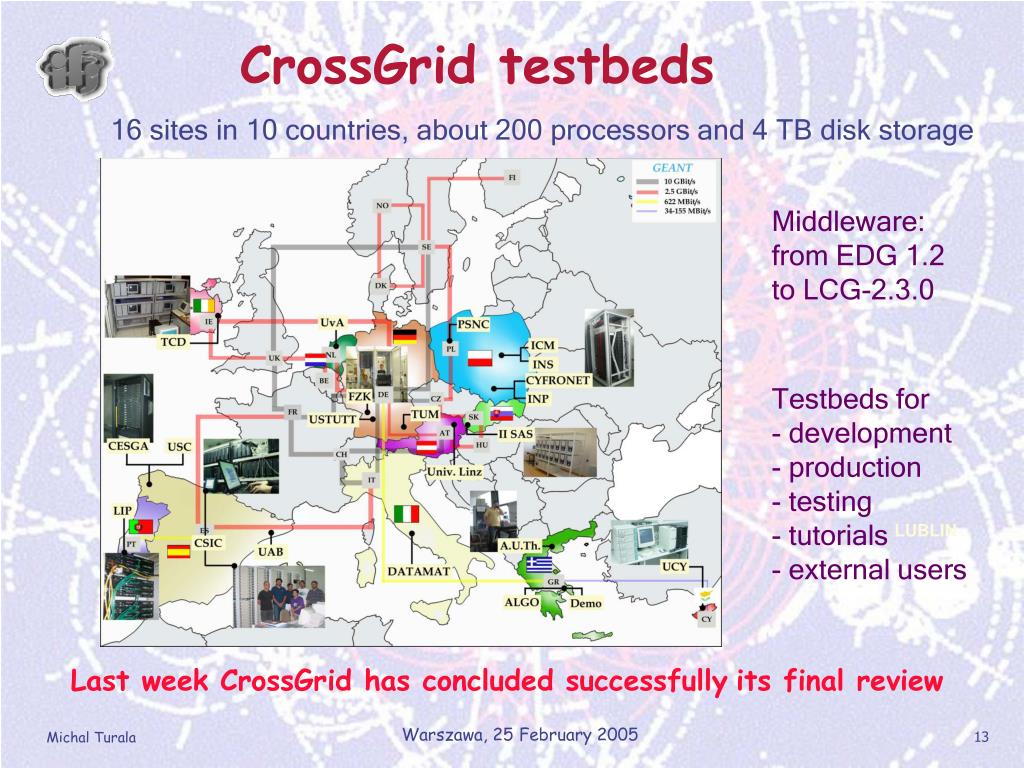

  13. CrossGrid testbeds 16 sites in 10 countries, about 200 processors and 4 TB disk storage Middleware: from EDG 1.2 to LCG-2.3.0 SZCZECIN BYDGOSZCZ TORUŃ • Testbeds for • development • production • testing • tutorials • external users OPOLE LUBLIN Last week CrossGrid has concluded successfullyits final review Warszawa, 25 February 2005

  14. CrossGrid applications OLSZTYN ELBLĄG SZCZECIN Medical Flood prediction BIAŁYSTOK TORUŃ POZNAŃ Blood flow simulation, supporting vascular surgeons in the treatment of arteriosclerosis Flood prediction and simulation based on weather forecasts and geographical data WARSZAWA PUŁAWY WROCŁAW KIELCE OPOLE Meteo Pollution Physics CZĘSTOCHOWA KRAKÓW KATOWICE RZESZÓW Distributed data mining in high energy physics, supporting the LHC collider experiments at CERN Large-scale weather forecasting combined with air pollution modeling (for various pollutants) BIELSKO-BIAŁA Warszawa, 25 February 2005

  15. Grid for real time data filtering GDAŃSK KOSZALIN OLSZTYN ELBLĄG SZCZECIN BYDGOSZCZ BIAŁYSTOK TORUŃ POZNAŃ WARSZAWA ZIELONA GÓRA RADOM ŁÓDŹ PUŁAWY WROCŁAW KIELCE OPOLE LUBLIN CZĘSTOCHOWA KRAKÓW KATOWICE RZESZÓW BIELSKO-BIAŁA Studies on a possible use of remote computing farms for event filtering; in 2004 beam test data shipped to Cracow, and back to CERN, in real time. Warszawa, 25 February 2005

  16. LHC Computing Grid project-LCG • Objectives • - design, prototyping and implementation of the computing • environment for LHC experiments (MC, reconstruction and • data analysis): • - infrastructure • - middleware • - operations (VO) • Schedule • phase 1 (2002 – 2005;~50 MCHF); R&D and prototyping (up to • 30% of the final size) • - phase 2 (2006 – 2008 ); preparation of a Technical Design • Report, Memoranda of Understanding, deployment (2007) • Coordination • Grid Deployment Board: representatives of the world HEP • community, supervising of the LCG grid deployment and testing Warszawa, 25 February 2005

  17. Country providing resources • Country anticipating joining EGEE/LCG • In EGEE-0 (LCG-2): • 91 sites • >9000 cpu • ~5 PB storage From F. Gagliardi at CGW04 Computing Resources – Dec. 2004 Three Polish institutions involved - ACC Cyfronet Cracow - ICM Warsaw - PSNC Poznan Polish investment in the local infrastructure EGEE supporting the operations

  18. Polish Participation in LCG project • Polish Tier2 • INP/ ACC Cyfronet Cracow • resources (plans for 2004) • 128 processors (50%), • storage: disk ~ 10TB, tape (UniTree) ~10 TB (?) • manpower • engineers/ physicists ~ 1 FTE + 2 FTE (EGEE) • ATLAS data challenges – qualified in 2002 • INS/ ICM Warsaw • resources (plans for 2004) • 128 processors (50%), • storage: disk ~ 10TB, tape ~ 10 TB • manpower • engineers/ physicists ~ 1 FTE + 2 FTE (EGEE) • Connected to LCG-1 world-wide testbed in September 2003 Warszawa, 25 February 2005

  19. Polish networking - PIONIER 5200 km fibres installed, connecting 21 MAN centres Stockholm GEANT Prague • Good connectivity of HEP centres to MANs • - IFJ PAN to MAN • Cracow – 100 Mb/s • -> 1 Gbs, • INS to MAN • Warsaw – 155 Mb/s Multi-lambda connections planned from the report of PSNC to ICFA ICIC, Feb. 2004 (M. Przybylski) Warszawa, 25 February 2005

  20. INTERNET PC Linux clusterat ACC Cyfronet CrossGrid – LCG-1 4 nodes 1U 2x PIII, 1GHz 512 MB RAM 40 GB HDD 2 x FastEthernet 100Mb/s 23 nodes 1U 2x Xeon 2,4Ghz 1 GB RAM 40 GB HDD Ethernet 100Mb/s+1Gb/s HP ProCurve Switch 40 ports 100Mb/s, 1 port 1Gb/s (uplink) Monitoring: 1U unit KVM keyboard touch pad LCD Ethernet 100 Mb PIII 1GHz Xeon 2,4 GHz Last year 40 nodes of I64 processors have been added; in 2005 investments of 140 Linux 32 bit processors and 20 - 40 TB of disk storage are planned Warszawa, 25 February 2005

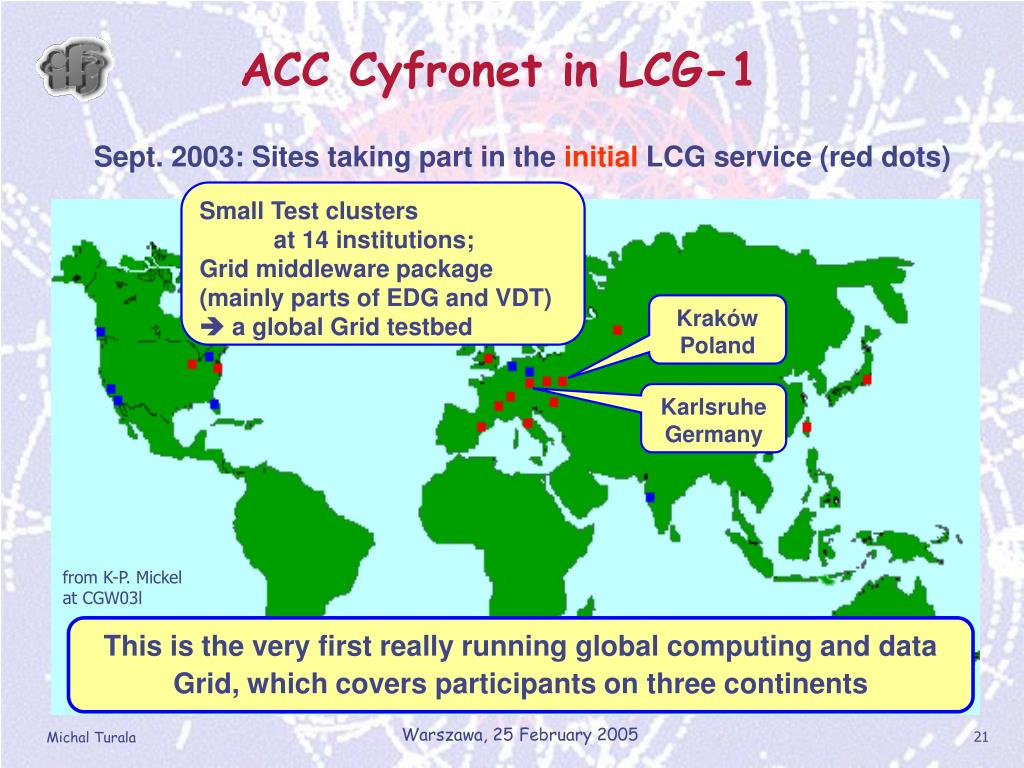

  21. ACC Cyfronet in LCG-1 Sept. 2003: Sites taking part in the initial LCG service (red dots) Small Test clusters at 14 institutions; Grid middleware package(mainly parts of EDG and VDT)  a global Grid testbed Kraków Poland Karlsruhe Germany from K-P. Mickel at CGW03l This is the very first really running global computing and data Grid, which covers participants on three continents Warszawa, 25 February 2005

  22. Linux Cluster at INS/ ICM CrossGrid – EGEE - LCG PRESENT STATE • cluster at the Warsaw University • (Physics Department) • Worker Nodes: 10 CPUS (Athlon 1.7 MHz) • Storage Element: ~ 0.5 TB • Network: 155 Mb/s • LCG 2.3.0, registered in LCG Test Zone NEAR FUTURE (to be ready in June 2005) • cluster at the Warsaw University (ICM) • Worker Nodes: 100 - 180 CPUS (64-bit) • Storage Element: ~ 9 TB • Network: 1 Gb/s (PIONEER) from K. Nawrocki Warszawa, 25 February 2005

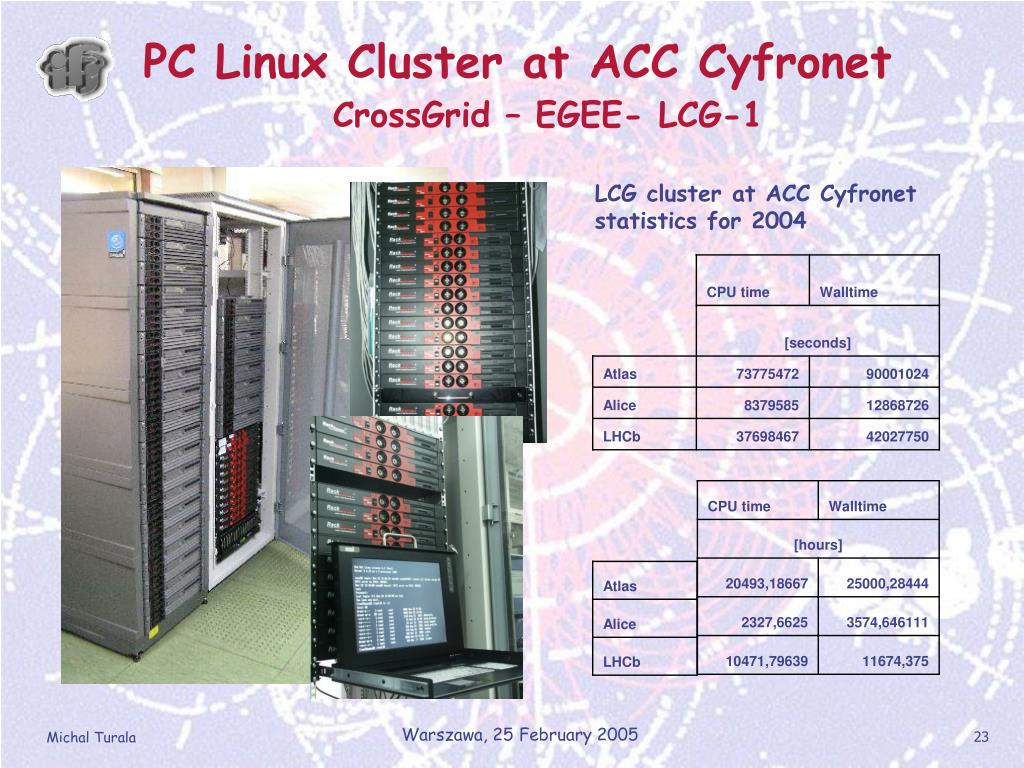

  23. PC Linux Cluster at ACC Cyfronet CrossGrid – EGEE- LCG-1 LCG cluster at ACC Cyfronet statistics for 2004 Warszawa, 25 February 2005

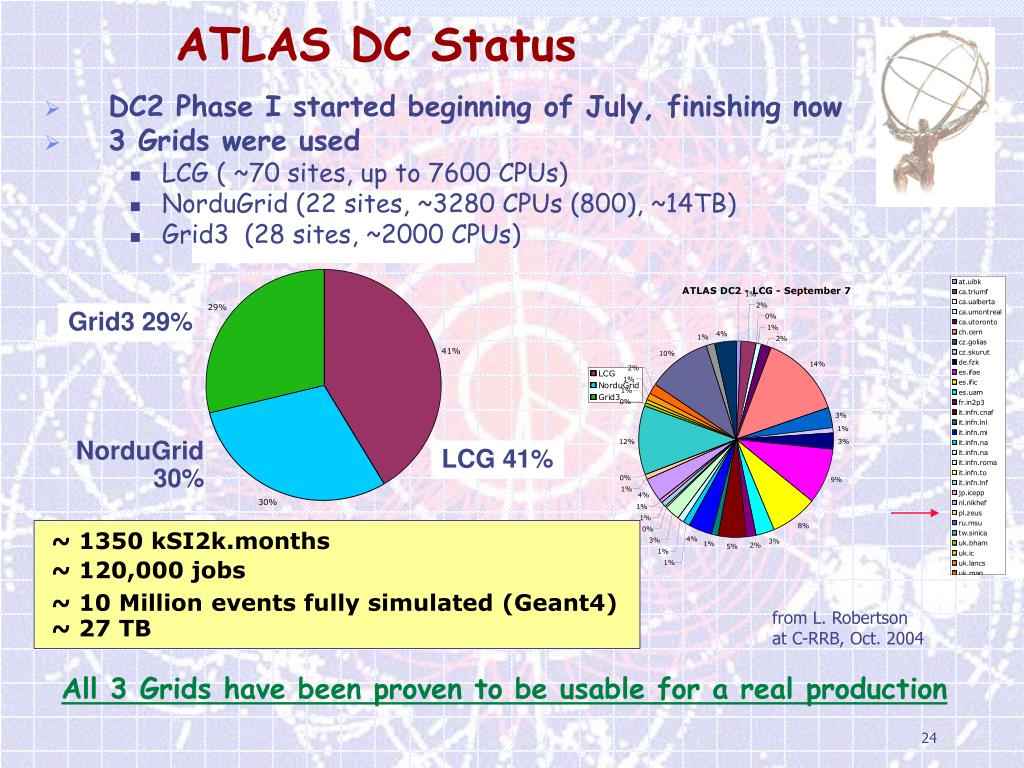

  24. ~ 1350 kSI2k.months ~ 120,000 jobs ~ 10 Million events fully simulated (Geant4) ~ 27 TB ATLAS DC Status • DC2 Phase I started beginning of July, finishing now • 3 Grids were used • LCG ( ~70 sites, up to 7600 CPUs) • NorduGrid (22 sites, ~3280 CPUs (800), ~14TB) • Grid3 (28 sites, ~2000 CPUs) Grid3 29% NorduGrid 30% LCG 41% from L. Robertson at C-RRB, Oct. 2004 All 3 Grids have been proven to be usable for a real production ATLAS

  25. Polish LHC Tier2 - future „In response to the LCG MoU draft document and using data of the PASTA report the plans for Polish Tier2 infrastructure have been prepared – they are summarized in the Table It is planned that in the next few years the LCG resources will grow incrementally mainly due to local investments. A step is expected around 2007, when the matter of LHC computing fundings should be finally resolved.” from the report to LCG GDB, 2004 Warszawa, 25 February 2005

  26. Thank you for your attention Warszawa, 25 February 2005
