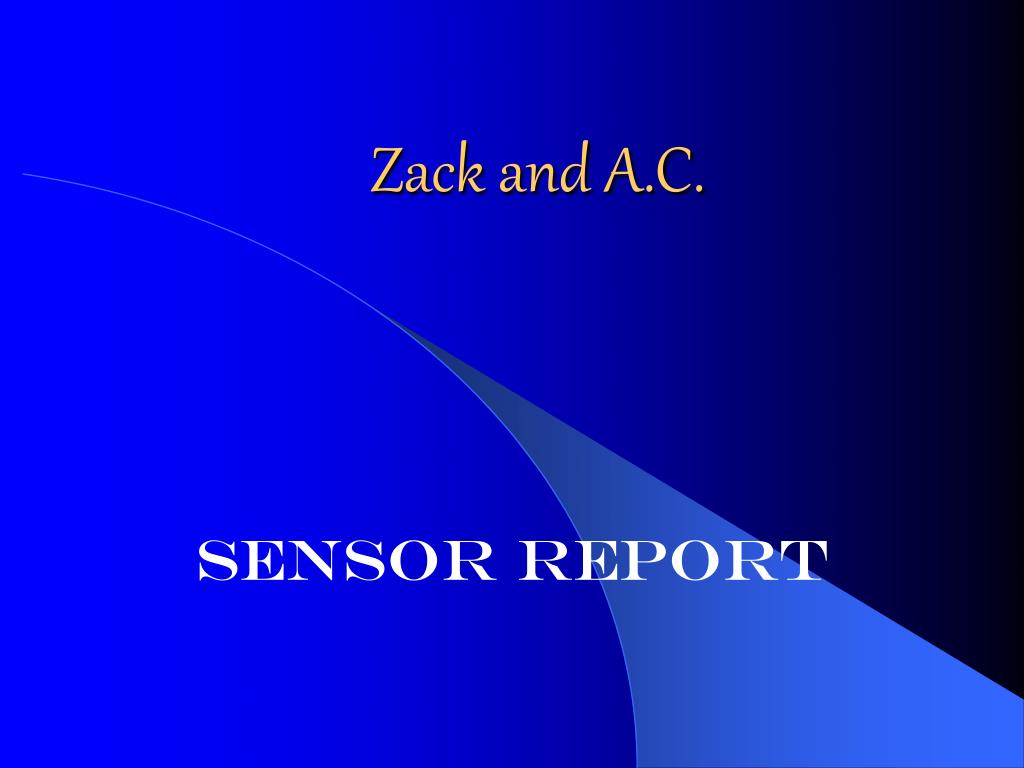

  1. Zack and A.C. Sensor Report

  2. AM-RTD-315Transceiver Module • Amplitude Modulation • 50 Ω whip antenna • Antenna length = λ/4 • Half- duplex • 10kbps raw data

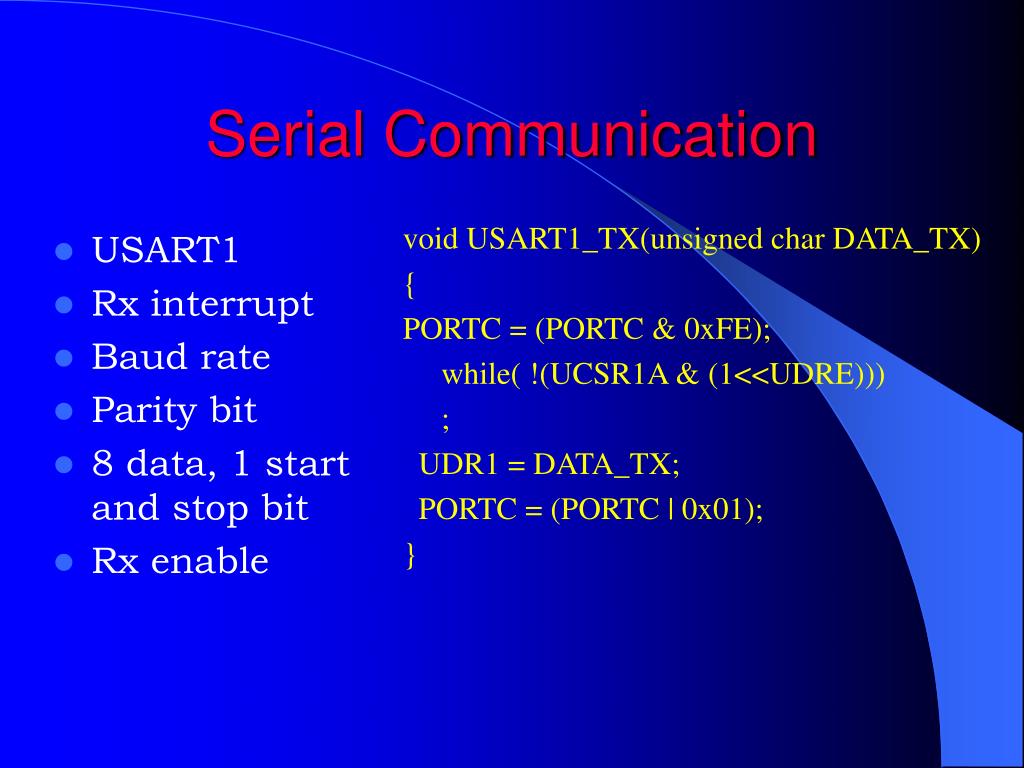

  3. USART1 Rx interrupt Baud rate Parity bit 8 data, 1 start and stop bit Rx enable void USART1_TX(unsigned char DATA_TX) { PORTC = (PORTC & 0xFE); while( !(UCSR1A & (1<<UDRE))) ; UDR1 = DATA_TX; PORTC = (PORTC | 0x01); } Serial Communication

  4. Encoding Manchester • less susceptible to noise • halves data rate

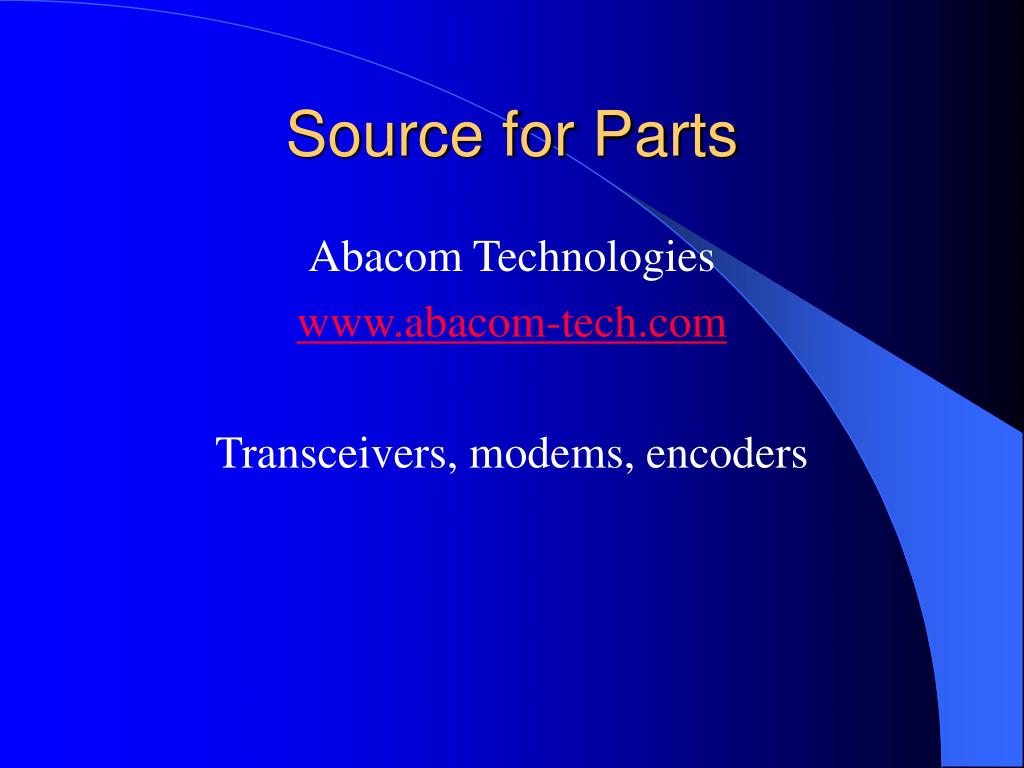

  5. Source for Parts Abacom Technologies www.abacom-tech.com Transceivers, modems, encoders
