  1. Updated Bow Enclosure Concept Assumptions • Provide, install and maintain for static, dynamic and variable loads as well as wind, rain and snow loads Scaffolding height to underside of hull, or to an outer height of 40 ft, no roof. • Air handling detailed design and value engineering required to confirm concept: Use Heat Control Zones: Humidity specification shall be that the temperature is at least 5 degrees above dew point. Place support equipment (electrical panels; blowers; heaters; filters) external to containment for access.

  2. Enclosure Summary Shrink wrap Application Containment:> Shall consist of staging enclosed by shrink wrap > Four sides with mid line barrier> 80 ft wide x 40 ft long > 40 ft high at front & 40 ft high at back Support Area:> Shall consist of open area under the hulls > 40 ft wide, 74 ft long, 30 ft highShrink wrap two-level Kitchen and Mix Area Containment:> Shall consist of staging enclosed by shrink wrap > Four sides, mid floor barrier and roof > 30 ft wide x 20 ft long x 28 ft tall (two levels, upper level supporting 4,000lbs)Heated Hazmat Storage: > 2 separate heated, approved lockers > ISO Locker (supporting 6 each 55 gallon drums, at least 75 °F, no greater than 100°F) > Resin Locker (supporting 10 each 55 gallon drums at least 60 °F, no greater than 100°F)

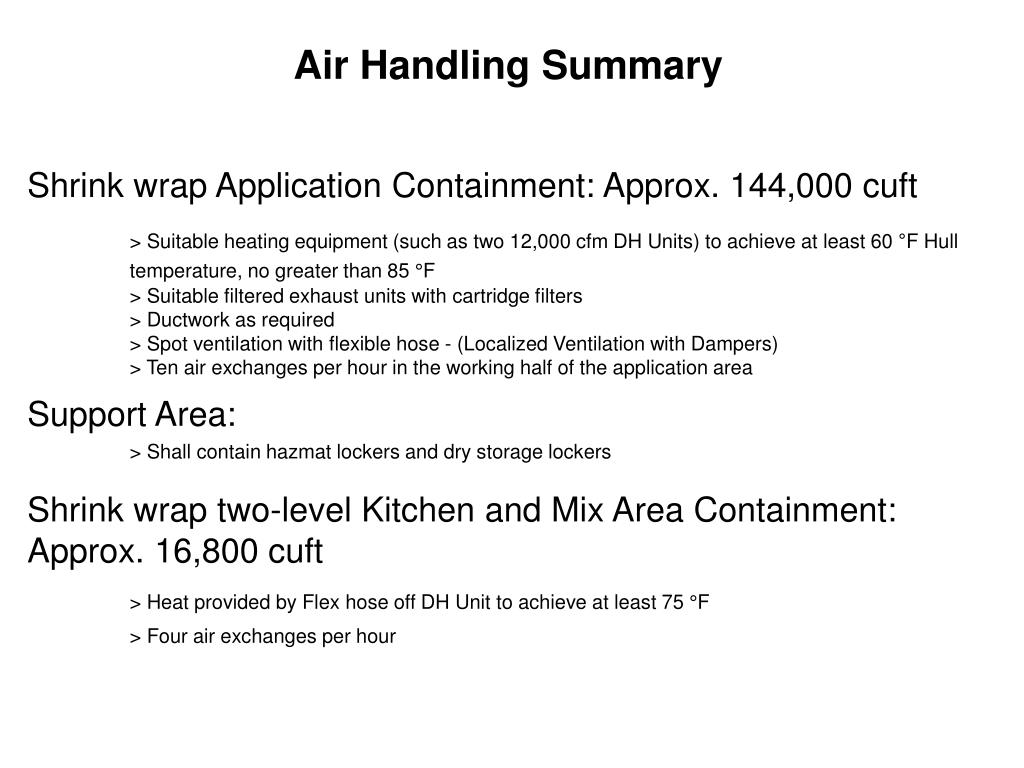

  3. Air Handling Summary Shrink wrap Application Containment: Approx. 144,000 cuft > Suitable heating equipment (such as two 12,000 cfm DH Units) to achieve at least 60 °F Hull temperature, no greater than 85 °F > Suitable filtered exhaust units with cartridge filters > Ductwork as required > Spot ventilation with flexible hose - (Localized Ventilation with Dampers) > Ten air exchanges per hour in the working half of the application area Support Area: > Shall contain hazmat lockers and dry storage lockers Shrink wrap two-level Kitchen and Mix Area Containment: Approx. 16,800 cuft> Heat provided by Flex hose off DH Unit to achieve at least 75 °F > Four air exchanges per hour

  4. Sea Fighter Work Area Bow Application Containment (Port and Stbd)

  5. Proposed Sea Fighter Work Area Concept Kitchen Area (Heat Control Zone) Mix Area (Heat Control Zone) HazMat Storage Area (Heat Control Zone) Support Area • Containment Volume Contains: • Application Area (Heat Control Zone) • Mix Area (Heat Control Zone) • Kitchen Area (Heat Control Zone) • Support Area • Dry Storage Area • HazMat Storage Area (Heat Control) Port and Stbd Application Areas (Heat Control Zones) Bow Application Containment

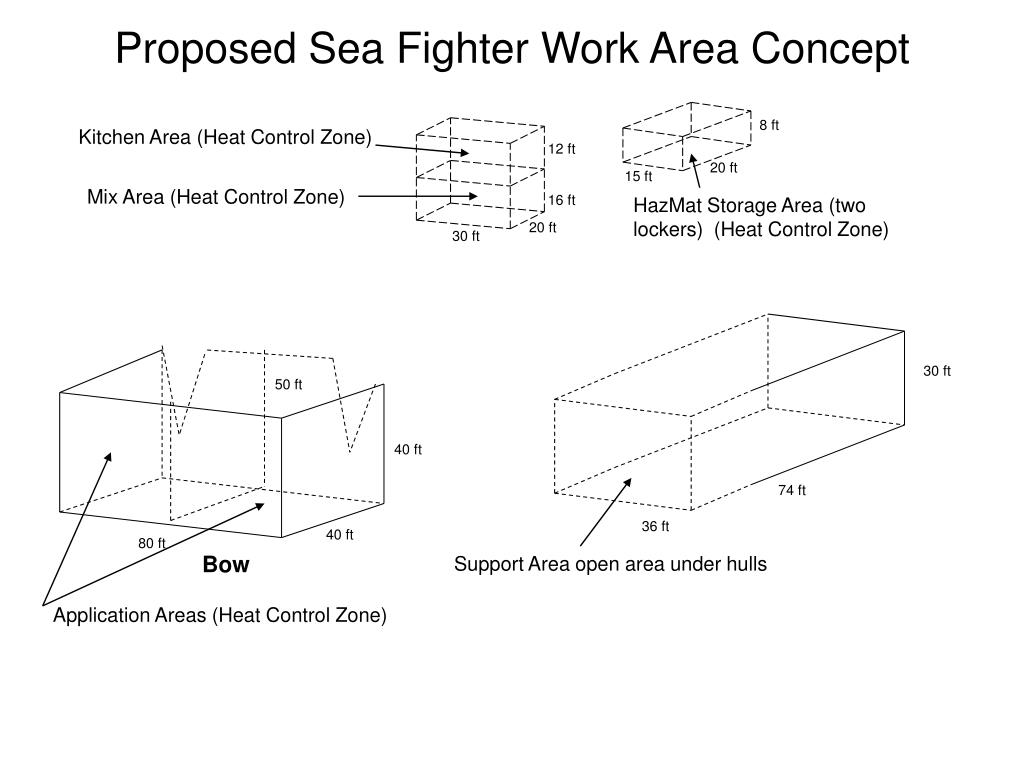

  6. Proposed Sea Fighter Work Area Concept 8 ft 20 ft 15 ft Kitchen Area (Heat Control Zone) 12 ft Mix Area (Heat Control Zone) 16 ft HazMat Storage Area (two lockers) (Heat Control Zone) 20 ft 30 ft 30 ft 50 ft 40 ft 74 ft 36 ft 40 ft 80 ft Bow Support Area open area under hulls Application Areas (Heat Control Zone)

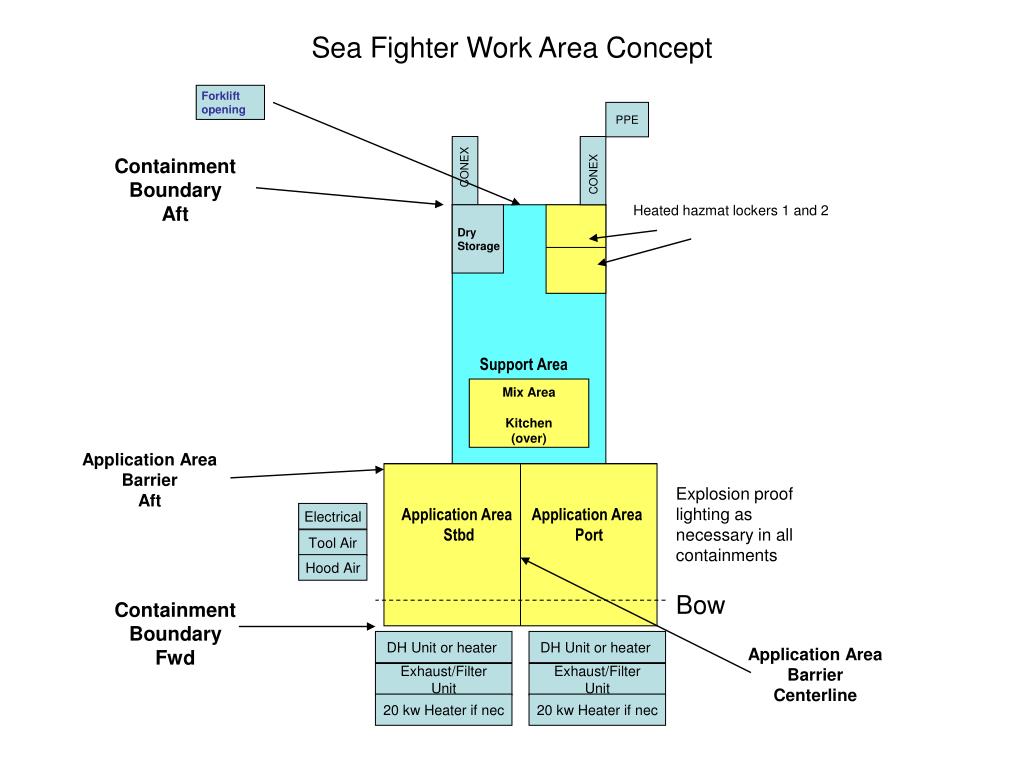

  7. Sea Fighter Work Area Concept DH Unit or heater Electrical DH Unit or heater Exhaust/Filter Unit Tool Air Exhaust/Filter Unit 20 kw Heater if nec Hood Air 20 kw Heater if nec Forklift opening PPE Containment Boundary Aft CONEX CONEX Heated hazmat lockers 1 and 2 Dry Storage Support Area Mix Area Kitchen (over) Application Area Barrier Aft Explosion proof lighting as necessary in all containments Application Area Stbd Application Area Port Bow Containment Boundary Fwd Application Area Barrier Centerline
