Inductors

Inductors. Energy Storage. Current passing through a coil causes a magnetic field Energy is stored in the field Similar to the energy stored by capacitors We saw a charging time for a capacitor An inductor takes time to store energy also. Simple RL Circuit.

onan
Télécharger la présentation

Inductors

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

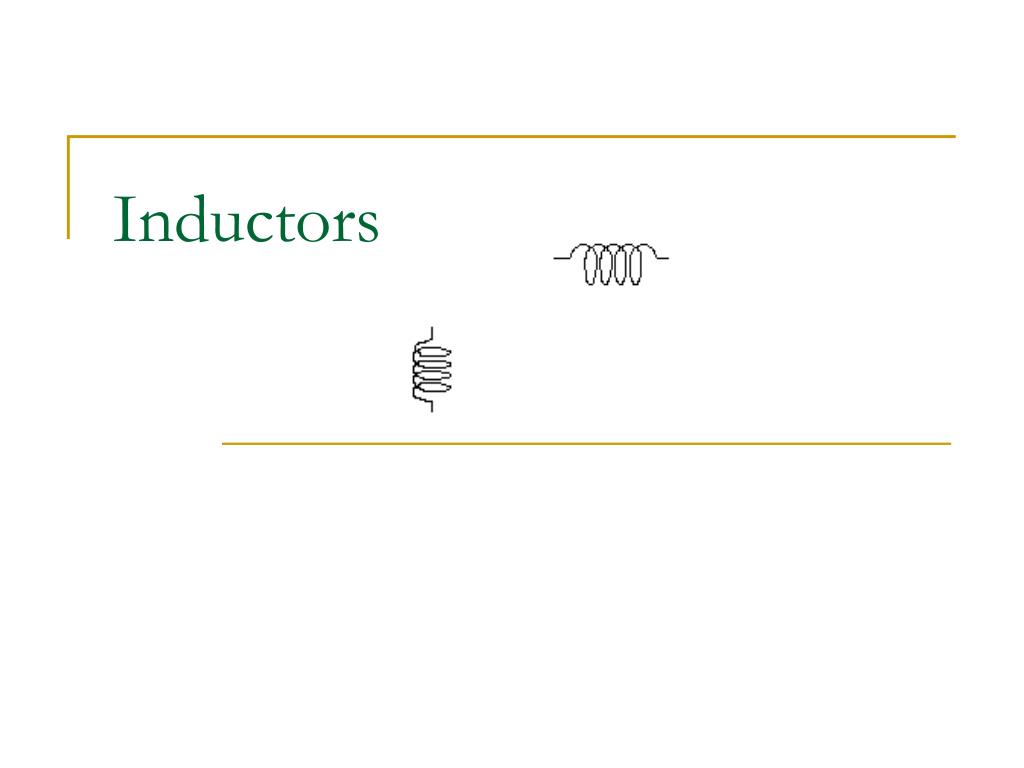

  1. Inductors

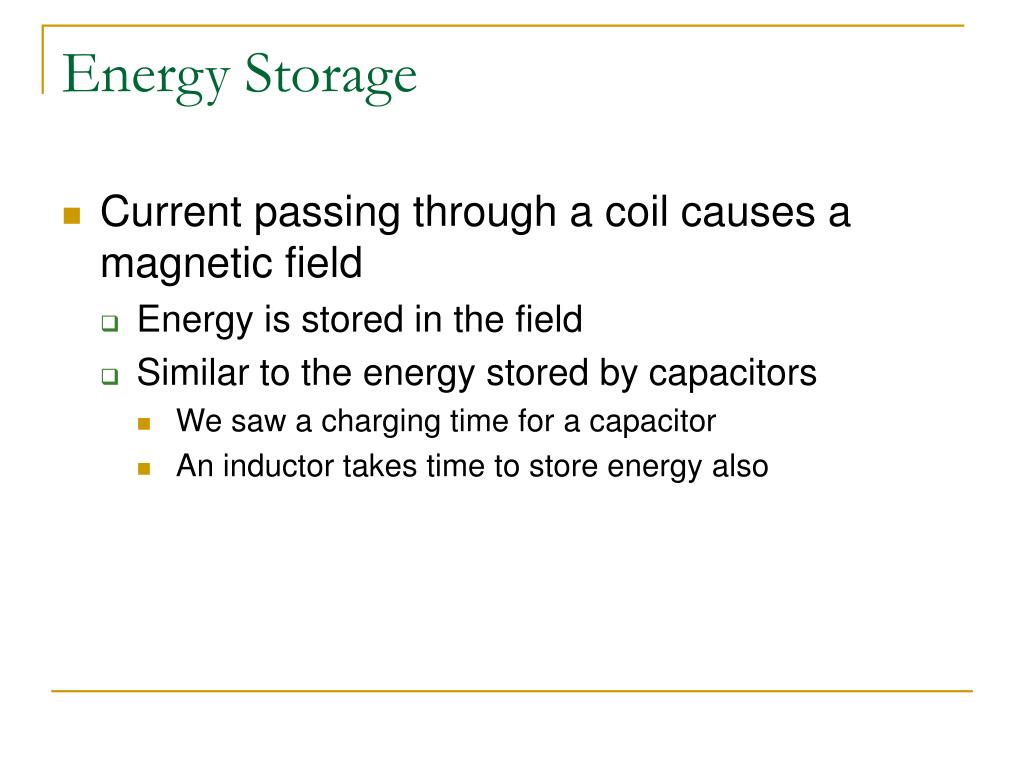

  2. Energy Storage • Current passing through a coil causes a magnetic field • Energy is stored in the field • Similar to the energy stored by capacitors • We saw a charging time for a capacitor • An inductor takes time to store energy also

  3. Simple RL Circuit L must have units of Ohmsseconds

  4. From the Construction • Inductance N = number of turns on the coil m = permeability of the core (henrys/m) A = cross sectional area (m2) l = length of core (m) L = inductance in henrys

  5. Relative Permeability • Many texts and handbooks publish Km, where m = Kmmo mo = permeability of free space = 4p X 10-7 Wb/A • Ex: Compute L for the following coil: • N = 100 turns A = 1.3 X 10-4 m2 • l = 25 X 10-3 m Km = 400 (steel)

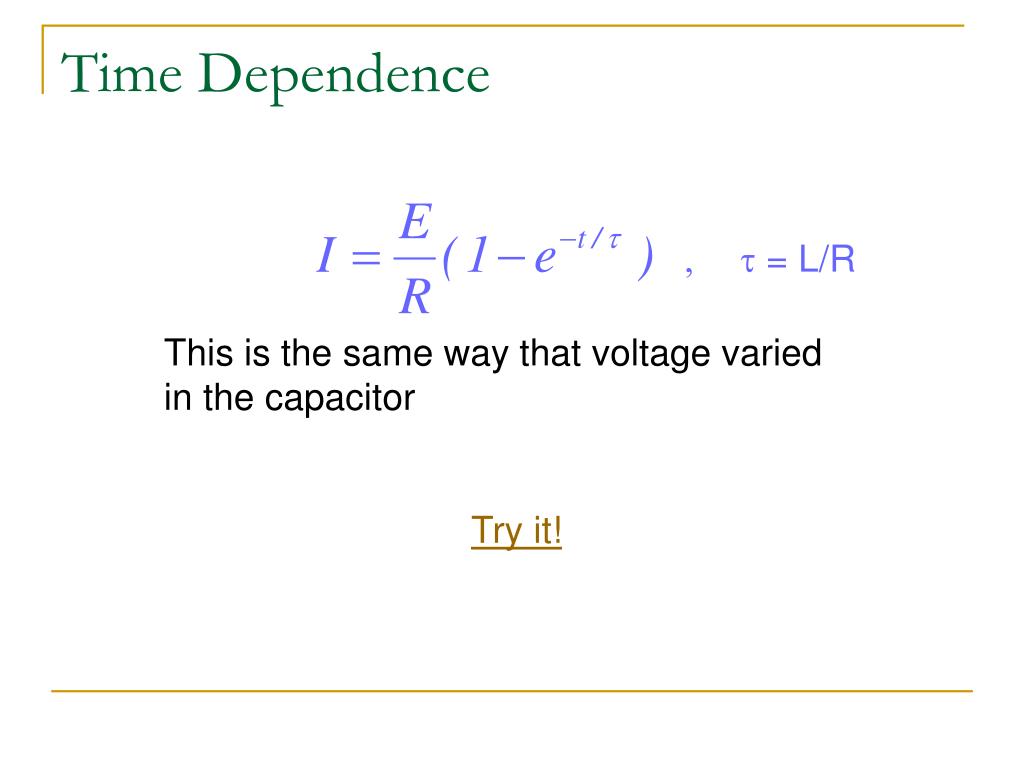

  6. Time Dependence , t = L/R This is the same way that voltage varied in the capacitor Try it!

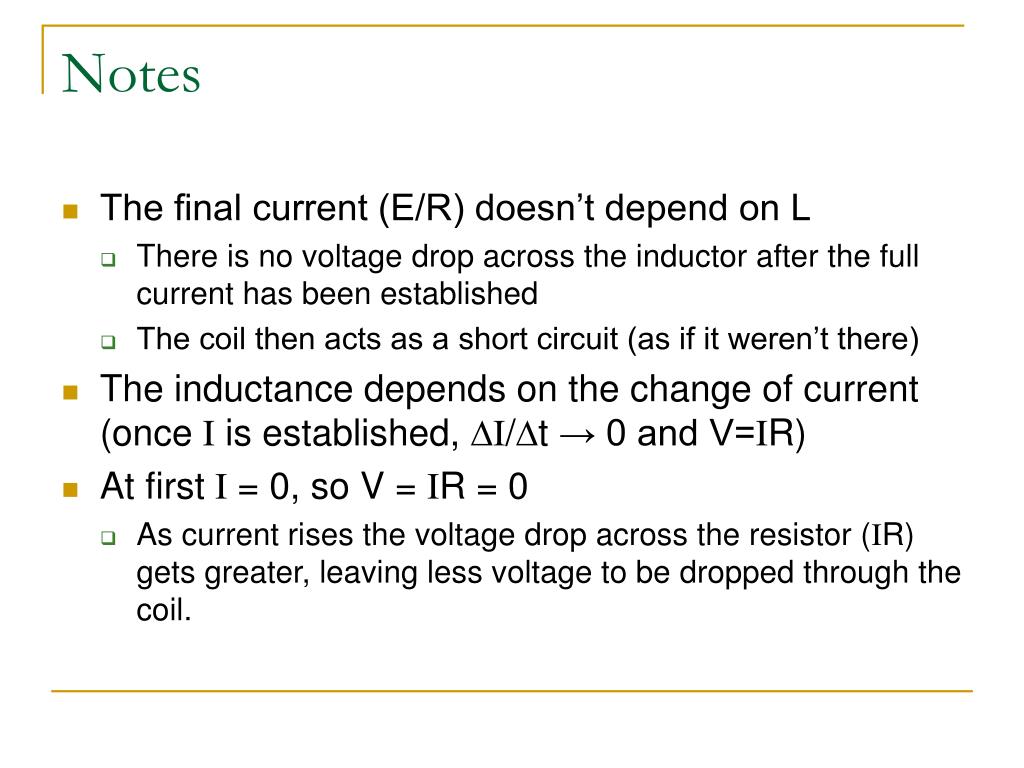

  7. Notes • The final current (E/R) doesn’t depend on L • There is no voltage drop across the inductor after the full current has been established • The coil then acts as a short circuit (as if it weren’t there) • The inductance depends on the change of current (once I is established, DI/Dt → 0 and V=IR) • At first I = 0, so V = IR = 0 • As current rises the voltage drop across the resistor (IR) gets greater, leaving less voltage to be dropped through the coil.

  8. Voltage

  9. Inductors in Series Kirchhoff’s Voltage Law LT = L1 + L2 + L3

  10. Inductors in Parallel The analysis is difficult in a dc circuit since the voltage drains to zero, but the result is…

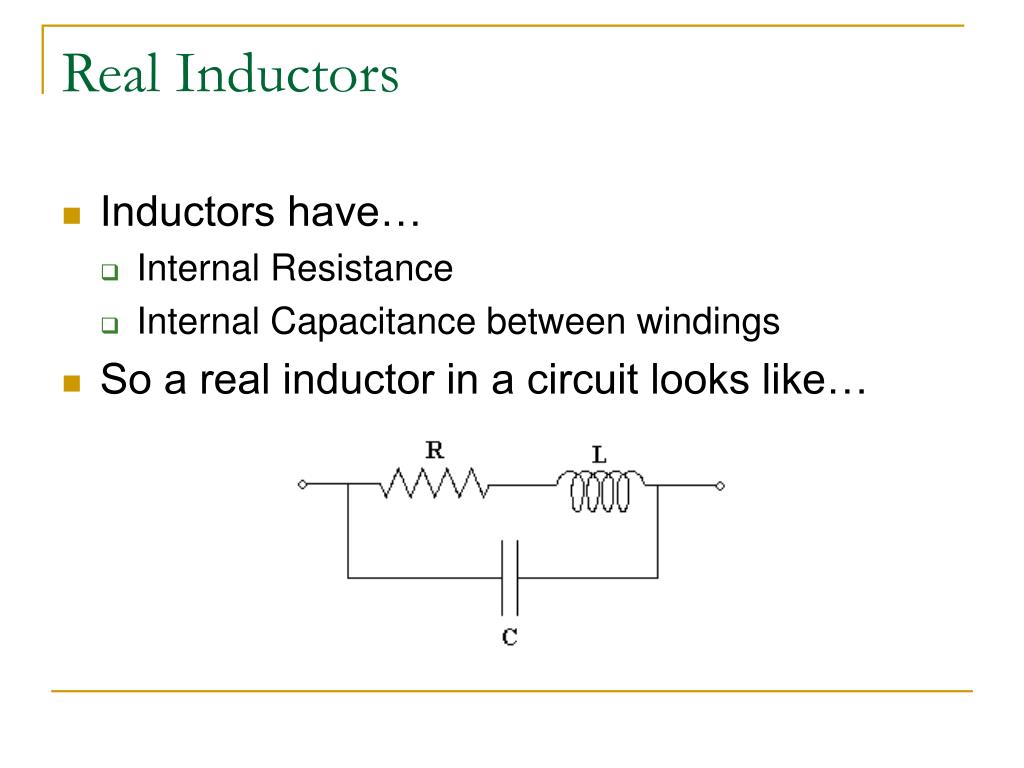

  11. Real Inductors • Inductors have… • Internal Resistance • Internal Capacitance between windings • So a real inductor in a circuit looks like…

  12. Example The equivalent circuit is

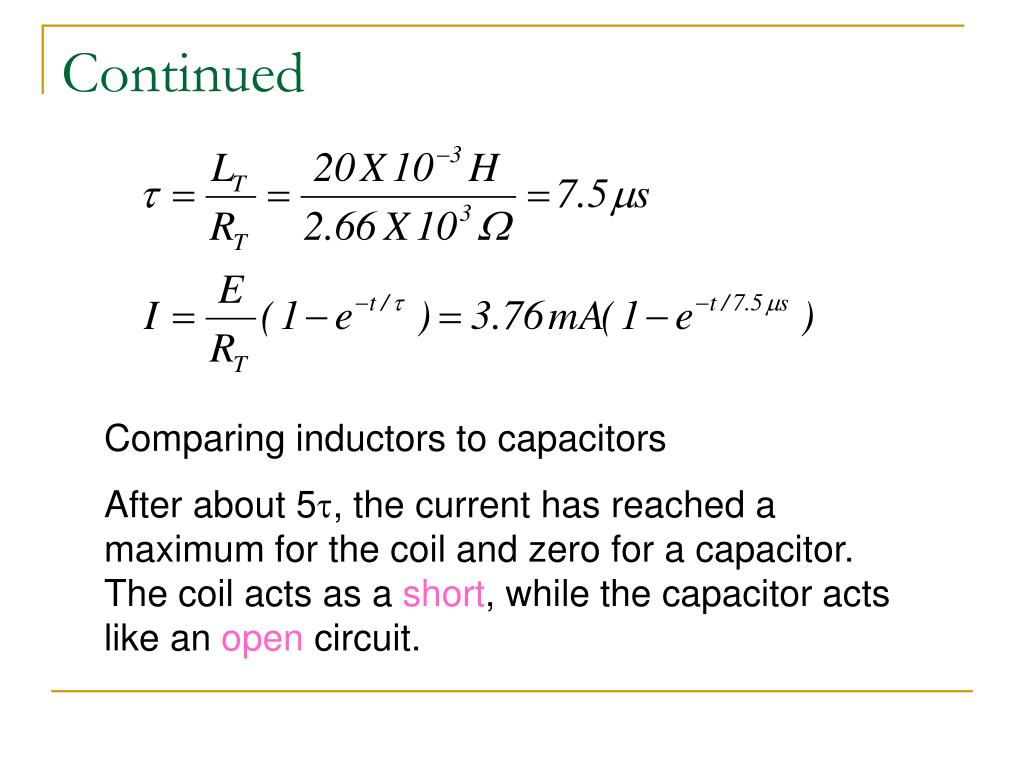

  13. Continued Comparing inductors to capacitors After about 5t, the current has reached a maximum for the coil and zero for a capacitor. The coil acts as a short, while the capacitor acts like an open circuit.

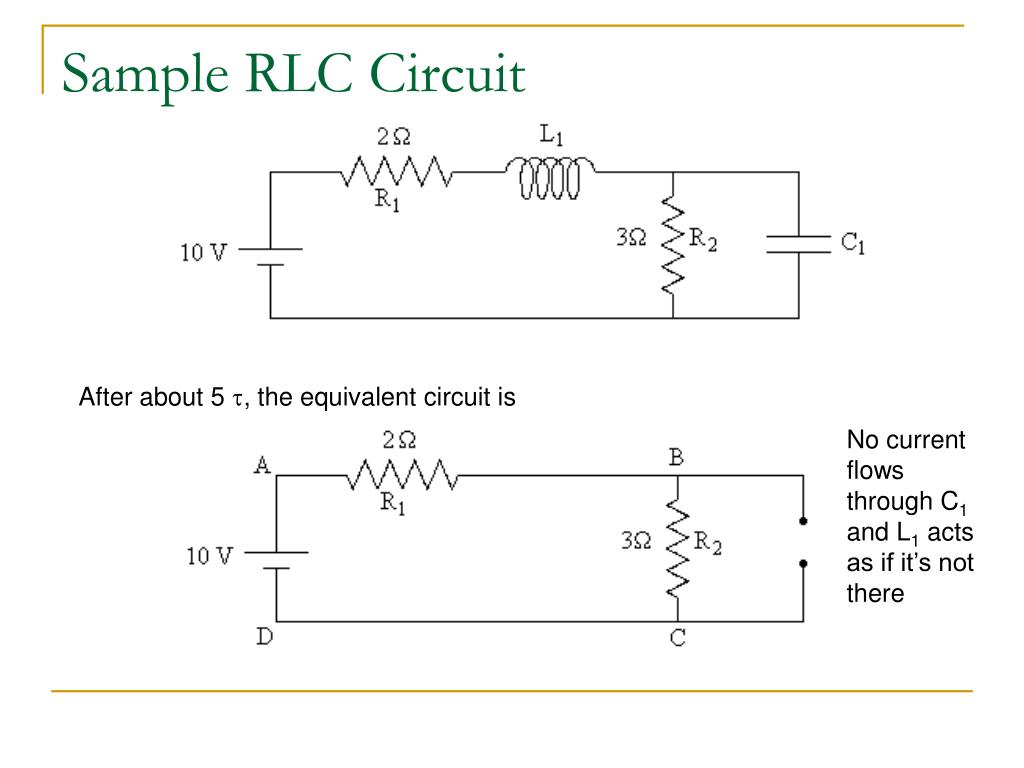

  14. Sample RLC Circuit After about 5 t, the equivalent circuit is No current flows through C1 and L1 acts as if it’s not there

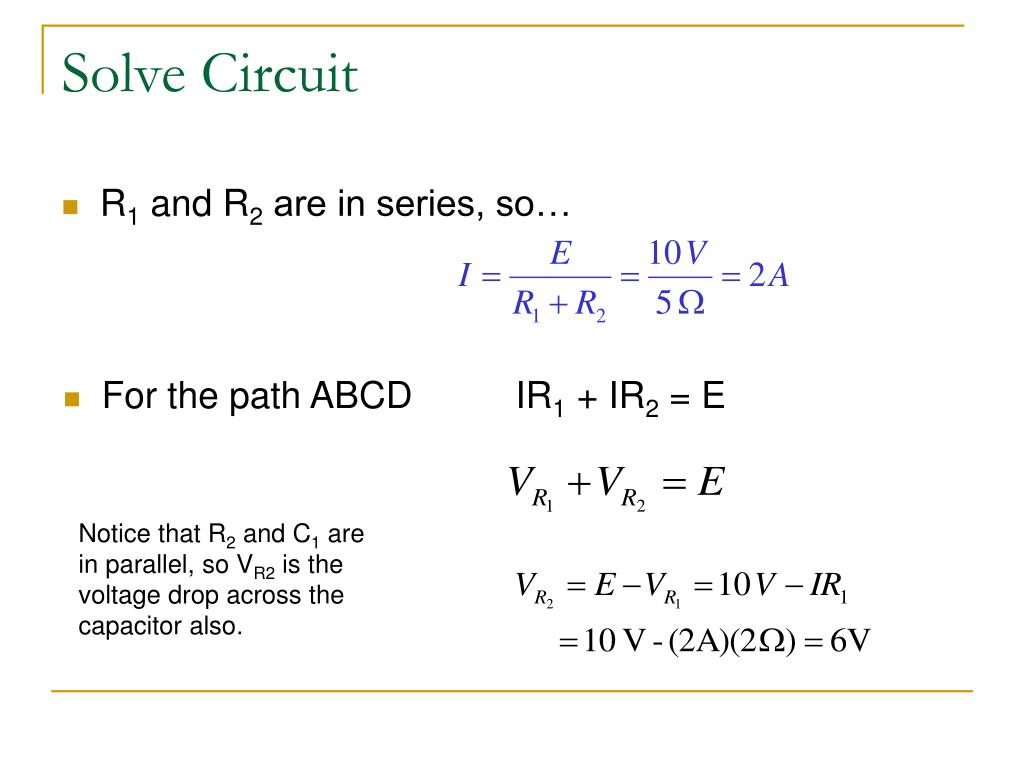

  15. Solve Circuit • R1 and R2 are in series, so… • For the path ABCD IR1 + IR2 = E Notice that R2 and C1 are in parallel, so VR2 is the voltage drop across the capacitor also.

  16. Stored Energy • Capacitor • WC = ½CV2 • Inductor • WL = ½LI2
