1. Linux Review (2nd Half) COMS W4118 Spring 2008

2. Interruptsin Linux COMS W4118 Spring 2008

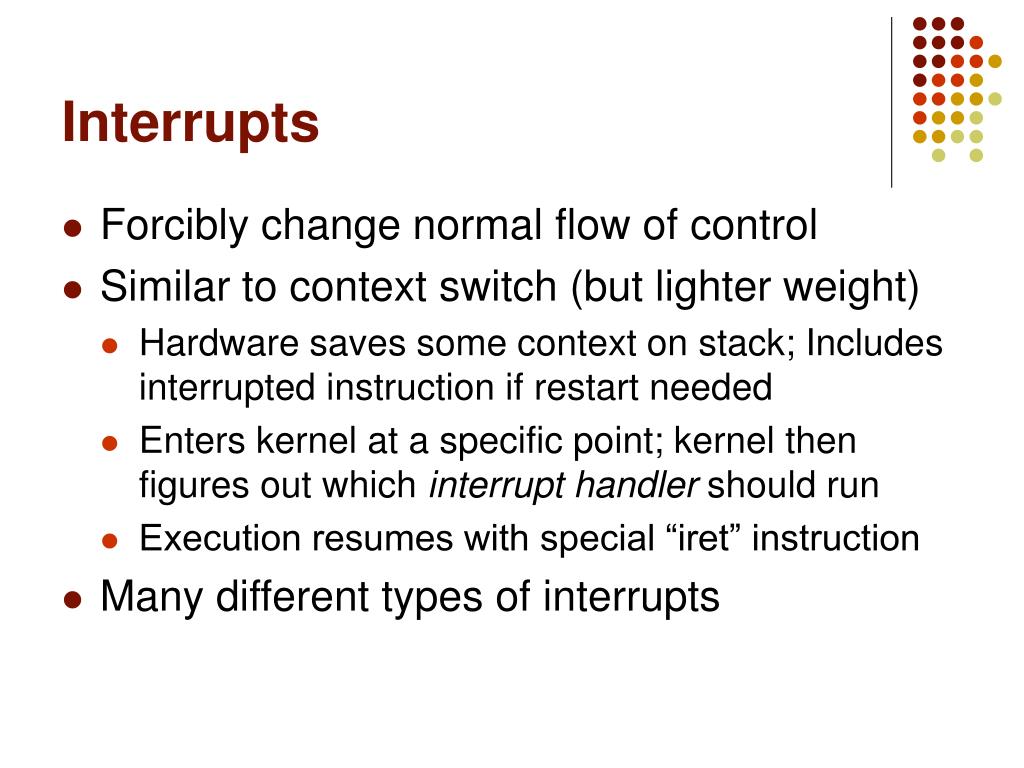

3. Interrupts • Forcibly change normal flow of control • Similar to context switch (but lighter weight) • Hardware saves some context on stack; Includes interrupted instruction if restart needed • Enters kernel at a specific point; kernel then figures out which interrupt handler should run • Execution resumes with special “iret” instruction • Many different types of interrupts

4. Types of Interrupts • Asynchronous • From external source, such as I/O device • Not related to instruction being executed • Synchronous (also called exceptions) • Processor-detected exceptions: • Faults — correctable; offending instruction is retried • Traps — often for debugging; instruction is not retried • Aborts — major error (hardware failure) • Programmed exceptions: • Requests for kernel intervention (software intr/syscalls)

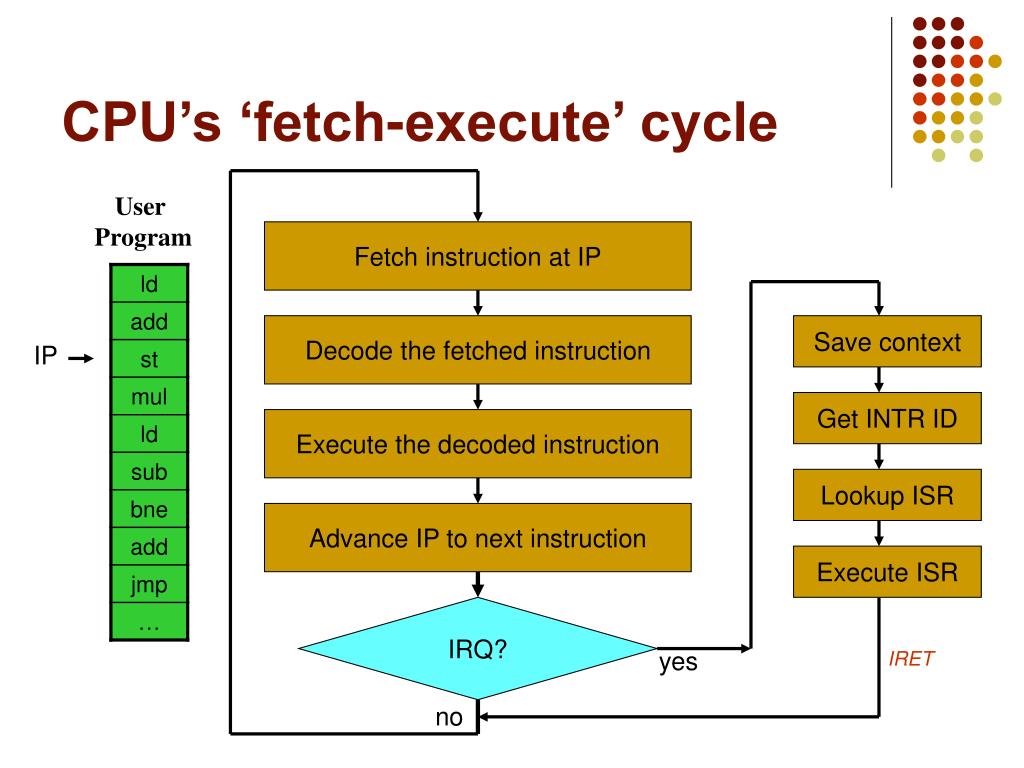

5. CPU’s ‘fetch-execute’ cycle User Program Fetch instruction at IP Decode the fetched instruction Save context IP Get INTR ID Execute the decoded instruction Lookup ISR Advance IP to next instruction Execute ISR IRQ? yes IRET no

6. Faults • Instruction would be illegal to execute • Examples: • Writing to a memory segment marked ‘read-only’ • Reading from an unavailable memory segment (on disk) • Executing a ‘privileged’ instruction • Detected before incrementing the IP • The causes of ‘faults’ can often be ‘fixed’ • If a ‘problem’ can be remedied, then the CPU can just resume its execution-cycle

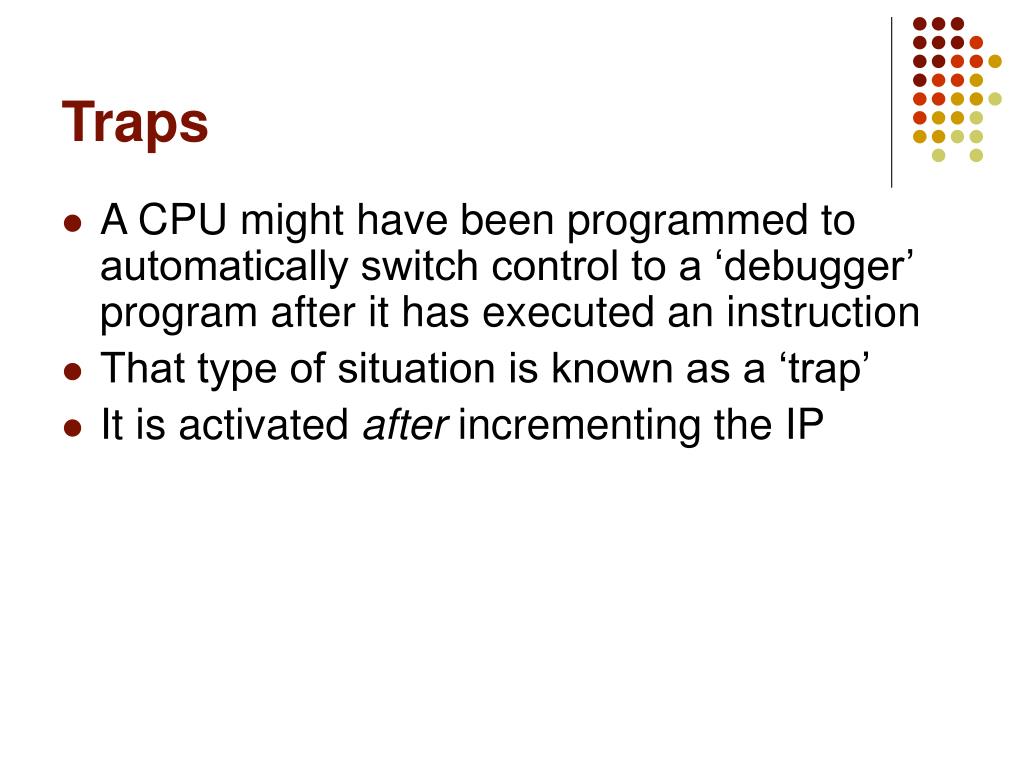

7. Traps • A CPU might have been programmed to automatically switch control to a ‘debugger’ program after it has executed an instruction • That type of situation is known as a ‘trap’ • It is activated after incrementing the IP

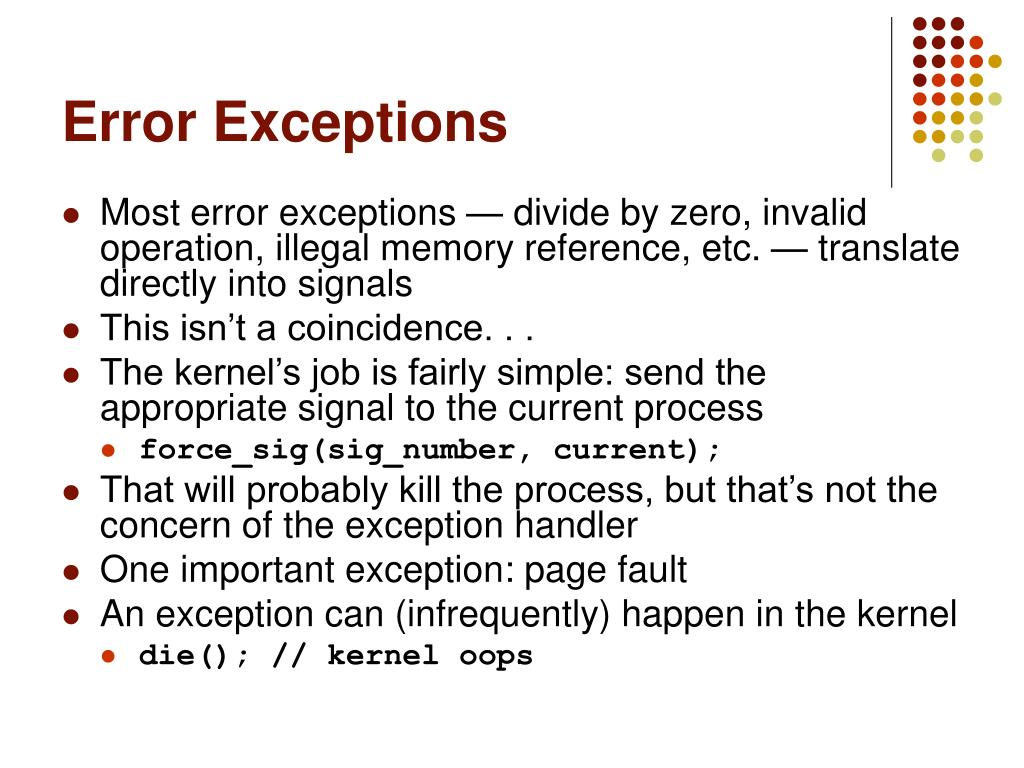

8. Error Exceptions • Most error exceptions — divide by zero, invalid operation, illegal memory reference, etc. — translate directly into signals • This isn’t a coincidence. . . • The kernel’s job is fairly simple: send the appropriate signal to the current process • force_sig(sig_number, current); • That will probably kill the process, but that’s not the concern of the exception handler • One important exception: page fault • An exception can (infrequently) happen in the kernel • die(); // kernel oops

9. Interrupt Hardware Legacy PC Design (for single-proc systems) IRQs Slave PIC (8259) Master PIC (8259) x86 CPU Ethernet INTR SCSI Disk Real-Time Clock Keyboard Controller Programmable Interval-Timer • I/O devices have (unique or shared) Interrupt Request Lines (IRQs) • IRQs are mapped by special hardware to interrupt vectors, and passed to the CPU • This hardware is called a Programmable Interrupt Controller (PIC)

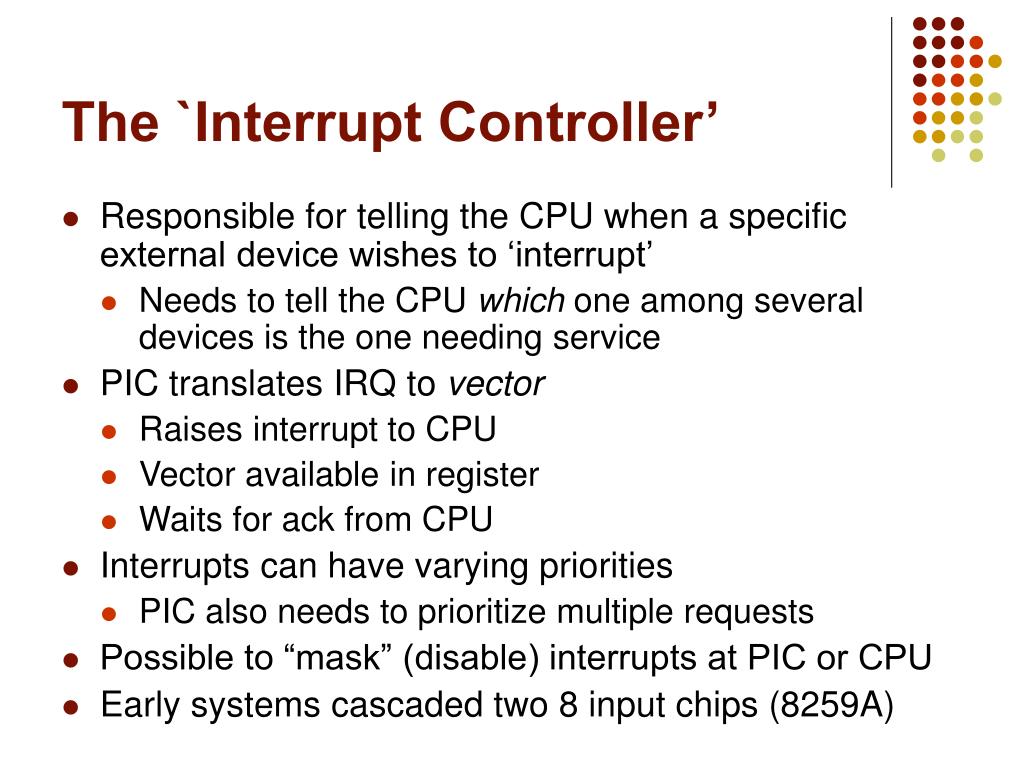

10. The `Interrupt Controller’ • Responsible for telling the CPU when a specific external device wishes to ‘interrupt’ • Needs to tell the CPU which one among several devices is the one needing service • PIC translates IRQ to vector • Raises interrupt to CPU • Vector available in register • Waits for ack from CPU • Interrupts can have varying priorities • PIC also needs to prioritize multiple requests • Possible to “mask” (disable) interrupts at PIC or CPU • Early systems cascaded two 8 input chips (8259A)

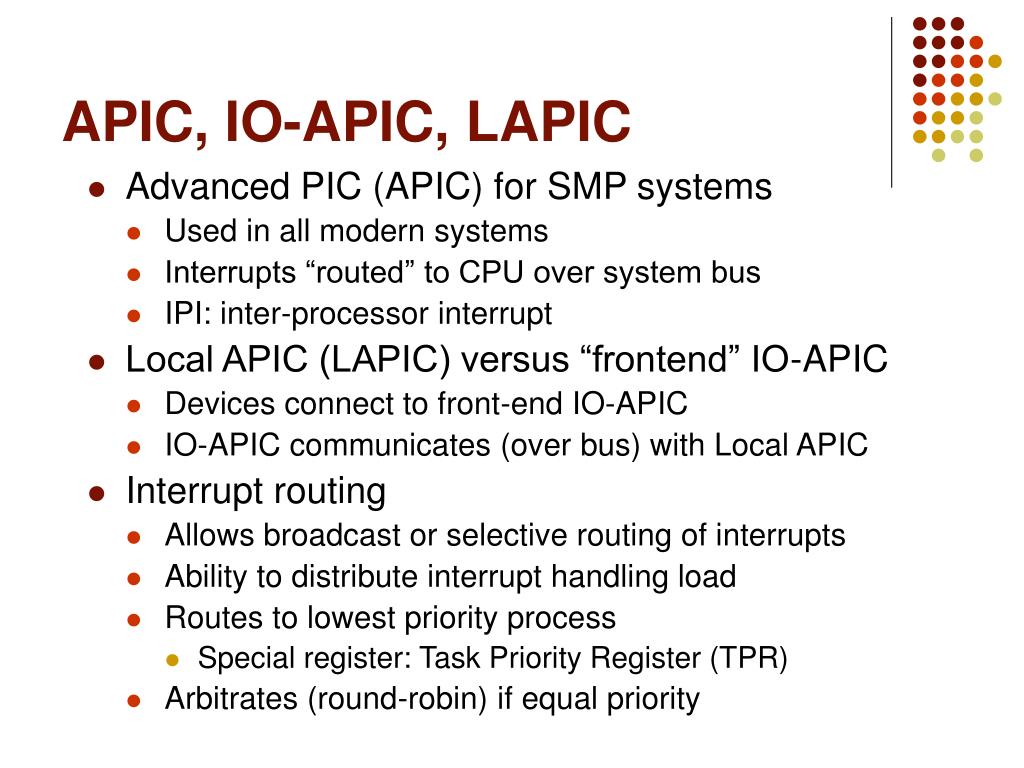

11. APIC, IO-APIC, LAPIC • Advanced PIC (APIC) for SMP systems • Used in all modern systems • Interrupts “routed” to CPU over system bus • IPI: inter-processor interrupt • Local APIC (LAPIC) versus “frontend” IO-APIC • Devices connect to front-end IO-APIC • IO-APIC communicates (over bus) with Local APIC • Interrupt routing • Allows broadcast or selective routing of interrupts • Ability to distribute interrupt handling load • Routes to lowest priority process • Special register: Task Priority Register (TPR) • Arbitrates (round-robin) if equal priority

12. Assigning IRQs to Devices • IRQ assignment is hardware-dependent • Sometimes it’s hardwired, sometimes it’s set physically, sometimes it’s programmable • PCI bus usually assigns IRQs at boot • Some IRQs are fixed by the architecture • IRQ0: Interval timer • IRQ2: Cascade pin for 8259A • Linux device drivers request IRQs when the device is opened • Note: especially useful for dynamically-loaded drivers, such as for USB or PCMCIA devices • Two devices that aren’t used at the same time can share an IRQ, even if the hardware doesn’t support simultaneous sharing

13. Assigning Vectors to IRQs • Vector: index (0-255) into interrupt descriptor table • Vectors usually IRQ# + 32 • Below 32 reserved for non-maskable intr & exceptions • Maskable interrupts can be assigned as needed • Vector 128 used for syscall • Vectors 251-255 used for IPI

14. Interrupt Descriptor Table • The ‘entry-point’ to the interrupt-handler is located via the Interrupt Descriptor Table (IDT) • IDT: “gate descriptors” • Segment selector + offset for handler • Descriptor Privilege Level (DPL) • Gates (slightly different ways of entering kernel) • Task gate: includes TSS to transfer to (not used by Linux) • Interrupt gate: disables further interrupts • Trap gate: further interrupts still allowed

15. Interrupt Masking • Two different types: global and per-IRQ • Global — delays all interrupts • Selective — individual IRQs can be masked selectively • Selective masking is usually what’s needed — interference most common from two interrupts of the same type

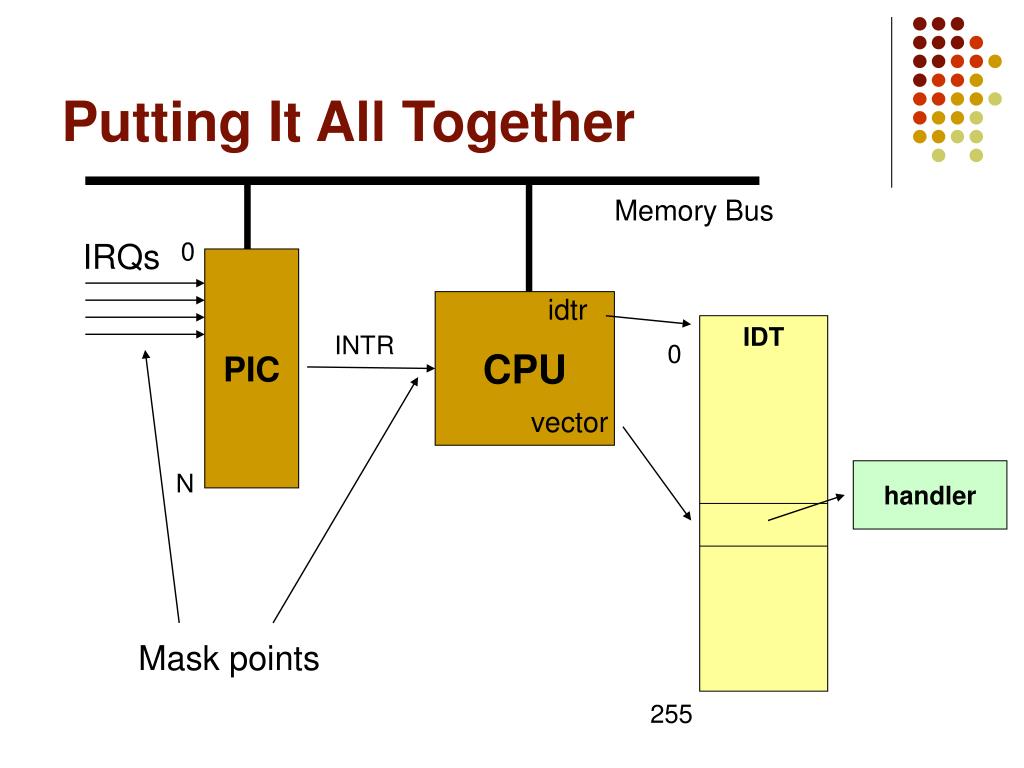

16. Putting It All Together Memory Bus IRQs 0 PIC idtr CPU IDT INTR 0 vector handler N Mask points 255

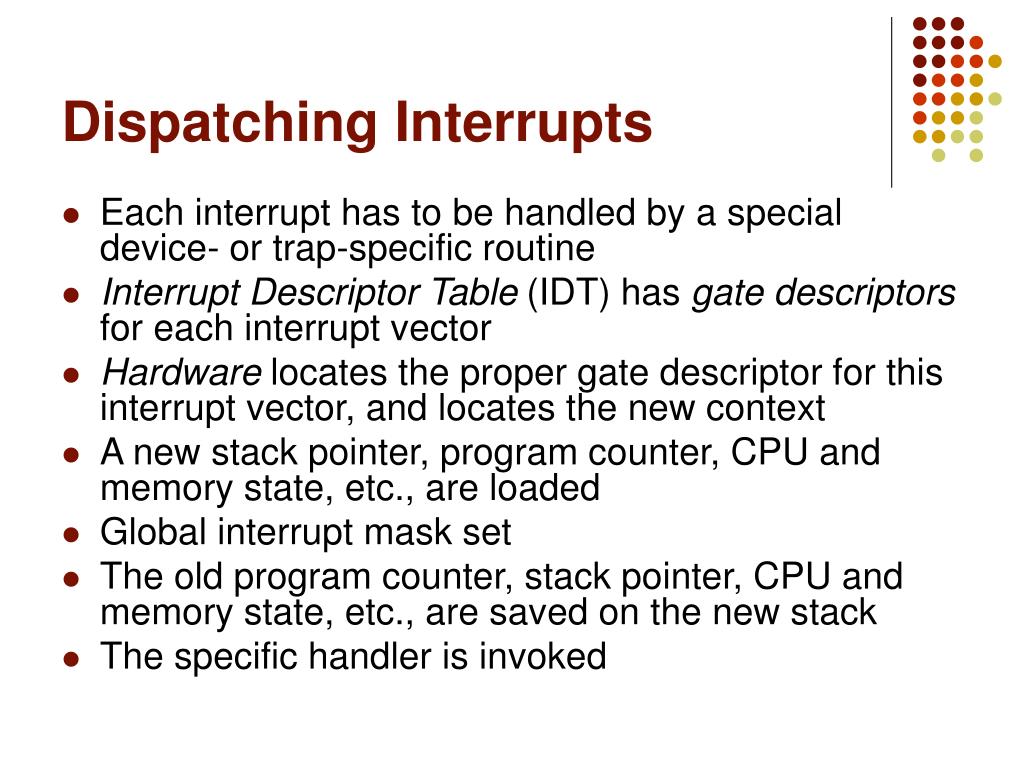

17. Dispatching Interrupts • Each interrupt has to be handled by a special device- or trap-specific routine • Interrupt Descriptor Table (IDT) has gate descriptors for each interrupt vector • Hardware locates the proper gate descriptor for this interrupt vector, and locates the new context • A new stack pointer, program counter, CPU and memory state, etc., are loaded • Global interrupt mask set • The old program counter, stack pointer, CPU and memory state, etc., are saved on the new stack • The specific handler is invoked

18. Handling Nested Interrupts • As soon as possible, unmask the global interrupt • As soon as reasonable, re-enable interrupts from that IRQ • But that isn’t always a great idea, since it could cause re-entry to the same handler • IRQ-specific mask is not enabled during interrupt-handling

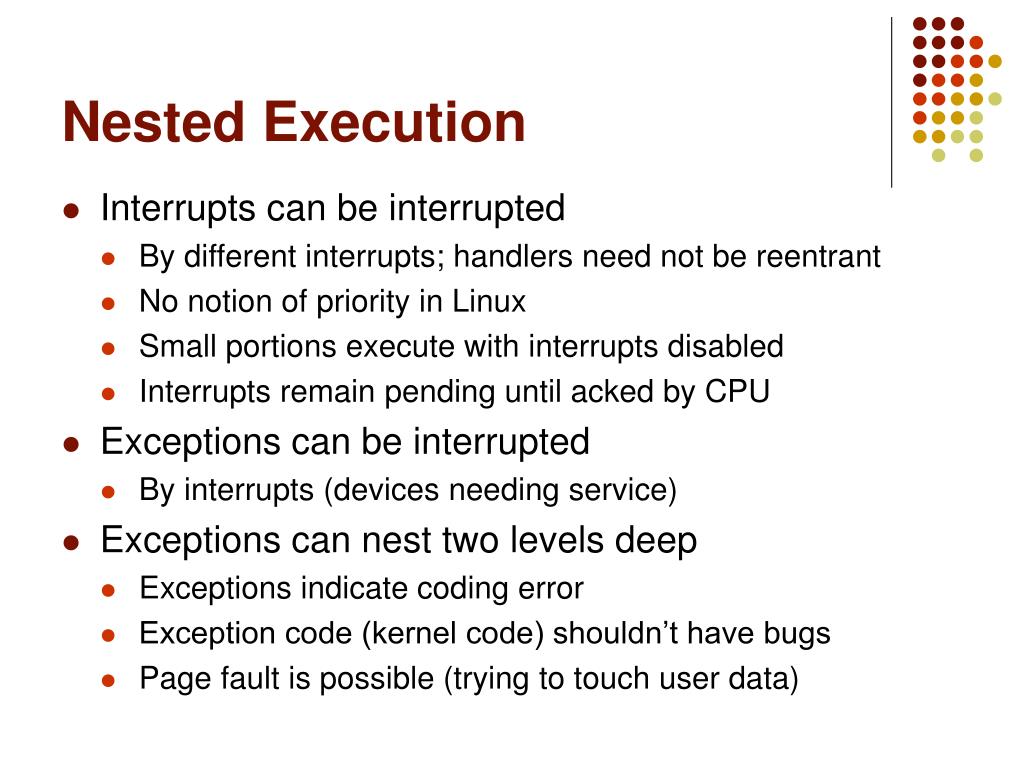

19. Nested Execution • Interrupts can be interrupted • By different interrupts; handlers need not be reentrant • No notion of priority in Linux • Small portions execute with interrupts disabled • Interrupts remain pending until acked by CPU • Exceptions can be interrupted • By interrupts (devices needing service) • Exceptions can nest two levels deep • Exceptions indicate coding error • Exception code (kernel code) shouldn’t have bugs • Page fault is possible (trying to touch user data)

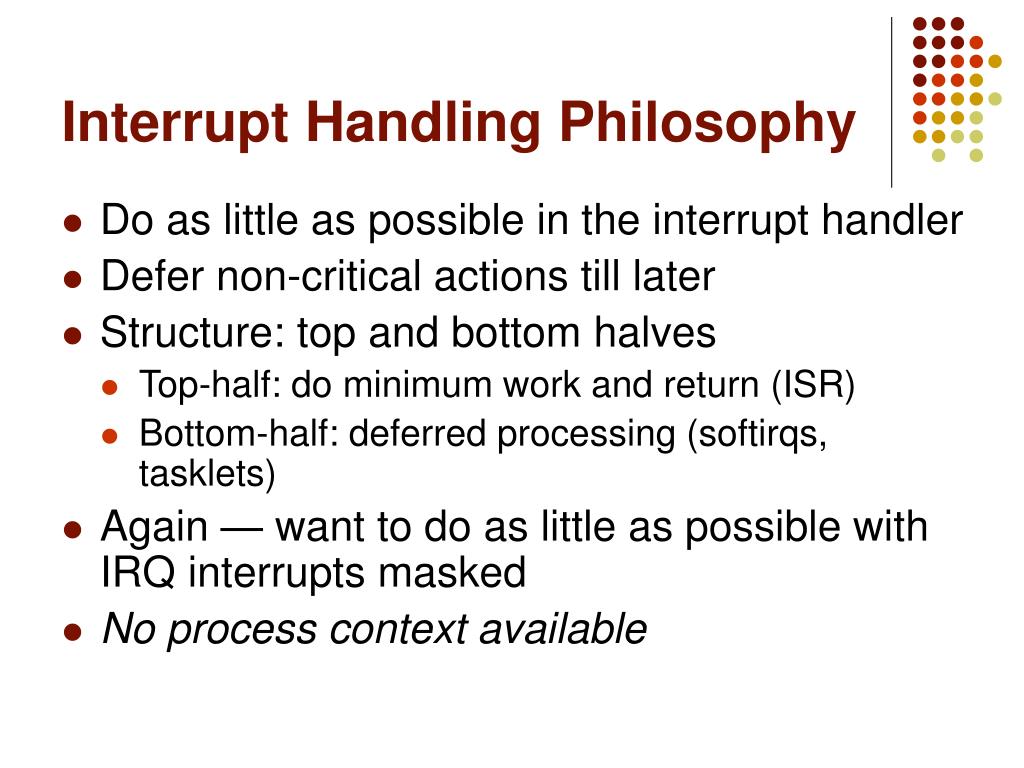

20. Interrupt Handling Philosophy • Do as little as possible in the interrupt handler • Defer non-critical actions till later • Structure: top and bottom halves • Top-half: do minimum work and return (ISR) • Bottom-half: deferred processing (softirqs, tasklets) • Again — want to do as little as possible with IRQ interrupts masked • No process context available

21. No Process Context • Interrupts (as opposed to exceptions) are not associated with particular instructions • They’re also not associated with a given process • The currently-running process, at the time of the interrupt, as no relationship whatsoever to that interrupt • Interrupt handlers cannot refer to current • Interrupt handlers cannot sleep!

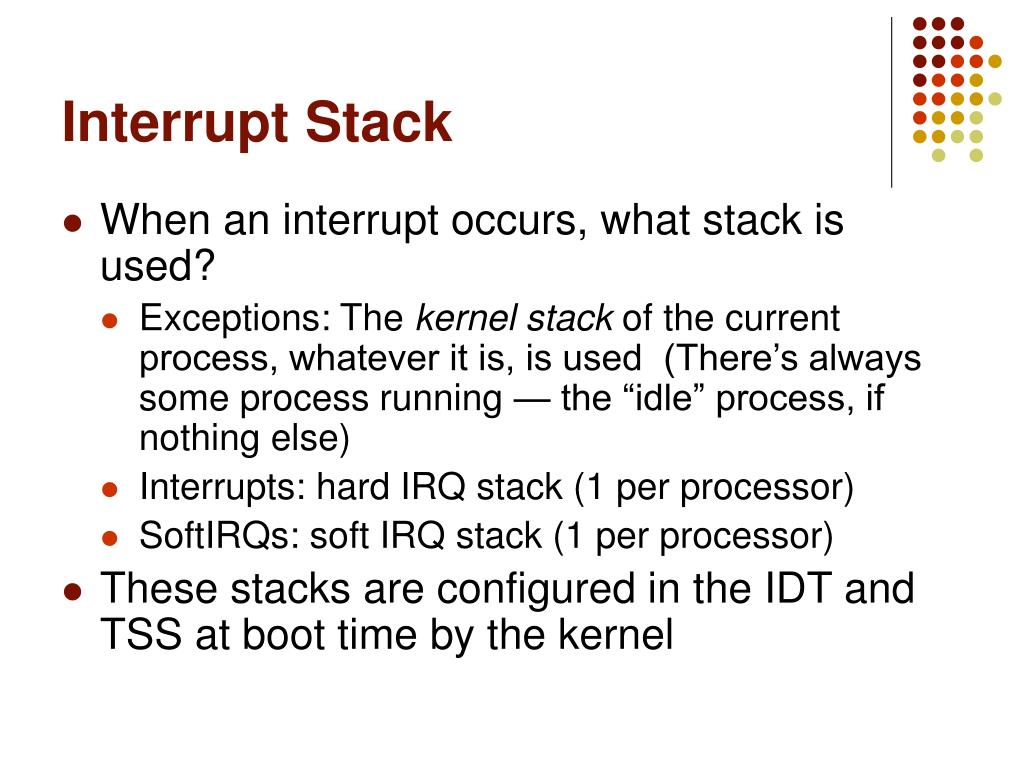

22. Interrupt Stack • When an interrupt occurs, what stack is used? • Exceptions: The kernel stack of the current process, whatever it is, is used (There’s always some process running — the “idle” process, if nothing else) • Interrupts: hard IRQ stack (1 per processor) • SoftIRQs: soft IRQ stack (1 per processor) • These stacks are configured in the IDT and TSS at boot time by the kernel

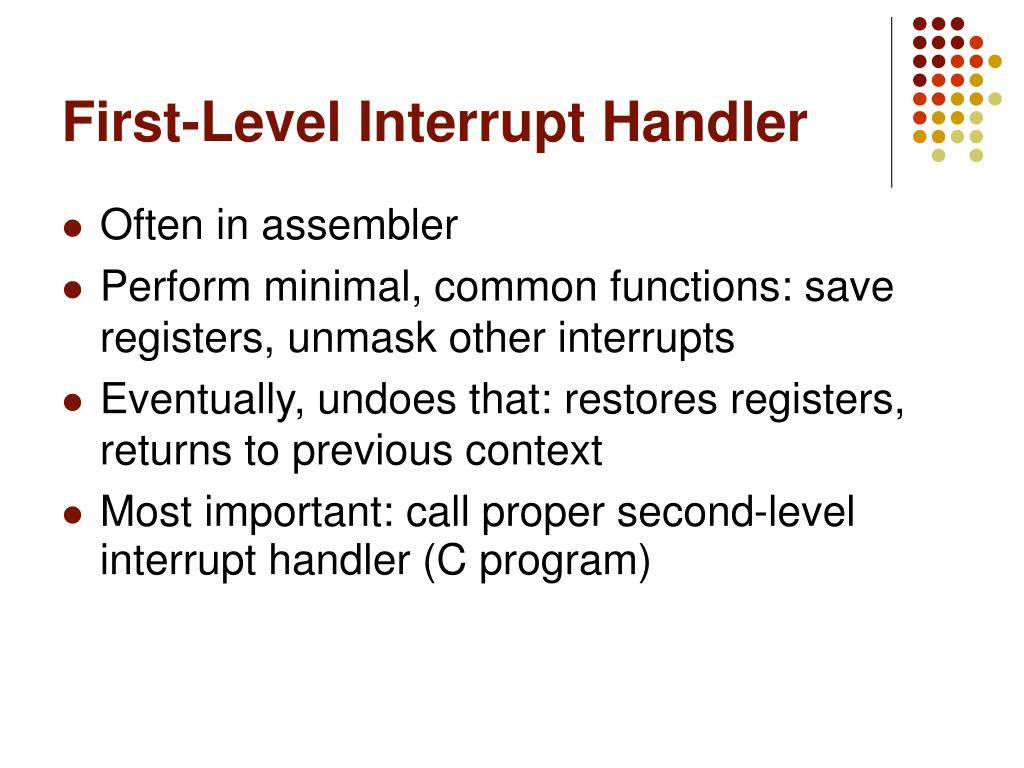

23. First-Level Interrupt Handler • Often in assembler • Perform minimal, common functions: save registers, unmask other interrupts • Eventually, undoes that: restores registers, returns to previous context • Most important: call proper second-level interrupt handler (C program)

24. Finding the Proper Handler • On modern hardware, multiple I/O devices can share a single IRQ and hence interrupt vector • First differentiator is the interrupt vector • Multiple interrupt service routines (ISR) can be associated with a vector • Each device’s ISR for that IRQ is called; the determination of whether or not that device has interrupted is device-dependent

25. Deferrable Work • We don’t want to do too much in regular interrupt handlers: • Interrupts are masked • We don’t want the kernel stack to grow too much • Instead, interrupt handlers schedule work to be performed later • Three deferred work mechanisms: softirqs, tasklets, and work queues • Tasklets are built on top of softirqs • For all of these, requests are queued

26. Softirqs • Statically allocated: specified at kernel compile time • Limited number: Priority Type 0 High-priority tasklets 1 Timer interrupts 2 Network transmission 3 Network reception 4 SCSI disks 5 Regular tasklets

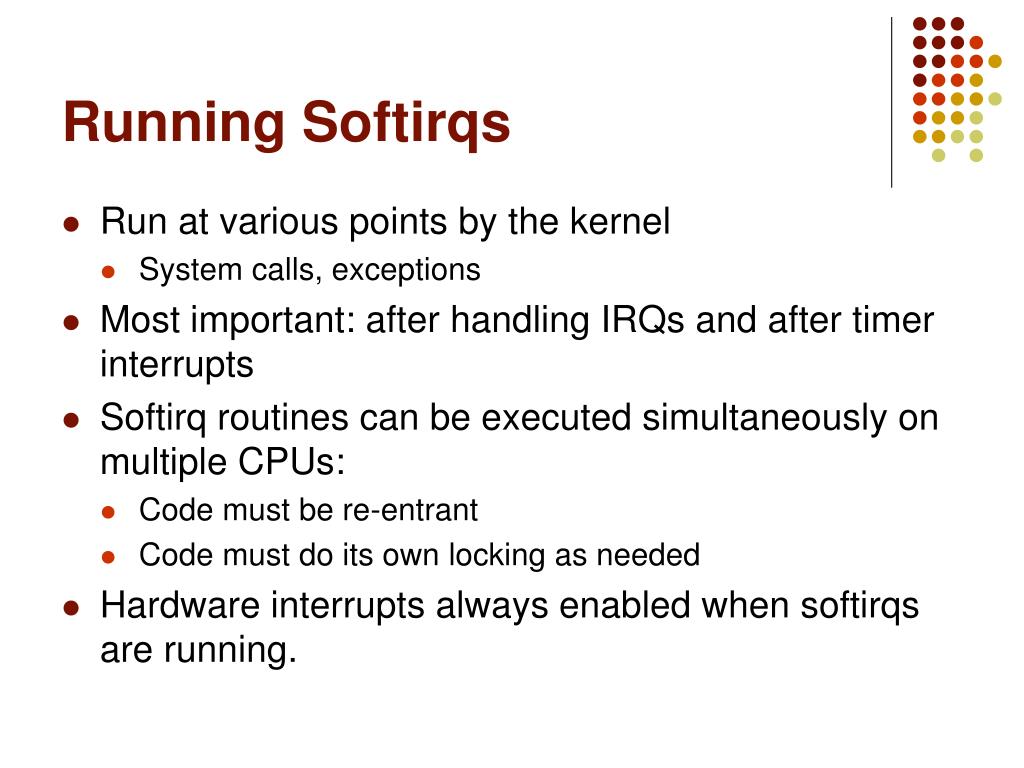

27. Running Softirqs • Run at various points by the kernel • System calls, exceptions • Most important: after handling IRQs and after timer interrupts • Softirq routines can be executed simultaneously on multiple CPUs: • Code must be re-entrant • Code must do its own locking as needed • Hardware interrupts always enabled when softirqs are running.

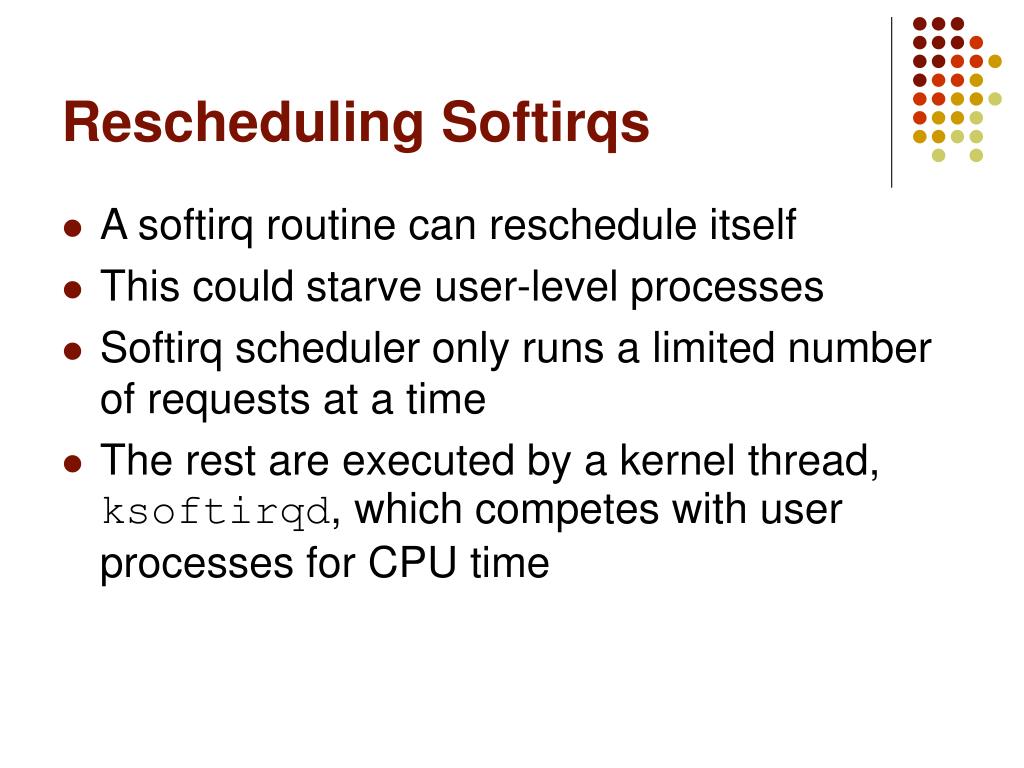

28. Rescheduling Softirqs • A softirq routine can reschedule itself • This could starve user-level processes • Softirq scheduler only runs a limited number of requests at a time • The rest are executed by a kernel thread, ksoftirqd, which competes with user processes for CPU time

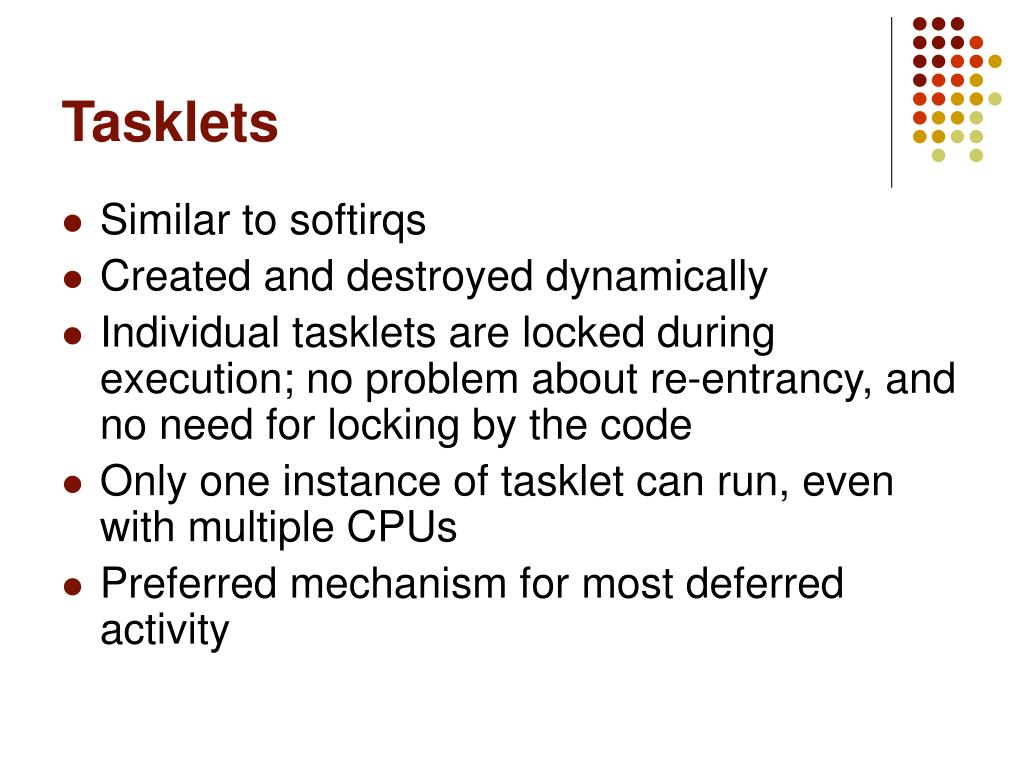

29. Tasklets • Similar to softirqs • Created and destroyed dynamically • Individual tasklets are locked during execution; no problem about re-entrancy, and no need for locking by the code • Only one instance of tasklet can run, even with multiple CPUs • Preferred mechanism for most deferred activity

30. Work Queues • Always run by kernel threads • Softirqs and tasklets run in an interrupt context; work queues have a process context • Because they have a process context, they can sleep • However, they’re kernel-only; there is no user mode associated with it

31. Synchronizationin Linux COMS W4118 Spring 2008

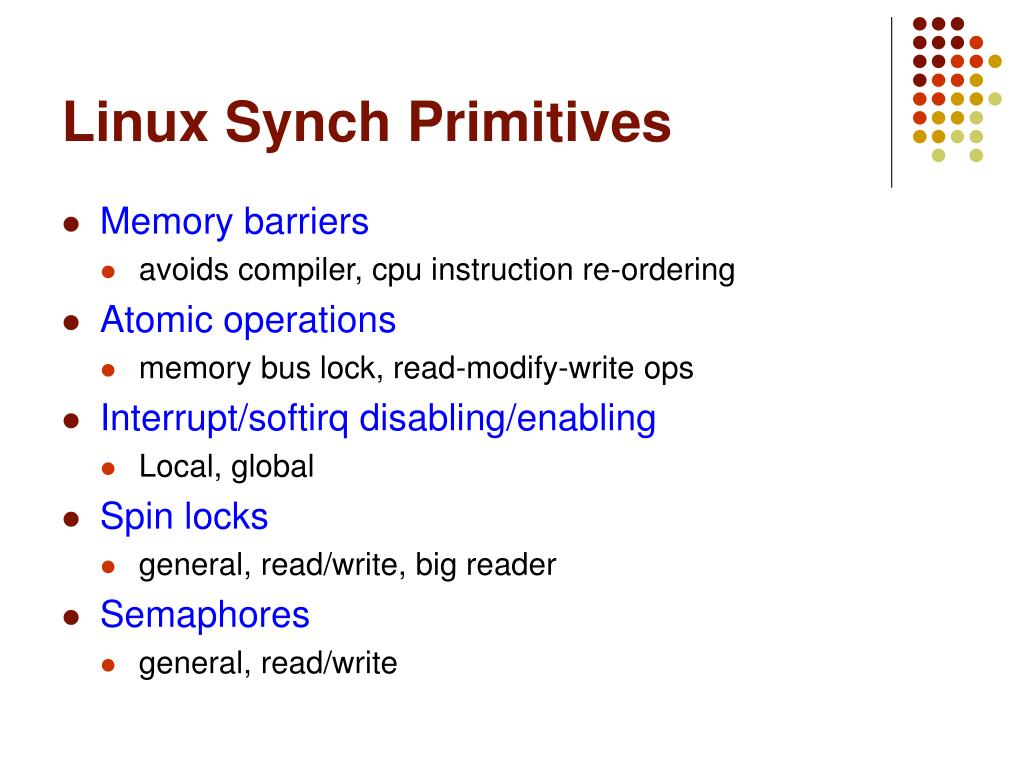

32. Linux Synch Primitives • Memory barriers • avoids compiler, cpu instruction re-ordering • Atomic operations • memory bus lock, read-modify-write ops • Interrupt/softirq disabling/enabling • Local, global • Spin locks • general, read/write, big reader • Semaphores • general, read/write

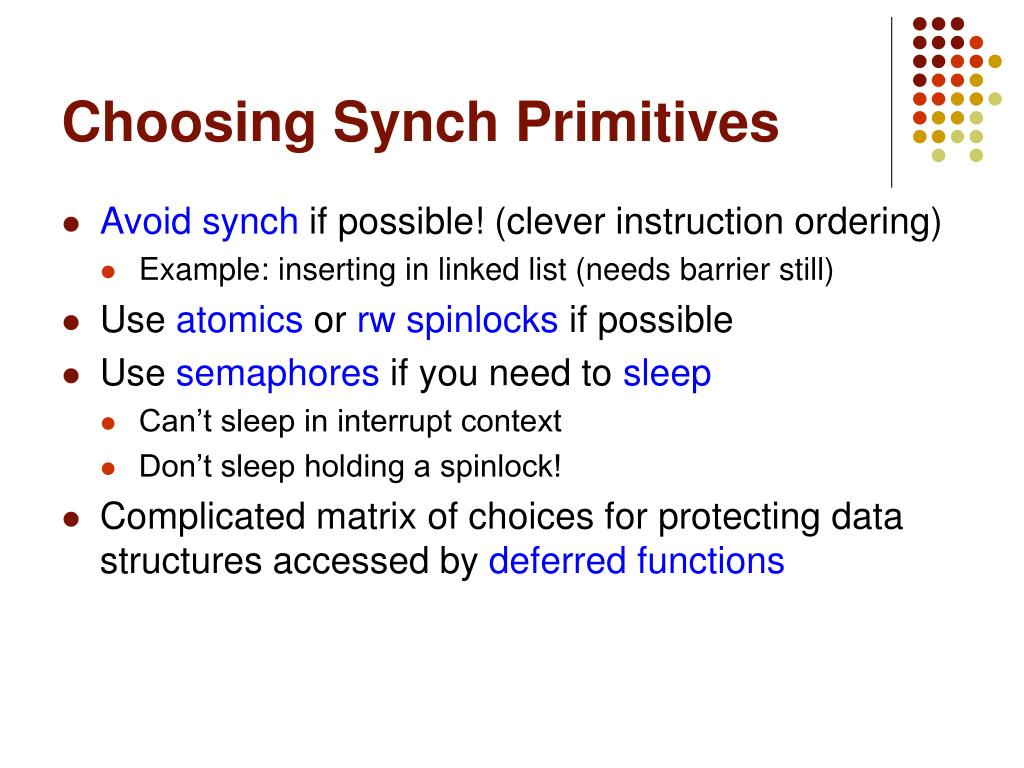

33. Choosing Synch Primitives • Avoid synch if possible! (clever instruction ordering) • Example: inserting in linked list (needs barrier still) • Use atomics or rw spinlocks if possible • Use semaphores if you need to sleep • Can’t sleep in interrupt context • Don’t sleep holding a spinlock! • Complicated matrix of choices for protecting data structures accessed by deferred functions

34. Architectural Dependence • The implementation of the synchronization primitives is extremely architecture dependent. • This is because only the hardware can guarantee atomicity of an operation. • Each architecture must provide a mechanism for doing an operation that can examine and modify a storage location atomically. • Some architectures do not guarantee atomicity, but inform whether the operation attempted was atomic.

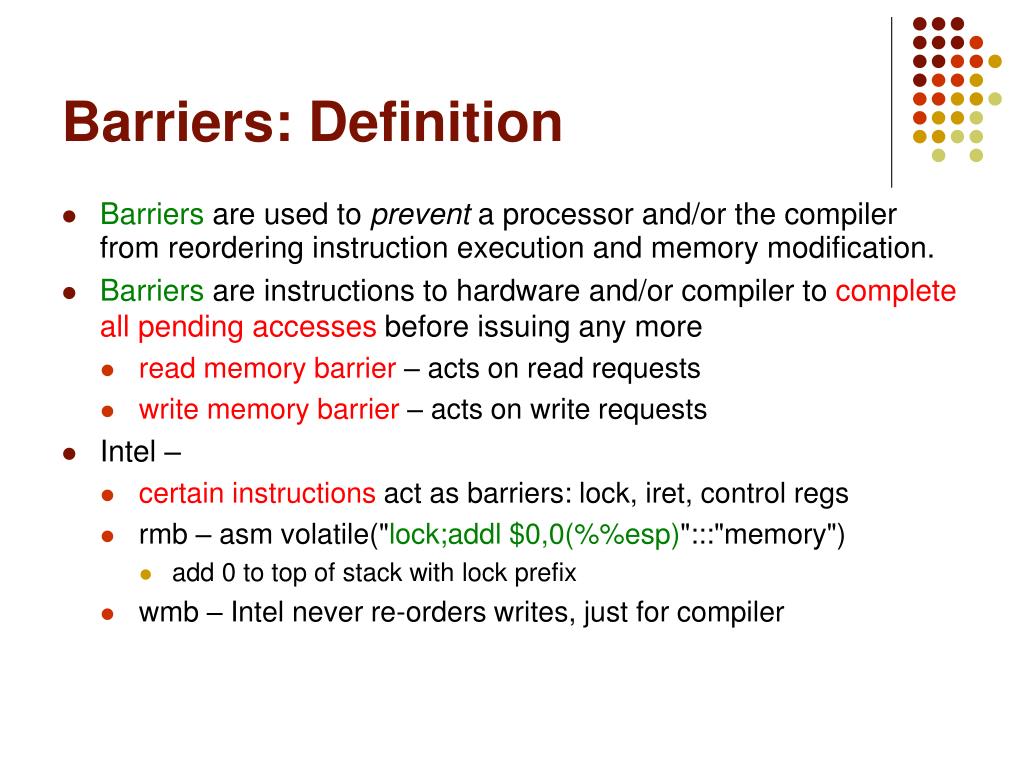

35. Barriers: Definition • Barriers are used to prevent a processor and/or the compiler from reordering instruction execution and memory modification. • Barriers are instructions to hardware and/or compiler to complete all pending accesses before issuing any more • read memory barrier – acts on read requests • write memory barrier – acts on write requests • Intel – • certain instructions act as barriers: lock, iret, control regs • rmb – asm volatile("lock;addl $0,0(%%esp)":::"memory") • add 0 to top of stack with lock prefix • wmb – Intel never re-orders writes, just for compiler

36. Atomic Operations • Many instructions not atomic in hardware (smp) • Read-modify-write instructions: inc, test-and-set, swap • unaligned memory access • Compiler may not generate atomic code • even i++ is not necessarily atomic! • If the data that must be protected is a single word, atomic operations can be used. These functions examine and modify the word atomically. • The atomic data type is atomic_t. • Intel implementation • lock prefix byte 0xf0 – locks memory bus

37. Serializing with Interrupts • Basic primitive in original UNIX • Doesn’t protect against other CPUs • Intel: “interrupts enabled bit” • cli to clear (disable), sti to set (enable) • Enabling is often wrong; need to restore • local_irq_save() • local_irq_restore()

38. Interrupt Operations • Services used to serialize with interrupts are: local_irq_disable - disables interrupts on the current CPU local_irq_enable - enable interrupts on the current CPU local_save_flags - return the interrupt state of the processor local_restore_flags - restore the interrupt state of the processor • Dealing with the full interrupt state of the system is officially discouraged. Locks should be used.

39. Spin Locks • A spin lock is a data structure (spinlock_t ) that is used to synchronize access to critical sections. • Only one thread can be holding a spin lock at any moment. All other threads trying to get the lock will “spin” (loop while checking the lock status). • Spin locks should not be held for long periods because waiting tasks on other CPUs are spinning, and thus wasting CPU execution time.

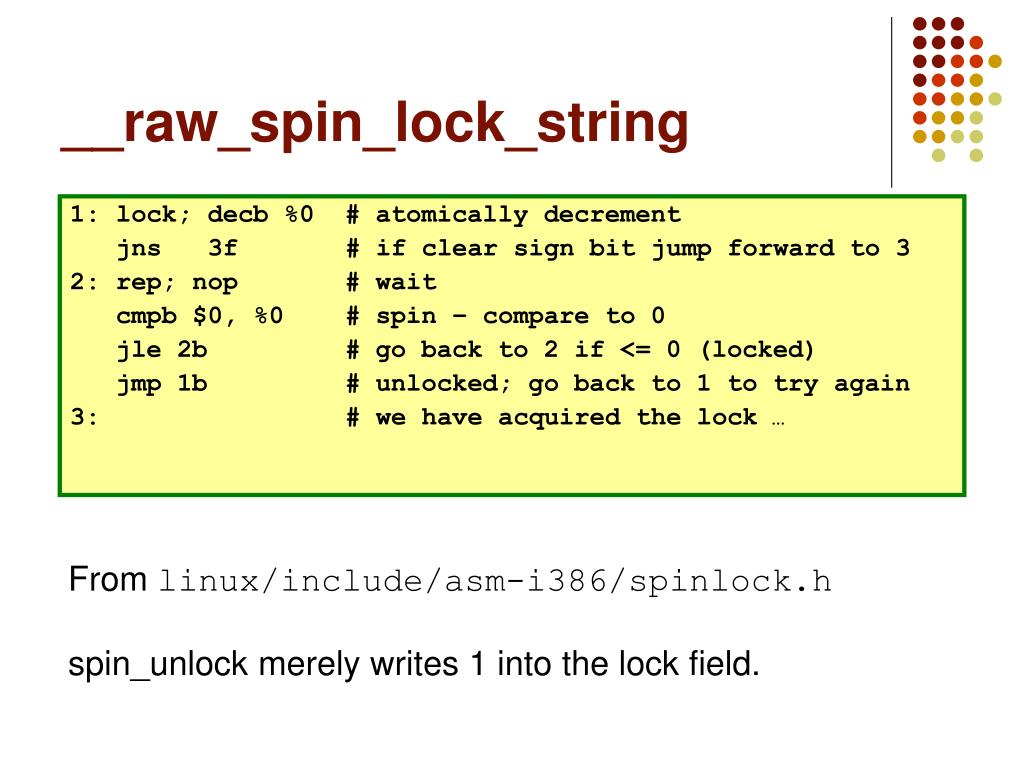

40. __raw_spin_lock_string 1: lock; decb %0 # atomically decrement jns 3f # if clear sign bit jump forward to 3 2: rep; nop # wait cmpb $0, %0 # spin – compare to 0 jle 2b # go back to 2 if <= 0 (locked) jmp 1b # unlocked; go back to 1 to try again 3: # we have acquired the lock … From linux/include/asm-i386/spinlock.h spin_unlock merely writes 1 into the lock field.

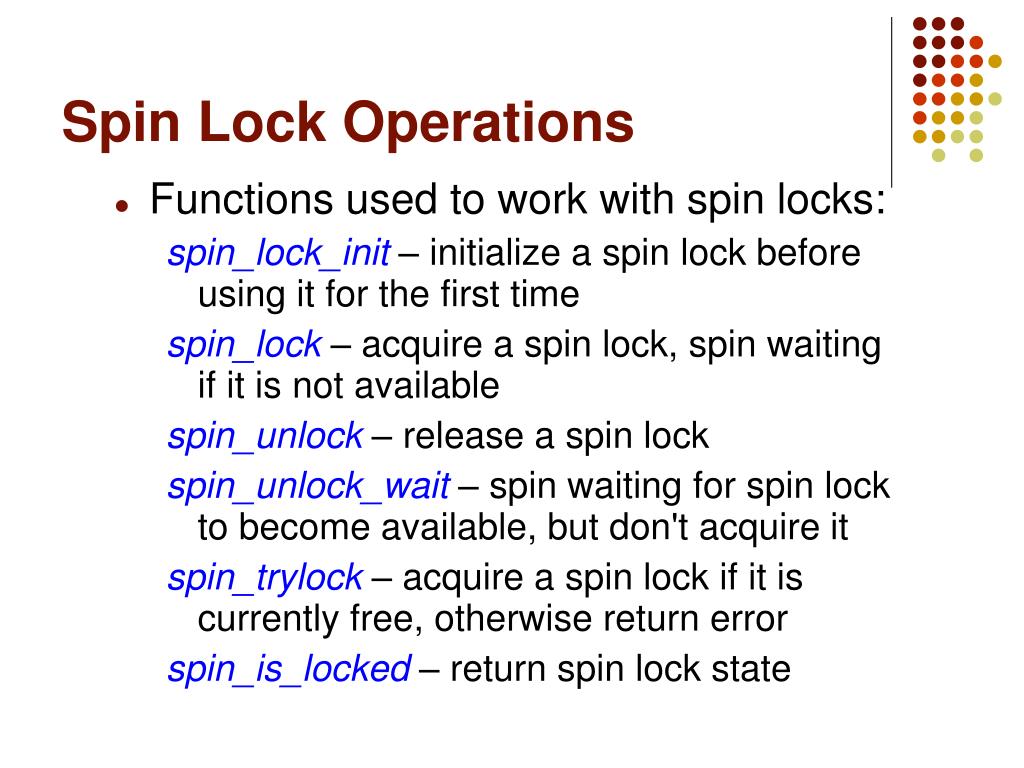

41. Spin Lock Operations • Functions used to work with spin locks: spin_lock_init – initialize a spin lock before using it for the first time spin_lock – acquire a spin lock, spin waiting if it is not available spin_unlock – release a spin lock spin_unlock_wait – spin waiting for spin lock to become available, but don't acquire it spin_trylock – acquire a spin lock if it is currently free, otherwise return error spin_is_locked – return spin lock state

42. Spin Locks & Interrupts • The spin lock services also provide interfaces that serialize with interrupts (on the current processor): spin_lock_irq - acquire spin lock and disable interrupts spin_unlock_irq - release spin lock and reenable spin_lock_irqsave - acquire spin lock, save interrupt state, and disable spin_unlock_irqrestore - release spin lock and restore interrupt state

43. RW Spin Locks & Interrupts • The read/write lock services also provide interfaces that serialize with interrupts (on the current processor): read_lock_irq - acquire lock for read and disable interrupts read_unlock_irq - release read lock and reenable read_lock_irqsave - acquire lock for read, save interrupt state, and disable read_unlock_irqrestore - release read lock and restore interrupt state • Corresponding functions for write exist as well (e.g., write_lock_irqsave).

44. The Big Reader Lock • Reader optimized RW spinlock • RW spinlock suffers cache contention • On lock and unlock because of write to rwlock_t • Per-CPU, cache-aligned lock arrays • One for reader portion, another for writer portion • To read: set bit in reader array, spin on writer • Acquire when writer lock free; very fast! • To write: set bit and scan ALL reader bits • Acquire when reader bits all free; very slow!

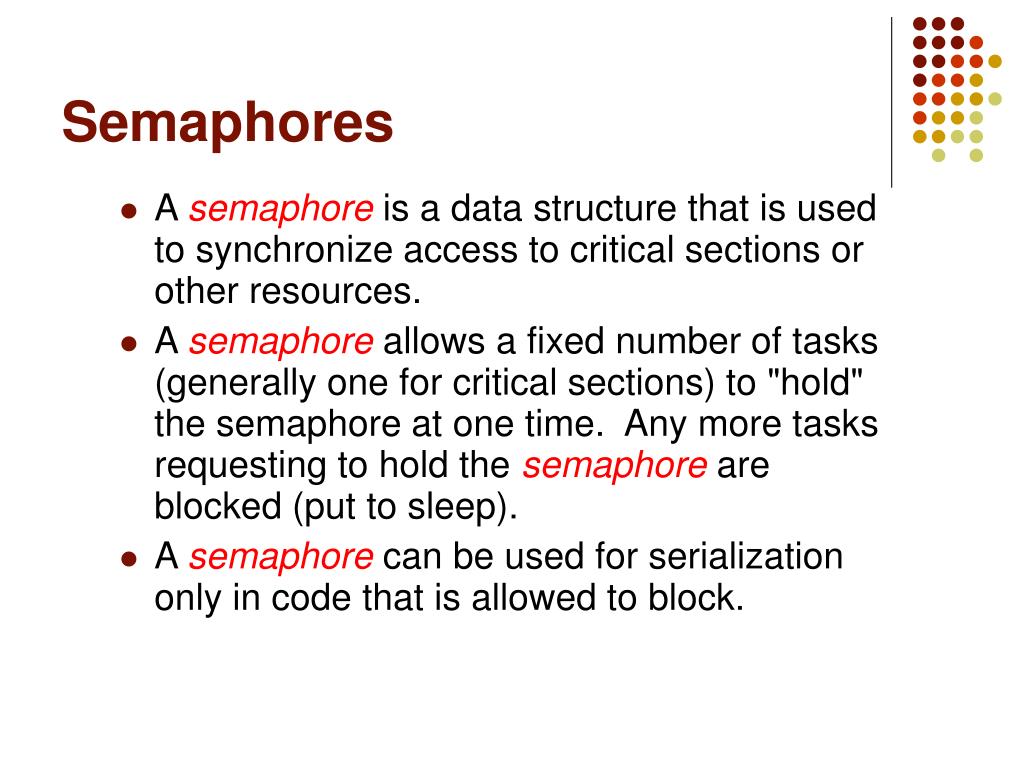

45. Semaphores • A semaphore is a data structure that is used to synchronize access to critical sections or other resources. • A semaphore allows a fixed number of tasks (generally one for critical sections) to "hold" the semaphore at one time. Any more tasks requesting to hold the semaphore are blocked (put to sleep). • A semaphore can be used for serialization only in code that is allowed to block.

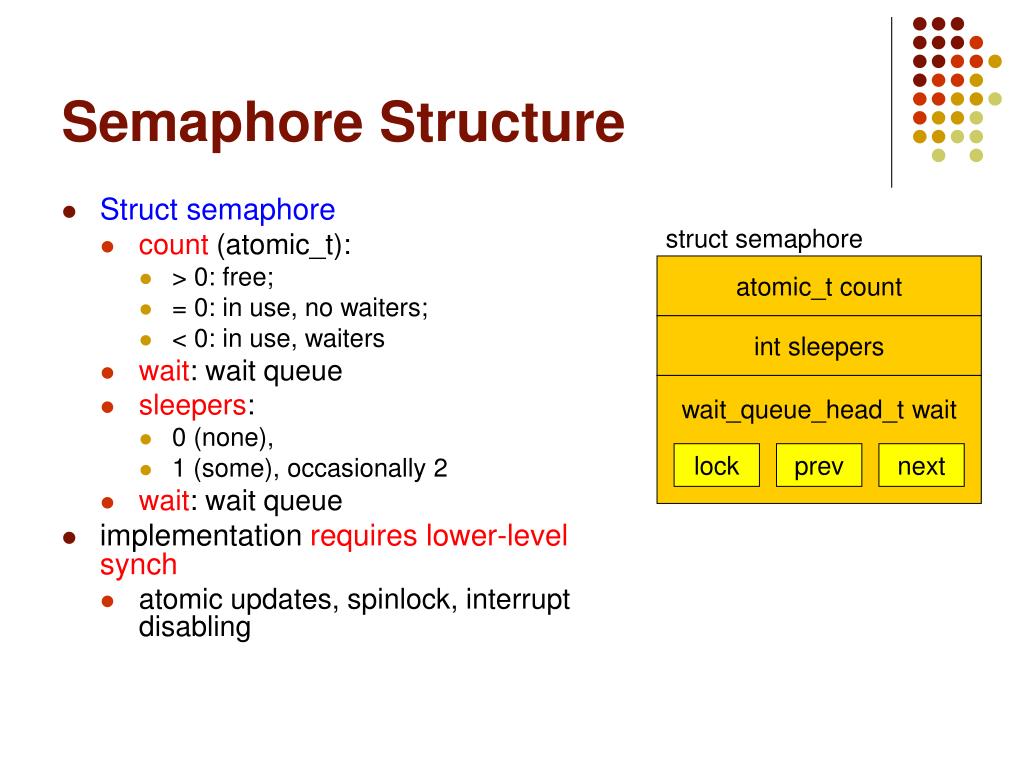

46. Semaphore Structure • Struct semaphore • count (atomic_t): • > 0: free; • = 0: in use, no waiters; • < 0: in use, waiters • wait: wait queue • sleepers: • 0 (none), • 1 (some), occasionally 2 • wait: wait queue • implementation requires lower-level synch • atomic updates, spinlock, interrupt disabling struct semaphore atomic_t count int sleepers wait_queue_head_t wait lock prev next

47. Semaphores • optimized assembly code for normal case (down()) • C code for slower “contended” case (__down()) • up() iseasy • atomically increment; wake_up() if necessary • uncontended down() iseasy • atomically decrement; continue • contended down() isreally complex! • basically increment sleepers and sleep • loop because of potentially concurrent ups/downs • still in down() path when lock is acquired

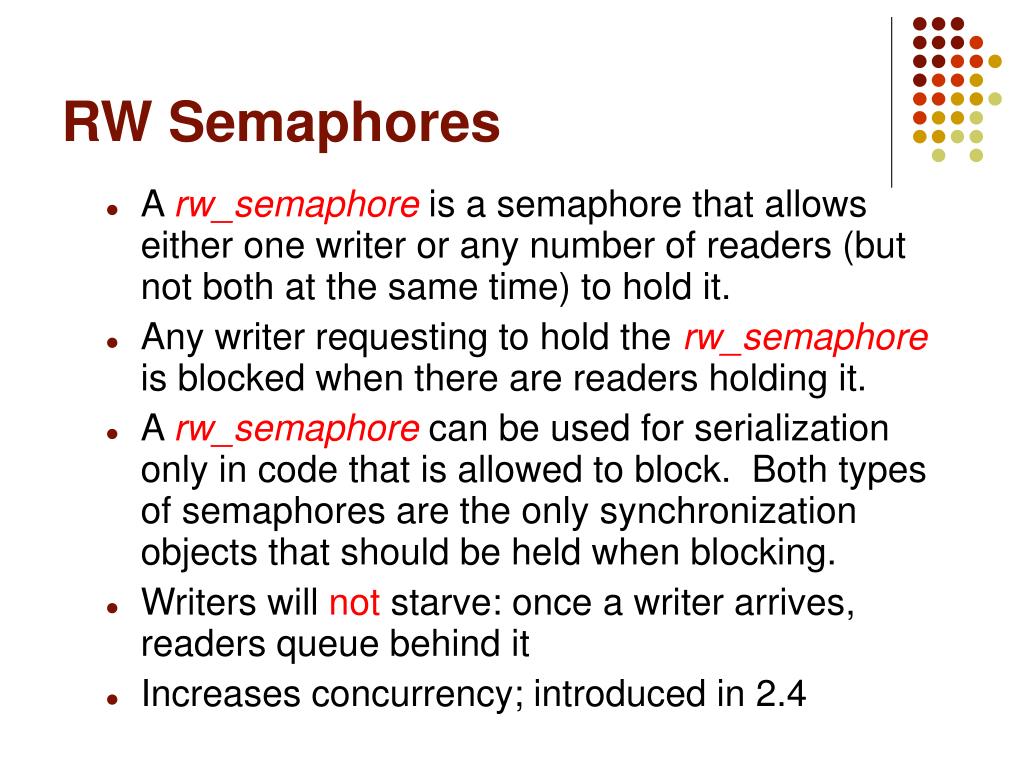

48. RW Semaphores • A rw_semaphore is a semaphore that allows either one writer or any number of readers (but not both at the same time) to hold it. • Any writer requesting to hold the rw_semaphore is blocked when there are readers holding it. • A rw_semaphore can be used for serialization only in code that is allowed to block. Both types of semaphores are the only synchronization objects that should be held when blocking. • Writers will not starve: once a writer arrives, readers queue behind it • Increases concurrency; introduced in 2.4

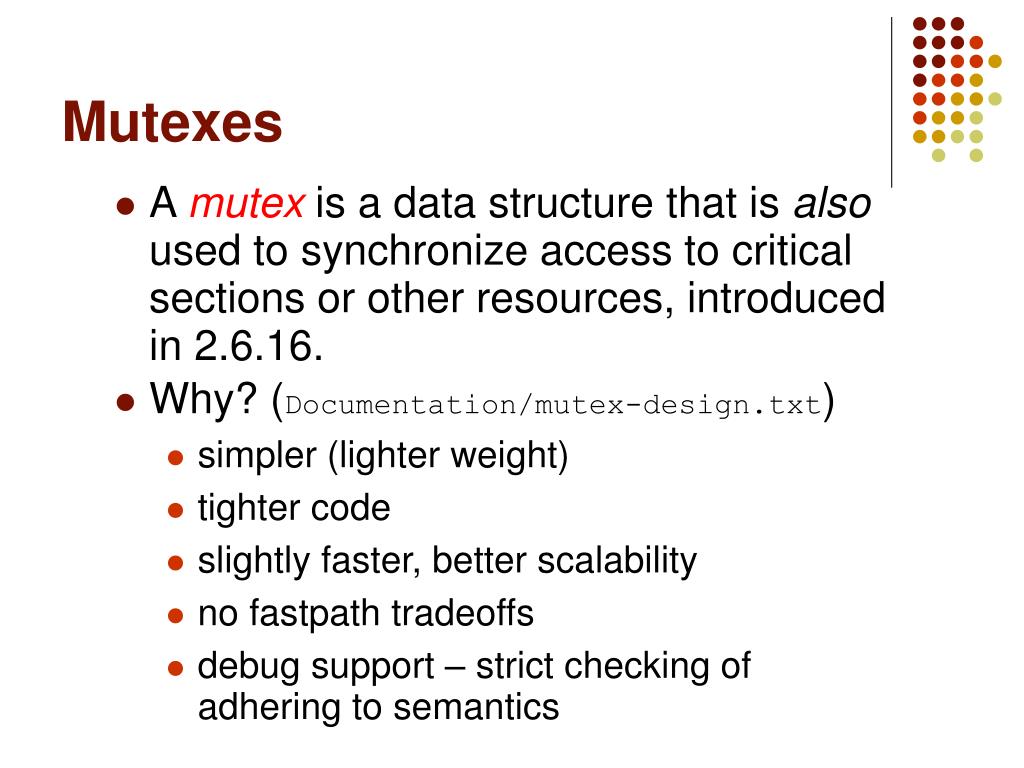

49. Mutexes • A mutex is a data structure that is also used to synchronize access to critical sections or other resources, introduced in 2.6.16. • Why? (Documentation/mutex-design.txt) • simpler (lighter weight) • tighter code • slightly faster, better scalability • no fastpath tradeoffs • debug support – strict checking of adhering to semantics
