  1. The difference between twofeature models • Matthijs Sypkens Smit • Willem F. Bronsvoort • CAD ’07 Conference, Honolulu, Hawaii Faculty of Electrical Engineering, Mathematics and Computer Science

  2. Outline • Research motivation • Feature modelling • The feature difference • Modelling the feature difference • Application: efficient remeshing • Conclusion

  3. Research motivation 1 Efficient repeated processing of large models In particular: remeshing for FEA after model modification CAD model FEA mesh

  4. Research motivation 2 Model modification:

  5. Research motivation 3 Meshes for variants of model: ~1000 tets in feature ~1900 tets in feature 25000 points; 128,521 tets 25000 points; 128,751 tets

  6. Research motivation 4 meshing • Common practice: Full mesh generation each time 2. Our goal: Remeshing of previous mesh modify model remeshing meshing

  7. Feature modelling 1 • Current product modelling systems use feature models • Products are represented with features: holes, slots, pockets, protrusions, etc. • Features have a generic shape that is controlled through parameters

  8. Feature modelling 2 Modification of feature models: • Parameter values / constraints • Addition and removal of features As a result: change in geometry Our aim: a description of the difference that facilitates efficient remeshing

  9. The feature difference 1 Adapting a model: Deriving a new mesh: Intuitive solution: Let features carry their geometry (and mesh) with them ?

  10. The feature difference 2 When feature geometry is preserved:  mesh local to that feature can be copied Complications for change in interaction/attachment:  local changes to feature geometry:

  11. The feature difference 3 How to describe the geometric difference? Look from point of viewof the features Natural choice: the variation of the model is through the features For each feature the local change in geometry is recorded

  12. The feature difference 4 Copying parts of the mesh: Parts can only be copied when underlying geometry can be mapped between models • Geometry that can be mapped is persistent • To find intuitive persistence we look at the feature geometry ( ≠ BRep geometry ) Geometry that cannot be mapped is non-persistent

  13. persistent non-persistent The feature difference 5 • Features’ own geometry is persistent, unless reshaped or not present in both models • Change in interaction  non-persistent geometry • Manifestation of persistent geometry can change Looking from the point of view of a single feature: model 1 model 2 persistence according to the baseblock:

  14. The feature difference 6 The difference for elements of each feature: [geometry] persistent (P) non-persistent (N) manifestation identical (Pi) manifestation different (Pd) model 1 (N1) “old” model 2 (N2) “new” ( Pd1 / Pd2 ) [manifestation = on bound./in volume]

  15. Pi identical Pd1 bound. in 1 Pd2 bound. in 2 N1 only in 1 N2 only in 2 The feature difference -2D Example (1) Relocating a feature: • Feature F1 has a change of interaction with attached feature F2 • For feature F2 all remains the same

  16. Pi identical Pd1 bound. in 1 Pd2 bound. in 2 N1 only in 1 N2 only in 2 The feature difference -2D Example (2) Adding / removing a feature: • Feature F1 has a change of interaction due to new feature F3 • Feature F3 is completely new to the model • For feature F2 all remains the same

  17. The feature difference - reshaping How to handle changing feature shape? “Self-interaction” Solution not unique! Align on fixed reference point  consistent, deterministic

  18. Pi identical Pd1 bound. in 1 Pd2 bound. in 2 N1 only in 1 N2 only in 2 The feature difference -2D Example (3) Combining translation, reshaping and negative nature: Note: F3 is a hole • Feature F1 has a change in interaction with F2 • Feature F2 has been scaled and translated • For feature F3 the interaction with F2 changes

  19. Modelling the feature difference 1 Two main steps: 1. Non-regular union  merge of objects; all original entities are kept For the complete geometry of corresponding features Implementation on top of geometric modelling kernel (ACIS)

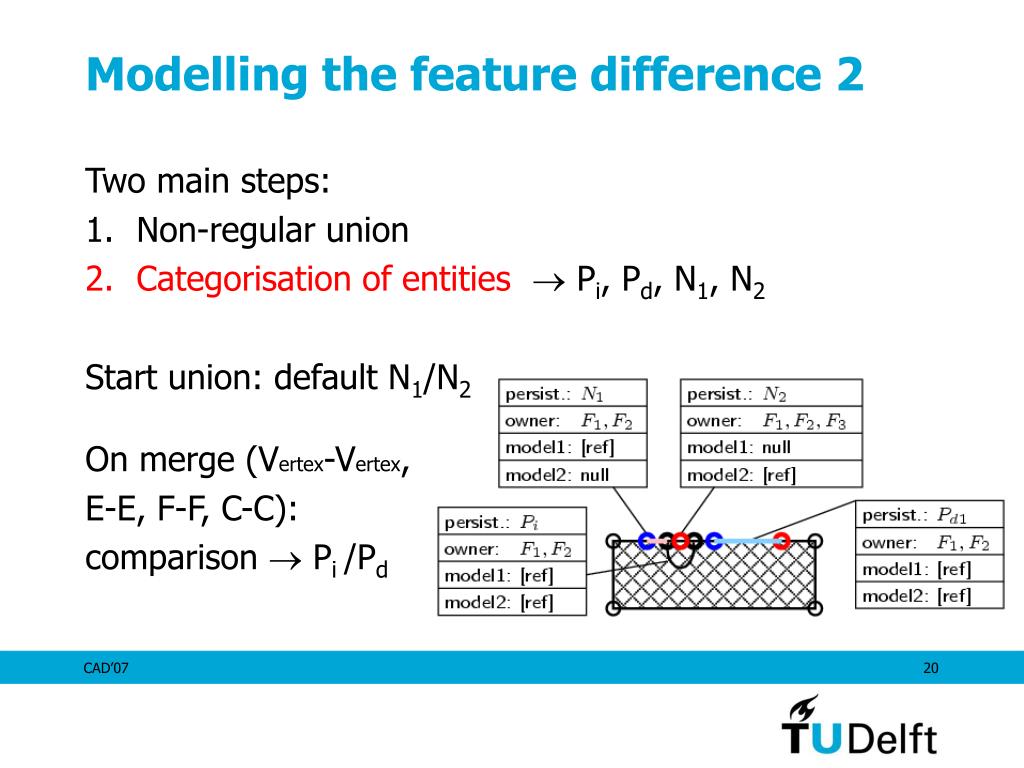

  20. Modelling the feature difference 2 Two main steps: 1. Non-regular union • Categorisation of entities  Pi, Pd, N1, N2 Start union: default N1/N2 On merge (Vertex-Vertex, E-E, F-F, C-C): comparison  Pi /Pd

  21. Modelling the feature difference 3 • The difference model is the set of all individual feature differences • Complete explicit construction not necessary: Many features will be 100% persistent New or deleted features are 100% non-persistent  a single attribute is sufficient for those featues • Feature correspondence between models essential input difference model

  22. Application: efficient remeshing 1 Assumptions: • Model modifications influence geometry only locally • Considerable degree of feature correspondence • Mesh generation optimisation based  time consuming construction limited, local change

  23. Application: efficient remeshing 2 Original mesh: Variational tetrahedral meshing (Delaunay connectivity) Sketch of a remeshing approach: • Construct difference model • Per feature, copy points based on persistent volume • Mesh new geometry • Mark points on/near non-persistent geometry • Optimise marked points

  24. Conclusions 1 • Feature point of view leads to natural/intuitive difference • Feature difference applies to feature aspects in general  any attribute local to a feature can be compared • Difference model and remeshing handle changes in topology!

  25. Conclusions 2 • Speed-up when remeshing similar models for FEA  intended for quality meshes of large models • Easier direct comparison of FEA result  persistent regions with largely identical mesh Open for investigation: • Practical investigation of remeshing (work in progress) • Dealing with mesh sizing • Other meshing algorithms / mesh types

  26. Credits Research supported by NWO (Netherlands Organisation for Scientific Research)
