  1. The Contents. • Cyber Hull • Cyber Hull Inventory

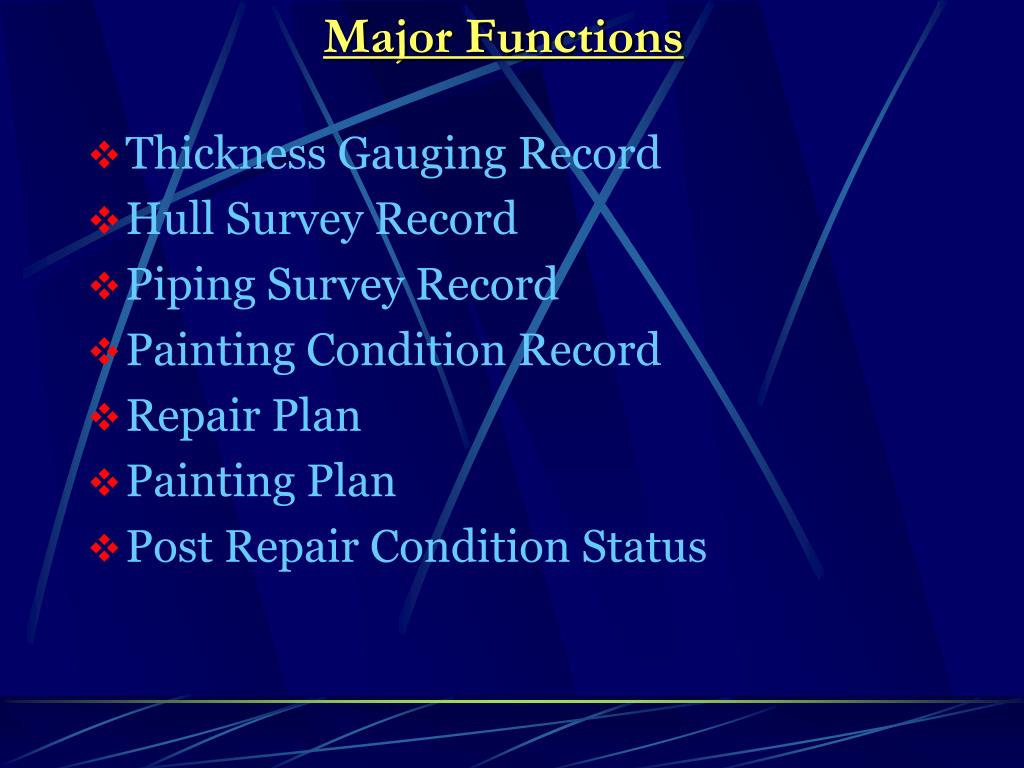

  2. Major Functions • Thickness Gauging Record • Hull Survey Record • Piping Survey Record • Painting Condition Record • Repair Plan • Painting Plan • Post Repair Condition Status

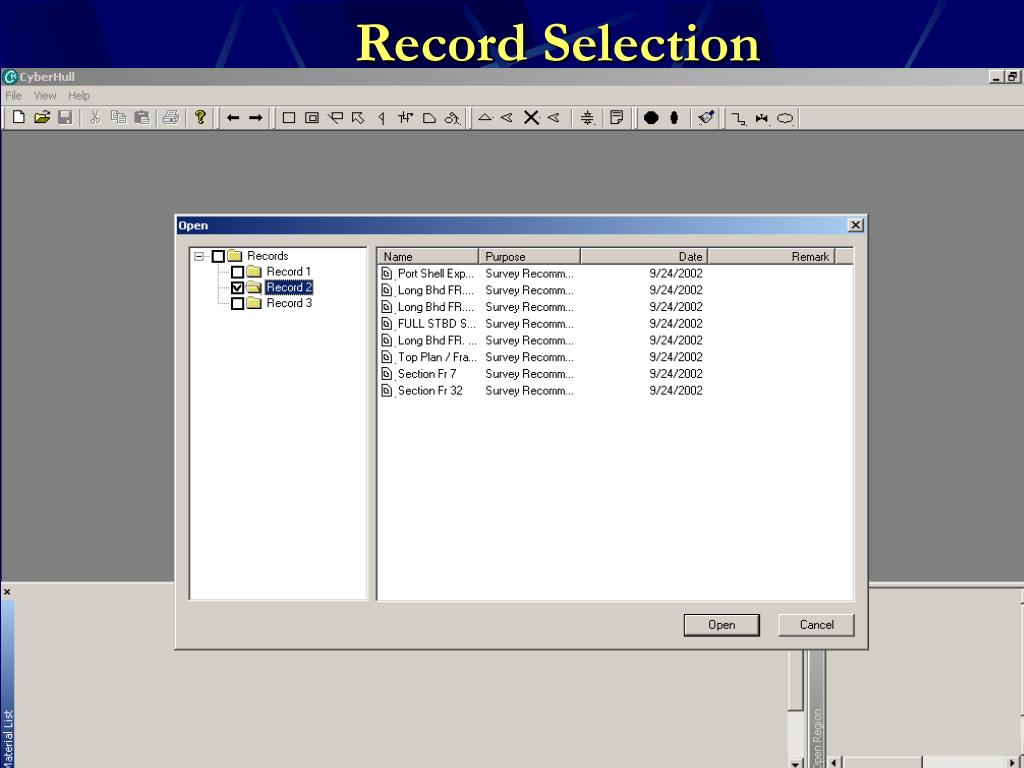

  3. Record Selection

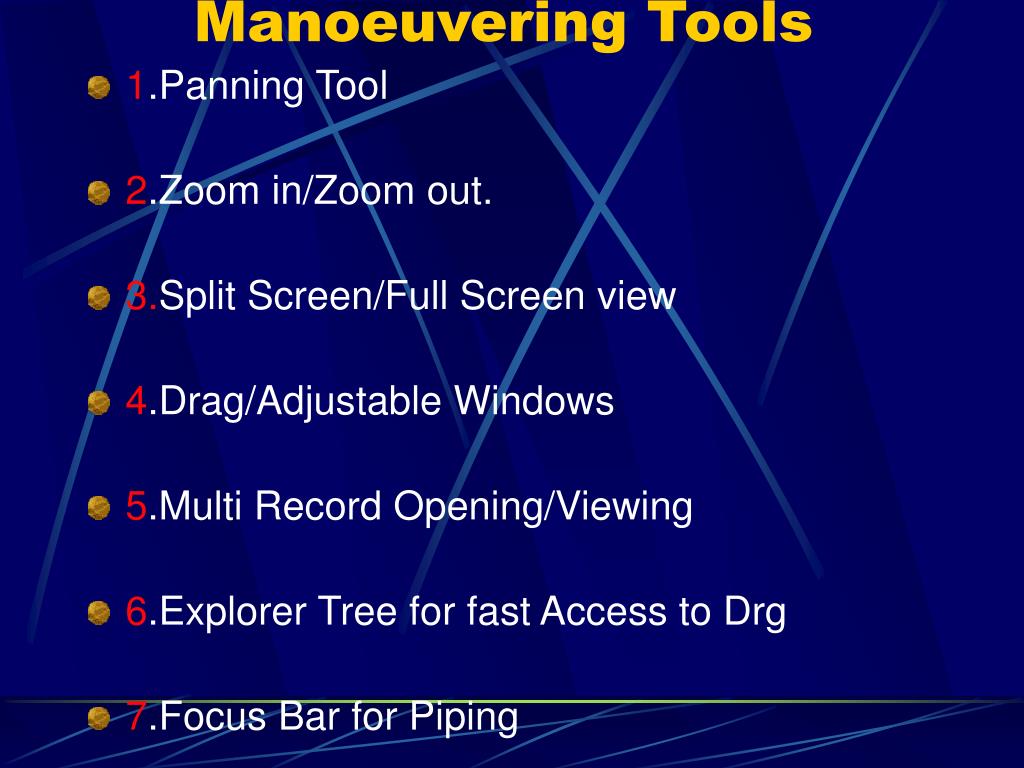

  4. Manoeuvering Tools • 1.Panning Tool • 2.Zoom in/Zoom out. • 3.Split Screen/Full Screen view • 4.Drag/Adjustable Windows • 5.Multi Record Opening/Viewing • 6.Explorer Tree for fast Access to Drg • 7.Focus Bar for Piping

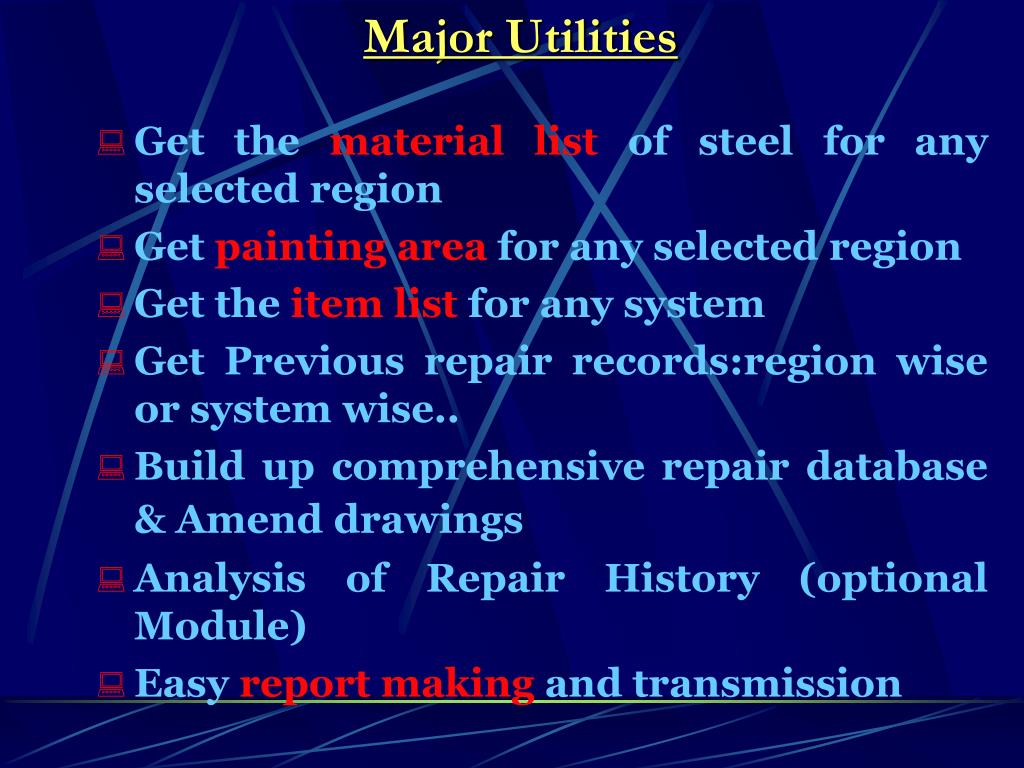

  5. Major Utilities • Get the material list of steel for any selected region • Get painting area for any selected region • Get the item list for any system • Get Previous repair records:region wise or system wise.. • Build up comprehensive repair database & Amenddrawings • Analysis of Repair History (optional Module) • Easy report making and transmission

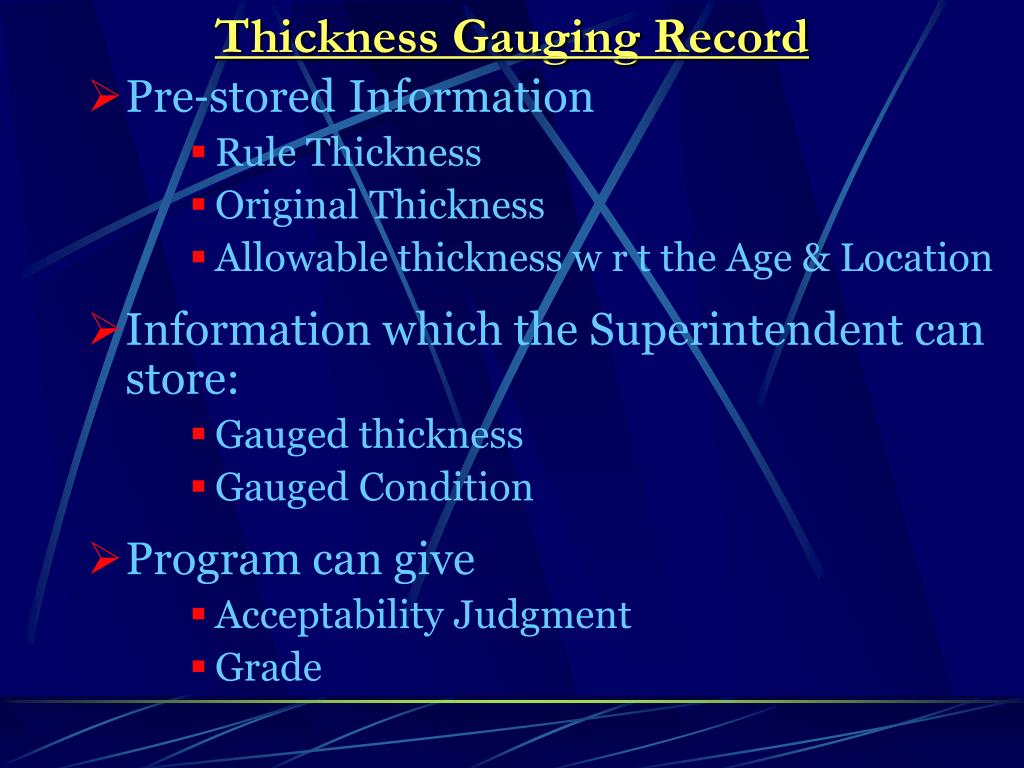

  6. Thickness Gauging Record • Pre-storedInformation • Rule Thickness • Original Thickness • Allowable thickness w r t the Age & Location • Information which the Superintendent can store: • Gauged thickness • Gauged Condition • Program can give • Acceptability Judgment • Grade

  7. Thickness Gauging Record

  8. Hull Survey Record  • Identify the defect at each Location • Save an additional sketch or a photograph as BMP • Use of Information to make a repair plan for dry docking.

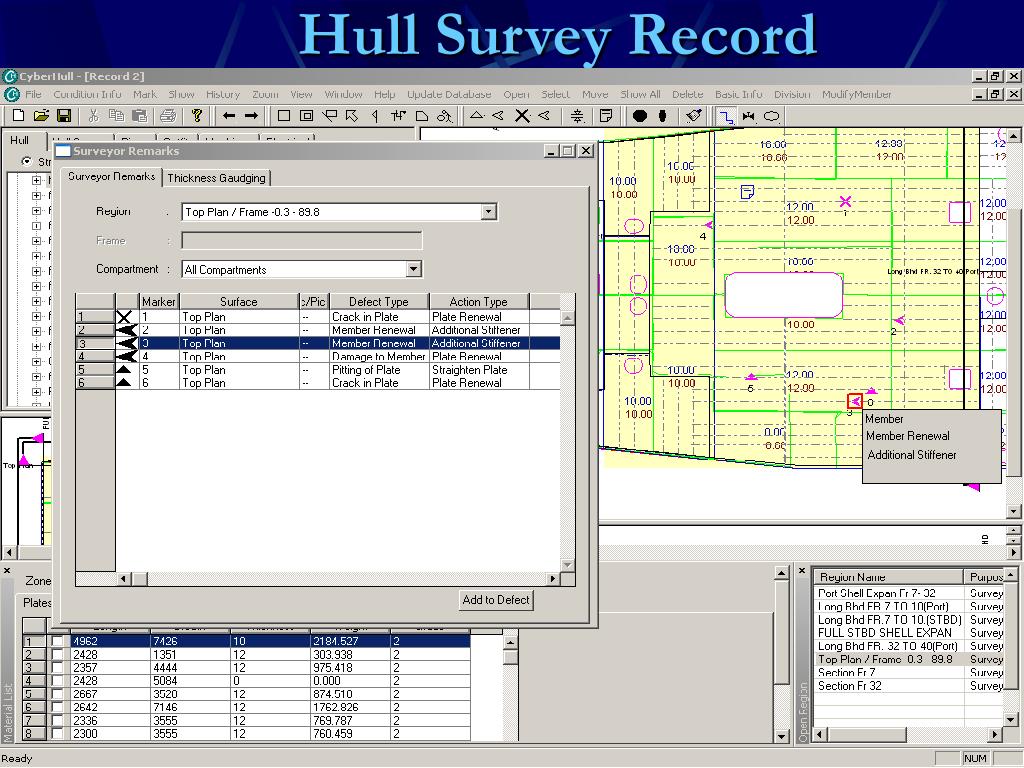

  9. Hull Survey Record

  10. Preparation of Hull Defect List

  11. Piping Survey Record • Select any System for survey • Mark the item in the selected system. • Notify the Defective item using the Markers. • Input observations on Valves & pipes • Prepare Defect list

  12. Pipe Survey Record

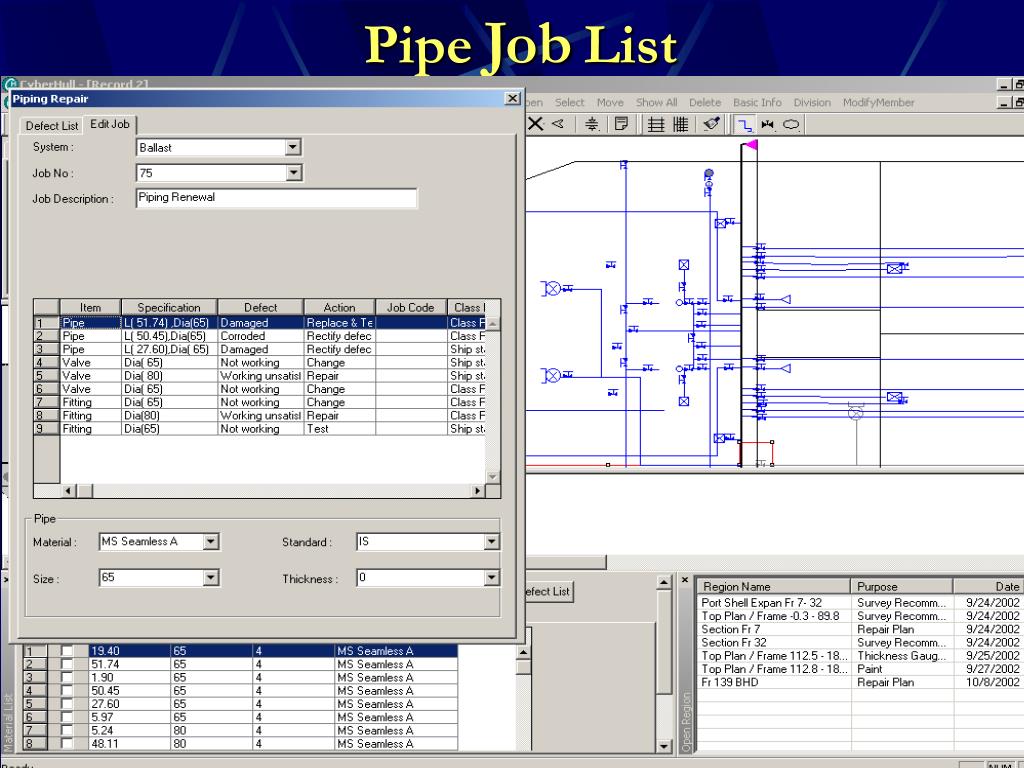

  13. PipeJobList

  14. Position Markers & Defect Markers Markers

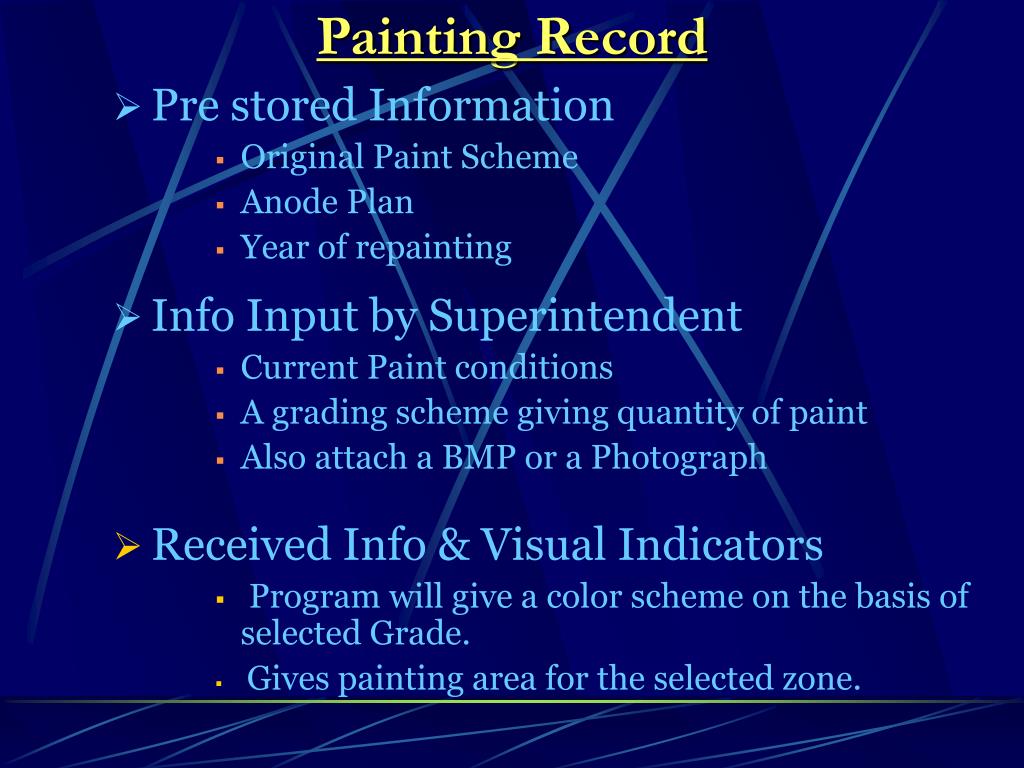

  15. Painting Record • Pre stored Information • Original Paint Scheme • Anode Plan • Year of repainting • Info Input by Superintendent • Current Paint conditions • A grading scheme giving quantity of paint • Also attach a BMP or a Photograph • Received Info & Visual Indicators • Program will give a color scheme on the basis of selected Grade. • Gives painting area for the selected zone.

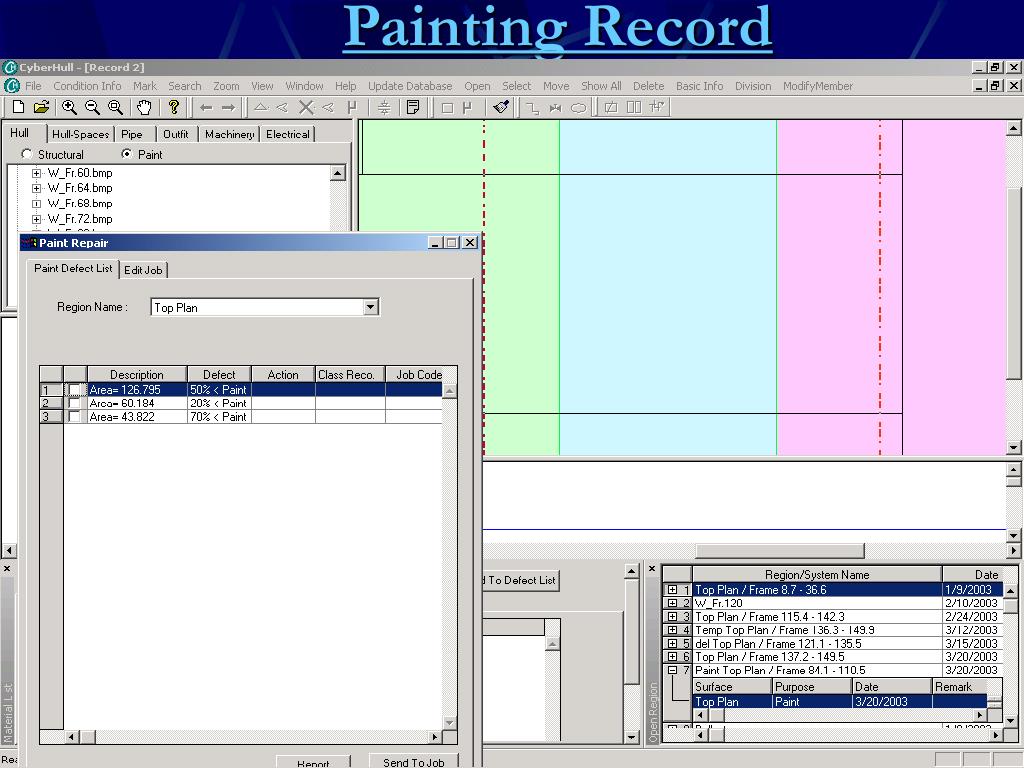

  16. Painting Record

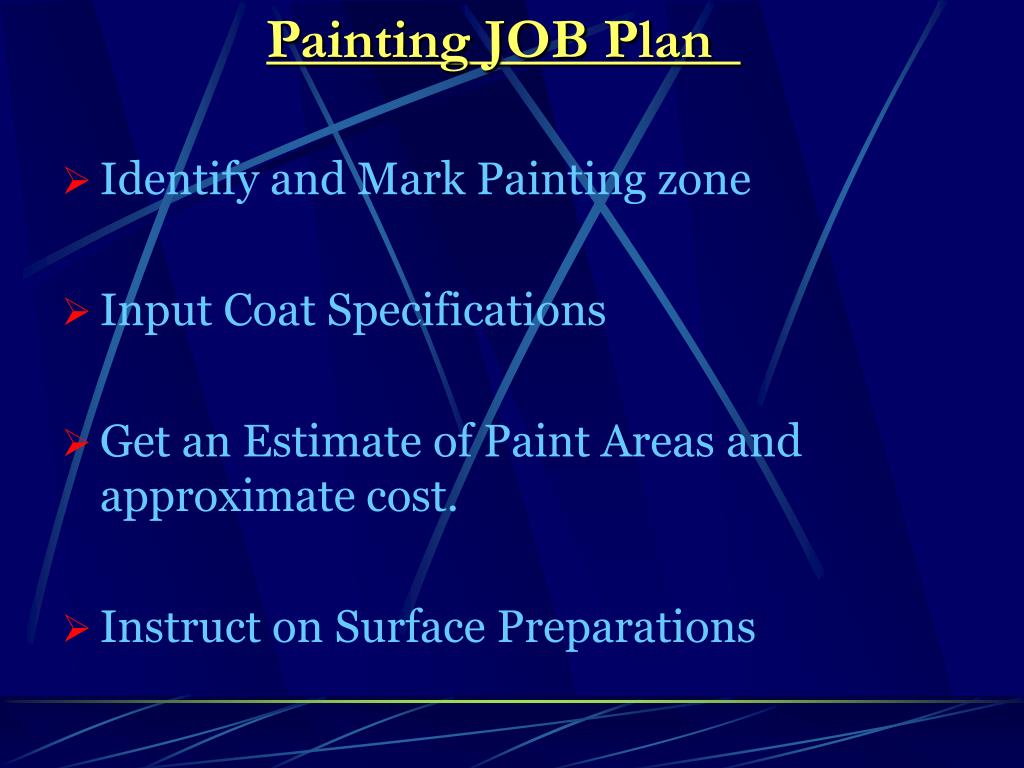

  17. Painting JOB Plan   • Identify and Mark Painting zone • Input Coat Specifications • Get an Estimate of Paint Areas and approximate cost. • Instruct on Surface Preparations

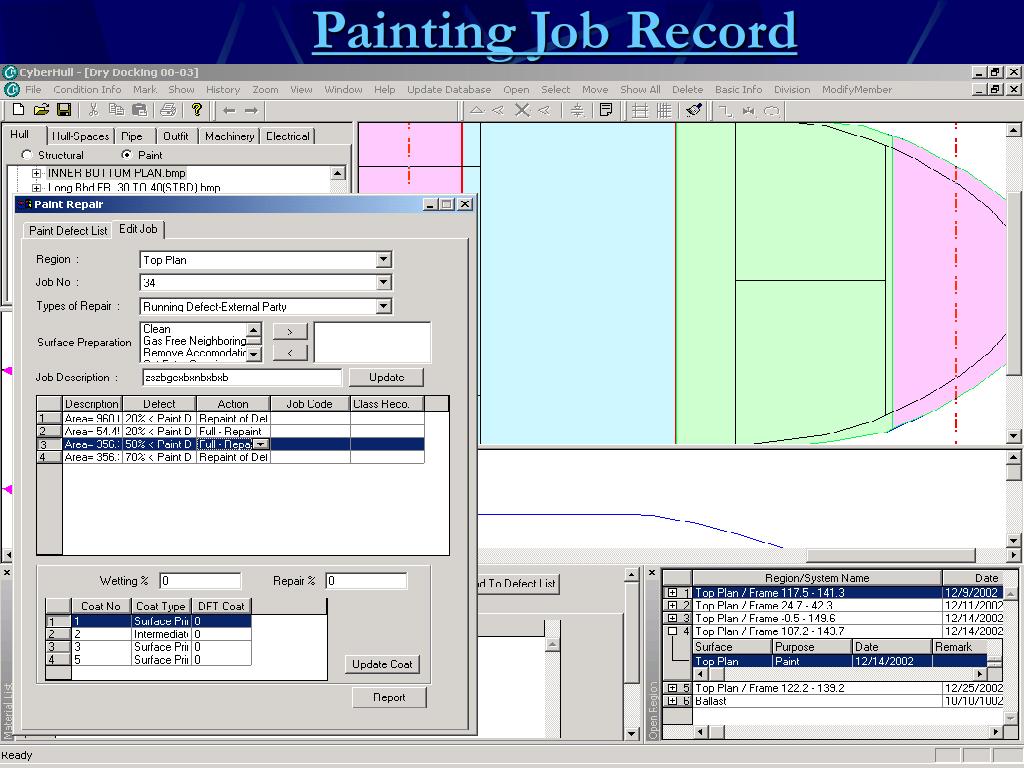

  18. Painting Job Record

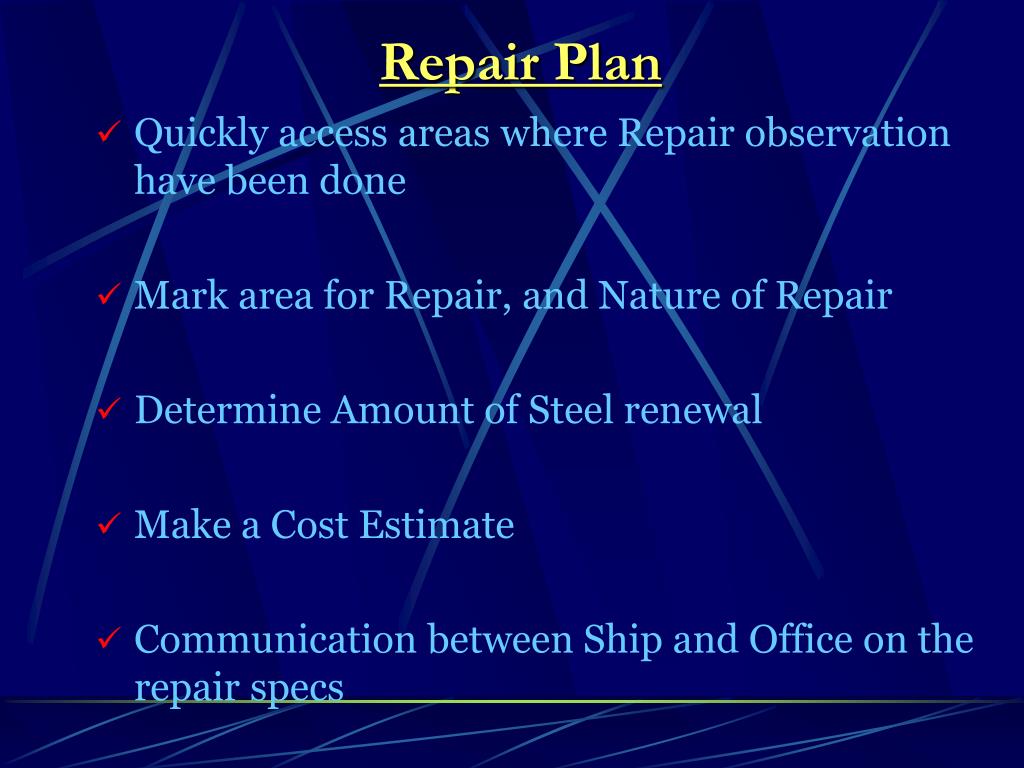

  19. Repair Plan • Quickly access areas where Repair observation have been done • Mark area for Repair, and Nature of Repair • Determine Amount of Steel renewal • Make a Cost Estimate • Communication between Ship and Office on the repair specs

  20. Creation and Handling of Job   • Creation of Jobs for Repair • Invitation of Quotes for Material and works contracts • Placement of order for material and works contracts • Evaluation of Bill and Approval

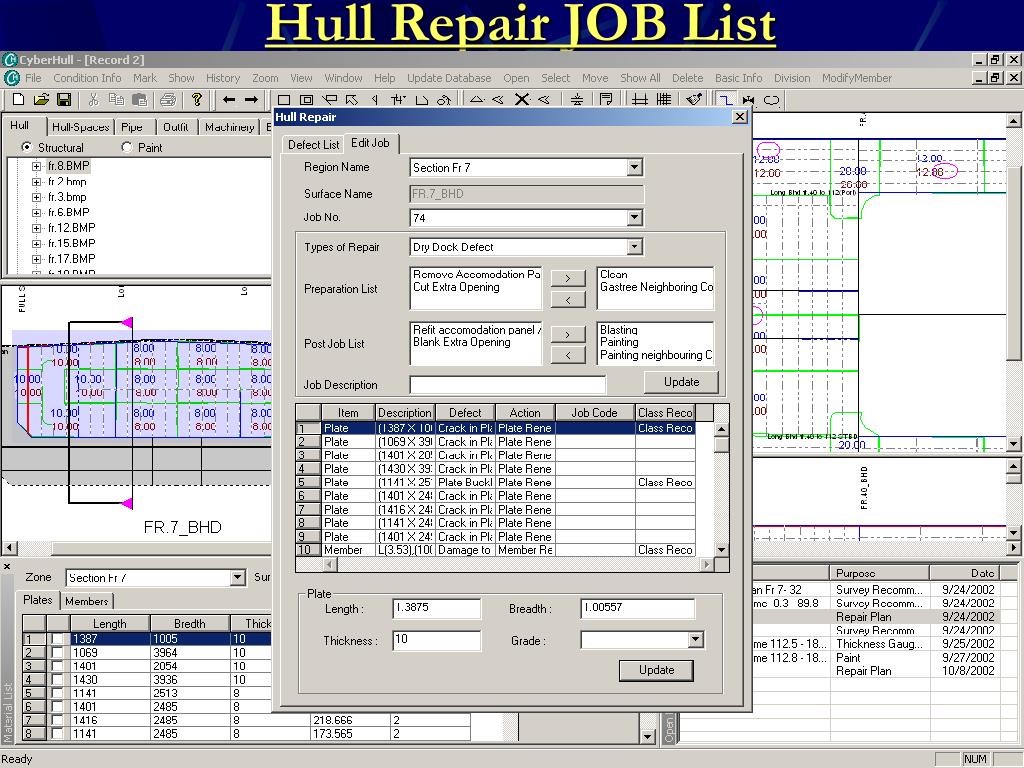

  21. Hull Repair JOB List

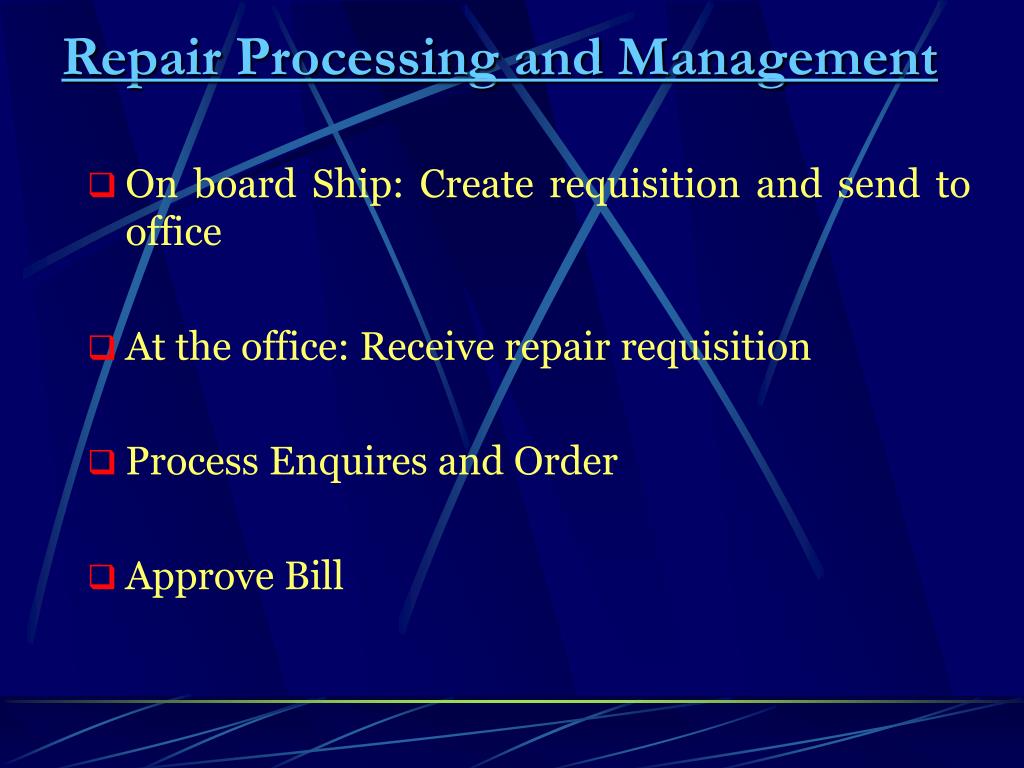

  22. Repair Processing and Management • On board Ship: Create requisition and send to office • At the office: Receive repair requisition • Process Enquires and Order • Approve Bill

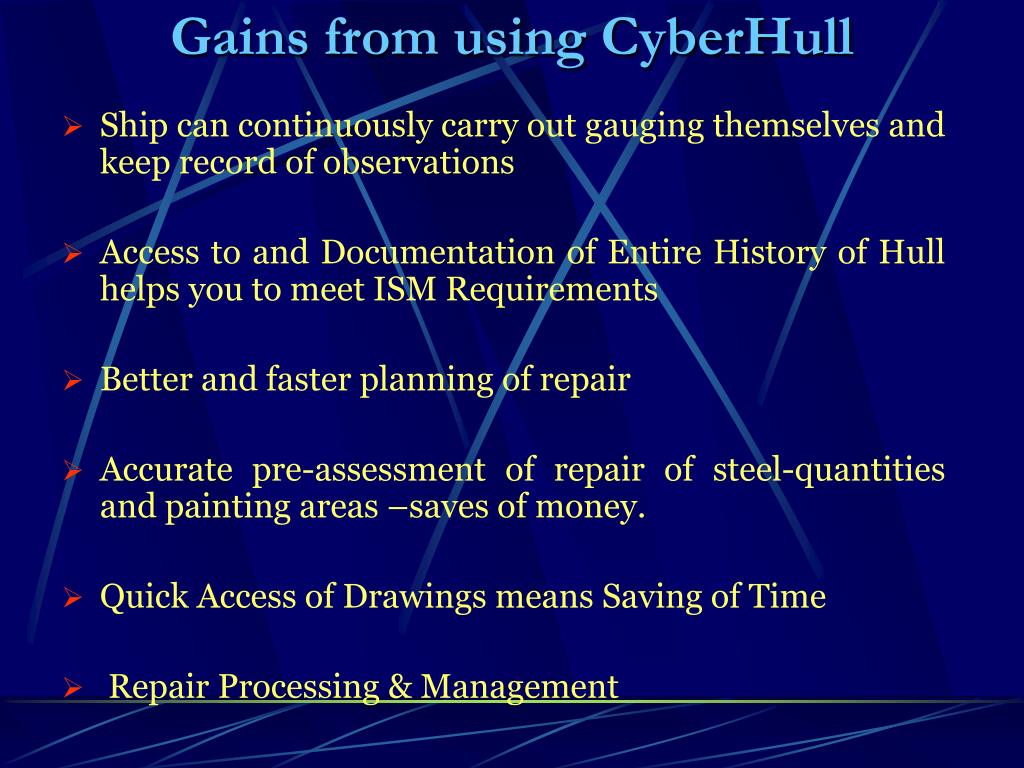

  23. Gains from using CyberHull • Ship can continuously carry out gauging themselves and keep record of observations • Access to and Documentation of Entire History of Hull helps you to meet ISM Requirements • Better and faster planning of repair • Accurate pre-assessment of repair of steel-quantities and painting areas –saves of money. • Quick Access of Drawings means Saving of Time • Repair Processing & Management

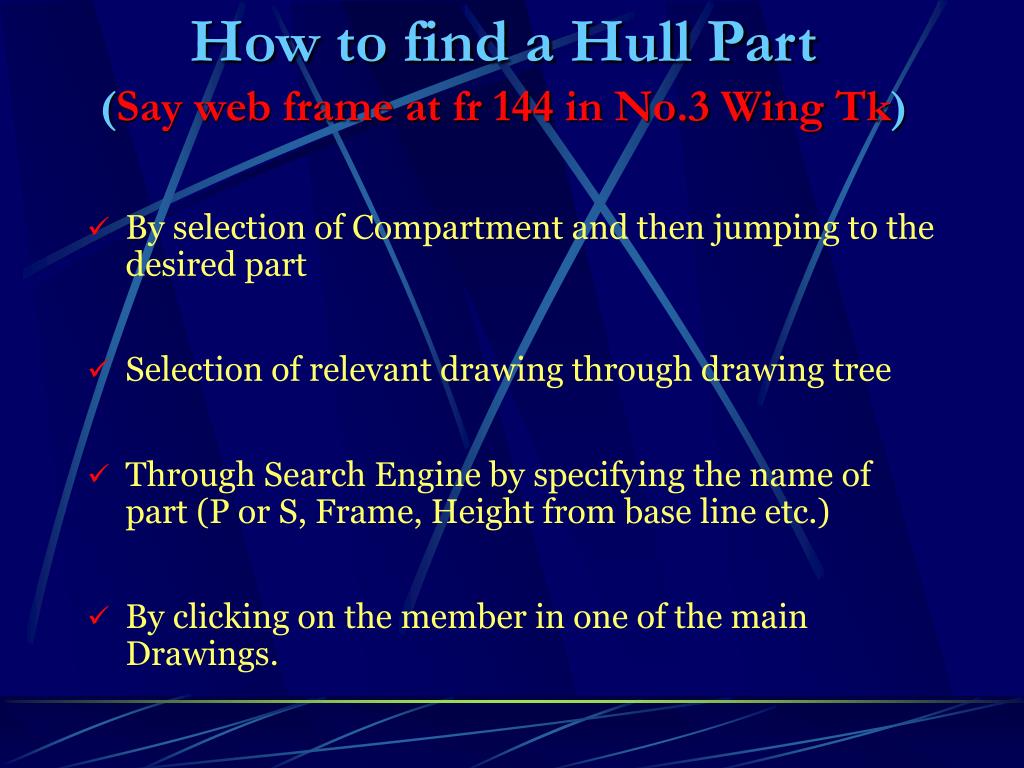

  24. How to find a Hull Part (Say web frame at fr 144 in No.3 Wing Tk) • By selection of Compartment and then jumping to the desired part • Selection of relevant drawing through drawing tree • Through Search Engine by specifying the name of part (P or S, Frame, Height from base line etc.) • By clicking on the member in one of the main Drawings.

  25. Picture Insertion

  26. Dumb Drawing Views of CyberHull DUMB DRAWING

  27. Thank You! This was a presentation of CyberHull
