Rock A is dropped from a bridge as rock B is thrown up.

Please have your tennis ball lab or a yellow NTI form on your desk #. Also the mixed review (5 or 6 problems) Bell Work: Free Fall Again. Rock A is dropped from a bridge as rock B is thrown up. ( A / B / Both ) will have the greatest speed when they hit the water?

ossie
Télécharger la présentation

Rock A is dropped from a bridge as rock B is thrown up.

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

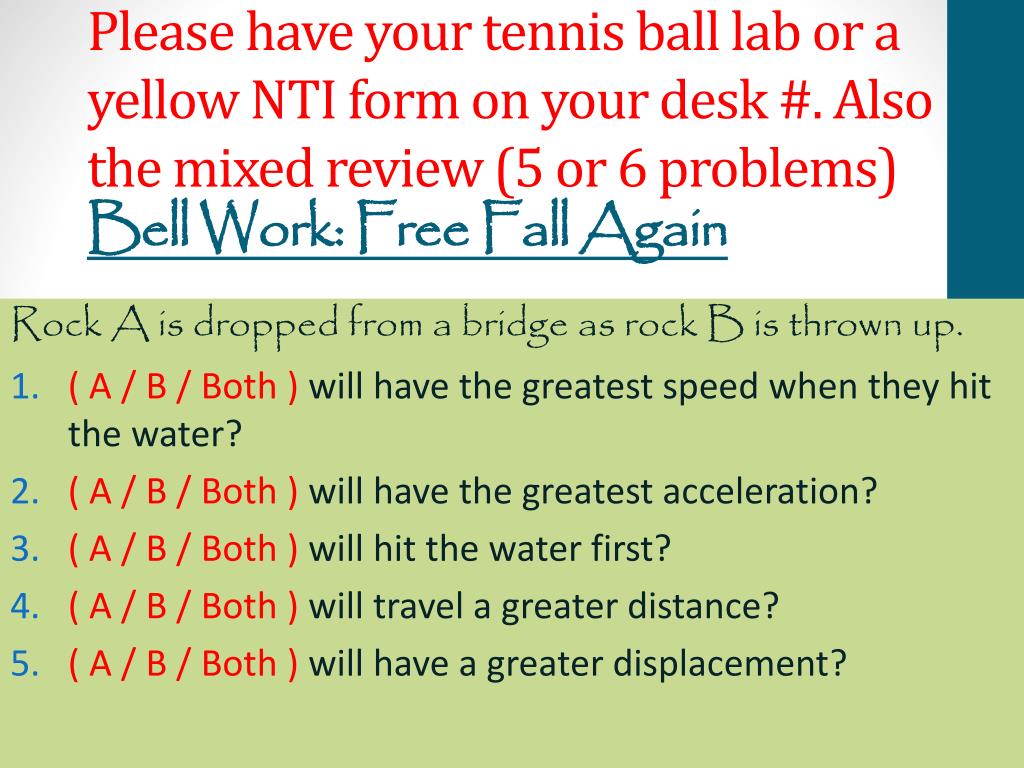

  1. Please have your tennis ball lab or a yellow NTI form on your desk #. Also the mixed review (5 or 6 problems)Bell Work: Free Fall Again Rock A is dropped from a bridge as rock B is thrown up. ( A / B / Both ) will have the greatest speed when they hit the water? ( A / B / Both ) will have the greatest acceleration? ( A / B / Both ) will hit the water first? ( A / B / Both ) will travel a greater distance? ( A / B / Both ) will have a greater displacement?

  2. Announcements • Tomorrow is the last day to turn in classwork assignments for this unit (unless you have excused absences and are not taking the test) • When you come in tomorrow, you will need to locate your halo form (scantron). You will not be in your regular seat. • On your desk you will need: • Calculator • #2 pencil • Equation sheet (optional) • Everything else will need to be on the floor or the side counters.

  3. Announcements • Halo forms are extremely sensitive – do NOT bubble in an answer until you are sure that it is the correct choice – make a small mark. • Only write on the back of the halo forms – do the honors questions there as well. • I will come around and pick up your test as you finish. • Put the halo form under the test and leave on your desk #. • No electronic until you are finished with the test. • No bathroom breaks until you are finished with the test.

  4. Falling in a vacuum

  5. 1 D Kinematics Test Review

  6. 1. Fill in the table with the missing information.

  7. 2. What is a scalar quantity? A quantity that is specified by a magnitude (numerical) value only. Example: 40 m/s 3. What is a vector quantity? A quantity that is specified by a magnitude and a direction. Example: 40 m/s North

  8. 4. A Lanier High School student begins at the starting line facing west (180o) and runs around the track 20 times before returning to the starting line. (1 lap = 400m) a. What is his displacement? 0 meters, they ended where they started • b. What is his distance? • 400 meters x 20 laps = 8000 meters

  9. 5. David drives 800 miles north, then 200 miles south, then 300 miles north again a. What is David’s displacement? 800 N + (-200 S) + 300 N= 900 miles, North 300N 200S 800N • b. What is David’s distance? • 800 + 200 + 300 = 1300 miles

  10. 6. An object is accelerating when its speed or direction changes. 7. An object is speeding up when its velocity and acceleration are in ( the same / opposite ) direction(s). An object is slowing down when its velocity and acceleration are in ( the same / opposite ) direction(s). 8. A wheel is spinning at 3.7 m/s. Its (speed/ direction ) does not change.

  11. 9. The average velocity of an object is equal to the instantaneous velocity when the object has a ( constant / changing ) velocity. 10. Suppose that an object is moving with a constant velocity. a = _0_m/s2 11. The speed of an object at rest is 0m/s.

  12. 12. A runner sees the finish line and accelerates at a rate of 1.5 m/s2 for the last 7.0 seconds to win the race. If he was initially running at a speed of 3.4 m/s, how far did he travel? GIVEN: Vo= 3.4 m/s x= 3.4 (7) + .5 (1.5) (7)2 Vf = x = 23.8 + .5 (1.5) (49) t = 7 s x = 23.8 + 36.75 a = 1.5 m/s2 x = 60.55 m X = ?

  13. 13. A car is traveling 55 miles during the first hour, 55 miles in the second hour and 55 miles in the third hour. Its acceleration is ____. 0 m/h2, maintained 55 mi/h, therefore, no acceleration occurred. 14. You traveled 340 km in 5.5 hours. What is your average speed? GIVEN: v = x/t v = ? v = 340 d = 340 km 5.5 t = 5.5 hours v = 61.8 km/h

  14. 15. A car's velocity increases from 7.0 m/s to 45 m/s over a 8.0 s time interval. What is its acceleration? GIVEN: Vo= 7.0 m/s Vf= 45 m/s -7 -7 t = 8.0 s a = ? a = 4.75 m/s2 x = 16. You are driving down the highway when you want to pass someone traveling at 30 m/s. You decide to change lanes and accelerate at 3.3 m/s2 for the next 3.0 s. What is your final velocity? GIVEN: Vo = 30 m/s Vf = 30 + (3.3)(3.0) Vf = ? Vf = 30 + 9.9 t = 3.0 s a = 3.3 m/s2 Vf = 39.9 m/s x =

  15. 17. On a position (distance) vs. time graph you can use the slope of your line to determine the ball's average velocity. 18. The slope of a tangentline at a given time value on a position versus time graph gives instantaneous velocity.

  16. 19. Use the graph to answer questions a -c a. What is the average velocity of the object between times t=0 and t=5? (Find the Slope) 25 – 0 m = 25 m = 5 m/s 5-0 s 5 s b. What range of time shows the car at rest? 5s – 10 s c. What is the instantaneous velocity of the object at 9 seconds? 0 m/s

  17. 20. Suppose a ball is thrown straight up, reaches a maximum height, and falls to its initial height. While going up, the velocity vector points ( up / down ) and the acceleration vector points ( up / down ). While going down, the velocity vector points ( up / down ) and the acceleration vector points ( up / down ). 21. A ball is thrown straight up. At the top of its path its instantaneous speed is 0 m/s 22. A ball is thrown straight up. At the top of its path, its acceleration is -9.8 m/s2. 23. If you drop a feather and coin at the same time in a vacuum tube, which one experiences the greater acceleration? Neither, they will both experience the same amount of acceleration.

  18. 24. A ball is thrown upwards with a speed of 20 m/s. What is the maximum height that it reaches? GIVEN: Vo = 20 m/s (0) 2 = (20) 2 + 2 (-9.8)(x) Vf = 0 m/s 0 = 400 - (19.6) (x) 0-400 = 400-400-19.6x t = -400 = - 19.6 (x) a = -9.8 m/s2 -19.6 - 19.6 x = ? x = 20.4 m

  19. 25. A ball is dropped from the top of a tower. It hits the ground below after 4.3 s. How tall was the tower? GIVEN: vo= 0 x = 0 + ½ (-9.8) (4.3)2 vf= x = .5 (-9.8) (18.49) t = 4.3 s x = -90.6 m a = -9.8 m/s2 x = ?

  20. 26. A ball is dropped from a height of 1.0 m. A digital camera takes a picture every 1/30th of a second. Which group of circles to the right shows the data taken by the camera? Z. Dots are moving further and further apart. When the time doubles, the distance quadruples.

  21. 27. Use the graphs to answer questions a-b. a. Which graph shows a car speeding up? B b. Which graph shows a car slowing down? A

  22. 28a. How many hours are in 4567 seconds? 28b. How many miles are in 2567000 meters? ( 1 mile = 1.609 km)

  23. 28c. How many lbs are in 234 kg? (1 kg = 2.2 lbs) 28d. Jennifer Anniston’s new engagement ring is said to be 8 carats, how many mg is that? (1 carat = 200mg)
