  1. Lesson 3: Conditions and Loops Unit 1: The if Statement

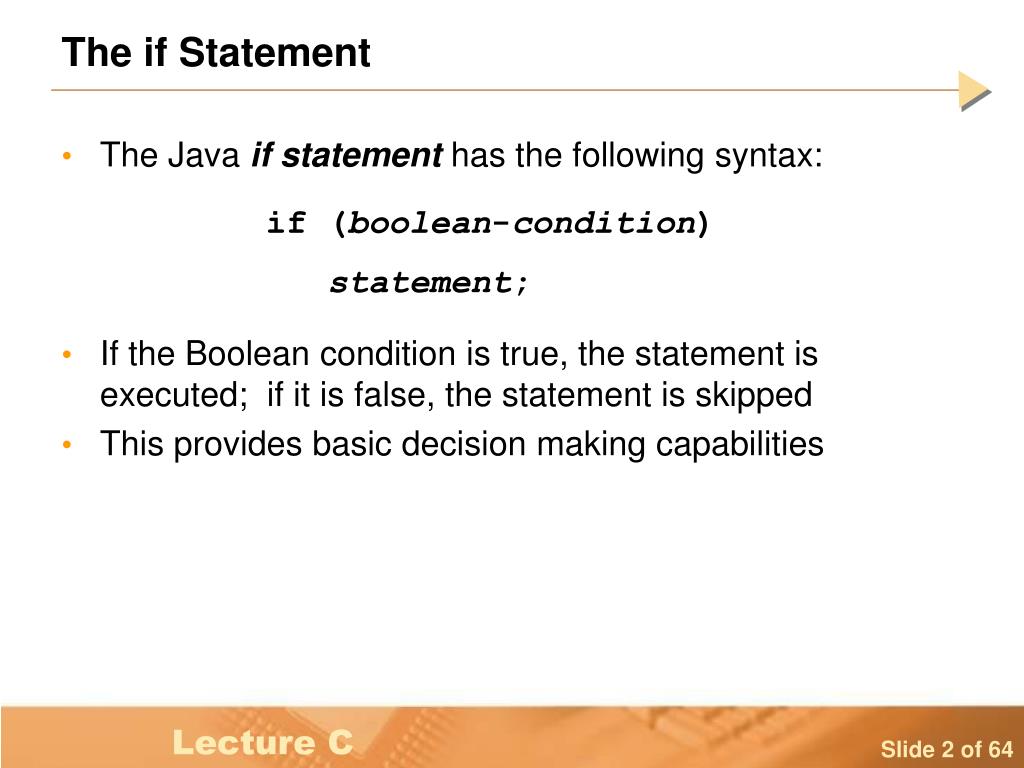

  2. The if Statement • The Java if statement has the following syntax: if (boolean-condition) statement; • If the Boolean condition is true, the statement is executed; if it is false, the statement is skipped • This provides basic decision making capabilities

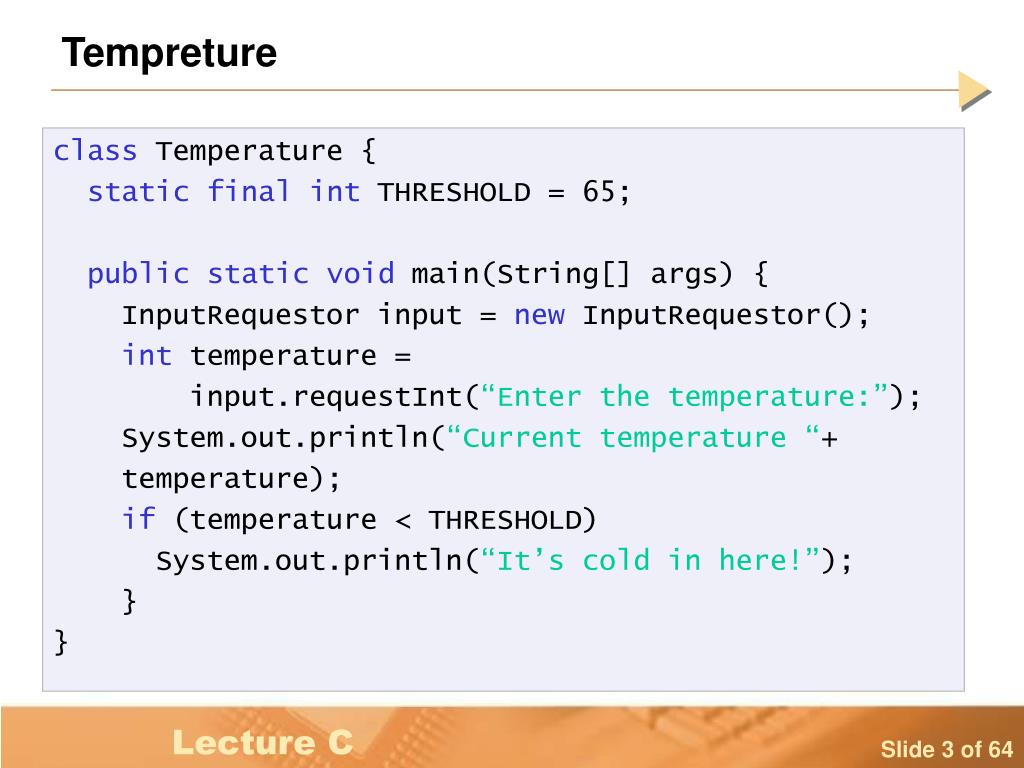

  3. Tempreture class Temperature { static final int THRESHOLD = 65; public static void main(String[] args) { InputRequestor input = new InputRequestor(); int temperature = input.requestInt(“Enter the temperature:”); System.out.println(“Current temperature “+ temperature); if (temperature < THRESHOLD) System.out.println(“It’s cold in here!”); } }

  4. If statement flow diagram if (condition) statement; condition true statement

  5. Boolean Expressions • The condition of anifstatement must evaluate to a true or false result • Java has several equality and relational operators: • More complex Boolean expressions are also possible

  6. Block Statements • Several statements can be grouped together into a block statement • Blocks are delimited by braces • A block statement can be used wherever a statement is called for in the Java syntax if (boolean-condition){ statement1; statement2; … }

  7. Example - Temperature2 class Temperature2 { static final int THRESHOLD = 65; public static void main(String[] args) { InputRequestor input = new InputRequestor(); int temperature = input.requestInt(“Enter the temperature:”); System.out.println(“Current temperature “+ temperature); if (temperature < THRESHOLD) { System.out.println(“It’s cold in here!”); System.out.println(“But we’ll survive.”); } } }

  8. If .. Else Statement • Anelseclause can be added to anifstatement to make it an if-else statement: if (condition) statement1; else statement2; • If the condition is true, statement1 is executed; if the condition is false, statement2 is executed

  9. Example - Temperature3 class Temperature3 { static final int FREEZING_POINT = 32; public static void main(String[] args) { InputRequestor input = new InputRequestor(); int temperature = input.requestInt(“Enter temperature:”); if (temperature <= FREEZING_POINT) System.out.println(“It’s freezing!”); else System.out.println(“Above freezing.”); } }

  10. If/else flow diagram if (condition) statement1; else statement2; condition true statement1 statement2

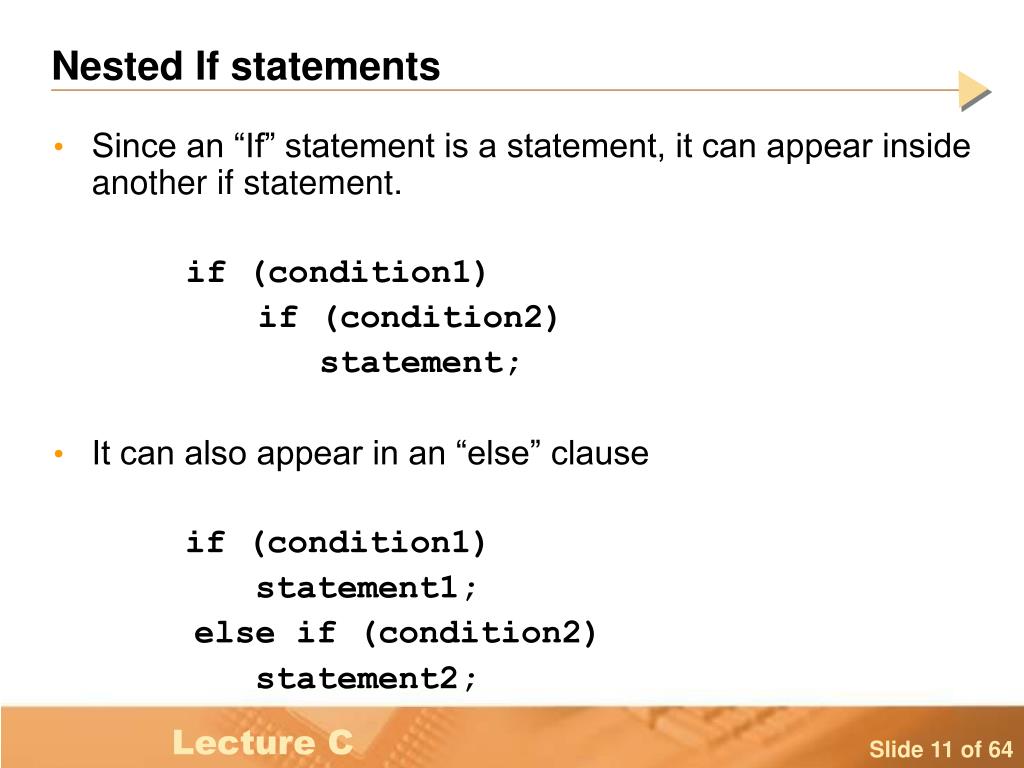

  11. Nested If statements • Since an “If” statement is a statement, it can appear inside another if statement. if (condition1) if (condition2) statement; • It can also appear in an “else” clause if (condition1) statement1; else if (condition2) statement2;

  12. Nested If Example // Reads 2 integers and compares them class CompareExample { public static void main(String[] args) { InputRequestor input = new InputRequestor(); int a = input.requestInt(“First number:”); int b = input.requestInt(“Second number:”); if (a != b){ if (a > b) System.out.println(a+” is greater”); else System.out.println(b+” is greater”); }else System.out.println(“the numbers are equal”); } }

  13. Checking your Input • When requesting input from the user, keep in mind that the input may be invalid. • It is good practice to check the validity of user input int numberOfItems = input.requestInt(“Enter number of items:”); if (numberOfItems < 0) { System.out.println( “Number of items must be positive!”); } else { double price = numberOfItems * ITEM_PRICE; System.out.println(“The total price is:“ +price); }

  14. Lesson 3: Conditions and Loops Unit 2: Boolean Expressions

  15. Logical Operators • Boolean expressions may be combined using logical operators • There are three logical operators in Java: • They all take Boolean operands and produce Boolean results • Logical NOT is unary (one operand), but logical AND and OR are binary (two operands)

  16. Logical NOT • The logical NOT is also called logical negation or logical complement • If a is true, !a is false; if a is false, then !a is true • Logical expressions can be shown using truth tables

  17. Logical AND • The expression a && b is true if both a and b are true, and false otherwise • Truth tables show all possible combinations of all terms

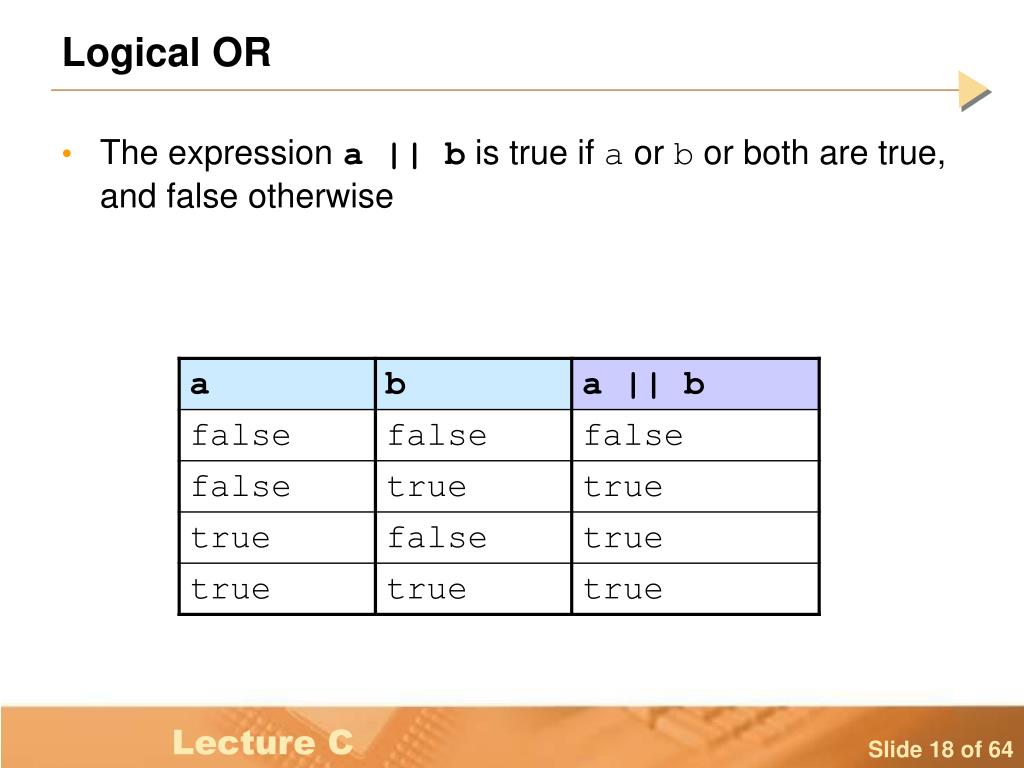

  18. Logical OR • The expression a || b is true if a or b or both are true, and false otherwise

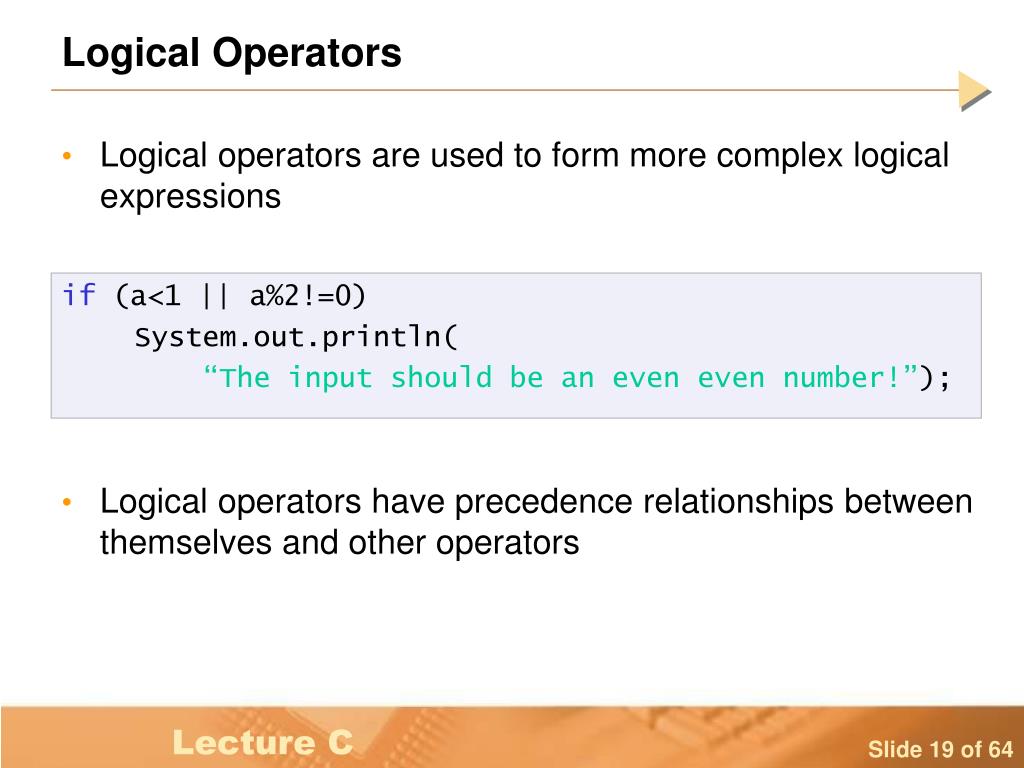

  19. Logical Operators • Logical operators are used to form more complex logical expressions • Logical operators have precedence relationships between themselves and other operators if (a<1 || a%2!=0) System.out.println( “The input should be an even even number!”);

  20. Logical Operators • Full expressions can be evaluated using truth tables

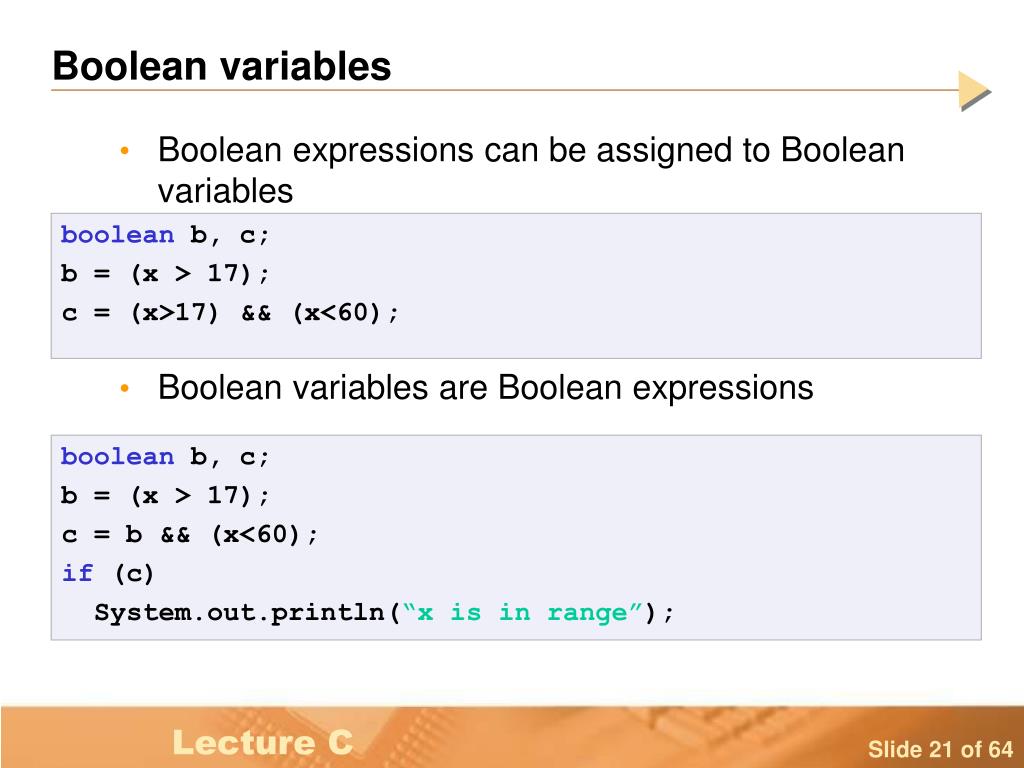

  21. Boolean variables • Boolean expressions can be assigned to Boolean variables • Boolean variables are Boolean expressions boolean b, c; b = (x > 17); c = (x>17) && (x<60); boolean b, c; b = (x > 17); c = b && (x<60); if (c) System.out.println(“x is in range”);

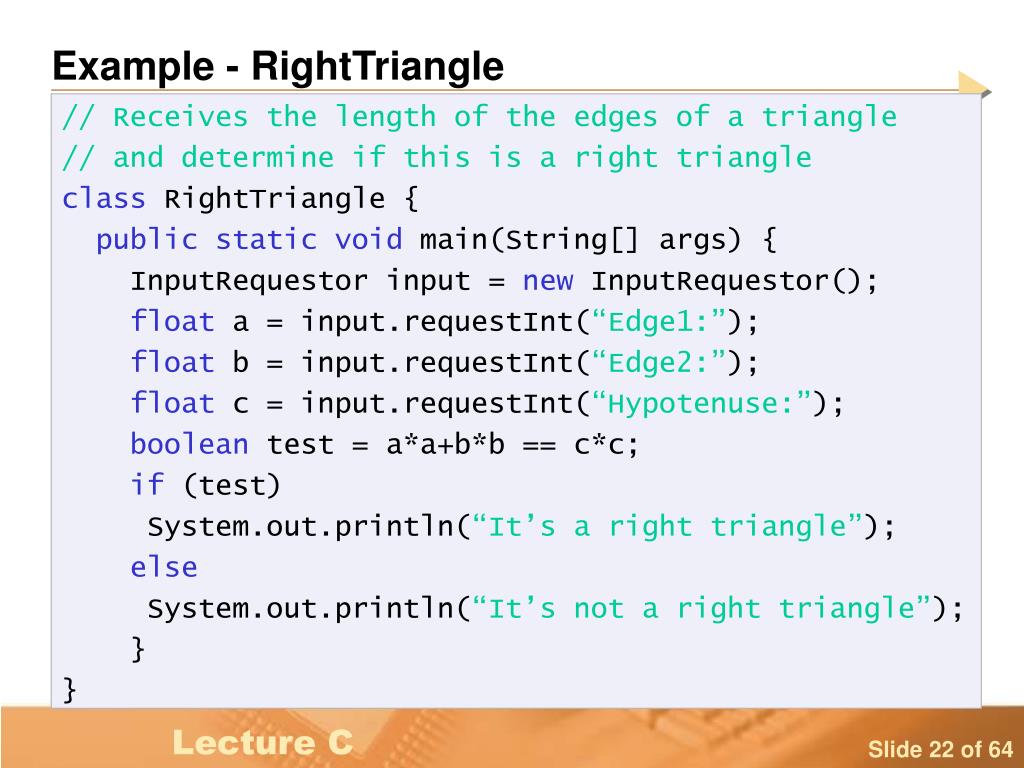

  22. Example - RightTriangle // Receives the length of the edges of a triangle // and determine if this is a right triangle class RightTriangle { public static void main(String[] args) { InputRequestor input = new InputRequestor(); float a = input.requestInt(“Edge1:”); float b = input.requestInt(“Edge2:”); float c = input.requestInt(“Hypotenuse:”); boolean test = a*a+b*b == c*c; if (test) System.out.println(“It’s a right triangle”); else System.out.println(“It’s not a right triangle”); } }

  23. Lesson 3: conditions and loops Unit C3: The while Statement

  24. The while statement • A while statement has the following syntax: while (condition) statement; • If the condition is true, the statement is executed; then the condition is evaluated again • The statement is executed over and over until the condition becomes false • If the condition of awhilestatement is false initially, the statement is never executed • Therefore, we say that awhilestatement executes zero or more times

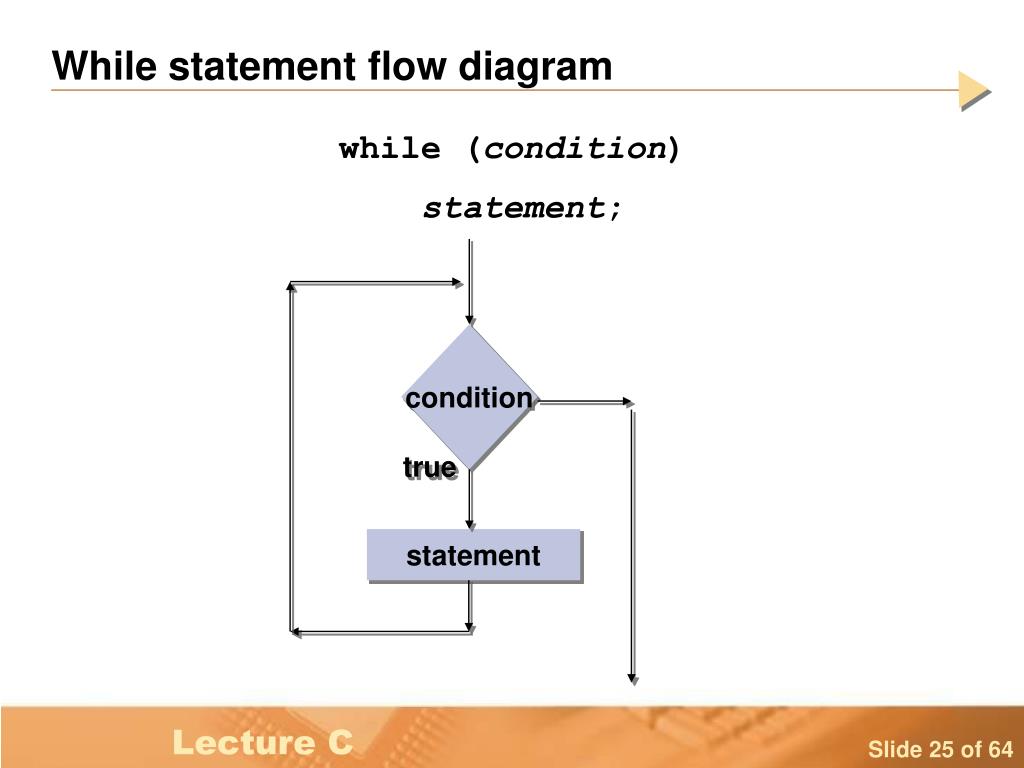

  25. While statement flow diagram while (condition) statement; condition true statement

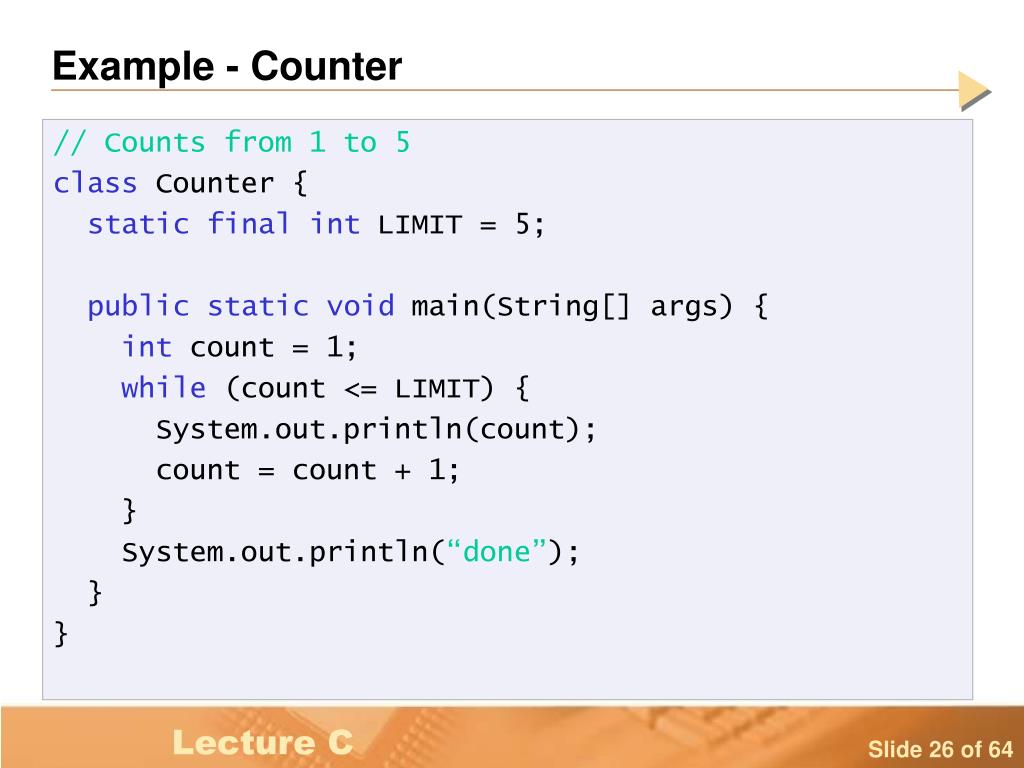

  26. Example - Counter // Counts from 1 to 5 class Counter { static final int LIMIT = 5; public static void main(String[] args) { int count = 1; while (count <= LIMIT) { System.out.println(count); count = count + 1; } System.out.println(“done”); } }

  27. Examples - Factors // Gets an integer and prints its factors class FactorsExample { public static void main(String[] args) { InputRequestor input = new InputRequestor(); int a = input.requestInt(“Enter a number:”); int i = 1; System.out.println(“The divisors of “+a+” are:”); while (i <= a) { if (a%i == 0) { System.out.println(i); } i = i + 1; } } }

  28. Infinite Loops • The body of awhileloop must eventually make the condition false • If not, it is an infinite loop, which will execute until the user interrupts the program • This is a common type of logical error -- always double check that your loops will terminate normally

  29. Example - Forever // This program contains an infinite loop class Forever { static final int LIMIT = 25; public static void main(String[] args) { int count = 1; while (count <= LIMIT) { System.out.println(count); count = count - 1; } } }

  30. Lesson 3: conditions and loops Unit 4: More conditionals

  31. The Conditional Operator • Java has a conditional operator that evaluates a Boolean condition that determines which of two expressions is evaluated • The result of the chosen expression is the result of the entire conditional operator • Its syntax is: condition ? expression1 : expression2 • If the condition is true, expression1 is evaluated; if it is false, expression2 is evaluated

  32. The Conditional Operator • It is similar to an if-else statement, except that it is an expression that returns a value • For example: • If a is greater that b, then a is assigned to max; otherwise, b is assigned to max • The conditional operator is ternary, meaning it requires three operands int max = (a > b) ? a : b;

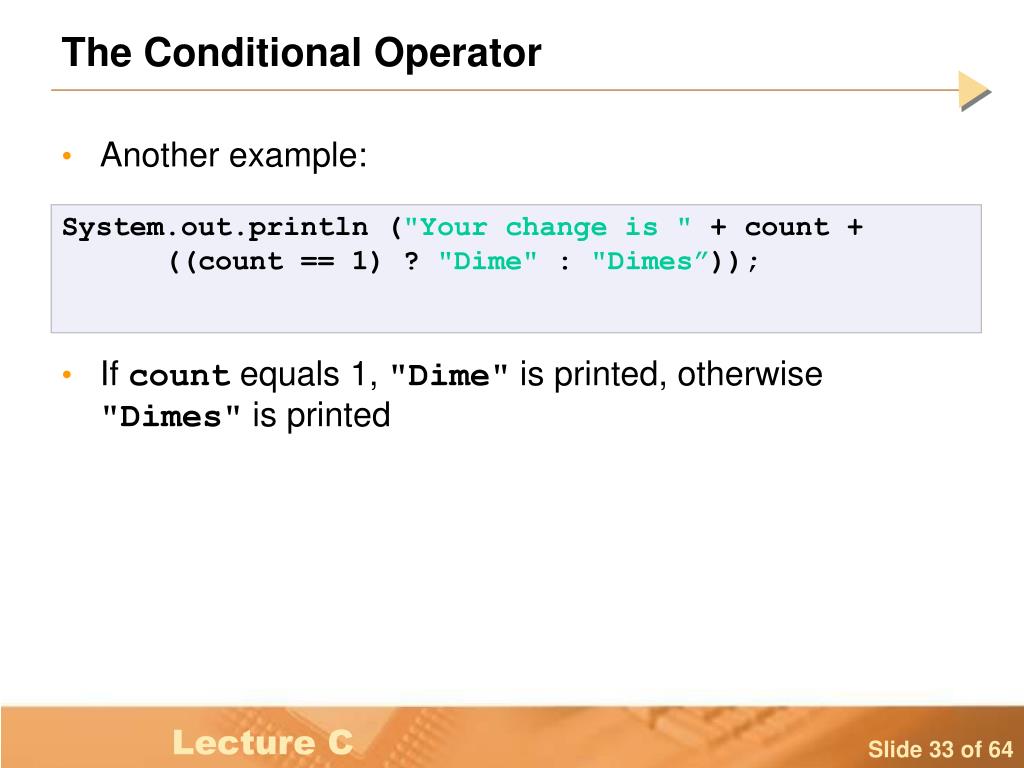

  33. The Conditional Operator • Another example: • If count equals 1, "Dime" is printed, otherwise "Dimes" is printed System.out.println ("Your change is " + count + ((count == 1) ? "Dime" : "Dimes”));

  34. Another Selection Statement • The if and the if-else statements are selection statements, allowing us to select which statement to perform next based on some Boolean condition • Another selection construct, called the switch statement, provides another way to choose the next action • The switch statement evaluates an expression, then attempts to match the result to one of a series of values • Execution transfers to statement list associated with the first value that matches

  35. Theswitch Statement • The syntax of the switch statement is: switch (expression) { case value1: statement-list1 case value2: statement-list2 case … }

  36. The switch Statement • The expression must evaluate to an integral value, such as an integer or character • The break statement is usually used to terminate the statement list of each case, which causes control to jump to the end of the switch statement • A default case can be added to the end of the list of cases, and will execute if no other case matches

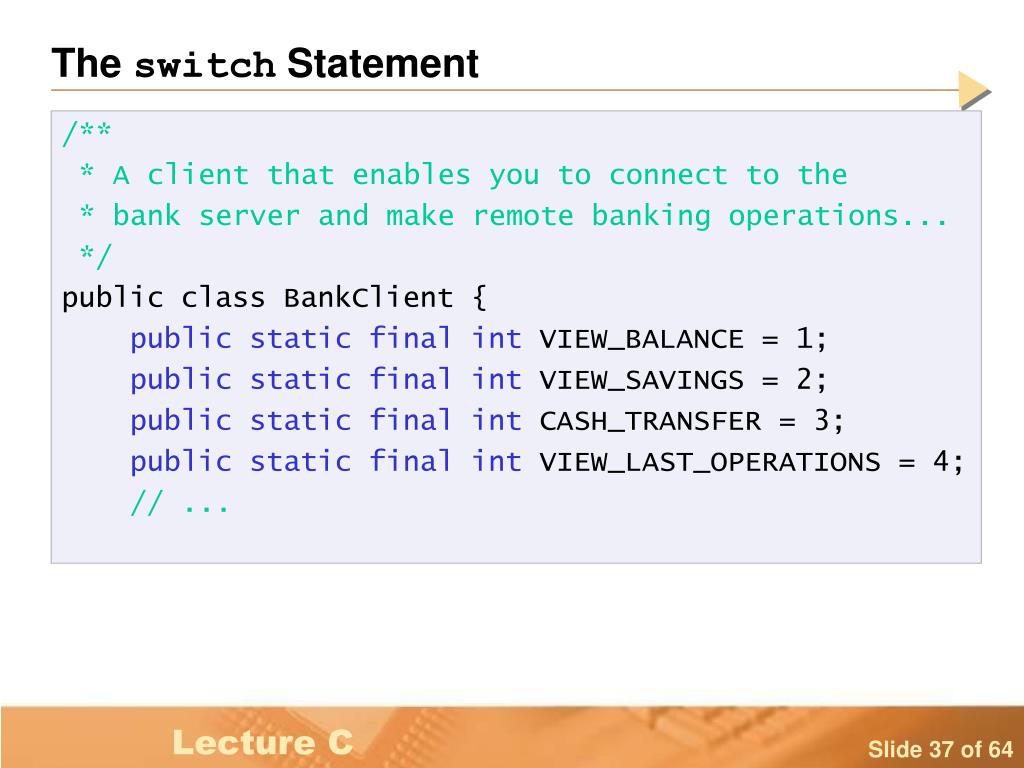

  37. The switch Statement /** * A client that enables you to connect to the * bank server and make remote banking operations... */ public class BankClient { public static final int VIEW_BALANCE = 1; public static final int VIEW_SAVINGS = 2; public static final int CASH_TRANSFER = 3; public static final int VIEW_LAST_OPERATIONS = 4; // ...

  38. The switch Statement // Inside the main loop of the client: int option = InputRequestor.requentInt(“Enter your choice:”); switch(option) { case VIEW_BALANCE: showBalance(); break; case VIEW_SAVINGS: showSavings(); break; default: output.showMessage(“No such option!”); }

  39. Lesson 3: conditions and loops Unit 5: Shorthand Operators

  40. Shorthand Operators • Many operations are very commonly used • Java has shorthand notations for these • increment and decrement operators • assignment operators x = x + 1; sum = sum + x;

  41. The Increment and Decrement Operators • The increment operator (++) adds one to its integer or floating point operand • The decrement operator (--) subtracts one • The statement is essentially equivalent to count++; count = count + 1;

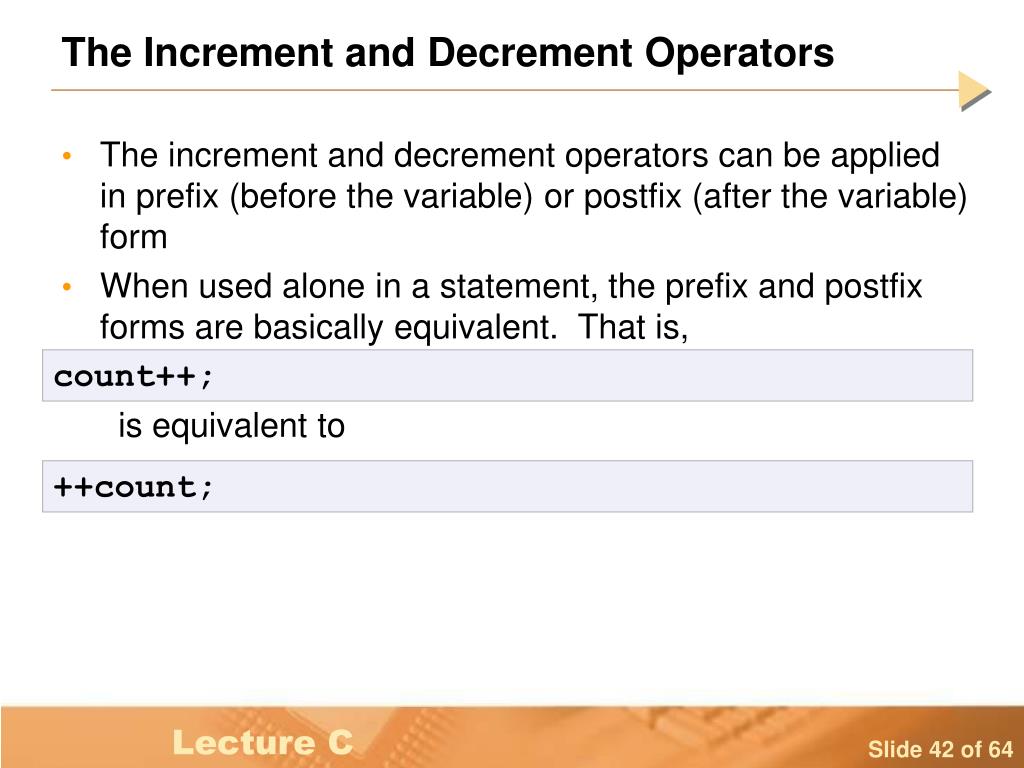

  42. The Increment and Decrement Operators • The increment and decrement operators can be applied in prefix (before the variable) or postfix (after the variable) form • When used alone in a statement, the prefix and postfix forms are basically equivalent. That is, is equivalent to count++; ++count;

  43. The Increment and Decrement Operators • When used in a larger expression, the prefix and postfix forms have a different effect • In both cases the variable is incremented (decremented) • But the value used in the larger expression depends on the form

  44. The Increment and Decrement Operators • If count currently contains 45, then assigns 45 to total and 46 to count • If count currently contains 45, then assigns the value 46 to both total and count total = count++; total = ++count;

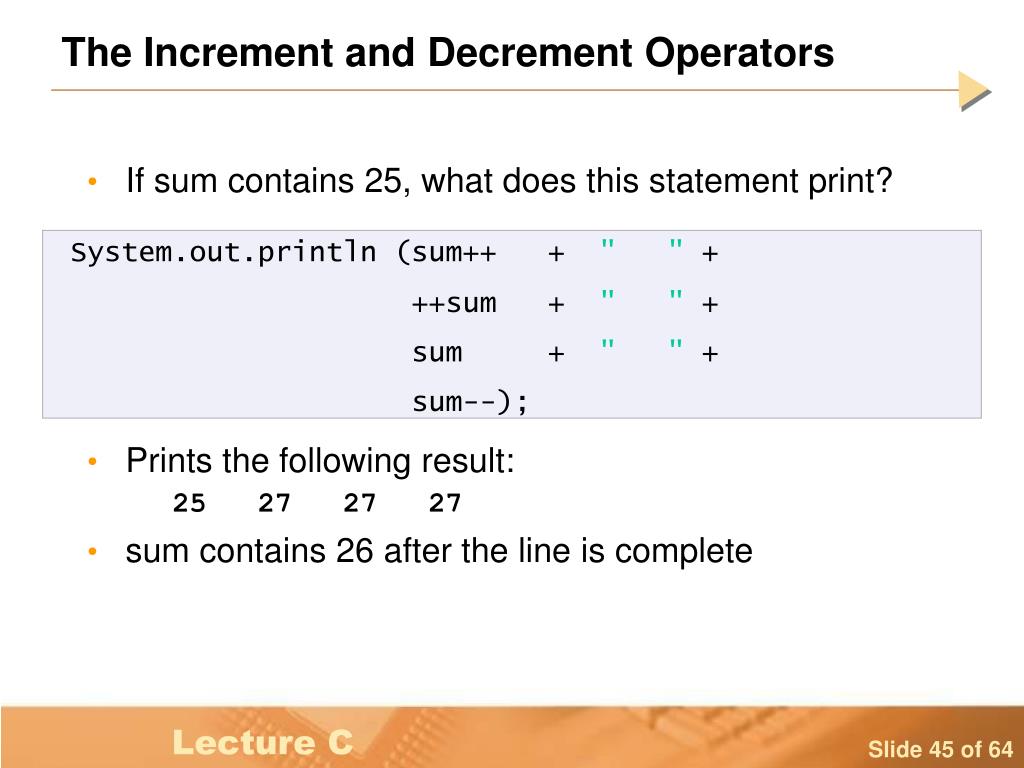

  45. The Increment and Decrement Operators • If sum contains 25, what does this statement print? • Prints the following result: 25 27 27 27 • sum contains 26 after the line is complete System.out.println (sum++ + " " + ++sum + " " + sum + " " + sum--);

  46. Assignment Operators • Often we perform an operation on a variable, then store the result back into that variable • Java provides assignment operators that simplify that process • For example, the statement is equivalent to sum += value; sum = sum + value;

  47. Assignment Operators • There are many such assignment operators, always written as op= , such as:

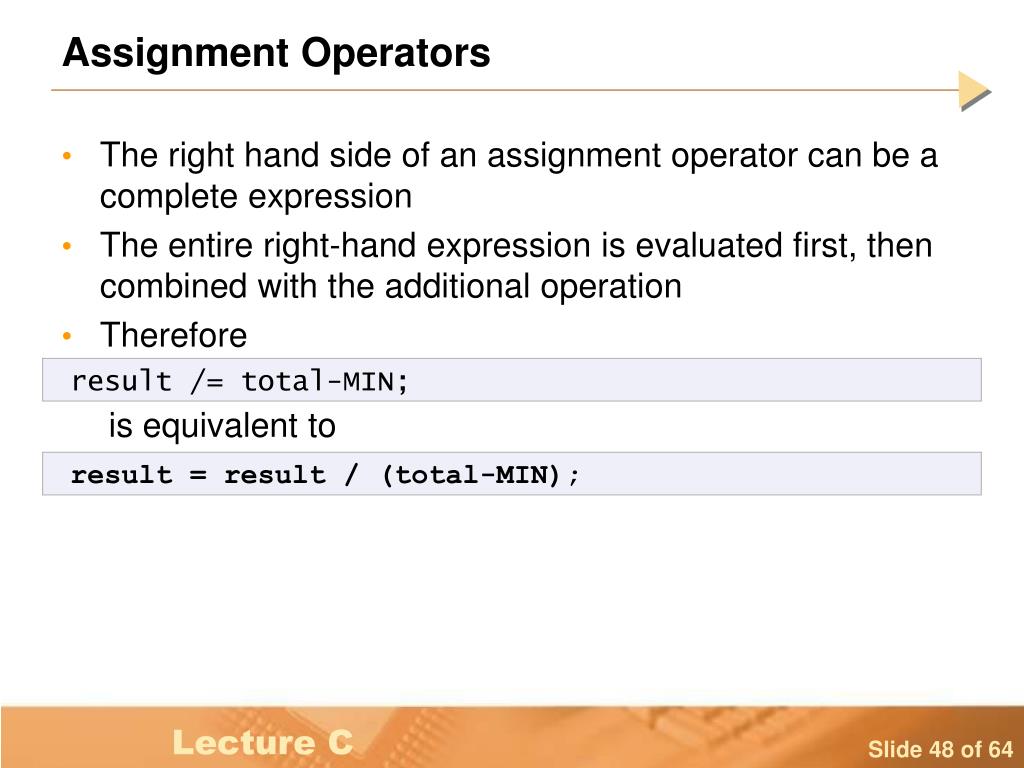

  48. Assignment Operators • The right hand side of an assignment operator can be a complete expression • The entire right-hand expression is evaluated first, then combined with the additional operation • Therefore result /= total-MIN; is equivalent to result /= total-MIN; result = result / (total-MIN);

  49. Lesson 3: conditions and loops Unit C6: More Repetition

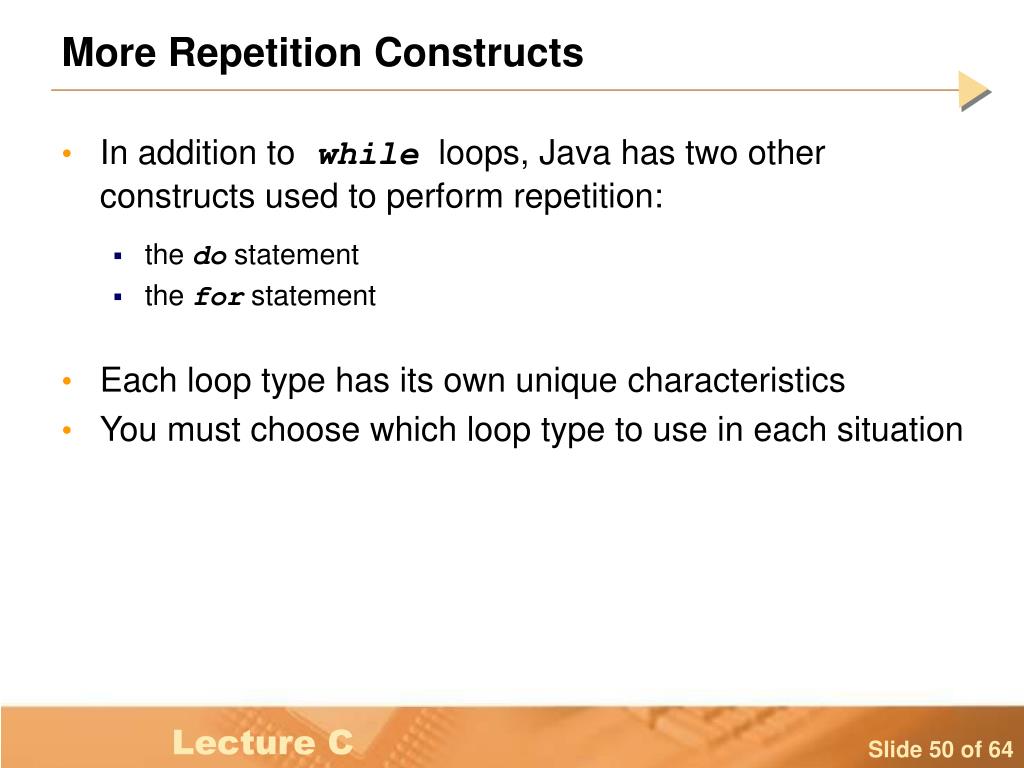

  50. More Repetition Constructs • In addition towhileloops, Java has two other constructs used to perform repetition: • the do statement • the for statement • Each loop type has its own unique characteristics • You must choose which loop type to use in each situation
