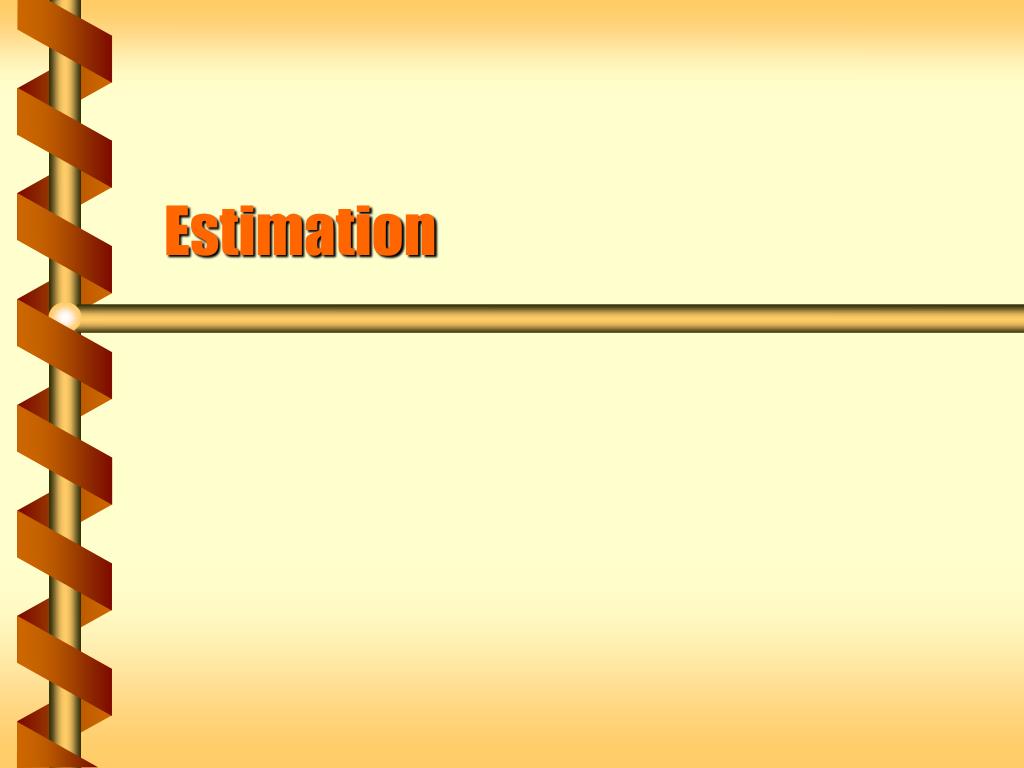

  1. Estimation

  2. Rounding • The simplest estimation technique is to round. • This works very well on formulas where all the values can be reduced to one significant figure.

  3. Order of Magnitude Rounding • Rounding to a power of ten is the crudest form of rounding. • Order of magnitude estimates are easy to compare since they are all only powers of ten. • For a comparison to work, the units need to be the same (meters and meters, not km).

  4. How Big? • Assume the density of a rock is three times that of water. How many centimeters across is a one metric ton (1000 kg) rock? • The rock has a density of 3 g/cm3 so the volume is 106 g / (3 g/cm3) = 3.3 x 105 cm3. • Estimate that the rock is a sphere, V = (4/3) r3 • d = 2r = 2 (3V/4 )1/3 • d = 85.7 cm  90 cm

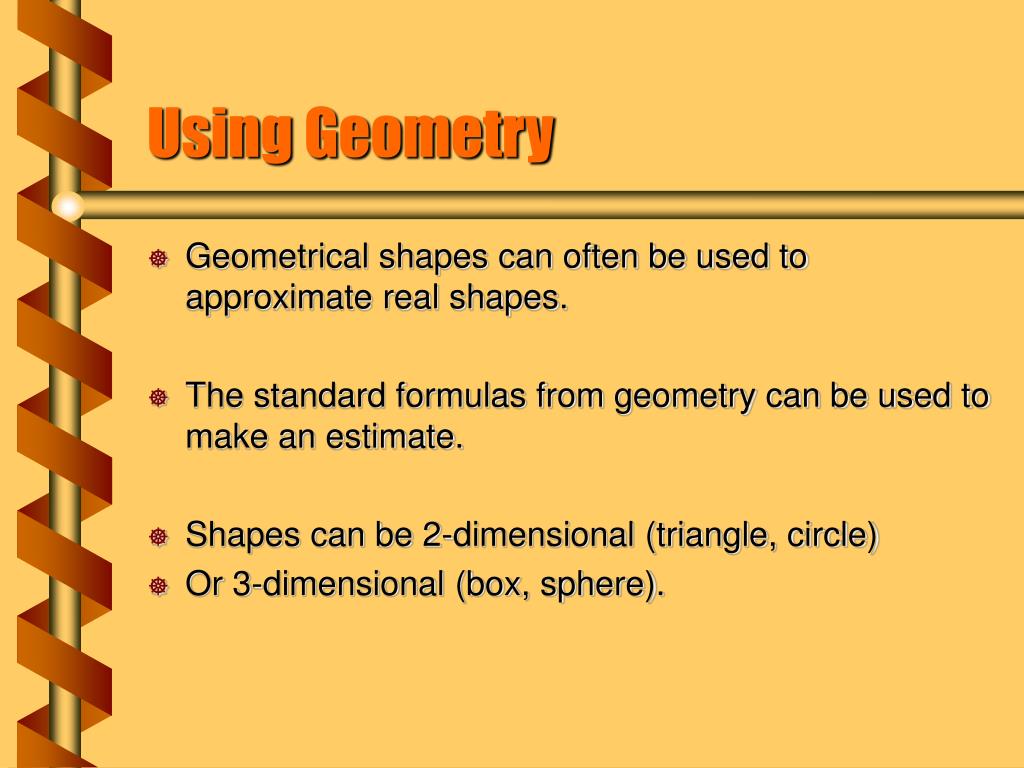

  5. Using Geometry • Geometrical shapes can often be used to approximate real shapes. • The standard formulas from geometry can be used to make an estimate. • Shapes can be 2-dimensional (triangle, circle) • Or 3-dimensional (box, sphere).

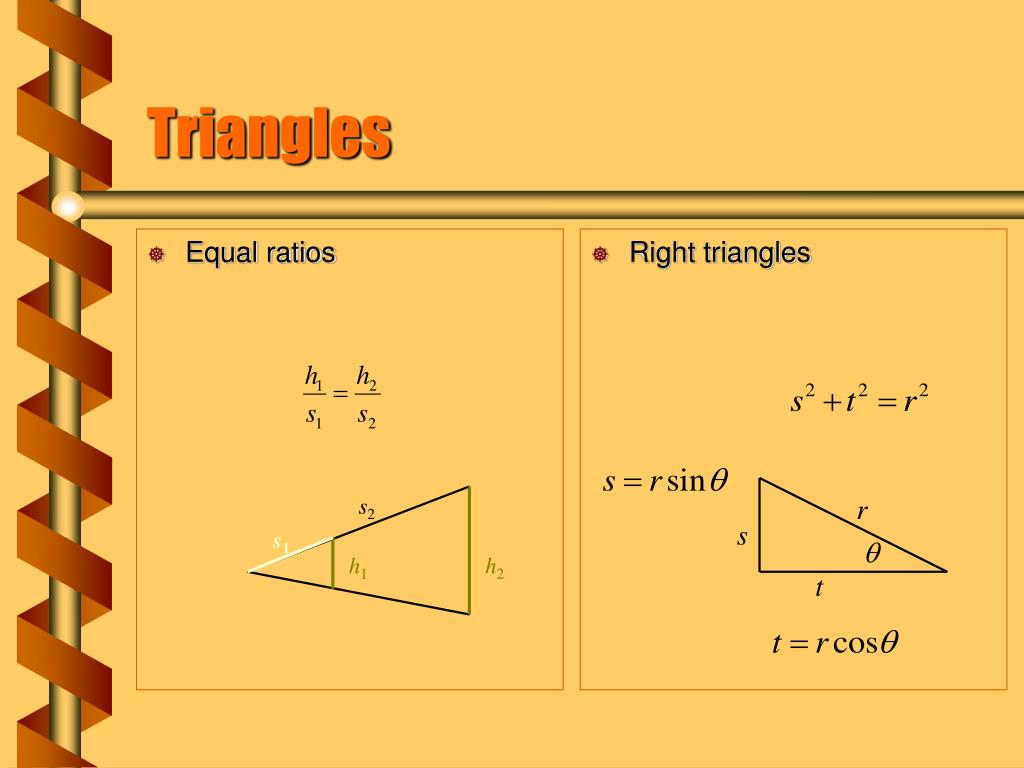

  6. Equal ratios Right triangles Triangles s2 r s s1 q h1 h2 t

  7. angle A base angle B Apparent Shift • A moving observer sees fixed objects move. • Near objects appear to move more than far objects. • Telephone poles whip by faster than distant trees. • The effect is due to the change in observation point, and is used by our eyes for depth perception.

  8. 0 5 10 15 20 25 30 35 40 45 50 Observing Parallax • Observe an object against the background. • Shift one seat left and observe again. • Subtract to get the parallax shift. next
