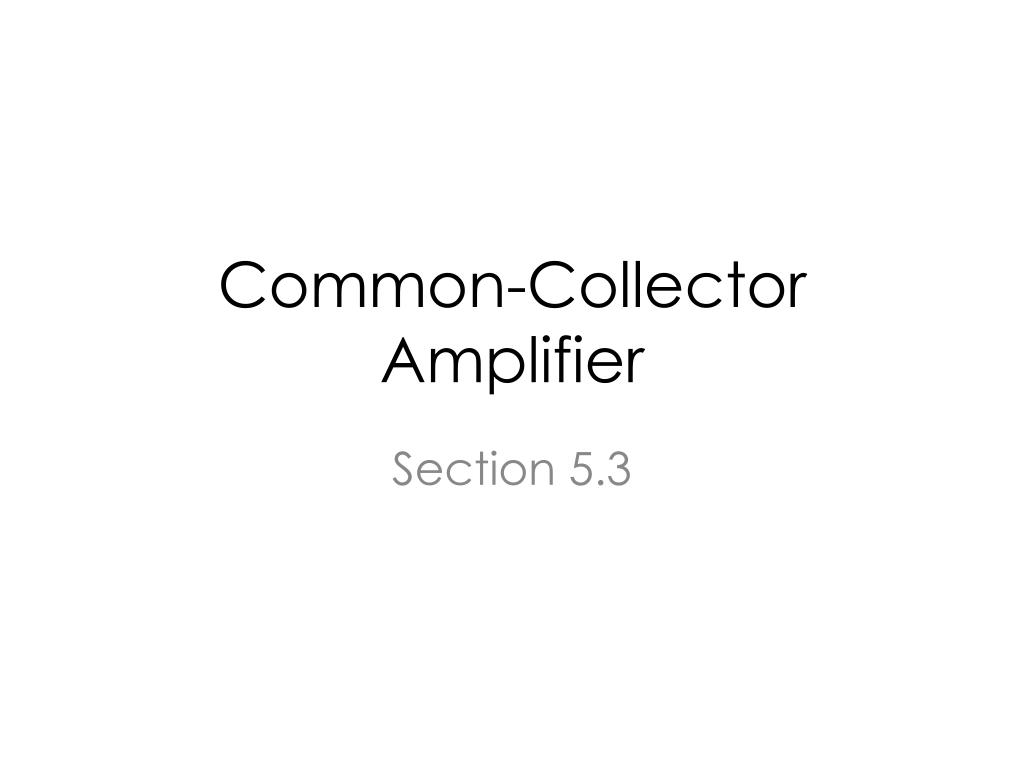

  1. Common-Collector Amplifier Section 5.3

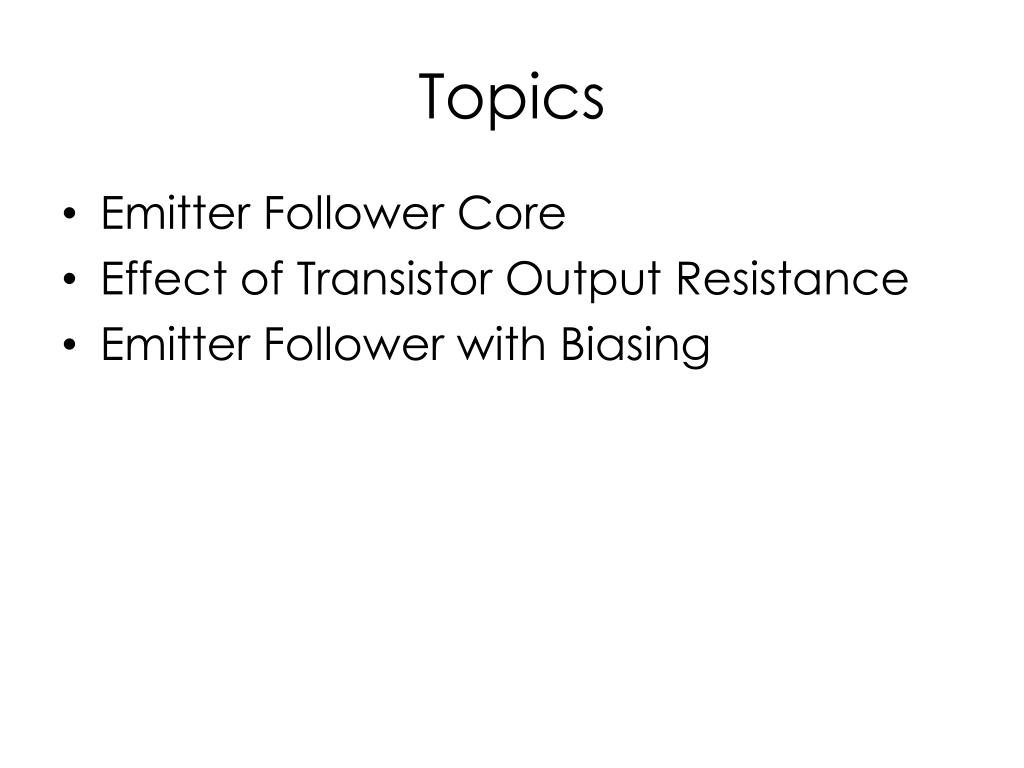

  2. Topics • Emitter Follower Core • Effect of Transistor Output Resistance • Emitter Follower with Biasing

  3. Voltage Gain of Emitter Follower

  4. Use a current source to implement RE RE=infinity imples that AV=1

  5. Thinking of an Emitter follower as a voltage divider

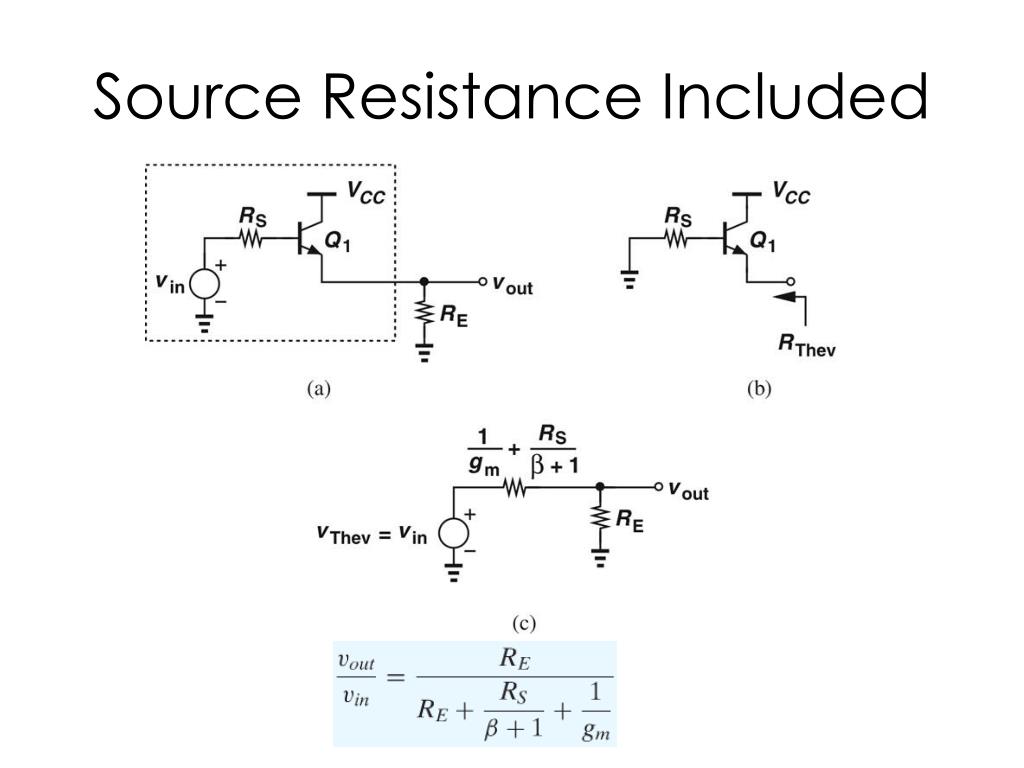

  6. Source Resistance Included

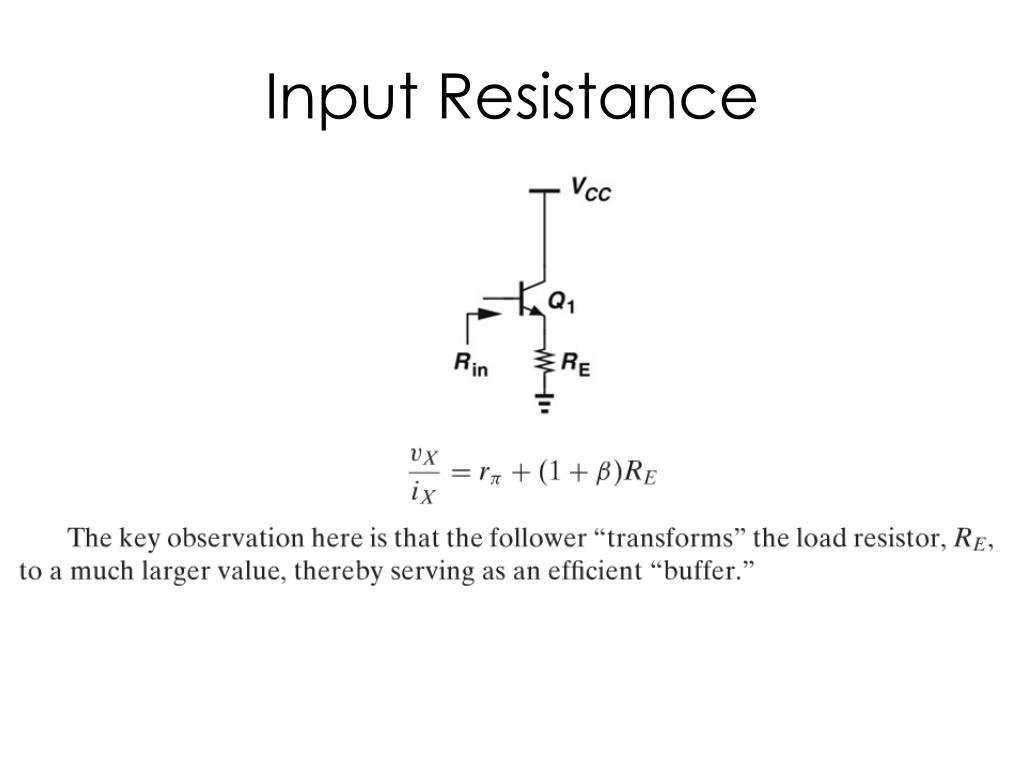

  7. Input Resistance

  8. Output Resistance RS is transformed to a smaller output resistance.

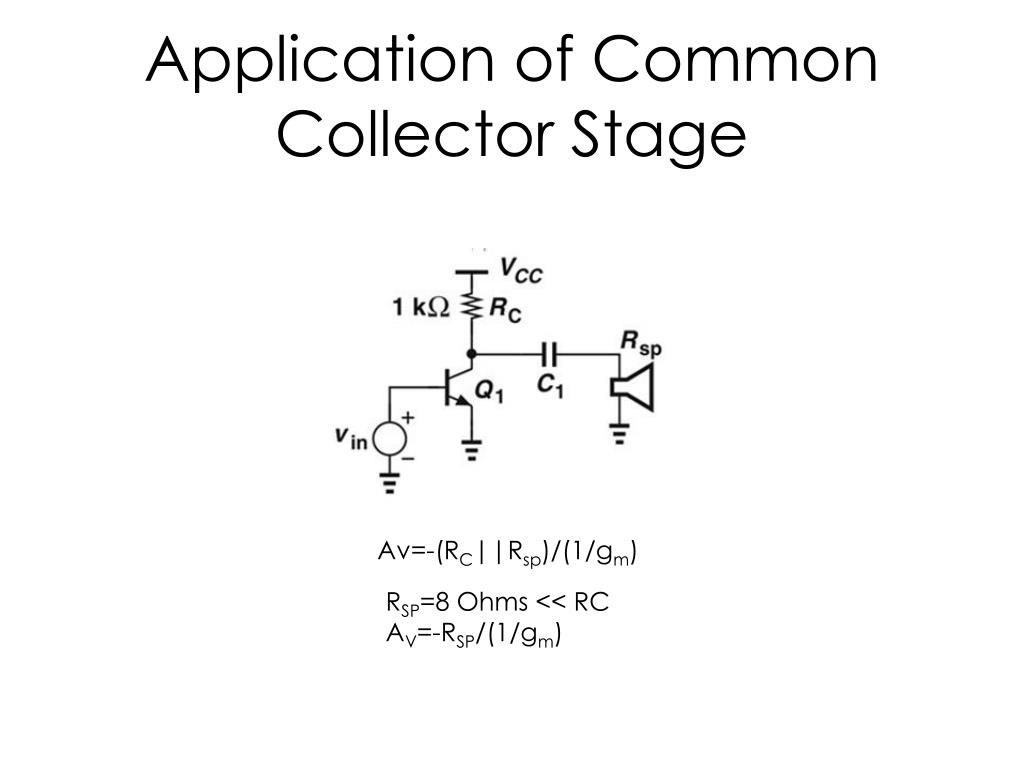

  9. Application of Common Collector Stage Av=-(RC||Rsp)/(1/gm) RSP=8 Ohms << RC AV=-RSP/(1/gm)

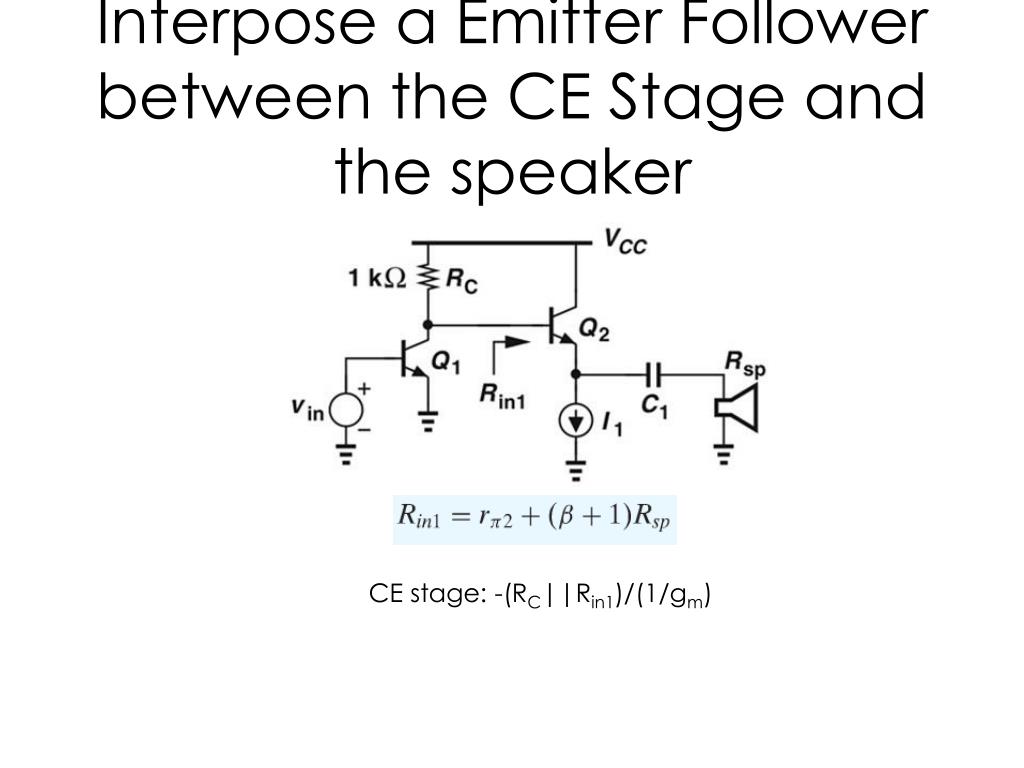

  10. Interpose a Emitter Follower between the CE Stage and the speaker CE stage: -(RC||Rin1)/(1/gm)

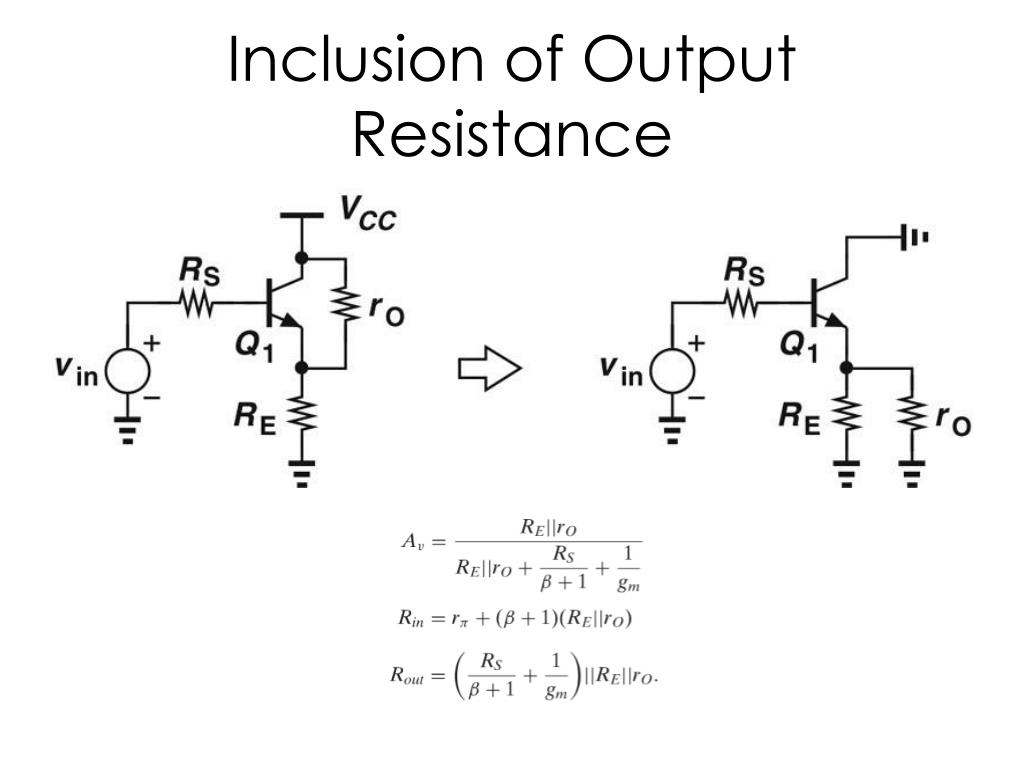

  11. Inclusion of Output Resistance

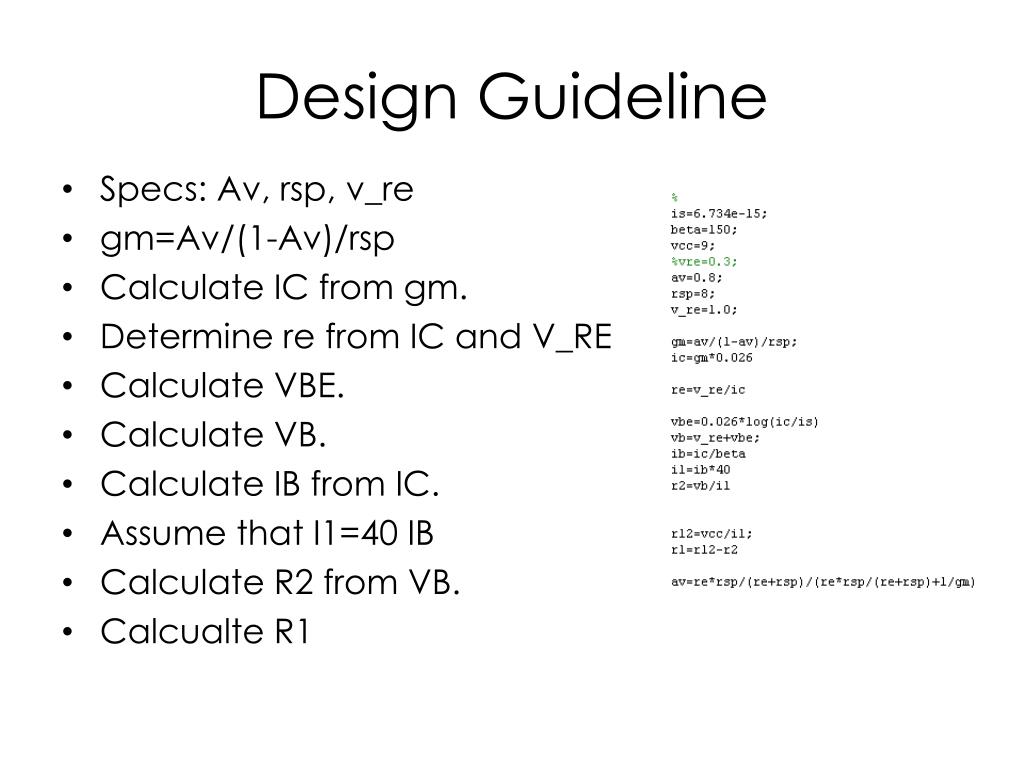

  12. Design Guideline • Specs: Av, rsp, v_re • gm=Av/(1-Av)/rsp • Calculate IC from gm. • Determine re from IC and V_RE • Calculate VBE. • Calculate VB. • Calculate IB from IC. • Assume that I1=40 IB • Calculate R2 from VB. • Calcualte R1

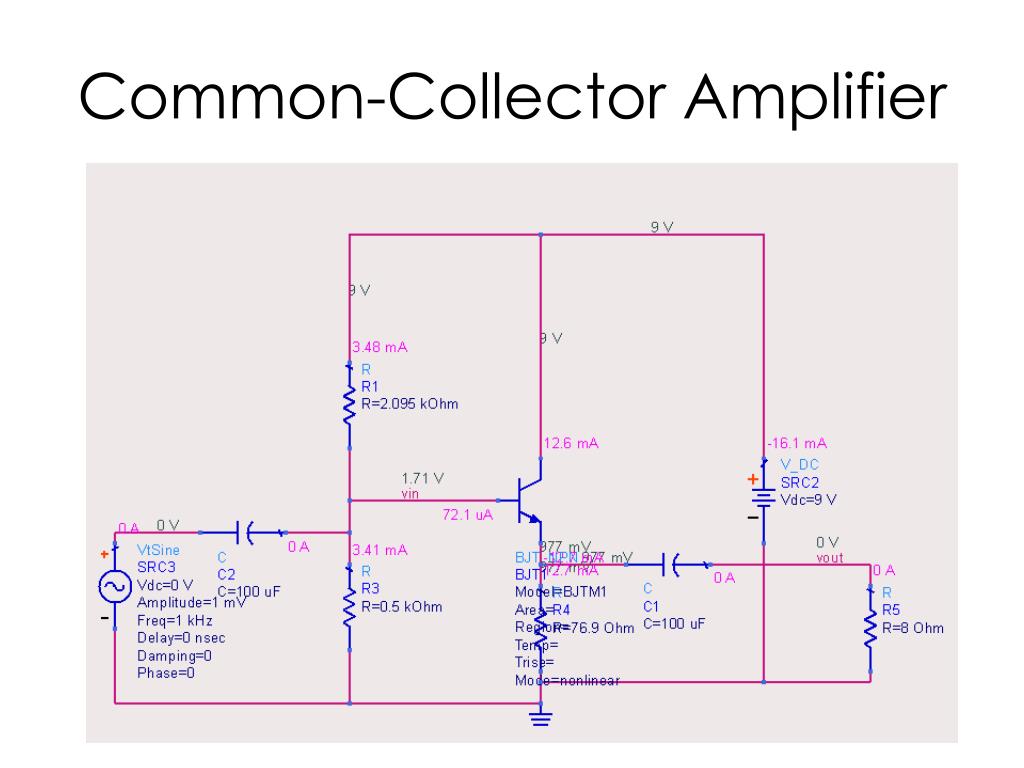

  13. Common-Collector Amplifier

  14. Vin,pp=2 mV Vout,pp=1.47 mV Av(ADS)=0.735 Av(matlab)=0.783

  15. Vin, m=1.71 V Need to adjust V_RE.
