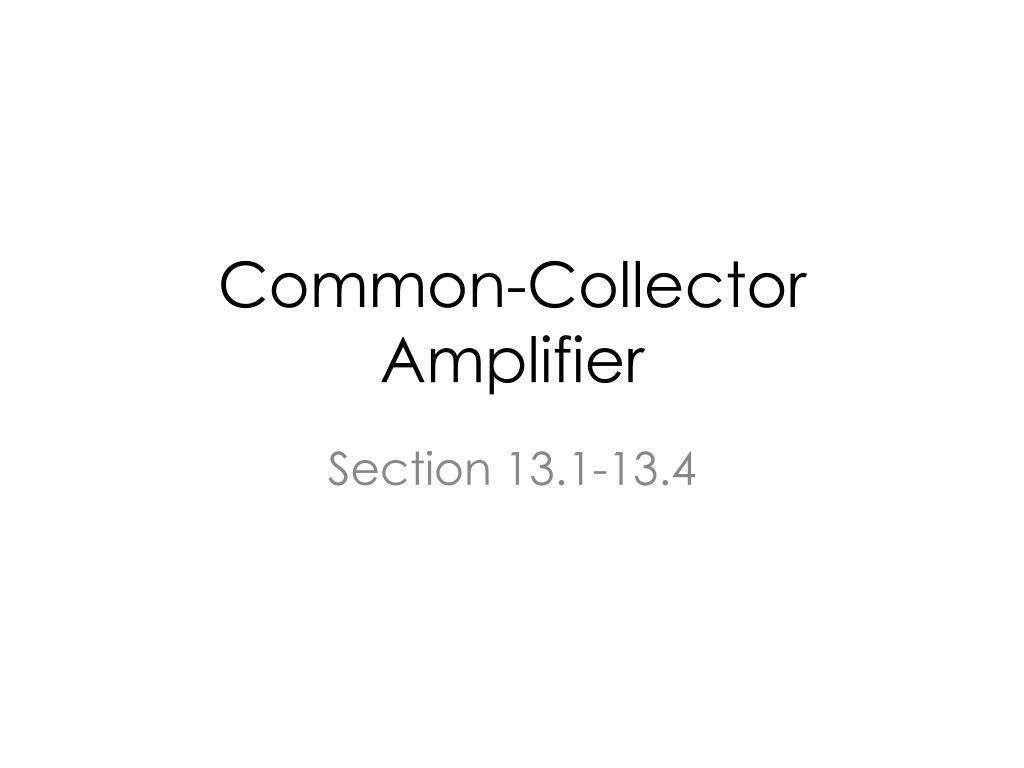

  1. Common-Collector Amplifier Section 13.1-13.4

  2. A note about Human Ear • Human can hear between 12 Hz and 20 KHz. • The range begins to shrink at the age of 8 with high frequency fading.

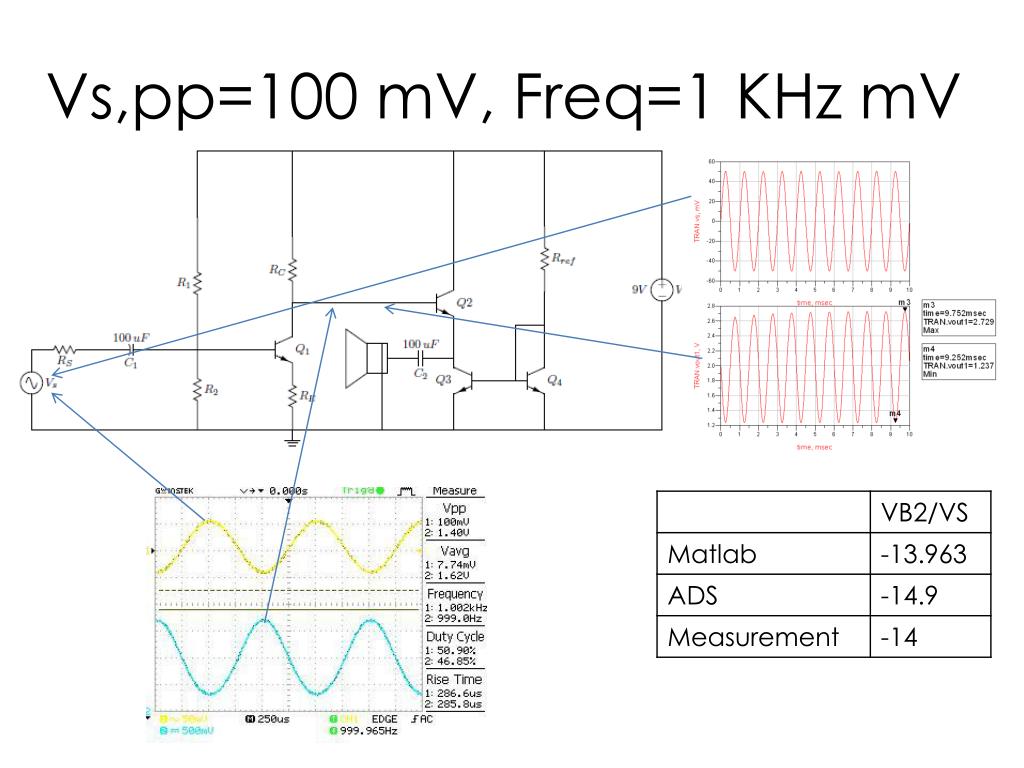

  3. Vs,pp=100 mV, Freq=1 KHz

  4. Vs,pp=100 mV, Freq=1 KHz mV

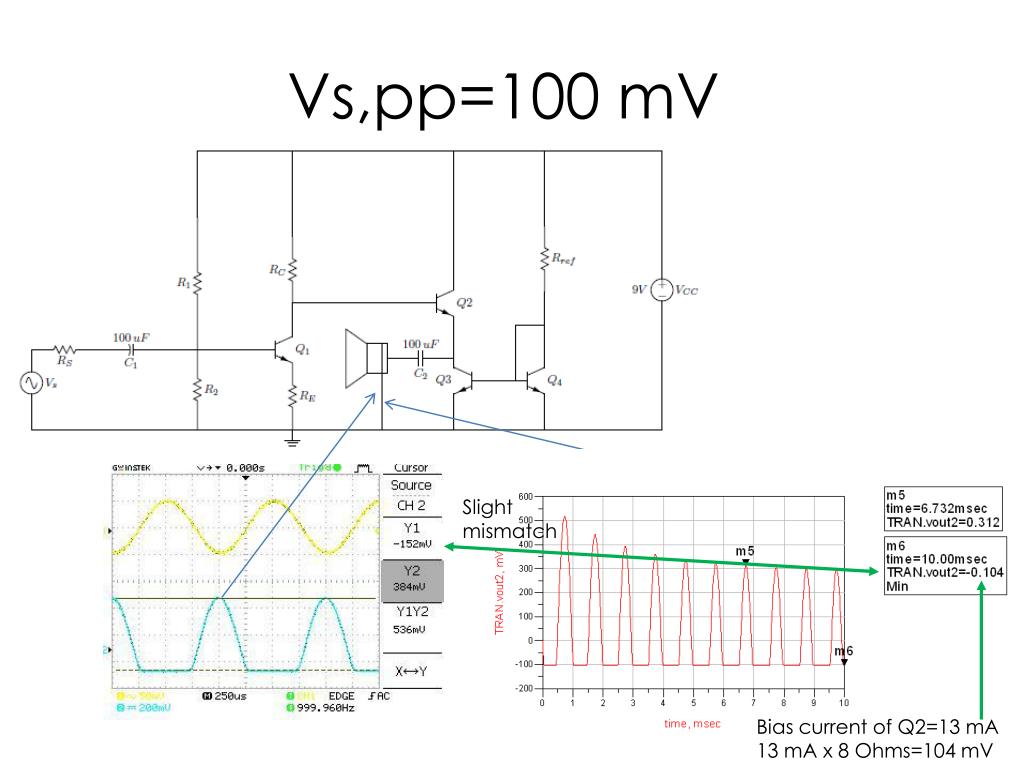

  5. Vs,pp=100 mV Slight mismatch Bias current of Q2=13 mA 13 mA x 8 Ohms=104 mV

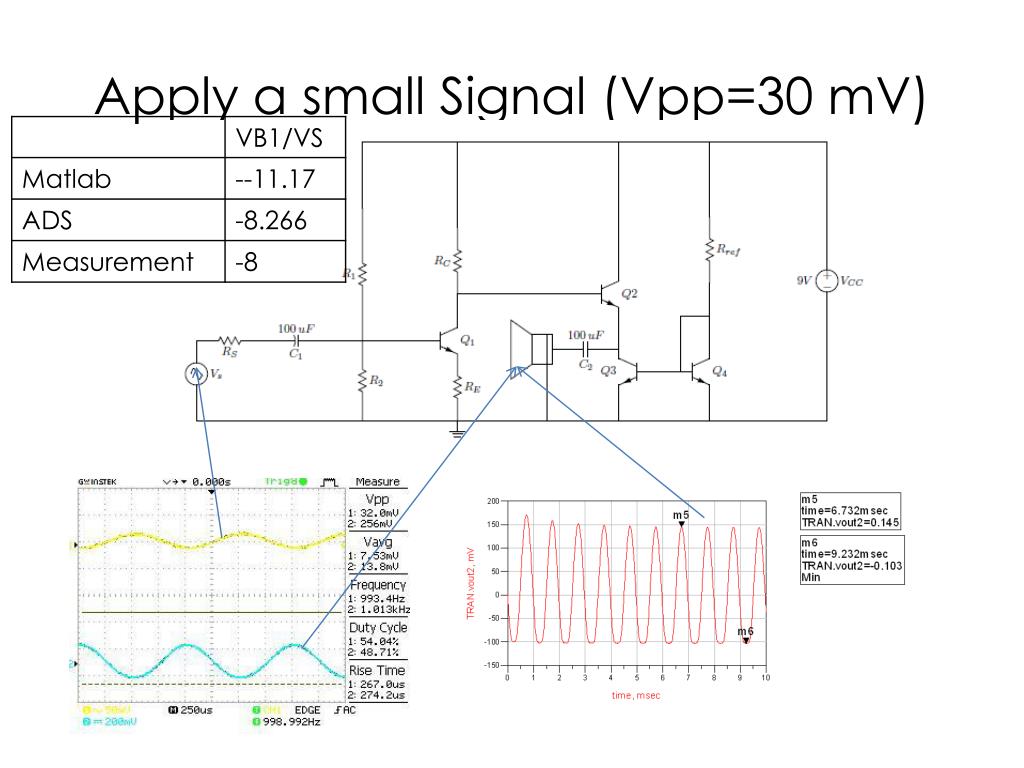

  6. Apply a small Signal (Vpp=30 mV)

  7. Increase the Input Frequency 3dB BW=1.9 MHz

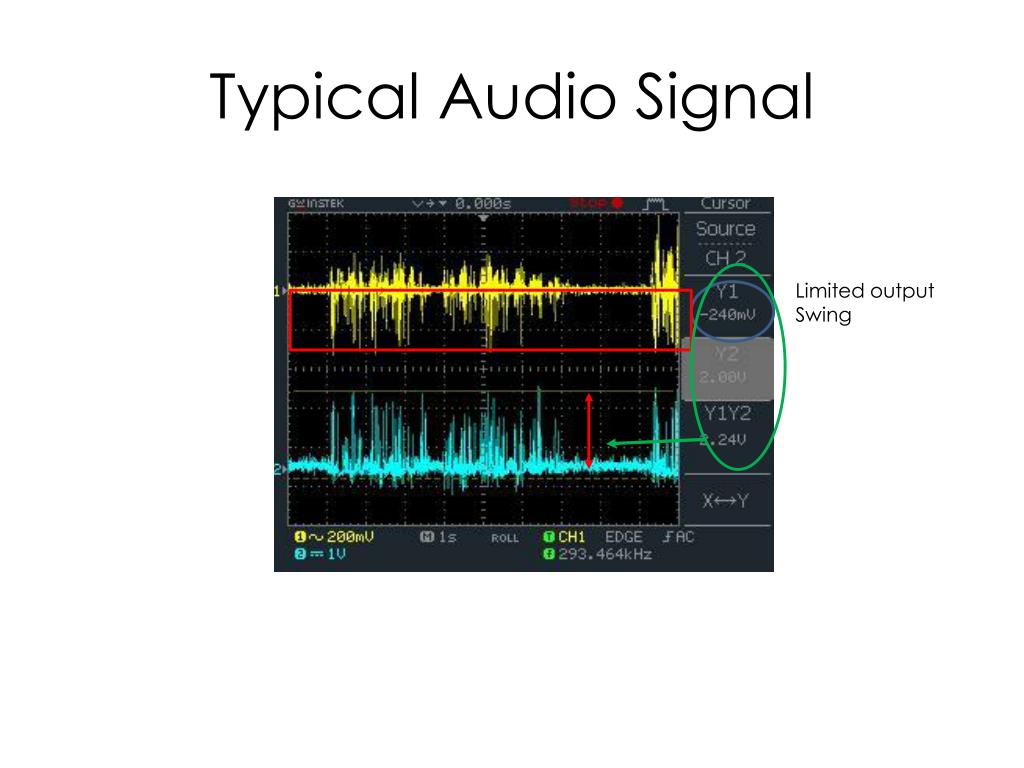

  8. Typical Audio Signal Limited output Swing

  9. Audio Plug

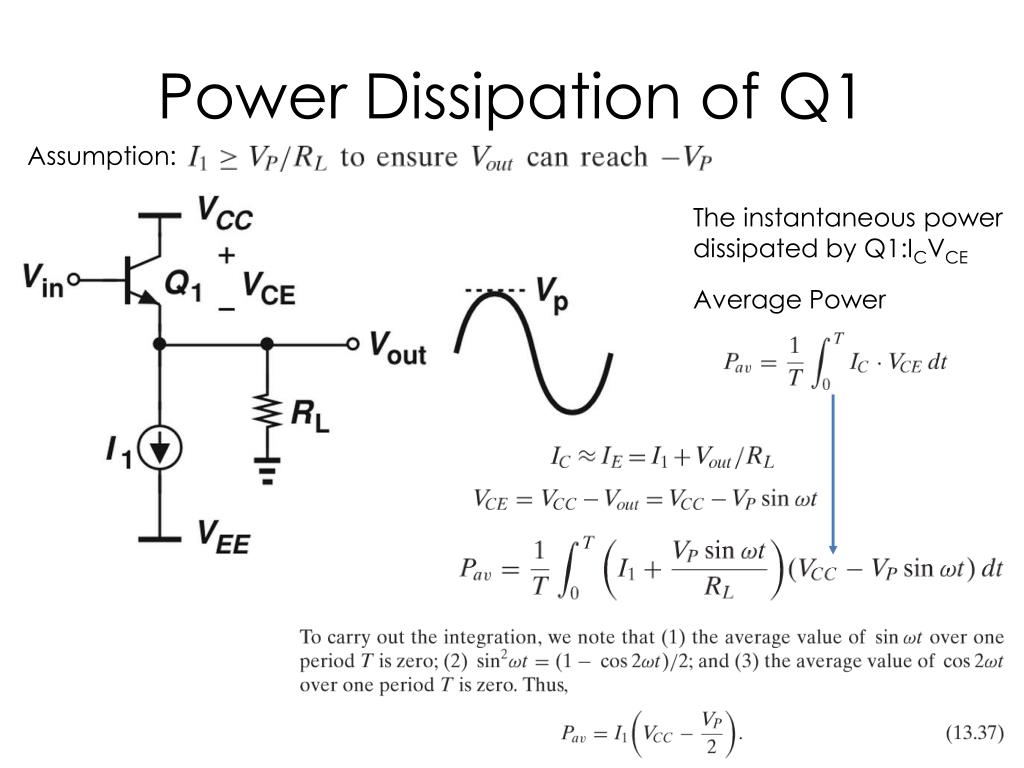

  10. Power Dissipation of Q1 Assumption: The instantaneous power dissipated by Q1:ICVCE Average Power

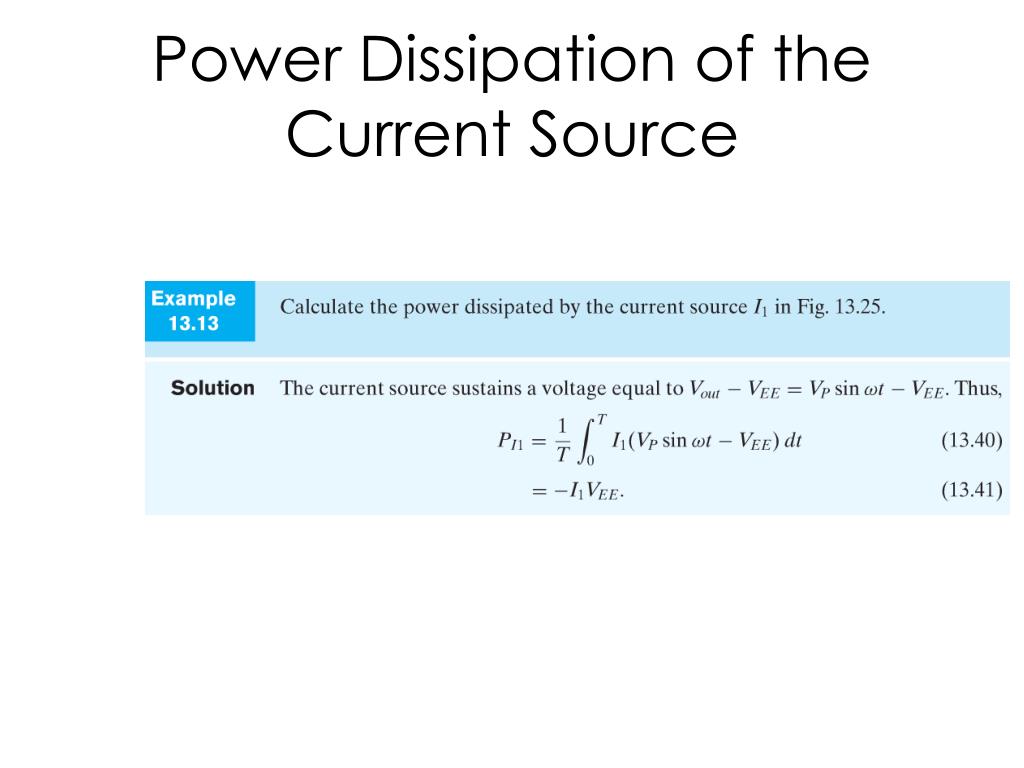

  11. Power Dissipation of the Current Source

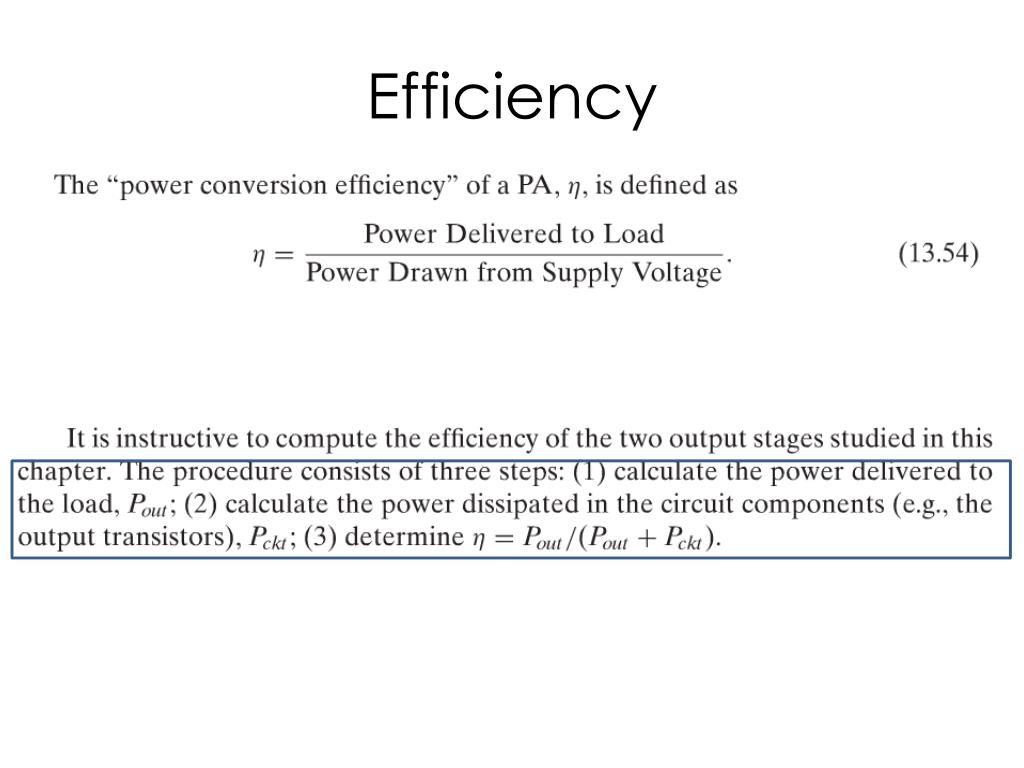

  12. Efficiency

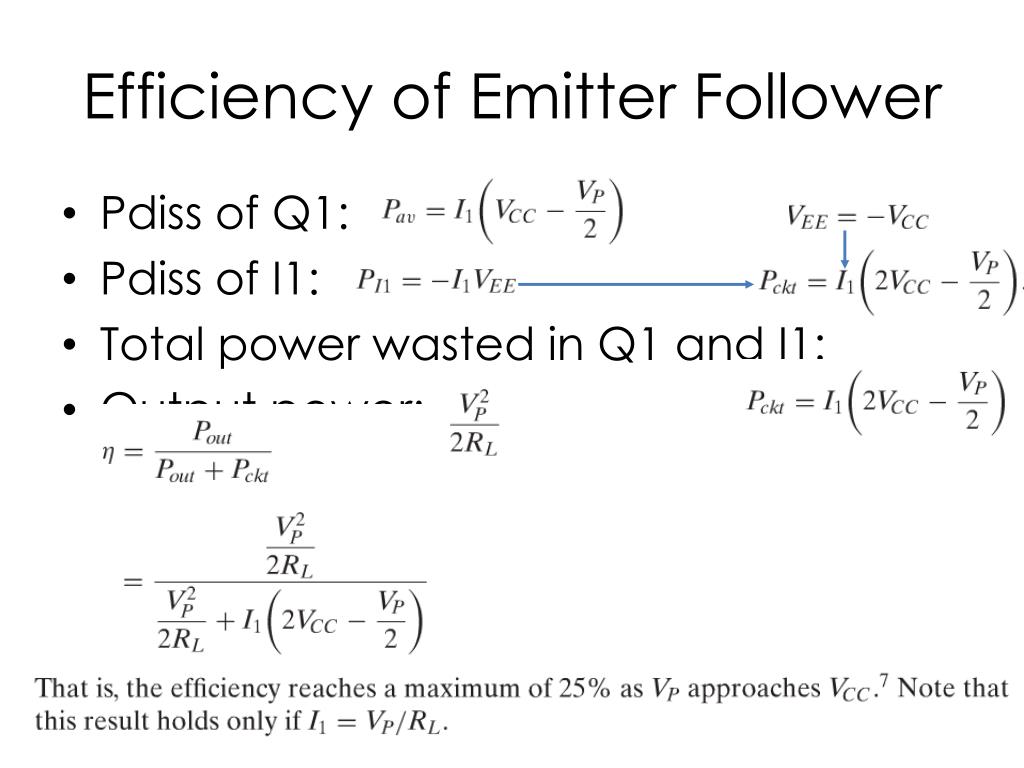

  13. Efficiency of Emitter Follower • Pdiss of Q1: • Pdiss of I1: • Total power wasted in Q1 and I1: • Output power:

  14. Improved Push-Pull Stage

  15. DC Bias

  16. Voltage Gain

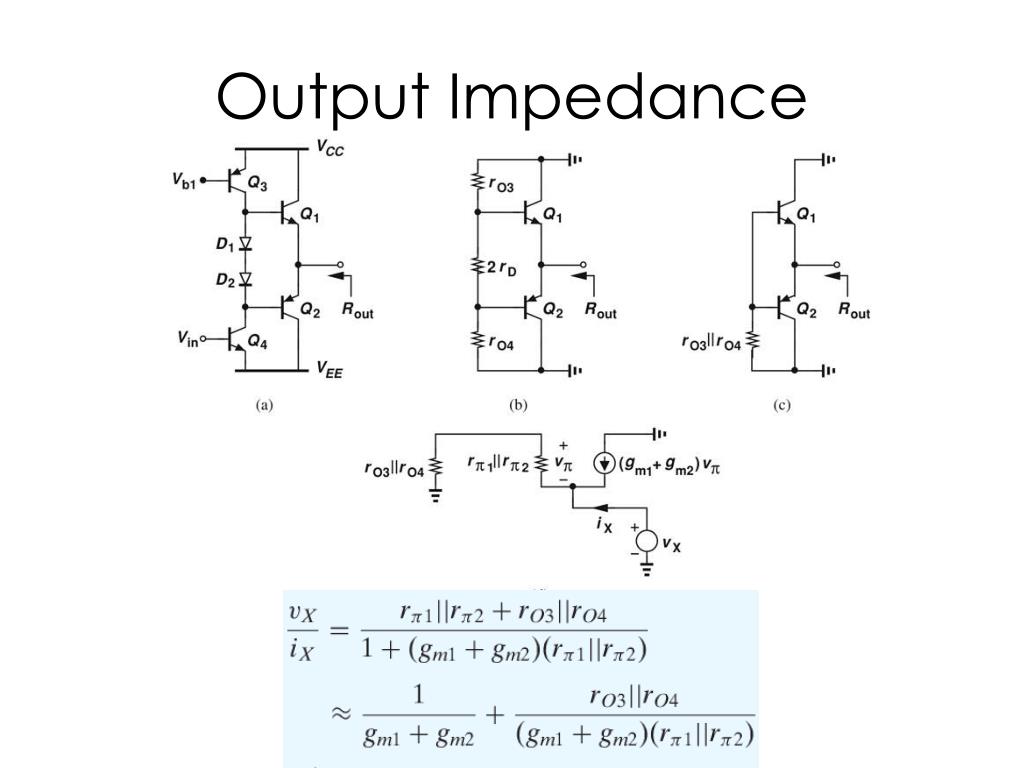

  17. Output Impedance
