Presentation Transcript

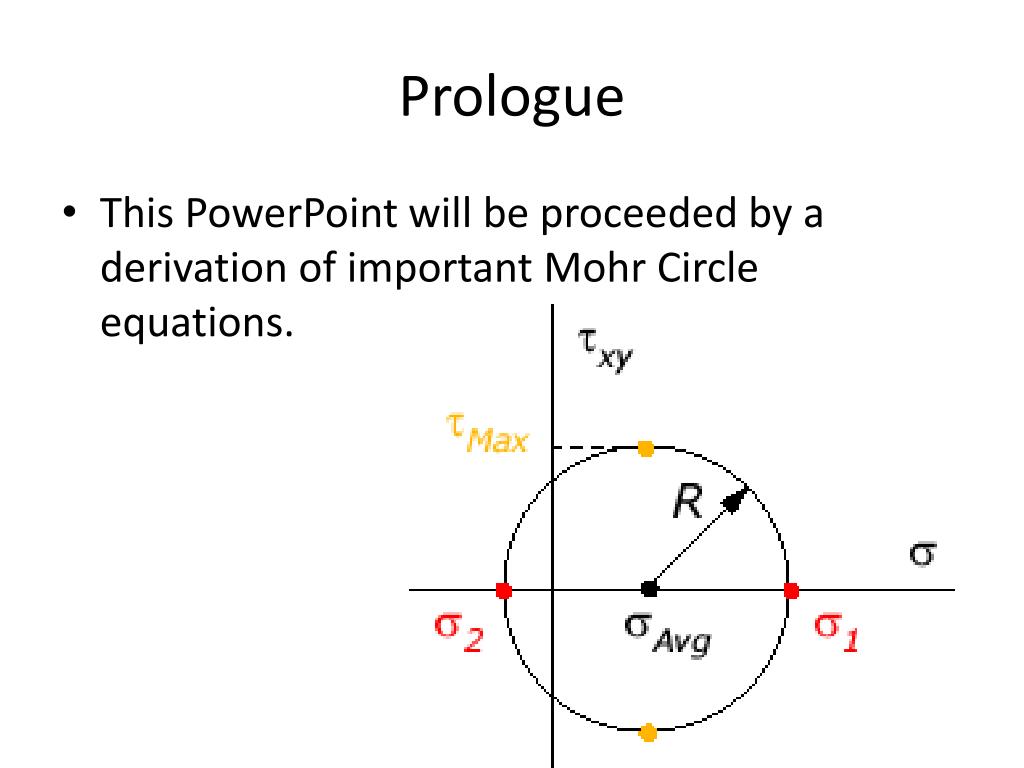

  1. Prologue • This PowerPoint will be proceeded by a derivation of important Mohr Circle equations.

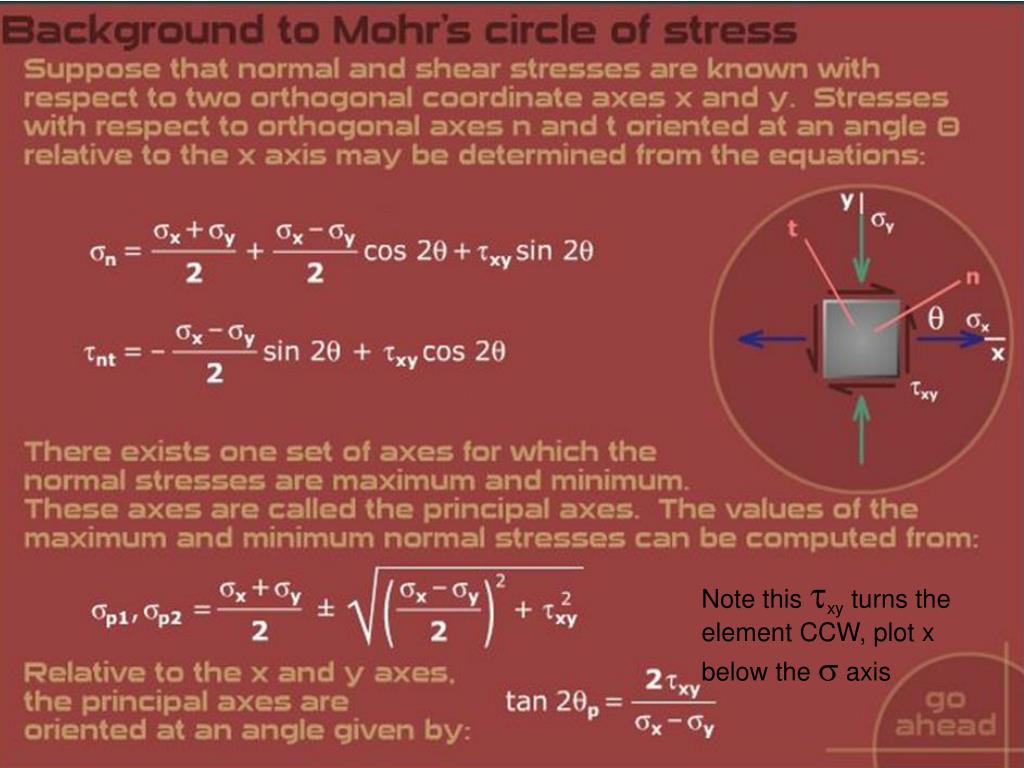

  2. Note this txy turns the element CCW, plot x below the s axis

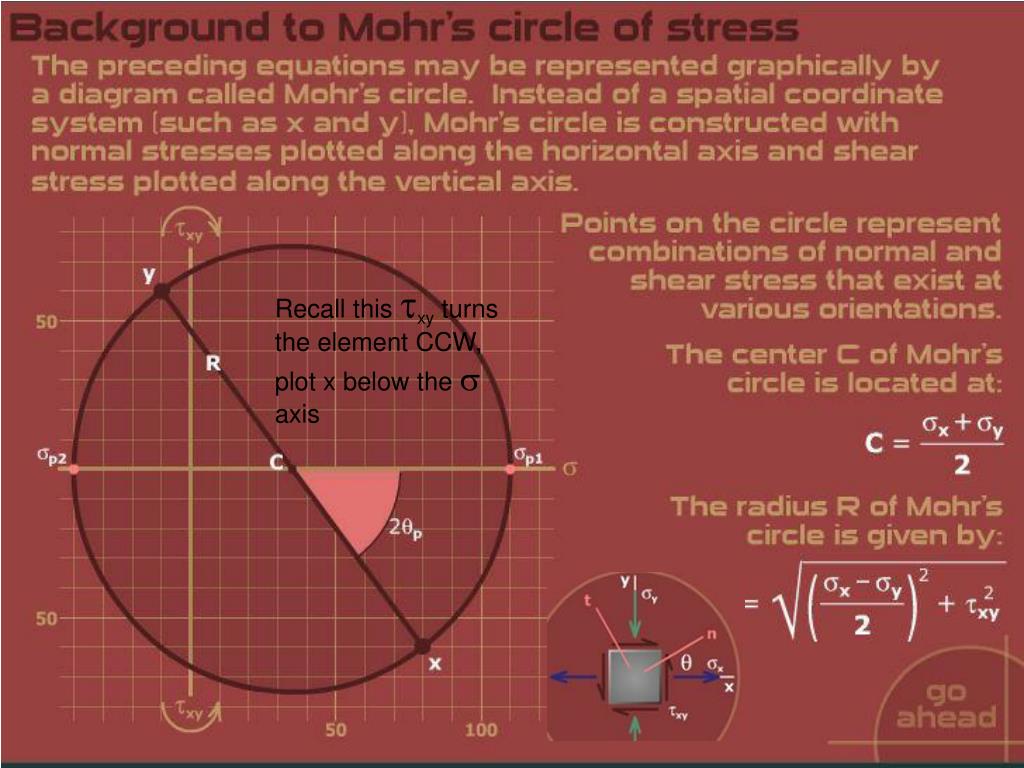

  3. Recall this txy turns the element CCW, plot x below the s axis

  4. Worked Example 2

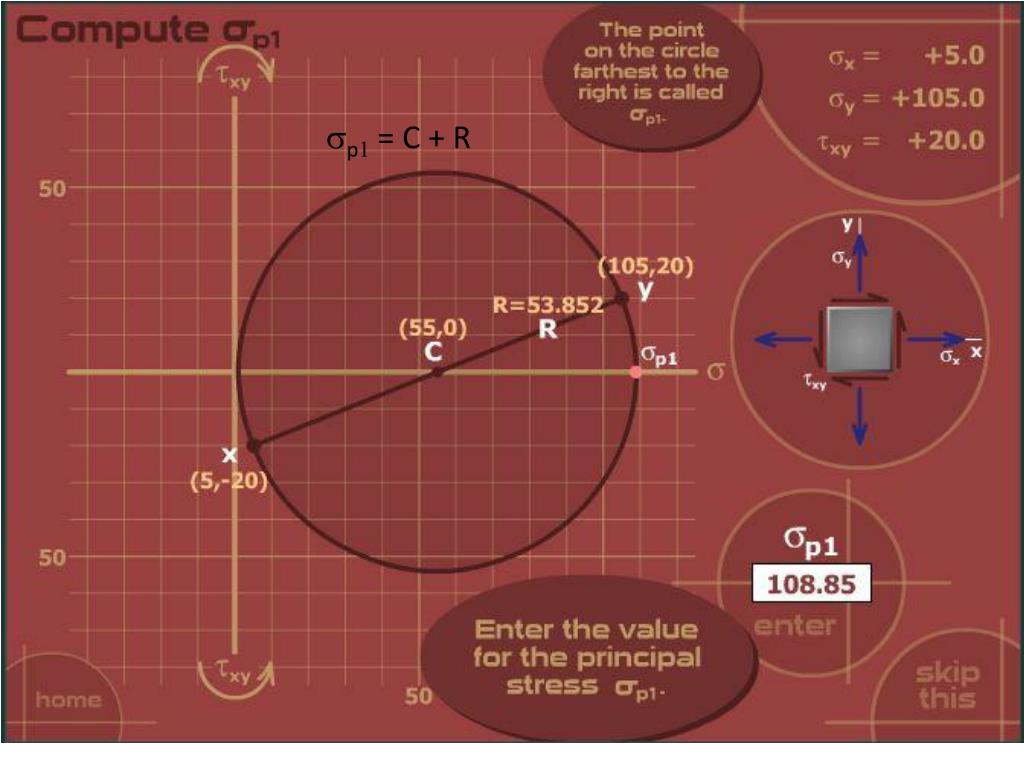

  5. sp1 = C + R

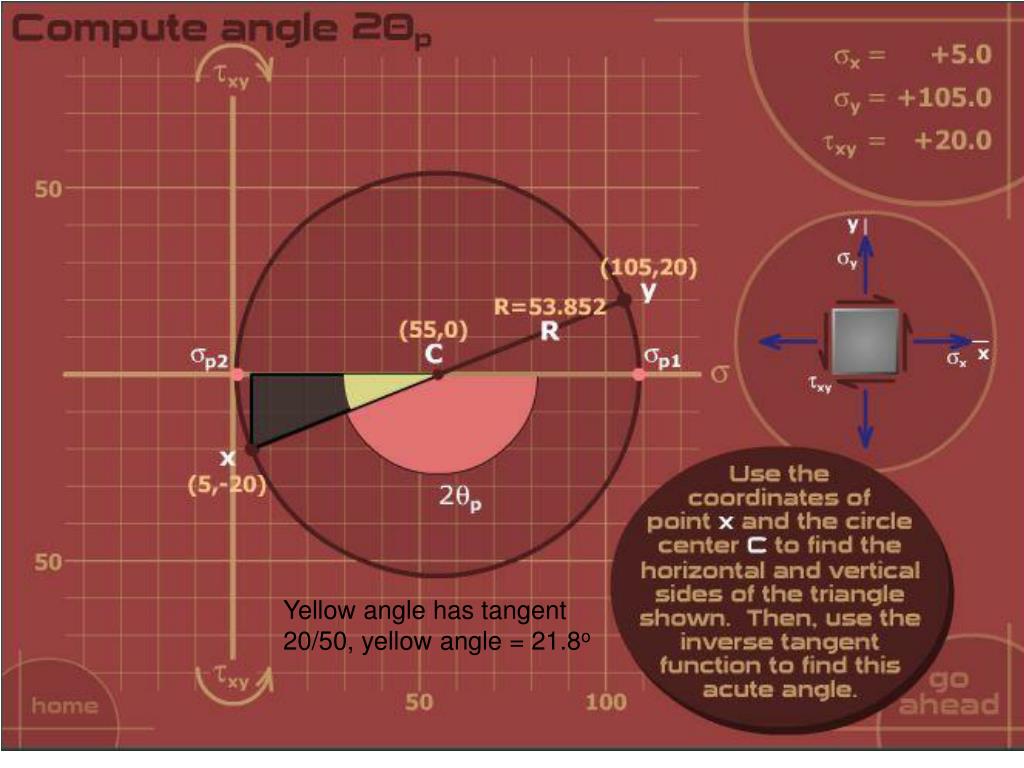

  6. Yellow angle has tangent 20/50, yellow angle = 21.8o

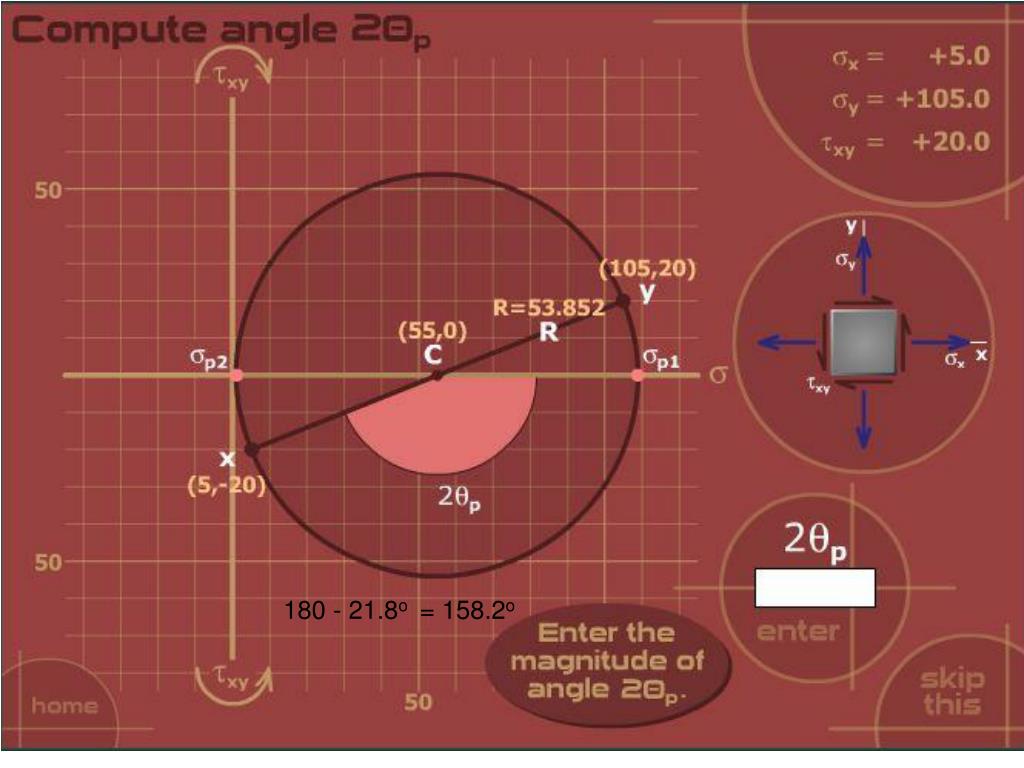

  7. 180 - 21.8o = 158.2o

  8. An example from New Zealand • In New Zealand the shear stress t sign convention is reversed from the one we are currently using. Doesn’t matter, circles are symmetrical. • Notice the strong graphical use, relying on a scale (ruler) for graphing and measurements. http://www.youtube.com/watch?v=SQ7UYPN1Yrg Video by Steve Tomsett at CPIT
