  1. A: acceleration E: equilibrium • Determine whether the following diagrams illustrate acceleration or equilibrium. • Number your paper from 1 to 5 and answer A if you think it is showing acceleration or E if you think it is showing equilibrium

  2. A: acceleration E: equilibrium #1 10 N 10 N

  3. #2 A: acceleration E: equilibrium 20 N 10 N

  4. #3 A: acceleration E: equilibrium 50 N

  5. #4 A: acceleration E: equilibrium 30 N 50 N 10 N

  6. #5 A: acceleration E: equilibrium 40 N 10 N

  7. #6 A: acceleration B: equilibrium • 1 20 N 10 N 10 N 20 N

  8. Answers

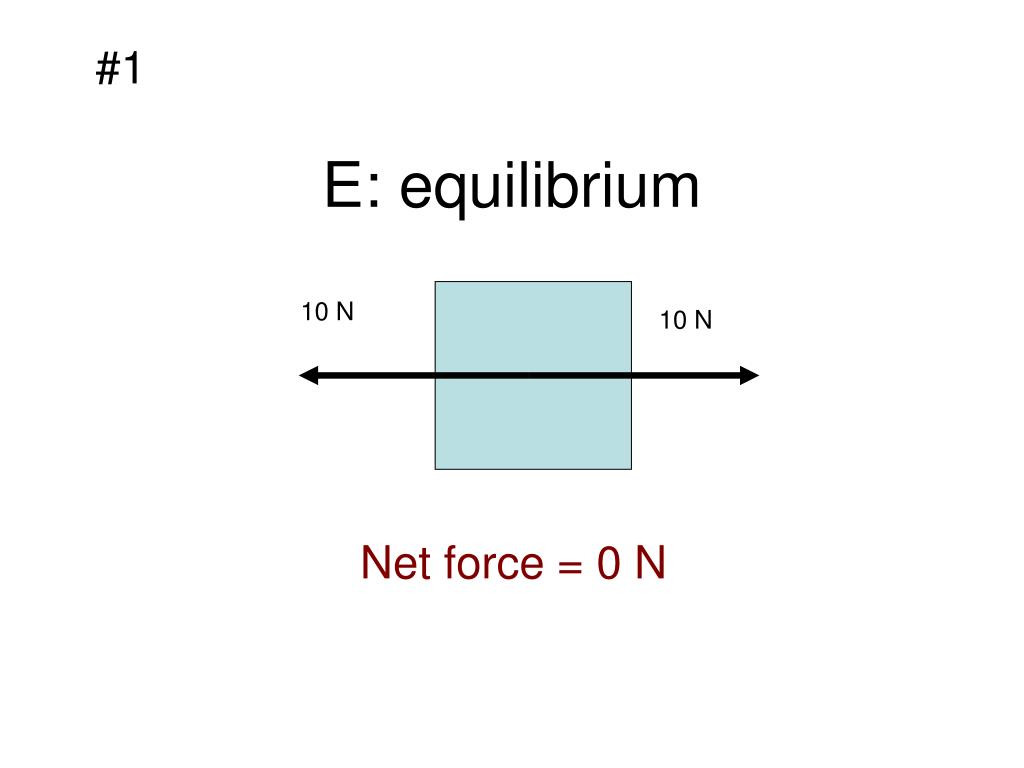

  9. E: equilibrium #1 10 N 10 N Net force = 0 N

  10. #2 A: acceleration 20 N 10 N Net force is not equal to 0 N

  11. #3 A: acceleration 50 N Net force is not equal to 0 N

  12. #4 A: acceleration 30 N 50 N 10 N Net force is not equal to 0 N

  13. #5 A: acceleration 40 N 10 N Net force is not equal to 0 N

  14. #6 B: equilibrium • 1 20 N 10 N 10 N Net force = 0 N 20 N
