Polygons

paula-harris avatar
paula-harris
22 diapositives · 438 Views · Nov 21, 2014

Polygons. 5.4. Pre-Algebra. Warm Up. 1. How many sides does a hexagon have? 2. How many sides does a pentagon have? 3. How many angles does an octagon have? 4. Evaluate ( n – 2)180 for n = 7. 6. 5. 8. 900. Learn to classify and find angles in polygons. Vocabulary. polygon

Polygons - slide 1
01 / 22Polygons
1 / 17

Télécharger la présentation

Polygons
Une image / un lien ci-dessous est fourni (tel quel) pour télécharger la présentation

Politique de téléchargement : le contenu du site vous est fourni TEL QUEL pour votre information et votre usage personnel ; il ne peut être vendu, concédé sous licence ni partagé sur d’autres sites sans l’accord de son auteur.Le contenu vous est fourni TEL QUEL, pour votre information et votre usage personnel uniquement. Téléchargez la présentation en cliquant sur ce lien. Lors du téléchargement, si vous ne parvenez pas à télécharger une présentation, l’éditeur a peut-être supprimé le fichier de son serveur.Pendant le téléchargement, si vous ne parvenez pas à obtenir une présentation, le fichier a peut-être été supprimé par l’éditeur.

F I N

Plus de contenu associé

Transcription de la présentation

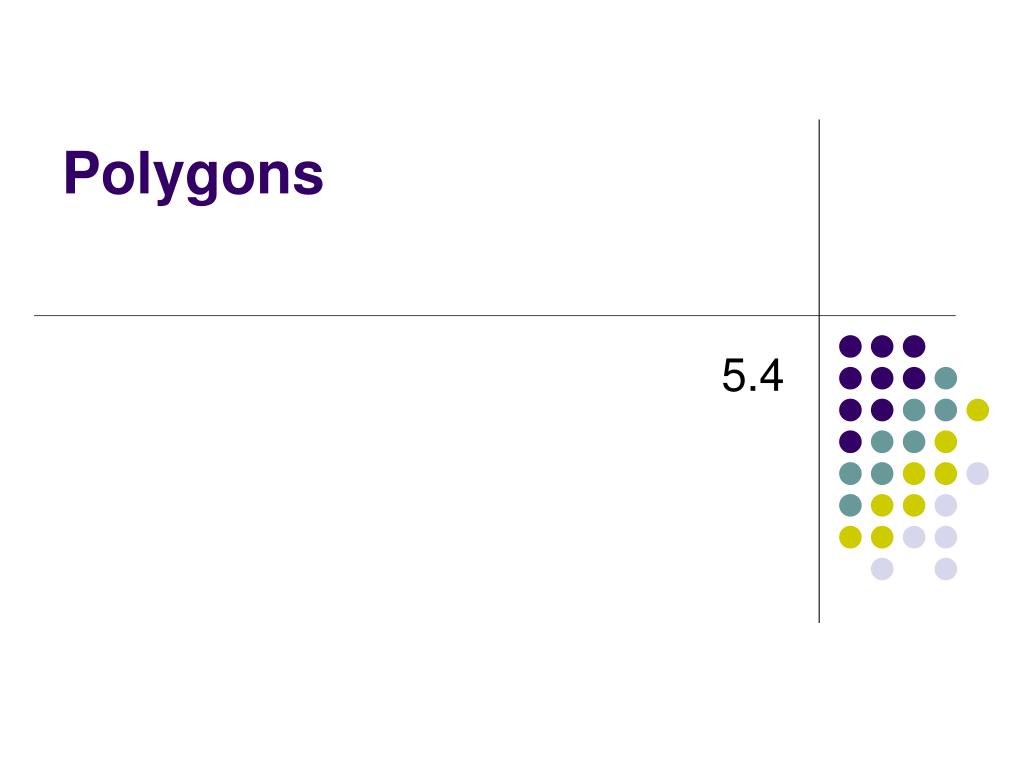

  1. Polygons 5.4 Pre-Algebra

  2. Warm Up 1. How many sides does a hexagon have? 2. How many sides does a pentagon have? 3. How many angles does an octagon have? 4. Evaluate (n – 2)180 for n = 7. 6 5 8 900

  3. Learn to classify and find angles in polygons.

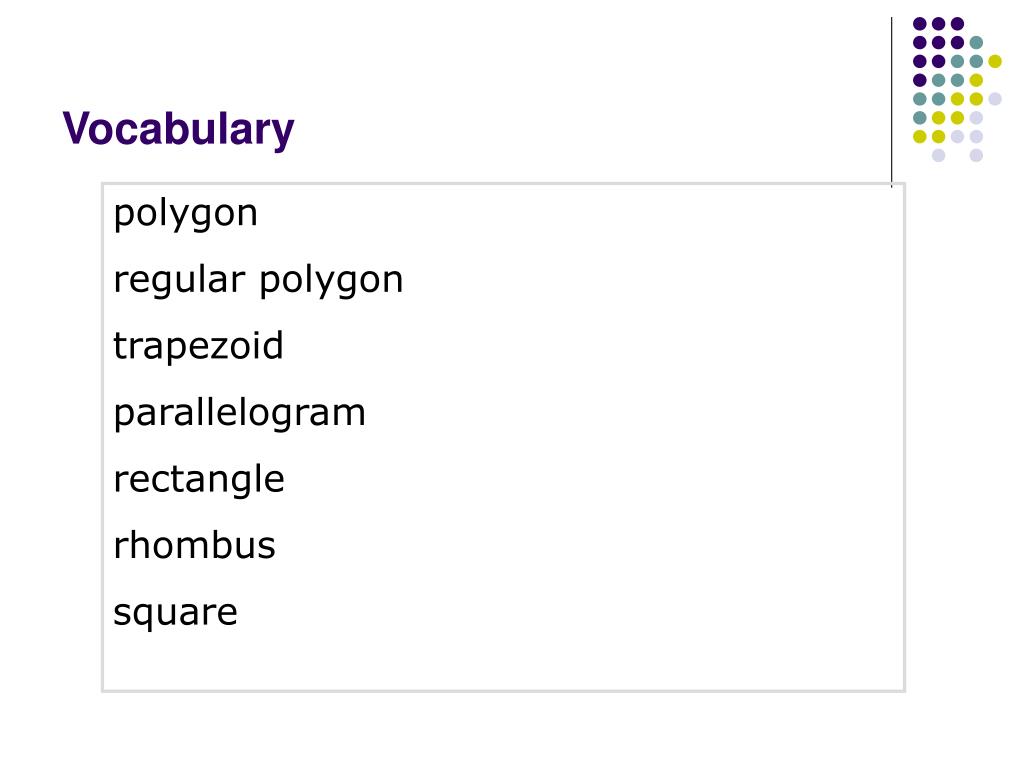

  4. Vocabulary polygon regular polygon trapezoid parallelogram rectangle rhombus square

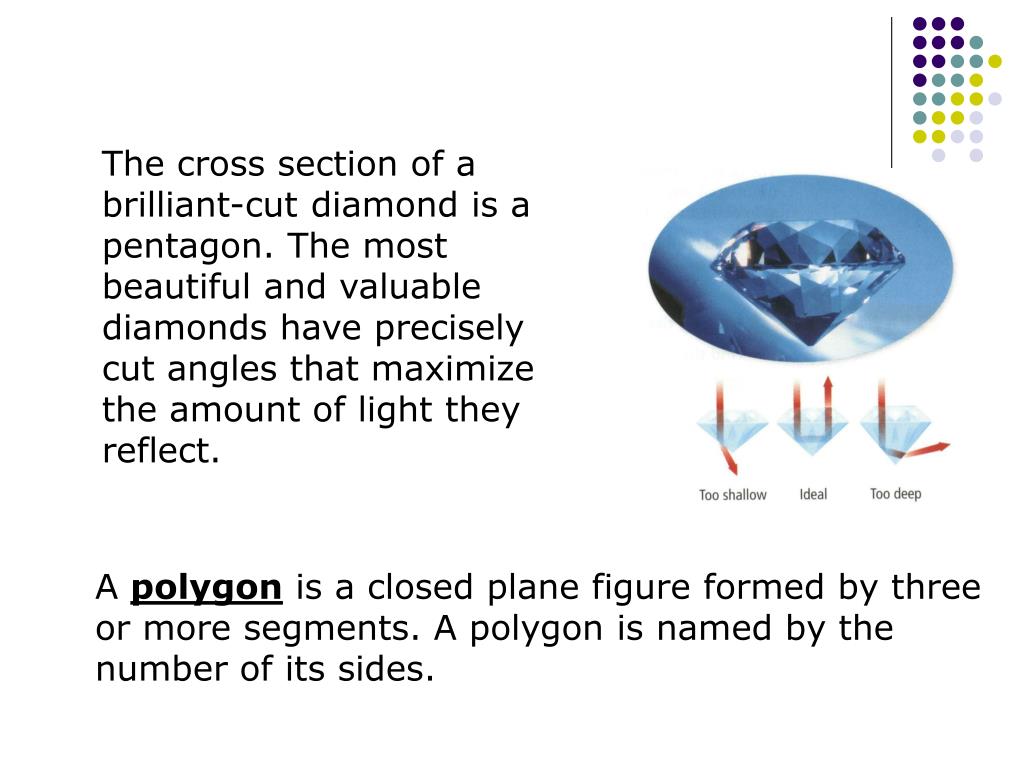

  5. The cross section of a brilliant-cut diamond is a pentagon. The most beautiful and valuable diamonds have precisely cut angles that maximize the amount of light they reflect. A polygon is a closed plane figure formed by three or more segments. A polygon is named by the number of its sides.

  6. Triangle 3 Quadrilateral 4 Pentagon 5 Hexagon 6 Heptagon 7 Octagon 8 n-gon n Polygon Number of Sides

  7. Example: Finding Sums of the Angle Measures in Polygons A. Find the sum of the angle measures in a hexagon. Divide the figure into triangles. 4 triangles 4 • 180° = 720°

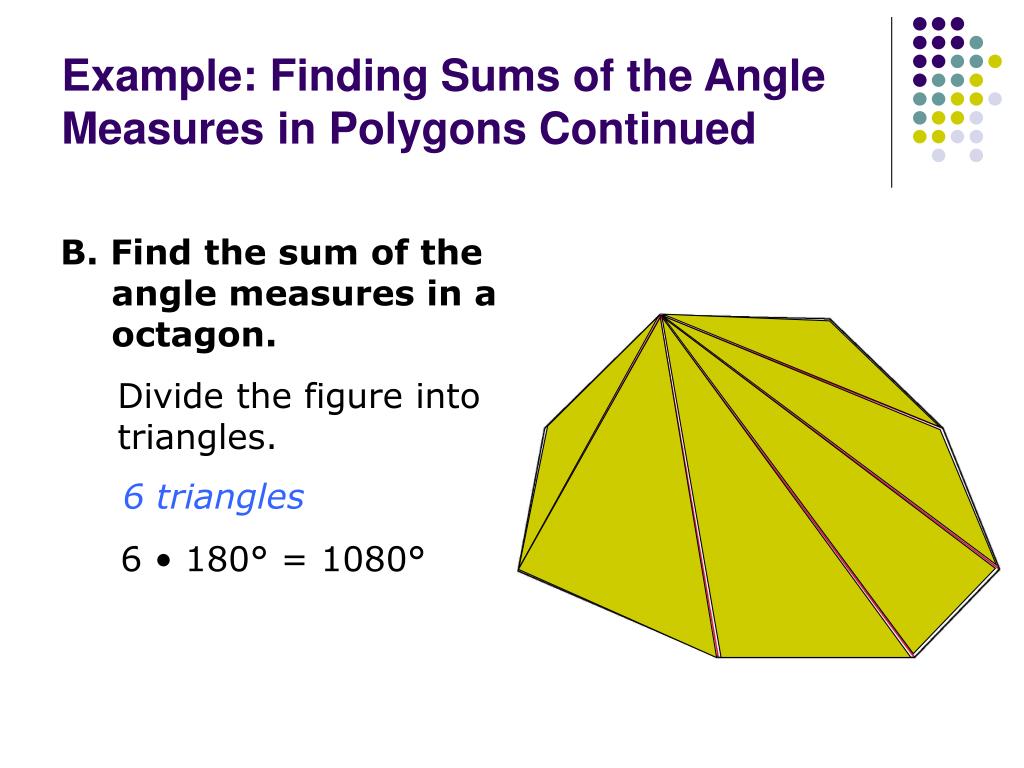

  8. Example: Finding Sums of the Angle Measures in Polygons Continued B. Find the sum of the angle measures in a octagon. Divide the figure into triangles. 6 triangles 6 • 180° = 1080°

  9. Try This A. Find the sum of the angle measures in a hexagon. Divide the figure into triangles. 4 triangles 4 • 180° = 720°

  10. Try This B. Find the sum of the angle measures in a heptagon. Divide the figure into triangles. 5 triangles 5 • 180° = 900°

  11. The pattern is that the number of triangles is always 2 less than the number of sides. So an n-gon can be divided into n – 2 triangles. The sum of the angle measures of any n-gon is 180°(n – 2). All the sides and angles of a regular polygon have equal measures.

  12. 6x 6 720°6 = Example: Finding the Measure of Each Angle in a Regular Polygon Find the angle measures in the regular polygon. 6 congruent angles 6x = 180°(6 – 2) 6x = 180°(4) 6x = 720° x = 120°

  13. 4y 4 360°4 = Example: Finding the Measure of Each Angle in a Regular Polygon Find the angle measures in the regular polygon. 4 congruent angles 4y = 180°(4 – 2) 4y = 180°(2) 4y = 360° y = 90°

  14. 5a 5 540° 5 = Try This Find the angle measures in the regular polygon. 5 congruent angles 5a = 180°(5 – 2) a° 5a = 180°(3) a° a° 5a = 540° a° a° a = 108°

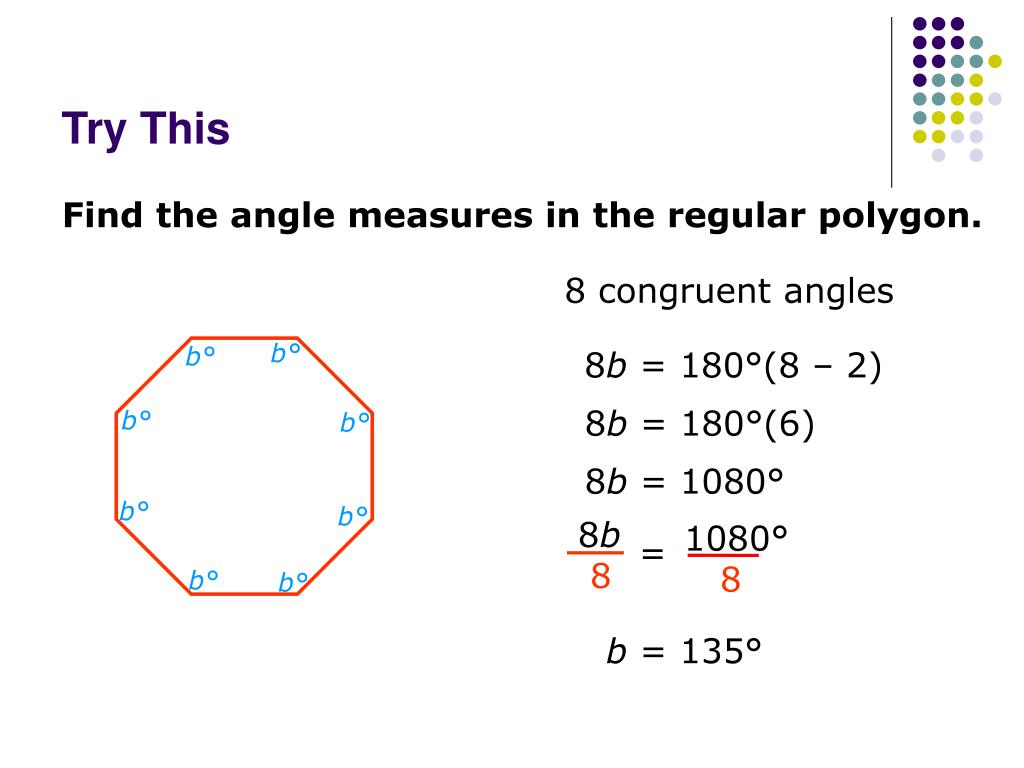

  15. b° b° b° b° b° b° 8b 8 1080° 8 = b° b° Try This Find the angle measures in the regular polygon. 8 congruent angles 8b = 180°(8 – 2) 8b = 180°(6) 8b = 1080° b = 135°

  16. Example: Classifying Quadrilaterals Give all the names that apply to the figure. quadrilateral Four-sided polygon parallelogram 2 pairs of parallel sides rectangle 4 right angles rhombus 4 congruent sides square 4 congruent sides and 4 right angles

  17. Example: Classifying Quadrilaterals Continued Give all the names that apply to the figure. quadrilateral Four-sided polygon parallelogram 2 pairs of parallel sides rhombus 4 congruent sides

  18. Try This Give all the names that apply to the figure. A. quadrilateral Four-sided polygon parallelogram 2 pairs of parallel sides rectangle 4 right angles

  19. Try This Give all the names that apply to the figure. B. quadrilateral Four-sided polygon

  20. Lesson Quiz: Part 1 1. Find the sum of the angle measures in a quadrilateral. 2. Find the sum of the angle measures in a hexagon. 3. Find the measure of each angle in a regular octagon. 360° 720° 135°

  21. Lesson Quiz: Part 2 4. Write all of the names that apply to the figure below. quadrilateral, rhombus, parallelogram
