  1. AVL Tree Example(This is the example we did in tutorial on Thursday) Slides by Jagoda Walny CPSC 335, Tutorial 02 Winter 2008

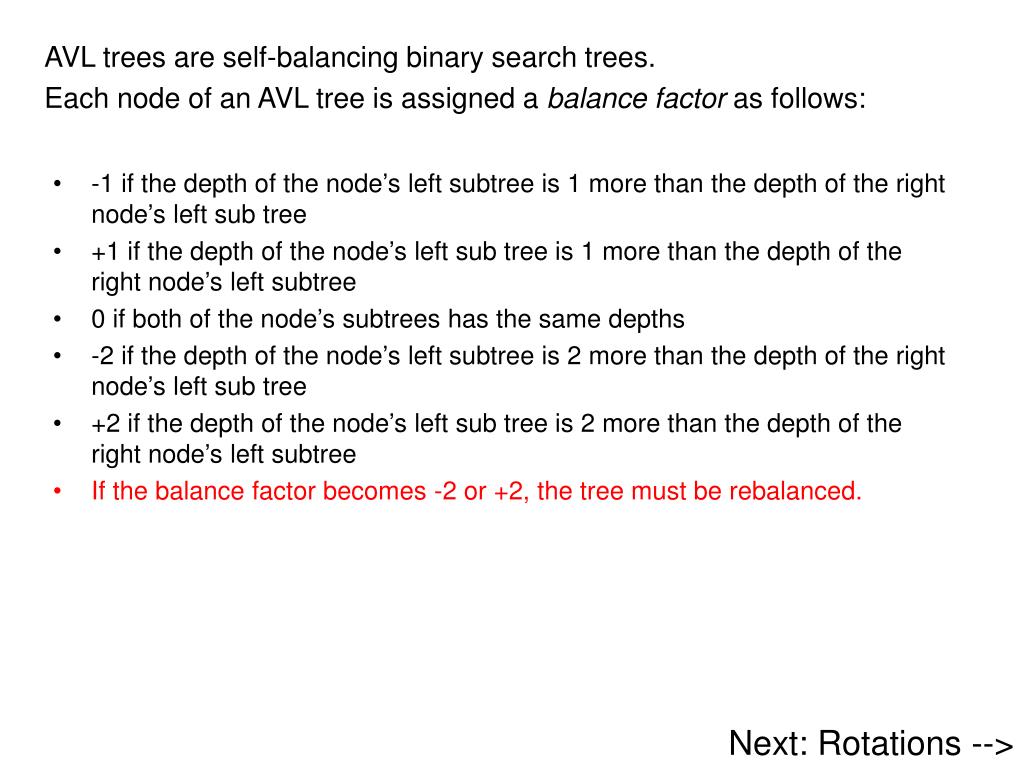

  2. AVL trees are self-balancing binary search trees. Each node of an AVL tree is assigned a balance factor as follows: • -1 if the depth of the node’s left subtree is 1 more than the depth of the right node’s left sub tree • +1 if the depth of the node’s left sub tree is 1 more than the depth of the right node’s left subtree • 0 if both of the node’s subtrees has the same depths • -2 if the depth of the node’s left subtree is 2 more than the depth of the right node’s left sub tree • +2 if the depth of the node’s left sub tree is 2 more than the depth of the right node’s left subtree • If the balance factor becomes -2 or +2, the tree must be rebalanced. Next: Rotations -->

  3. If the balance factor of a node in an AVL tree is +2 or -2, the node is rotated to re-balance the tree using one of the four cases shown in the following picture: The 4 cases of AVL tree rebalancing using rotations. Picture created by Marc Tanti, licensed for reuse under the GNU Free Documentation License, Version 1.2 Next: example -->

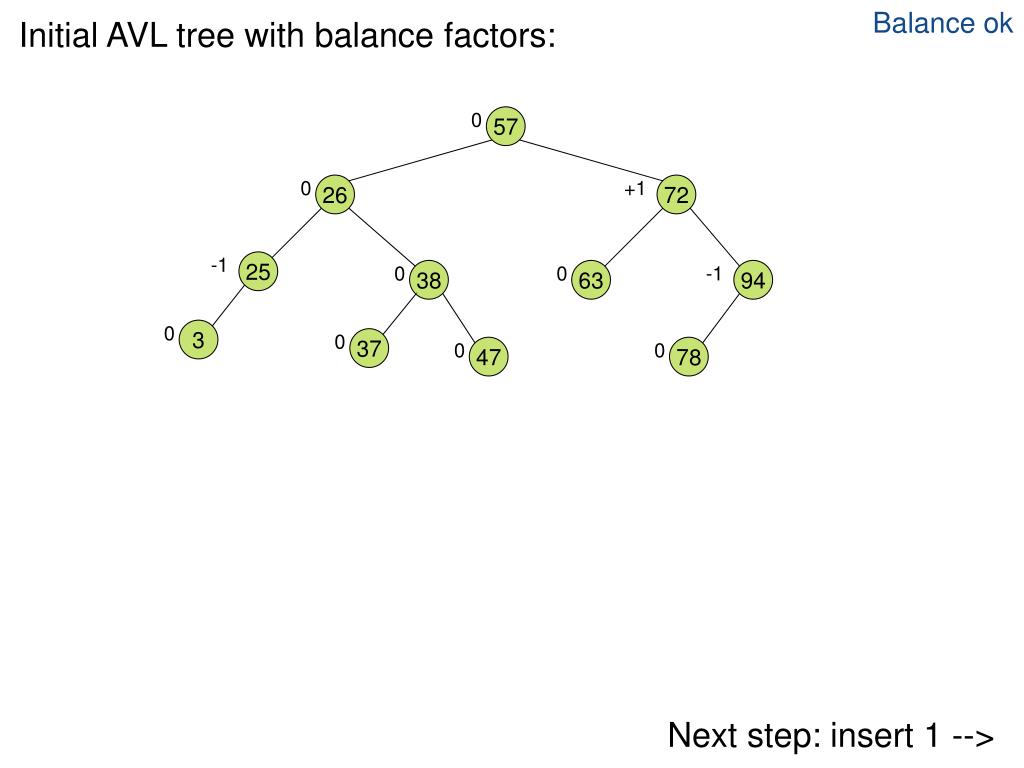

  4. Balance ok +1 72 -1 25 -1 94 0 0 0 0 0 0 0 0 38 57 78 26 63 37 3 47 Initial AVL tree with balance factors: Next step: insert 1 -->

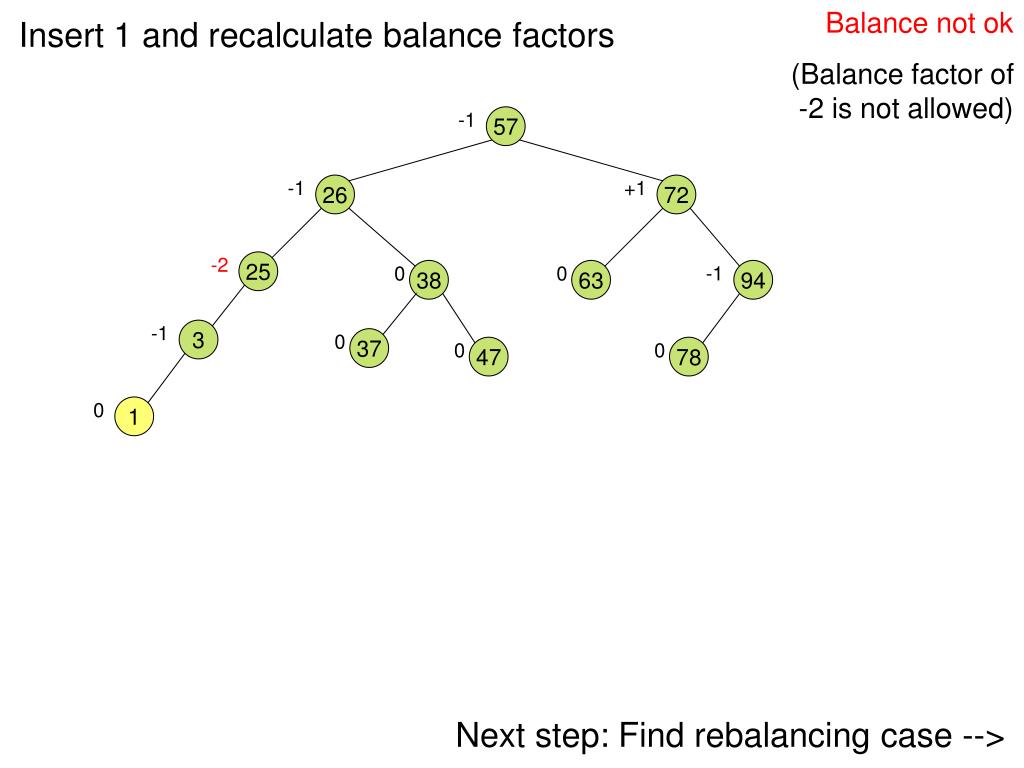

  5. Balance not ok (Balance factor of -2 is not allowed) -1 57 -1 +1 26 72 -2 25 -1 94 -1 0 0 0 0 0 47 3 38 78 63 37 0 1 Insert 1 and recalculate balance factors Next step: Find rebalancing case -->

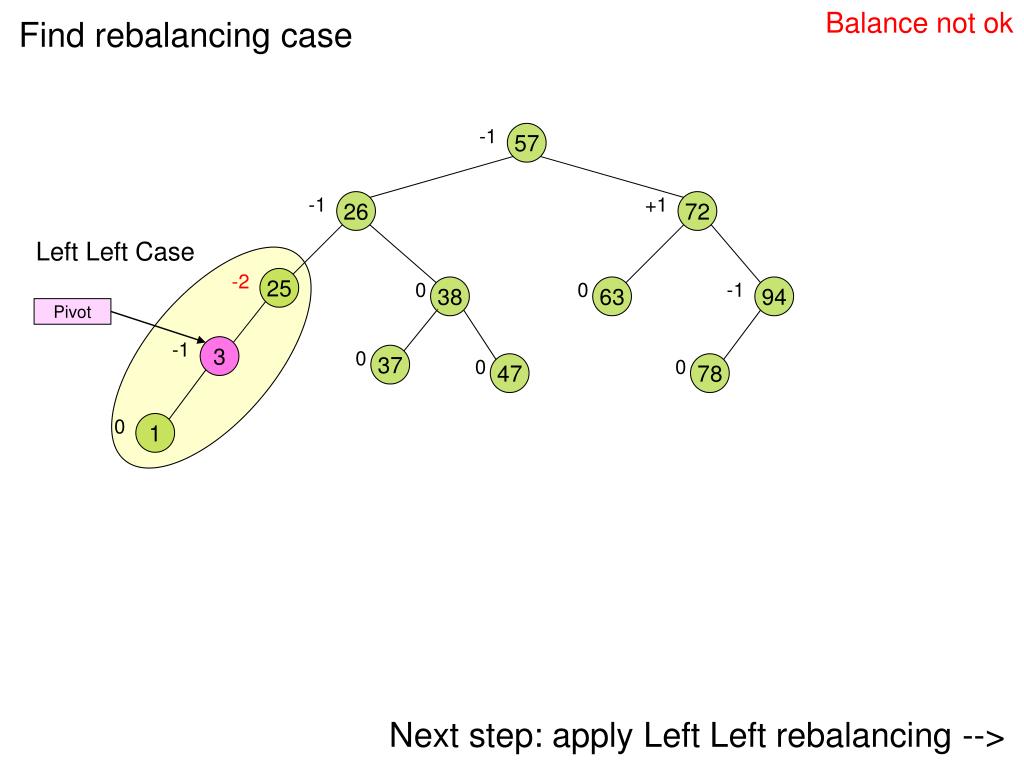

  6. Balance not ok -1 57 -1 +1 26 72 -2 25 0 0 0 0 0 78 37 63 38 47 -1 3 0 1 Find rebalancing case Left Left Case -1 94 Pivot Next step: apply Left Left rebalancing -->

  7. Balance ok 0 57 0 +1 26 72 0 25 0 -1 3 94 0 0 0 0 0 38 78 63 37 47 0 1 Rebalance and recalculate balance factors Next step: insert 30 -->

  8. Balance ok -1 57 +1 +1 26 72 0 25 -1 38 0 0 0 63 3 78 0 1 -1 37 0 47 0 30 Insert 30 and recalculate balance factors -1 94 Next step: Insert 32 -->

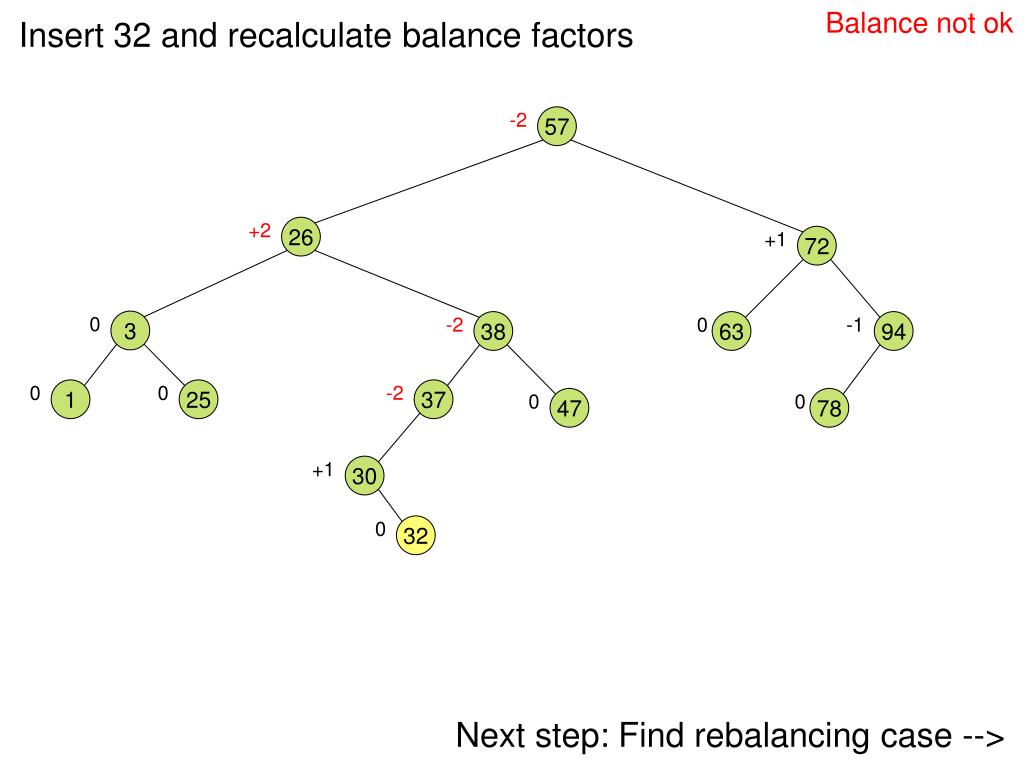

  9. Balance not ok -2 57 +2 +1 26 72 0 25 -2 -1 38 94 0 0 0 63 78 3 0 1 -2 37 0 47 +1 30 0 32 Insert 32 and recalculate balance factors Next step: Find rebalancing case -->

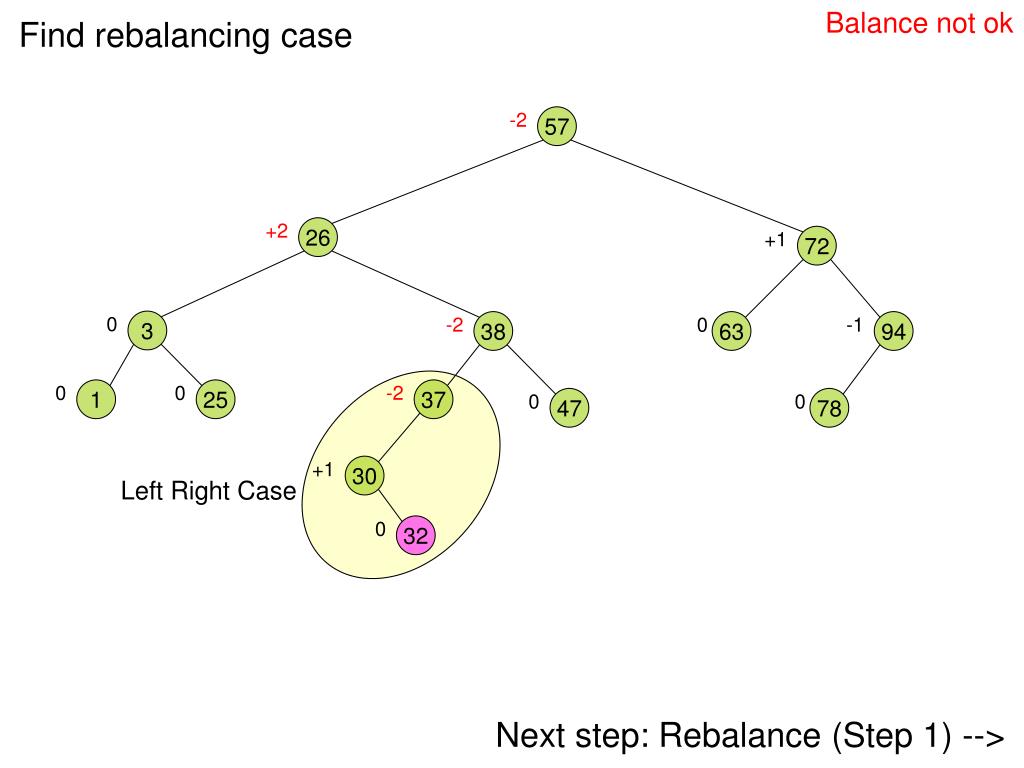

  10. Balance not ok -2 57 +2 +1 26 72 0 25 -2 -1 38 94 0 0 0 3 63 78 0 1 -2 37 0 47 Find rebalancing case +1 30 Left Right Case 0 32 Next step: Rebalance (Step 1) -->

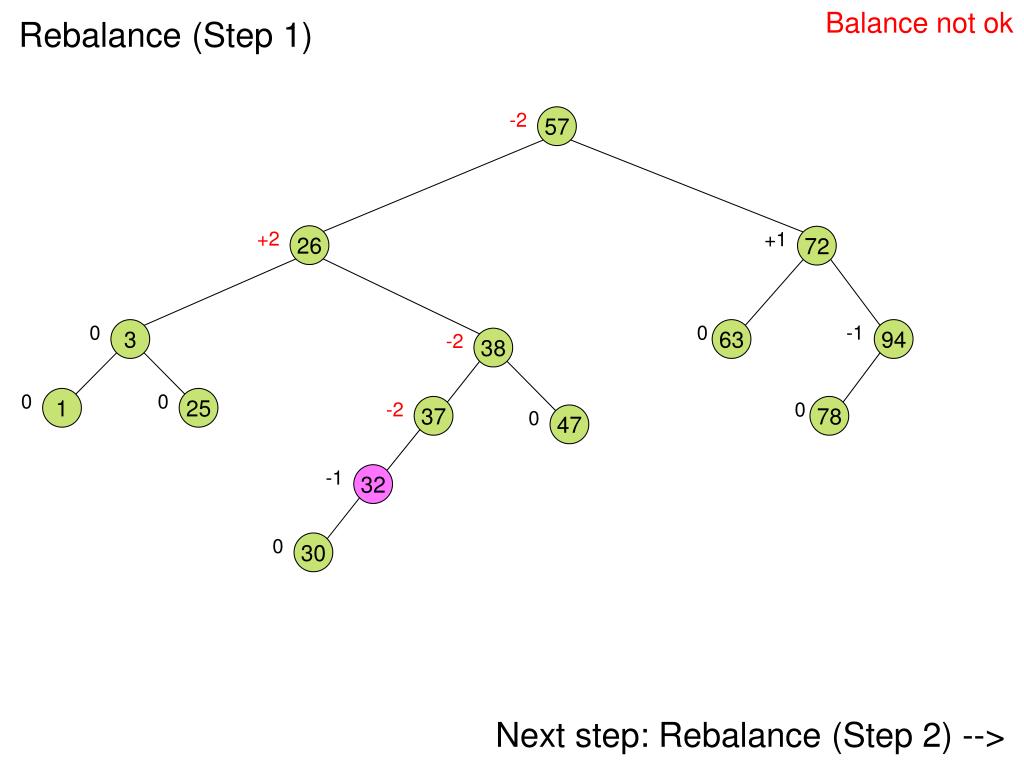

  11. Balance not ok -2 57 +2 +1 26 72 0 25 -2 -1 38 94 0 0 0 63 78 3 0 1 -2 37 0 47 0 30 -1 32 Rebalance (Step 1) Next step: Rebalance (Step 2) -->

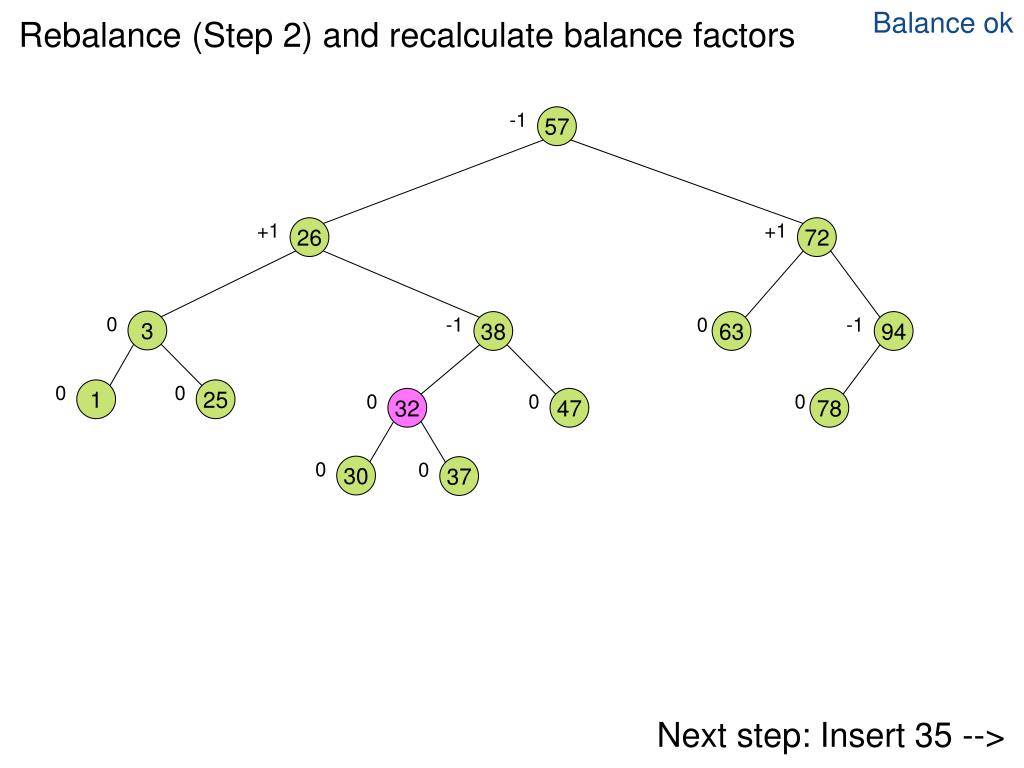

  12. Balance ok -1 57 +1 +1 26 72 0 25 -1 -1 38 94 0 0 0 63 78 3 0 1 0 37 0 47 0 30 0 32 Rebalance (Step 2) and recalculate balance factors Next step: Insert 35 -->

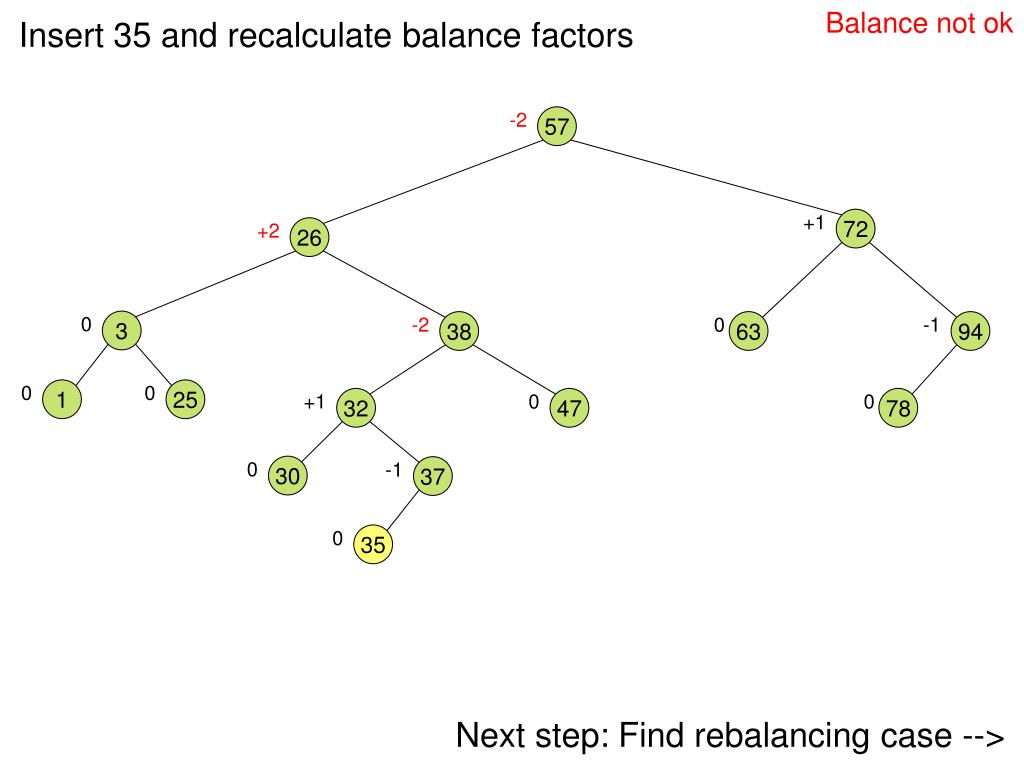

  13. Balance not ok -2 57 +2 +1 26 72 0 25 -2 -1 38 94 0 0 0 78 63 3 0 1 -1 37 +1 0 32 47 0 30 0 35 Insert 35 and recalculate balance factors Next step: Find rebalancing case -->

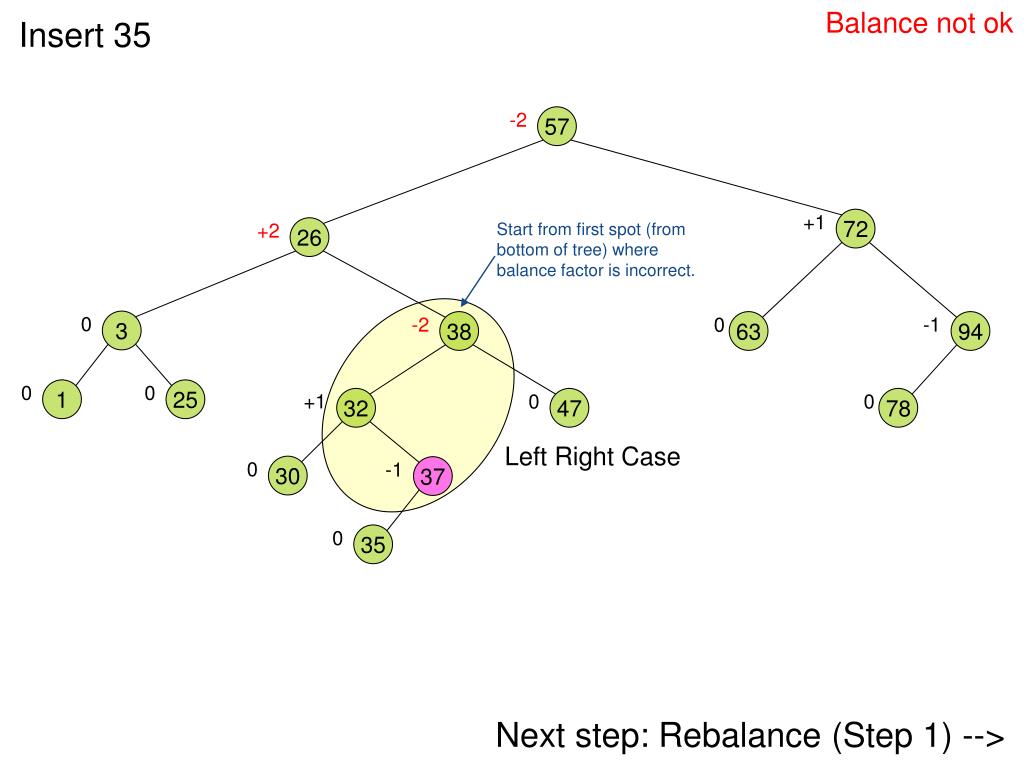

  14. Balance not ok -2 57 +2 +1 26 72 0 25 -2 -1 38 94 0 0 0 3 78 63 0 1 +1 0 32 47 0 -1 30 37 0 35 Insert 35 Start from first spot (from bottom of tree) where balance factor is incorrect. Left Right Case Next step: Rebalance (Step 1) -->

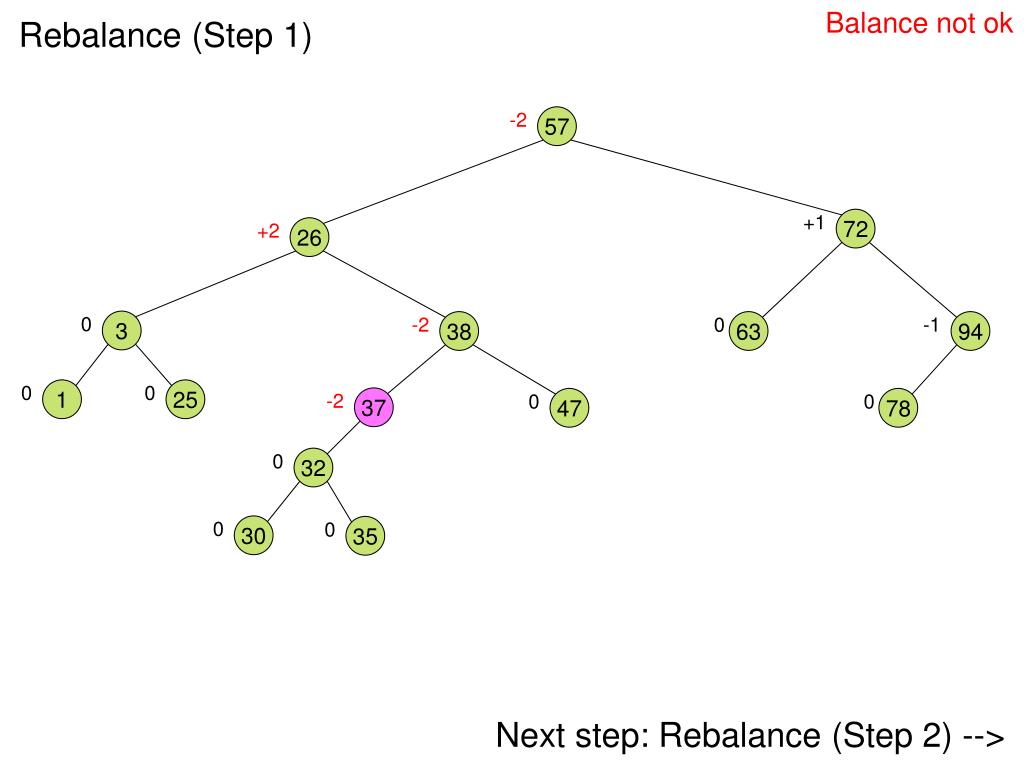

  15. Balance not ok -2 57 +2 +1 26 72 0 25 -2 -1 38 94 0 0 0 78 63 3 0 1 0 0 32 47 0 -2 30 37 0 35 Rebalance (Step 1) Next step: Rebalance (Step 2) -->

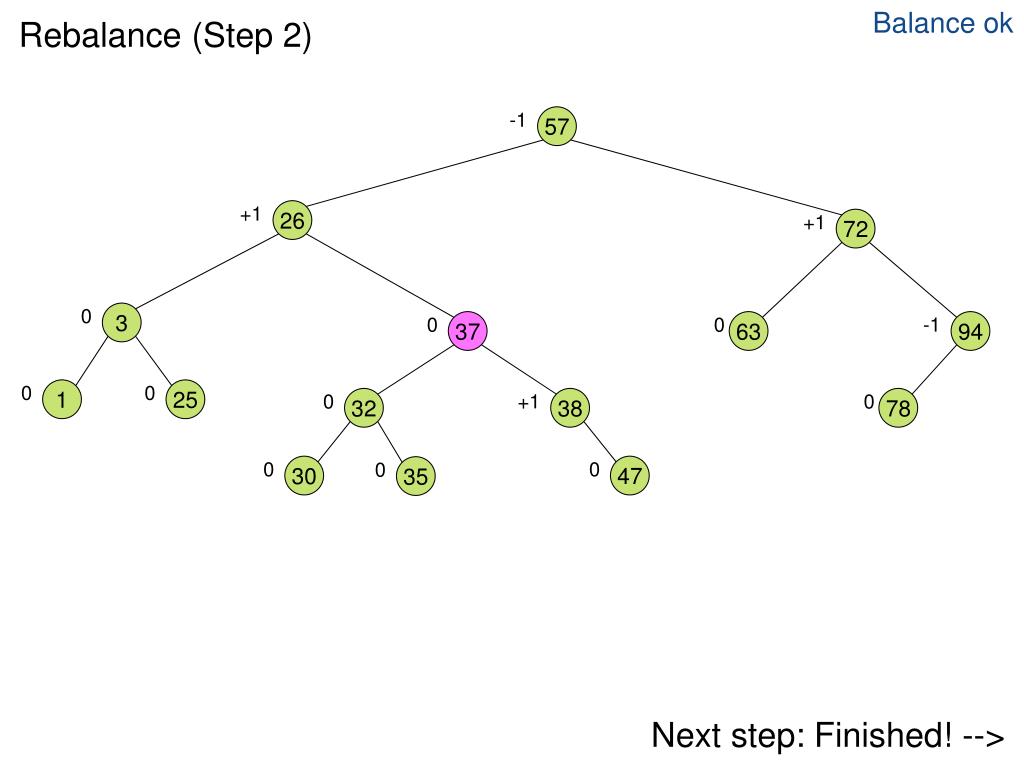

  16. Balance ok -1 57 +1 +1 26 72 0 25 +1 -1 38 94 0 0 0 78 63 3 0 1 0 0 32 47 0 0 30 37 0 35 Rebalance (Step 2) Next step: Finished! -->

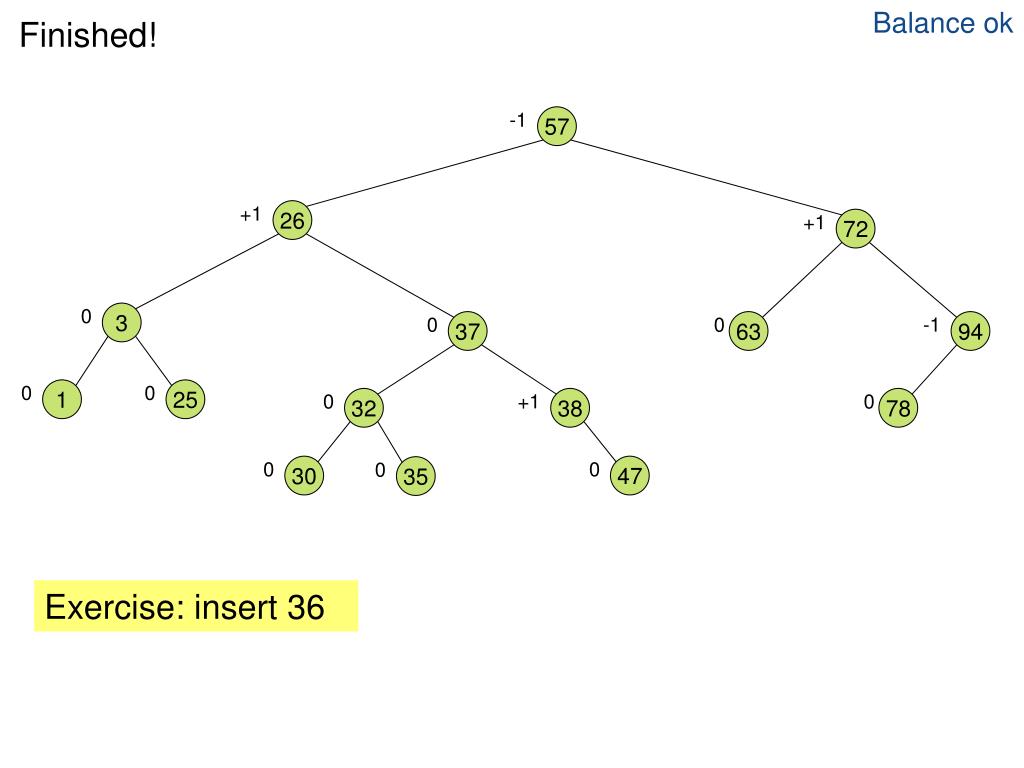

  17. Balance ok -1 57 +1 +1 26 72 0 25 +1 -1 38 94 0 0 0 3 63 78 0 1 0 0 32 47 0 30 0 35 Finished! 0 37 Exercise: insert 36
