SlideServe
Télécharger Obtenir Pro
Menu
Accueil Pro
Préférences
ApparenceLight Aide et commentaires
© SlideServe · v2026

Example

penda avatar
penda
122 diapositives · 1.4K Views · Aug 02, 2014

Example. Find a DTM that computes the language L = { a n b n : n ≥ 0}. High level program: Repeat Erase an a. Pass along the rest of as. Erase a b Pass along the rest of bs . Go to the beginning of the input.

#example #example ppt #powerpoint #presentation
Example - slide 1
01 / 122Example
1 / 17

Télécharger la présentation

Example
Une image / un lien ci-dessous est fourni (tel quel) pour télécharger la présentation

Politique de téléchargement : le contenu du site vous est fourni TEL QUEL pour votre information et votre usage personnel ; il ne peut être vendu, concédé sous licence ni partagé sur d’autres sites sans l’accord de son auteur.Le contenu vous est fourni TEL QUEL, pour votre information et votre usage personnel uniquement. Téléchargez la présentation en cliquant sur ce lien. Lors du téléchargement, si vous ne parvenez pas à télécharger une présentation, l’éditeur a peut-être supprimé le fichier de son serveur.Pendant le téléchargement, si vous ne parvenez pas à obtenir une présentation, le fichier a peut-être été supprimé par l’éditeur.

F I N

Plus de contenu associé

Transcription de la présentation

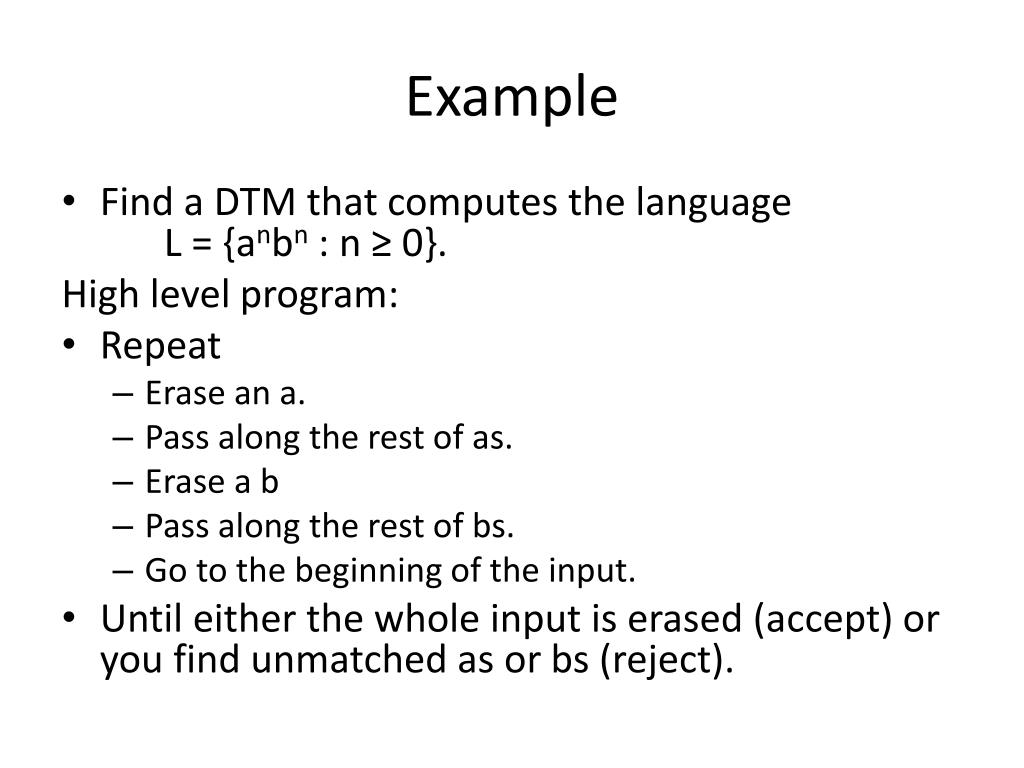

  1. Example • Find a DTM that computes the language L = {anbn : n ≥ 0}. High level program: • Repeat • Erase an a. • Pass along the rest of as. • Erase a b • Pass along the rest of bs. • Go to the beginning of the input. • Until either the whole input is erased (accept) or you find unmatched as or bs (reject).

  2. Example • Find a DTM that computes the language L = {anbn : n ≥ 0}. Answer: a → a , R x → x , R x → x, R b → b , R a → x, R b → x, R q0 q1 q2 □ → □ , R □ → □ , L □ → □ , R qf q3 a → a , L b → b , L x → x , L

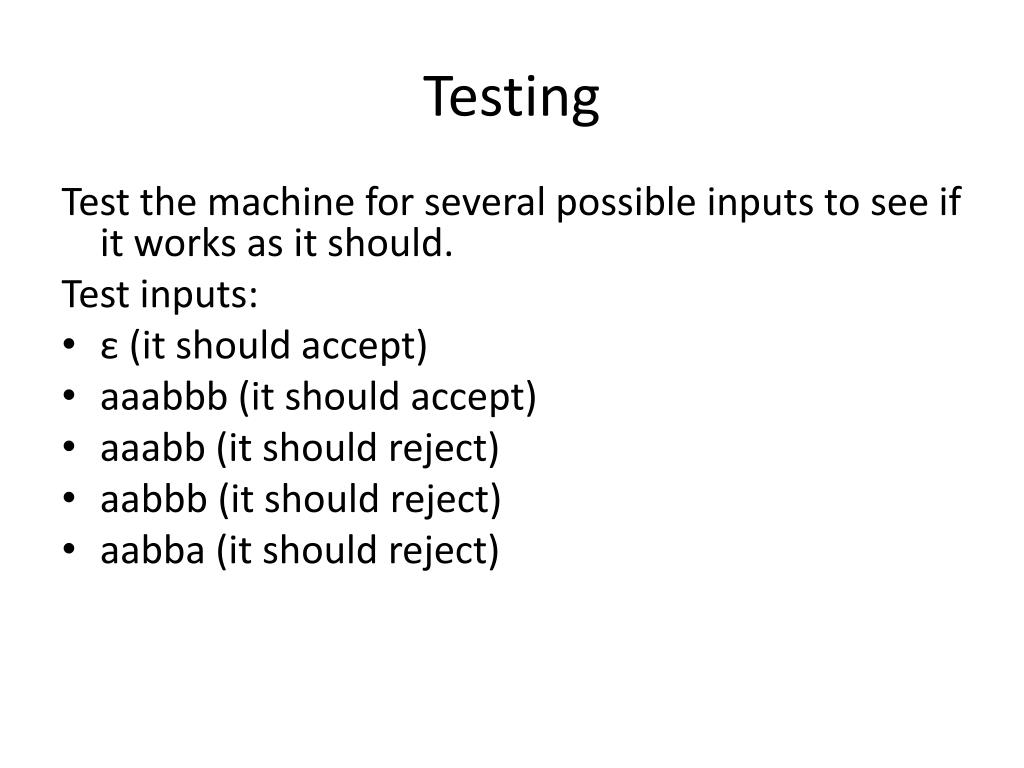

  3. Testing Test the machine for several possible inputs to see if it works as it should. Test inputs: • ε (it should accept) • aaabbb (it should accept) • aaabb (it should reject) • aabbb (it should reject) • aabba (it should reject)

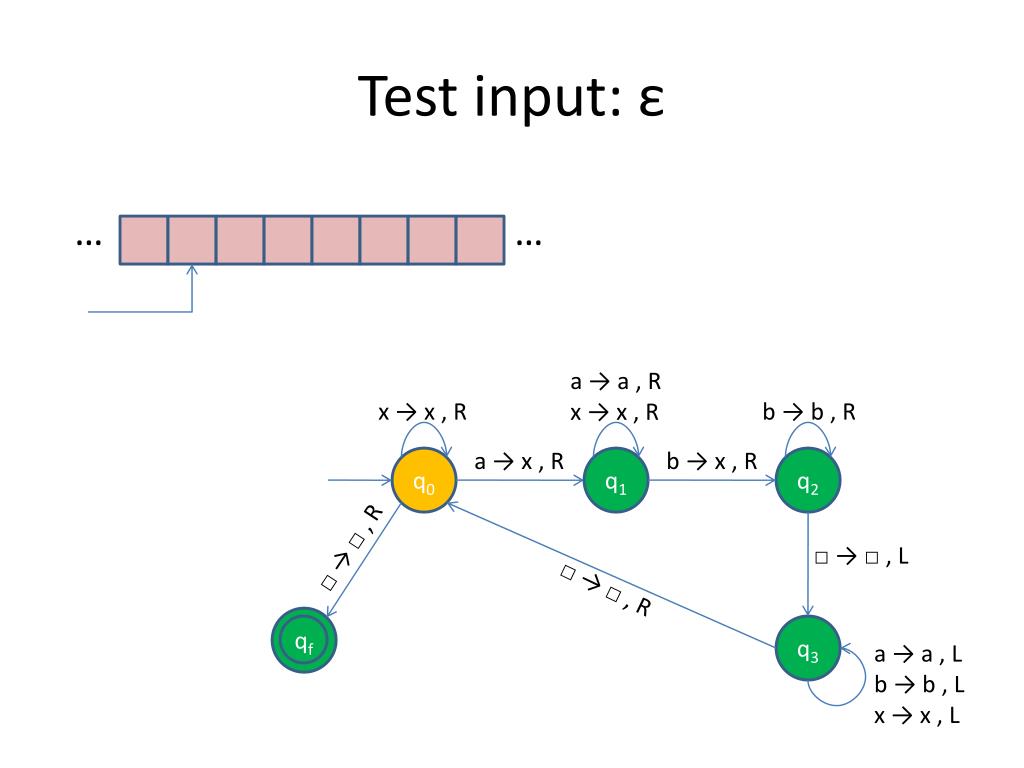

  4. Test input: ε … … a → a , R x → x , R x → x, R b → b , R a → x, R b → x, R q0 q1 q2 □ → □ , R □ → □ , L □ → □ , R qf q3 a → a , L b → b , L x → x , L

  5. Test input: ε … … a → a , R x → x , R x → x, R b → b , R a → x, R b → x, R q0 q1 q2 □ → □ , R □ → □ , L □ → □ , R qf q3 a → a , L b → b , L x → x , L

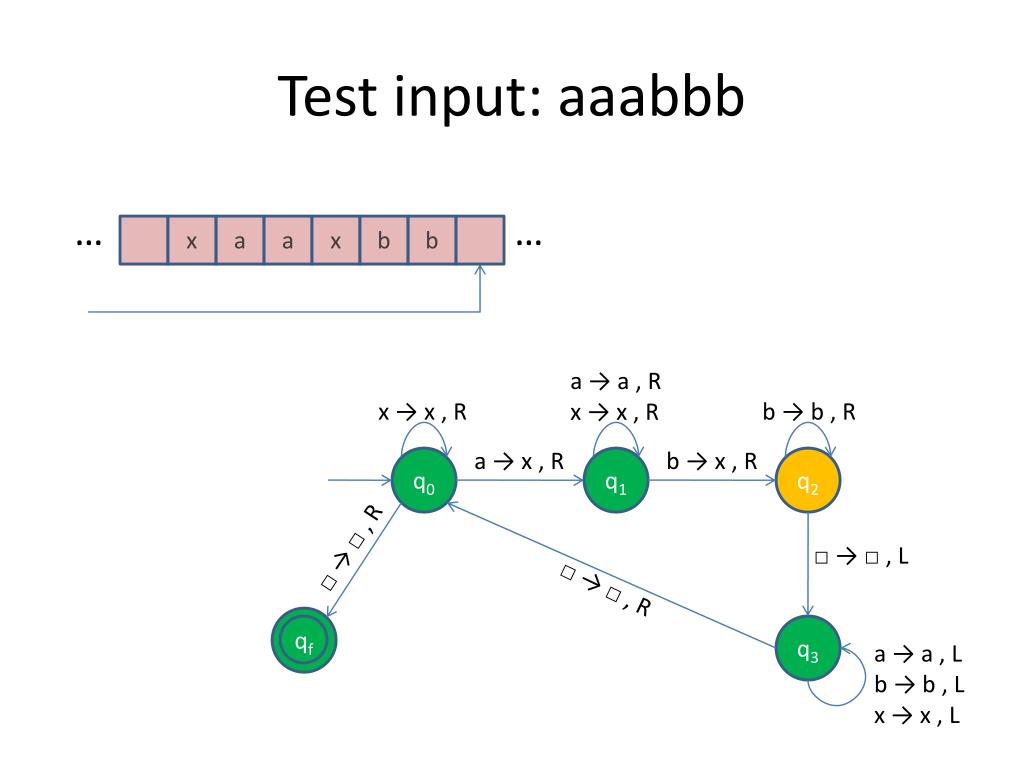

  6. Test input: aaabbb … … a a a b b b a → a , R x → x , R x → x, R b → b , R a → x, R b → x, R q0 q1 q2 □ → □ , R □ → □ , L □ → □ , R qf q3 a → a , L b → b , L x → x , L

  7. Test input: aaabbb … … x a a b b b a → a , R x → x , R x → x, R b → b , R a → x, R b → x, R q0 q1 q2 □ → □ , R □ → □ , L □ → □ , R qf q3 a → a , L b → b , L x → x , L

  8. Test input: aaabbb … … x a a b b b a → a , R x → x , R x → x, R b → b , R a → x, R b → x, R q0 q1 q2 □ → □ , R □ → □ , L □ → □ , R qf q3 a → a , L b → b , L x → x , L

  9. Test input: aaabbb … … x a a b b b a → a , R x → x , R x → x, R b → b , R a → x, R b → x, R q0 q1 q2 □ → □ , R □ → □ , L □ → □ , R qf q3 a → a , L b → b , L x → x , L

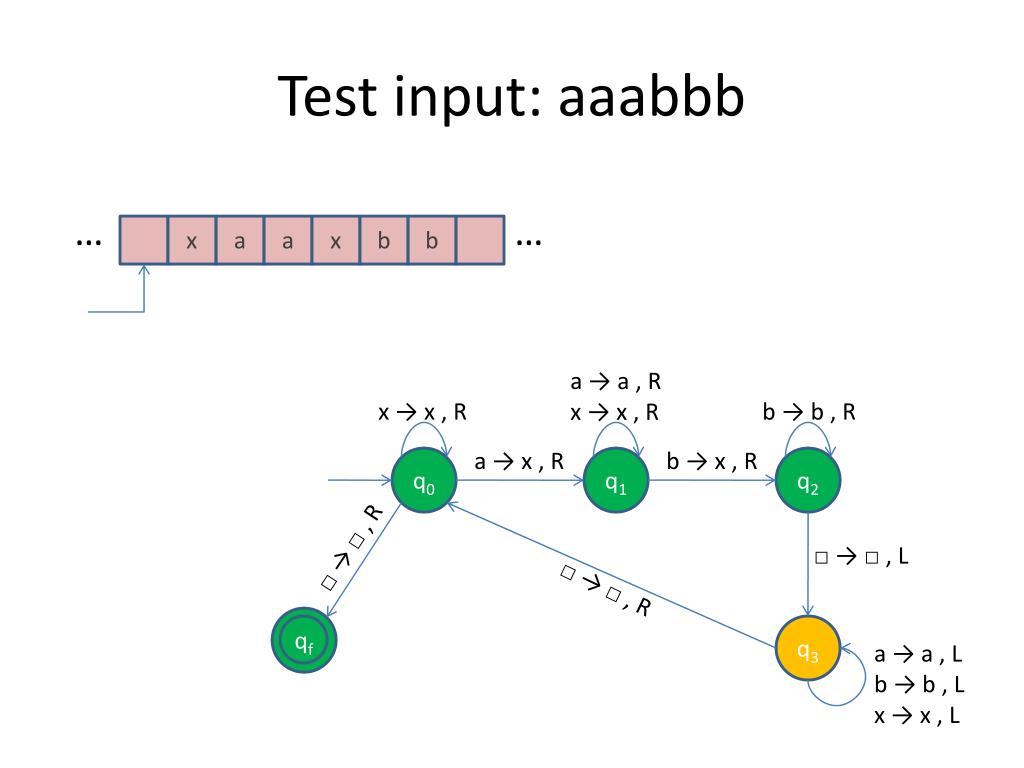

  10. Test input: aaabbb … … x a a x b b a → a , R x → x , R x → x, R b → b , R a → x, R b → x, R q0 q1 q2 □ → □ , R □ → □ , L □ → □ , R qf q3 a → a , L b → b , L x → x , L

  11. Test input: aaabbb … … x a a x b b a → a , R x → x , R x → x, R b → b , R a → x, R b → x, R q0 q1 q2 □ → □ , R □ → □ , L □ → □ , R qf q3 a → a , L b → b , L x → x , L

  12. Test input: aaabbb … … x a a x b b a → a , R x → x , R x → x, R b → b , R a → x, R b → x, R q0 q1 q2 □ → □ , R □ → □ , L □ → □ , R qf q3 a → a , L b → b , L x → x , L

  13. Test input: aaabbb … … x a a x b b a → a , R x → x , R x → x, R b → b , R a → x, R b → x, R q0 q1 q2 □ → □ , R □ → □ , L □ → □ , R qf q3 a → a , L b → b , L x → x , L

  14. Test input: aaabbb … … x a a x b b a → a , R x → x , R x → x, R b → b , R a → x, R b → x, R q0 q1 q2 □ → □ , R □ → □ , L □ → □ , R qf q3 a → a , L b → b , L x → x , L

  15. Test input: aaabbb … … x a a x b b a → a , R x → x , R x → x, R b → b , R a → x, R b → x, R q0 q1 q2 □ → □ , R □ → □ , L □ → □ , R qf q3 a → a , L b → b , L x → x , L

  16. Test input: aaabbb … … x a a x b b a → a , R x → x , R x → x, R b → b , R a → x, R b → x, R q0 q1 q2 □ → □ , R □ → □ , L □ → □ , R qf q3 a → a , L b → b , L x → x , L

  17. Test input: aaabbb … … x a a x b b a → a , R x → x , R x → x, R b → b , R a → x, R b → x, R q0 q1 q2 □ → □ , R □ → □ , L □ → □ , R qf q3 a → a , L b → b , L x → x , L

  18. Test input: aaabbb … … x a a x b b a → a , R x → x , R x → x, R b → b , R a → x, R b → x, R q0 q1 q2 □ → □ , R □ → □ , L □ → □ , R qf q3 a → a , L b → b , L x → x , L

  19. Test input: aaabbb … … x a a x b b a → a , R x → x , R x → x, R b → b , R a → x, R b → x, R q0 q1 q2 □ → □ , R □ → □ , L □ → □ , R qf q3 a → a , L b → b , L x → x , L

  20. Test input: aaabbb … … x a a x b b a → a , R x → x , R x → x, R b → b , R a → x, R b → x, R q0 q1 q2 □ → □ , R □ → □ , L □ → □ , R qf q3 a → a , L b → b , L x → x , L

  21. Test input: aaabbb … … x a a x b b a → a , R x → x , R x → x, R b → b , R a → x, R b → x, R q0 q1 q2 □ → □ , R □ → □ , L □ → □ , R qf q3 a → a , L b → b , L x → x , L

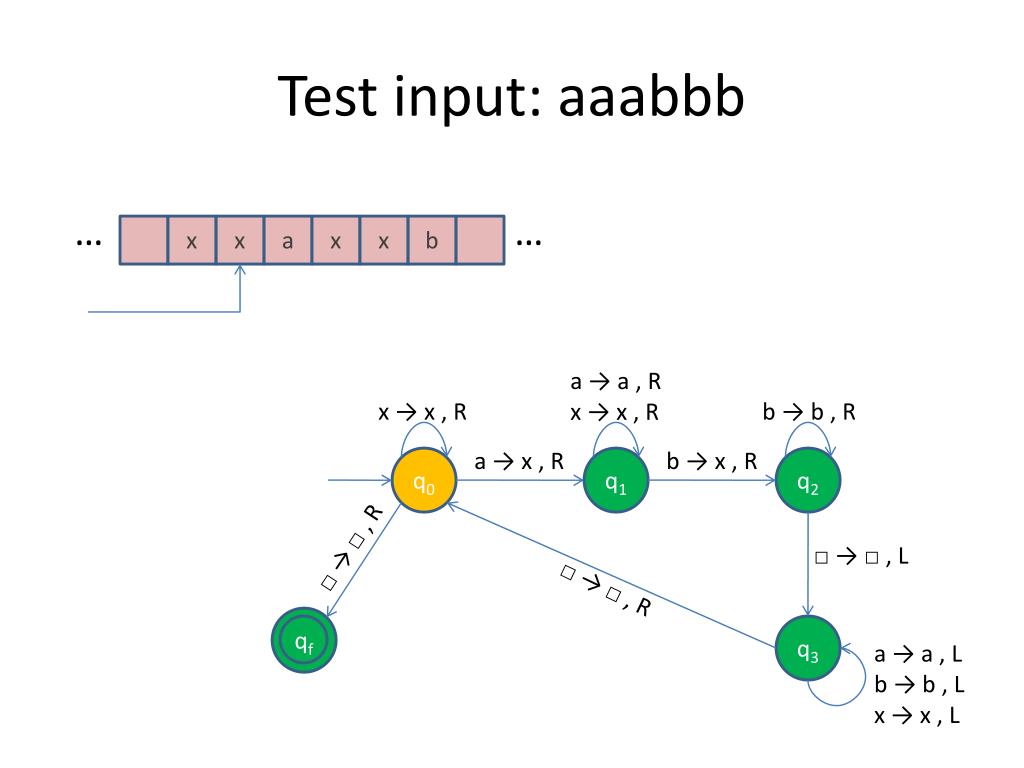

  22. Test input: aaabbb … … x x a x b b a → a , R x → x , R x → x, R b → b , R a → x, R b → x, R q0 q1 q2 □ → □ , R □ → □ , L □ → □ , R qf q3 a → a , L b → b , L x → x , L

  23. Test input: aaabbb … … x x a x b b a → a , R x → x , R x → x, R b → b , R a → x, R b → x, R q0 q1 q2 □ → □ , R □ → □ , L □ → □ , R qf q3 a → a , L b → b , L x → x , L

  24. Test input: aaabbb … … x x a x b b a → a , R x → x , R x → x, R b → b , R a → x, R b → x, R q0 q1 q2 □ → □ , R □ → □ , L □ → □ , R qf q3 a → a , L b → b , L x → x , L

  25. Test input: aaabbb … … x x a x x b a → a , R x → x , R x → x, R b → b , R a → x, R b → x, R q0 q1 q2 □ → □ , R □ → □ , L □ → □ , R qf q3 a → a , L b → b , L x → x , L

  26. Test input: aaabbb … … x x a x x b a → a , R x → x , R x → x, R b → b , R a → x, R b → x, R q0 q1 q2 □ → □ , R □ → □ , L □ → □ , R qf q3 a → a , L b → b , L x → x , L

  27. Test input: aaabbb … … x x a x x b a → a , R x → x , R x → x, R b → b , R a → x, R b → x, R q0 q1 q2 □ → □ , R □ → □ , L □ → □ , R qf q3 a → a , L b → b , L x → x , L

  28. Test input: aaabbb … … x x a x x b a → a , R x → x , R x → x, R b → b , R a → x, R b → x, R q0 q1 q2 □ → □ , R □ → □ , L □ → □ , R qf q3 a → a , L b → b , L x → x , L

  29. Test input: aaabbb … … x x a x x b a → a , R x → x , R x → x, R b → b , R a → x, R b → x, R q0 q1 q2 □ → □ , R □ → □ , L □ → □ , R qf q3 a → a , L b → b , L x → x , L

  30. Test input: aaabbb … … x x a x x b a → a , R x → x , R x → x, R b → b , R a → x, R b → x, R q0 q1 q2 □ → □ , R □ → □ , L □ → □ , R qf q3 a → a , L b → b , L x → x , L

  31. Test input: aaabbb … … x x a x x b a → a , R x → x , R x → x, R b → b , R a → x, R b → x, R q0 q1 q2 □ → □ , R □ → □ , L □ → □ , R qf q3 a → a , L b → b , L x → x , L

  32. Test input: aaabbb … … x x a x x b a → a , R x → x , R x → x, R b → b , R a → x, R b → x, R q0 q1 q2 □ → □ , R □ → □ , L □ → □ , R qf q3 a → a , L b → b , L x → x , L

  33. Test input: aaabbb … … x x a x x b a → a , R x → x , R x → x, R b → b , R a → x, R b → x, R q0 q1 q2 □ → □ , R □ → □ , L □ → □ , R qf q3 a → a , L b → b , L x → x , L

  34. Test input: aaabbb … … x x a x x b a → a , R x → x , R x → x, R b → b , R a → x, R b → x, R q0 q1 q2 □ → □ , R □ → □ , L □ → □ , R qf q3 a → a , L b → b , L x → x , L

  35. Test input: aaabbb … … x x a x x b a → a , R x → x , R x → x, R b → b , R a → x, R b → x, R q0 q1 q2 □ → □ , R □ → □ , L □ → □ , R qf q3 a → a , L b → b , L x → x , L

  36. Test input: aaabbb … … x x a x x b a → a , R x → x , R x → x, R b → b , R a → x, R b → x, R q0 q1 q2 □ → □ , R □ → □ , L □ → □ , R qf q3 a → a , L b → b , L x → x , L

  37. Test input: aaabbb … … x x x x x b a → a , R x → x , R x → x, R b → b , R a → x, R b → x, R q0 q1 q2 □ → □ , R □ → □ , L □ → □ , R qf q3 a → a , L b → b , L x → x , L

  38. Test input: aaabbb … … x x x x x b a → a , R x → x , R x → x, R b → b , R a → x, R b → x, R q0 q1 q2 □ → □ , R □ → □ , L □ → □ , R qf q3 a → a , L b → b , L x → x , L

  39. Test input: aaabbb … … x x x x x b a → a , R x → x , R x → x, R b → b , R a → x, R b → x, R q0 q1 q2 □ → □ , R □ → □ , L □ → □ , R qf q3 a → a , L b → b , L x → x , L

  40. Test input: aaabbb … … x x x x x x a → a , R x → x , R x → x, R b → b , R a → x, R b → x, R q0 q1 q2 □ → □ , R □ → □ , L □ → □ , R qf q3 a → a , L b → b , L x → x , L

  41. Test input: aaabbb … … x x x x x x a → a , R x → x , R x → x, R b → b , R a → x, R b → x, R q0 q1 q2 □ → □ , R □ → □ , L □ → □ , R qf q3 a → a , L b → b , L x → x , L

  42. Test input: aaabbb … … x x x x x x a → a , R x → x , R x → x, R b → b , R a → x, R b → x, R q0 q1 q2 □ → □ , R □ → □ , L □ → □ , R qf q3 a → a , L b → b , L x → x , L

  43. Test input: aaabbb … … x x x x x x a → a , R x → x , R x → x, R b → b , R a → x, R b → x, R q0 q1 q2 □ → □ , R □ → □ , L □ → □ , R qf q3 a → a , L b → b , L x → x , L

  44. Test input: aaabbb … … x x x x x x a → a , R x → x , R x → x, R b → b , R a → x, R b → x, R q0 q1 q2 □ → □ , R □ → □ , L □ → □ , R qf q3 a → a , L b → b , L x → x , L

  45. Test input: aaabbb … … x x x x x x a → a , R x → x , R x → x, R b → b , R a → x, R b → x, R q0 q1 q2 □ → □ , R □ → □ , L □ → □ , R qf q3 a → a , L b → b , L x → x , L

  46. Test input: aaabbb … … x x x x x x a → a , R x → x , R x → x, R b → b , R a → x, R b → x, R q0 q1 q2 □ → □ , R □ → □ , L □ → □ , R qf q3 a → a , L b → b , L x → x , L

  47. Test input: aaabbb … … x x x x x x a → a , R x → x , R x → x, R b → b , R a → x, R b → x, R q0 q1 q2 □ → □ , R □ → □ , L □ → □ , R qf q3 a → a , L b → b , L x → x , L

  48. Test input: aaabbb … … x x x x x x a → a , R x → x , R x → x, R b → b , R a → x, R b → x, R q0 q1 q2 □ → □ , R □ → □ , L □ → □ , R qf q3 a → a , L b → b , L x → x , L

  49. Test input: aaabbb … … x x x x x x a → a , R x → x , R x → x, R b → b , R a → x, R b → x, R q0 q1 q2 □ → □ , R □ → □ , L □ → □ , R qf q3 a → a , L b → b , L x → x , L

  50. Test input: aaabbb … … x x x x x x a → a , R x → x , R x → x, R b → b , R a → x, R b → x, R q0 q1 q2 □ → □ , R □ → □ , L □ → □ , R qf q3 a → a , L b → b , L x → x , L
