  1. AlliedView Network Management System A set of slides to help you build your own presentation

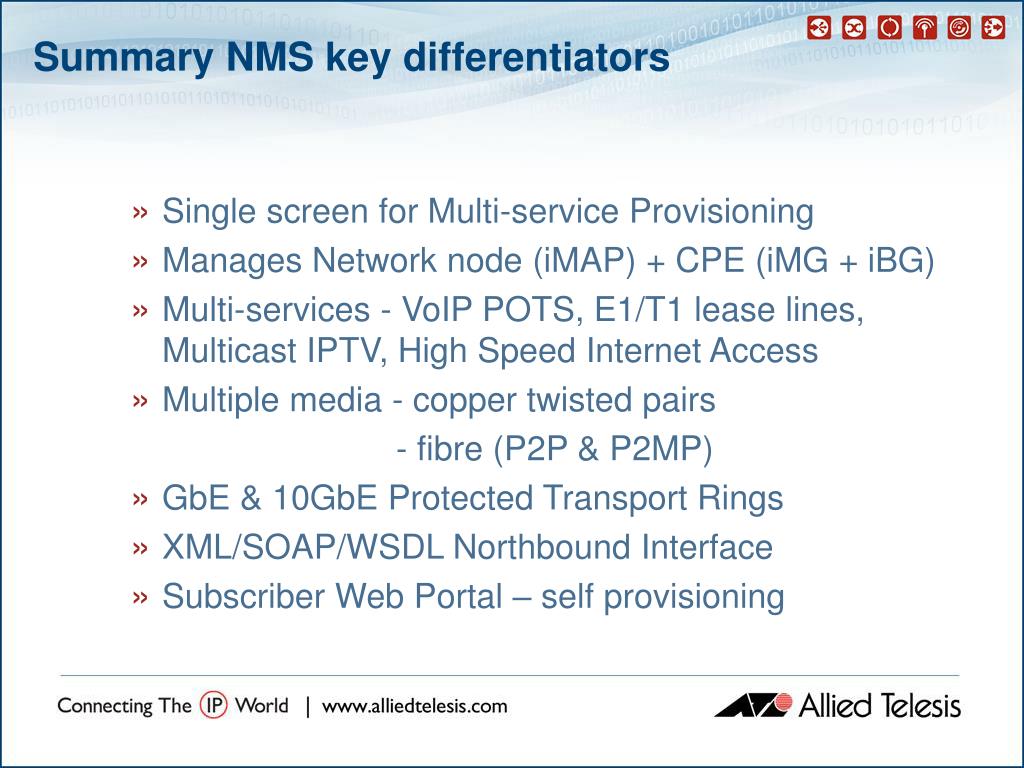

  2. Summary NMS key differentiators • Single screen for Multi-service Provisioning • Manages Network node (iMAP) + CPE (iMG + iBG) • Multi-services - VoIP POTS, E1/T1 lease lines, Multicast IPTV, High Speed Internet Access • Multiple media - copper twisted pairs - fibre (P2P & P2MP) • GbE & 10GbE Protected Transport Rings • XML/SOAP/WSDL Northbound Interface • Subscriber Web Portal – self provisioning

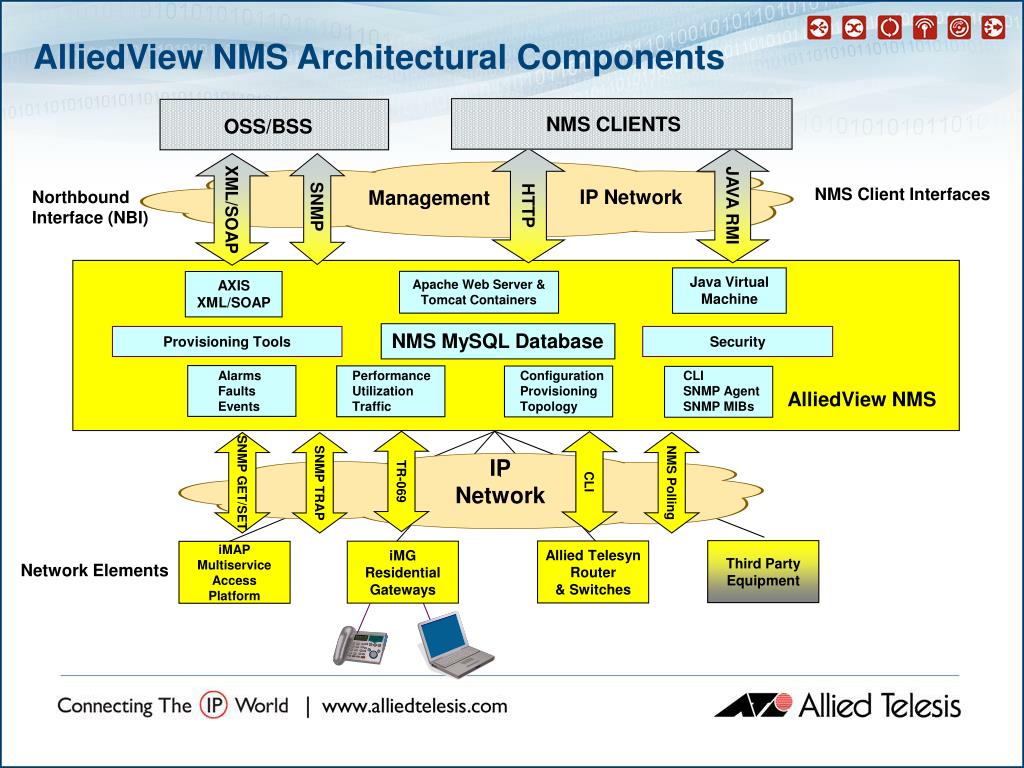

  3. NMS CLIENTS AlliedView NMS Architectural Components OSS/BSS HTTP JAVA RMI XML/SOAP NMS Client Interfaces IP Network Management Northbound Interface (NBI) SNMP Java Virtual Machine Apache Web Server & Tomcat Containers AXIS XML/SOAP NMS MySQL Database Provisioning Tools Security Alarms Faults Events Performance Utilization Traffic Configuration Provisioning Topology CLI SNMP Agent SNMP MIBs AlliedView NMS IP Network TR-069 CLI SNMP GET/SET NMS Polling SNMP TRAP Third Party Equipment Allied Telesyn Router & Switches iMG Residential Gateways iMAP Multiservice Access Platform Network Elements

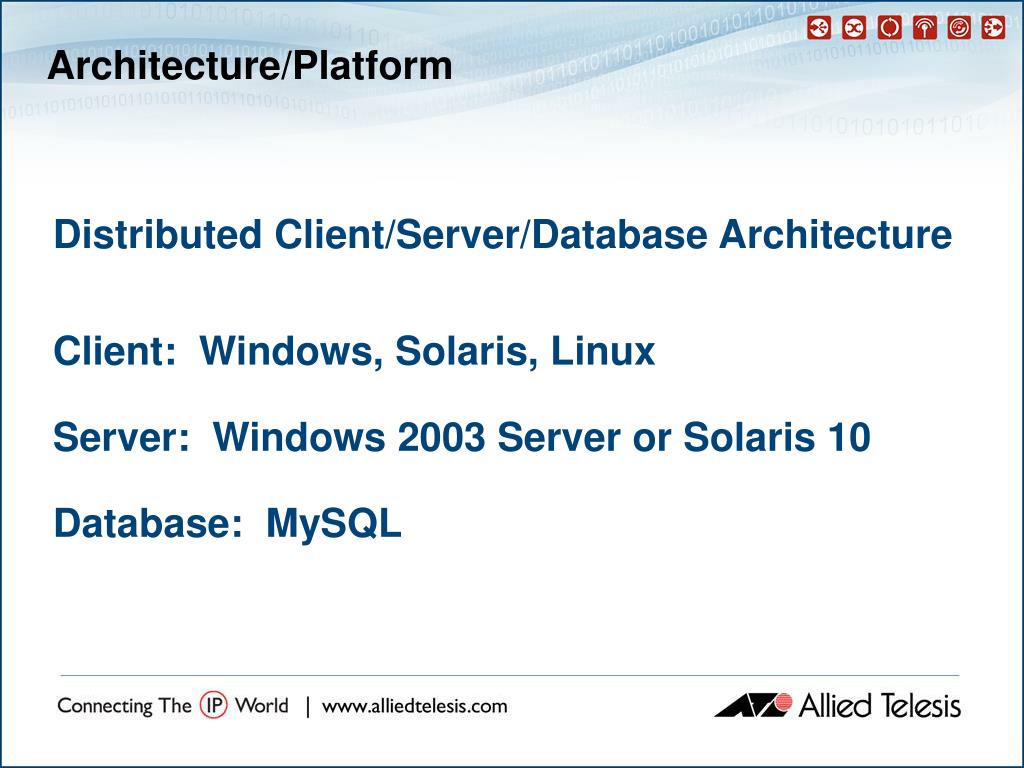

  4. Architecture/Platform • Distributed Client/Server/Database Architecture • Client: Windows, Solaris, Linux • Server: Windows 2003 Server or Solaris 10 • Database: MySQL

  5. Network Management Applications • Network Discovery • Automatic Discovery & Surveillance of Network Devices • Multiple Network Views Layer 1-Physical, 2-VLAN, 3-IP • Alarm Propagation • Propagation of Device, Card, Port & Link Alarms throughout NMS • Network Upgrade • Scheduled Network Upgrades • Mgmt of Firmware Files & Keys • Network Provisioning • Provision VLANs, QoS Policies, SNMP across multiple Network Devices • Rapid Deployment of new or modified Subscriber Services via Profiles • Network Inventory • Inventory of Devices, Ports, Interfaces, VLANs, Physical Links • Ethernet Protection Switching Ring (EPSR)

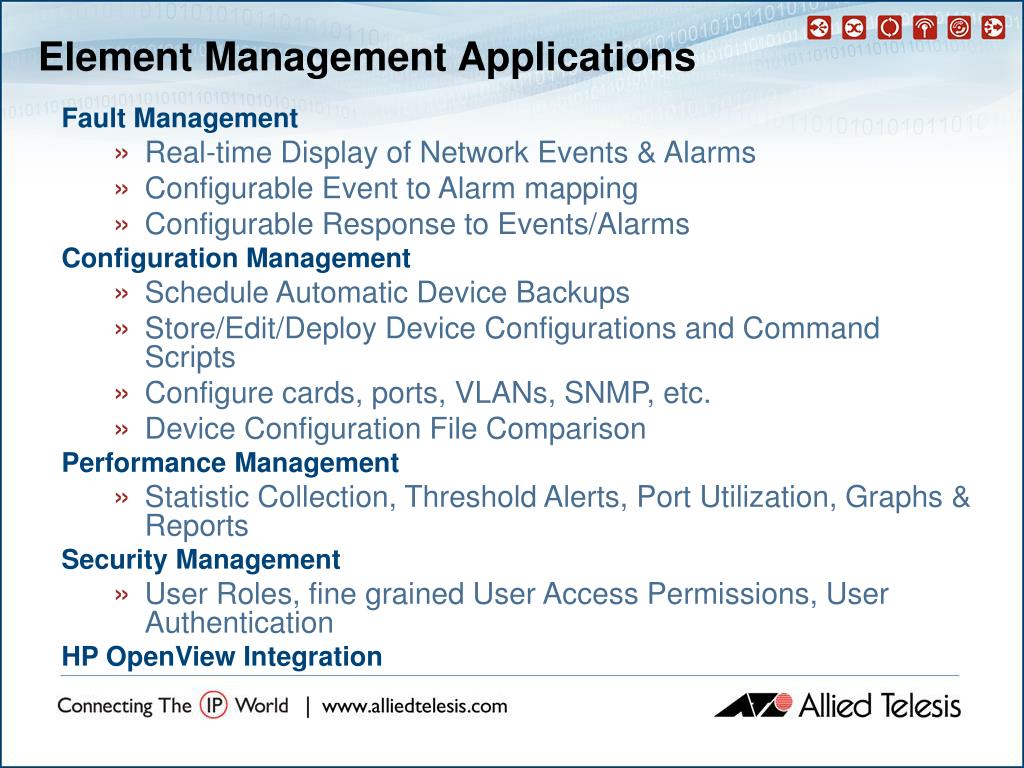

  6. Element Management Applications • Fault Management • Real-time Display of Network Events & Alarms • Configurable Event to Alarm mapping • Configurable Response to Events/Alarms • Configuration Management • Schedule Automatic Device Backups • Store/Edit/Deploy Device Configurations and Command Scripts • Configure cards, ports, VLANs, SNMP, etc. • Device Configuration File Comparison • Performance Management • Statistic Collection, Threshold Alerts, Port Utilization, Graphs & Reports • Security Management • User Roles, fine grained User Access Permissions, User Authentication • HP OpenView Integration

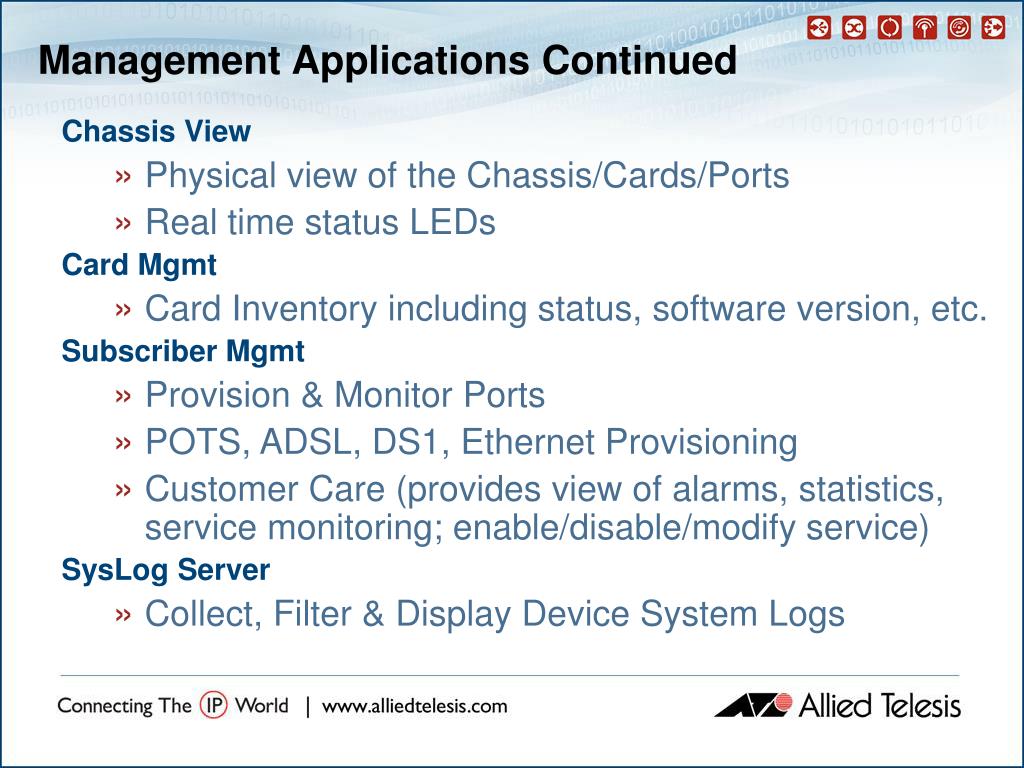

  7. Management Applications Continued • Chassis View • Physical view of the Chassis/Cards/Ports • Real time status LEDs • Card Mgmt • Card Inventory including status, software version, etc. • Subscriber Mgmt • Provision & Monitor Ports • POTS, ADSL, DS1, Ethernet Provisioning • Customer Care (provides view of alarms, statistics, service monitoring; enable/disable/modify service) • SysLog Server • Collect, Filter & Display Device System Logs

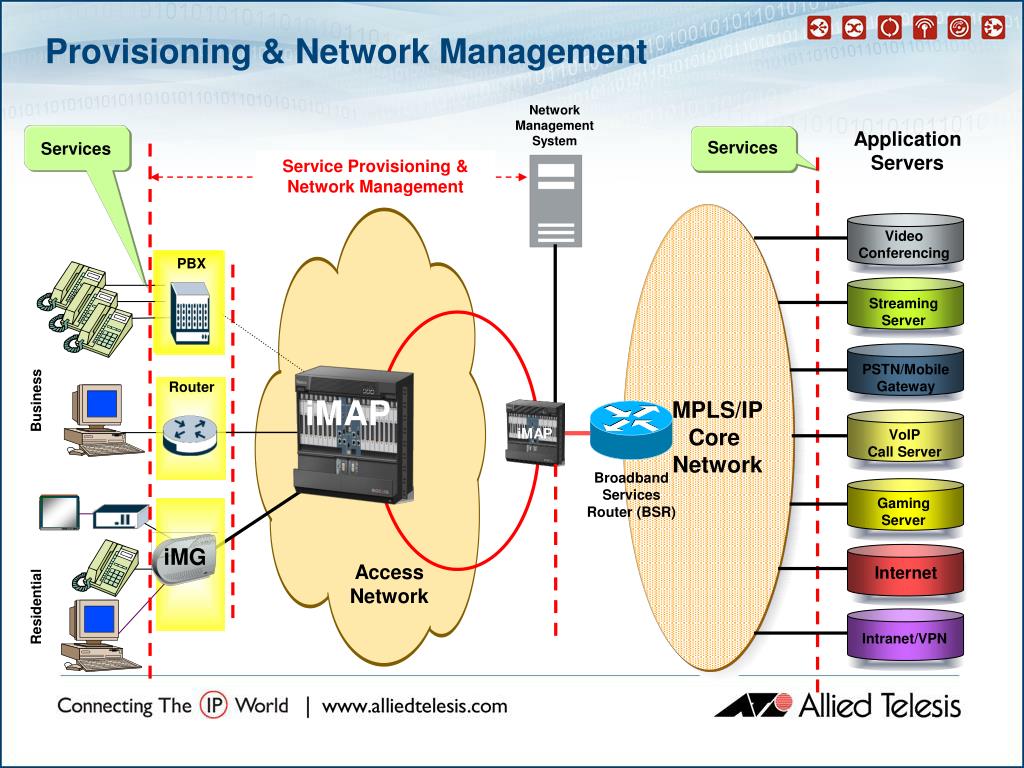

  8. MPLS/IP Core Network Video Conferencing Streaming Server PBX PSTN/Mobile Gateway iMG VoIP Call Server Gaming Server Router Internet Intranet/VPN Provisioning & Network Management Network Management System Application Servers Services Services Service Provisioning &Network Management Business iMAP iMAP Broadband Services Router (BSR) Access Network Residential

  9. Allied Telesis Generic “Triple Play” Network Design Video Head End Analog POTS Voice VLAN1 ISP ZTC Data VLAN2 IP subnet Video VLAN3 IP subnet NMS IP subnet iMG Management VLAN4 Voice iMG Boot-up VLAN5 DHCP/FTP Layer 2 Network • Not shown: • Private VLAN for business customers (VID translation option) • Double-tagging for Private VLANs • Circuit Emulation VLAN • Video-on-Demand VLAN IP subnet iMAP L2 Switch iMAP L2 Switch VoIP POTS 4khz analog POTS available on a copper local loop for VoIP POTS from the CO iMAP L2 Switch 802.1p Priority Residential Internet Access = 0 Business Internet Access = 1 VPN Private VLAN = 2 IPMC = 3 Video on Demand = 4 VoIP Control (SIP, MGCP), EPG = 5 VoIP, CES = 6 IGMP=7 DHCP=7, Management = 7 “Life Line” POTS • Logical VLANs to a home or business iMG with integrated xDSL modem or fibre interface L2 switch or L3 router /NAT

  10. AlliedView NMS • Architectural • Overview

  11. NMS CLIENTS AlliedView NMS Architectural Components OSS/BSS HTTP JAVA RMI XML/SOAP NMS Client Interfaces IP Network Management Northbound Interface (NBI) SNMP Java Virtual Machine Apache Web Server & Tomcat Containers AXIS XML/SOAP NMS MySQL Database Provisioning Tools Security Alarms Faults Events Performance Utilization Traffic Configuration Provisioning Topology CLI SNMP Agent SNMP MIBs AlliedView NMS IP Network TR-069 CLI SNMP GET/SET NMS Polling SNMP TRAP Third Party Equipment Allied Telesyn Router & Switches iMG Residential Gateways iMAP Multiservice Access Platform Network Elements

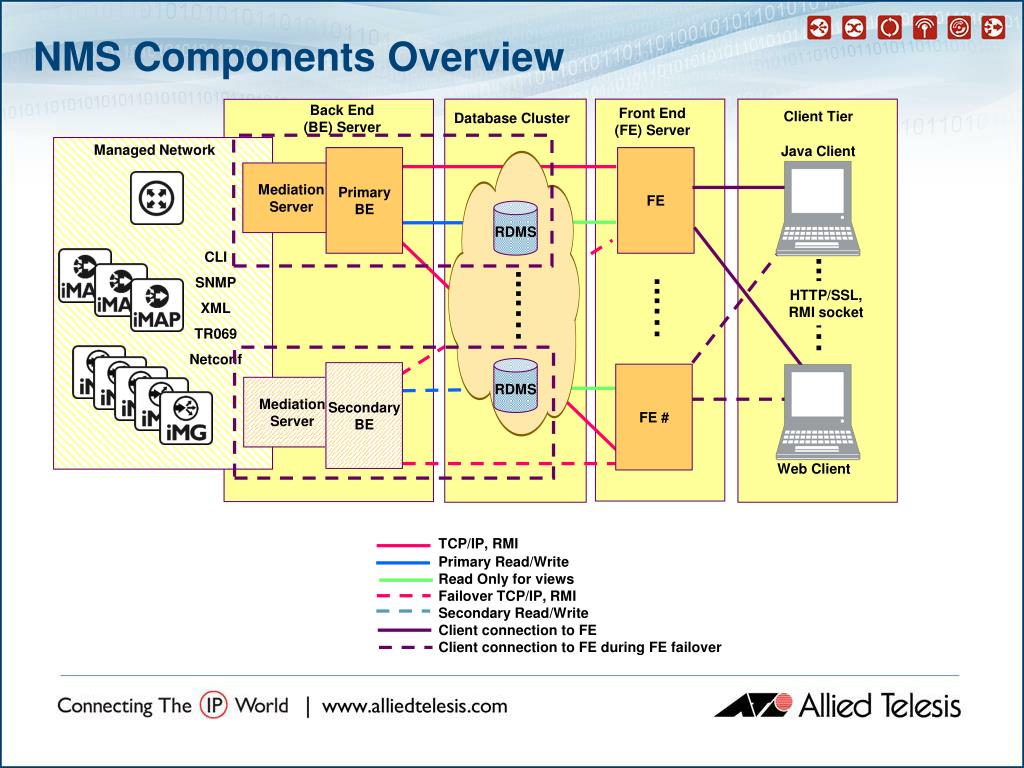

  12. Back End (BE) Server Front End (FE) Server Client Tier Database Cluster Managed Network Java Client Primary BE FE Mediation Server RDMS CLI SNMP XML TR069 Netconf ……... ….... HTTP/SSL, RMI socket …... RDMS Secondary BE FE # Mediation Server Web Client NMS Components Overview TCP/IP, RMI Primary Read/Write Read Only for views Failover TCP/IP, RMI Secondary Read/Write Client connection to FE Client connection to FE during FE failover

  13. Back End (BE) Server Front End (FE) Server Client Tier Managed Network Java Client Primary BE FE Mediation Server MySQL CLI SNMP XML TR069 Netconf ……... HTTP/SSL, RMI socket …... FE # Web Client NMS Single Back End (BE) Server TCP/IP, RMI Primary Read/Write Read Only for views Failover TCP/IP, RMI Secondary Read/Write Client connection to FE Client connection to FE during FE failover

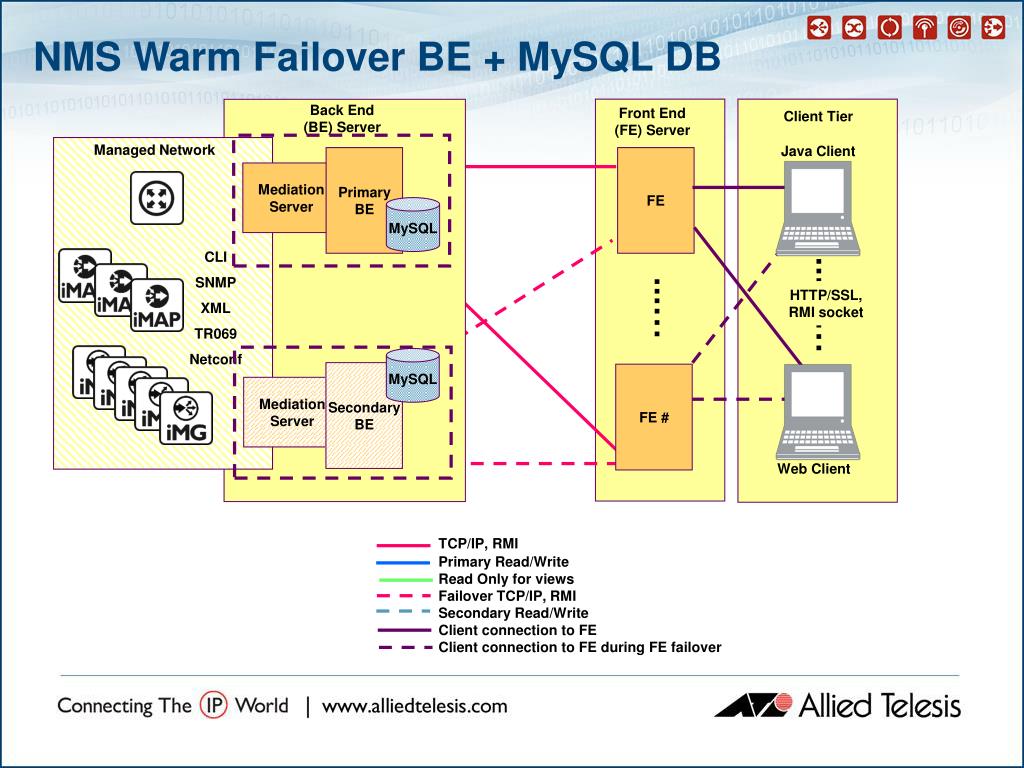

  14. Back End (BE) Server Front End (FE) Server Client Tier Managed Network Java Client Primary BE FE Mediation Server MySQL CLI SNMP XML TR069 Netconf ……... HTTP/SSL, RMI socket …... MySQL Secondary BE FE # Mediation Server Web Client NMS Warm Failover BE + MySQL DB TCP/IP, RMI Primary Read/Write Read Only for views Failover TCP/IP, RMI Secondary Read/Write Client connection to FE Client connection to FE during FE failover

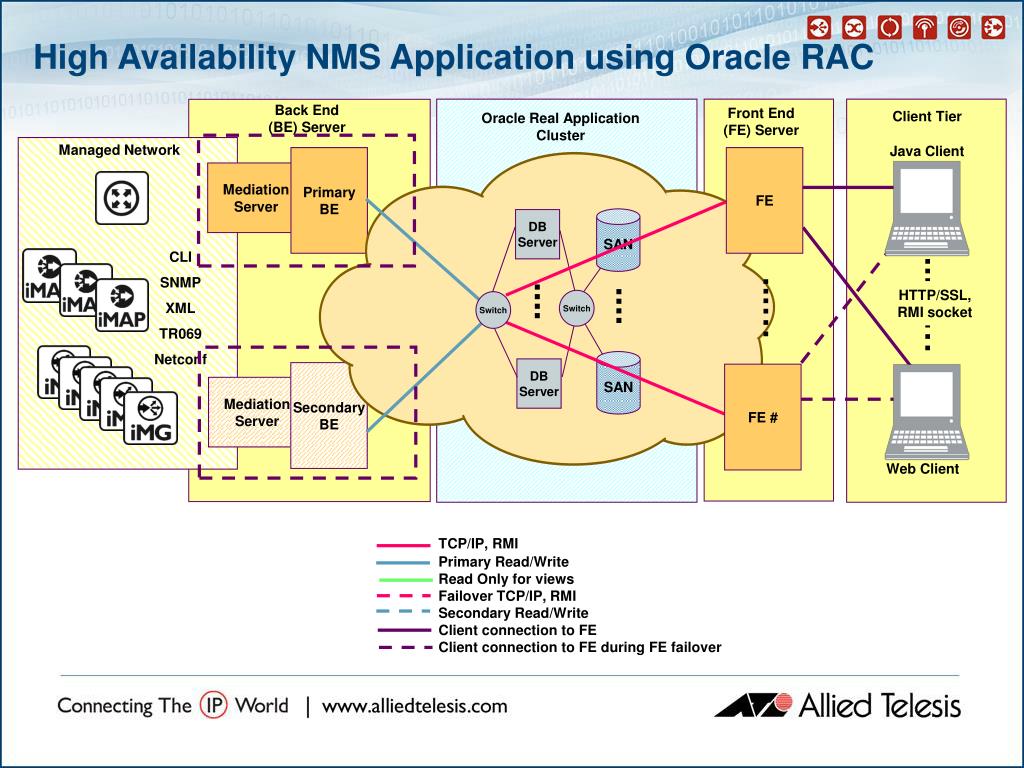

  15. Back End (BE) Server Front End (FE) Server Client Tier Oracle Real Application Cluster Managed Network Java Client Primary BE FE Mediation Server SAN DB Server CLI SNMP XML TR069 Netconf .... ……... .... HTTP/SSL, RMI socket …... Switch Switch SAN DB Server Secondary BE FE # Mediation Server Web Client High Availability NMS Application using Oracle RAC TCP/IP, RMI Primary Read/Write Read Only for views Failover TCP/IP, RMI Secondary Read/Write Client connection to FE Client connection to FE during FE failover

  16. NMS Installation and Setup

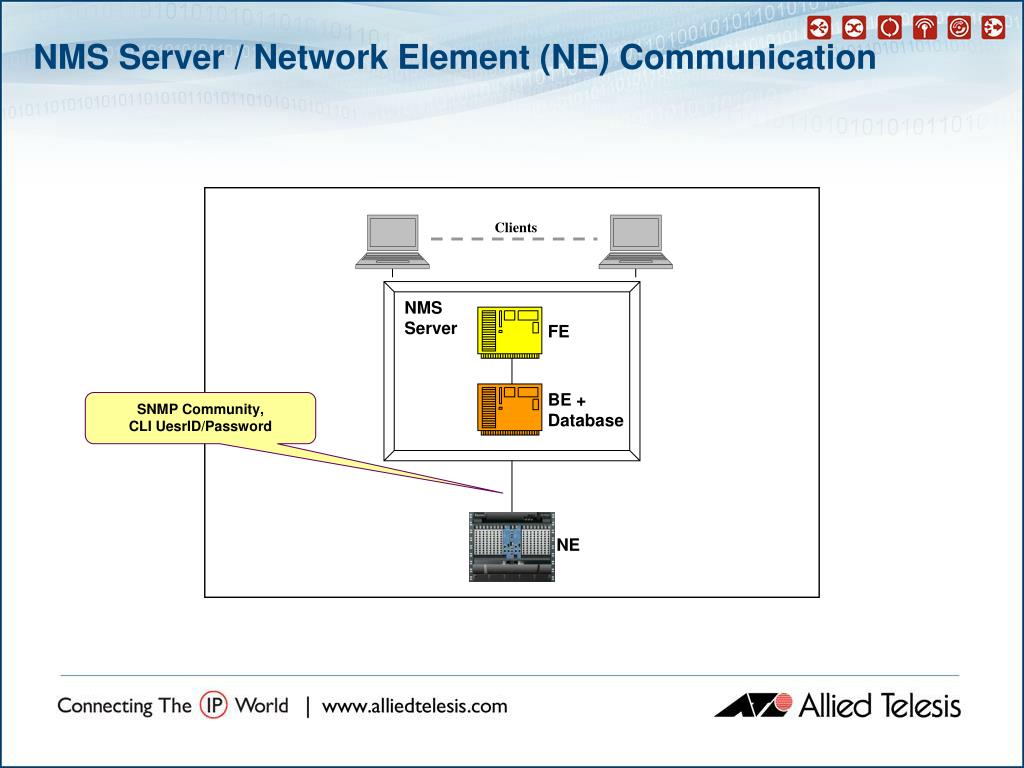

  17. NMS Server / Network Element (NE) Communication Clients NMS Server FE BE + Database SNMP Community, CLI UesrID/Password NE

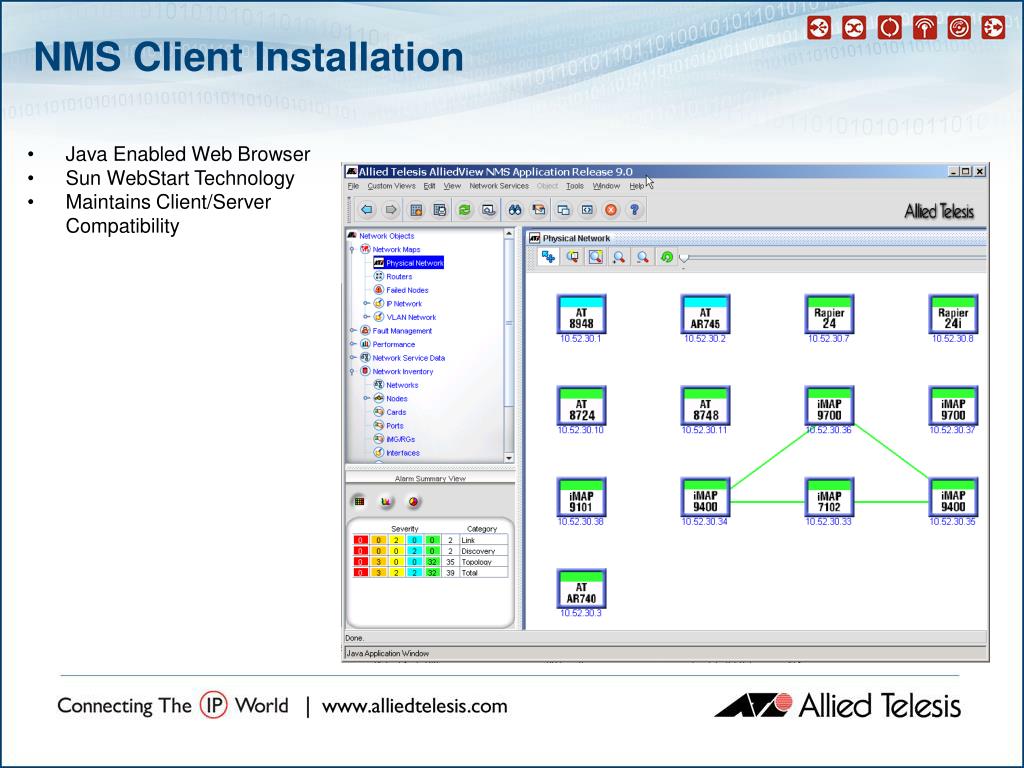

  18. NMS Client Installation • Java Enabled Web Browser • Sun WebStart Technology • Maintains Client/Server Compatibility

  19. NE CLI Configuration • NMS must know Network Elements (NE) CLI User ID • This is the uer id and password(s) the NMS uses during provisioning • Must be pre-set on the NE

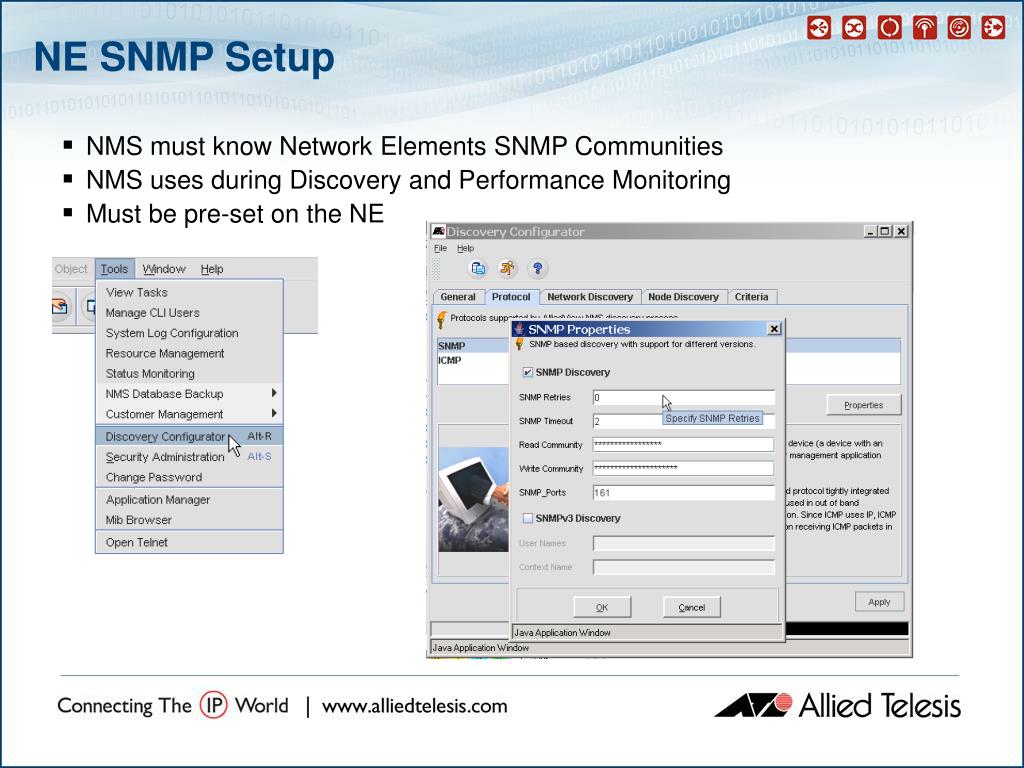

  20. NE SNMP Setup • NMS must know Network Elements SNMP Communities • NMS uses during Discovery and Performance Monitoring • Must be pre-set on the NE

  21. Network Maps

  22. AlliedView NMS Layer 2 Link Layer Discovery Protocol (LLDP)

  23. LLDP Activation on iMAPS • One-time configuration on iMAP port • Allows Automatic Discovery of Physical Links • NMS 9.0

  24. Physical View

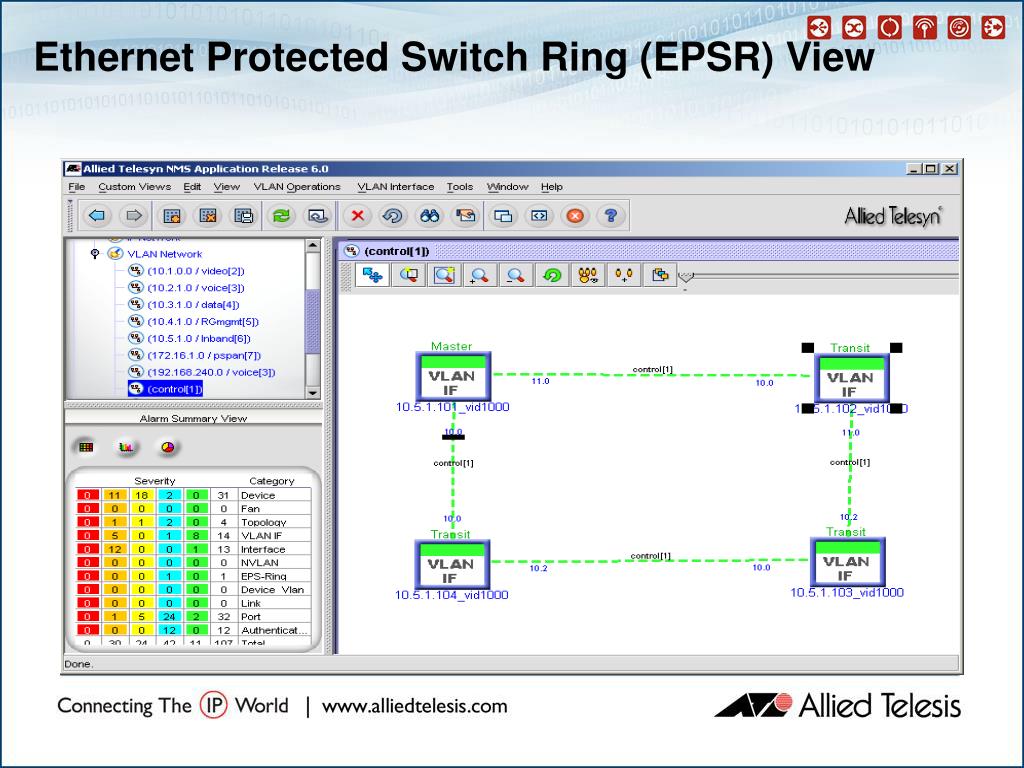

  25. Ethernet Protected Switch Ring (EPSR) View

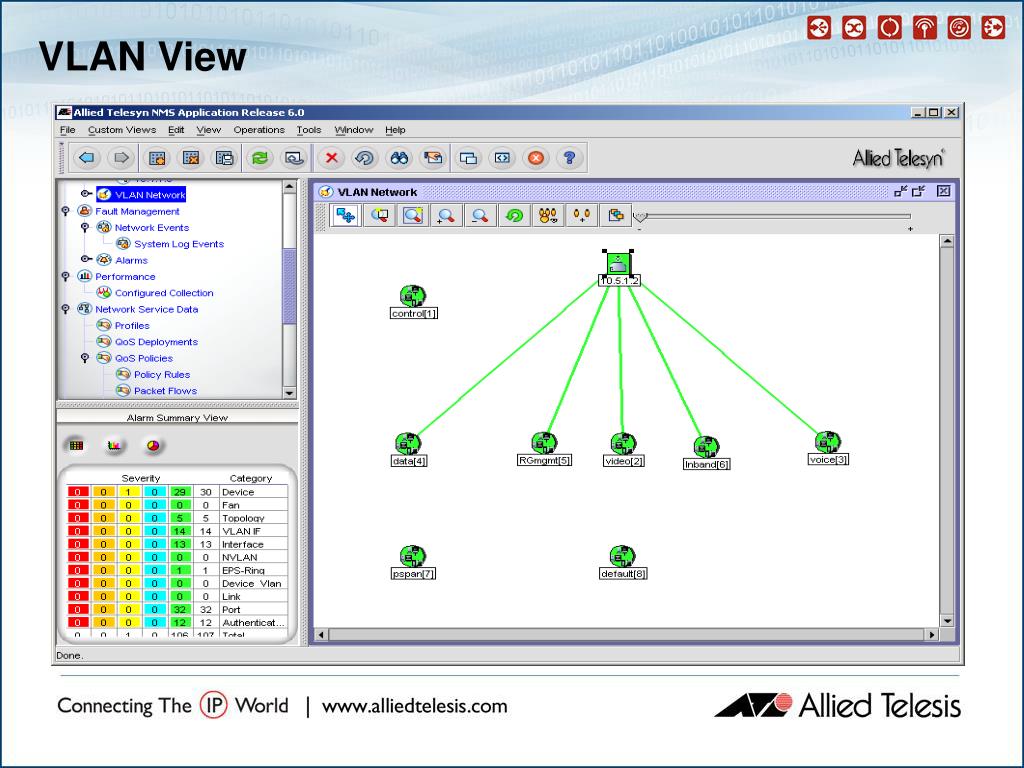

  26. VLAN View

  27. IP Network View

  28. Fault Management

  29. Device Traps Trap Parser processes standard SNMP fields Trap Filter NMS Events Event Parser Text passed from Trap Parser Customise • Action • Trap • Email • New command • Suppress NMS Faults Event Filter Device Alarms Correlation Device Syslog Alert Filter Syslog – Device Logs Events Alerts Events - ALL NMS Database Alarms – If Event has serverity Fault Management Processing

  30. Event Threshold Processing

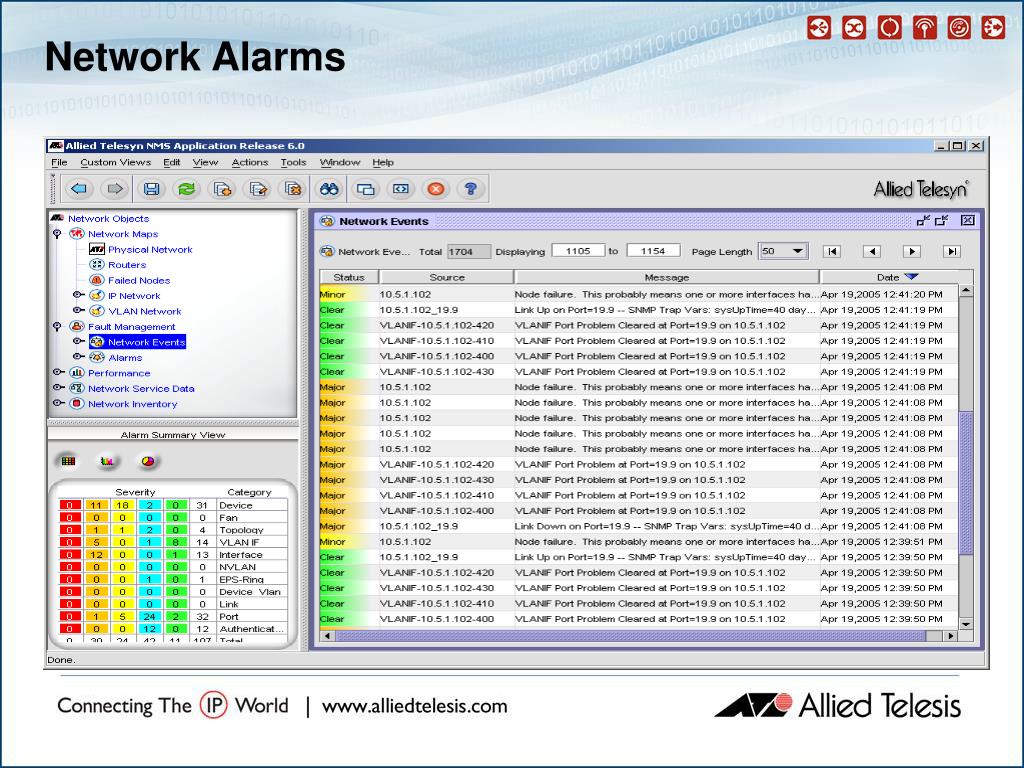

  31. Network Alarms

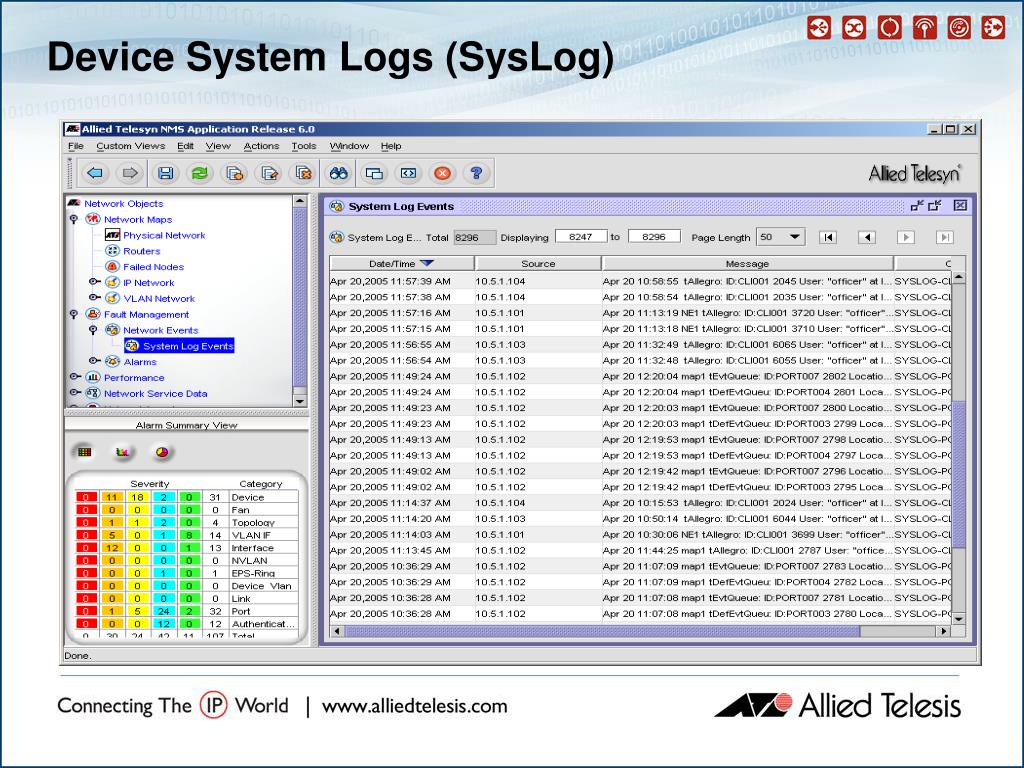

  32. Device System Logs (SysLog)

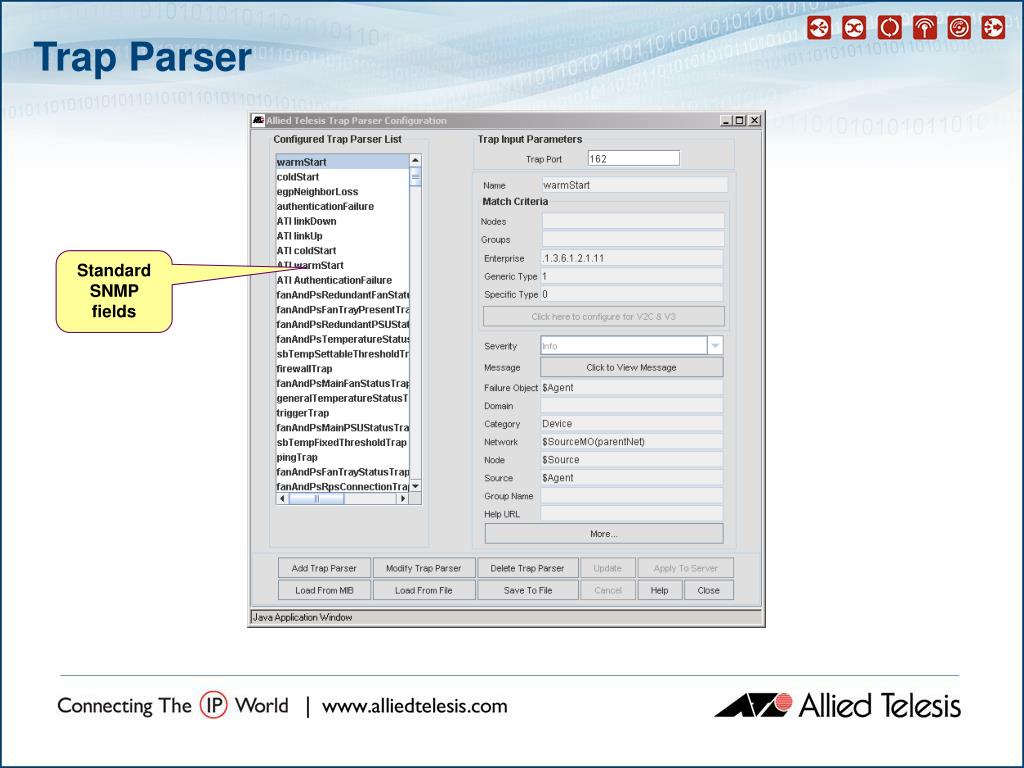

  33. Trap Parser Standard SNMP fields

  34. Event Parser

  35. Event Filters

  36. Performance Management

  37. Performance Management Configuration for the iMAP

  38. RMON Statistics Thresholds LOG/TRAP LOG/TRAP LOG/TRAP

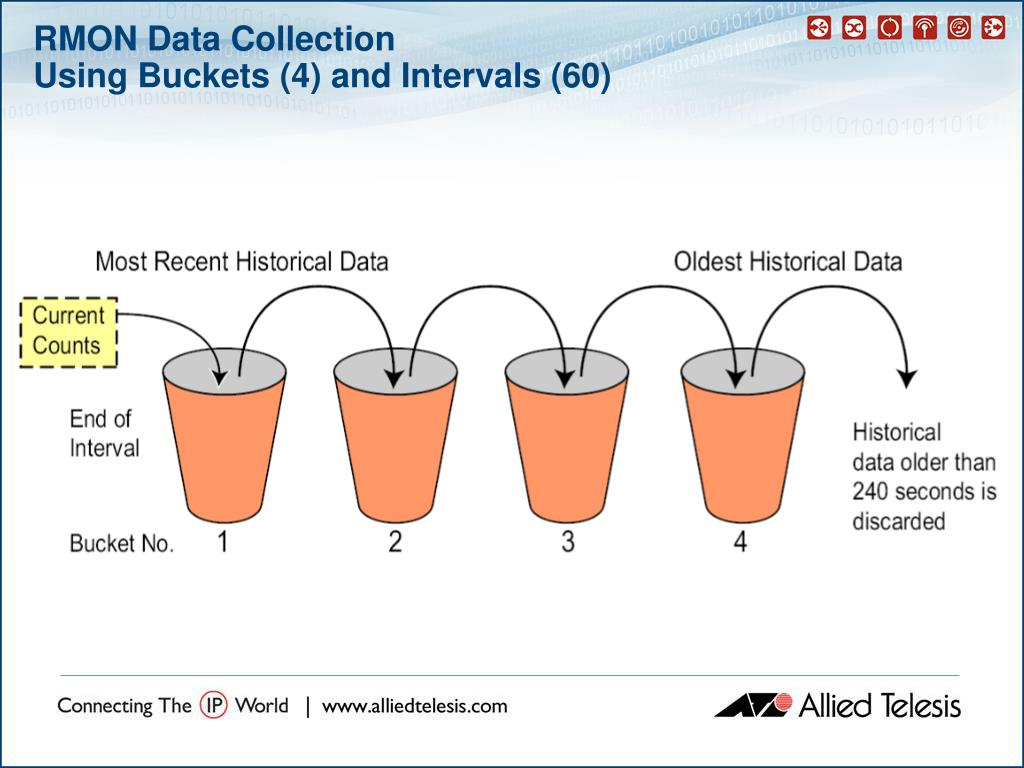

  39. RMON Data Collection Using Buckets (4) and Intervals (60)

  40. Performance Mgmt (Data Collection) MIB Objects(Blue-Inactive)(Green-Active)

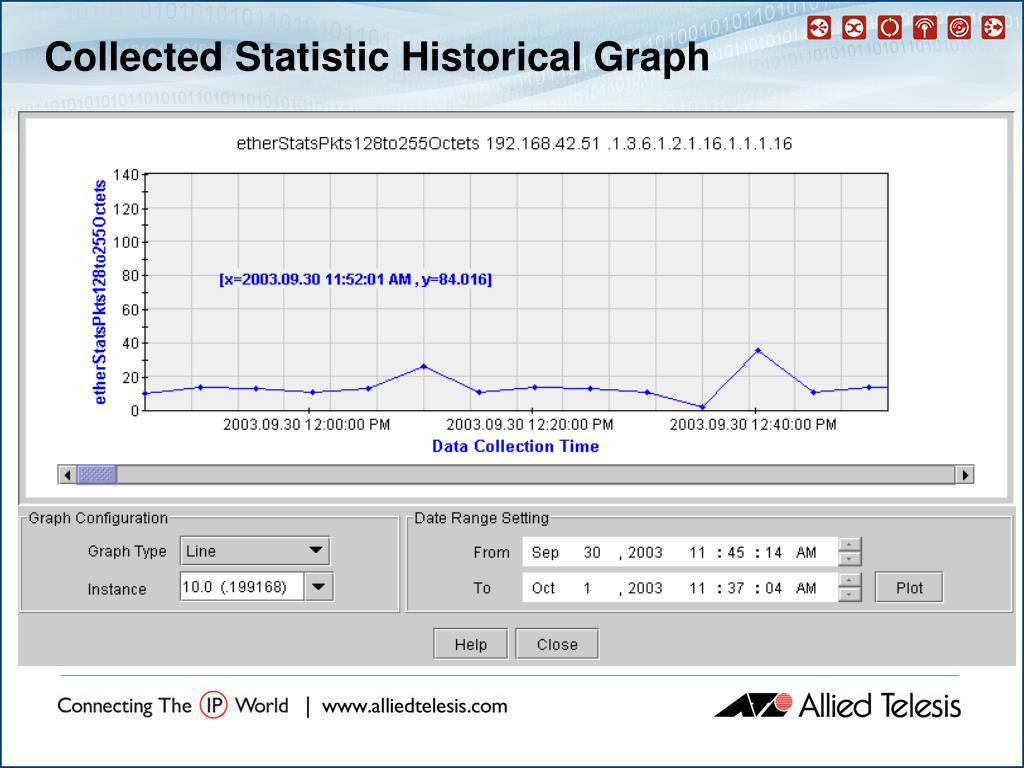

  41. Collected Statistic Historical Graph

  42. Security Management

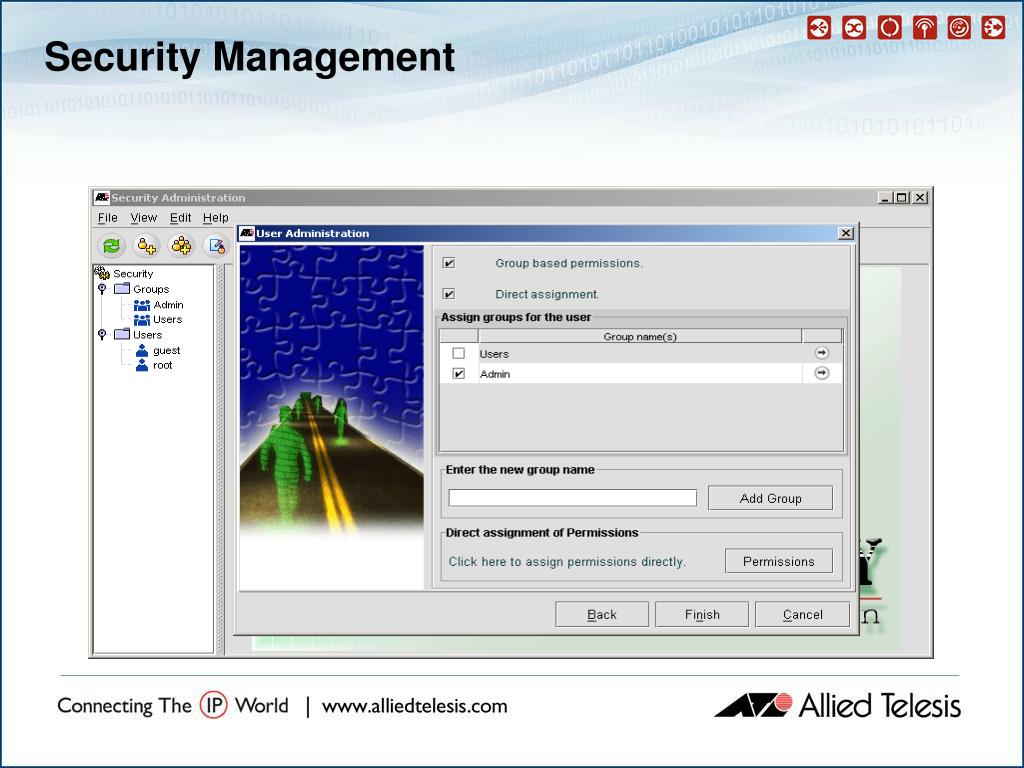

  43. Security Management

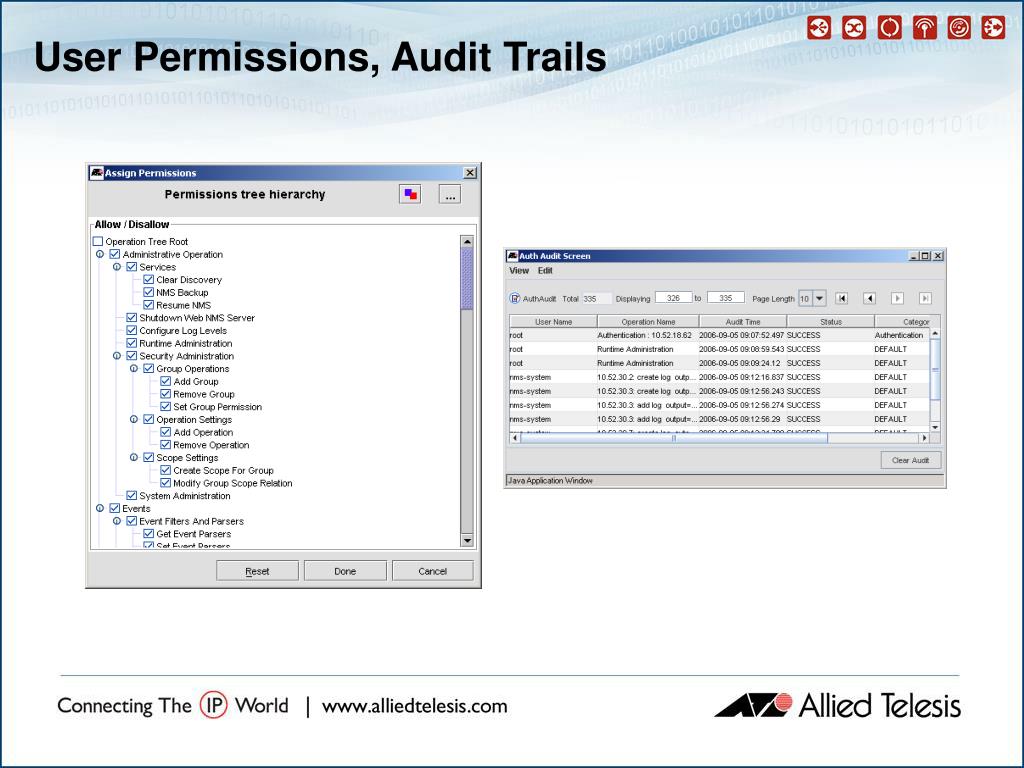

  44. User Permissions, Audit Trails

  45. Network Inventory

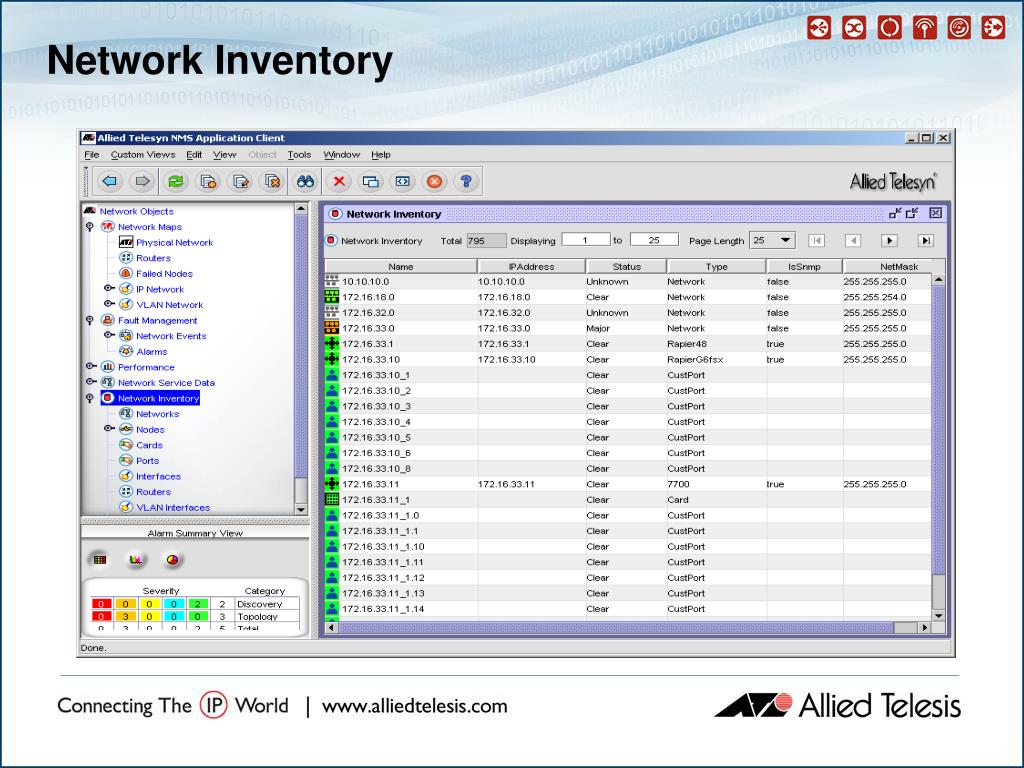

  46. Network Inventory

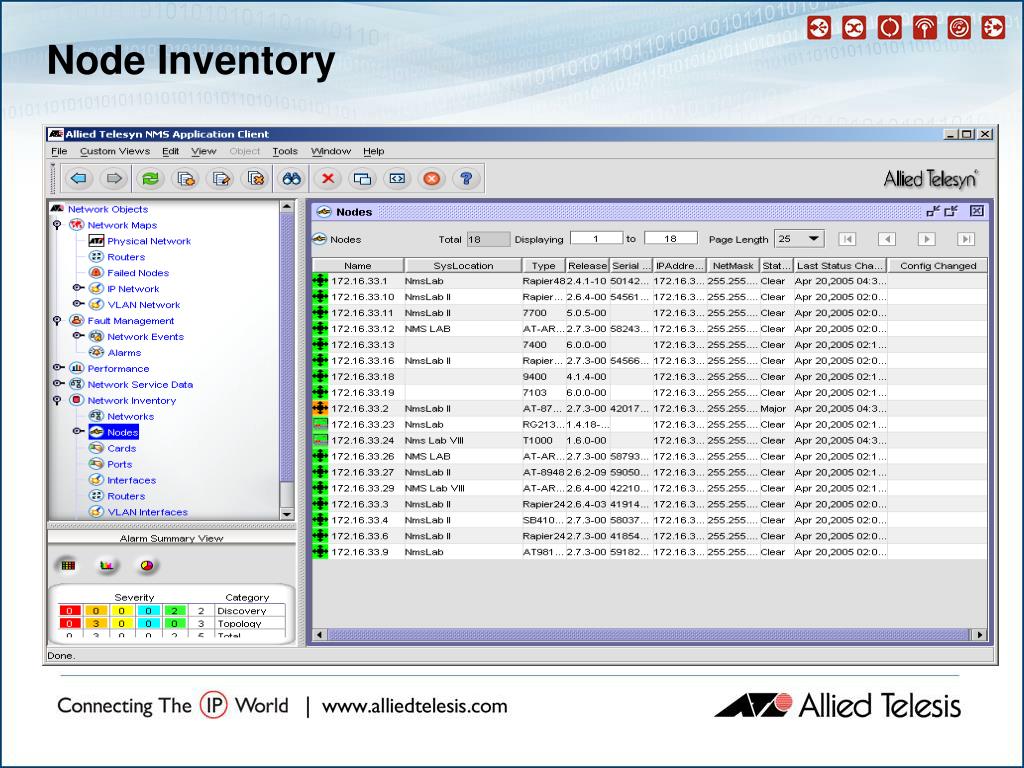

  47. Node Inventory

  48. VLAN Inventory

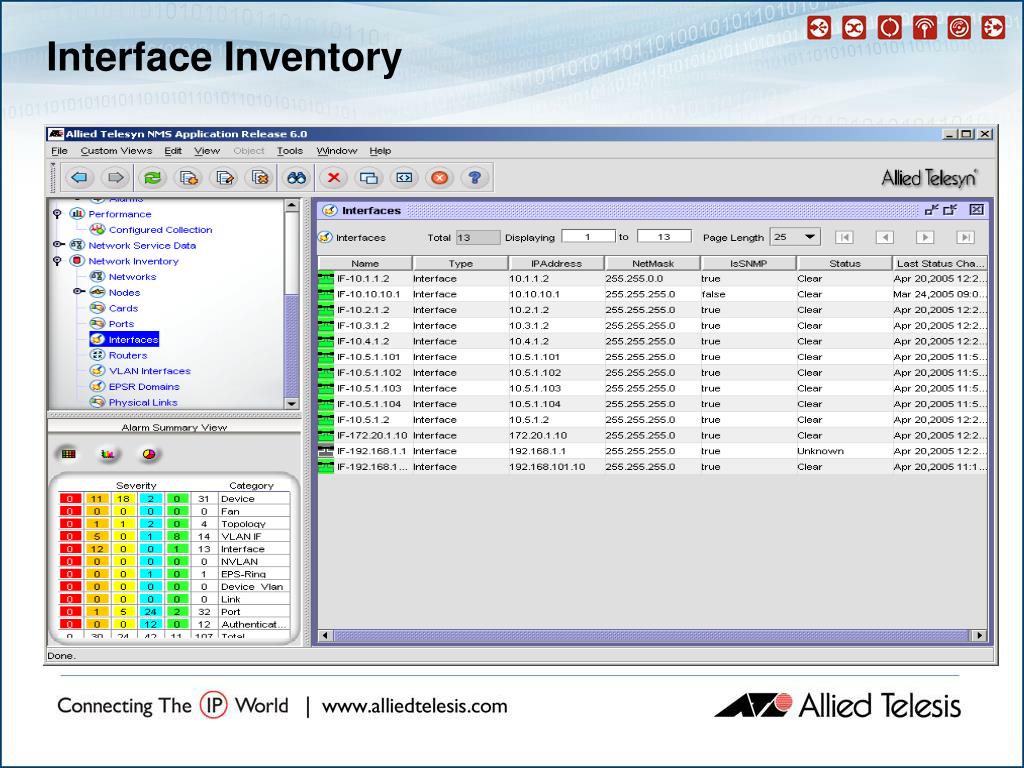

  49. Interface Inventory

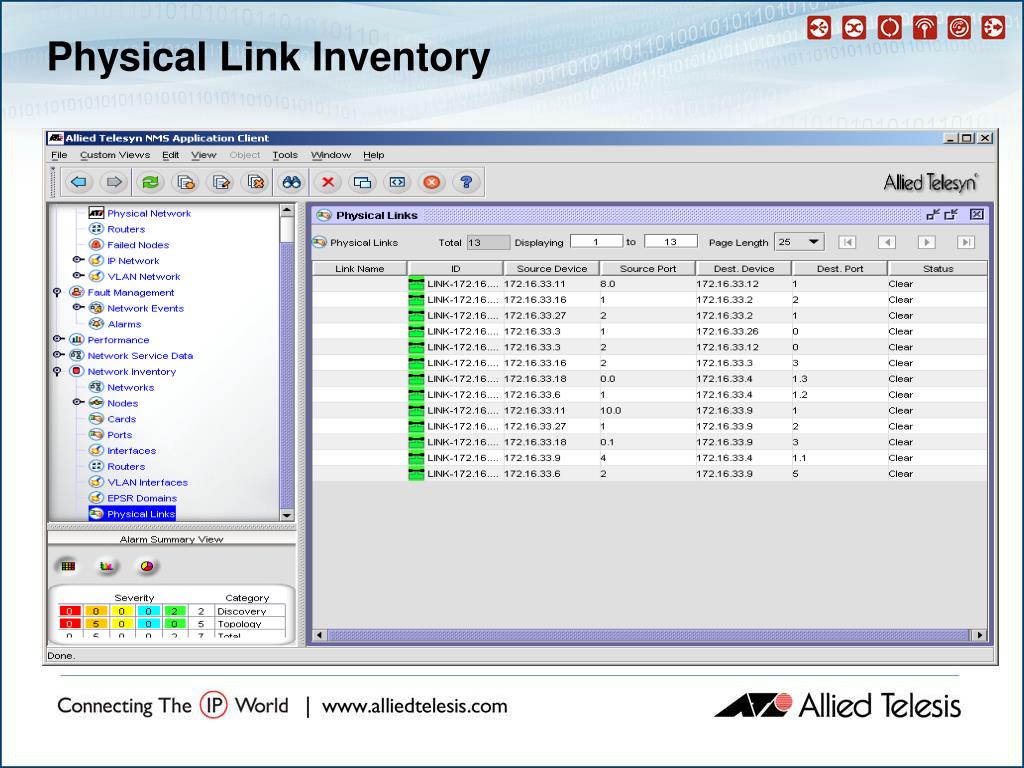

  50. Physical Link Inventory
