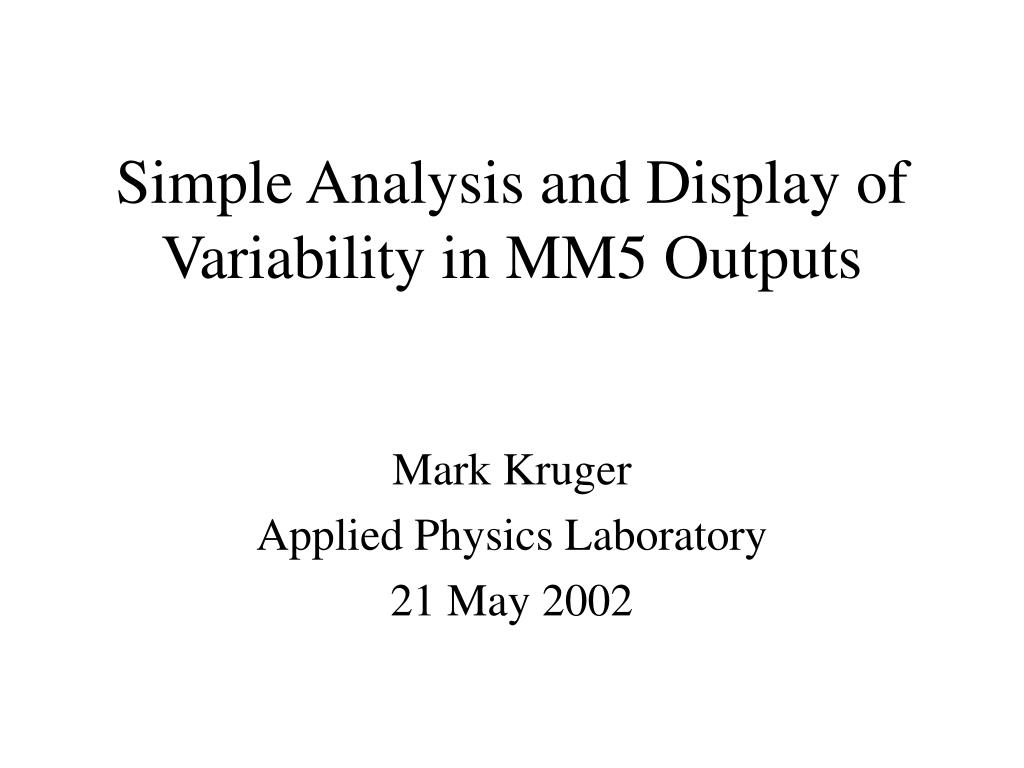

  1. Simple Analysis and Display of Variability in MM5 Outputs Mark Kruger Applied Physics Laboratory 21 May 2002

  2. Past Experiences at APL Observations from numerous GUI’s developed at the APL: • Simple analysis tools work. • 2D displays give better analytical results, 3D displays generate better mental model results. • End user included in the development process yields better software.

  3. High Seas Warning (HSW)

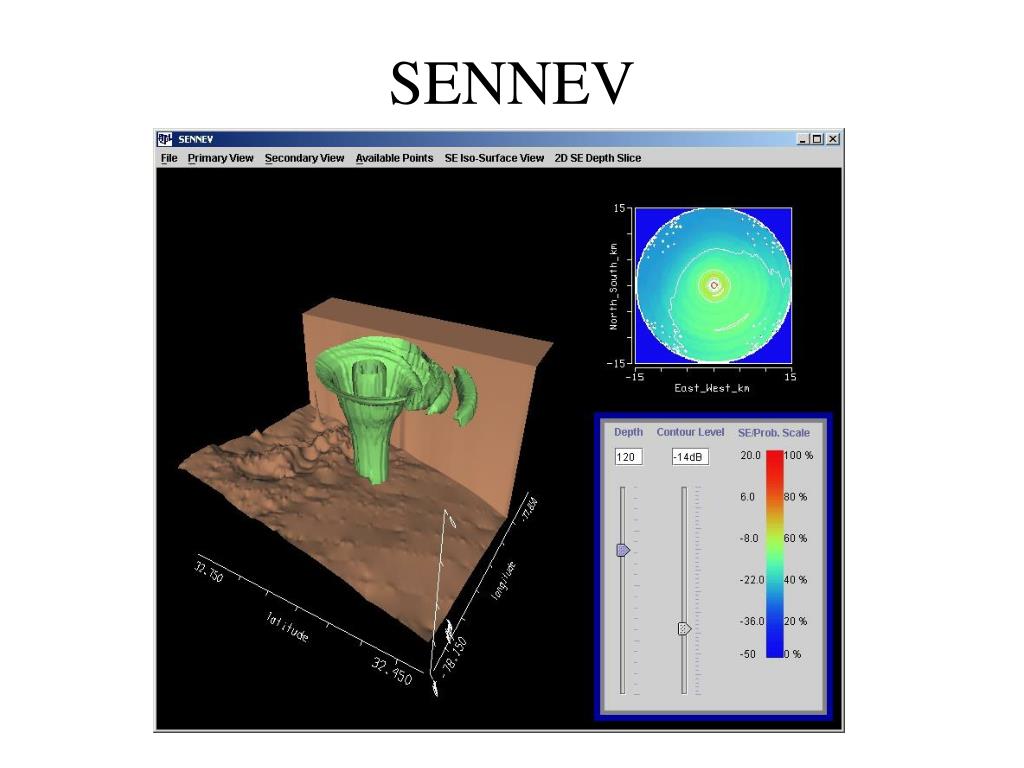

  4. SENNEV

  5. Current Work • Focus on TAF tools for NAS Whidbey Is. • Well defined user group, close at hand • “Simple” problems • Getting data • MM5 output as well as MM5 ensemble • Analyzing model data specific for NAS Whidbey Is.

  6. NASWI Temperatures From Ensemble Models

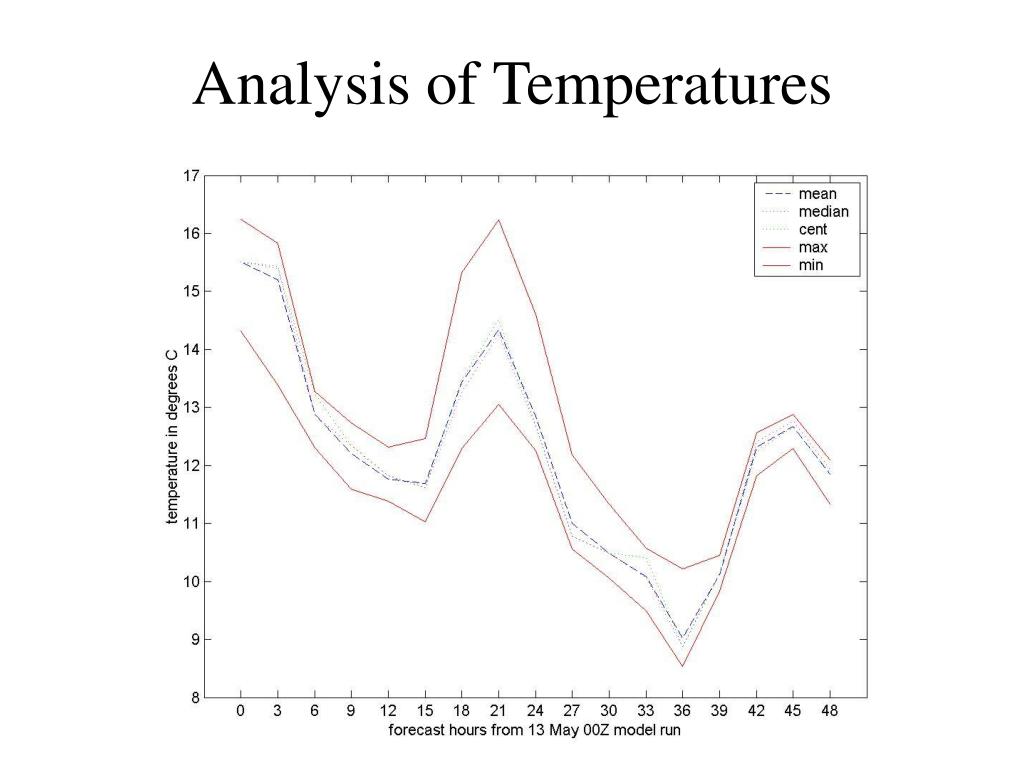

  7. Analysis of Temperatures

  8. NASWI Temp., Same Model, Different Run Times

  9. d(Model) / dt

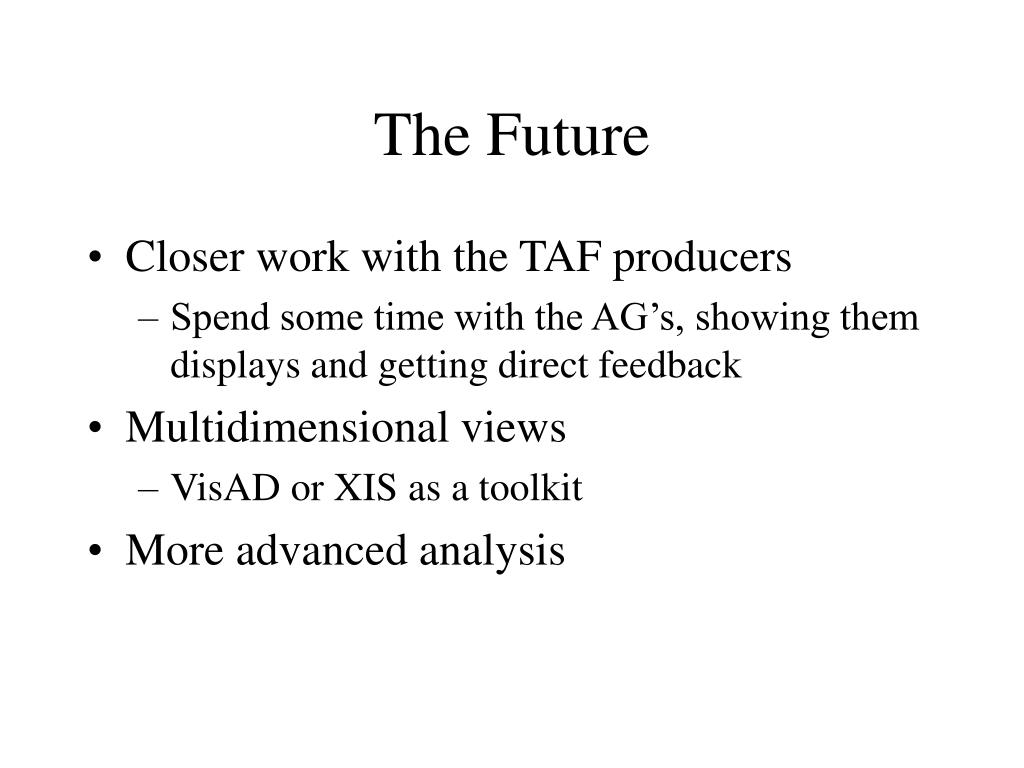

  10. The Future • Closer work with the TAF producers • Spend some time with the AG’s, showing them displays and getting direct feedback • Multidimensional views • VisAD or XIS as a toolkit • More advanced analysis
