Optimization Strategies for Thermo-Cooler Controller Efficiency and Performance

DESCRIPTION

This document outlines key insights from a debrief regarding the Thermo-Cooler Controller project led by Kiefer, Mary, Molly, and Sam. The discussions focused on optimizing time and power efficiency, with a goal of ±1K performance. Notable points include transitioning from linear to DC-DC converters, emphasizing electrical noise reduction, enhancing the longevity of thermoelectric coolers (TECs), and key component recommendations like thermistors and thermocouples. A detailed examination of signal processing and necessary assignments is also presented to ensure effective thermal management.

1 / 7

Télécharger la présentation

Optimization Strategies for Thermo-Cooler Controller Efficiency and Performance

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Thermo-Cooler Controller Kiefer, Mary, Molly, Sam

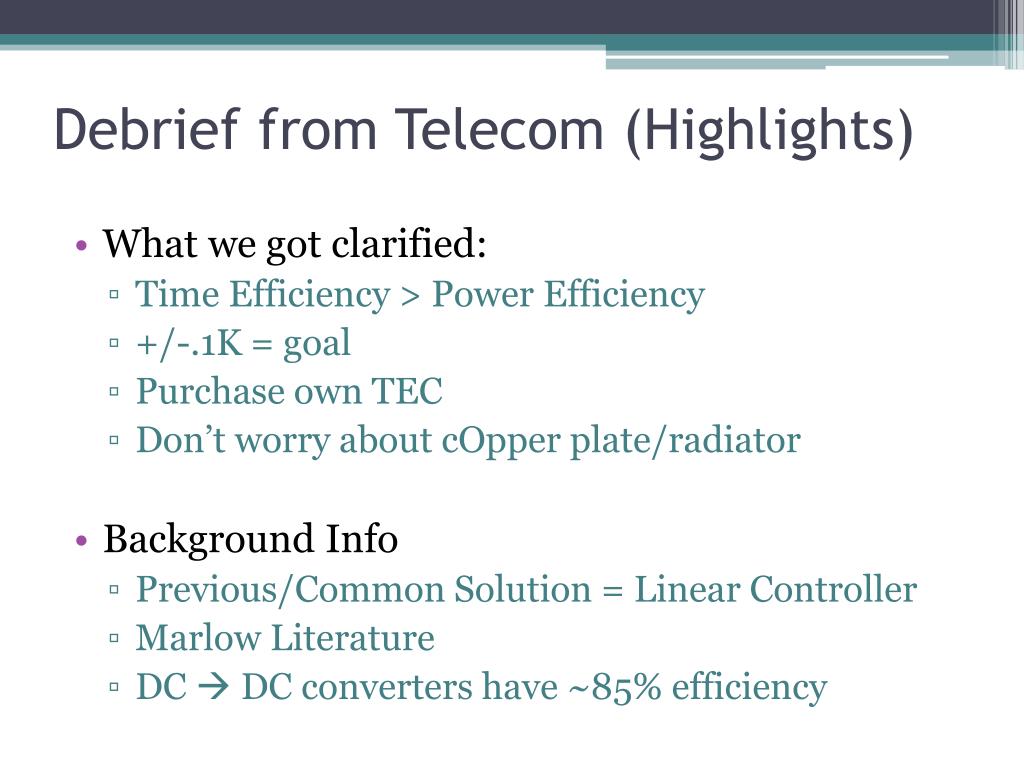

  2. Debrief from Telecom (Highlights) • What we got clarified: • Time Efficiency > Power Efficiency • +/-.1K = goal • Purchase own TEC • Don’t worry about cOpper plate/radiator • Background Info • Previous/Common Solution = Linear Controller • Marlow Literature • DC  DC converters have ~85% efficiency

  3. Debrief from Telecom (Highlights) • What’s important? • Minimize electrical noise • Longevity of TEC • Time efficiency • Power efficiency • What’s added bonus? • Electrical components that can operate in vacuum • Copper plate/radiator operation

  4. Temporary TEC and stuff • 3-stage TEC-- $45.50 + $2.60 potting/sealing • Potting/sealing  water resistance • Goes down to 217K (not 200K) • Minimum Order -- $85

  5. Temporary TEC and stuff (cont.) • Thermistors only go to 233K (not low enough) • K-type thermocouple temperature meter--$45 • Problems: • Reads temp down to 223K (TEC goes down to 217K) • +/- 3°C error on temp readings under 273K • Thermocouple wire--$24.70 • Do we need this (vacuum testing)? • Thermal paste--$14.50 • To attach temp measure to TEC cold side • Total- $132.30

  6. Our system 12 V Signal 12V DC ‘Actual’ SW Outputs the signal we want Can we do this with a passive RC filter? Smooths and reduces the signal down to 7V Active(?) Filter Cool detector to 200K (+/-.1K) TEC

  7. Current Assignments • Research the signals we want to input • Pulse frequency • Differences between pulses • Look into RC filter • Can we reduce/smooth 12V  7V with passive filter? What does it require? • Expand model of TEC • PERT chart
