  1. Curtain Walls in AAD Unit 4

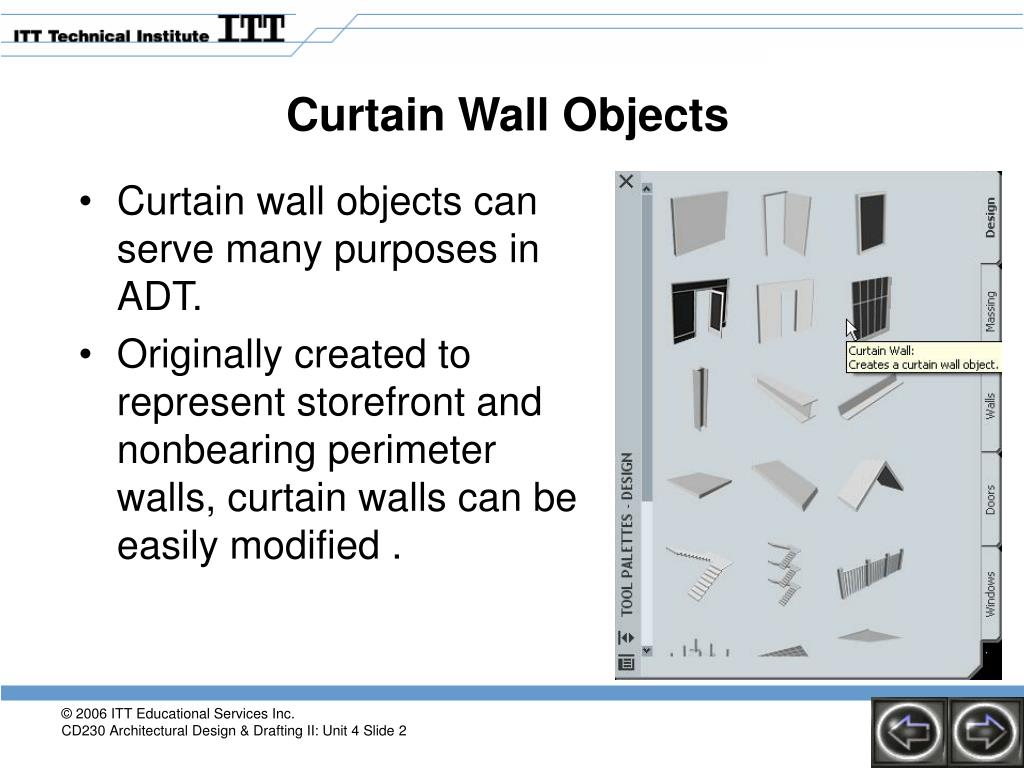

  2. Curtain Wall Objects • Curtain wall objects can serve many purposes in ADT. • Originally created to represent storefront and nonbearing perimeter walls, curtain walls can be easily modified .

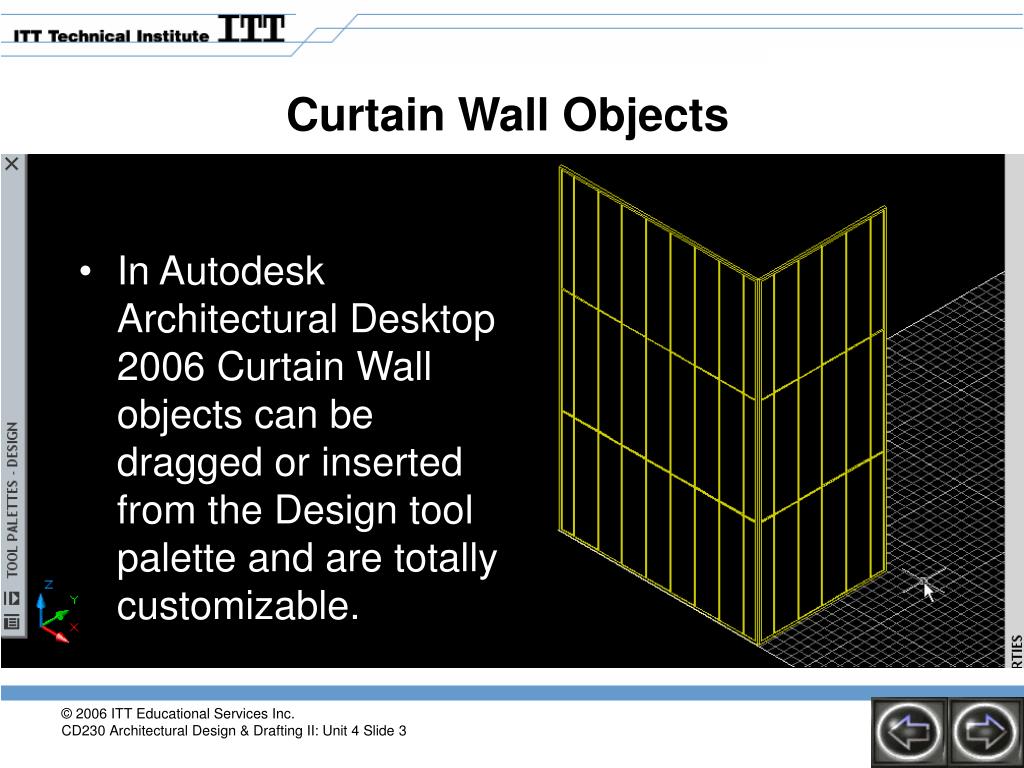

  3. Curtain Wall Objects • In Autodesk Architectural Desktop 2006 Curtain Wall objects can be dragged or inserted from the Design tool palette and are totally customizable.

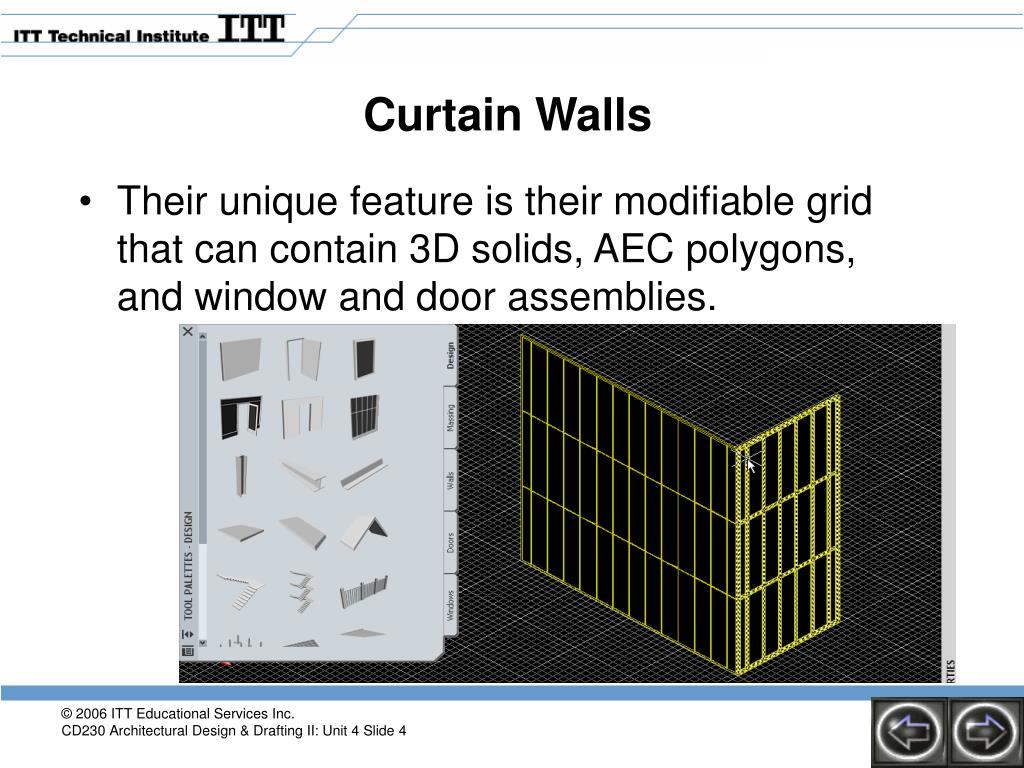

  4. Curtain Walls • Their unique feature is their modifiable grid that can contain 3D solids, AEC polygons, and window and door assemblies.

  5. Placing Curtain Walls in AAD

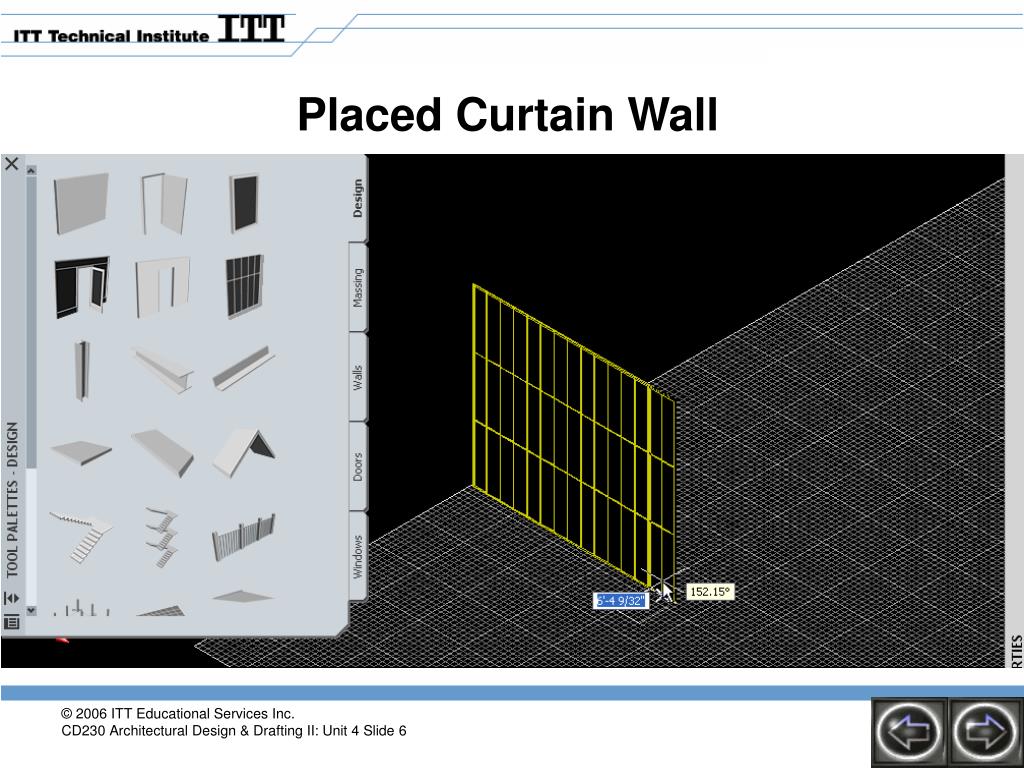

  6. Placed Curtain Wall

  7. Curtain Walls- Work Tab
