Noise and Interference

Noise and Interference. Any signal or phenomena which degrades signal to noise ratio (S/N). External Thermal noise (raw or amplified) On-channel unwanted emissions (interference) Atmospheric noise Man made noise Internal Distortion Harmonics Shot Noise (carrier transit noise)

quasar
Télécharger la présentation

Noise and Interference

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

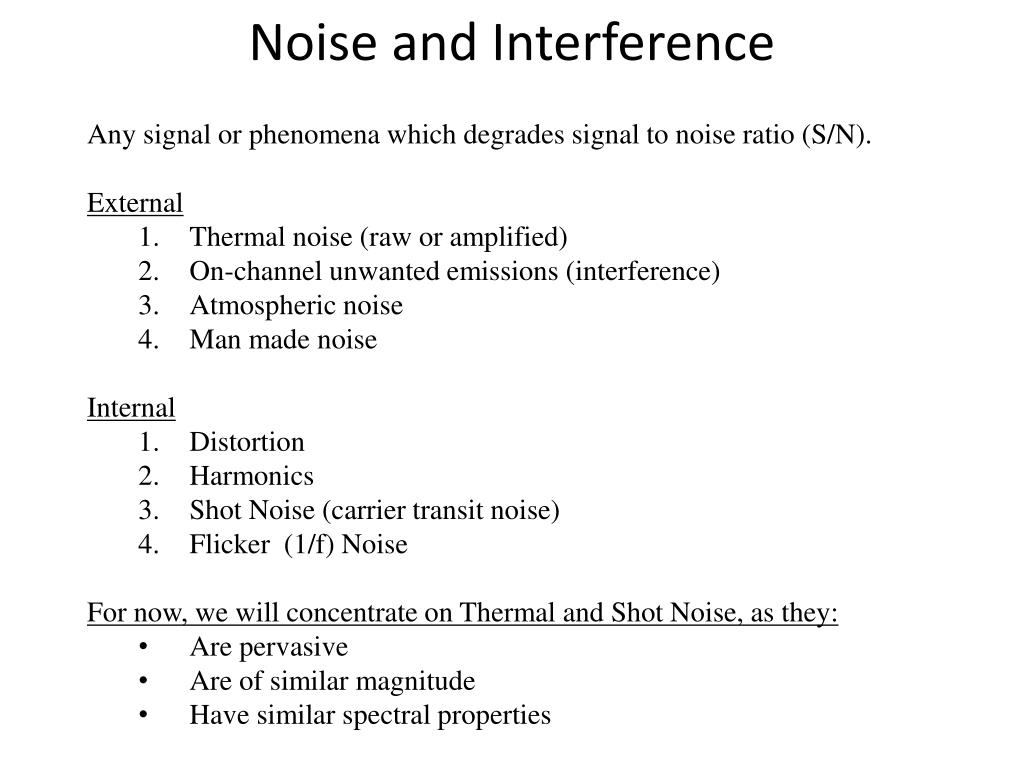

  1. Noise and Interference • Any signal or phenomena which degrades signal to noise ratio (S/N). • External • Thermal noise (raw or amplified) • On-channel unwanted emissions (interference) • Atmospheric noise • Man made noise • Internal • Distortion • Harmonics • Shot Noise (carrier transit noise) • Flicker (1/f) Noise • For now, we will concentrate on Thermal and Shot Noise, as they: • Are pervasive • Are of similar magnitude • Have similar spectral properties

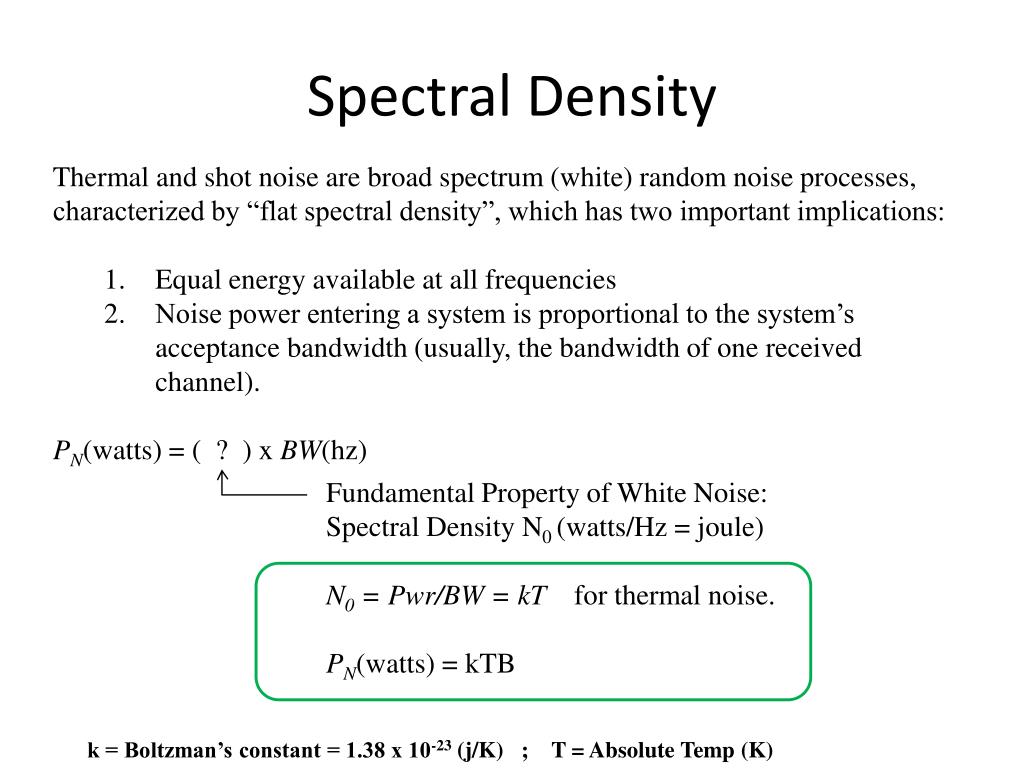

  2. Spectral Density • Thermal and shot noise are broad spectrum (white) random noise processes, characterized by “flat spectral density”, which has two important implications: • Equal energy available at all frequencies • Noise power entering a system is proportional to the system’s acceptance bandwidth (usually, the bandwidth of one received channel). • PN(watts) = ( ? ) x BW(hz) Fundamental Property of White Noise: Spectral Density N0 (watts/Hz = joule) N0 = Pwr/BW = kT for thermal noise. PN(watts) = kTB k = Boltzman’s constant = 1.38 x 10-23 (j/K) ; T = Absolute Temp (K)

  3. Thermal Noise Voltage PN(watts) ~ R R B For frequencies within B For frequencies outside of B Ideal Bandpass Filter Vn Voltage Spectral Density: Current Spectral Density:

  4. Shot Noise Shot Noise is represented by a random noise current generated in a semiconductor junction , in parallel with the junction dynamic resistance rd = 0.026v/IDC (for silicon). IN ~ rd q = 1.6 x 10-19 Coul (electron charge) Since noise currents and voltages are random, they must always be considered as RMS values when multiple noise sources are present: Thevenin is alive and well in Prescott Arizona, . . . and the rest of the universe.

  5. Example + 10 VDC - 20 kW Ideal Bandpass Filter B = 100 kHz B Vn

  6. Ishot ~ rd 20 kW ~ ~ 20 kW B 100 kHz Open Circuit Noise Voltage Vn Ith Ideal Bandpass Filter Vth
