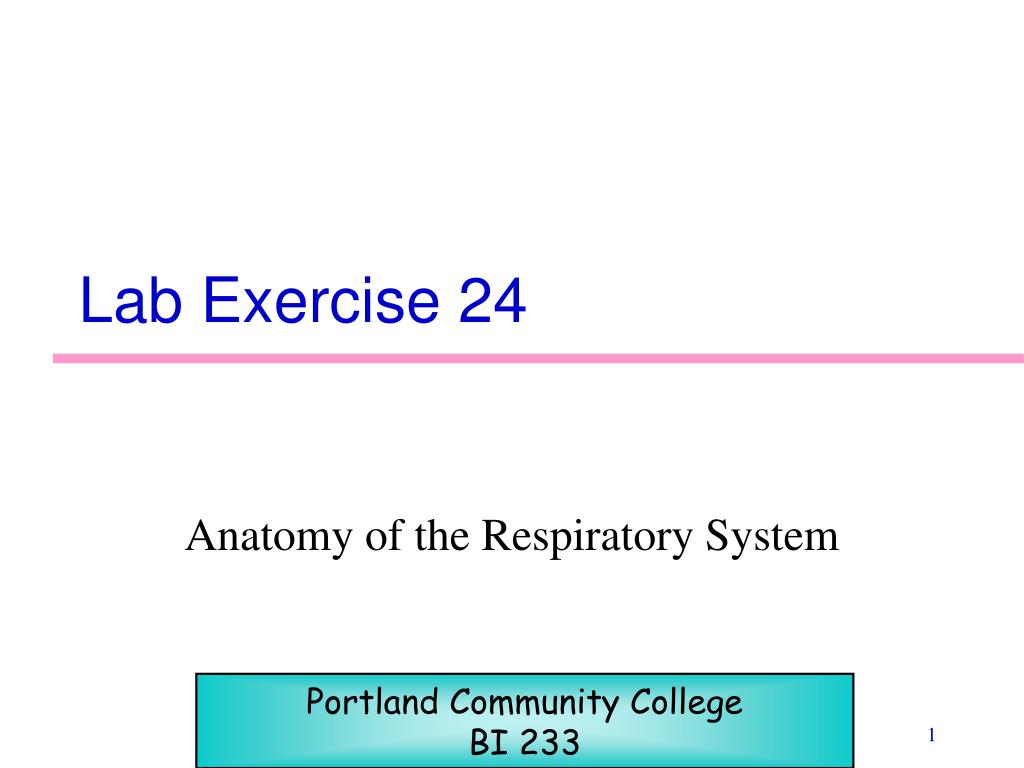

  1. Lab Exercise 24 Anatomy of the Respiratory System Portland Community College BI 233

  2. Upper & Lower Respiratory System • Upper Respiratory System • Nose • Nasal cavity • Paranasal sinuses • Pharynx

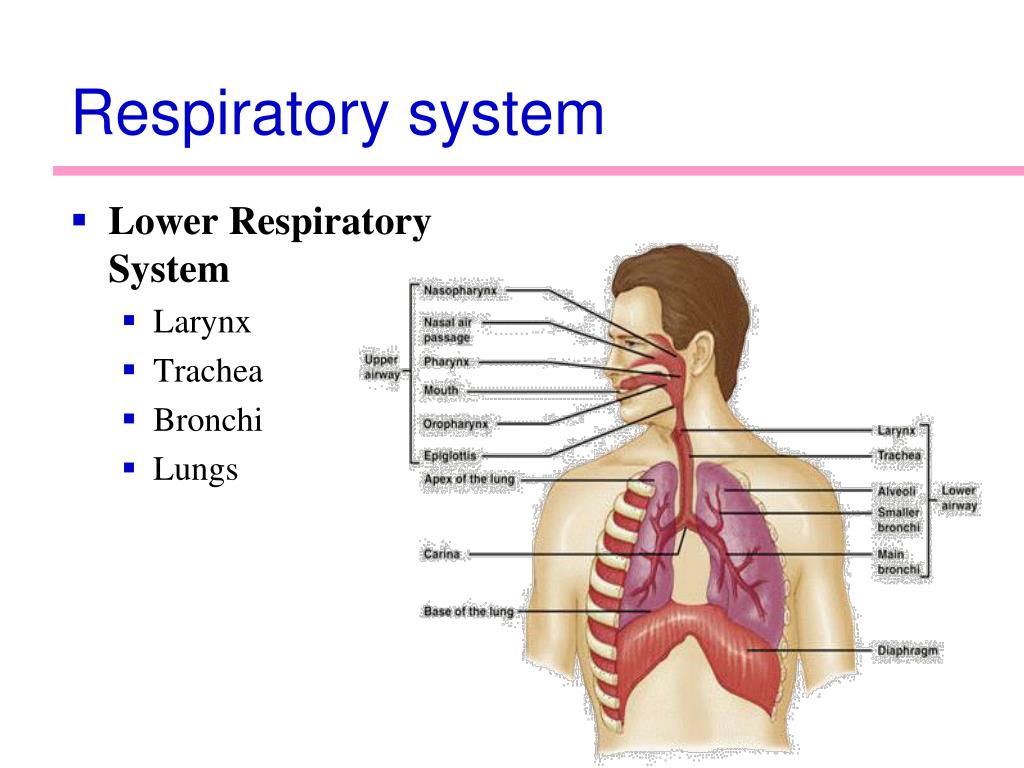

  3. Respiratory system • Lower Respiratory System • Larynx • Trachea • Bronchi • Lungs

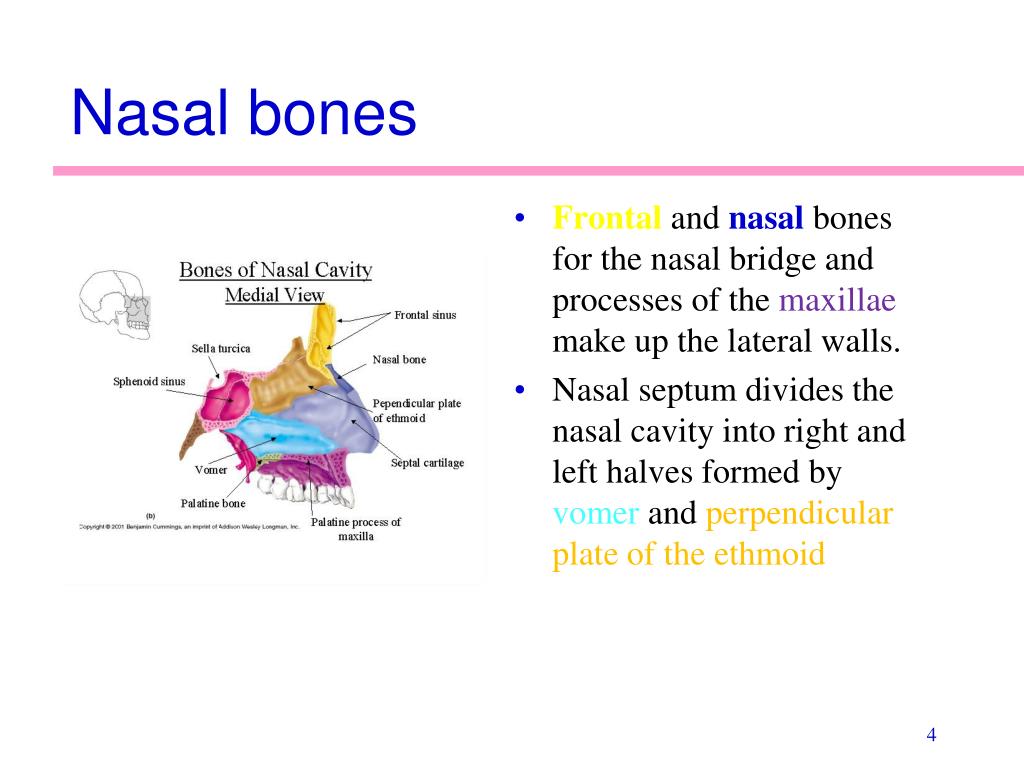

  4. Nasal bones • Frontal and nasal bones for the nasal bridge and processes of the maxillae make up the lateral walls. • Nasal septum divides the nasal cavity into right and left halves formed by vomerand perpendicular plate of the ethmoid

  5. Uvula • During swallowing, the soft palate elevates and the uvula closes off the internal nares, preventing food or fluids from entering the nasal cavity.

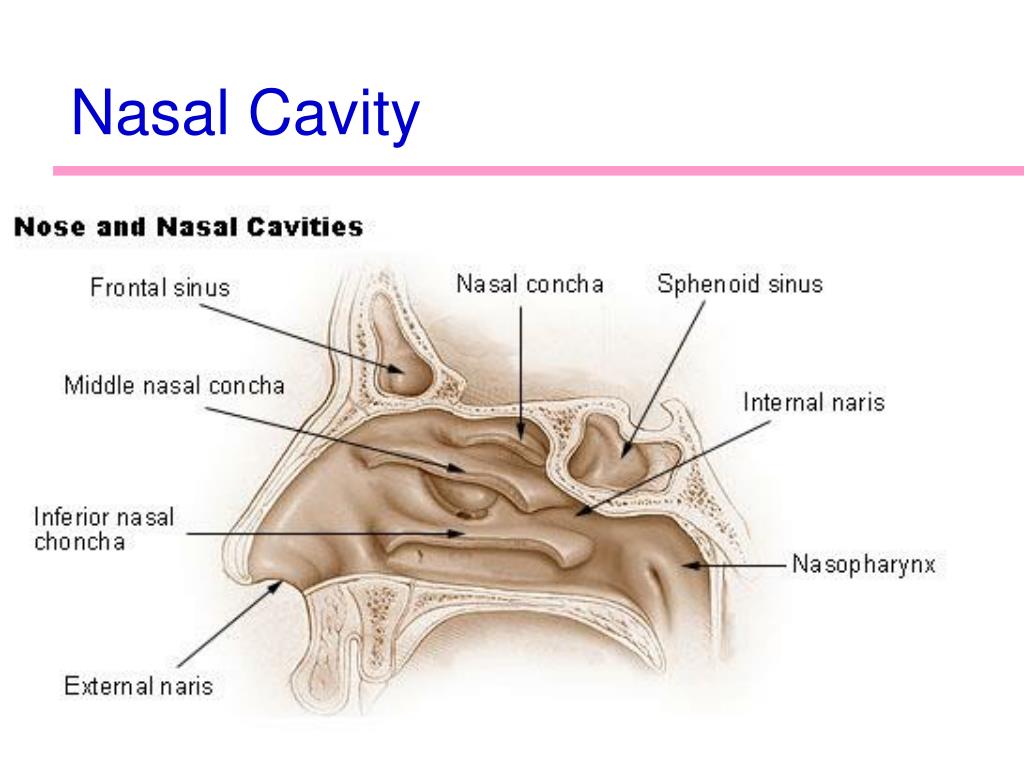

  6. Nasal Cavity

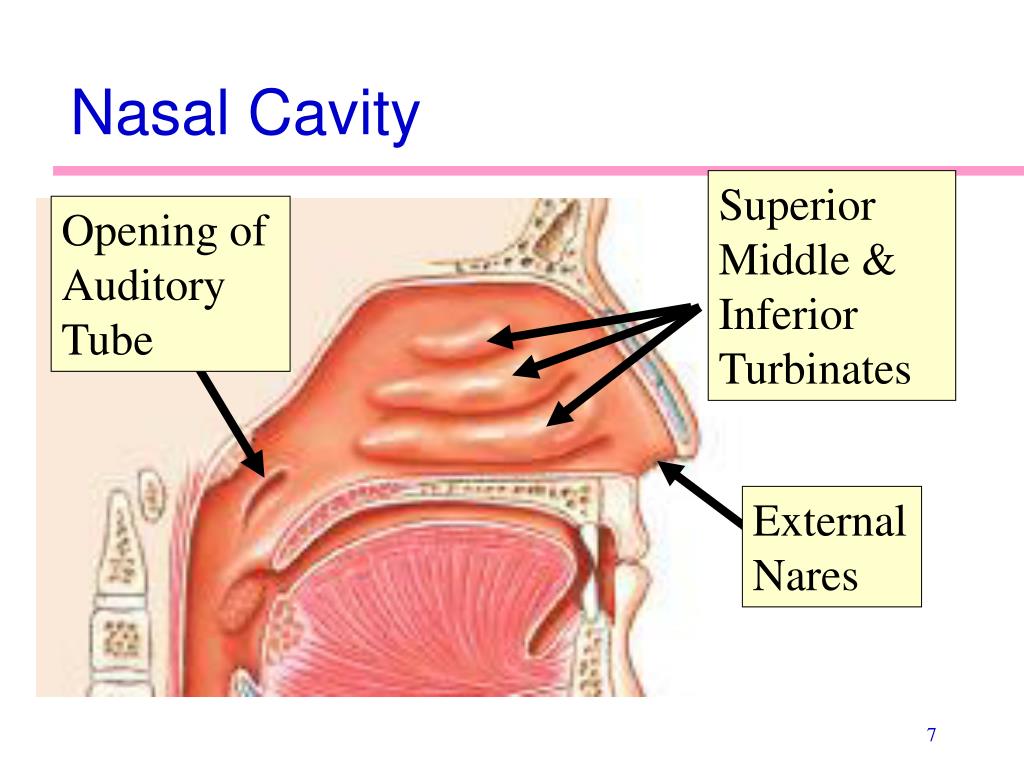

  7. Nasal Cavity Superior Middle & Inferior Turbinates Opening of Auditory Tube External Nares

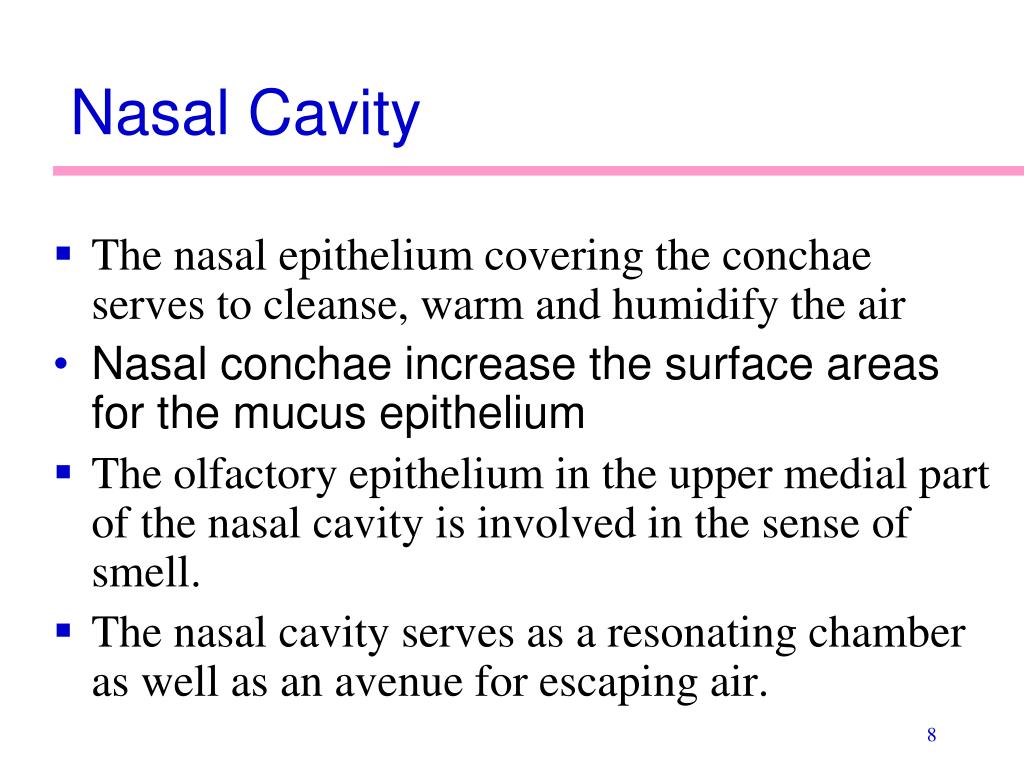

  8. Nasal Cavity • The nasal epithelium covering the conchae serves to cleanse, warm and humidify the air • Nasal conchae increase the surface areas for the mucus epithelium • The olfactory epithelium in the upper medial part of the nasal cavity is involved in the sense of smell. • The nasal cavity serves as a resonating chamber as well as an avenue for escaping air.

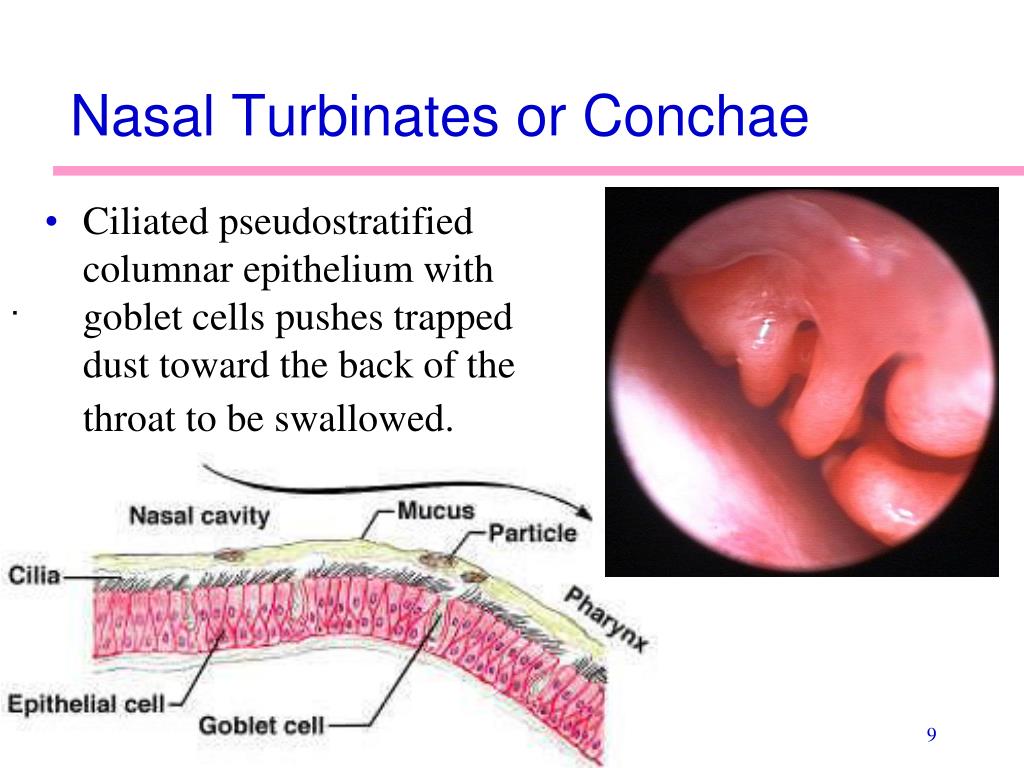

  9. Nasal Turbinates or Conchae • Ciliated pseudostratified columnar epithelium with goblet cells pushes trapped dust toward the back of the throat to be swallowed. .

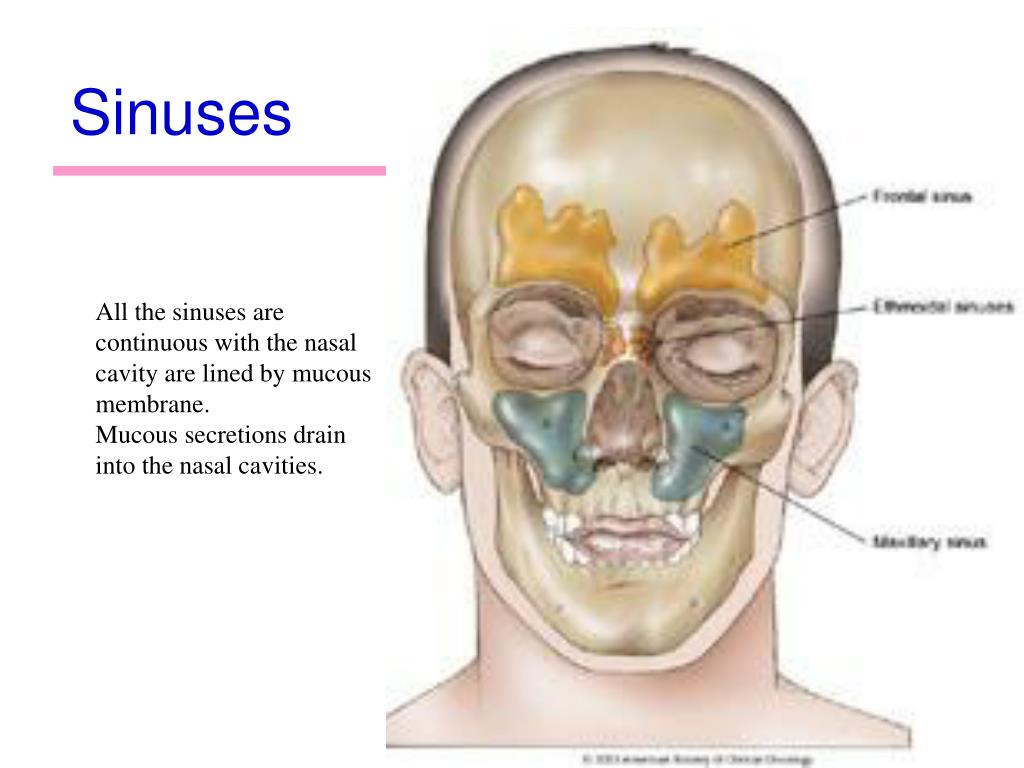

  10. Sinuses All the sinuses are continuous with the nasal cavity are lined by mucous membrane. Mucous secretions drain into the nasal cavities.

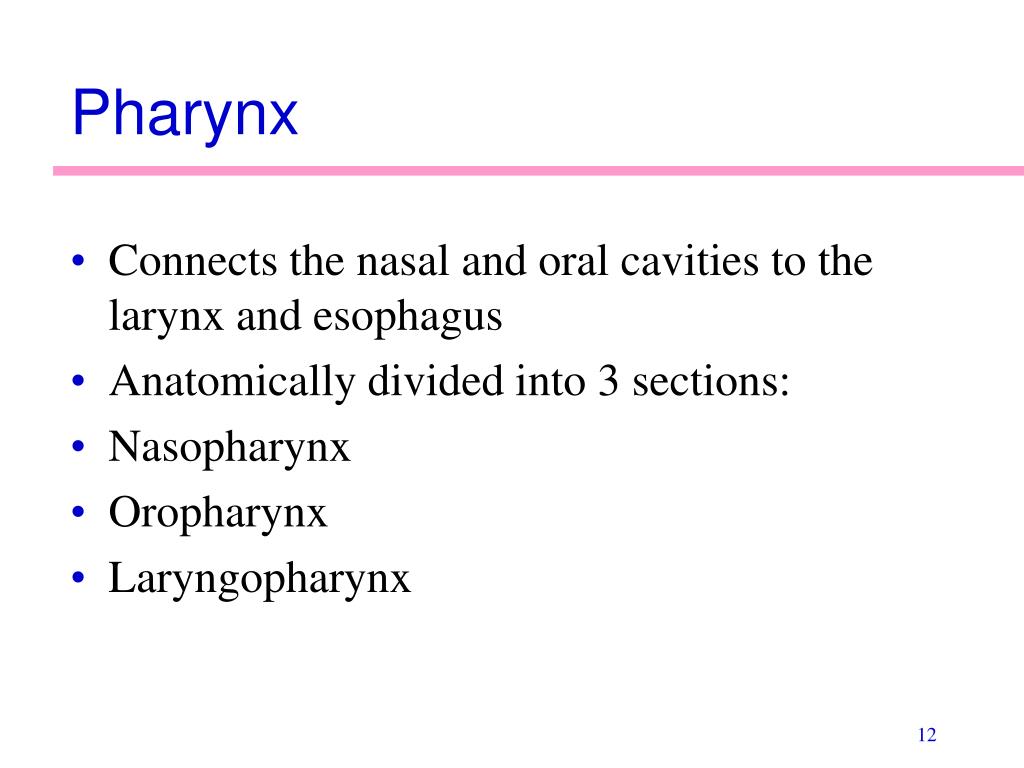

  11. Pharynx • Connects the nasal and oral cavities to the larynx and esophagus • Anatomically divided into 3 sections: • Nasopharynx • Oropharynx • Laryngopharynx

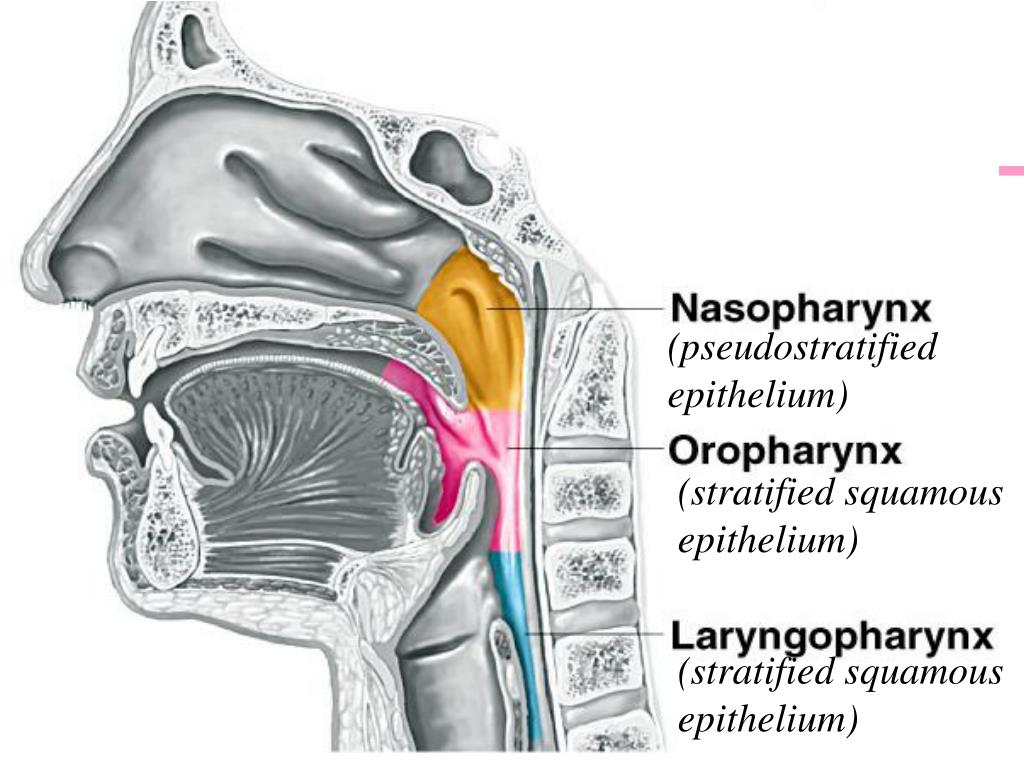

  12. (pseudostratified epithelium) (stratified squamous epithelium) (stratified squamous epithelium)

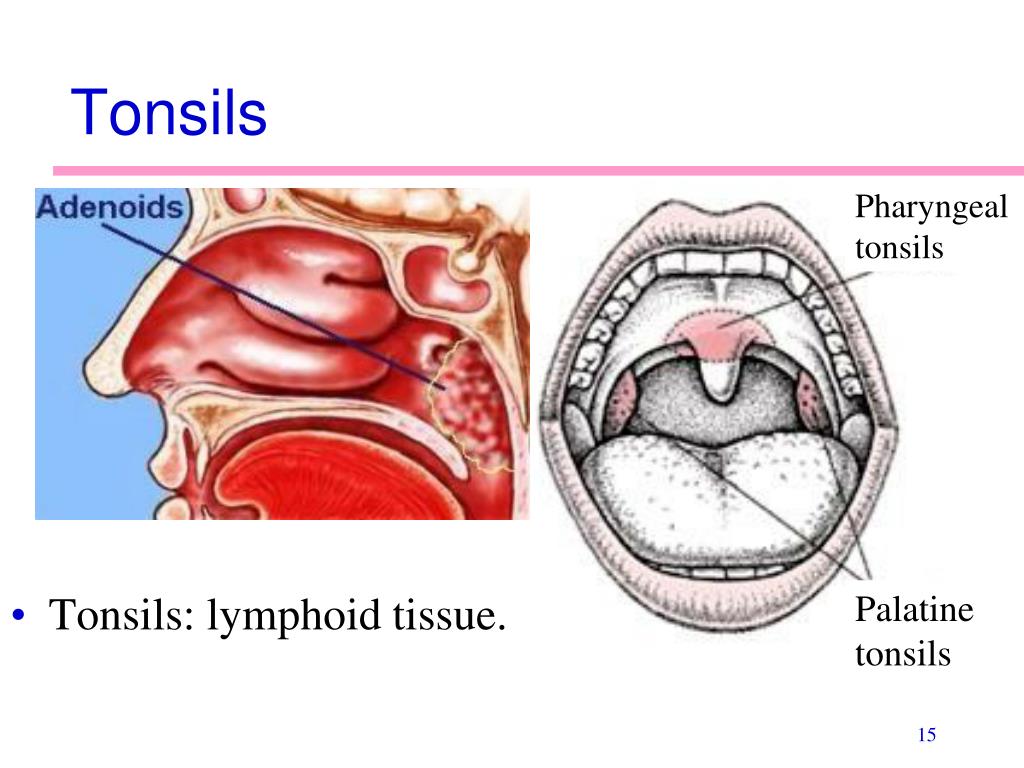

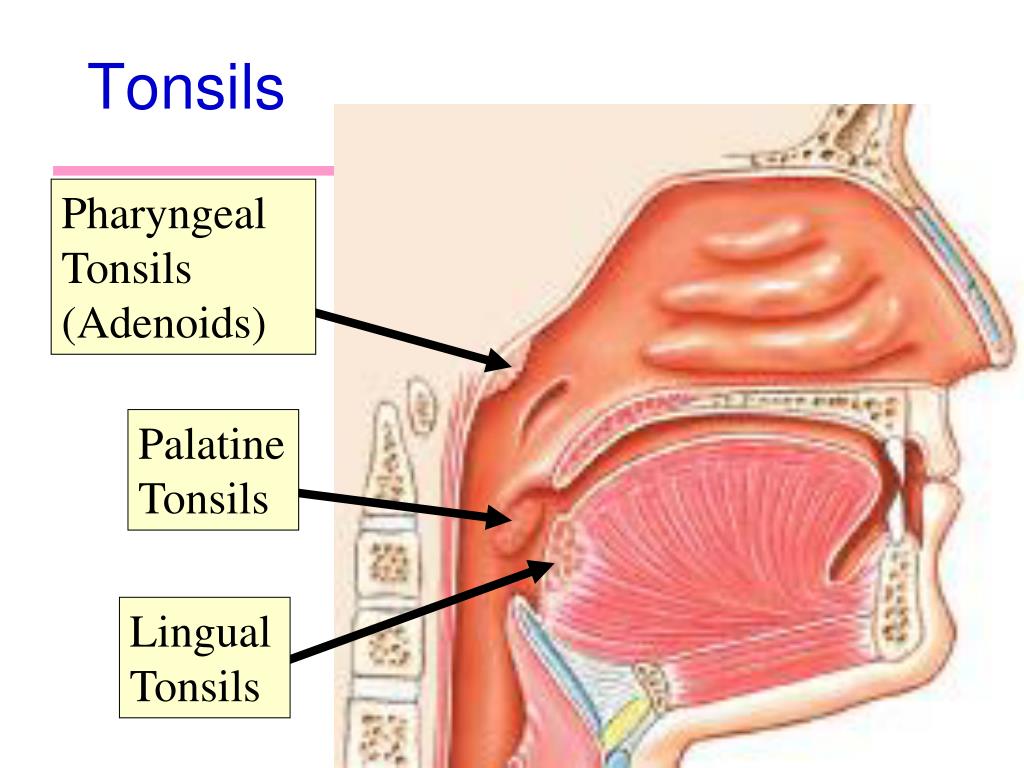

  13. Tonsils Pharyngeal Tonsils(Adenoids) PalatineTonsils LingualTonsils

  14. Tonsils Pharyngeal tonsils • Tonsils: lymphoid tissue. Palatine tonsils

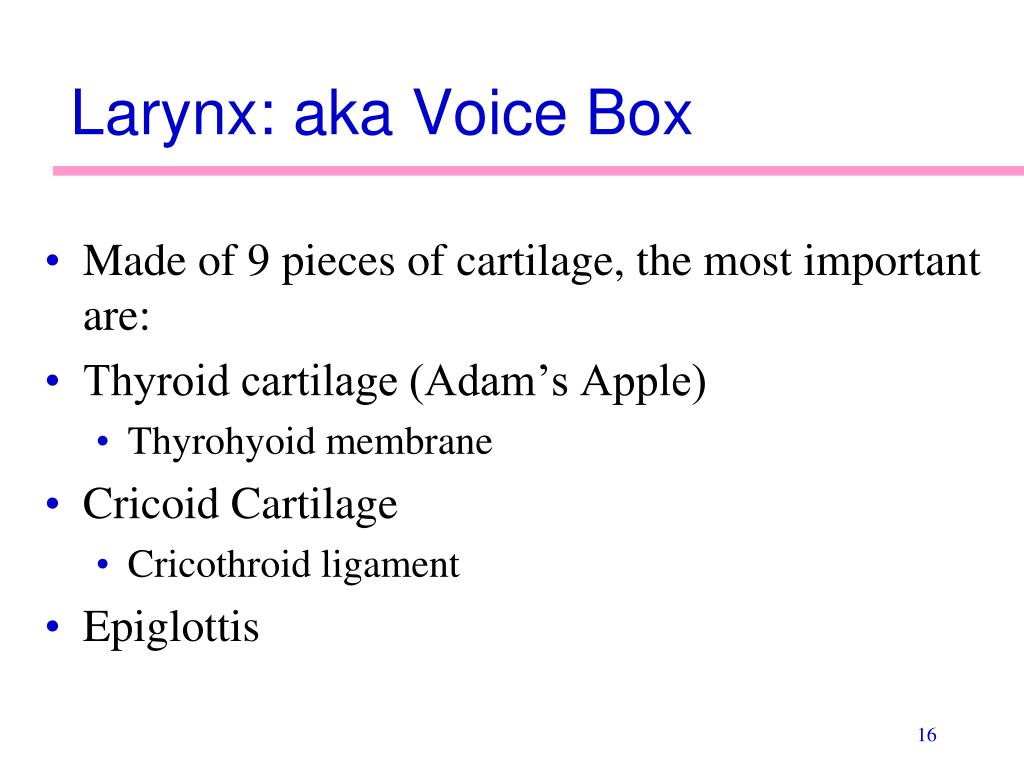

  15. Larynx: aka Voice Box • Made of 9 pieces of cartilage, the most important are: • Thyroid cartilage (Adam’s Apple) • Thyrohyoid membrane • Cricoid Cartilage • Cricothroid ligament • Epiglottis

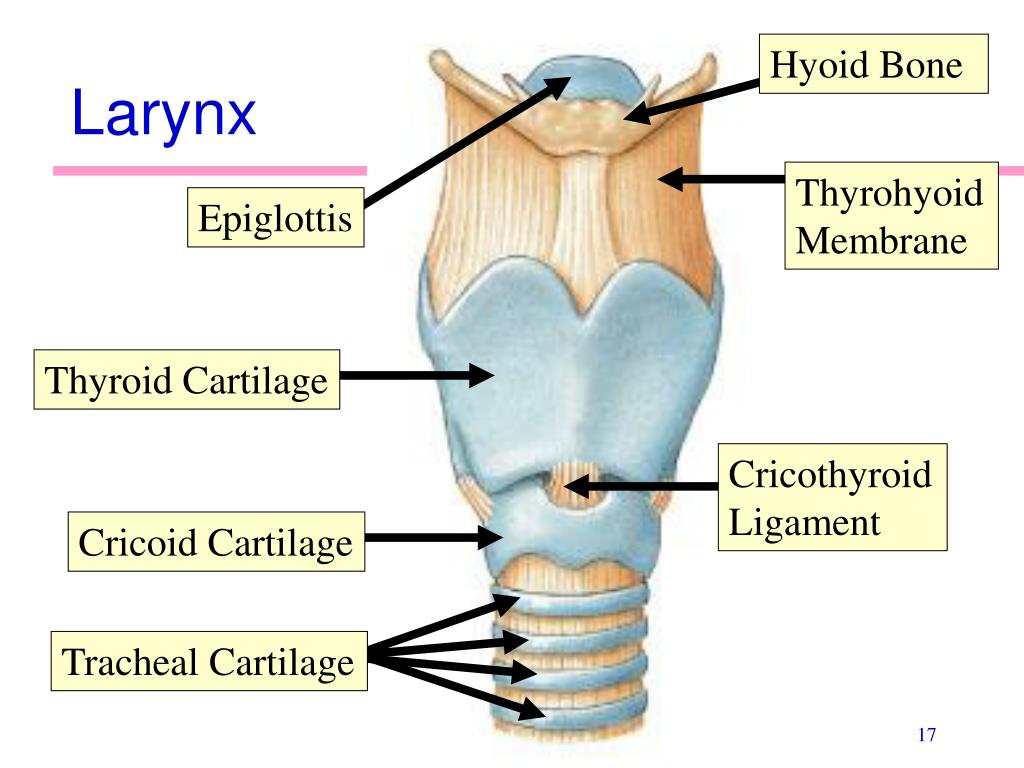

  16. Larynx Hyoid Bone Thyrohyoid Membrane Epiglottis Thyroid Cartilage Cricothyroid Ligament Cricoid Cartilage Tracheal Cartilage

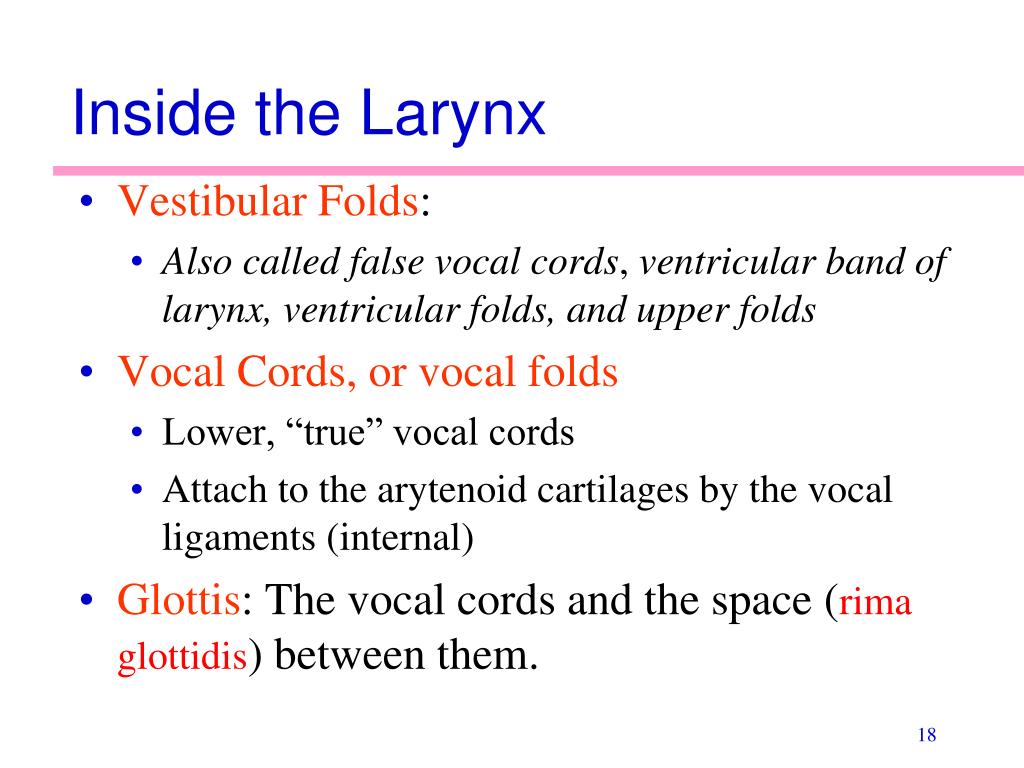

  17. Inside the Larynx • Vestibular Folds: • Also called false vocal cords, ventricular band of larynx, ventricular folds, and upper folds • Vocal Cords, or vocal folds • Lower, “true” vocal cords • Attach to the arytenoid cartilages by the vocal ligaments (internal) • Glottis: The vocal cords and the space (rima glottidis) between them.

  18. Inside the Larynx

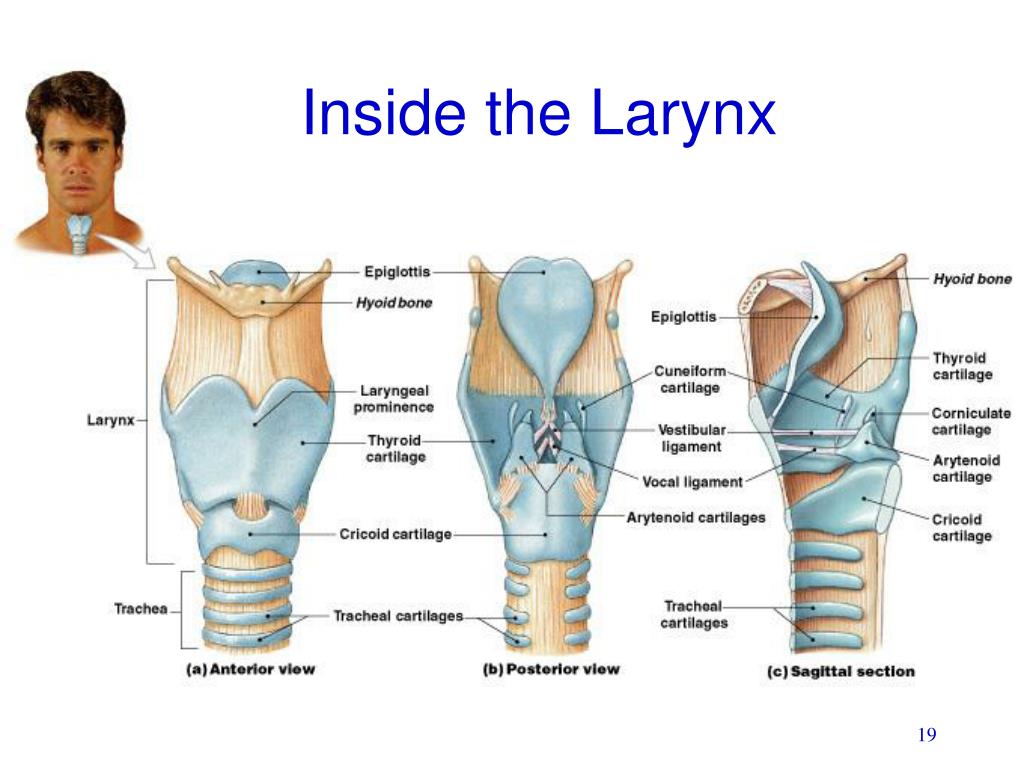

  19. Inside the Larynx Corniculate cartilage Cuneiform cartilage Rima Glottis True Vocal Cords Glottis Epiglottis Tongue

  20. Glottis: True cords plus openingRima Glottis: The opening

  21. Airways Larynx Trachea Right Mainstem Bronchi Left Mainstem Bronchi The carina is the last cartilage which separates the entrances to the left and right primary bronchi Secondary Bronchi Carina Secondary Bronchi

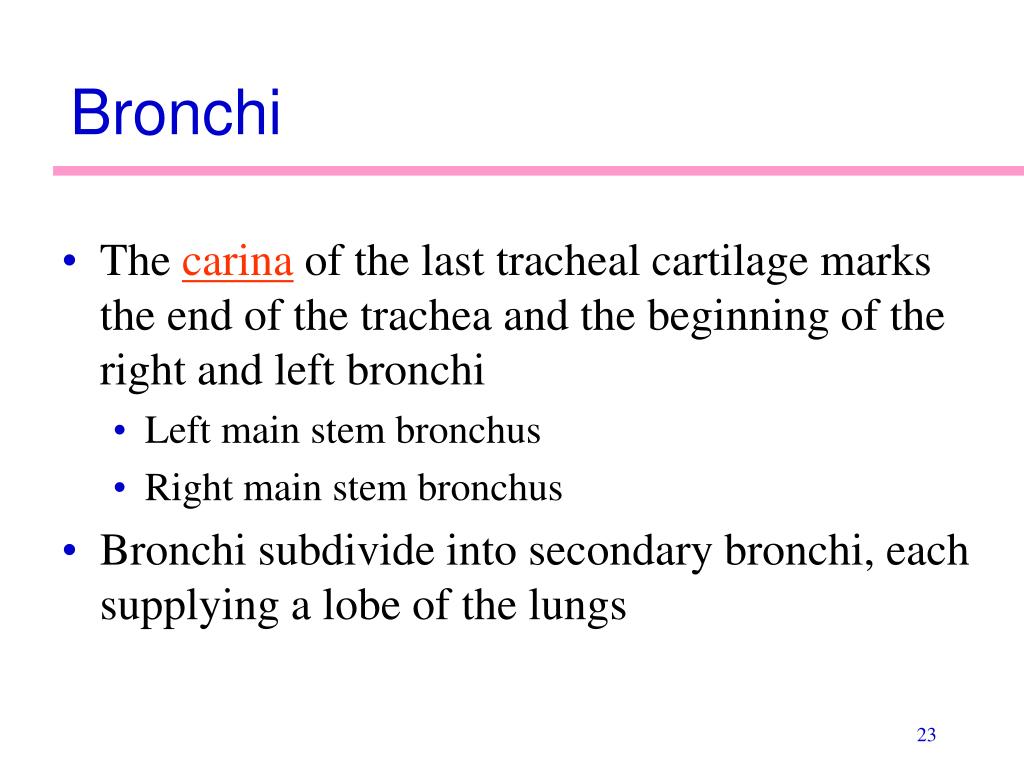

  22. Bronchi • The carina of the last tracheal cartilage marks the end of the trachea and the beginning of the right and left bronchi • Left main stem bronchus • Right main stem bronchus • Bronchi subdivide into secondary bronchi, each supplying a lobe of the lungs

  23. Respiratory Tree

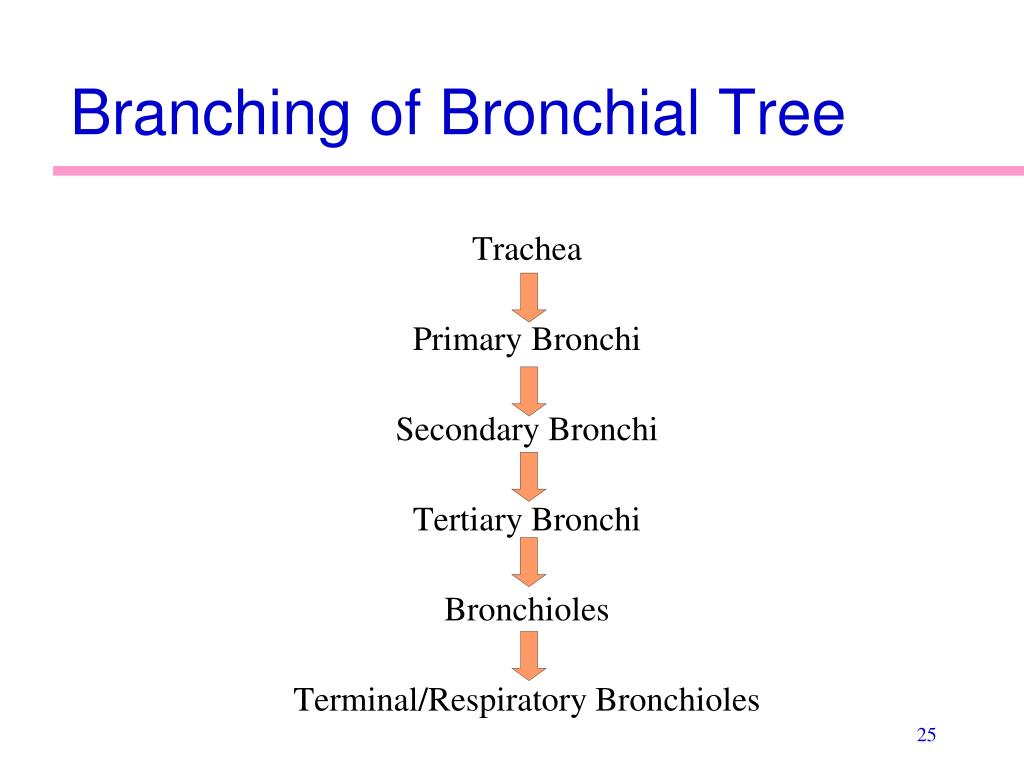

  24. Branching of Bronchial Tree Trachea Primary Bronchi Secondary Bronchi Tertiary Bronchi Bronchioles Terminal/Respiratory Bronchioles

  25. Lungs • Apex: the part under the clavicle • Base: the part touching the diaphragm • Costal Surface: the part touching the ribs • Hilus: indentation containing pulmonary and systemic blood vessels • Left Lung has 2 lobes and a cardiac notch • Left upper lobe • Left lower lobe • Right Lung has 3 lobes • Right upper lobe, middle lobe, lower lobe

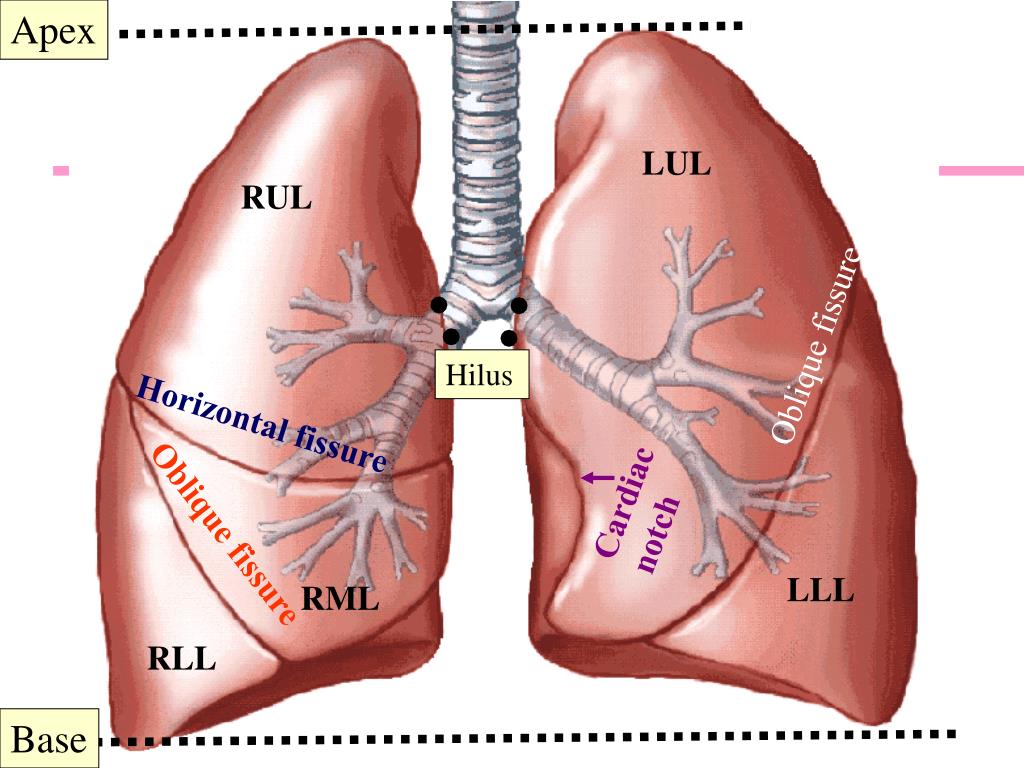

  26. Apex Lungs LUL RUL Oblique fissure Hilus Horizontal fissure Cardiac notch Oblique fissure LLL RML RLL Base

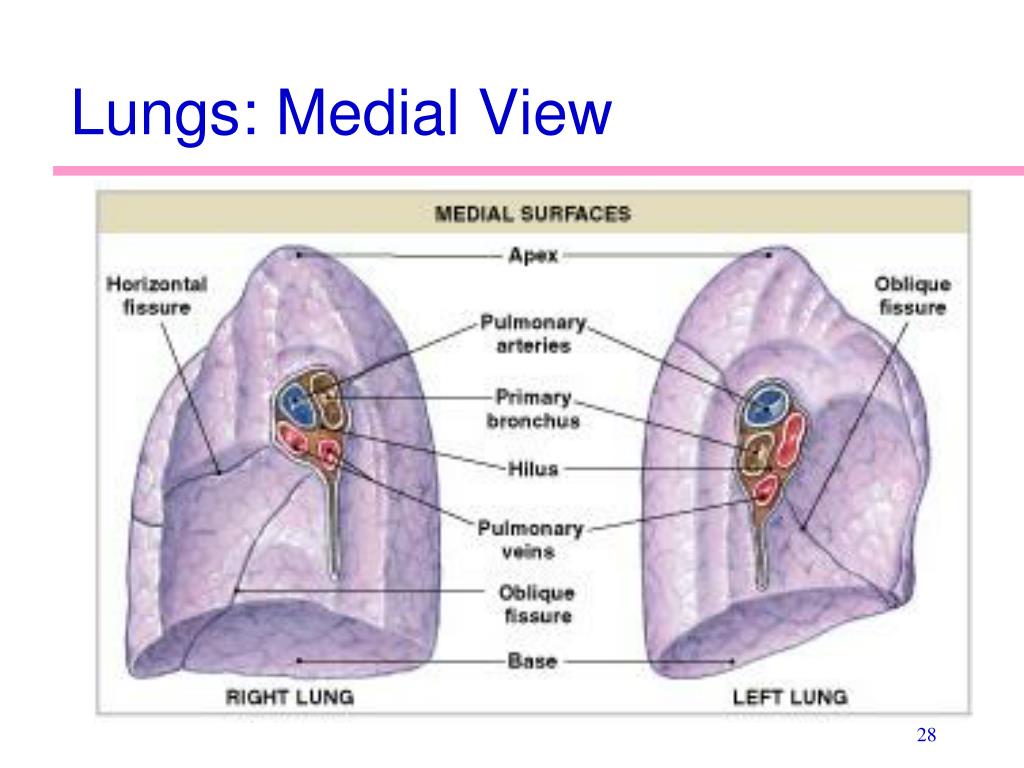

  27. Lungs: Medial View

  28. Lung Lobes

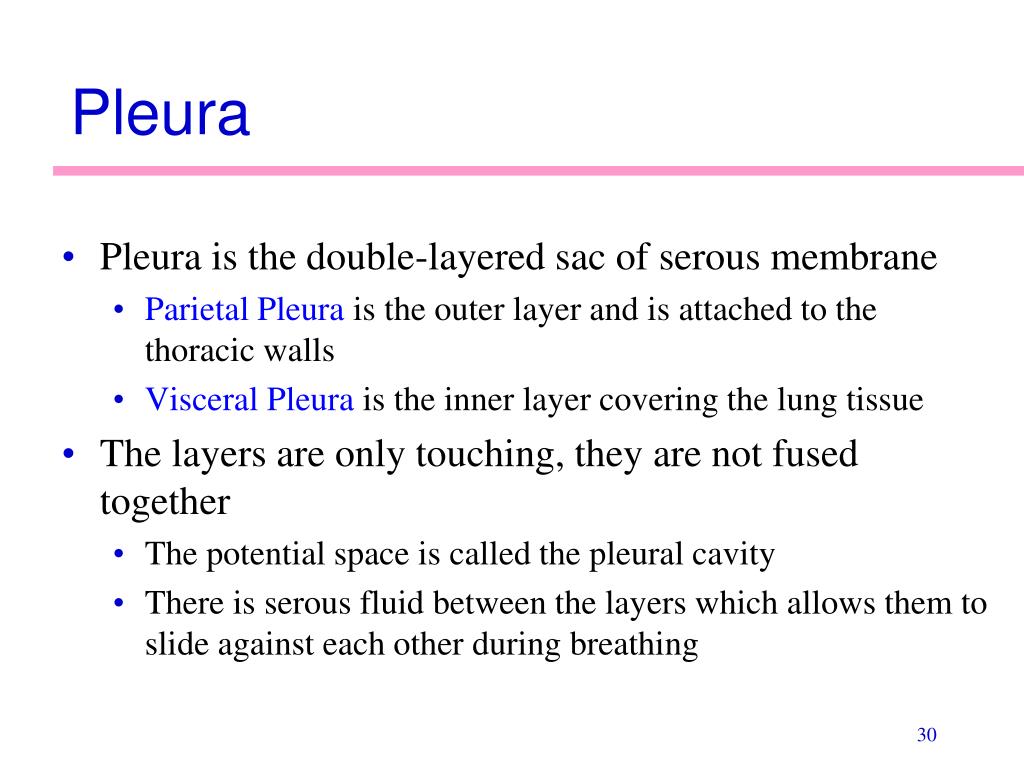

  29. Pleura • Pleura is the double-layered sac of serous membrane • Parietal Pleura is the outer layer and is attached to the thoracic walls • Visceral Pleura is the inner layer covering the lung tissue • The layers are only touching, they are not fused together • The potential space is called the pleural cavity • There is serous fluid between the layers which allows them to slide against each other during breathing

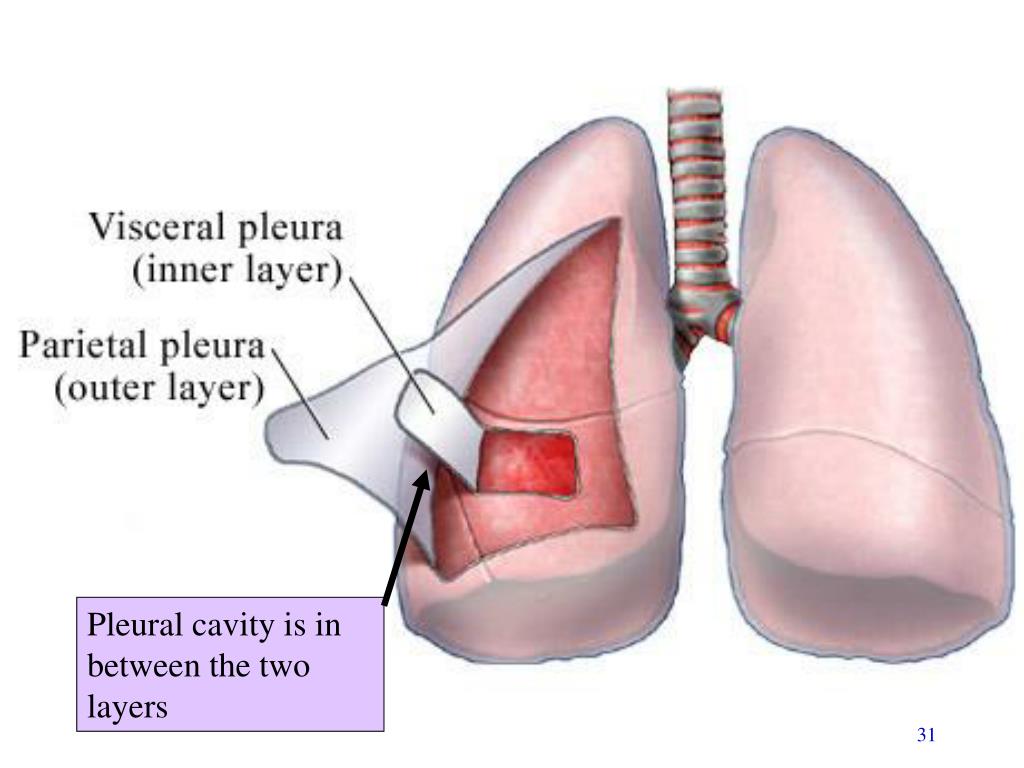

  30. Pleural cavity is in between the two layers

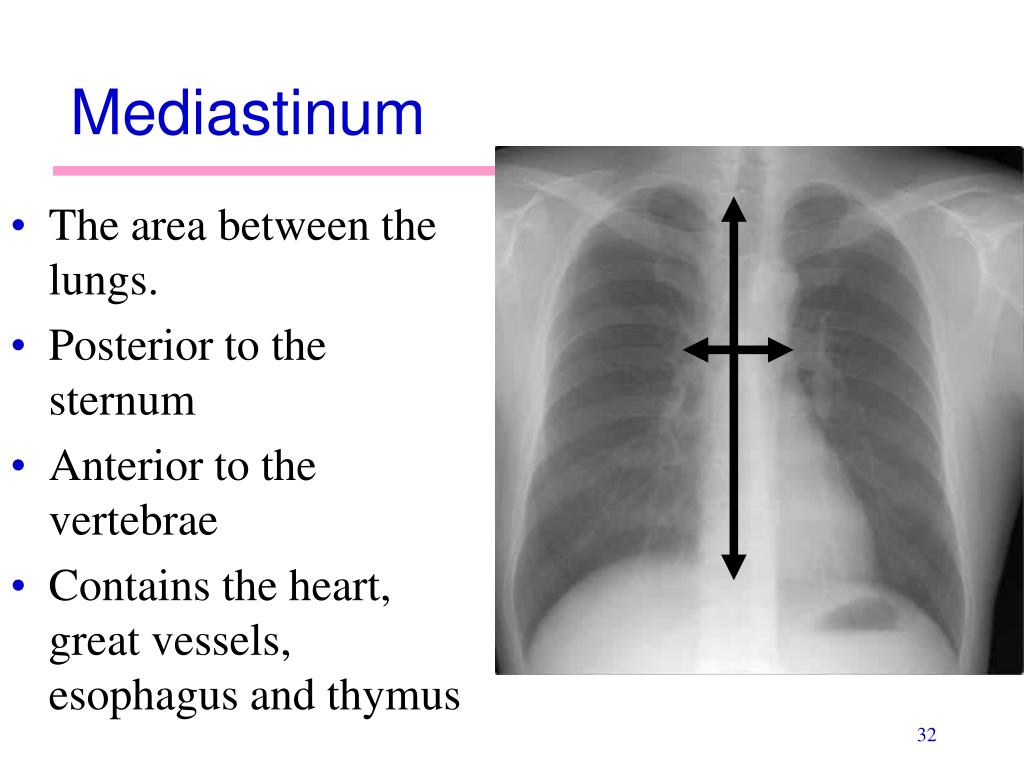

  31. Mediastinum • The area between the lungs. • Posterior to the sternum • Anterior to the vertebrae • Contains the heart, great vessels, esophagus and thymus

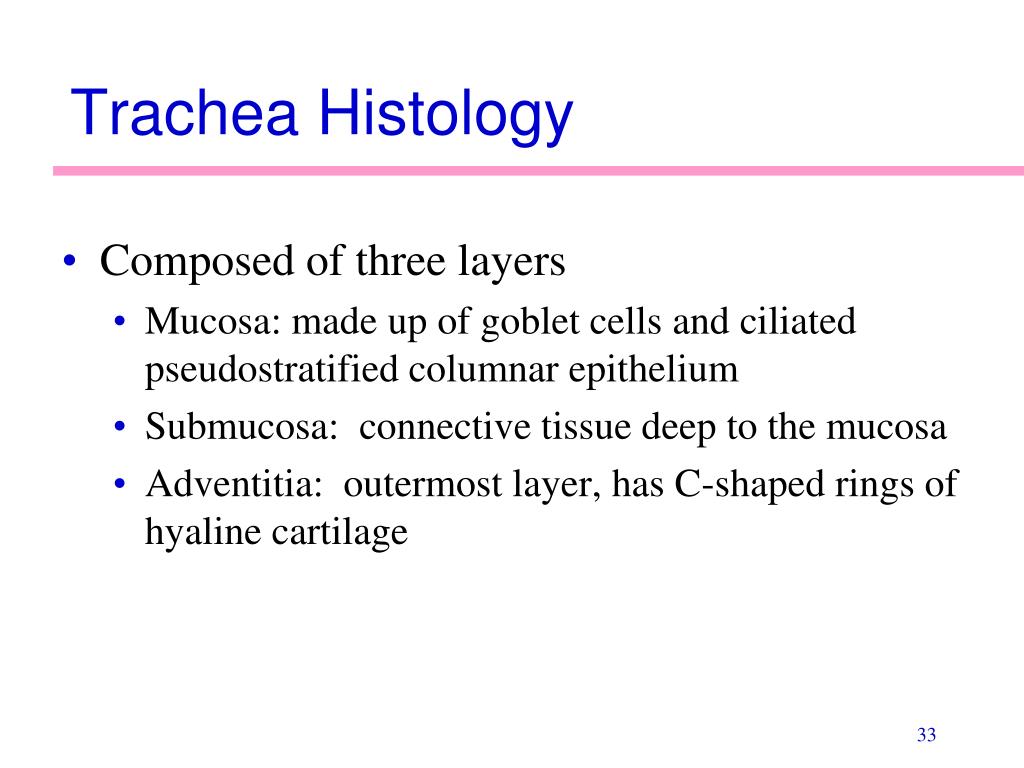

  32. Trachea Histology • Composed of three layers • Mucosa: made up of goblet cells and ciliated pseudostratified columnar epithelium • Submucosa: connective tissue deep to the mucosa • Adventitia: outermost layer, has C-shaped rings of hyaline cartilage

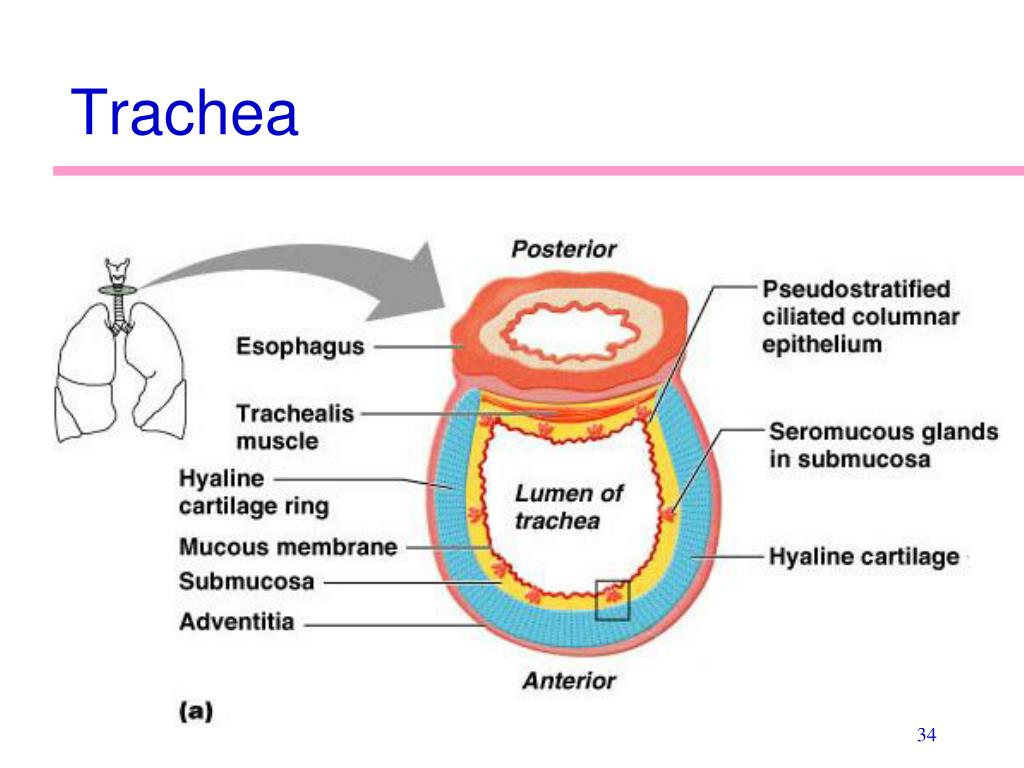

  33. Trachea

  34. Trachea Histology

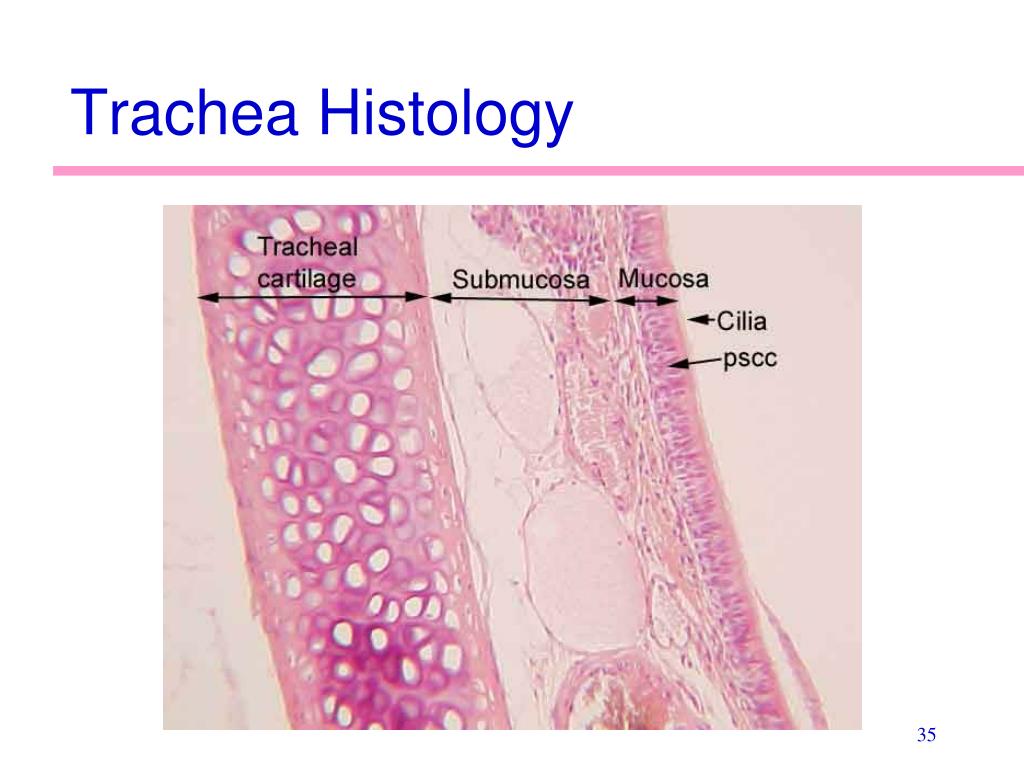

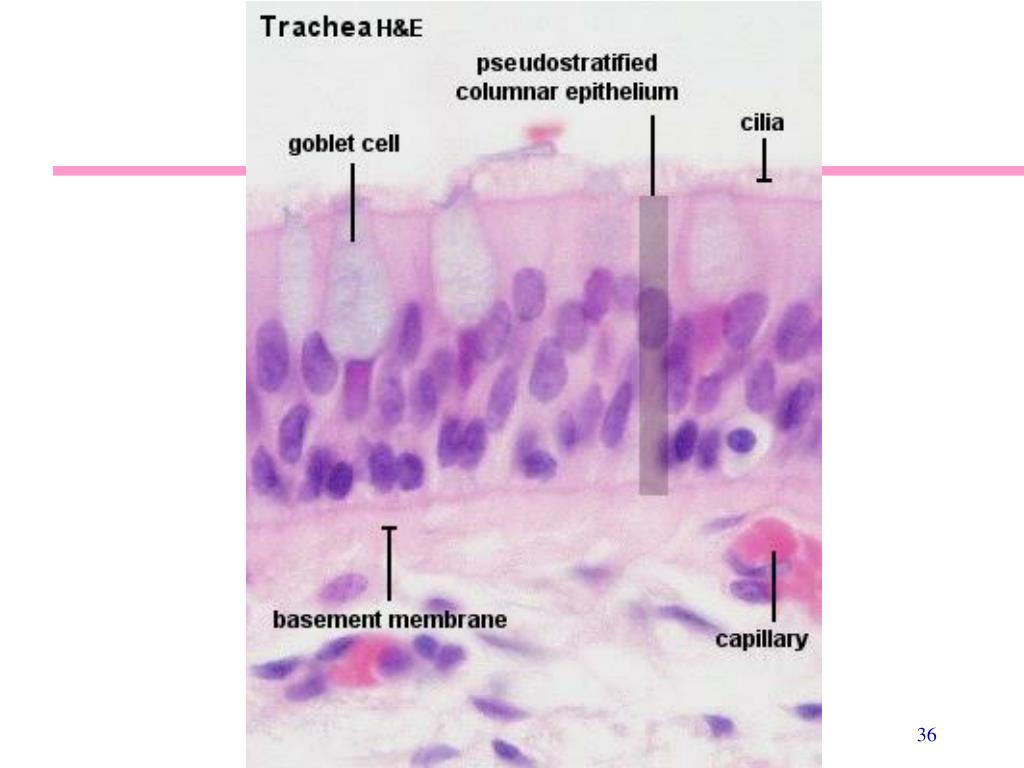

  35. Trachea Histology

  36. Seromucous Glands (Trachea)

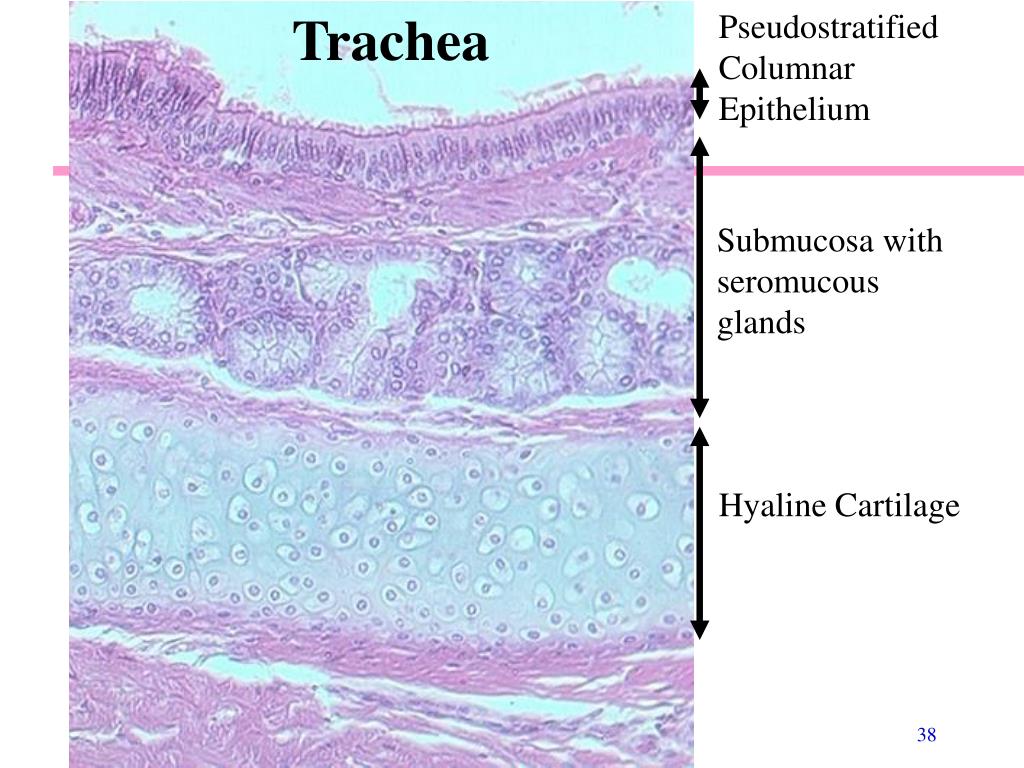

  37. Trachea Pseudostratified Columnar Epithelium Submucosa with seromucous glands Hyaline Cartilage

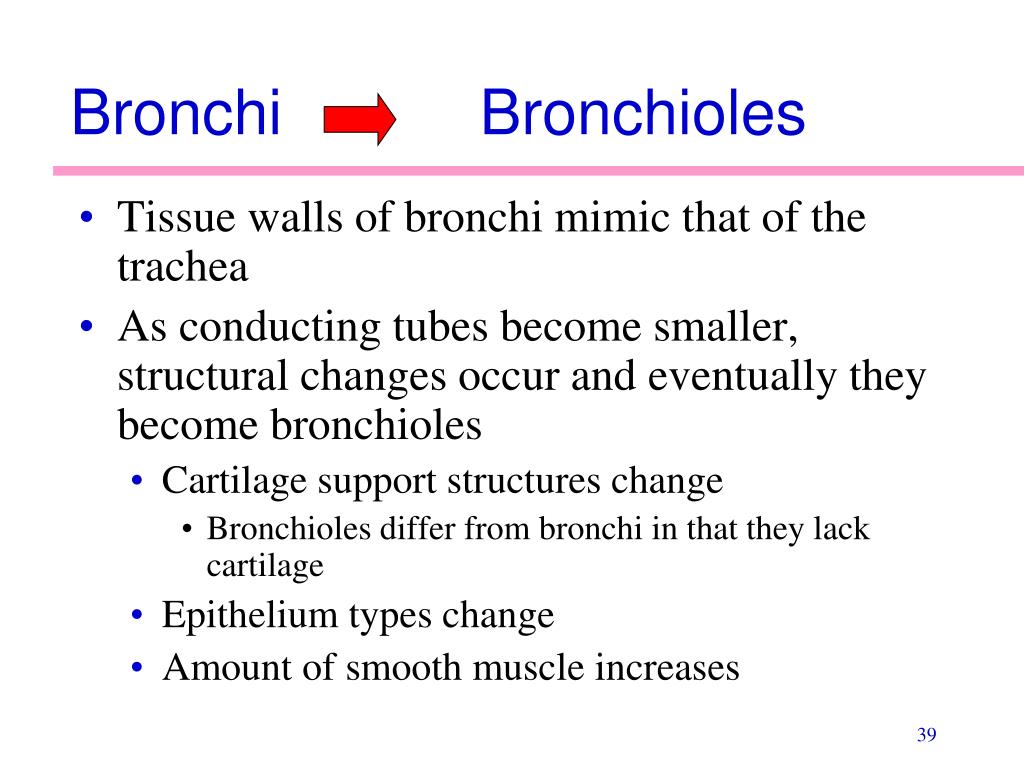

  38. Bronchi Bronchioles • Tissue walls of bronchi mimic that of the trachea • As conducting tubes become smaller, structural changes occur and eventually they become bronchioles • Cartilage support structures change • Bronchioles differ from bronchi in that they lack cartilage • Epithelium types change • Amount of smooth muscle increases

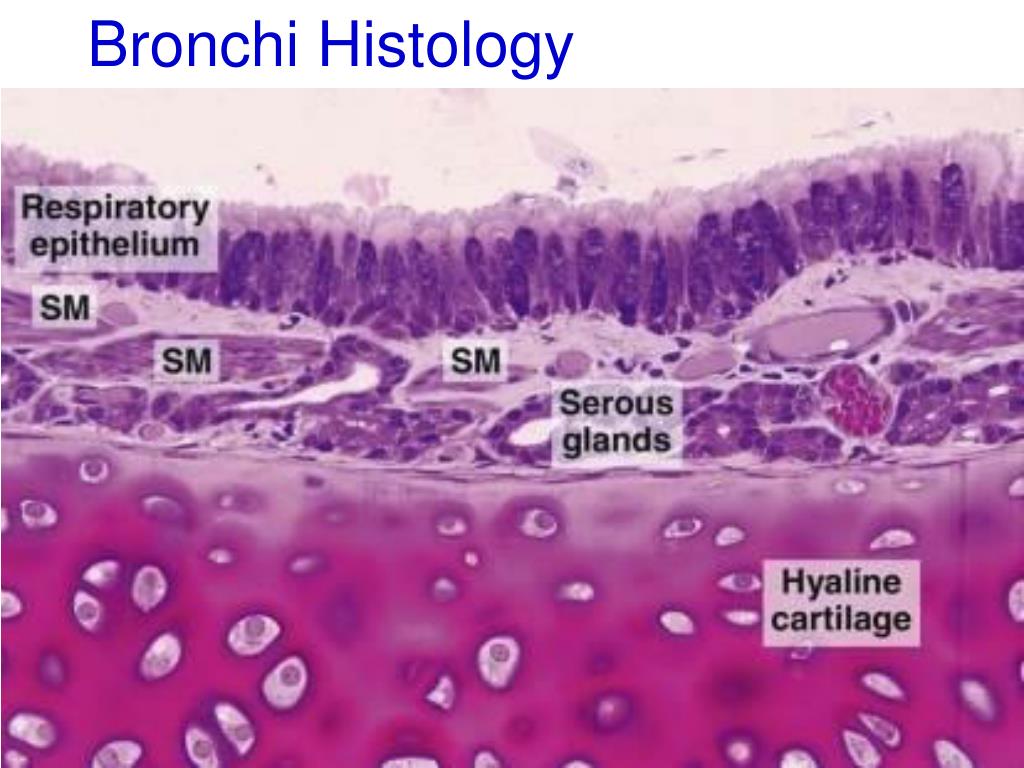

  39. Bronchi Histology

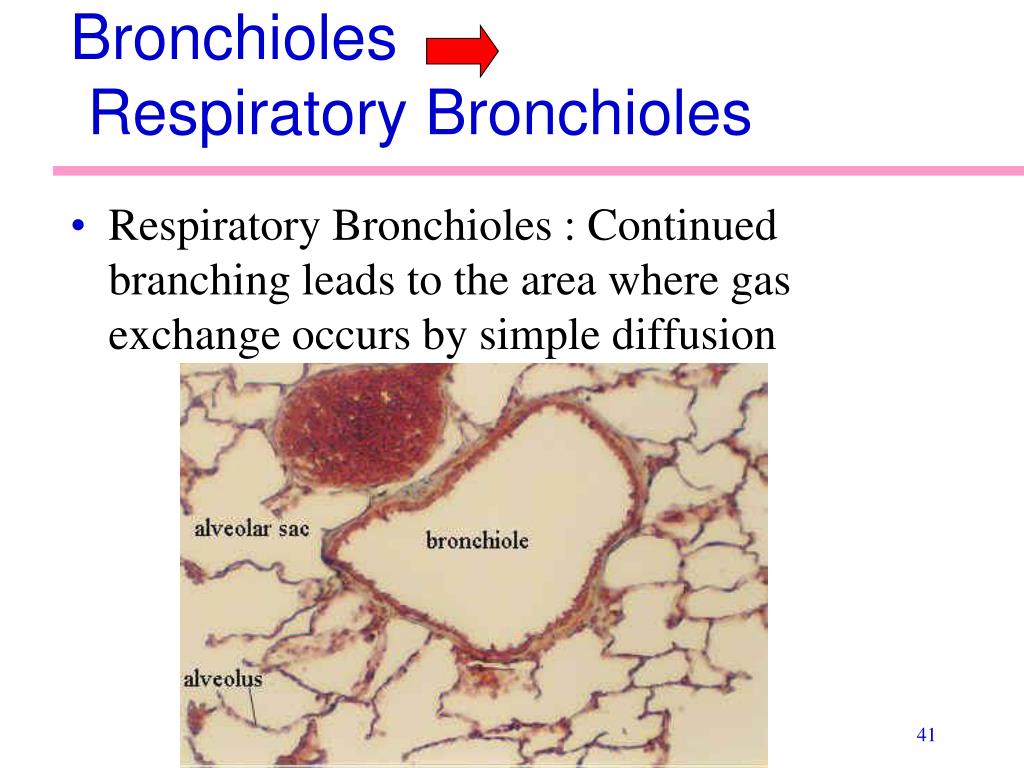

  40. Bronchioles Respiratory Bronchioles • Respiratory Bronchioles : Continued branching leads to the area where gas exchange occurs by simple diffusion

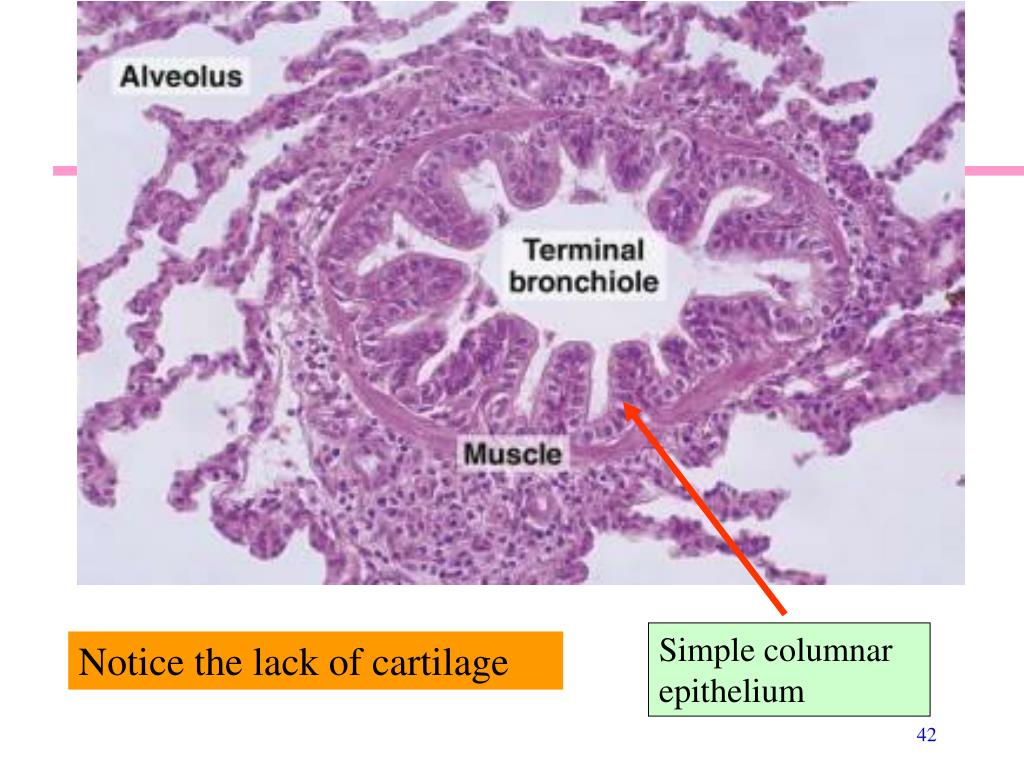

  41. Bronchiole Histology Simple columnar epithelium Notice the lack of cartilage

  42. Respiratory BronchiolesAlveolar Ducts Alveolar sacs

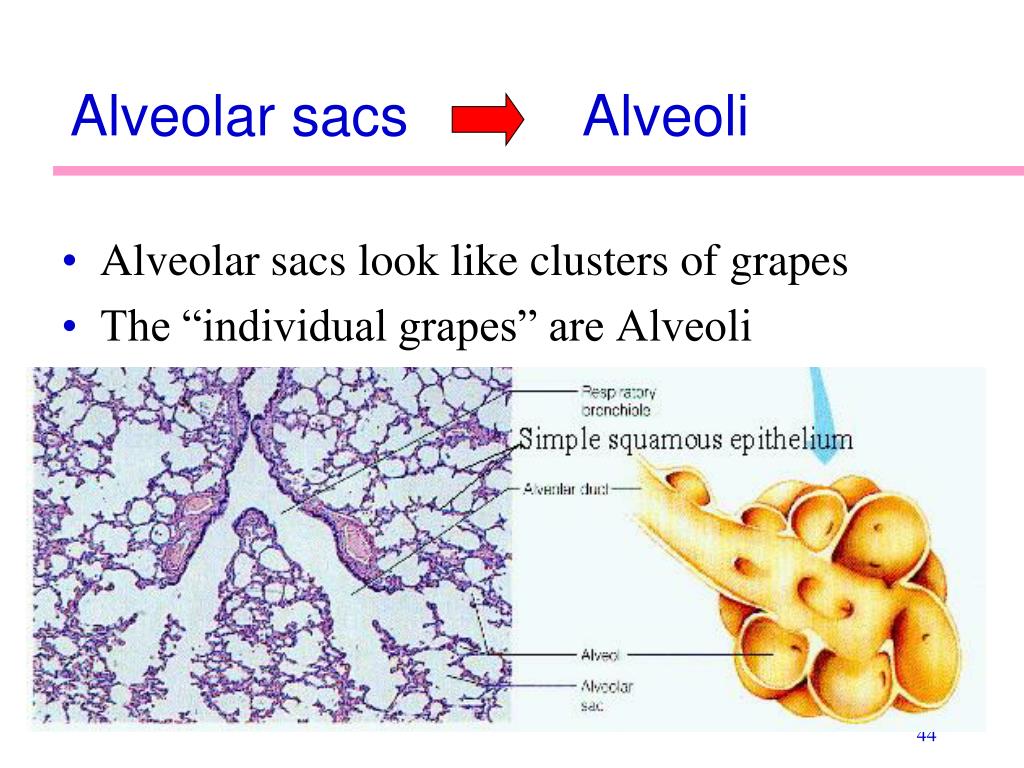

  43. Alveolar sacs Alveoli • Alveolar sacs look like clusters of grapes • The “individual grapes” are Alveoli

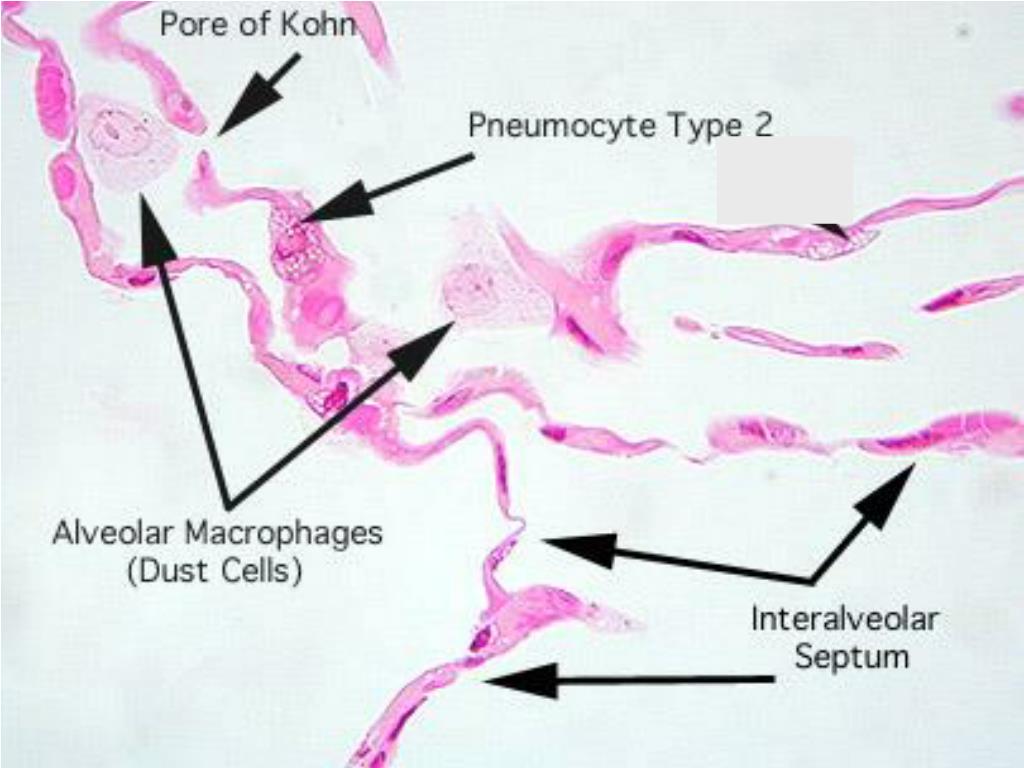

  44. Alveoli Histology

  45. Type II Pneumocytes are cuboidal and produce surfactant Type 1 Pneumocytes are flattened for gas exchange

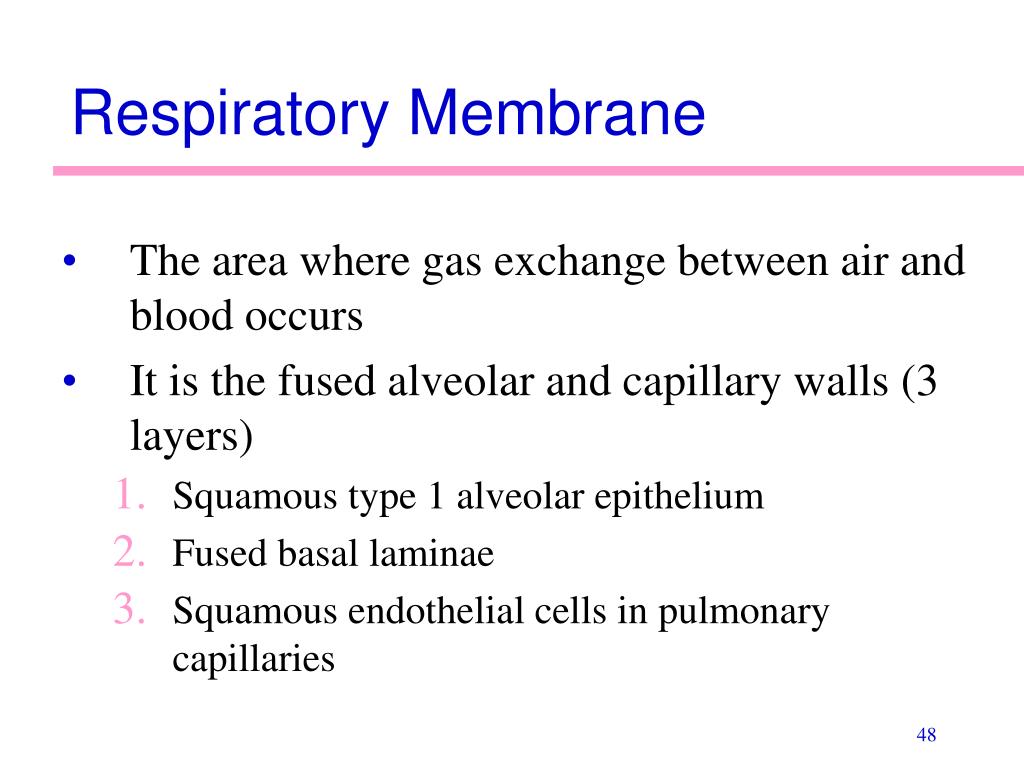

  46. Respiratory Membrane • The area where gas exchange between air and blood occurs • It is the fused alveolar and capillary walls (3 layers) • Squamous type 1 alveolar epithelium • Fused basal laminae • Squamous endothelial cells in pulmonary capillaries

  47. Respiratory Membrane

  48. Lab Exercise 25 Respiratory System Physiology
