This exercise overview details the implementation of lab assignments focused on black-box testing and automation tools in a design automation curriculum. Conducted at the University of Pittsburgh, students utilize Sun Solaris servers and PC-based labs running Windows 2000. Key activities include using Verisity Specman and ModelSim for testing, creating GenBuf rules, and utilizing IBM's RuleBase for educational purposes. The assignments emphasize practical skills like simulator familiarity, effective code writing, and collaborative problem-solving, essential for modern engineering workflows.

tracen
Télécharger la présentation

Lab Exercise Management

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

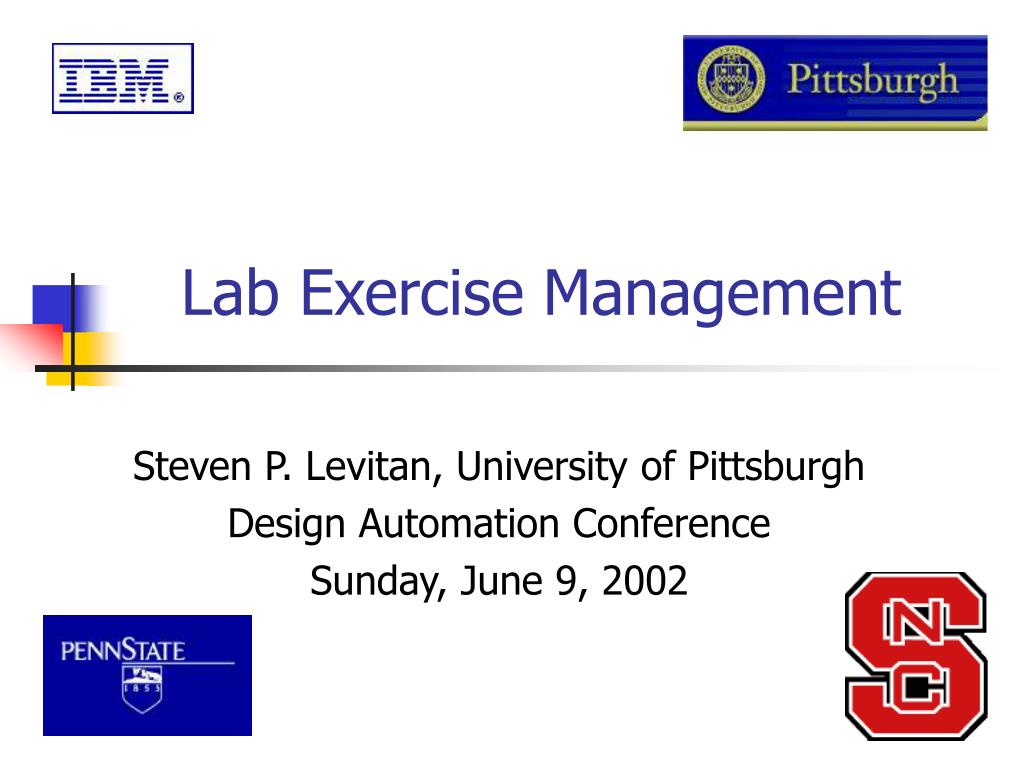

  1. Lab Exercise Management Steven P. Levitan, University of Pittsburgh Design Automation Conference Sunday, June 9, 2002

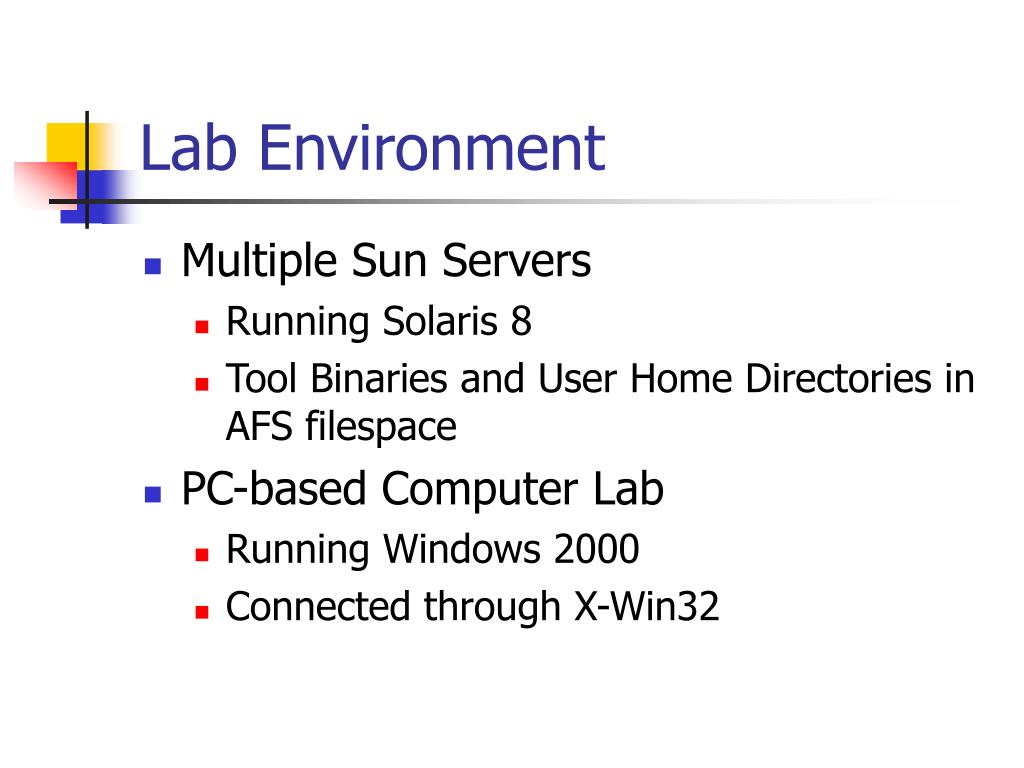

  2. Lab Environment • Multiple Sun Servers • Running Solaris 8 • Tool Binaries and User Home Directories in AFS filespace • PC-based Computer Lab • Running Windows 2000 • Connected through X-Win32

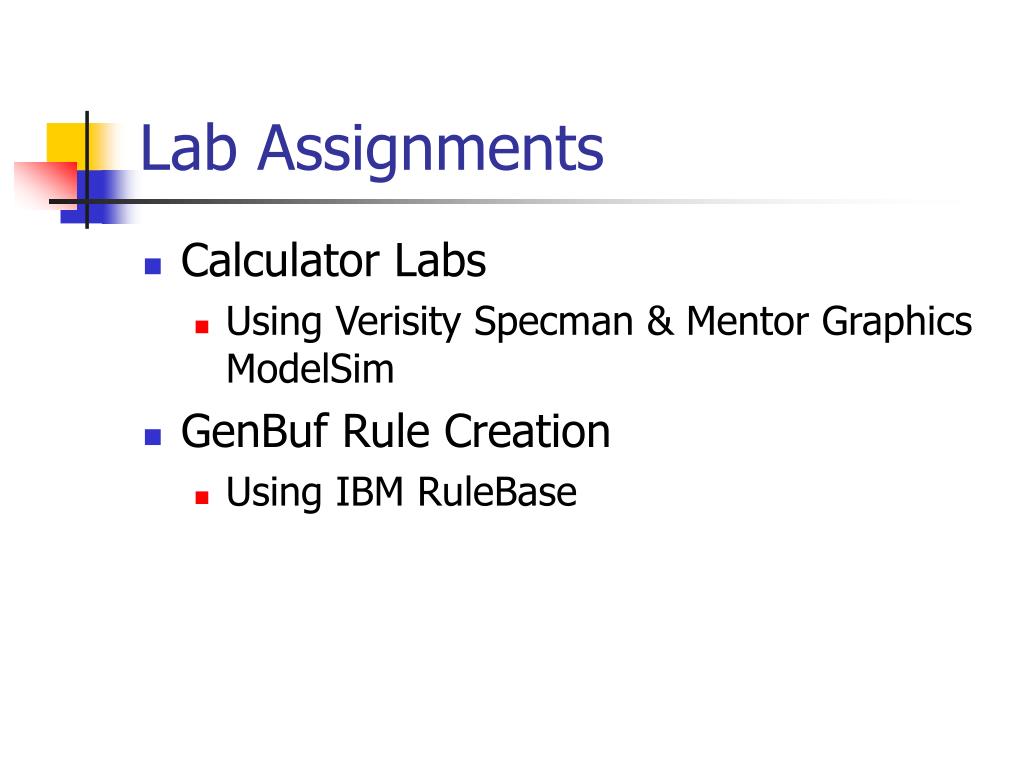

  3. Lab Assignments • Calculator Labs • Using Verisity Specman & Mentor Graphics ModelSim • GenBuf Rule Creation • Using IBM RuleBase

  4. Calculator 1 • Black Box Testing • Removed Internal Signals with compiler flag • Done Using Two methods • By Hand (waveform inspection, .do scripts) • With Specman

  5. Calculator 1 cont’d Dual method reasoning • Students gain: • Familiarity with simulator • Insight on why test automation tools are needed • It also proved useful in learning how to write effective “e” code • Students knew the bugs from the 1st assignment, and could focus on learning how to stress those bugs in a new language

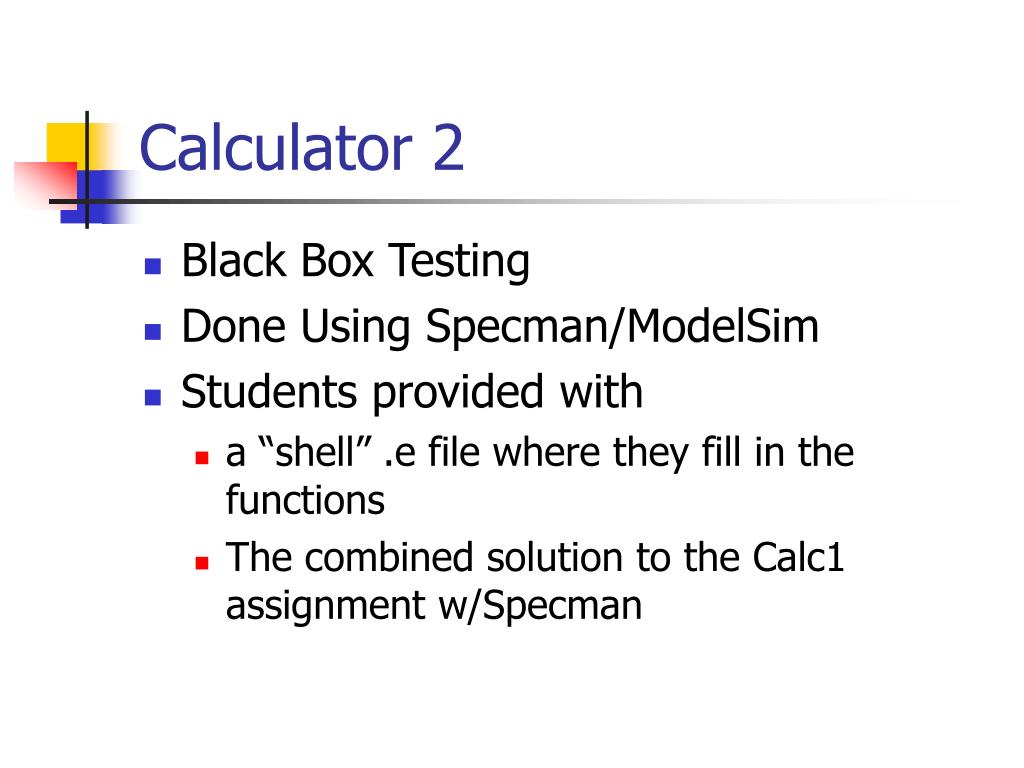

  6. Calculator 2 • Black Box Testing • Done Using Specman/ModelSim • Students provided with • a “shell” .e file where they fill in the functions • The combined solution to the Calc1 assignment w/Specman

  7. Calculator 3 • Black Box Testing • Done Using Specman/ModelSim • Students worked in groups • Previous were individual assignments • Most divided the workload into functional testing areas (arithmetic, memory, concurrency, etc)

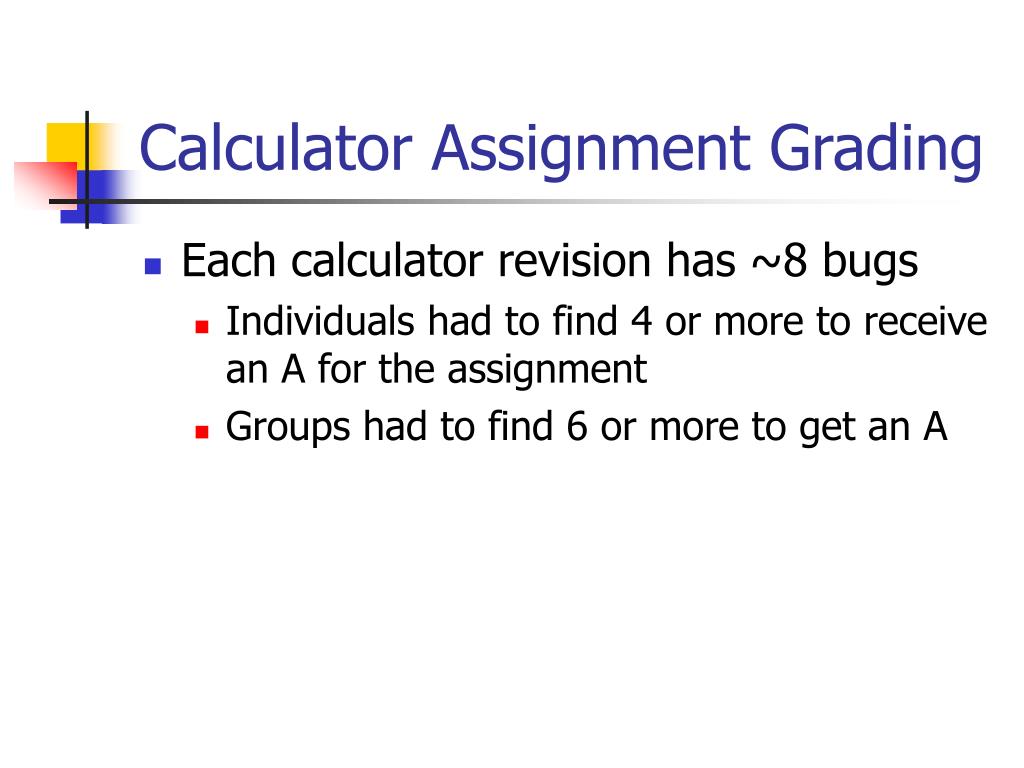

  8. Calculator Assignment Grading • Each calculator revision has ~8 bugs • Individuals had to find 4 or more to receive an A for the assignment • Groups had to find 6 or more to get an A

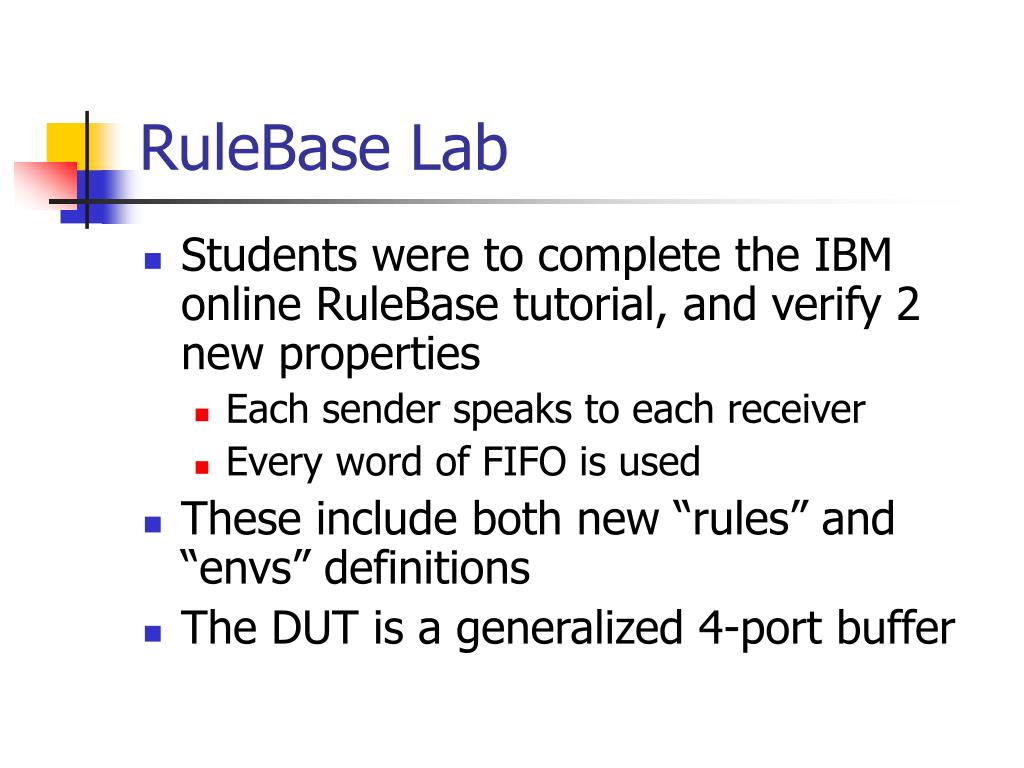

  9. RuleBase Lab • Students were to complete the IBM online RuleBase tutorial, and verify 2 new properties • Each sender speaks to each receiver • Every word of FIFO is used • These include both new “rules” and “envs” definitions • The DUT is a generalized 4-port buffer

  10. Role of the TA • The teaching assistant for the course • Should know the design tool flow used • Instructions already available for NCSim and ModelSim • False Positives often found by students due to incorrect tool setup/initialization • Should Understand the DUT • Specs are ambiguous – there will be questions! • Have Unix experience • Not required, but helpful

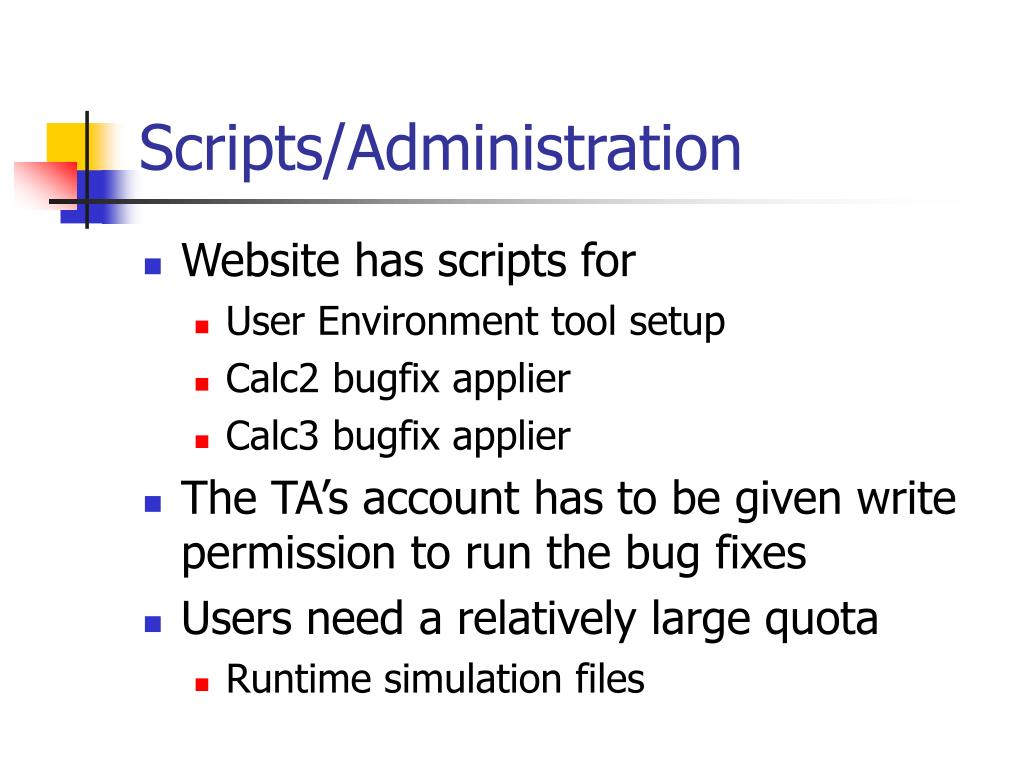

  11. Scripts/Administration • Website has scripts for • User Environment tool setup • Calc2 bugfix applier • Calc3 bugfix applier • The TA’s account has to be given write permission to run the bug fixes • Users need a relatively large quota • Runtime simulation files
