  1. SIMATIC HMI Communications and WinCC flexible

  2. Agenda • HMI Connectivity Demo • Why would I want to show this • Overview of how to show • Where to find more information

  3. Agenda • HMI Connectivity Demo • Why would I want to show this • Overview of how to show • Where to find more information

  4. What is the Demo • The connectivity demo consist of: • MP277 Panel • S7315 PN controller with simulator module • AB PLC (Control or Compact Logix) • SCALANCE switch • WinCC flexible RT application for a laptop • There is also the SIPEC presentation (AUTO3P_Communication_WinCC flexible_Master Presentation.ppt) that can be used in all or part to help explain the communications ability of SIMATIC HMI as well as the differences between Profinet and Ethernet/IP.

  5. Agenda • HMI Connectivity Demo • Why would I want to show this • Overview of how to show • Where to find more information

  6. Why should I show this • This demo shows the SIMATIC HMI talking to both the Rockwell controller on Ethernet/IP and the SIMATIC S7 on Profinet, at the same time. We do talk to AB and S7 over Ethernet at the same time. You can also use this to show the advance features of our HMI such as Sm@rtAccess and Sm@rtService as well as the general HMI demonstration. • This demo is part of a SIPEC Seminar and include a presentation that discusses the benefits of Profinet over Ethernet/IP.

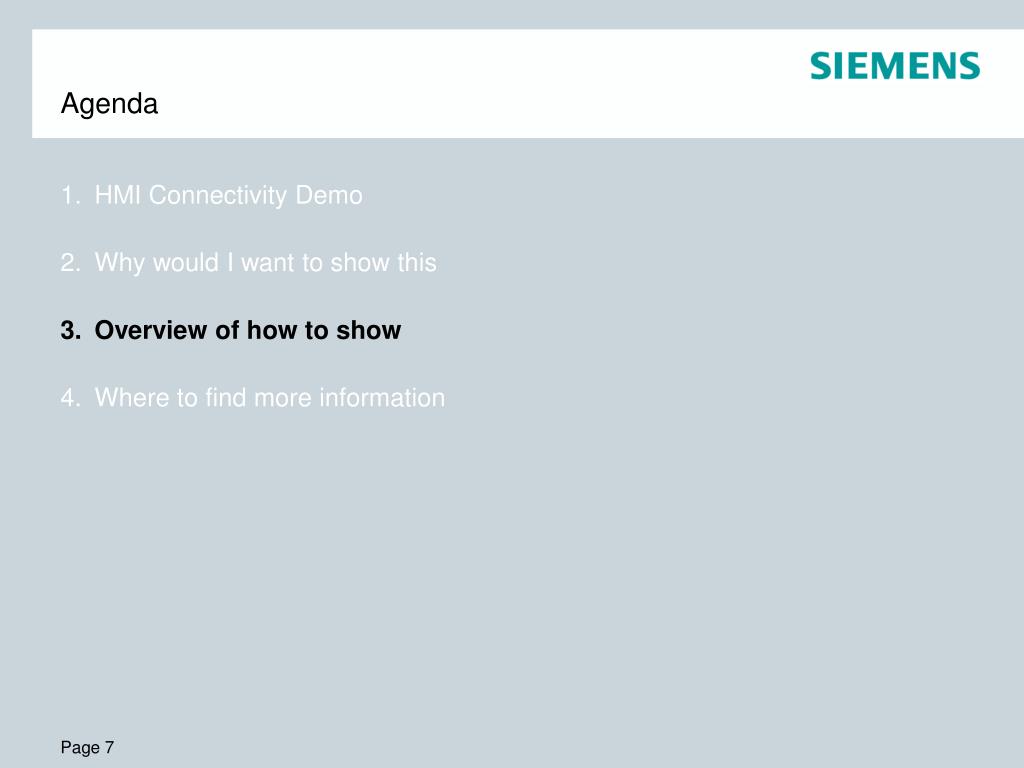

  7. Agenda • HMI Connectivity Demo • Why would I want to show this • Overview of how to show • Where to find more information

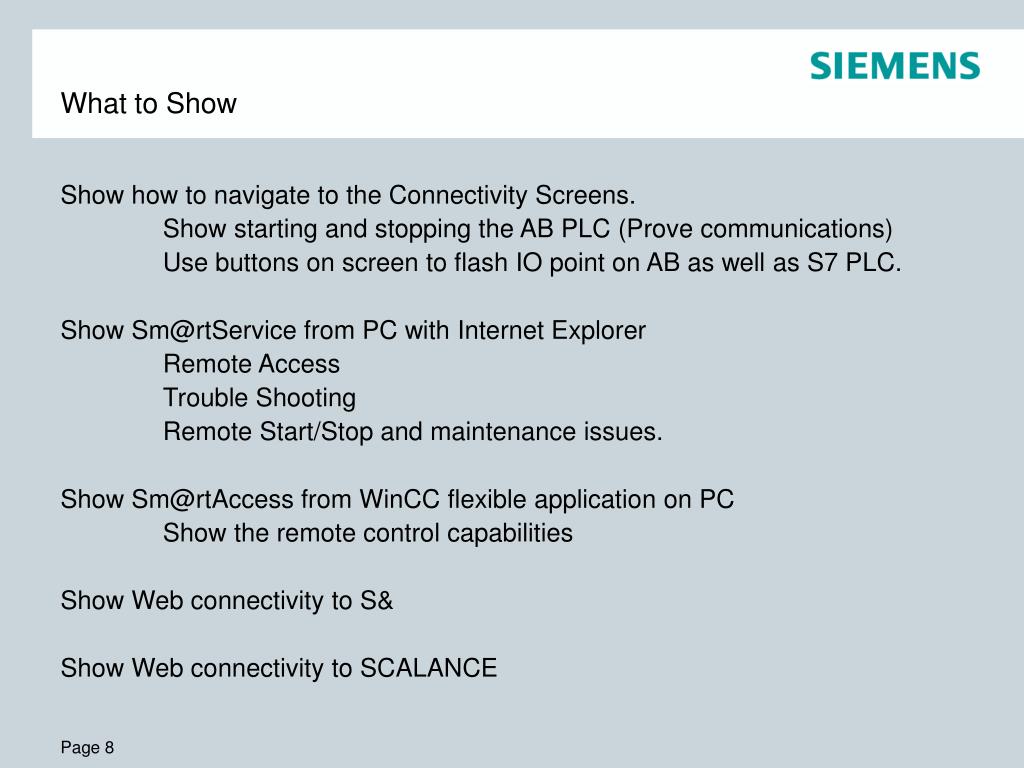

  8. What to Show • Show how to navigate to the Connectivity Screens. • Show starting and stopping the AB PLC (Prove communications) • Use buttons on screen to flash IO point on AB as well as S7 PLC. • Show Sm@rtService from PC with Internet Explorer • Remote Access • Trouble Shooting • Remote Start/Stop and maintenance issues. • Show Sm@rtAccess from WinCC flexible application on PC • Show the remote control capabilities • Show Web connectivity to S& • Show Web connectivity to SCALANCE

  9. Industrial Ethernet Industrial Ethernet Station 1 Station 2 Station 3 Station 4 Sm@rtAccess – Easily Share Data Ease of communication • Enables networking of individual production cells • Flexible machine configurations and reduced load on the field buses through system-wide access to process values • Read/write access to tags of an HMI system

  10. Sm@rtServer Sm@rtClient Sm@rtClient Sm@rtClient Industrial Ethernet SIMATIC WinCC flexible - Share Information With Sm@rtAccess • Distributed operator stations • Coordinated control and monitoring of distributed machines • A configurable object (Sm@rtClient display) shows the screen contents of the respective HMI system (Sm@rtServer) • Only one station at any time possesses control rights • Central changes • Time savings • Reduced load on the field buses

  11. Master Control Station Industrial Ethernet Station 1 Station 2 Station 3 Station 4 SIMATIC WinCC flexible - Share Information Sm@rtAccess • Local control room solutions • Central access to the screens and process values of subordinate stationsE.g. for central archiving, analysis, …

  12. Office area SIMATIC WinCC flexible - Share Information Sm@rtAccess • Connection to the office world • Read/write access by standard applications to the tags of an HMI system for analysis and statistical computations

  13. Automatic generation of e-mails Triggers: Alarms Events based on a value change of a tag Contents: Alarm text with process tags Date/time E-mail address for reply SMTP-Server ISDN/DSLModem/Router InternetServiceProvider WWW, MES;Office area Industrial Ethernet PROFIBUS SIMATIC WinCC flexible - Simplify Support Sm@rtService

  14. Remote control and monitoring of an operator station via theInternet/Intranet or LAN With the Internet Explorer or by means of the Sm@rtClient application Engineering StationPC/PG Industrial Ethernet PROFIBUS SIMATIC WinCC flexible - Simplify Support Sm@rtService

  15. SIMATIC WinCC flexible - Simplify Support Sm@rtService • Remote diagnostics and service via the Internet/Intranet or LAN • A Web server integrated into the operator panel providesstandard HTML pages with the following functions • Remote control • Starting and stopping of the runtime for maintenance purposes • Remote access to recipe data records, password lists and system-specific information • Access to files via theintegrated file browser • Download of configuration data • Standard HTML pagescan be supplemented by your own

  16. SIMATIC WinCC flexible - Simplify Support Sm@rtService • Your benefits: • Global access by service and maintenance personnel tomachines and systems • Increase of productivity through quick elimination ofmalfunctions or downtimes • Avoidance of costly onsite service calls

  17. SIMATIC WinCC flexible - Ready for Validation Secure access control • User administration – protection that meets the requirements of regulated industries • User ID and password (2 component authorization) • Password aging (regular renewal of the passwords) • Blocking of users by the administrator • Automatic logout after prolonged inactivity

  18. SIMATIC WinCC flexible - Ready for Validation WinCC flexible /Audit • Electronic signature and comments • Important process steps can be clearly assigned to an authority/person

  19. SIMATIC WinCC flexible • Diverse connection possibilities • SIMATIC S7 (via PPI, MPI, PROFIBUS, PROFINET) • PLCs of leading manufacturers (native drivers) • Manufacturer-independent communication via OPC(for Multi Panels and PC-based systems) • Multi-protocol operation • Simultaneous communication with different partners MultiPanelas OPC-Server via HTTP to Remote Panel PROFINET PROFIBUS/MPI ControlLogix via Ethernet to PLC S7 S7

  20. Industrial Ethernet Industrial Ethernet Station 1 Station 2 Station 3 Station 4 SIMATIC WinCC flexibleInnovative HMI Concepts Sm@rtAccess • Enables the networking of self-sufficient production cells • Flexible machine configurations and reduced load on the field buses through system-wide access to process values • Read/write access to tags of an HMI system

  21. Sm@rtServer Sm@rtClient Sm@rtClient Sm@rtClient Industrial Ethernet • Central changes • Time savings • Reduced load on the field buses SIMATIC WinCC flexibleInnovative HMI Concepts Sm@rtAccess • Distributed operator stations • Coordinated control and monitoring of distributed machines • A configurable picture object (Sm@rtClient display) shows the screen content of the respective HMI system (Sm@rtServer) • Only one station at any time possesses control rights

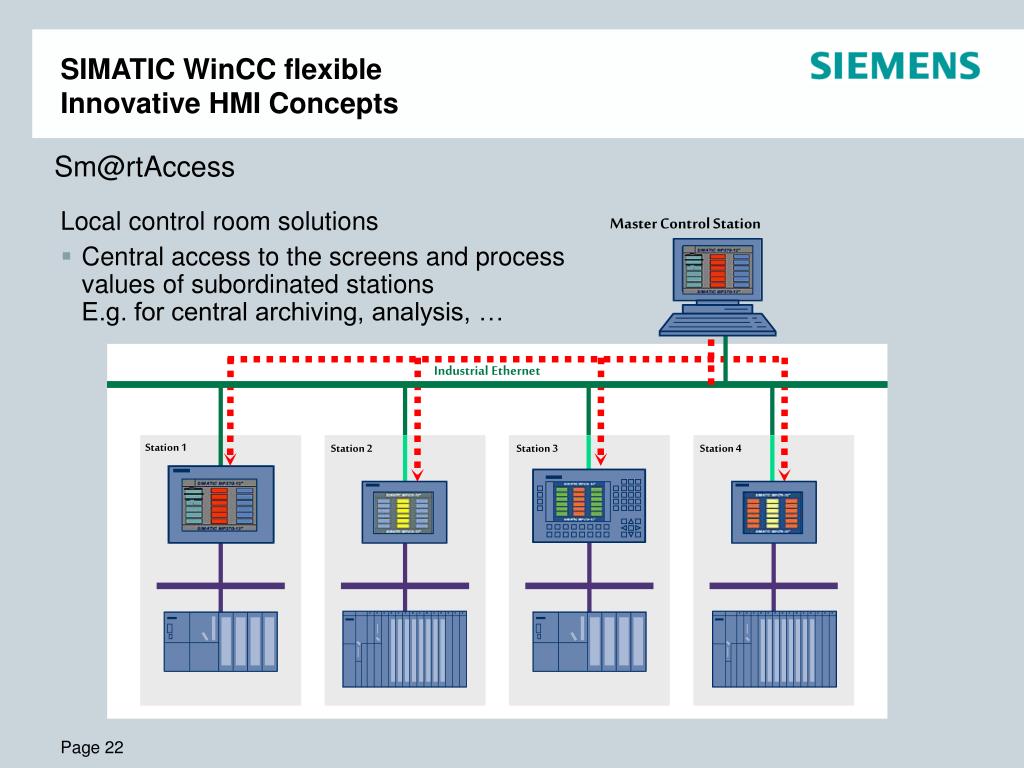

  22. Master Control Station Industrial Ethernet Station 1 Station 2 Station 3 Station 4 SIMATIC WinCC flexibleInnovative HMI Concepts Sm@rtAccess • Local control room solutions • Central access to the screens and process values of subordinated stationsE.g. for central archiving, analysis, …

  23. Automatic generation of e-mails Triggers: Alarm of a certainalarm class Event, e.g. value change of a tag Contents: Alarm text with process tags Date/time E-mail address for reply SMTP-Server ISDN/DSLModem/Router InternetServiceProvider WWW, MES;Office area Industrial Ethernet PROFIBUS SIMATIC WinCC flexibleService & Diagnostics via the Web Sm@rtService

  24. SIMATIC WinCC flexibleService & Diagnostics via the Web Sm@rtService • Remote diagnostics and service via the Internet/Intranet or LAN • A Web server integrated into the operator panel or PC providesstandard HTML pages with the following functions: • Remote control • Starting and stopping of the runtime for maintenance purposes • Remote access to recipe data records, password listsand system-specific information • Access to files via theintegrated file browser • Download of configuration data • Standard HTML pagescan be supplemented by your own

  25. Agenda • HMI Connectivity Demo • Why would I want to show this • Overview of how to show • Where to find more information

  26. Where do I get more information • SIPEC Seminar AUTO3P_Communication_WinCC flexible_Master Presentation • WinCC flexible Brochure • HMI Panel Brochure • Don’t forget about WinCC for the larger applications

  27. SIMATIC HMI SIMATIC WinCC flexible Thank You
