  1. High Performance Camera HCB-P570

  2. PVA – Zone Tracking – Pre/Post Event • Configuration • Detect motion event & area out action

  3. PVA – Zone Tracking – Route Control • Configuration • Area Number 1 : Polygon Area • Detect Motion • Detect Area-Out Action • Area Number 0 : Line • Detect Motion • Detect Pass the line CW dir. • Combo Zone • Detect Moving Area 0 -> Area 1

  4. PVA – Zone Tracking – Object Tracking • Configuration • Enabled D-PTZ for Moving Object Watching. • Area Number 1 : Polygon Area • Detect Motion • Detect Area-Out Action • Area Number 0 : Line • Detect Motion • Detect Pass the line CW dir. • Combo Zone • Detect Moving Area 0 -> Area 1

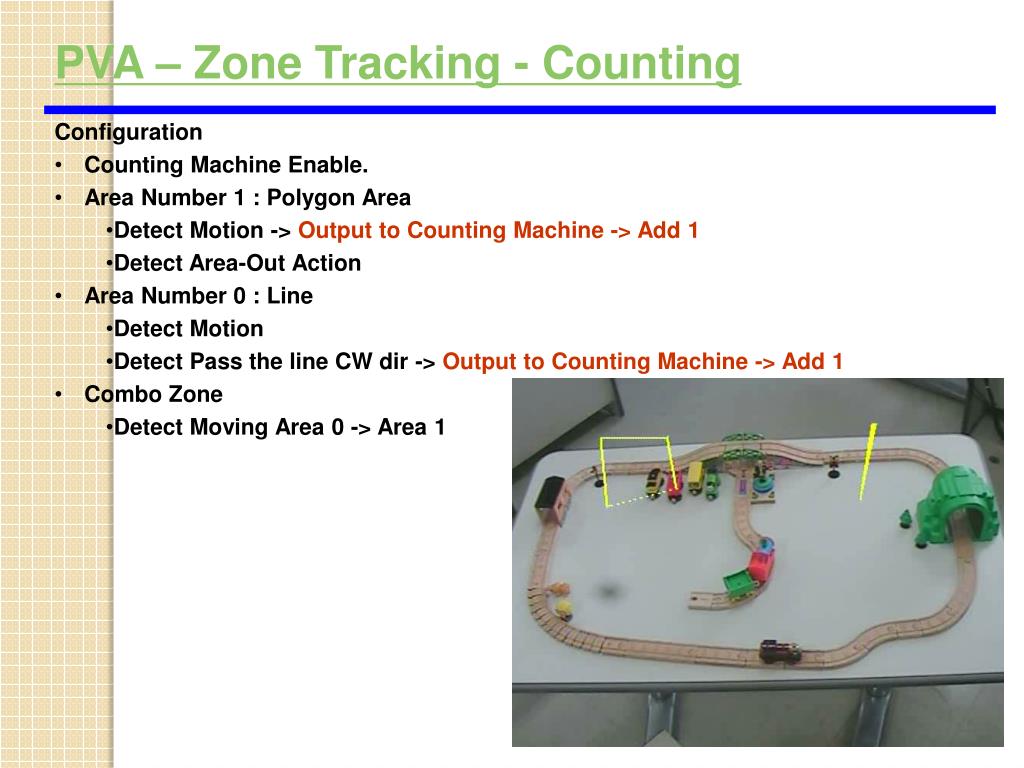

  5. PVA – Zone Tracking - Counting • Configuration • Counting Machine Enable. • Area Number 1 : Polygon Area • Detect Motion -> Output to Counting Machine -> Add 1 • Detect Area-Out Action • Area Number 0 : Line • Detect Motion • Detect Pass the line CW dir -> Output to Counting Machine -> Add 1 • Combo Zone • Detect Moving Area 0 -> Area 1

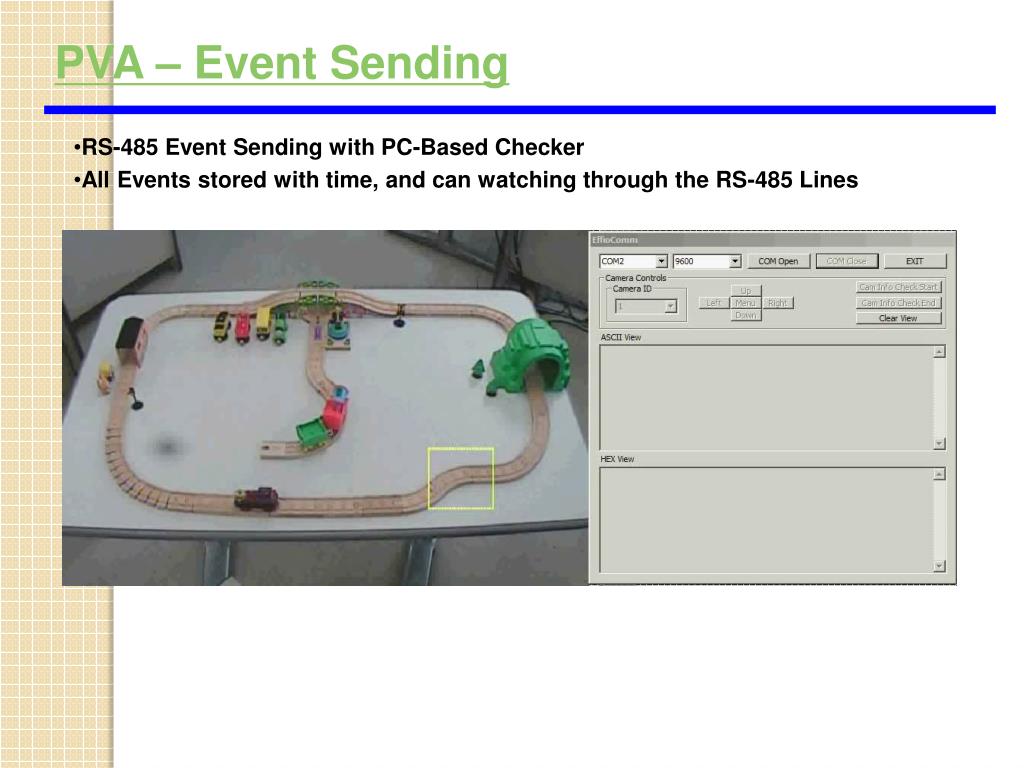

  6. PVA – Event Sending • RS-485 Event Sending with PC-Based Checker • All Events stored with time, and can watching through the RS-485 Lines

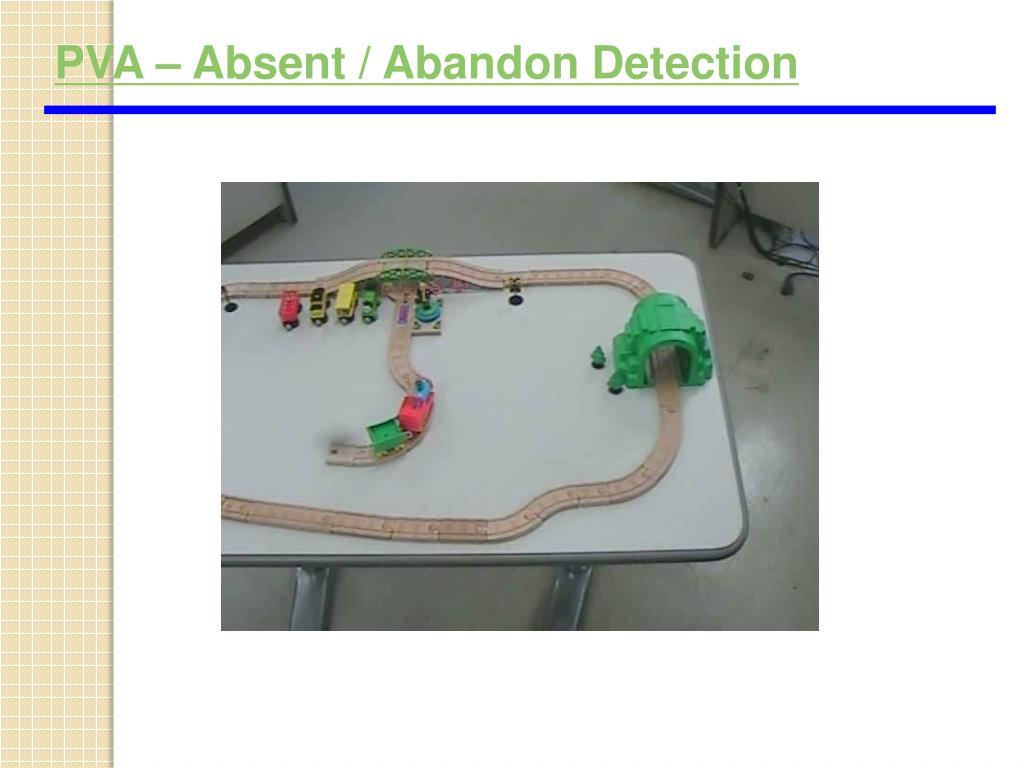

  7. PVA – Absent / Abandon Detection

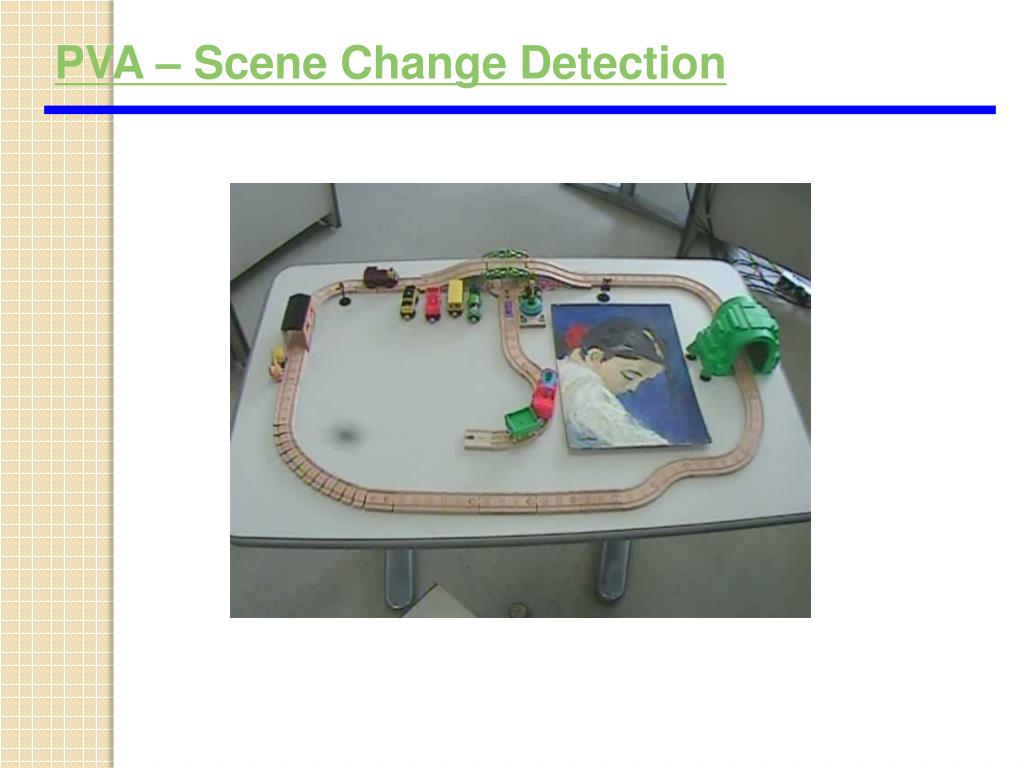

  8. PVA – Scene Change Detection

  9. PVA – Unfocus Detection

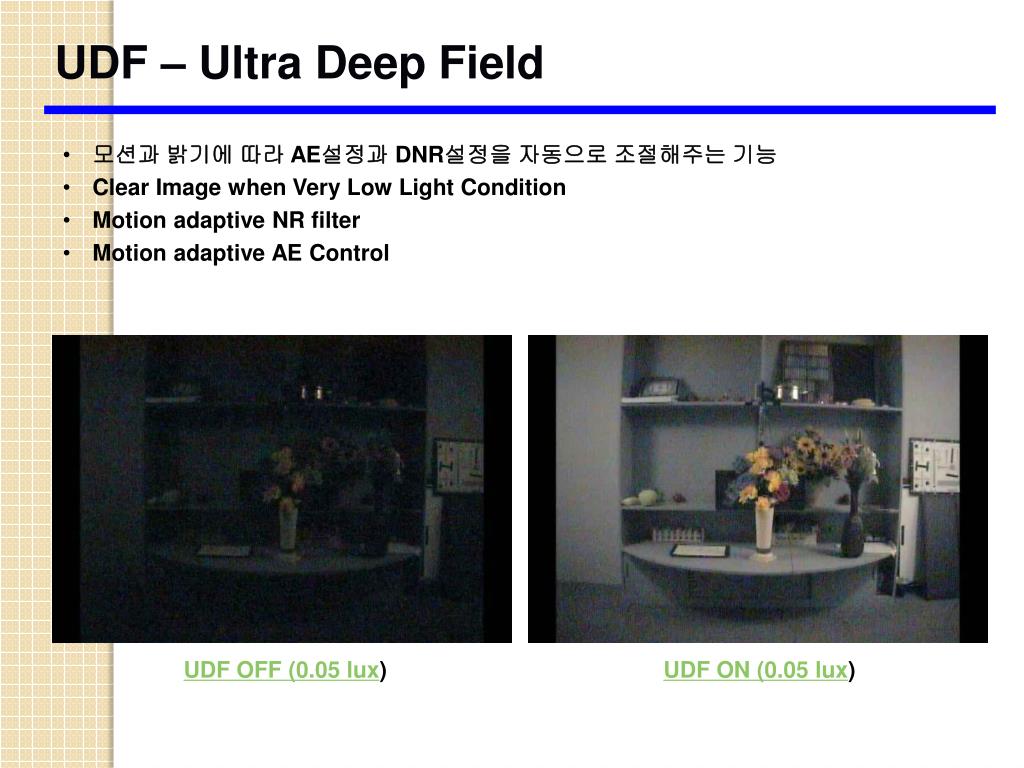

  10. UDF – Ultra Deep Field • 모션과 밝기에 따라 AE설정과 DNR설정을 자동으로 조절해주는 기능 • Clear Image when Very Low Light Condition • Motion adaptive NR filter • Motion adaptive AE Control UDF OFF (0.05 lux) UDF ON (0.05 lux)

  11. EHLC

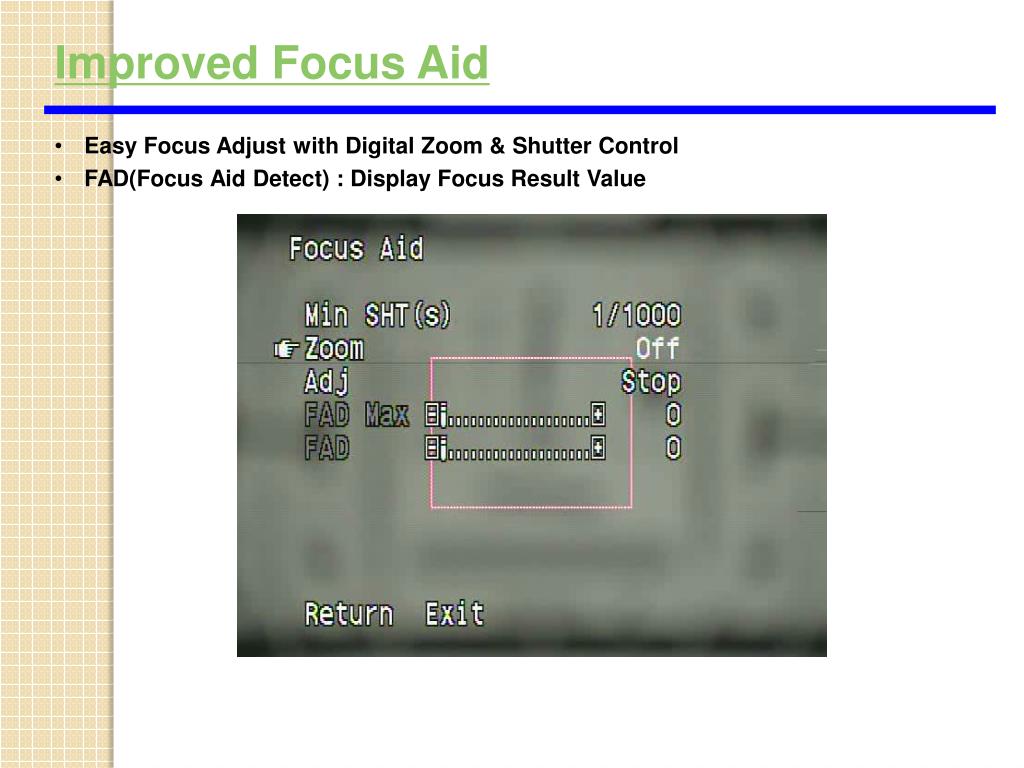

  12. Improved Focus Aid • Easy Focus Adjust with Digital Zoom & Shutter Control • FAD(Focus Aid Detect) : Display Focus Result Value

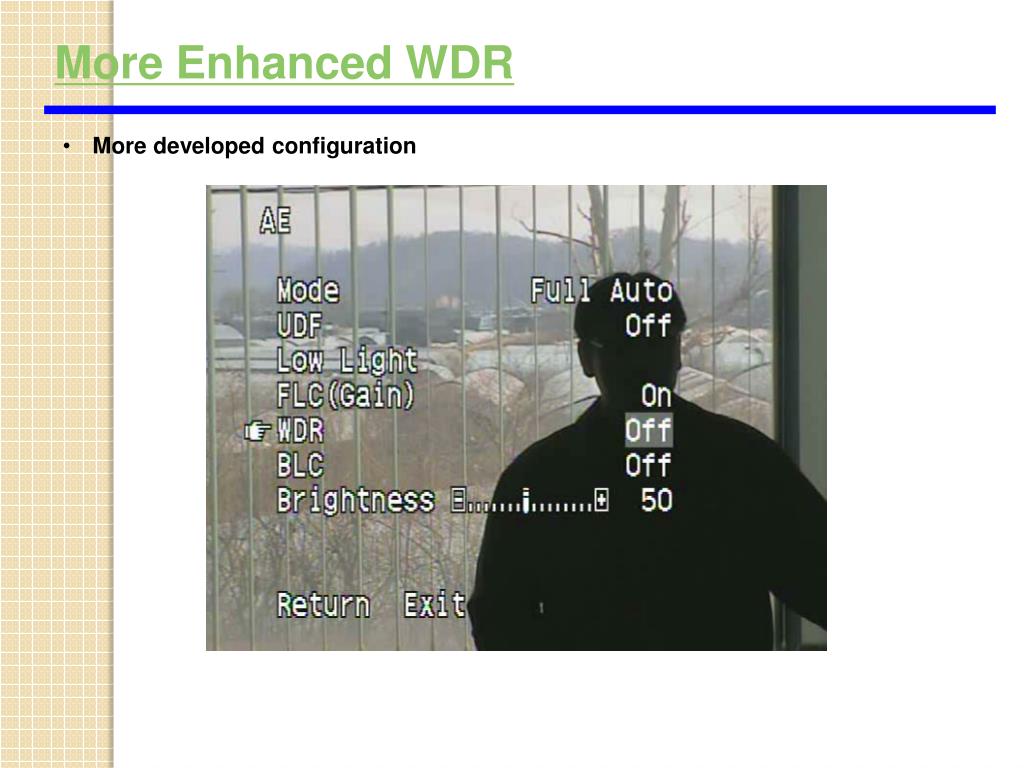

  13. More Enhanced WDR • More developed configuration

  14. IR Demo IR-ON / WDR OFF IR-ON / WDR ON
