Pythagorean Theorem and Rectangular Prisms

raven-thomas avatar
raven-thomas
10 diapositives · 258 Views · Nov 20, 2014

Learn how to solve real-world and mathematical problems using the Pythagorean Theorem to find diagonals in rectangular prisms. This lesson includes practical examples, such as determining the longest pencil that can fit in a shoebox and calculating the distance a fly travels in a classroom. Discover the utility of the Pythagorean Theorem in three-dimensional contexts and practice finding the diagonal lengths using given dimensions. Engage with hands-on exercises to solidify your understanding of this essential math concept.

Pythagorean Theorem and Rectangular Prisms - slide 1
01 / 10Pythagorean Theorem and Rectangular Prisms
1 / 17

Télécharger la présentation

Pythagorean Theorem and Rectangular Prisms
Une image / un lien ci-dessous est fourni (tel quel) pour télécharger la présentation

Politique de téléchargement : le contenu du site vous est fourni TEL QUEL pour votre information et votre usage personnel ; il ne peut être vendu, concédé sous licence ni partagé sur d’autres sites sans l’accord de son auteur.Le contenu vous est fourni TEL QUEL, pour votre information et votre usage personnel uniquement. Téléchargez la présentation en cliquant sur ce lien. Lors du téléchargement, si vous ne parvenez pas à télécharger une présentation, l’éditeur a peut-être supprimé le fichier de son serveur.Pendant le téléchargement, si vous ne parvenez pas à obtenir une présentation, le fichier a peut-être été supprimé par l’éditeur.

F I N

Plus de contenu associé

Transcription de la présentation

  1. Pythagorean Theorem and Rectangular Prisms

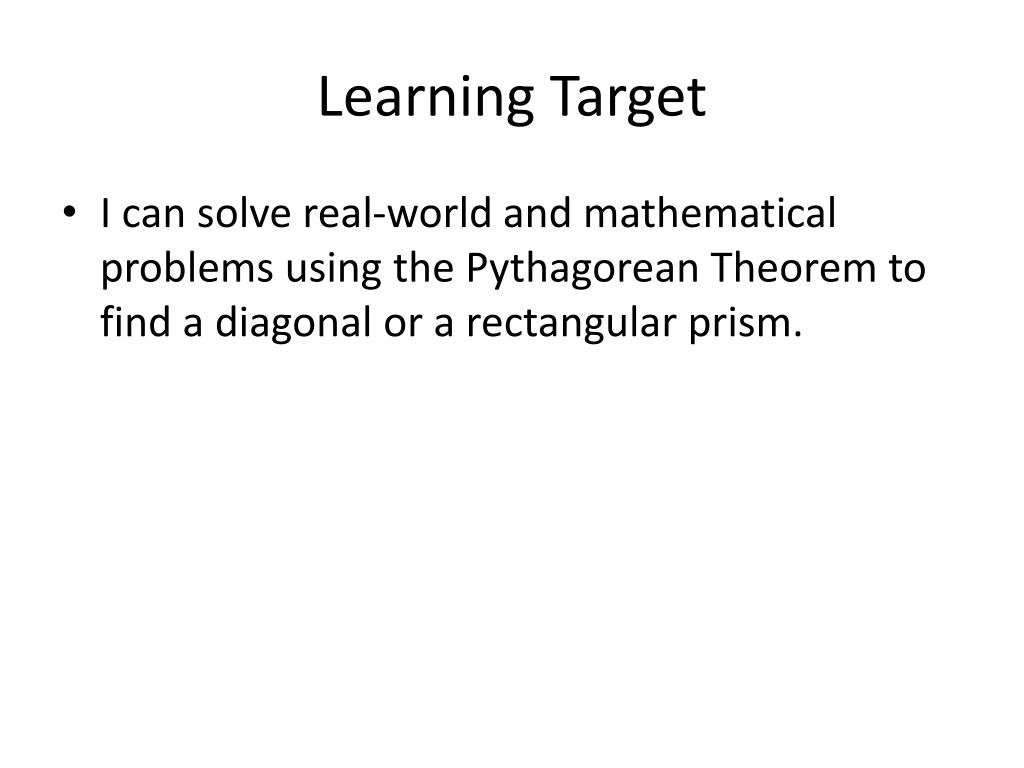

  2. Learning Target • I can solve real-world and mathematical problems using the Pythagorean Theorem to find a diagonal or a rectangular prism.

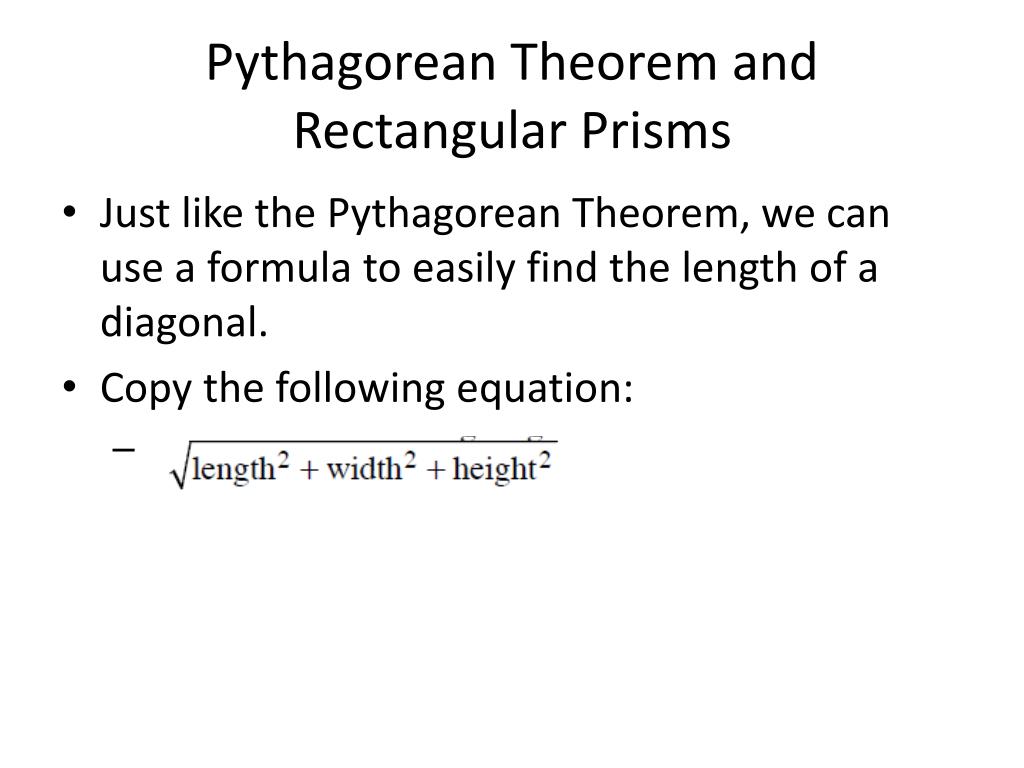

  3. Pythagorean Theorem and Rectangular Prisms • Just like the Pythagorean Theorem, we can use a formula to easily find the length of a diagonal. • Copy the following equation:

  4. Pythagorean Theorem and Rectangular Prisms • A child’s shoe box measures 4” x 6” x 3”. What is the longest pencil you could fit into this box? If possible, draw a diagram to show the pencil’s position. • L = 4 W = 6 H = 3 • 42 + 62 + 32 • 16 + 36 + 9 • 61 • = 7.8” 61

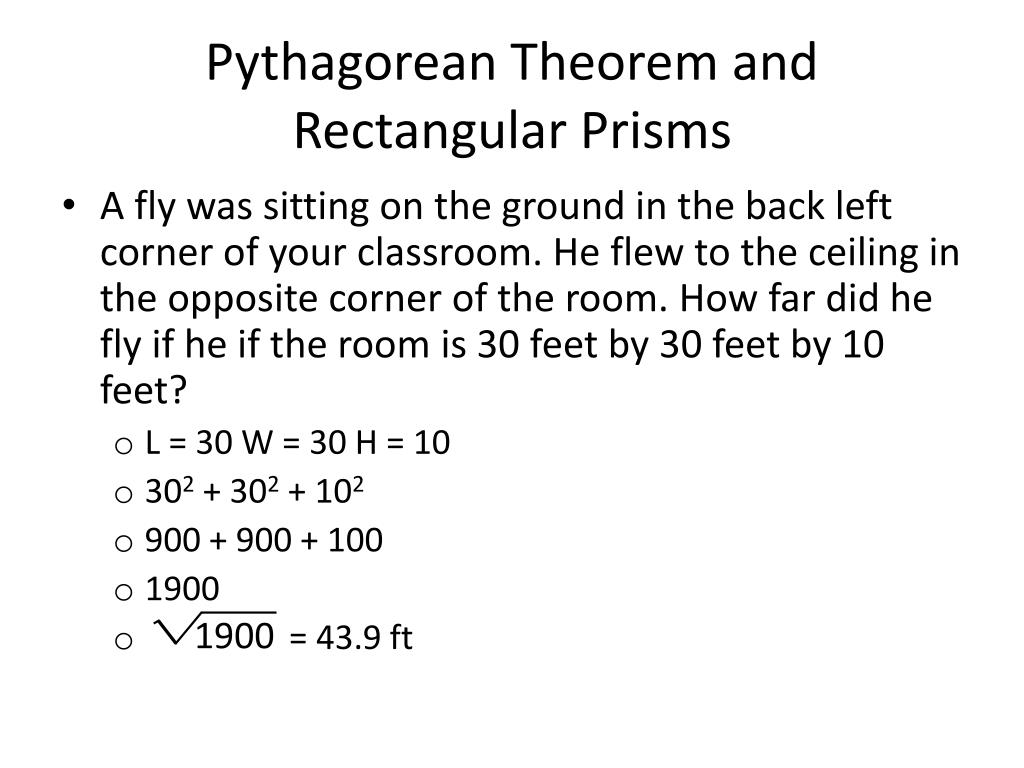

  5. Pythagorean Theorem and Rectangular Prisms • A fly was sitting on the ground in the back left corner of your classroom. He flew to the ceiling in the opposite corner of the room. How far did he fly if he if the room is 30 feet by 30 feet by 10 feet? • L = 30 W = 30 H = 10 • 302+ 302+ 102 • 900 + 900 + 100 • 1900 • = 43.9 ft 1900

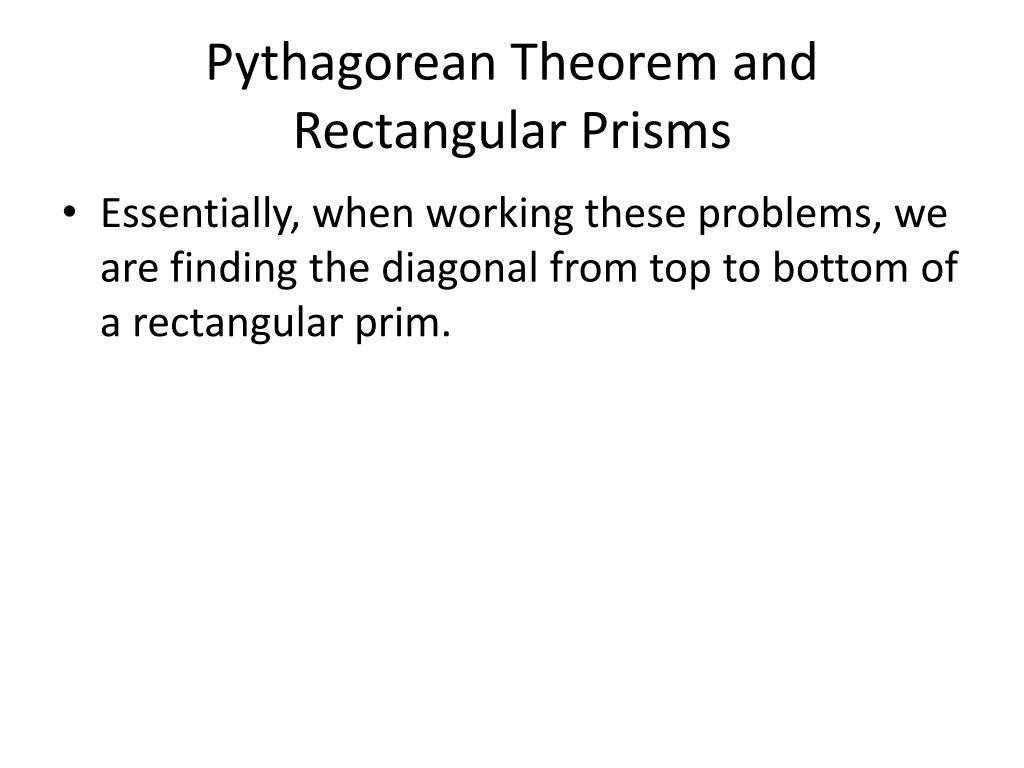

  6. Pythagorean Theorem and Rectangular Prisms • Essentially, when working these problems, we are finding the diagonal from top to bottom of a rectangular prim.

  7. Pythagorean Theorem and Rectangular Prisms • Find the diagonal from top to bottom for a rectangular prism with a length of 7 m, a width of 9 m and a height of 6 m. • 72+ 92+ 62 • 49 + 81 + 36 • 166 • = 12.9 m 166

  8. Pythagorean Theorem and Rectangular Prisms • Find the diagonal from top to bottom for a rectangular prism with a length of 12 in, a width of 9 in and a height of 8 in. • 122+ 92+ 82 • 144 + 81 + 64 • 289 • = 17 in 289

  9. Pythagorean Theorem and Rectangular Prisms • With your team, find the diagonal from top to bottom for the following rectangular prisms • L = 24 cm, W = 10 cm, H = 8 cm • 242+ 102+ 82 • 576 + 100 + 64 • 740 • = 27.2 cm 740

  10. Pythagorean Theorem and Rectangular Prisms • With your team, find the diagonal from top to bottom for the following rectangular prisms • L = 10 in, W = 10 in, H = 10 in • 102+ 102+ 102 • 100 + 100 + 100 • 300 • = 17.3 in 300
