Richard Baraniuk, Volkan Cevher Rice University Ron DeVore Texas A&M University Martin Wainwright

1. New Theory and Algorithms for ScalableData Fusion Richard Baraniuk, Volkan Cevher Rice University Ron DeVore Texas A&M University Martin Wainwright University of California-Berkeley Michael Wakin Colorado School of Mines

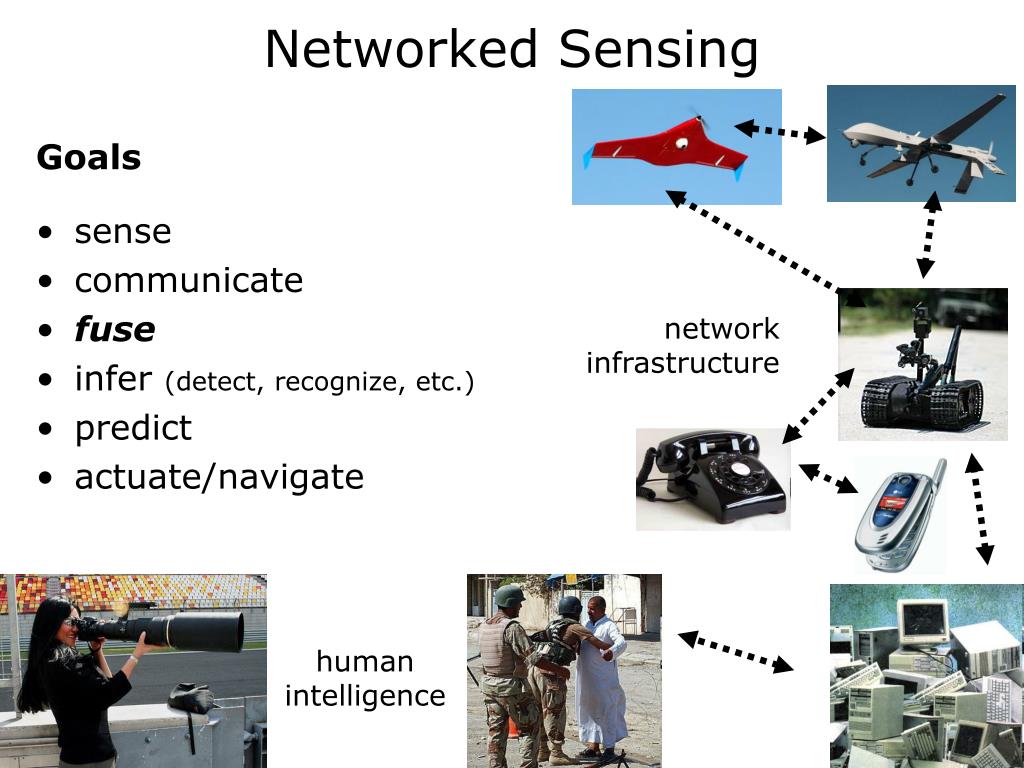

2. Networked Sensing Goals • sense • communicate • fuse • infer (detect, recognize, etc.) • predict • actuate/navigate networkinfrastructure humanintelligence

3. Networked Sensing Challenges • growing volumes of sensor data • increasingly diverse data • diverse and changing operating conditions • increasing mobility networkinfrastructure humanintelligence

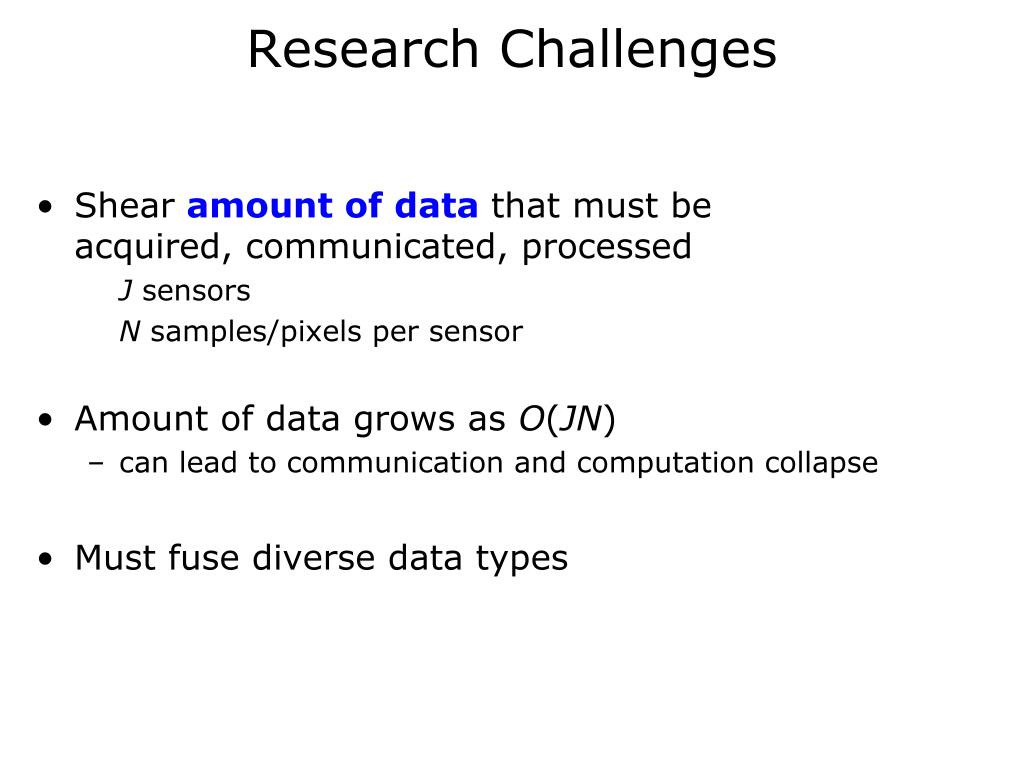

4. Research Challenges • Shear amount of data that must be acquired, communicated, processed J sensors N samples/pixels per sensor • Amount of data grows as O(JN) • can lead to communication and computation collapse • Must fuse diverse data types

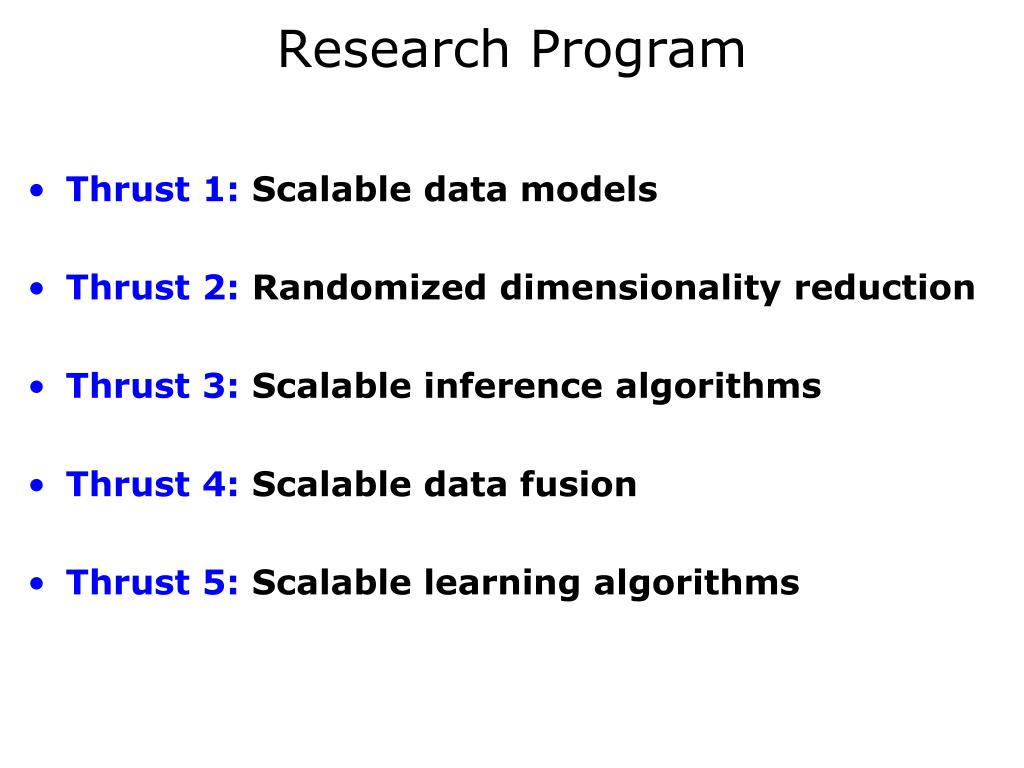

5. Research Program • Thrust 1: Scalable data models • Thrust 2: Randomized dimensionality reduction • Thrust 3: Scalable inference algorithms • Thrust 4: Scalable data fusion • Thrust 5: Scalable learning algorithms

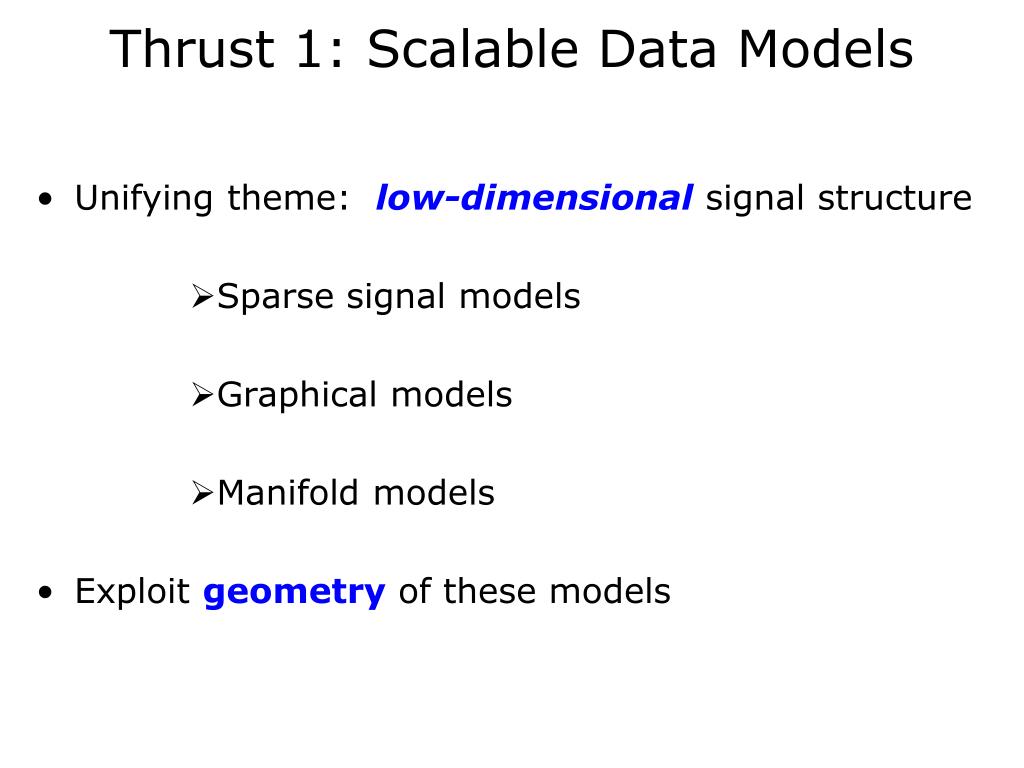

6. Thrust 1: Scalable Data Models • Unifying theme: low-dimensional signal structure • Sparse signal models • Graphical models • Manifold models • Exploit geometry of these models

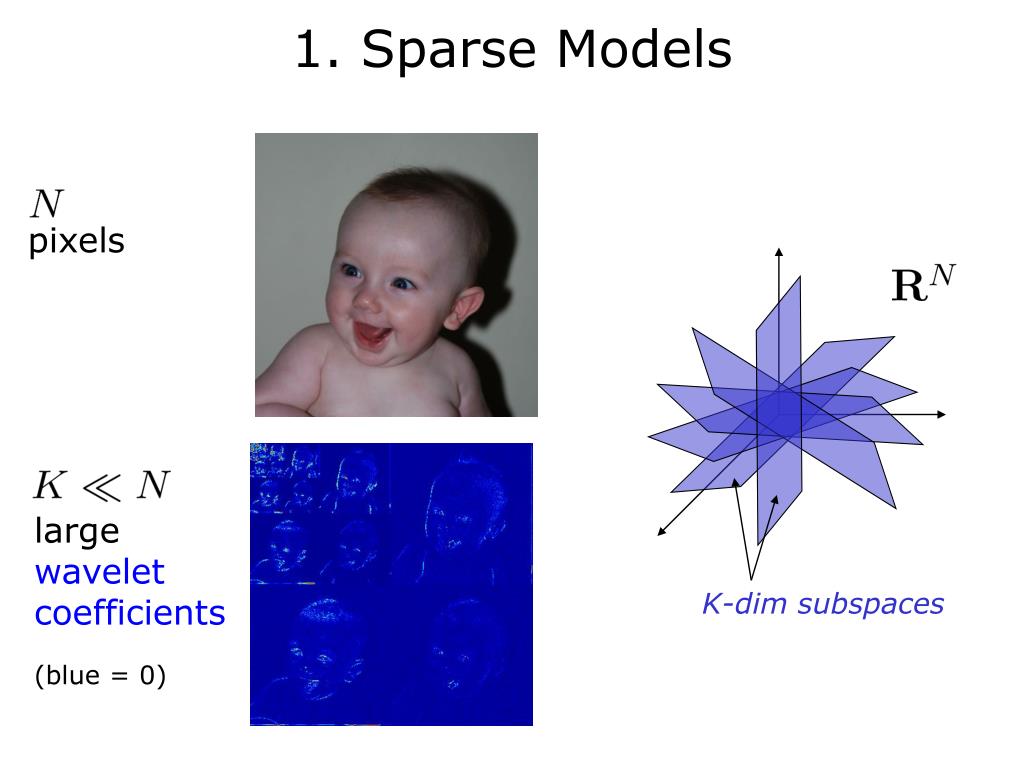

7. 1. Sparse Models pixels largewaveletcoefficients (blue = 0) K-dim subspaces

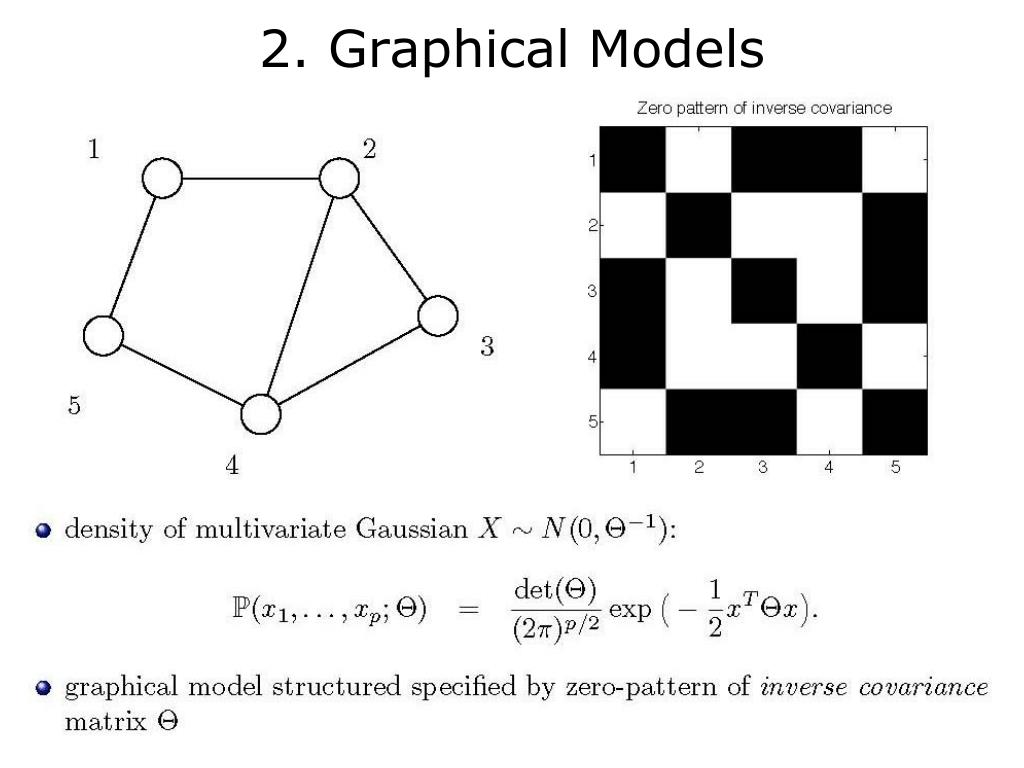

8. 2. Graphical Models

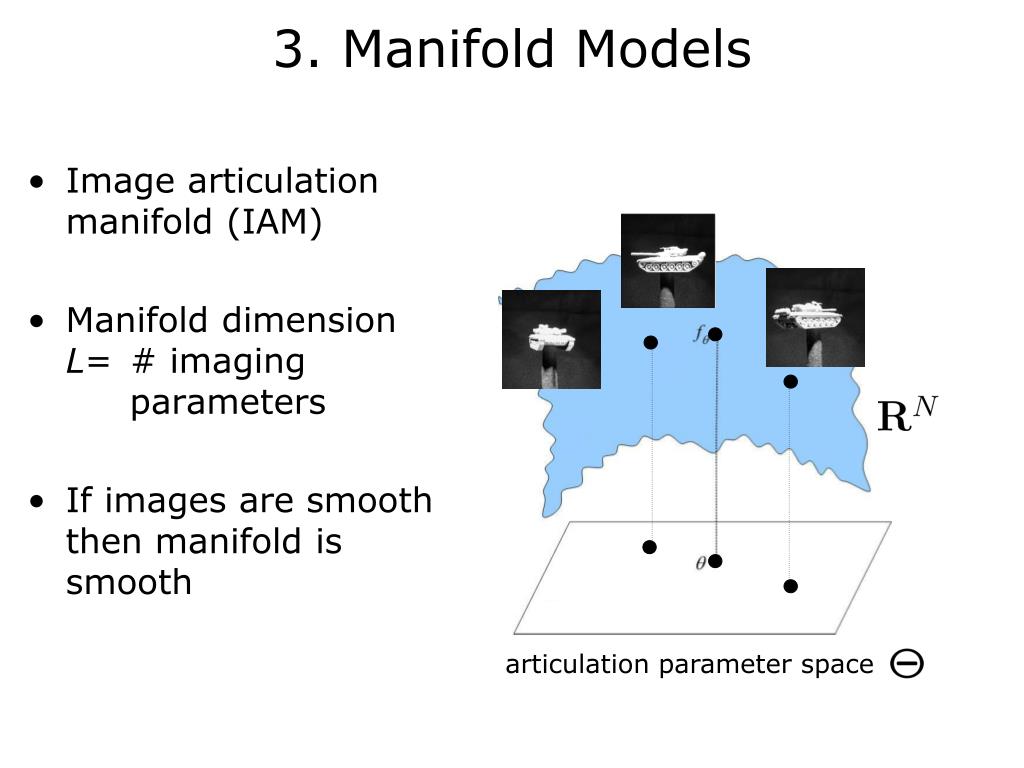

9. 3. Manifold Models • Image articulation manifold (IAM) • Manifold dimensionL= # imaging parameters • If images are smooththen manifold is smooth articulation parameter space

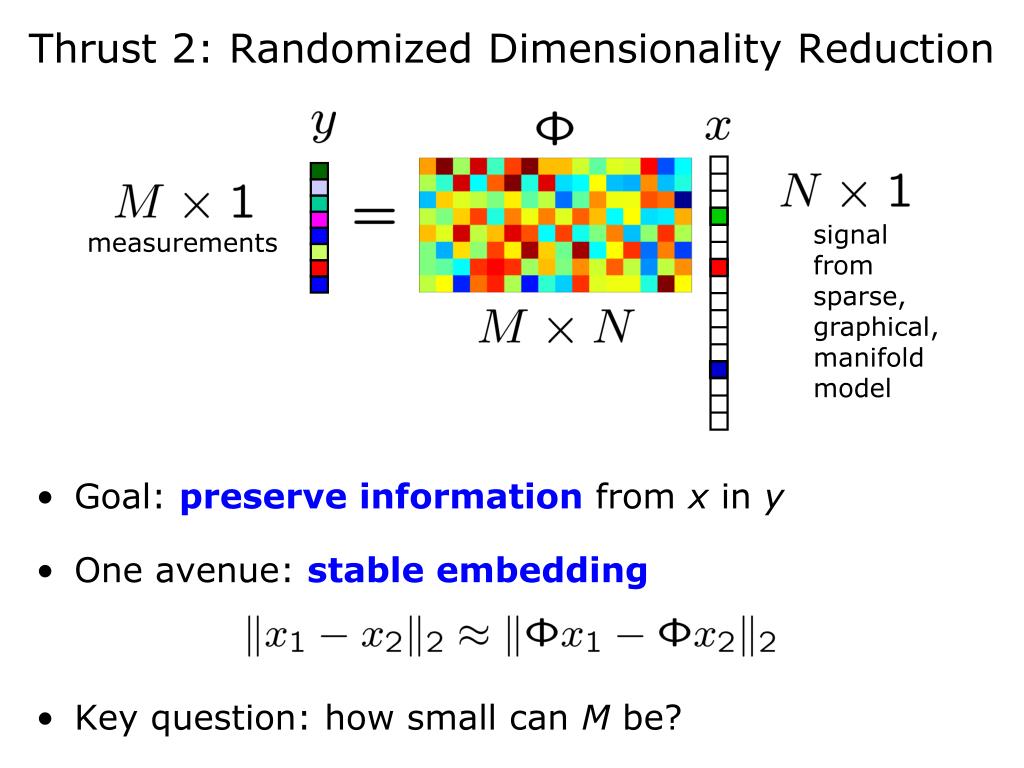

10. Thrust 2: Randomized Dimensionality Reduction • Goal: preserve information from x in y • One avenue: stable embedding • Key question: how small can M be? signalfromsparse,graphical,manifoldmodel measurements

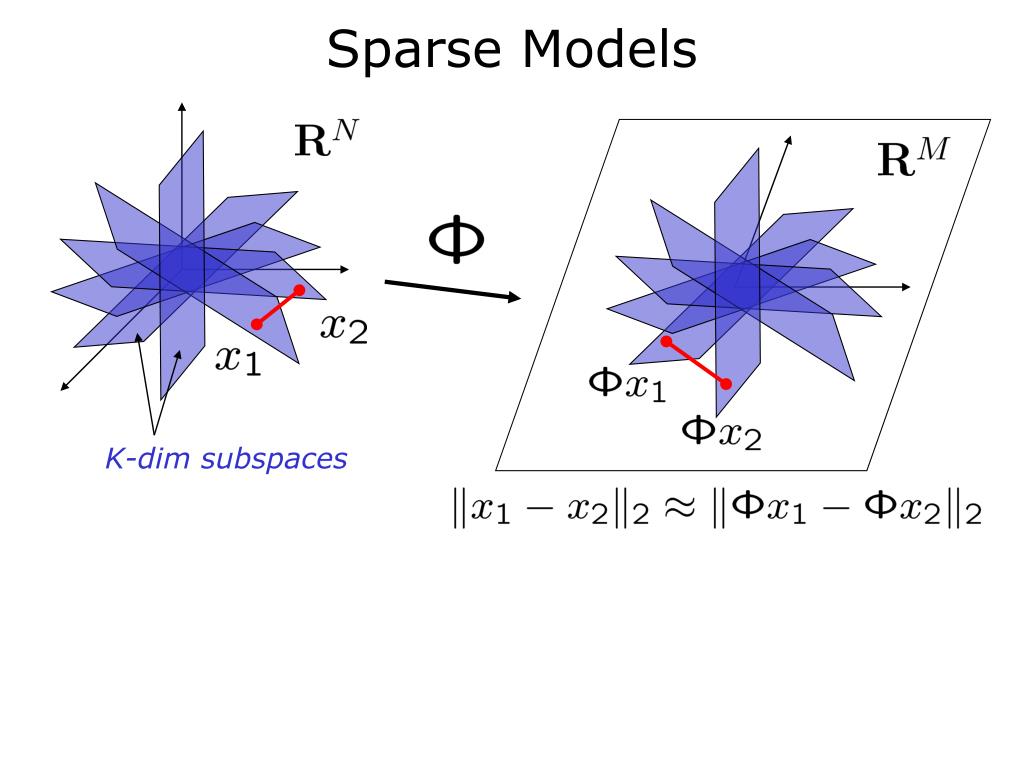

11. Sparse Models K-dim subspaces

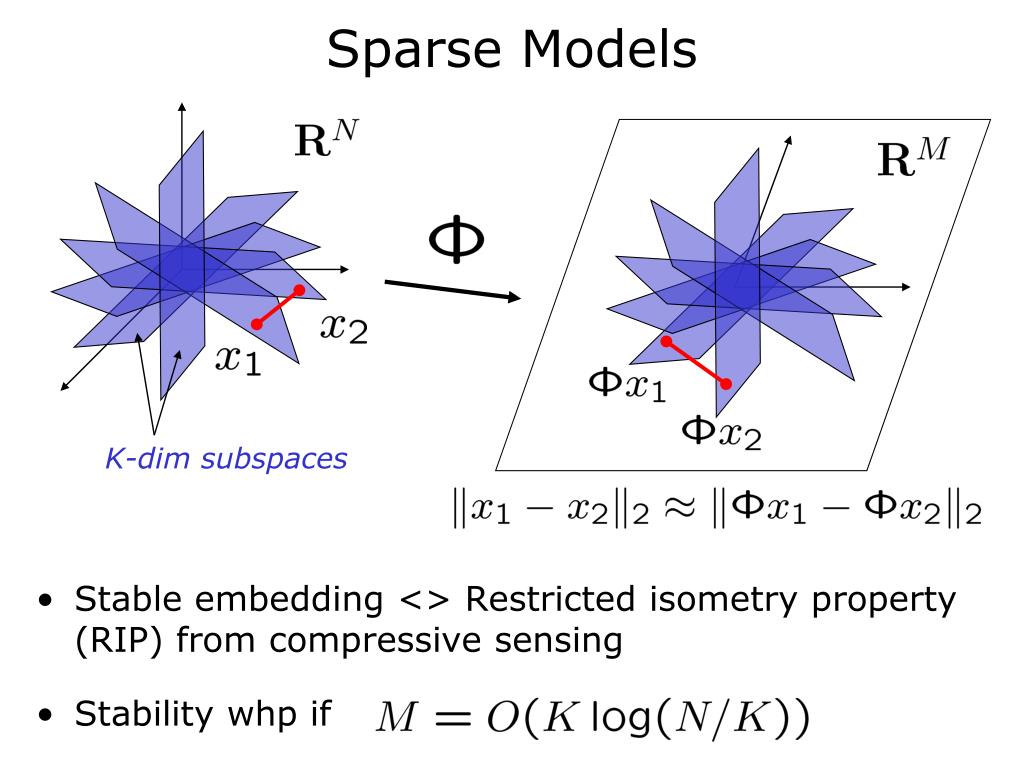

12. Sparse Models K-dim subspaces • Stable embedding <> Restricted isometry property (RIP) from compressive sensing • Stability whp if

13. Single-Pixel Camera M randomizedmeasurements N mirrors target N=65536 pixels M=1300 measurements (2%) M=11000 measurements (16%)

14. Graphical Models K-dim subspaces • Example: K-sparse signals

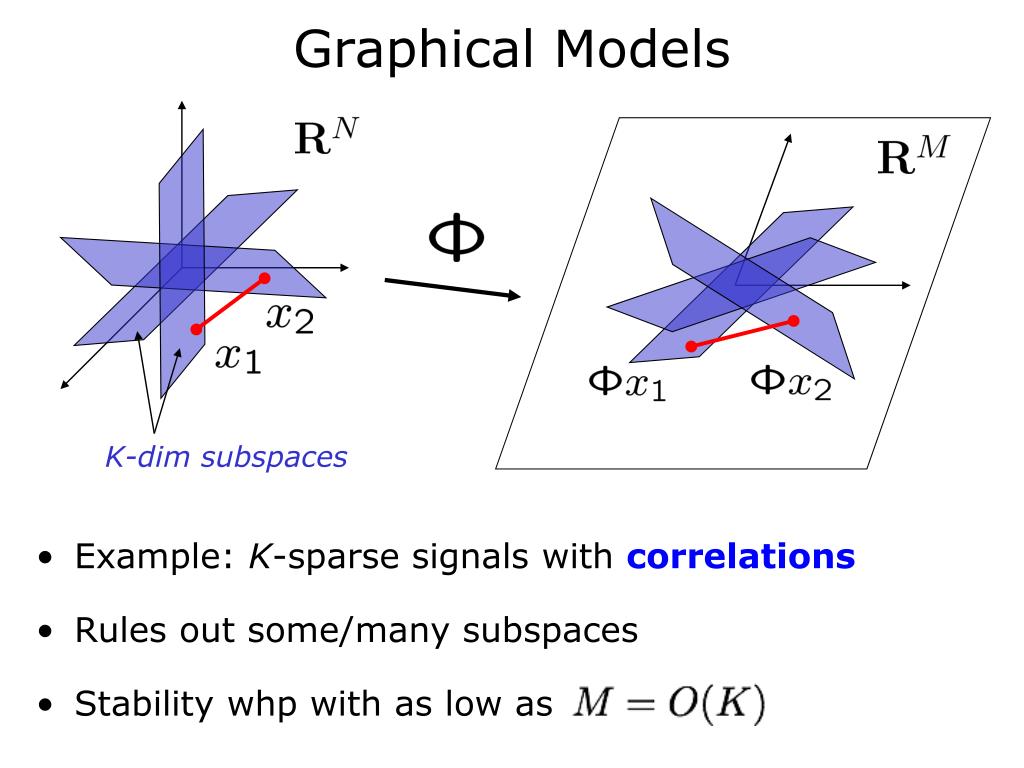

15. Graphical Models • Example: K-sparse signals with correlations • Rules out some/many subspaces • Stability whp with as low as K-dim subspaces

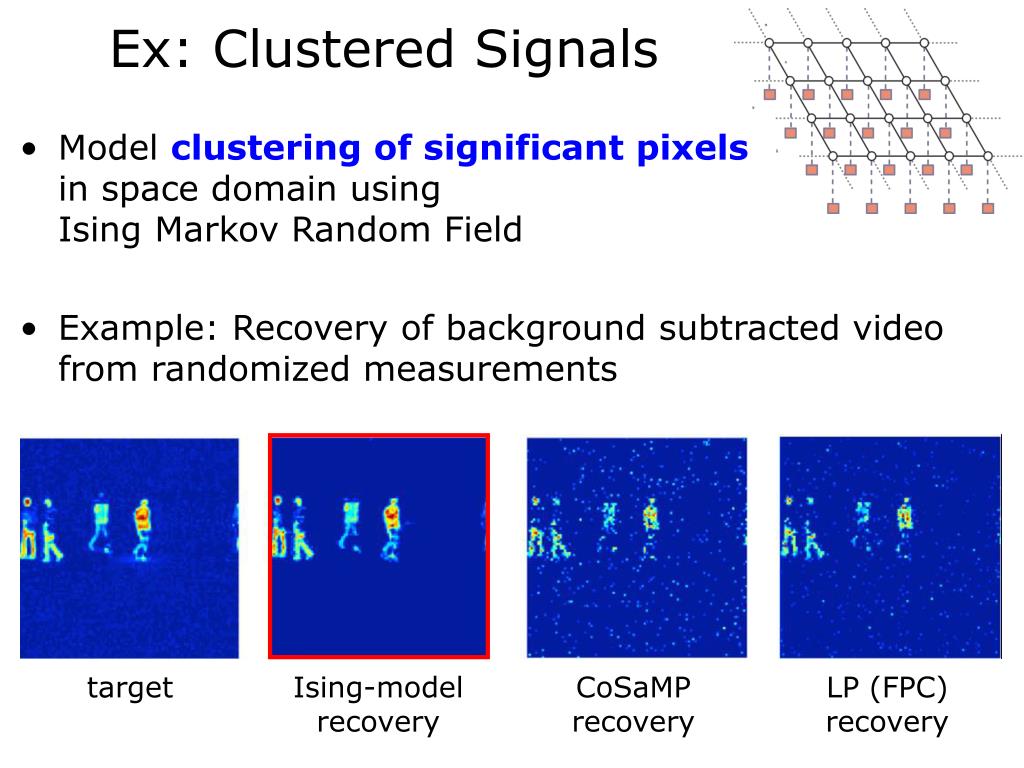

16. Ex: Clustered Signals • Model clustering of significant pixelsin space domain using Ising Markov Random Field • Example: Recovery of background subtracted video from randomized measurements target Ising-modelrecovery CoSaMPrecovery LP (FPC)recovery

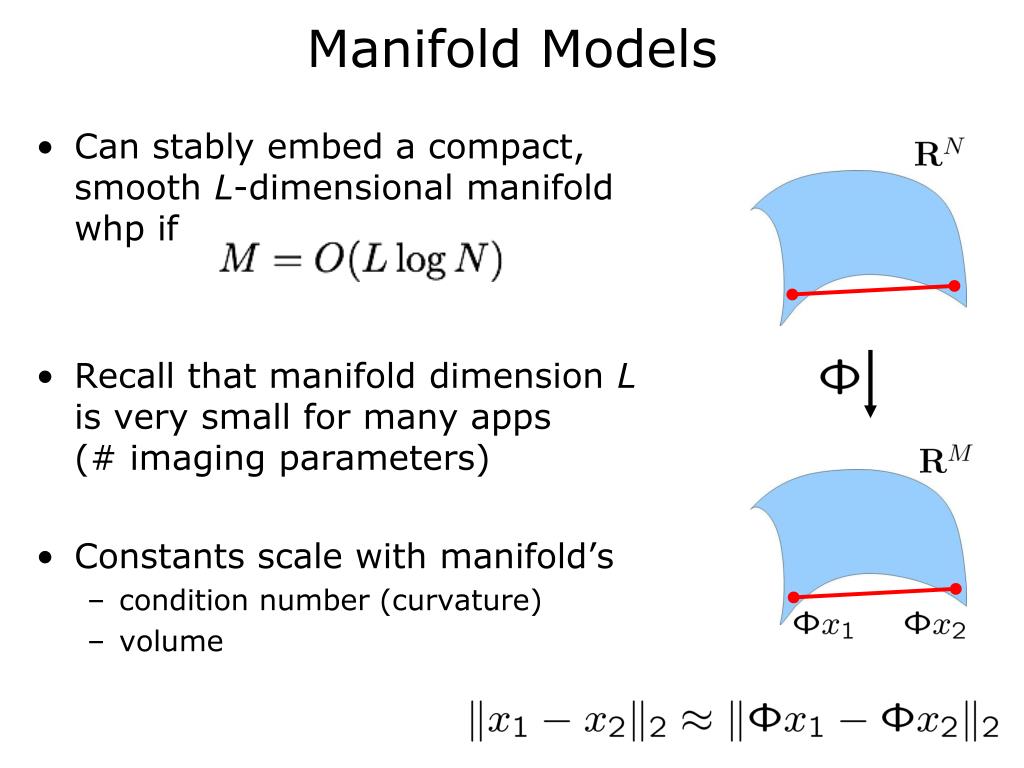

17. Manifold Models • Can stably embed a compact, smooth L-dimensional manifold whp if • Recall that manifold dimension L is very small for many apps (# imaging parameters) • Constants scale with manifold’s • condition number (curvature) • volume

18. Thrust 3: Scalable Inference Many applications involve signal inferenceand not reconstructiondetection < classification < estimation < reconstruction Good news: RDR supports efficient learning, inference, processing directly on compressive measurements Random projections ~ sufficient statisticsfor signals with concise geometrical structure

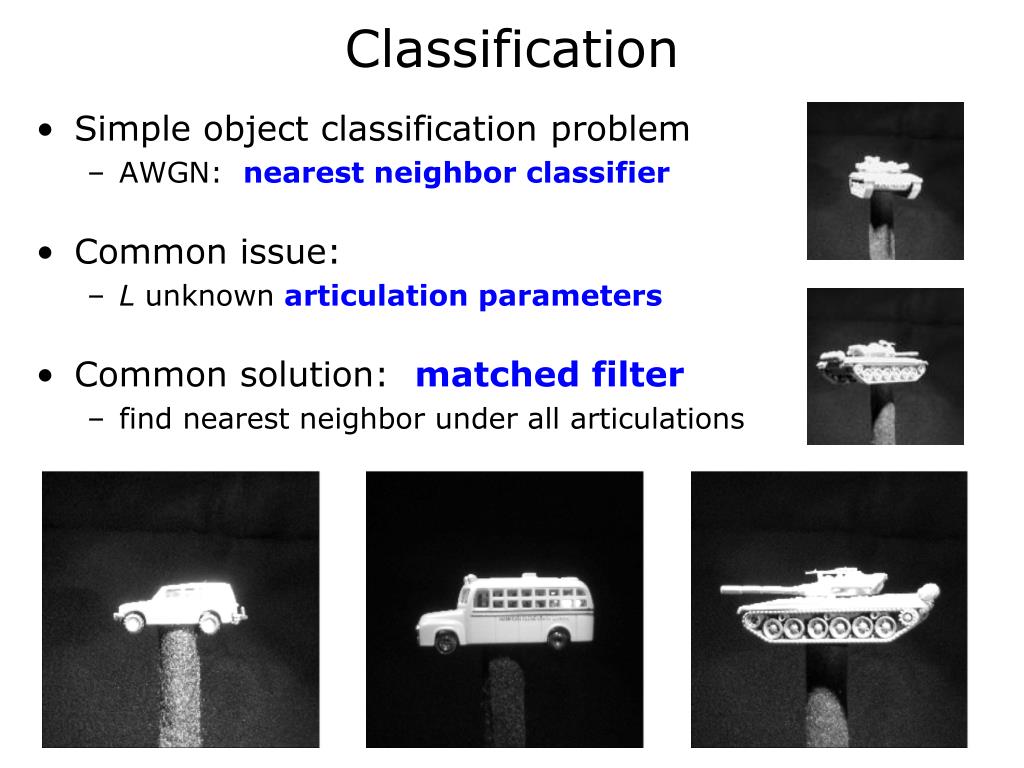

19. Classification Simple object classification problem AWGN: nearest neighbor classifier Common issue: L unknown articulation parameters Common solution: matched filter find nearest neighbor under all articulations

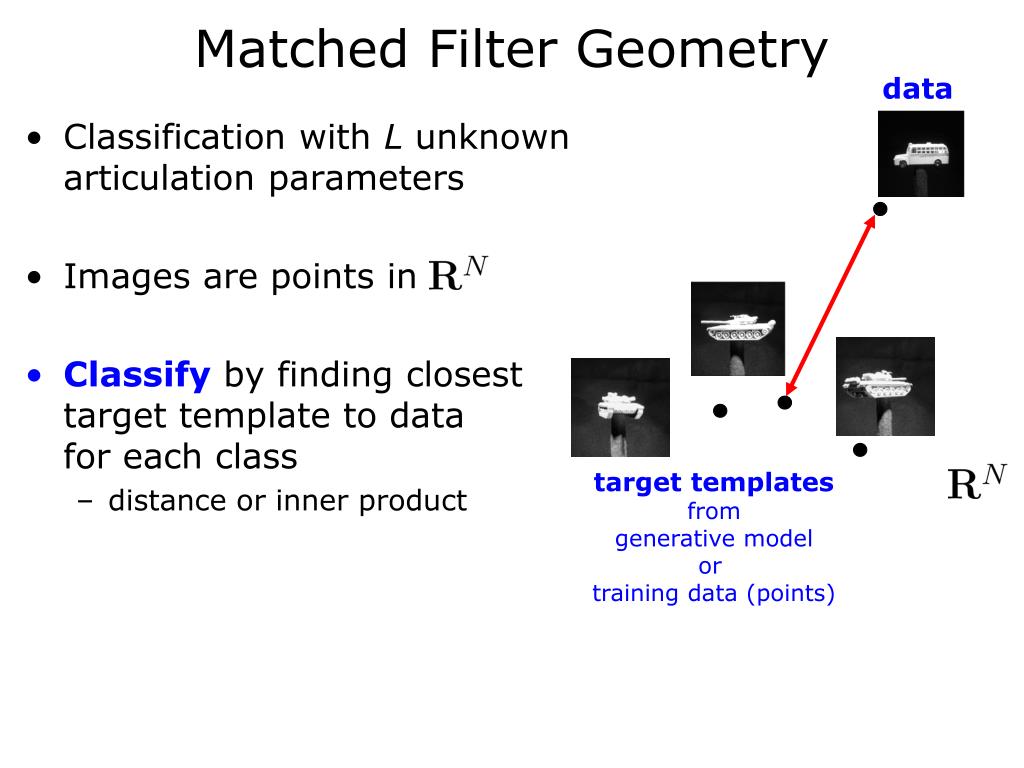

20. Matched Filter Geometry Classification with L unknown articulation parameters Images are points in Classify by finding closesttarget template to datafor each class distance or inner product data target templatesfromgenerative modelor training data (points)

21. Matched Filter Geometry Detection/classification with L unknown articulation parameters Images are points in Classify by finding closesttarget template to data As template articulationparameter changes, points map out a L-dimnonlinear manifold Matched filter classification = closest manifold search data articulation parameter space

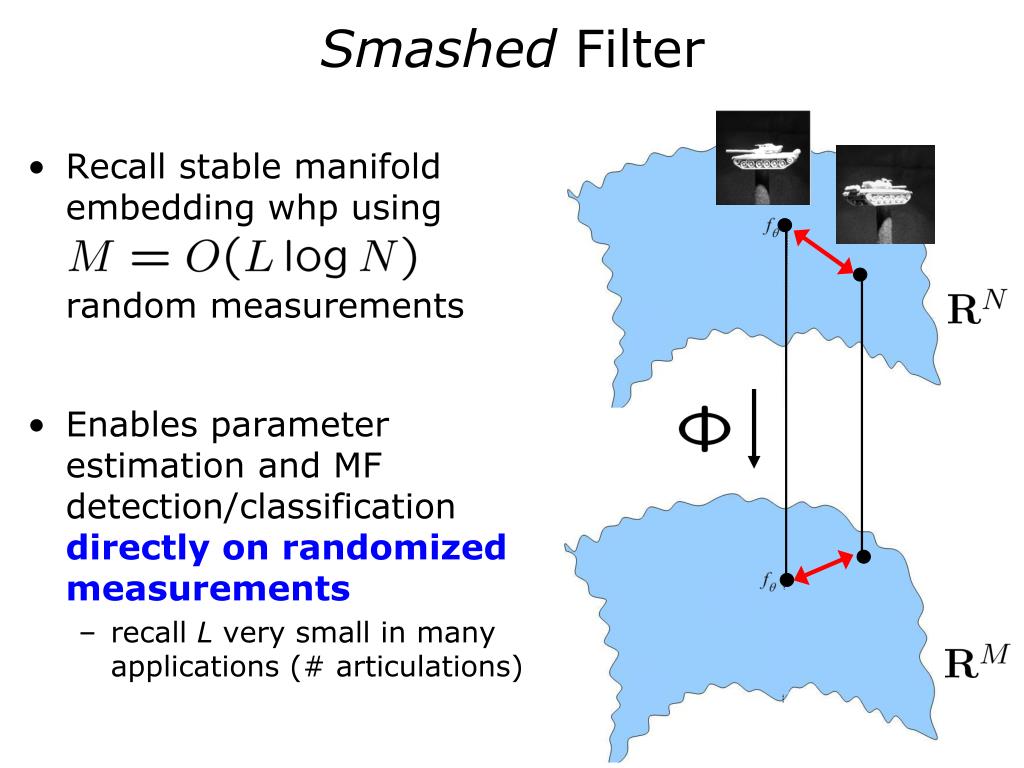

22. Smashed Filter Recall stable manifoldembedding whp using random measurements Enables parameter estimation and MFdetection/classificationdirectly on randomizedmeasurements recall L very small in many applications (# articulations)

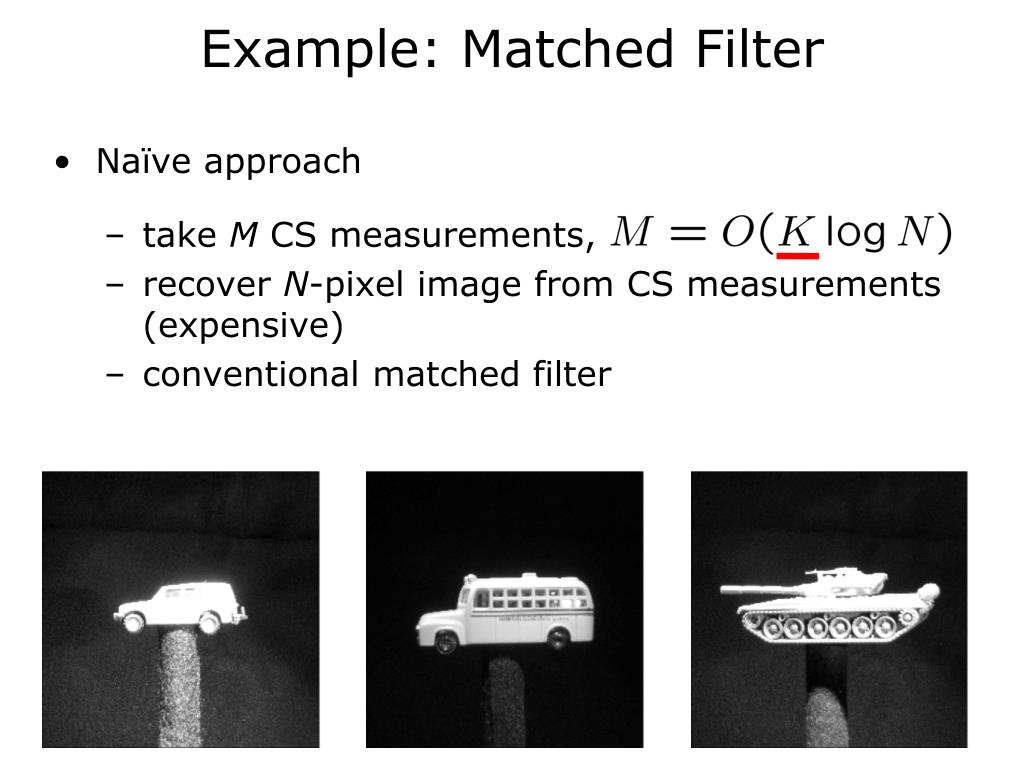

23. Example: Matched Filter Naïve approach take M CS measurements, recover N-pixel image from CS measurements (expensive) conventional matched filter

24. Smashed Filter Worldly approach take M CS measurements, matched filter directly on CS measurements(inexpensive)

25. Smashed Filter Random shift and rotation (L=3 dim. manifold) WG noise added to measurements Goals: identify most likely shift/rotation parameters identify most likely class more noise classification rate (%) avg. shift estimate error more noise number of measurements M number of measurements M

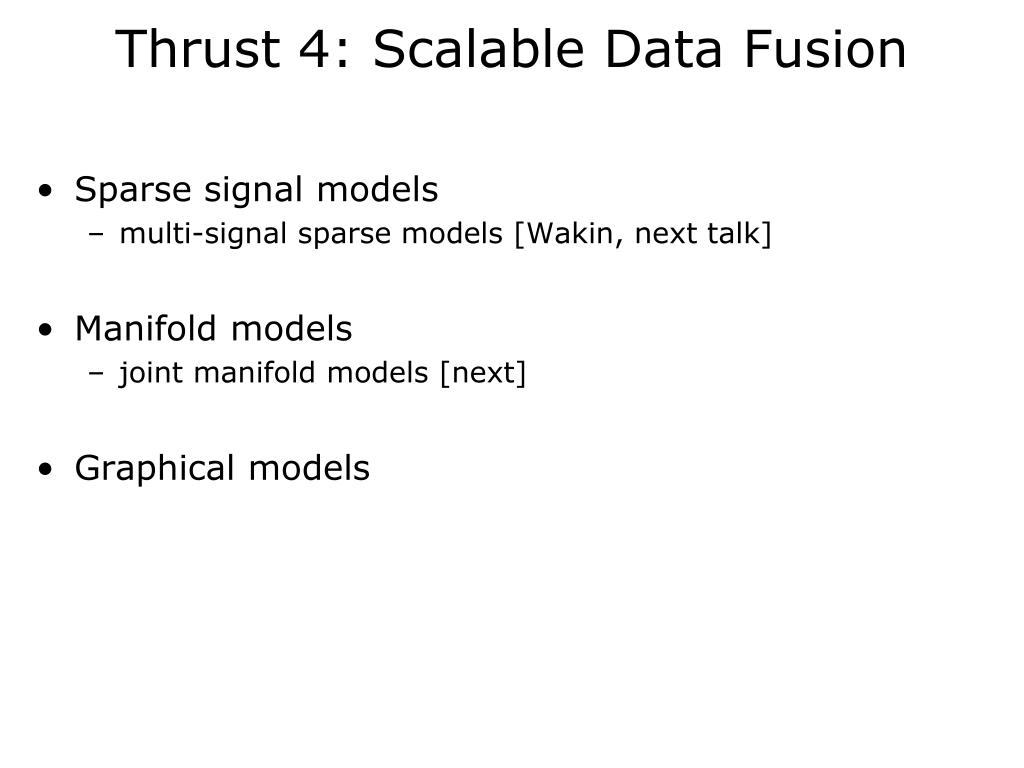

26. Thrust 4: Scalable Data Fusion • Sparse signal models • multi-signal sparse models [Wakin, next talk] • Manifold models • joint manifold models [next] • Graphical models

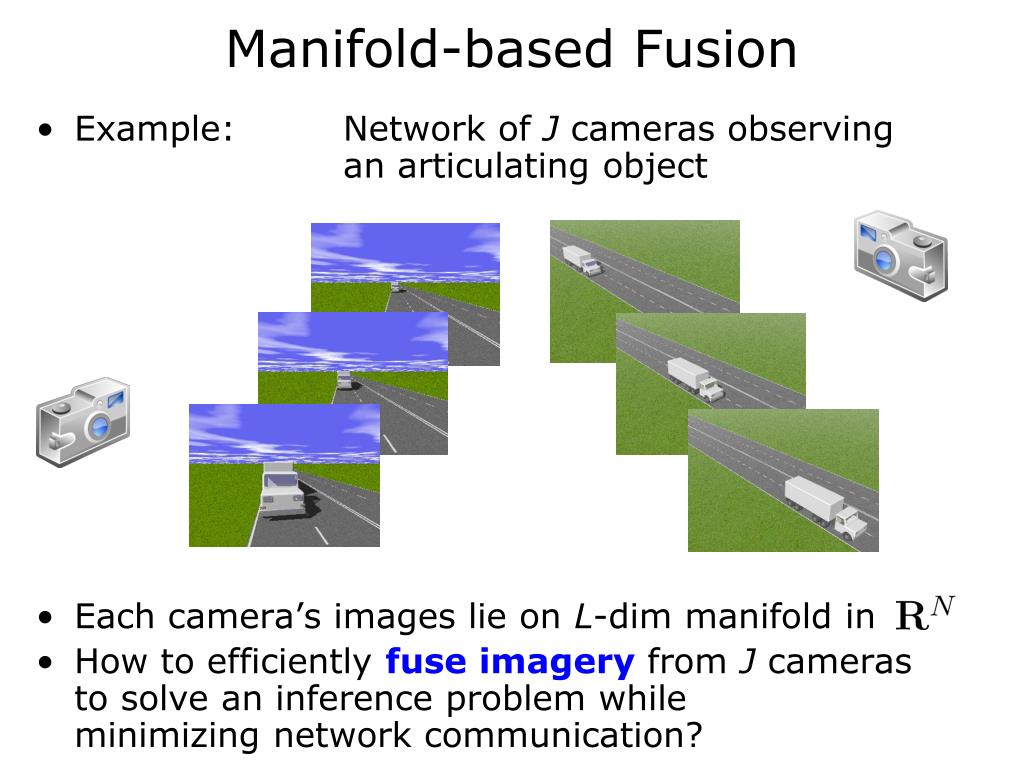

27. Manifold-based Fusion • Example: Network of J cameras observing an articulating object • Each camera’s images lie on L-dim manifold in • How to efficiently fuse imagery from J cameras to solve an inference problem while minimizing network communication?

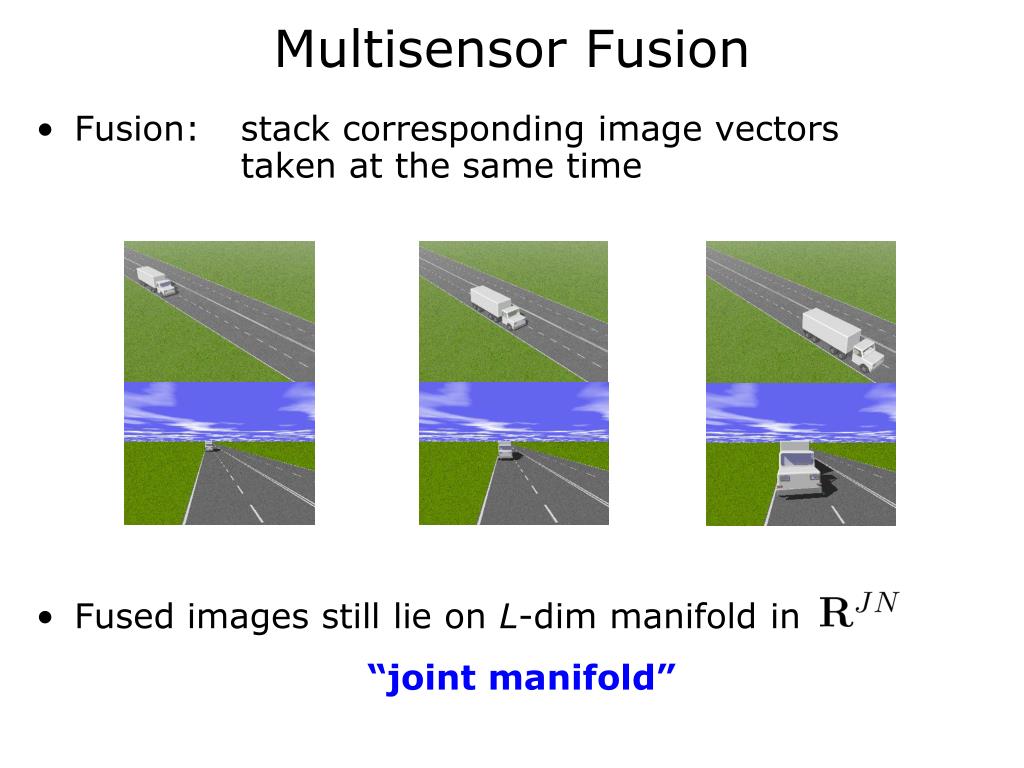

28. Multisensor Fusion • Fusion: stack corresponding image vectors taken at the same time • Fused images still lie on L-dim manifold in“joint manifold”

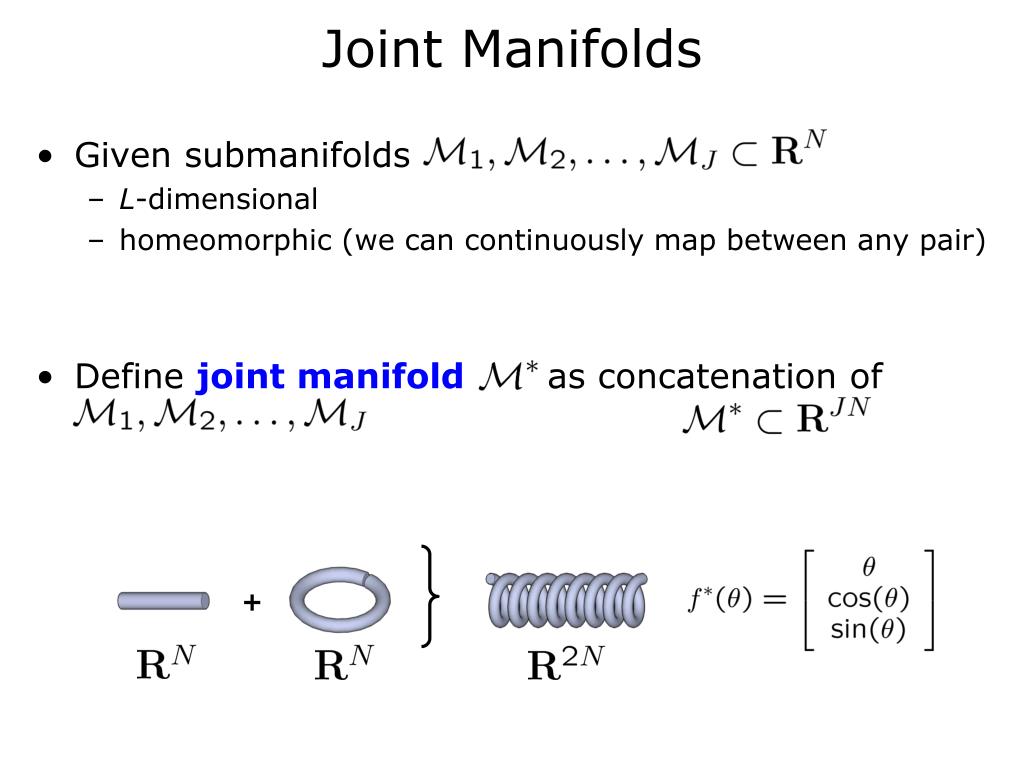

29. Joint Manifolds • Given submanifolds • L-dimensional • homeomorphic (we can continuously map between any pair) • Define joint manifoldas concatenation of

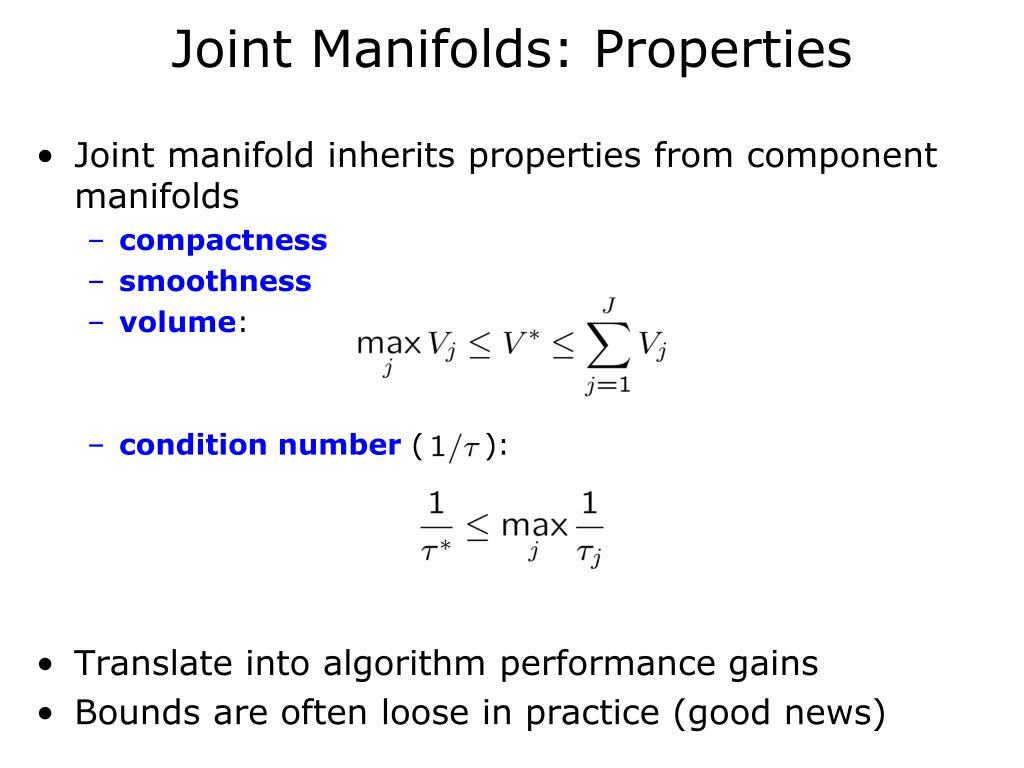

30. Joint Manifolds: Properties • Joint manifold inherits properties from component manifolds • compactness • smoothness • volume: • condition number ( ): • Translate into algorithm performance gains • Bounds are often loose in practice (good news)

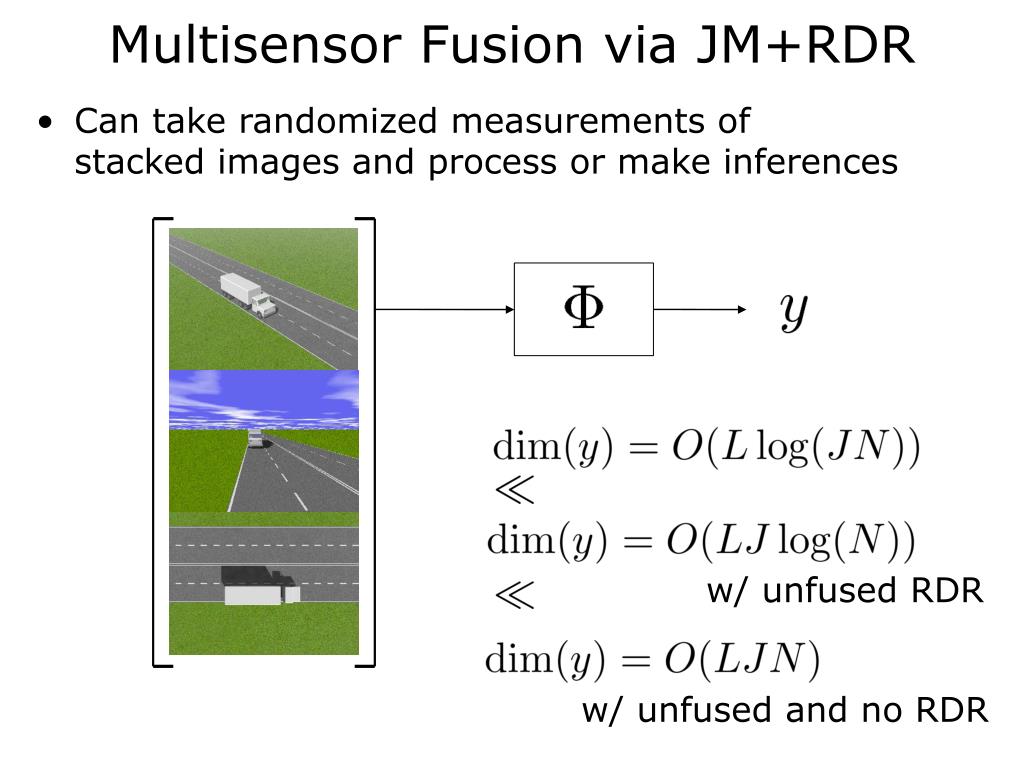

31. Multisensor Fusion via JM+RDR • Can take randomized measurements of stacked images and process or make inferences w/ unfused RDR w/ unfused and no RDR

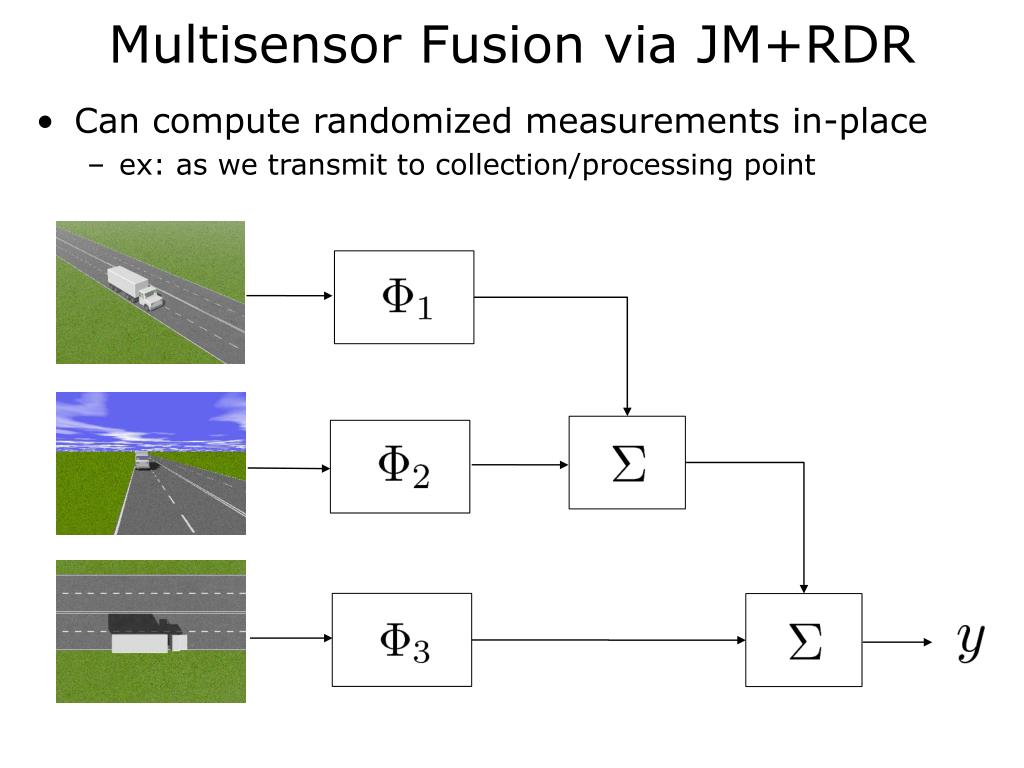

32. Multisensor Fusion via JM+RDR • Can compute randomized measurements in-place • ex: as we transmit to collection/processing point

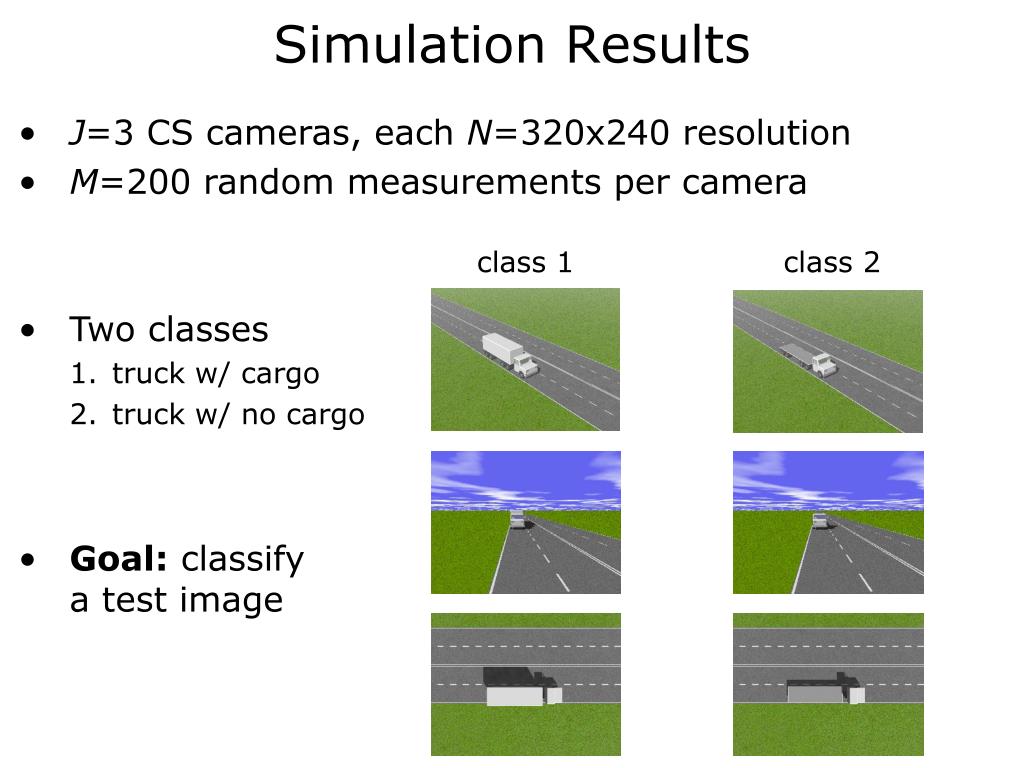

33. Simulation Results • J=3 CS cameras, each N=320x240 resolution • M=200 random measurements per camera • Two classes • truck w/ cargo • truck w/ no cargo • Goal: classify a test image class 1 class 2

34. Simulation Results • J=3 CS cameras, each N=320x240 resolution • M=200 random measurements per camera • Two classes • truck w/ cargo • truck w/ no cargo • Smashed filtering • independent • majority vote • joint manifold Joint Manifold

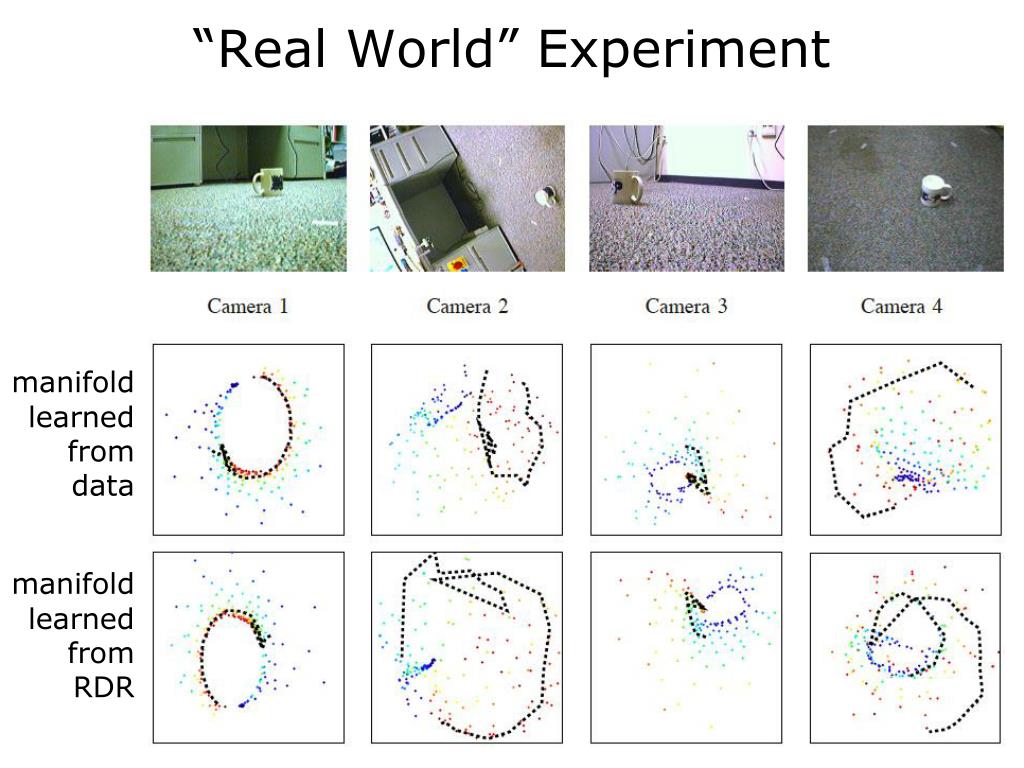

35. “Real World” Experiment manifold learnedfrom data manifold learnedfrom RDR

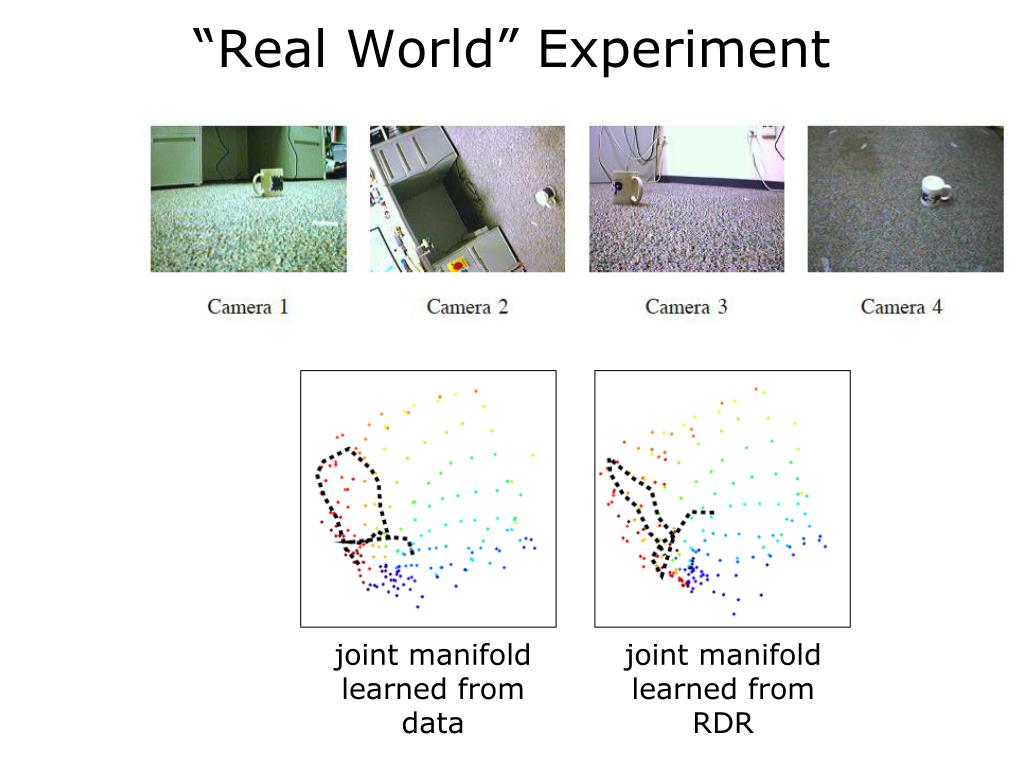

36. “Real World” Experiment joint manifold learned from data joint manifold learned from RDR

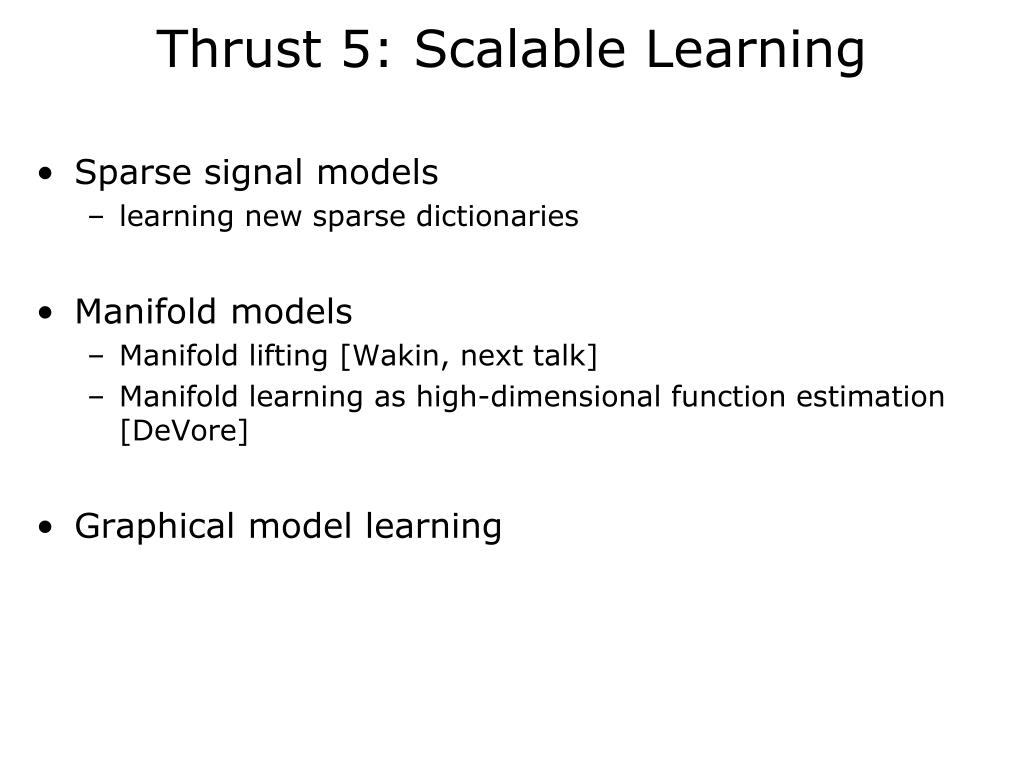

37. Thrust 5: Scalable Learning • Sparse signal models • learning new sparse dictionaries • Manifold models • Manifold lifting [Wakin, next talk] • Manifold learning as high-dimensional function estimation [DeVore] • Graphical model learning

38. Graphical Models

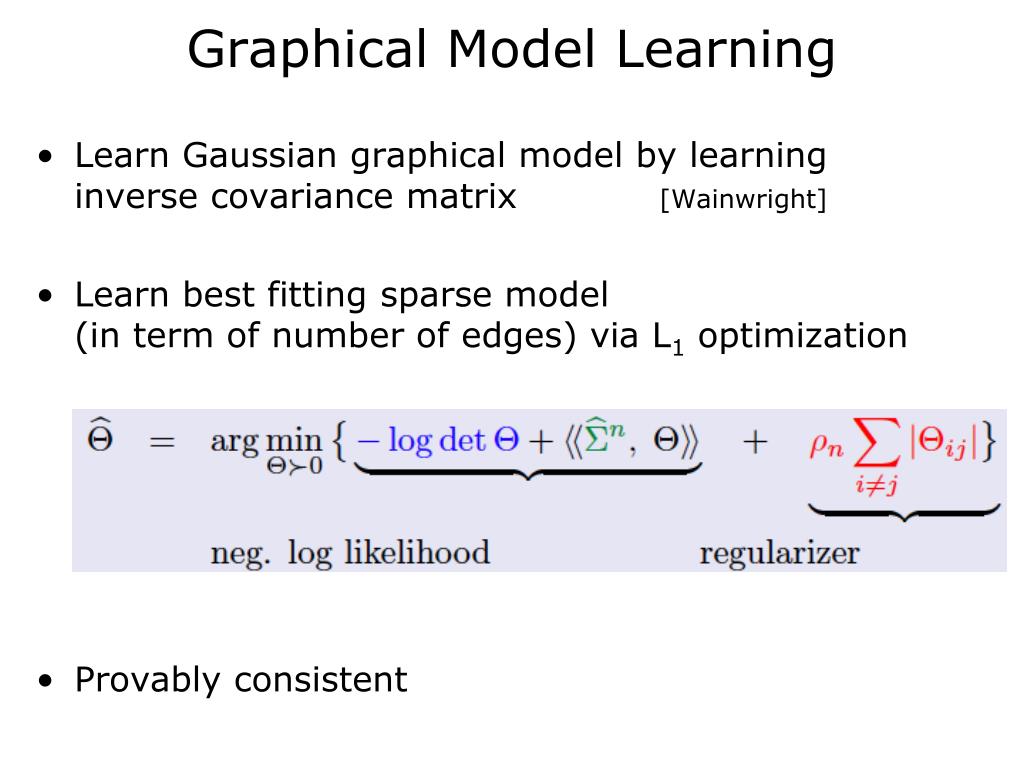

39. Graphical Model Learning • Learn Gaussian graphical model by learning inverse covariance matrix [Wainwright] • Learn best fitting sparse model (in term of number of edges) via L1 optimization • Provably consistent

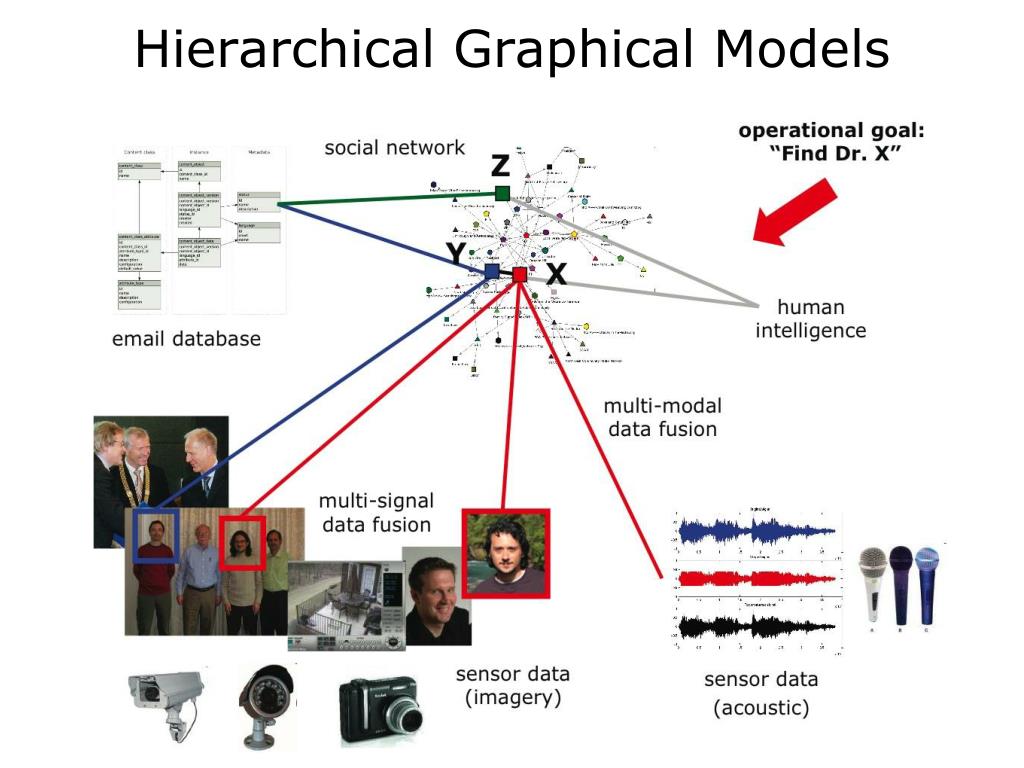

40. Hierarchical Graphical Models

41. Summary • Re-think data acquisition/processing pipeline • Exploit low-dimensional geometrical structure of • sparse signal models • graphical signal models • manifold signal models • Scalable algorithms via randomized dim. reduction • Progress to date: • multi-signal sparse models • smashed filter for inference • joint manifold model for fusion • manifold lifting • graphical model learning dsp.rice.edu
