  1. Earth’s Changing EnvironmentLecture 17 Lighting Efficiency

  2. Topics • Sunlight • Incandescent • Fluorescent • Controls • Using Daylight • LED

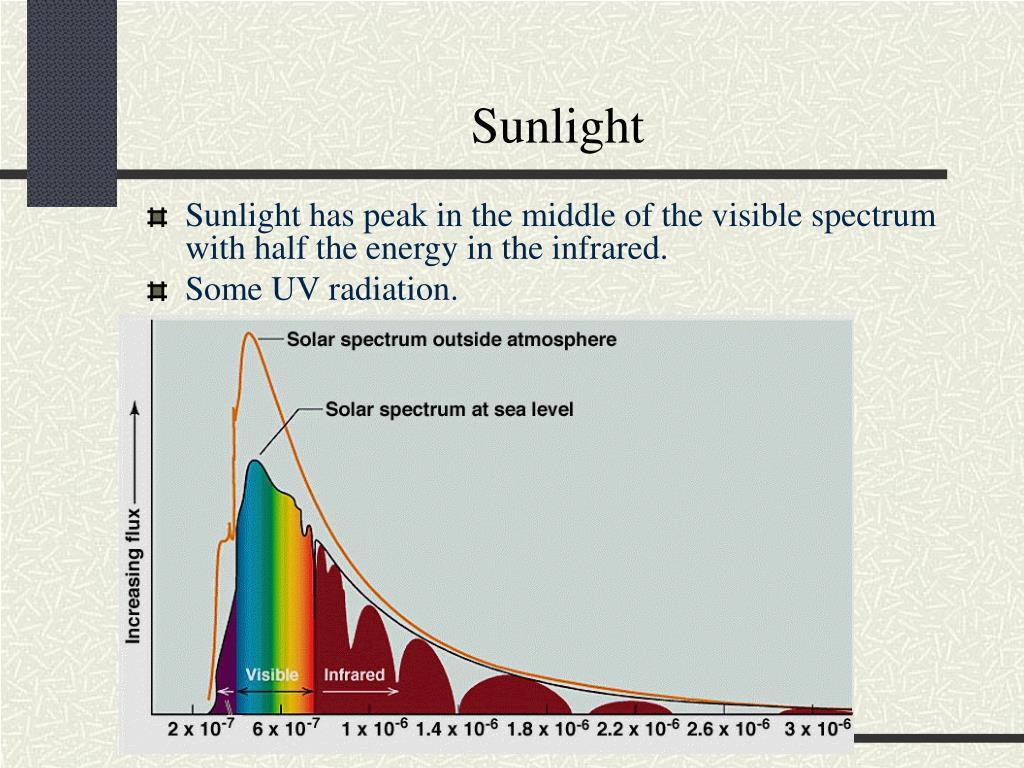

  3. Sunlight • Sunlight has peak in the middle of the visible spectrum with half the energy in the infrared. • Some UV radiation.

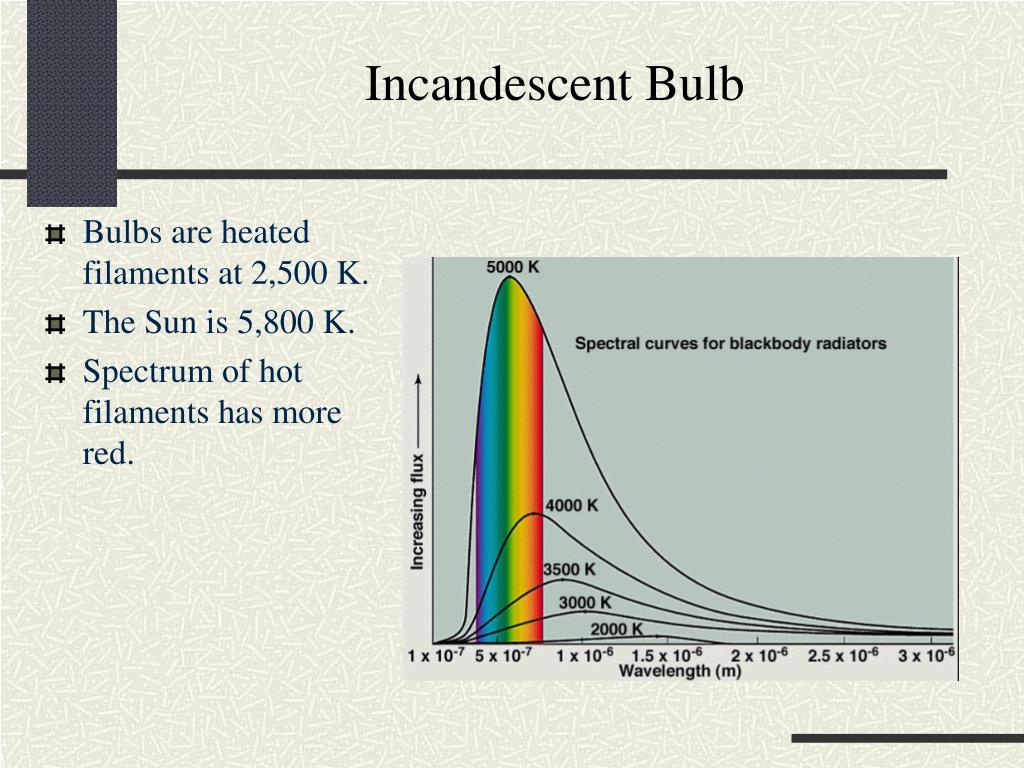

  4. Incandescent Bulb • Bulbs are heated filaments at 2,500 K. • The Sun is 5,800 K. • Spectrum of hot filaments has more red.

  5. Bulb Efficiency • Only 5% of energy input produces useful light. • Spectrum is different from sunlight.

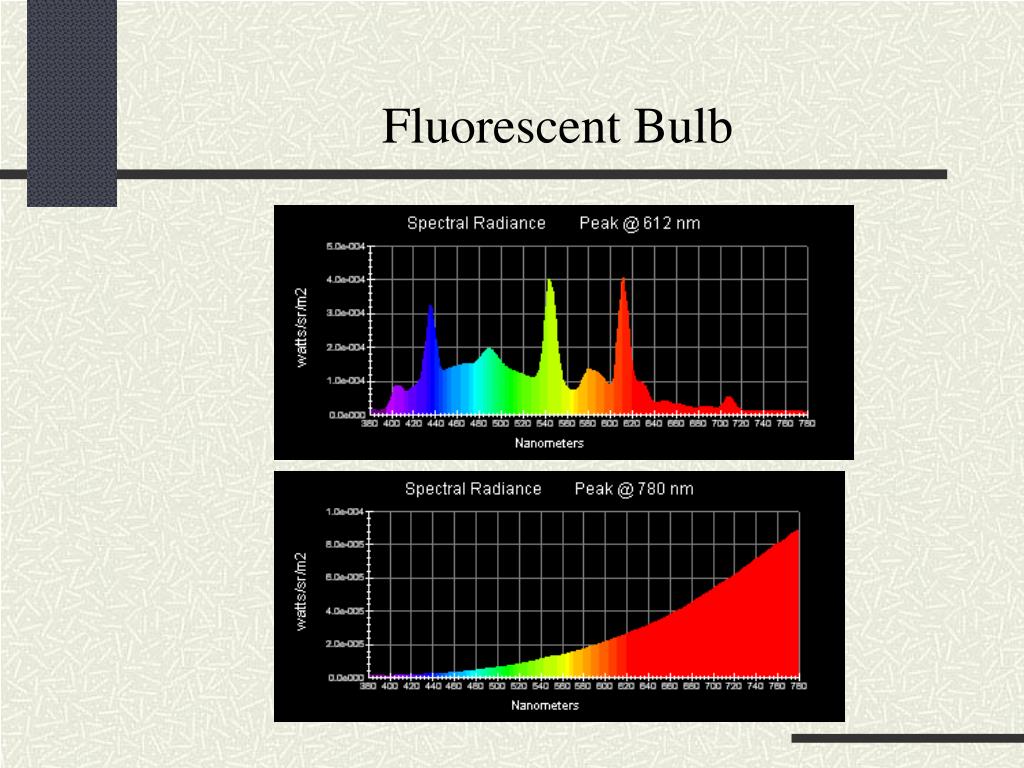

  6. Fluorescent Bulb

  7. Tube Fluorescent Lights • Efficient • Reflectors increase light level.

  8. Compact Fluorescent Bulbs • Efficiency is 4X incandescent bulb. • 14 W bulb produces light level corresponding to 60 W bulb • Last 10X longer, 10,000 hours

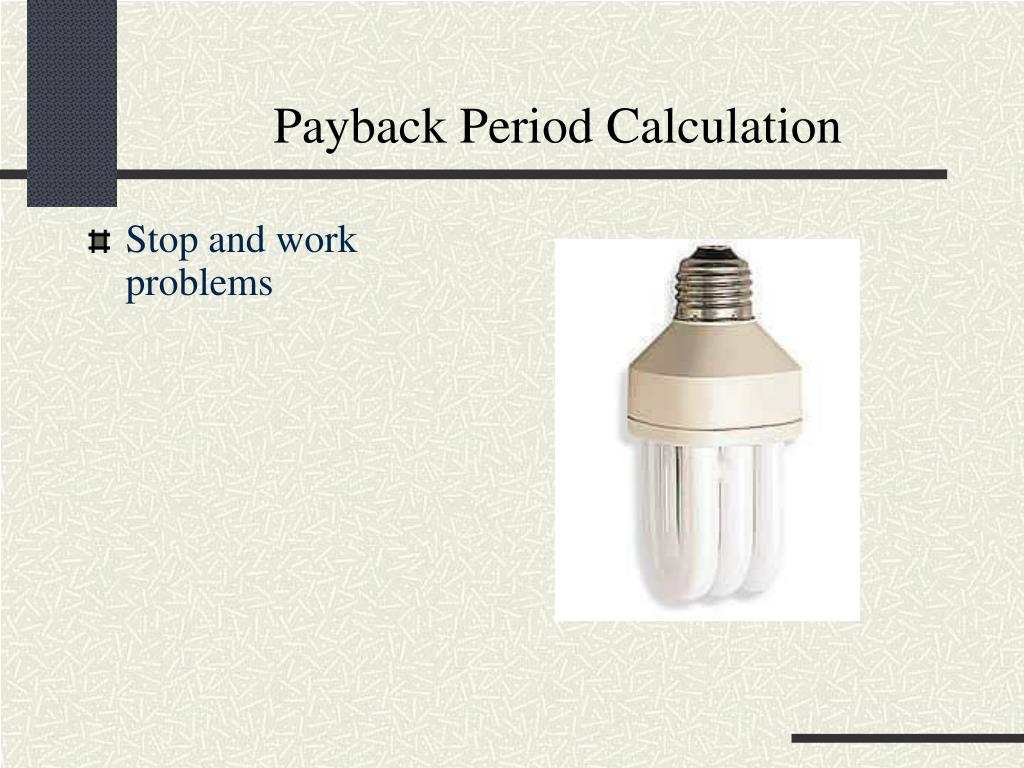

  9. Payback Period Calculation • Stop and work problems

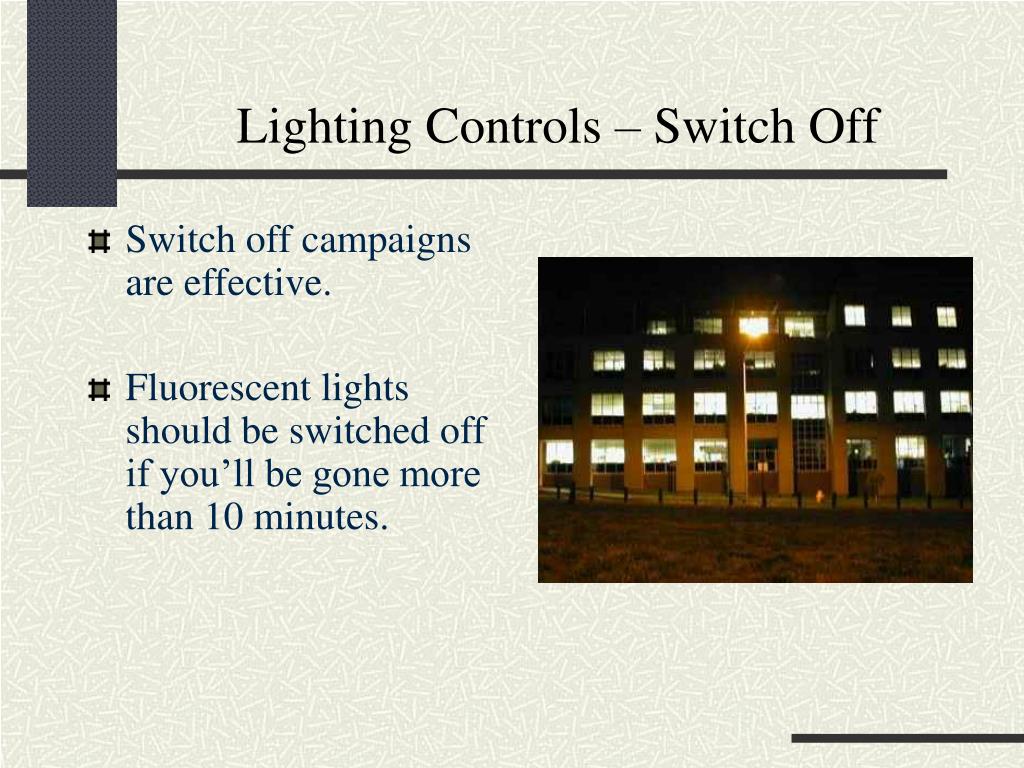

  10. Lighting Controls – Switch Off • Switch off campaigns are effective. • Fluorescent lights should be switched off if you’ll be gone more than 10 minutes.

  11. Lighting Controls - Automatic • May irritate occupants. • Less efficient than switch-off

  12. Bringing in Daylight • Has the right spectrum. • Uses no energy. • In some locations, need to avoid over-heating and UV effects.

  13. Skylights

  14. Skylight Tubes

  15. LED Lighting • Very Efficient • Monochromatic • Expensive • No IR – No heat

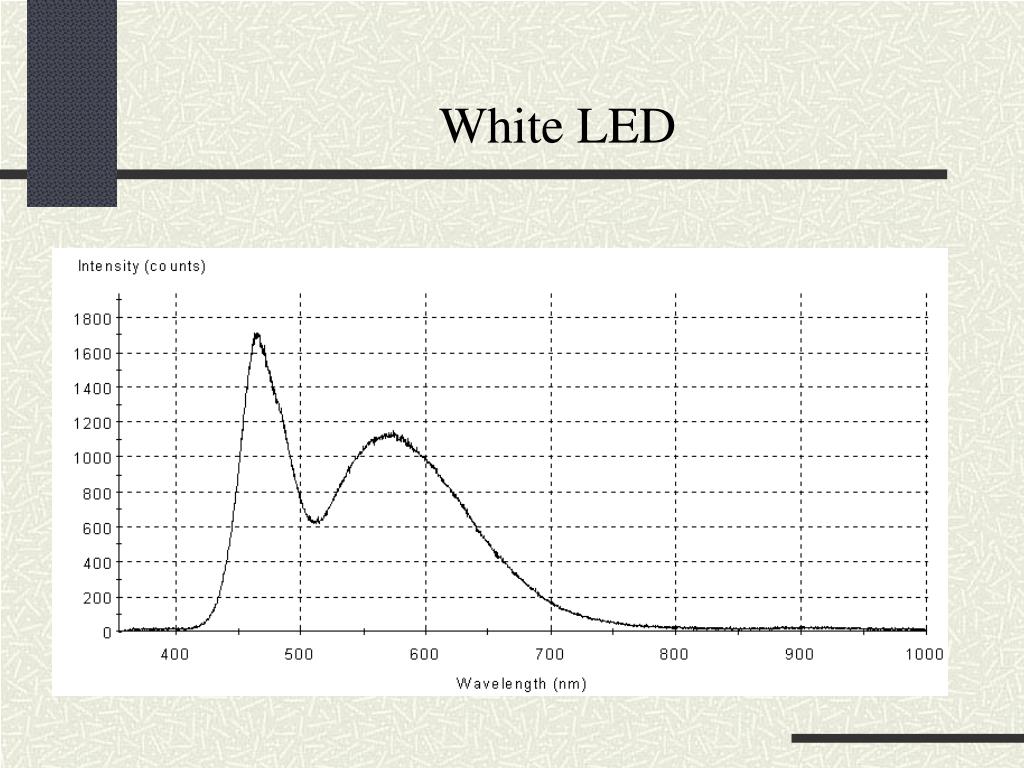

  16. White LED

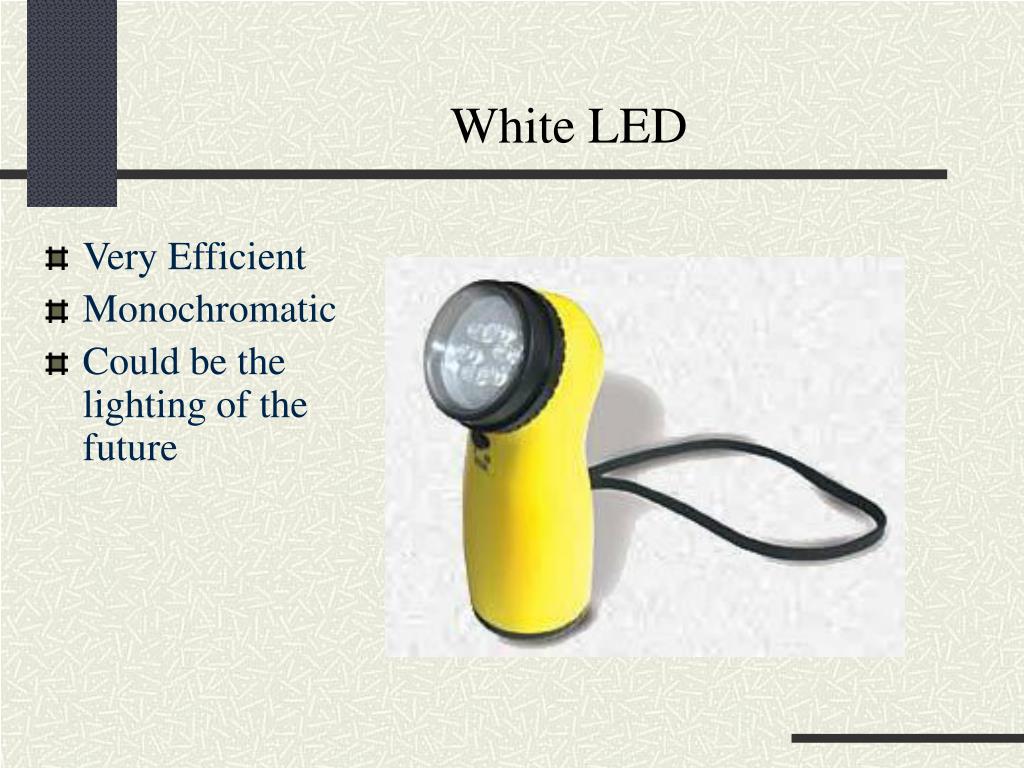

  17. White LED • Very Efficient • Monochromatic • Could be the lighting of the future
