How to Incorporate Equations into PowerPoint Presentations

How to incorporate equations into Power Point Presentations by Deborah Alterman Cascadia Community College

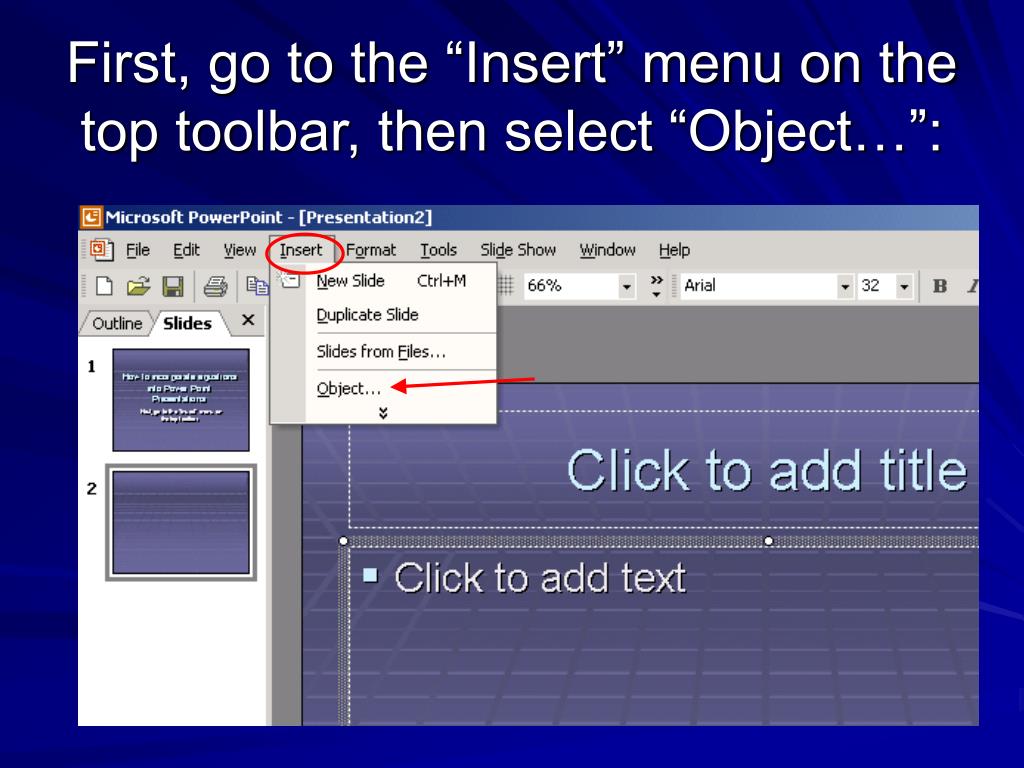

First, go to the “Insert” menu on the top toolbar, then select “Object…”:

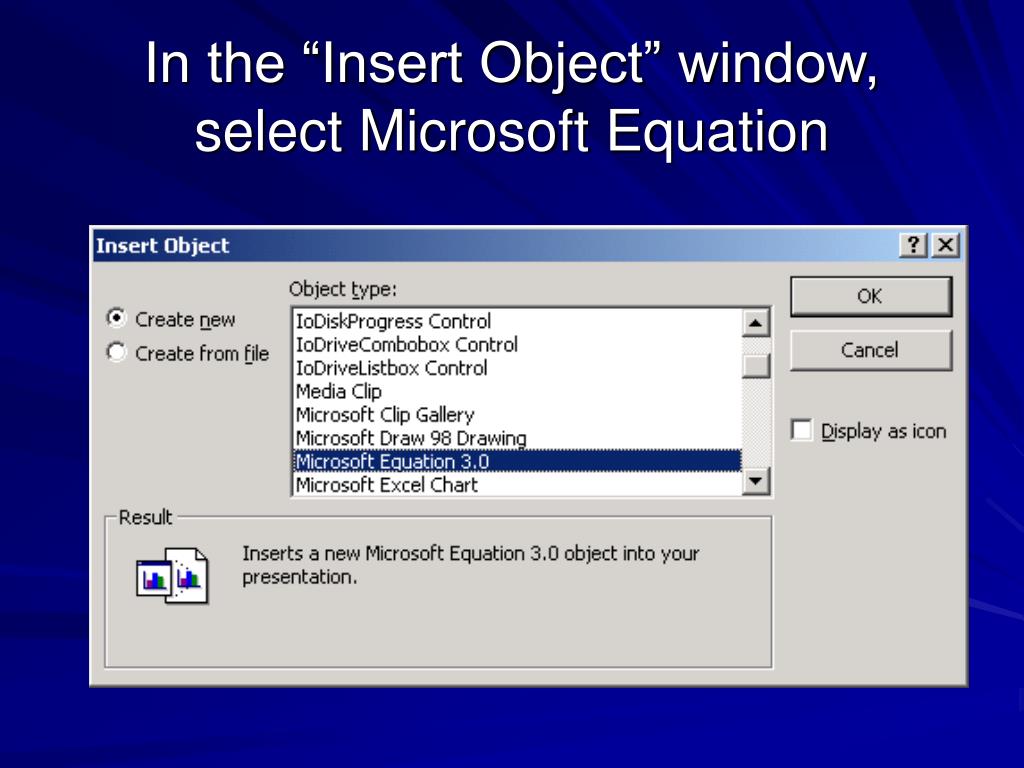

In the “Insert Object” window, select Microsoft Equation

You will see a tool bar which looks like this (you may have to check “Toolbar” under the View menu)

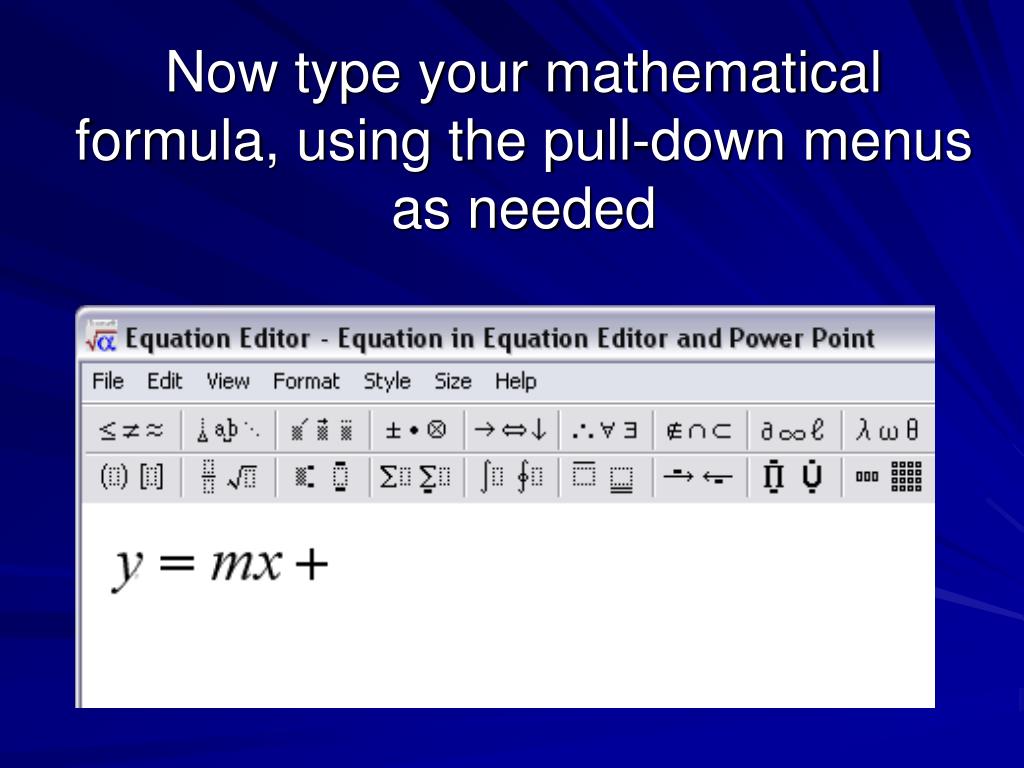

Now type your mathematical formula, using the pull-down menus as needed

For instance, you can add exponents

Then enter your exponent in the dashed boxes

Or create fractions…

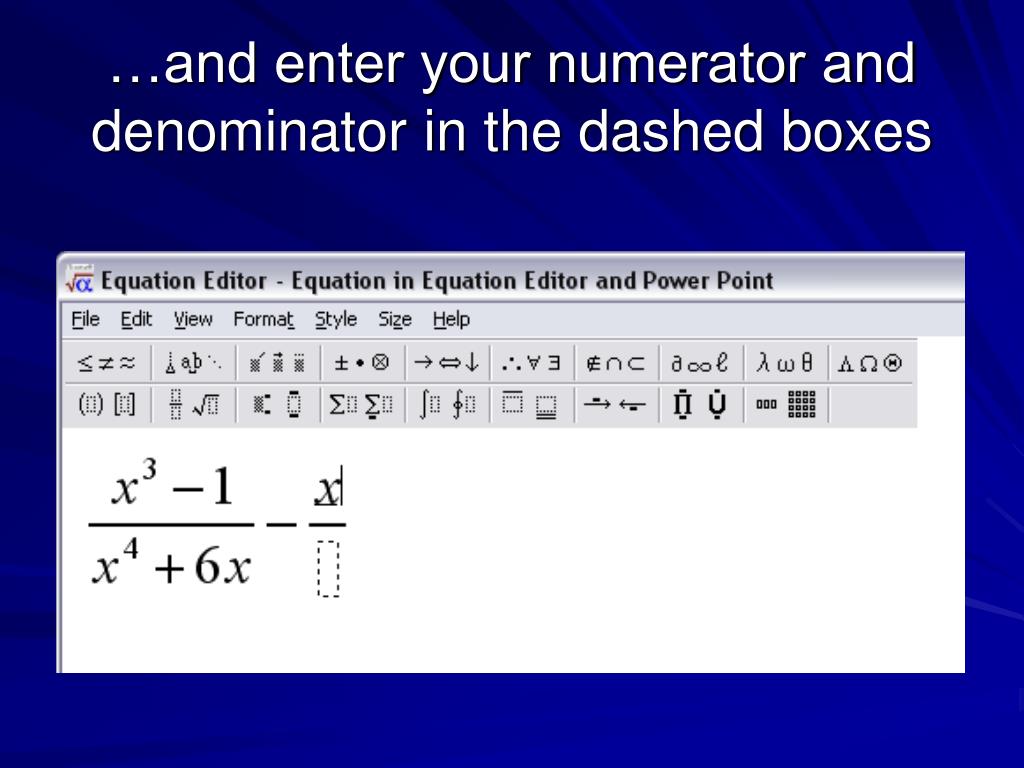

…and enter your numerator and denominator in the dashed boxes

When you are done, simply click the ‘x’ in the corner of the Equation Editor window

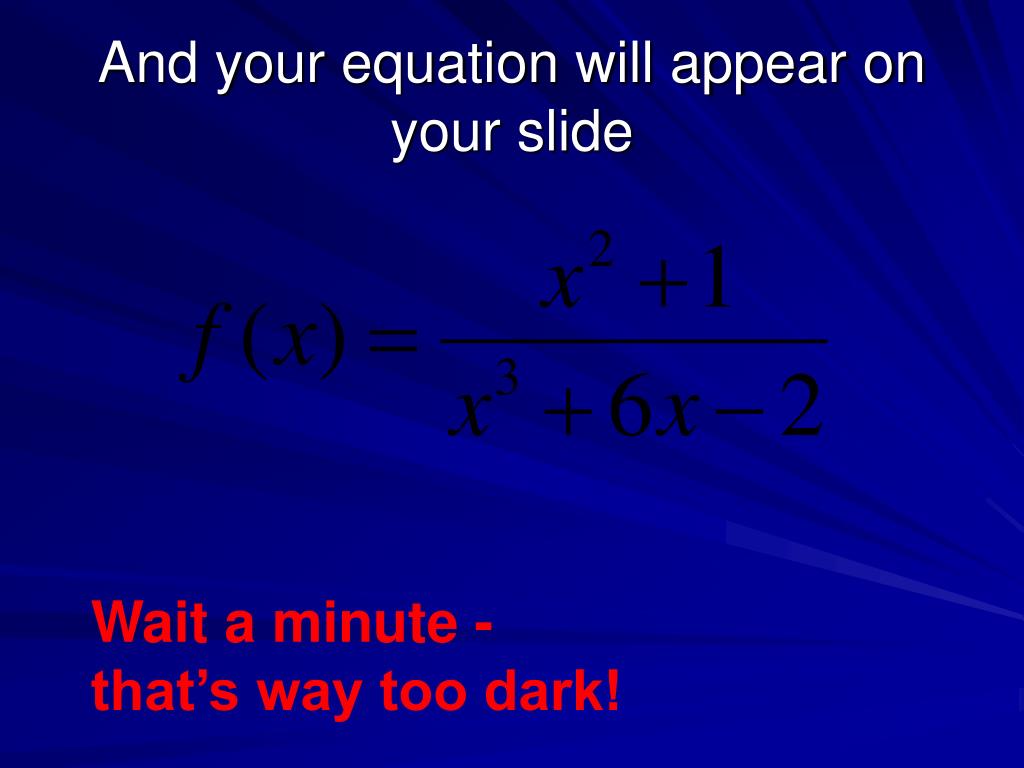

And your equation will appear on your slide Wait a minute - that’s way too dark!

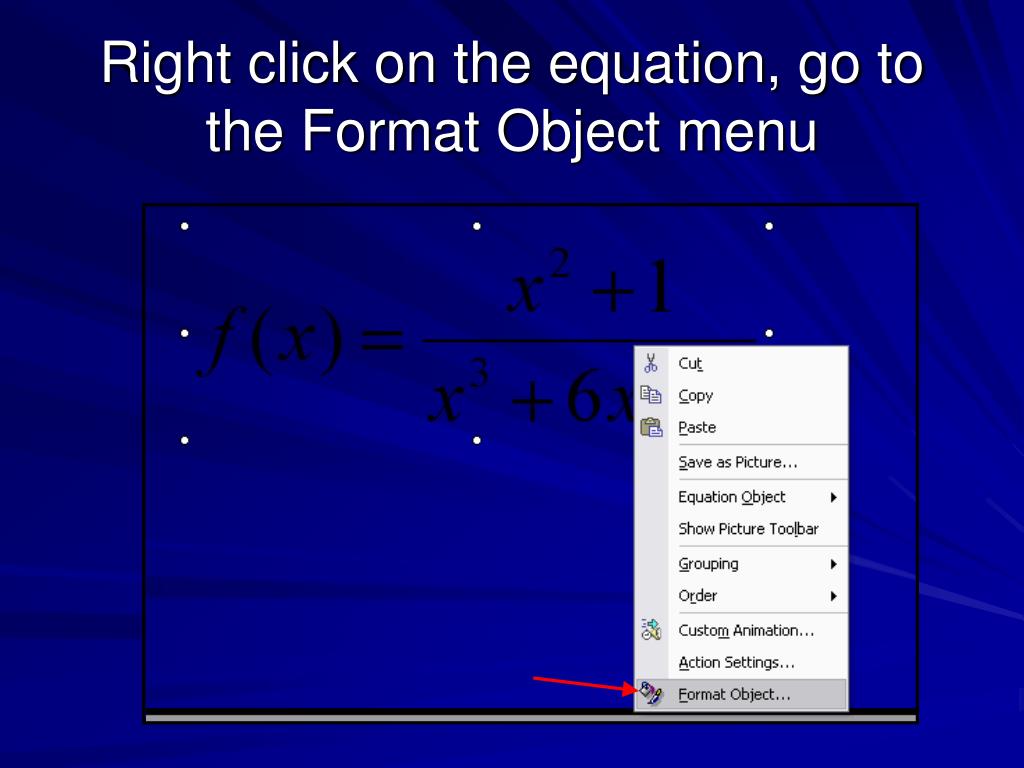

Right click on the equation, go to the Format Object menu

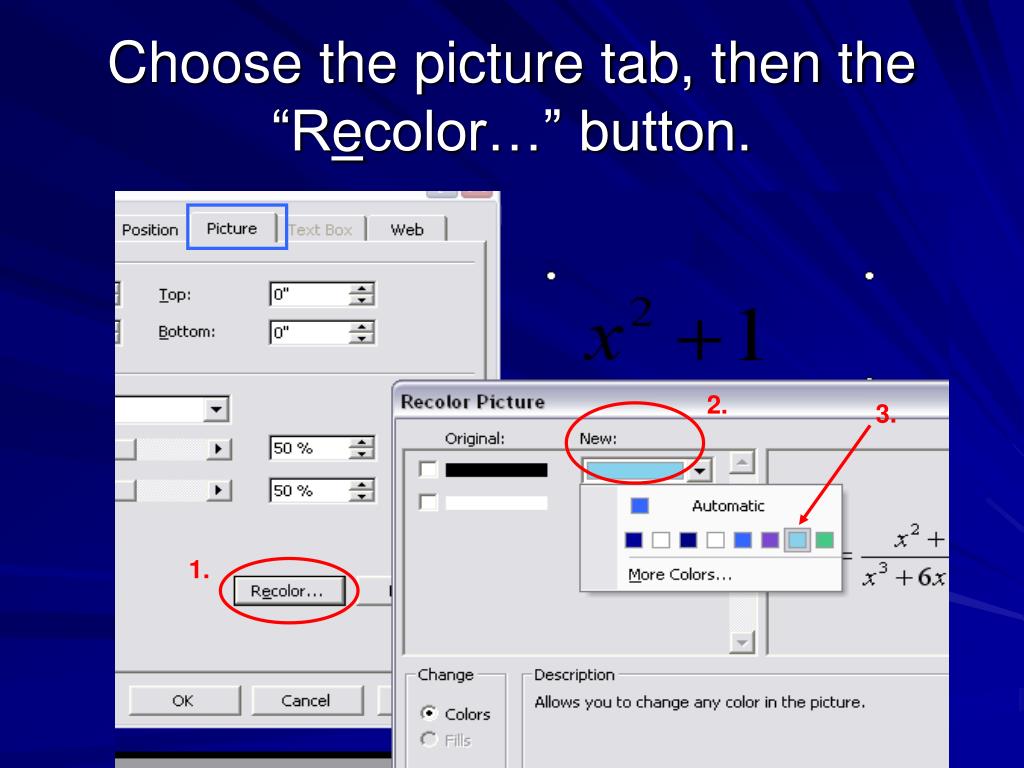

2. 3. 1. Choose the picture tab, then the “Recolor…” button.

Now your equation is a more visible color.

You can use the same method to add equations to Word documents.
