  1. Polymer searchingSF-hbz meeting 2010

  2. Agenda • Polymer registrations in SciFinder • Polymer Registry display • Searching polymers • Refine and categorize SciFinder is a registered trademark of the American Chemical Society

  3. Polymer registrations in SciFinder I • The CAS Registry file contains over 52 million small molecules • CAS assigns a specific CAS Registry number for each polymer based on its monomers or sometimes on the structural repeating unit (SRU) SciFinder is a registered trademark of the American Chemical Society

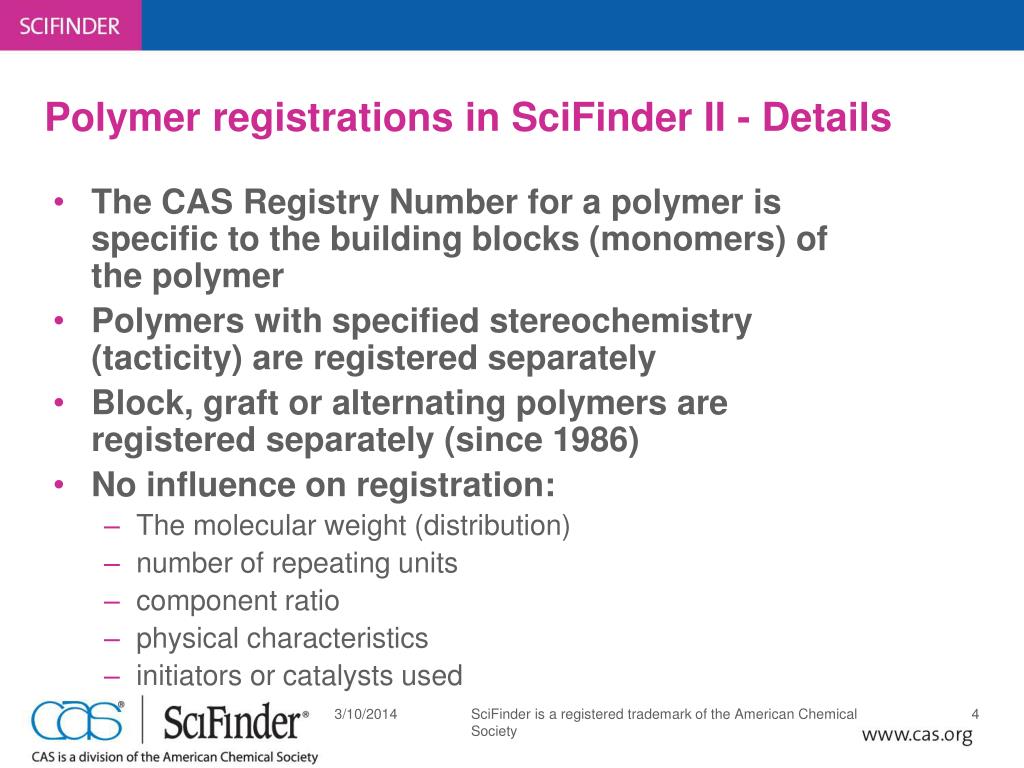

  4. Polymer registrations in SciFinder II - Details • The CAS Registry Number for a polymer is specific to the building blocks (monomers) of the polymer • Polymers with specified stereochemistry (tacticity) are registered separately • Block, graft or alternating polymers are registered separately (since 1986) • No influence on registration: • The molecular weight (distribution) • number of repeating units • component ratio • physical characteristics • initiators or catalysts used SciFinder is a registered trademark of the American Chemical Society

  5. Agenda • Polymer registrations in SciFinder • Polymer Registry display • Searching polymers • Refine and categorize SciFinder is a registered trademark of the American Chemical Society

  6. Polymer Registry display This CAS Registry number defines the polymer registration with its tacticity. The CAS RN is linked to 6 references SciFinder is a registered trademark of the American Chemical Society

  7. Agenda • Polymer registrations in SciFinder • Polymer Registry display • Searching polymers • MF (Molecular Formula) • Structure repeating Unit (SRU) • Exact structure • Substructure • Topic • Refine and categorize SciFinder is a registered trademark of the American Chemical Society

  8. Searching by MF • For addition polymers and most condensation polymers put the molecular formula of the monomers, separated by dots, within brackets and close with an “X” • (C8H8)x for styrene homopolymer • (C8H8 . C5H8)x for styrene-isoprene polymers • For structural repeating units of symmetric condensation polymers put the formula of the repeating unit within brackets and close with an “N” • (C14H12O4)n for polybutylene terephthalate • (C2H4O)nCH4O for -methyl--hydroxy PE SciFinder is a registered trademark of the American Chemical Society

  9. Searching by MF - Example (C8H8 . C5H8)x I SciFinder is a registered trademark of the American Chemical Society

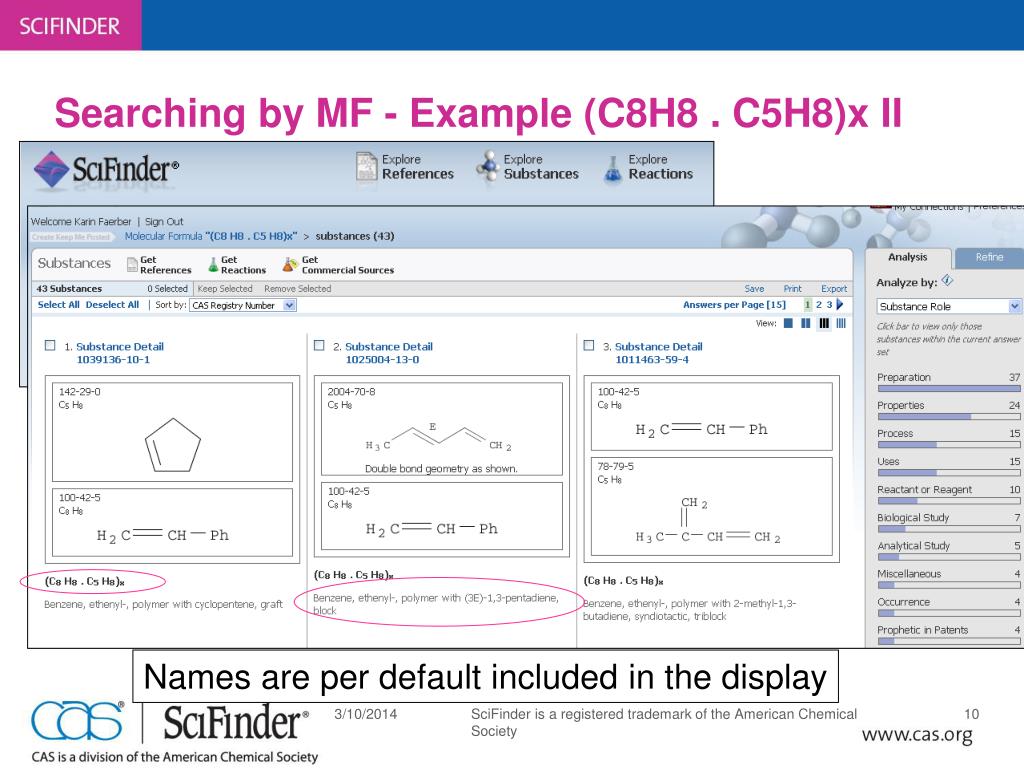

  10. Searching by MF - Example (C8H8 . C5H8)x II Names are per default included in the display SciFinder is a registered trademark of the American Chemical Society

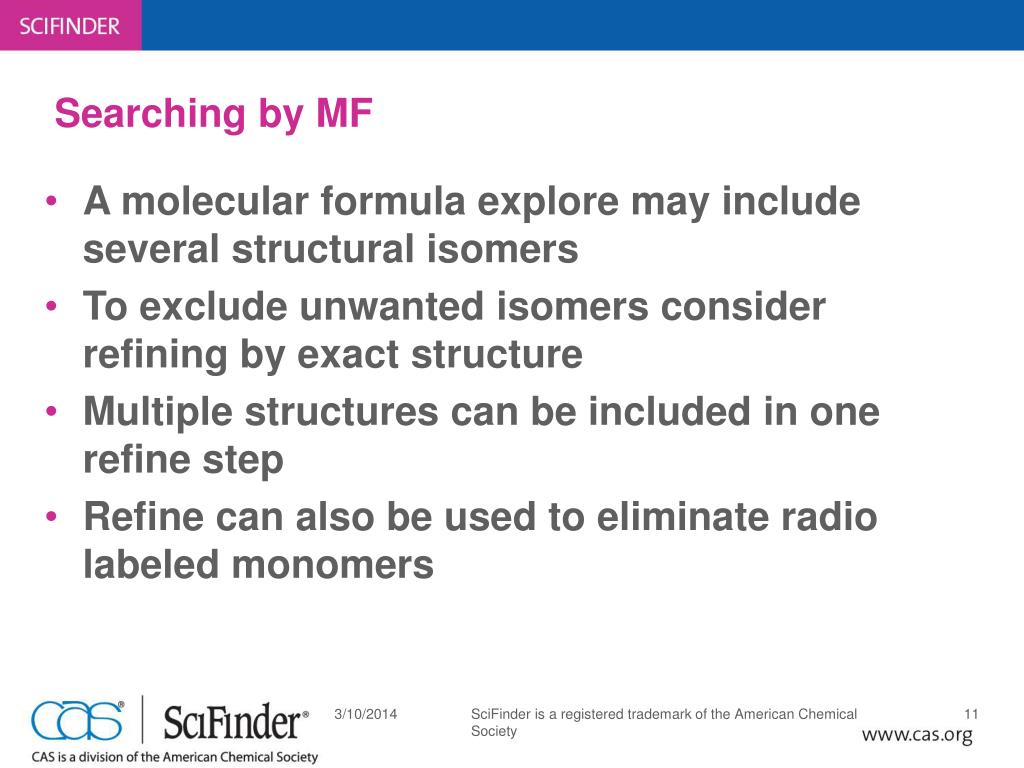

  11. Searching by MF • A molecular formula explore may include several structural isomers • To exclude unwanted isomers consider refining by exact structure • Multiple structures can be included in one refine step • Refine can also be used to eliminate radio labeled monomers SciFinder is a registered trademark of the American Chemical Society

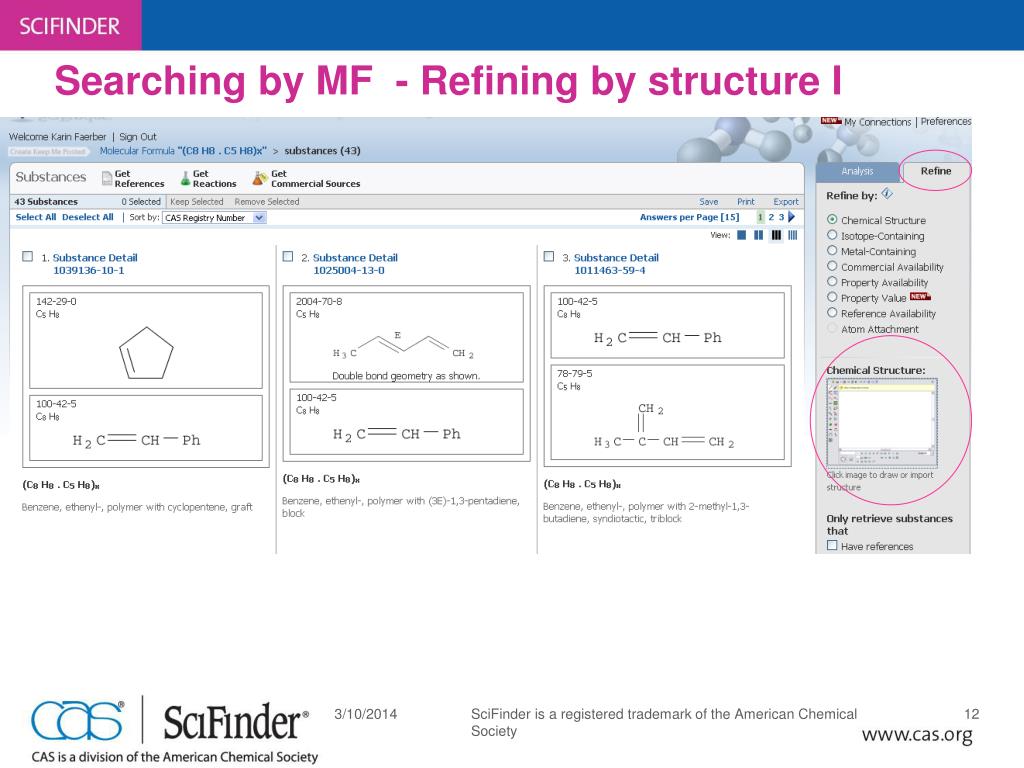

  12. Searching by MF - Refining by structure I SciFinder is a registered trademark of the American Chemical Society

  13. Searching by MF - Refining by structure II SciFinder is a registered trademark of the American Chemical Society

  14. Searching by MF - Refining by structure III SciFinder is a registered trademark of the American Chemical Society

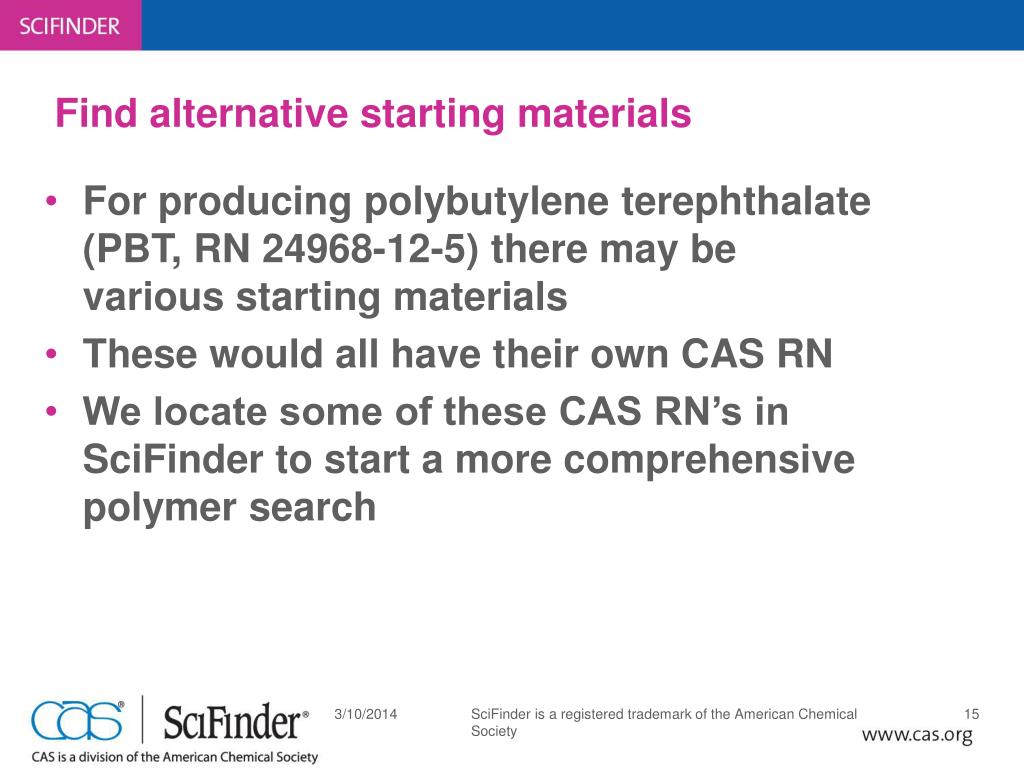

  15. Find alternative starting materials • For producing polybutylene terephthalate (PBT, RN 24968-12-5) there may be various starting materials • These would all have their own CAS RN • We locate some of these CAS RN’s in SciFinder to start a more comprehensive polymer search SciFinder is a registered trademark of the American Chemical Society

  16. Search by SRU of PBT I References were limited to the preparation of polybutylene terephthalate SciFinder is a registered trademark of the American Chemical Society

  17. References were limited to the preparation of polybutylene terephthalate and entries from 2005- Search by SRU of PBT II SciFinder is a registered trademark of the American Chemical Society

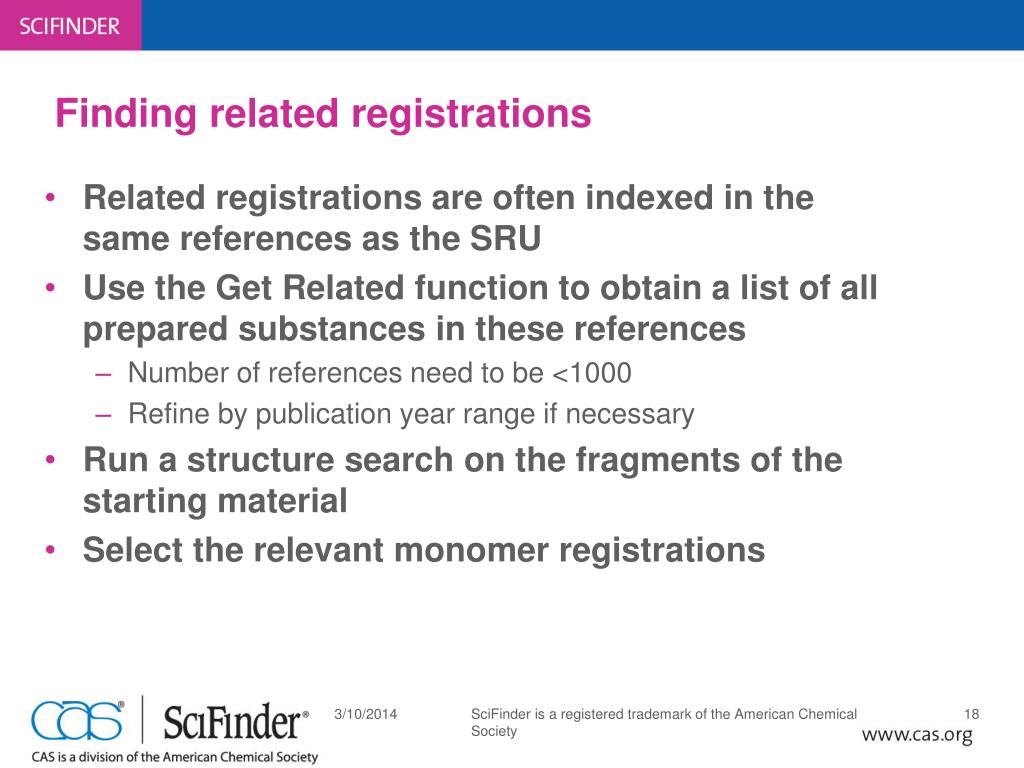

  18. Finding related registrations • Related registrations are often indexed in the same references as the SRU • Use the Get Related function to obtain a list of all prepared substances in these references • Number of references need to be <1000 • Refine by publication year range if necessary • Run a structure search on the fragments of the starting material • Select the relevant monomer registrations SciFinder is a registered trademark of the American Chemical Society

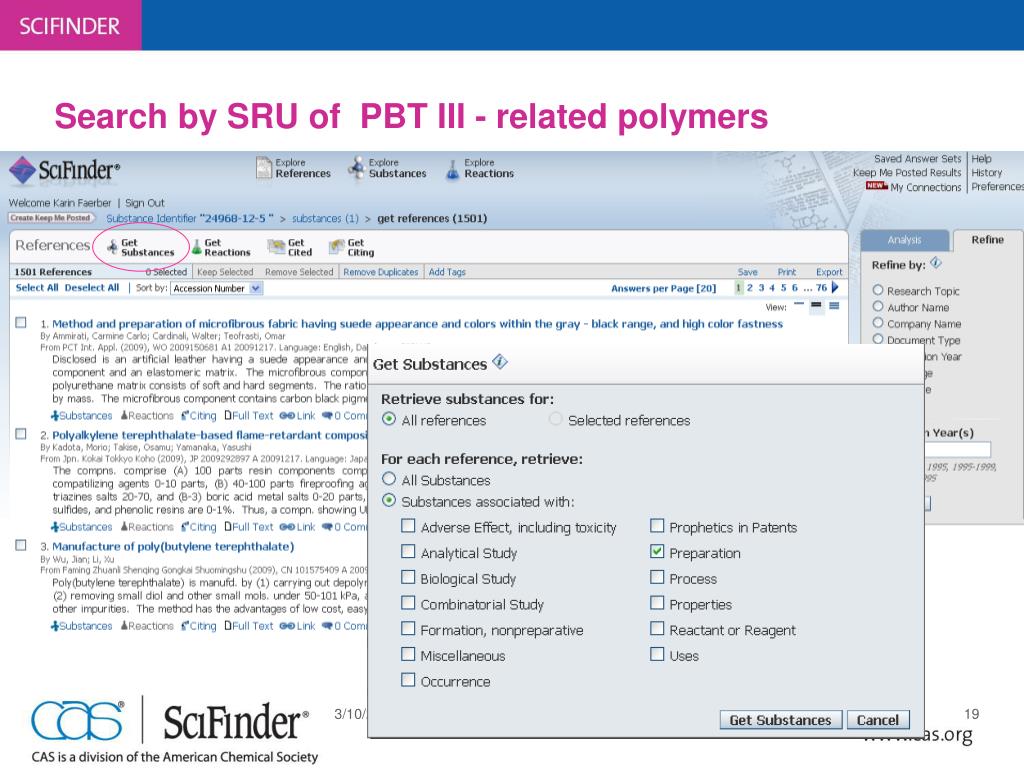

  19. Search by SRU of PBT III - related polymers SciFinder is a registered trademark of the American Chemical Society

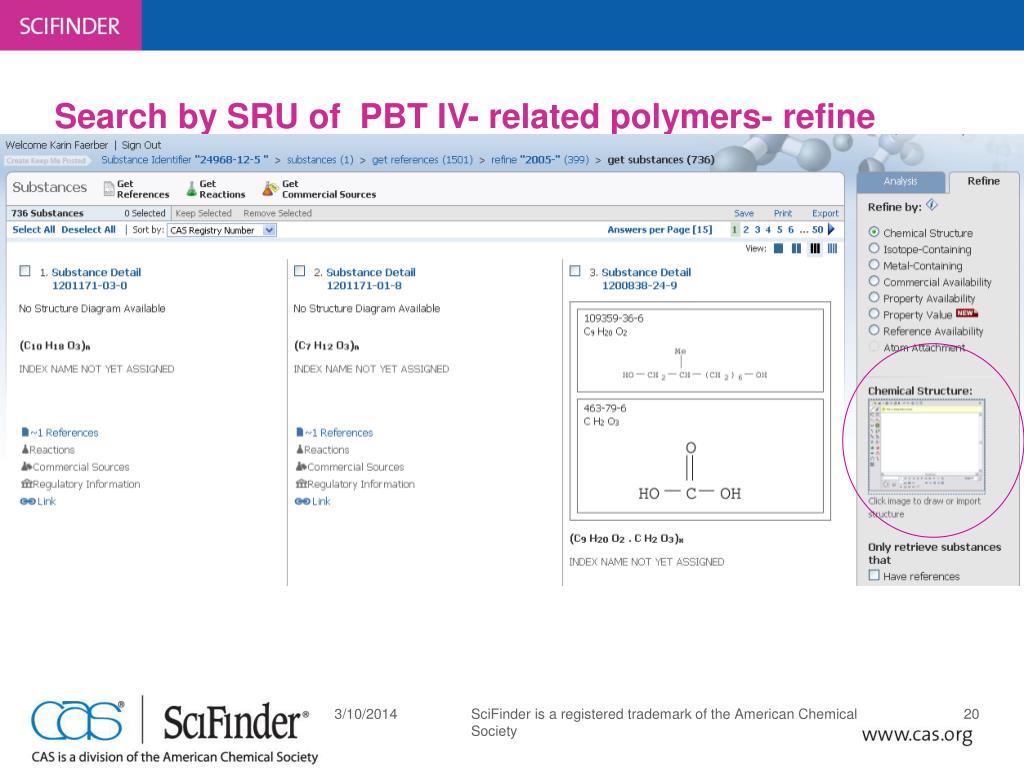

  20. Search by SRU of PBT IV- related polymers- refine SciFinder is a registered trademark of the American Chemical Society

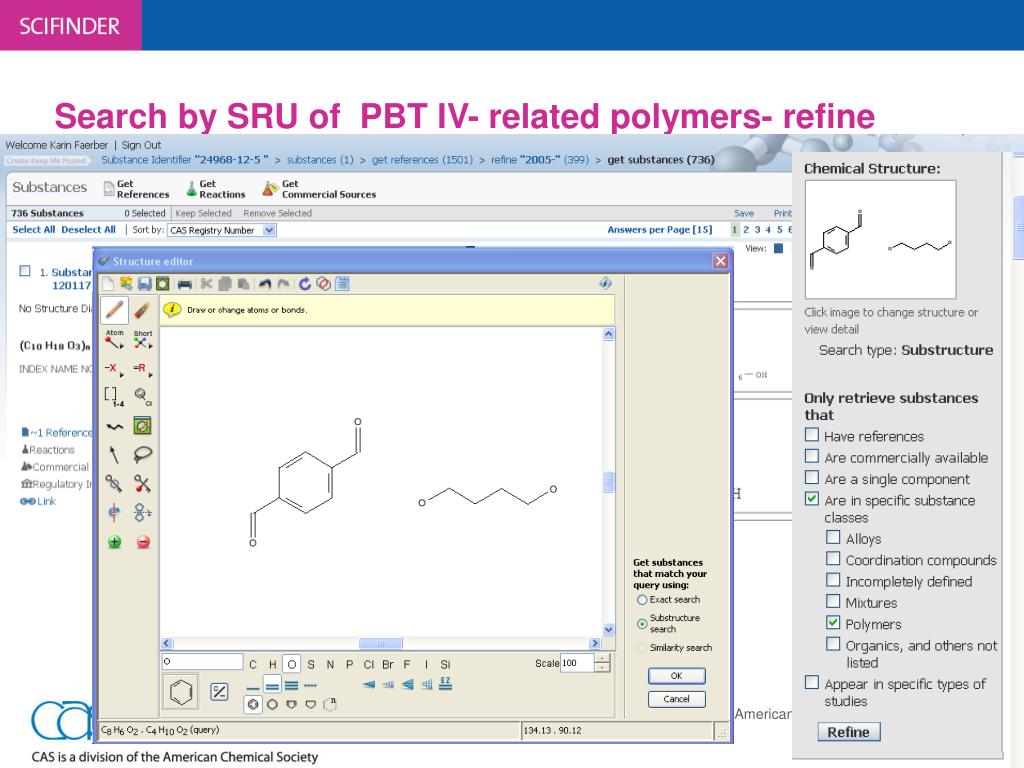

  21. Search by SRU of PBT IV- related polymers- refine SciFinder is a registered trademark of the American Chemical Society

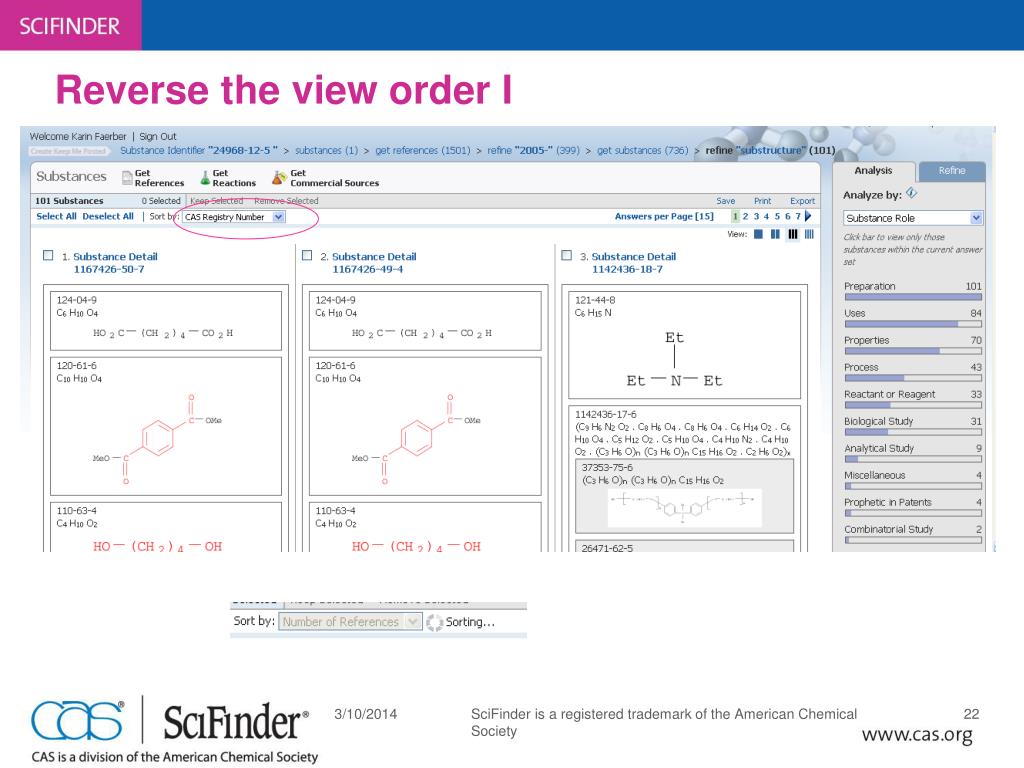

  22. Reverse the view order I SciFinder is a registered trademark of the American Chemical Society

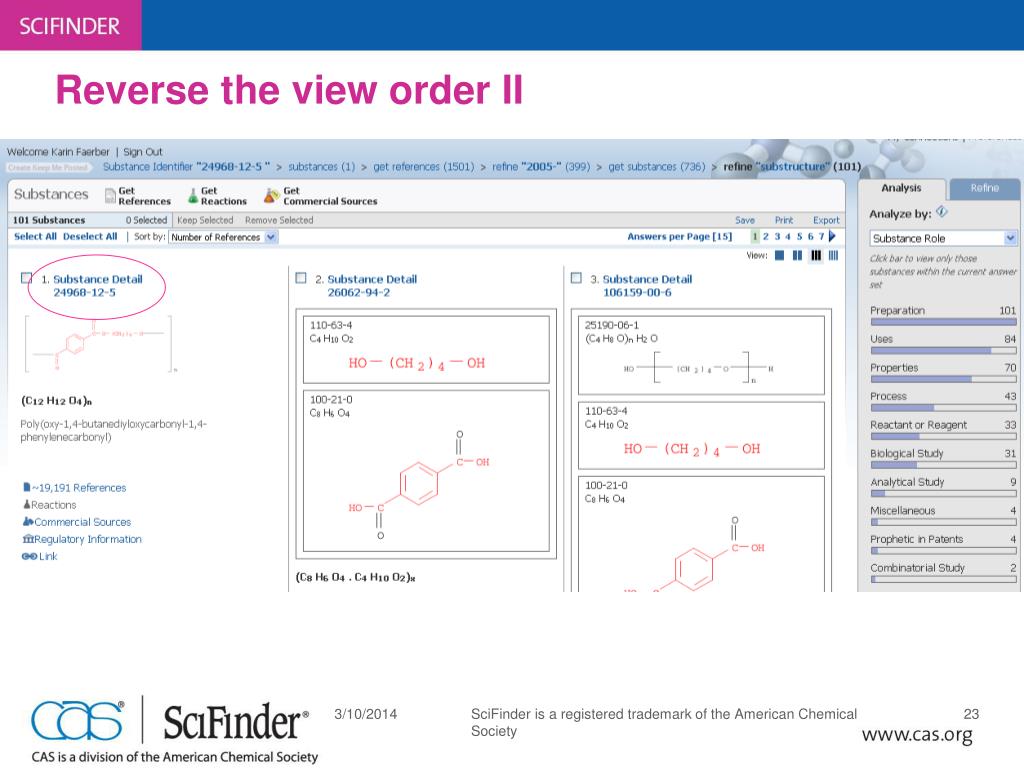

  23. Reverse the view order II SciFinder is a registered trademark of the American Chemical Society

  24. Other starting materials • Selected polymers based on other starting materials • Acid chlorides, esters, butyl ester of terephthalic acid, etc • Some are copolymers with polybutylene glycol • Found : • No additional components 5 polymers linked to 19552 references • With additional components 100 polymers linked to 21 094 references • The SRU is linked to 19,191 references • If you need the SRU for your polymer please contact CAS helpdesk (help@cas.org) SciFinder is a registered trademark of the American Chemical Society

  25. Search by exact structure I • Polymers can be searched by their exact structure of the monomers • Doesn’t work for the SRU’s • Draw the structures of the monomers as individual entities • Select exact structure search to block further substitution • De-select “Include additional components” if no further monomers can be included SciFinder is a registered trademark of the American Chemical Society

  26. Search by exact structure II –Styrene-Isoprene polymers SciFinder is a registered trademark of the American Chemical Society

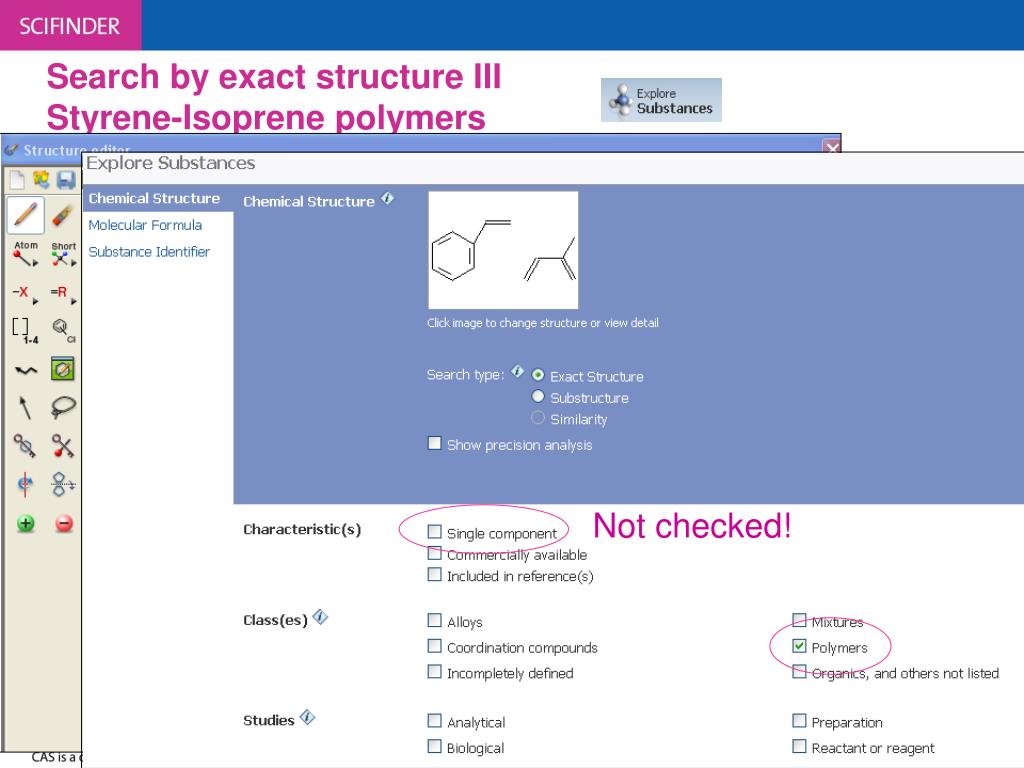

  27. Search by exact structure IIIStyrene-Isoprene polymers Not checked! SciFinder is a registered trademark of the American Chemical Society

  28. With additional components: 750 Not possible to limit the maximum number of components SciFinder is a registered trademark of the American Chemical Society

  29. Without addl. components: 27 May include some oligomers and radio-labeled compounds SciFinder is a registered trademark of the American Chemical Society

  30. Search by substructure IEthylene-alpha-olefin polymers 1-Butene and higher olefins SciFinder is a registered trademark of the American Chemical Society

  31. Searching by substructure IIEthylene-alpha-olefin polymers (LLDPE) Selected the option for no additional components SciFinder is a registered trademark of the American Chemical Society

  32. Searching by substructure IIIEthylene-alpha-olefin polymers - Results SciFinder is a registered trademark of the American Chemical Society

  33. Get references: preparation….Save for later combine SciFinder is a registered trademark of the American Chemical Society

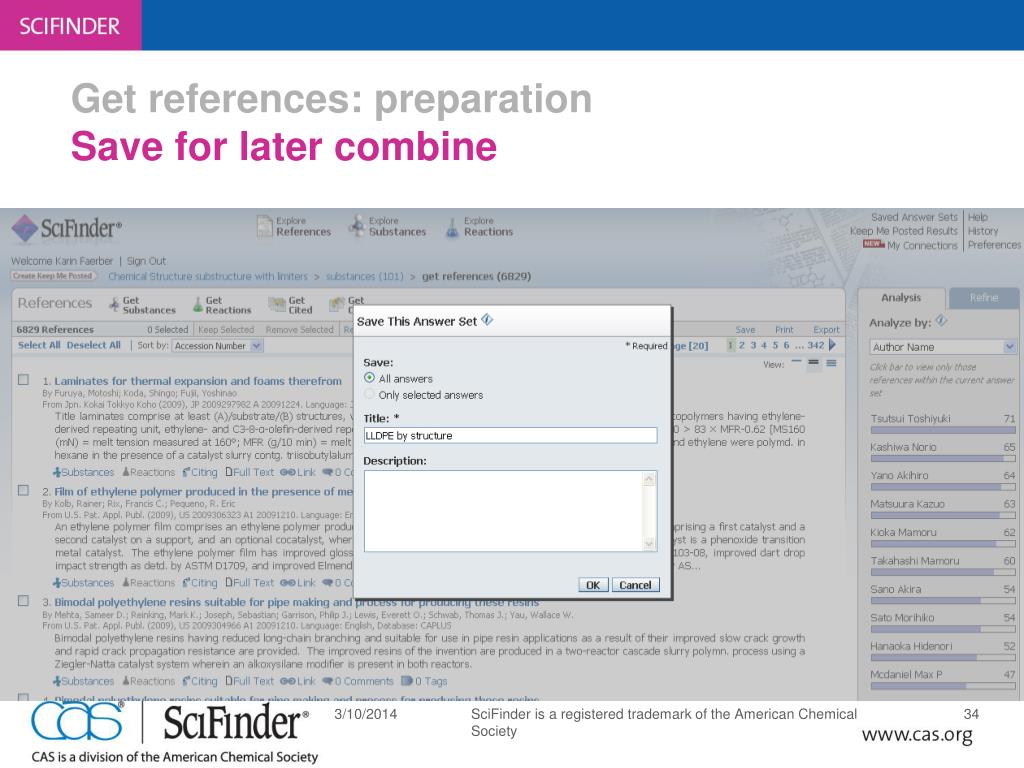

  34. Get references: preparation Save for later combine SciFinder is a registered trademark of the American Chemical Society

  35. Polymers described generically • Ethylene--olefin polymers can be described without specifying which -olefin is used • These materials are often referred to as linear low density polyethylene or LLDPE • Our search strategy by substructure would not pick up these generic polymers • Search by Research Topic for the generic polymers and combine the results • Complete the search by refining and analyzing the combined answer SciFinder is a registered trademark of the American Chemical Society

  36. Topic Search LLDPE Synonyms can be added in brackets SciFinder is a registered trademark of the American Chemical Society

  37. Save both results: Structure and Text SciFinder is a registered trademark of the American Chemical Society

  38. Combine the results 9177 Answers are the combined result! SciFinder is a registered trademark of the American Chemical Society

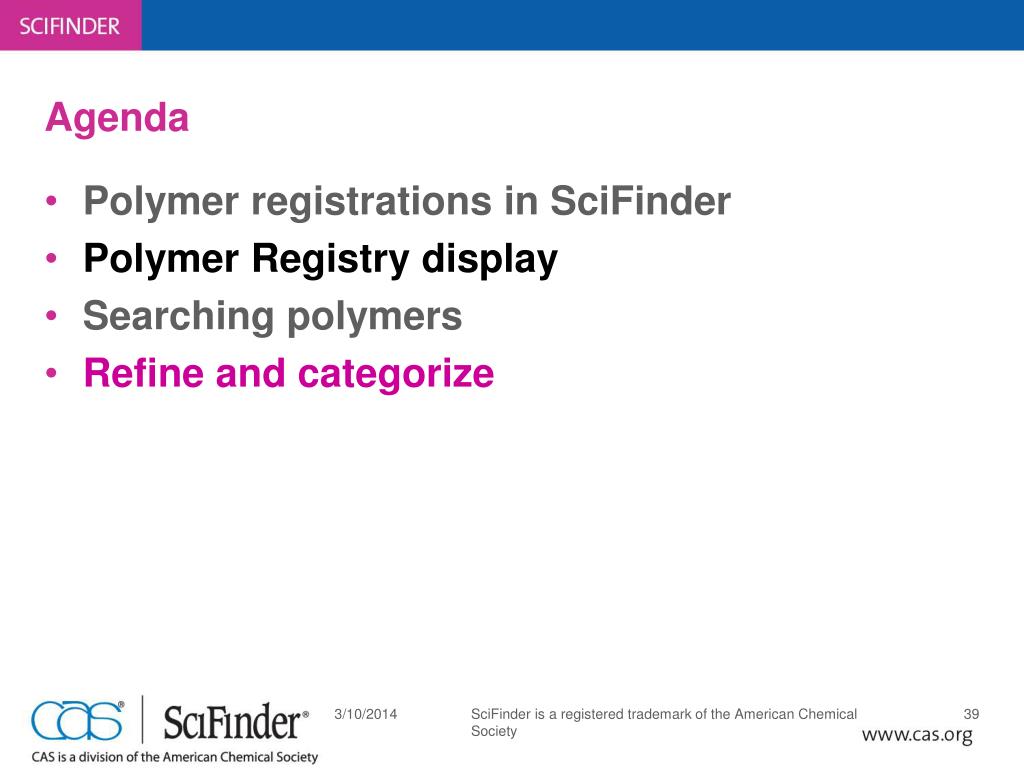

  39. Agenda • Polymer registrations in SciFinder • Polymer Registry display • Searching polymers • Refine and categorize SciFinder is a registered trademark of the American Chemical Society

  40. Complete the result by categorize and refine to get to know more about their use in Plastic Films SciFinder is a registered trademark of the American Chemical Society

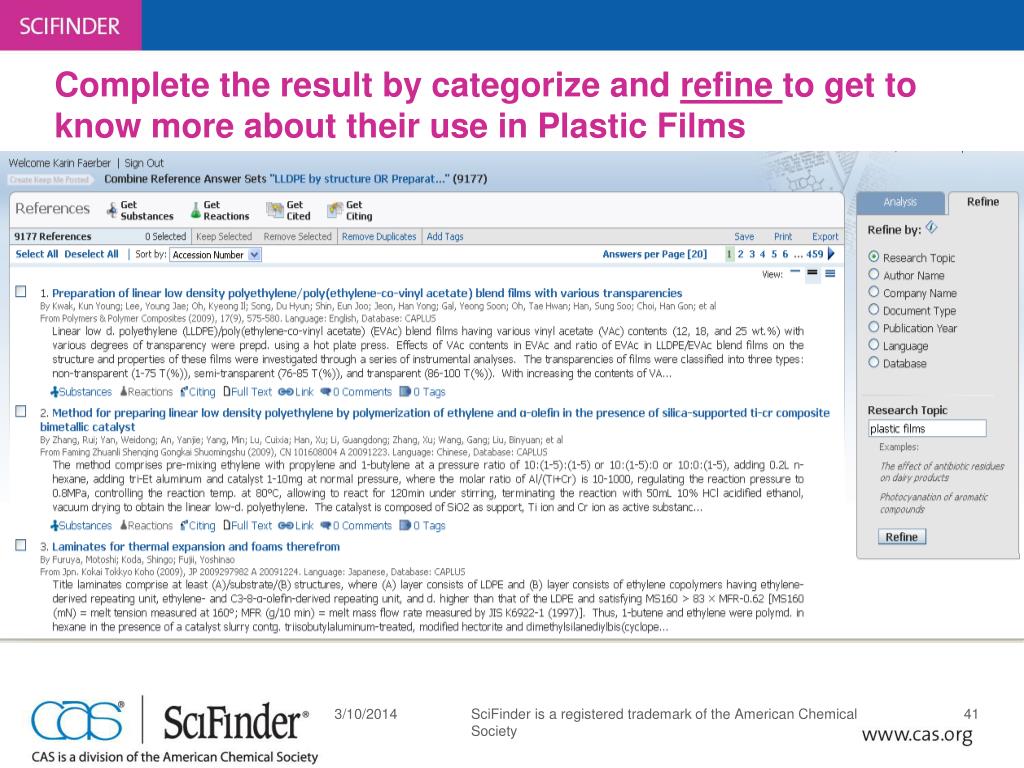

  41. Complete the result by categorize and refine to get to know more about their use in Plastic Films SciFinder is a registered trademark of the American Chemical Society

  42. Conclusions polymer searching • Searching for Polymers is possible in SciFinder! • Searching for polymers present some challenges related to polymer definitions and CAS registration policies • Be informed for better searching • If there are questions please ask for help help@cas.org SciFinder is a registered trademark of the American Chemical Society

  43. Agenda • Polymer registrations in SciFinder • Polymer Registry display • Searching polymers • Refine and categorize SciFinder is a registered trademark of the American Chemical Society

  44. Polymer searching Questions? Comments?
