  1. Heart & Neck Vessels—A&P Jarvis, chapter 19

  2. Anatomy of the Heart

  3. Coronary Arteries

  4. Coronary Circulation • Coronary arteries are first branches of aorta at sinuses of Valsalva. • Provides blood supply to heart during diastole (during resting phase or in between beats). • Has left and right coronary branches

  5. Left Coronary Artery • 2 branches: • Left circumflex—goes to left atrium, lateral and posterior ventricles • Left anterior descending (“widow maker”)—goes to anterior and apex of LV, anterior septum, bundle of His, right and left bundle branches

  6. Right Coronary Artery & Venous Drainage • Goes to RA, RV, SA and AV nodes, posterior and septum • Venous drainage is done by coronary sinus, cardiac veins, and thesbian veins

  7. Physiologyof the Heart

  8. Blood Flow • Realize that blood flow within the heart is bilateral • Following one deoxygenated RBC: • From body—IVC—RA—tricuspic valve—RV—pulmonic valve—pulmonary artery—lungs—pulmonary vein—LA—mitral valve—LV—aortic valve—aorta—to body

  9. Direction of Blood Flow

  10. Cardiac Cycle • Systole—ventricular contraction—corresponds to “lub” sound which is closure of AV valves. This is the S1 part of cycle. • Diastole—relaxation phase and atrial contraction-- corresponds to “dub” sound which is closure of semilunar valves. This is the S2 part of cycle. • S3 is aortic valve closing just before pulmonic

  11. So…to put it together…. • Blood from the vena cava and pulmonary artery flows into both atria when ventricles are relaxed and AV (tricuspid and mitral) valves are open. • Atria have higher pressure than ventricles so blood pours into ventricles (passive filling). • When 75% of blood is in ventricles, other 25% is pushed in by “atrial kick” (active filling). • When ventricles are full, the stretch on the chordae tendinae cause the AV valves to snap shut causing the first heart sound (S1).

  12. And then……… • Pressure in ventricles is greater than pressure in great vessels (pulmonary artery and aorta) so… • Milliseconds later, the semilunar valves (pulmonic and aortic) open, and the ventricles contract. • Blood is forced thru the great vessels. • When pressure is low in ventricles, semilunar valves snap shut, causing the second heart sound (S2).

  13. Preload & Afterload • Preload—amount of stretch in ventricles at end of diastole • Afterload—resistance in great vessels against which ventricles must pump blood into circulation

  14. Cardiac Output • Cardiac output = Stroke Volume x Heart Rate • Stroke volume 70 mL/beat; 4-7 L/min; exercise 20 mL/min. SV is determined by preload, afterload, and contractility • Starling’s Law—greater the stretch, the stronger the contraction • Heart rate is controlled by ANS, CNS, and baroreceptors in heart • Ejection fraction is % of blood ejected by ventricles in one contraction

  15. Chemical Conduction • Contraction depends on exchange of ions across the myocardial cell membrane—Na+, K+, Ca++ • Polarization—cell is ready to contract with ions in place • Depolarization—ventricular contraction • Repolarization—resting phase during which ions are moving back to polarization state

  16. Conduction Pathway

  17. Conduction and the ECG

  18. Conduction & the ECG

  19. Neck Vessels (492) • Carotid artery: • Transports blood to brain • 2nd branch of aorta • Pulsations are visible • Palpated between thyroid cartilage and SCM • Coincides with apical pulse

  20. Neck Vessels cont’d • Jugular veins: • Drain head and neck • Return blood to heart via superior vena cava (SVC) • Internal is visible in sternal notch in supine position • External may be visible superior to clavicle, but is difficult to see unless pt is in heart failure

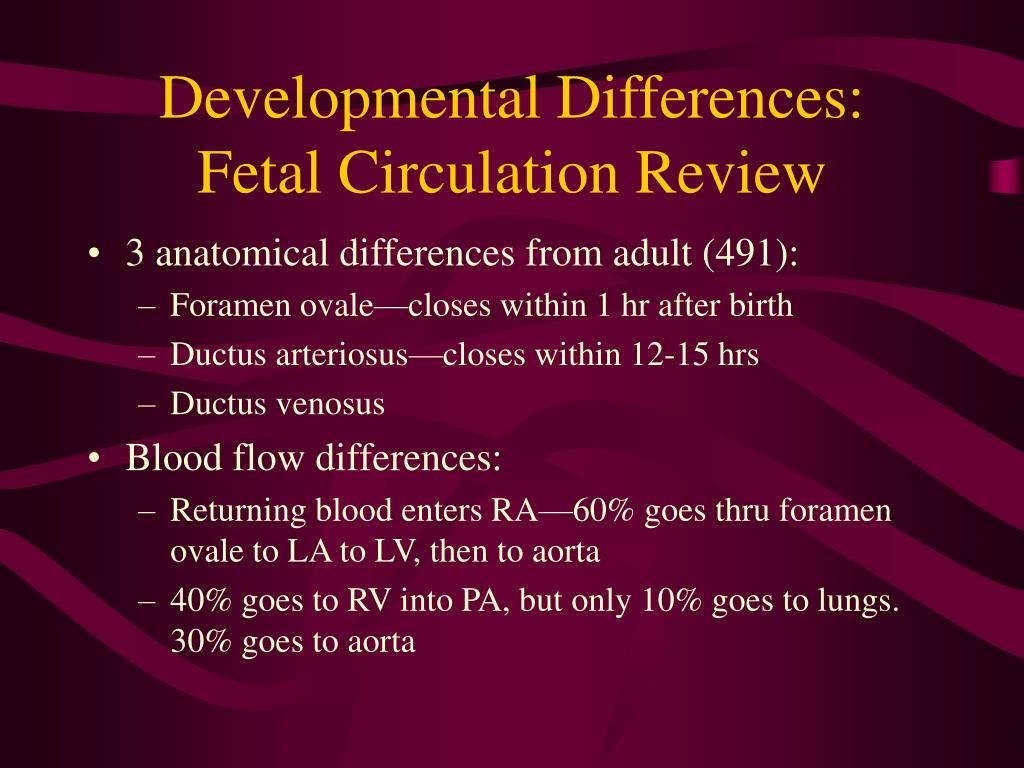

  21. Developmental Differences: Fetal Circulation Review • 3 anatomical differences from adult (491): • Foramen ovale—closes within 1 hr after birth • Ductus arteriosus—closes within 12-15 hrs • Ductus venosus • Blood flow differences: • Returning blood enters RA—60% goes thru foramen ovale to LA to LV, then to aorta • 40% goes to RV into PA, but only 10% goes to lungs. 30% goes to aorta

  22. Differences: Infants and Children • PMI at 4th ICS, MCL until 7 yrs of age • Sinus arrhythmia throughout childhood • Split S2 • Faster pulse: 160 to 90 • Lower BP: 70/40 to 110/70

  23. Differences: Older Adults • SBP increases 40 mm d/t arterial wall changes causing slight enlargement of LV. No change in DBP. • More likely to have arrhythmias, murmurs, extra sounds, bruits, activity intolerance, atypical MI sx, and orthostatic BP

  24. Cultural Differences • All CV risk factors are higher among Blacks and Hispanics and lower in Asians and Pacific Islanders. • Incidence of HD is higher in both male and female African Americans than in other groups and Latino women have higher incidence than white women.
