Part 2 – Exotic swap products Asset swaps Total return swaps Forward swaps Cancellable swaps and swaptions Spread-lock interest rate swaps Constant maturity swaps Credit default swaps Equity-linked swaps. Asset swaps. -.

Télécharger la présentation
## Part 2 – Exotic swap products Asset swaps Total return swaps Forward swaps Cancellable swaps and swaption

**An Image/Link below is provided (as is) to download presentation**
Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.
Content is provided to you AS IS for your information and personal use only.
Download presentation by click this link.
While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.
During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

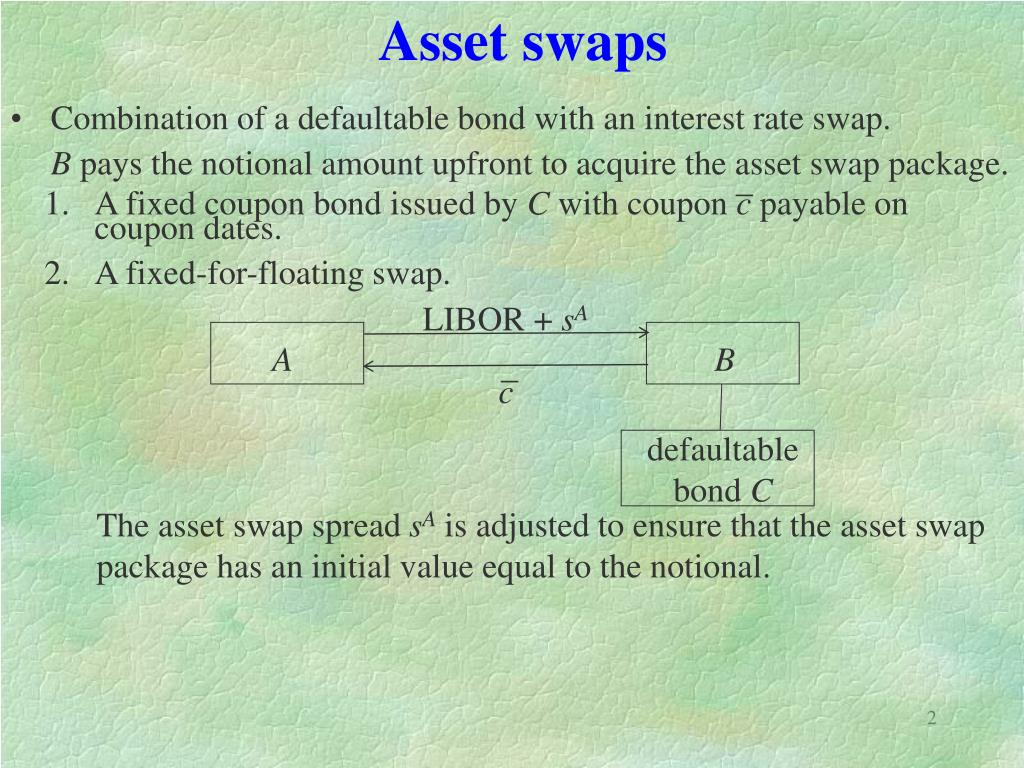

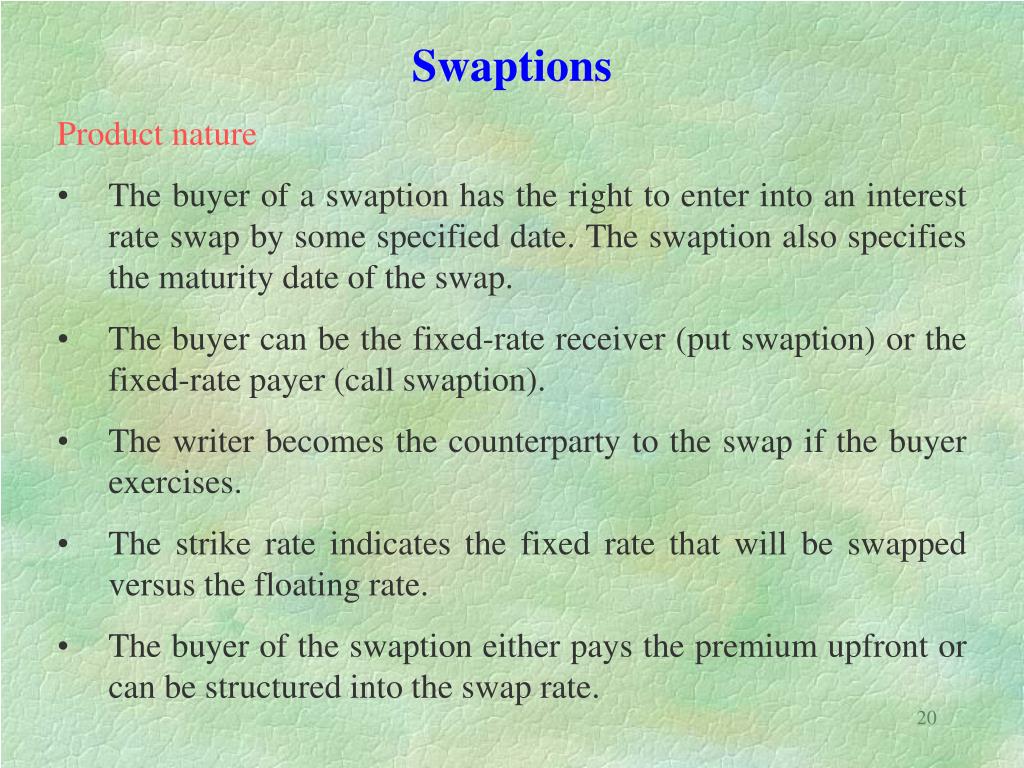

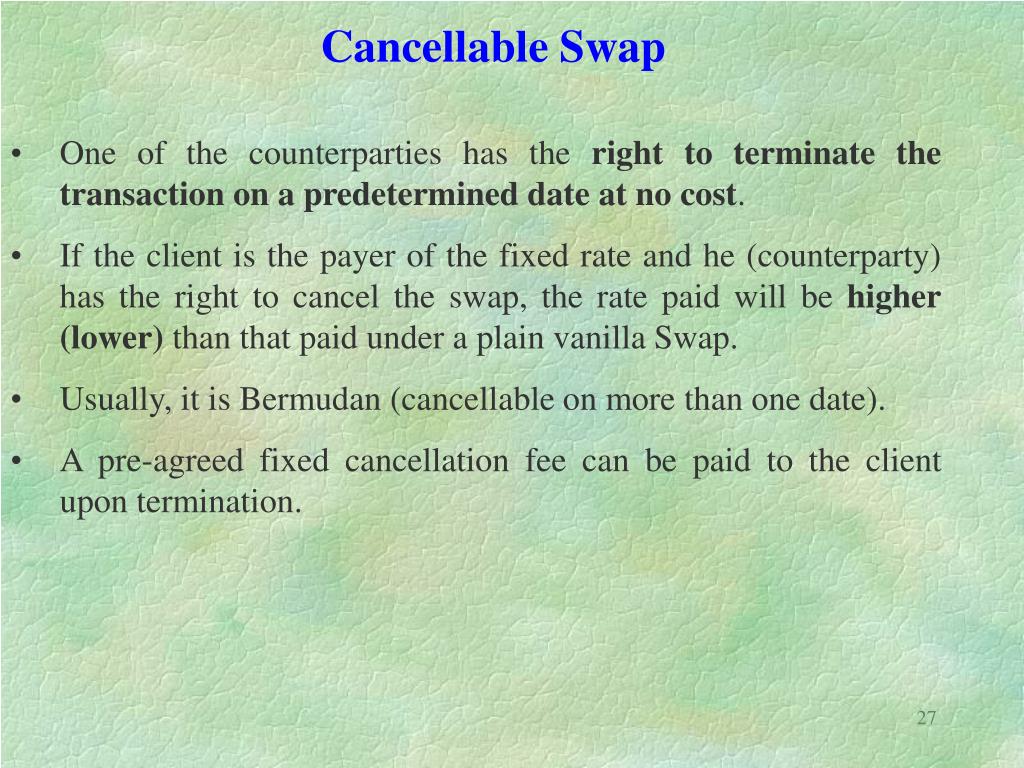

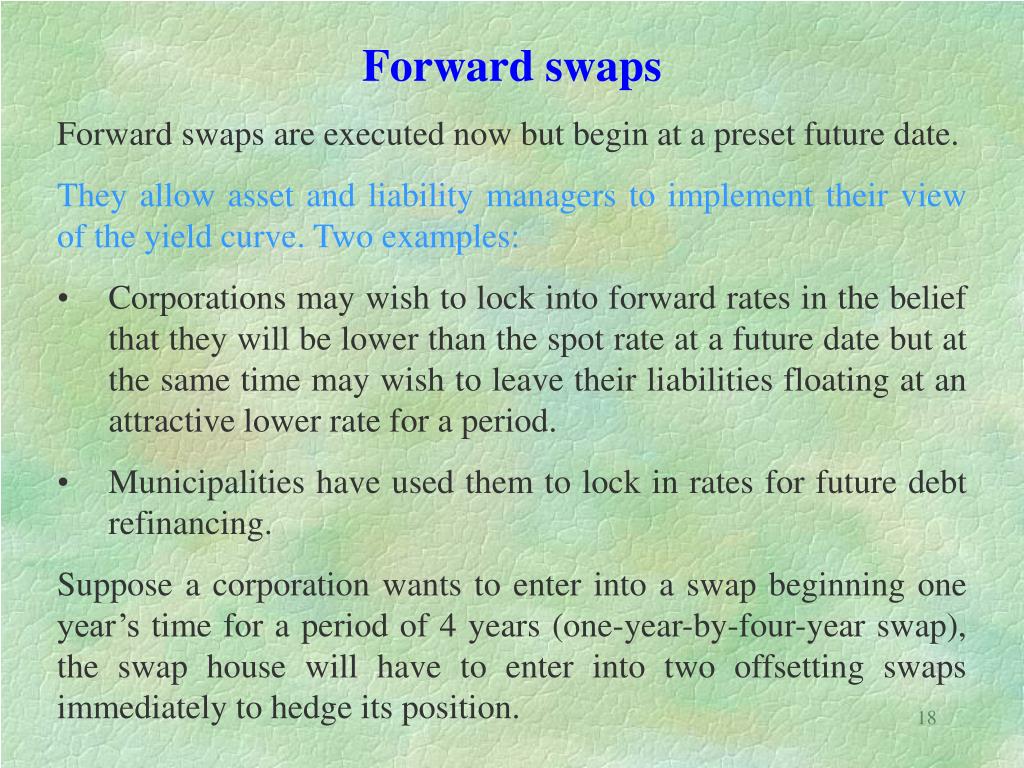

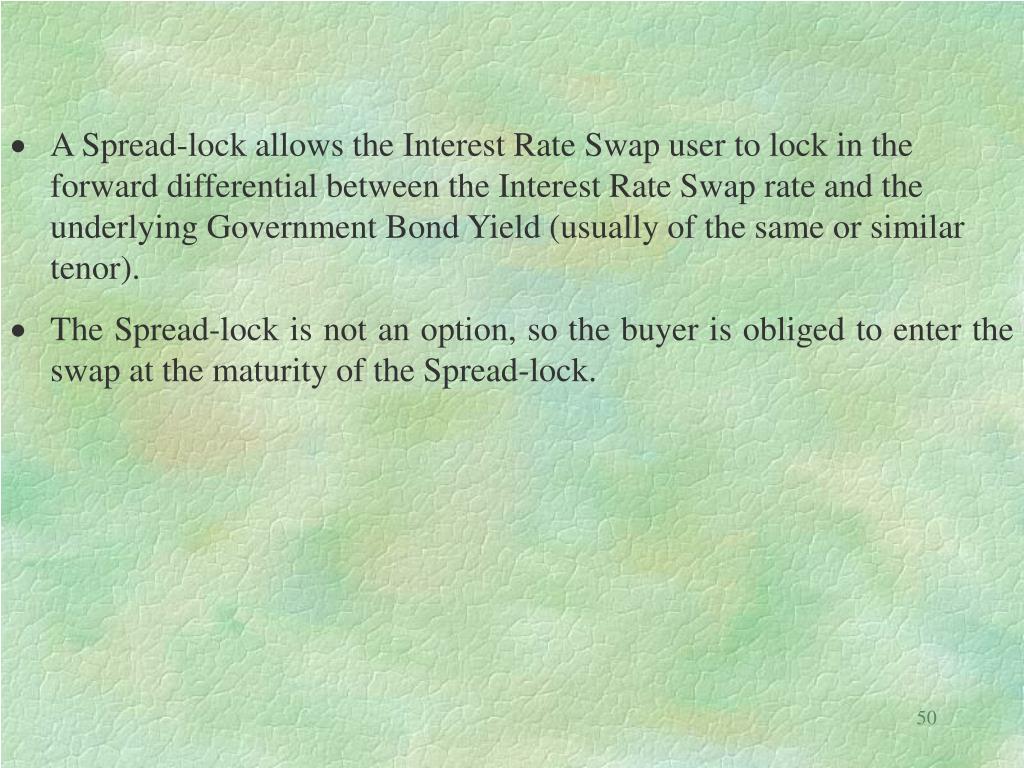

**Part 2 – Exotic swap products**• Asset swaps • Total return swaps • Forward swaps • Cancellable swaps and swaptions • Spread-lock interest rate swaps • Constant maturity swaps • Credit default swaps • Equity-linked swaps**Asset swaps**- 1. A fixed coupon bond issued by C with coupon c payable on coupon dates. 2. A fixed-for-floating swap. defaultable bond C - c • Combination of a defaultable bond with an interest rate swap. • B pays the notional amount upfront to acquire the asset swap package. LIBOR + sA A B The asset swap spread sAis adjusted to ensure that the asset swap package has an initial value equal to the notional.**Asset swaps are more liquid than the underlying**defaultable bond. • The Asset Swap may be transacted at the time of the security purchase or added to a bond already owned by the investor. • An asset swaption gives B the right to enter an asset swap package at some future date T at a predetermined asset swap spread sA.**Example**• An investor believes CAD rates will rise over the medium term. They would like to purchase CAD 50million 5yr Floating Rate Notes. • There are no 5yr FRNs available in the market in sufficient size. The investor is aware of XYZ Ltd 5yr 6.0% annual fixed coupon Bonds currently trading at a yield of 5.0%. The bonds are currently priced at 104.38. • The investor can purchase CAD 50million Fixed Rate Bonds in the market for a total consideration of CAD 51,955,000 plus any accrued interest. They can then enter a 5 year Interest Rate Swap (paying fixed) with the Bank as follows:**The upfront payment compensates the investor for any premium**paid for the bonds. Likewise, if the bonds were purchased at a discount, the investor would pay the discount amount to the Bank. This up front payment ensures that the net position created by the Asset Swap is the same as a FRN issued at par so that the initial outlay by the investor is CAD 50million.**Pricing**• From the investors viewpoint, the net cash flows from the Bond plus the Asset Swap are the same as the cash flows from a Floating Rate Note. • The yield on the Asset Swap (in the example LIBOR plus 50bp), will depend upon the relationship between the Bond yield and the Swap Yield for that currency. When converting a fixed rate bond to floating rate, LOWER swap rates relative to bond yields will result in HIGHER Asset Swap yields. When converting FRNs to fixed rate, HIGHER swap rates relative to bond yields will result in HIGHER Asset Swap yields. • Remark It is a common mistake to assume that the yield over LIBOR on the Asset Swap (50bp in the example above) is merely the difference between the Bond Yield (5%) and the 5yr Swap yield. It is necessary to price the Asset Swap using a complete Interest Rate Swap pricing model.**Target Market**Any investor purchasing or holding interest bearing securities. The Asset Swap can either be used to create synthetic securities unavailable in the market, or as an overlay interest rate management technique for existing portfolios. Many investors use Asset Swaps to "arbitrage" the credit markets, as in many instances synthetic FRNs or Bonds produce premium yields compared to traditional securities issued by the same company.**Total return swap**• Exchange the total economic performance of a specific asset for another cash flow. A commercial bank can hedge all credit risk on a loan it has originated. The counterparty can gain access to the loan on an off-balance sheet basis, without bearing the cost of originating, buying and administering the loan. total return of asset Total return receiver Total return payer LIBOR + Y bp Total return comprises the sum of interests, fees and any change-in-value payments with respect to the reference asset.**The payments received by the total return receiver are:**• 1. The coupon of the bond (if there were one since the last payment date Ti - 1) • The price appreciation of the underlying bond • C since the last payment (if there were only). • 3. The recovery value of the bond (if there were default). The payments made by the total return receiver are: • 1. A regular fee of LIBOR + sTRS • The price depreciation of bond C since the last • payment (if there were only). • 3. The par value of the bond C if there were a default in the meantime). The coupon payments are netted and swap’s termination date is earlier than bond’s maturity.**Some essential features**• 1. The receiver is synthetically long the reference asset without having to fund the investment up front. He has almost the same payoff stream as if he had invested in risky bond directly and funded this investment at LIBOR + sTRS. • The TRS is marked to market at regular intervals, similar to a futures contract on the risky bond. The reference asset should be liquidly traded to ensure objective market prices for making to market (determined using a dealer poll mechanism). • The TRS allows the receiver to leverage his position much higher than he would otherwise be able to (may require collateral). The TRS spread should not be driven by the default risk of the underlying asset but also by the credit quality of the receiver.**Used as a financing tool**• The receiver wants financing to invest $100 million in the reference bond. It approaches the payer (a financial institution) and agrees to the swap. • The payer invests $100 million in the bond. The payer retains ownership of the bond for the life of the swap and has much less exposure to the risk of the receiver defaulting. • The receiver is in the same position as it would have been if it had borrowed money at LIBOR + sTRS to buy the bond. He bears the market risk and default risk of the underlying bond.**Motivation of the receiver**1. Investors can create new assets with a specific maturity not currently available in the market. 2. Investors gain efficient off-balance sheet exposure to a desired asset class to which they otherwise would not have access. 3. Investors may achieve a higher leverage on capital – ideal for hedge funds. Otherwise, direct asset ownership is on on-balance sheet funded investment. 4. Investors can reduce administrative costs via an off-balance sheet purchase. 5. Investors can access entire asset classes by receiving the total return on an index.**Motivation of the payer**The payer creates a hedge for both the price risk and default risk of the reference asset. * A long-term investor, who feels that a reference asset in the portfolio may widen in spread in the short term but will recover later, may enter into a total return swap that is shorter than the maturity of the asset. This structure is flexible and does not require a sale of the asset (thus accommodates a temporary short-term negative view on an asset).**Forward swaps**• Forward swaps are executed now but begin at a preset future date. • They allow asset and liability managers to implement their view of the yield curve. Two examples: • Corporations may wish to lock into forward rates in the belief that they will be lower than the spot rate at a future date but at the same time may wish to leave their liabilities floating at an attractive lower rate for a period. • Municipalities have used them to lock in rates for future debt refinancing. • Suppose a corporation wants to enter into a swap beginning one year’s time for a period of 4 years (one-year-by-four-year swap), the swap house will have to enter into two offsetting swaps immediately to hedge its position.**Swaptions**• Product nature • The buyer of a swaption has the right to enter into an interest rate swap by some specified date. The swaption also specifies the maturity date of the swap. • The buyer can be the fixed-rate receiver (put swaption) or the fixed-rate payer (call swaption). • The writer becomes the counterparty to the swap if the buyer exercises. • The strike rate indicates the fixed rate that will be swapped versus the floating rate. • The buyer of the swaption either pays the premium upfront or can be structured into the swap rate.**TARGET MARKET**• Investors with floating rate assets may wish to buy Receiver Swaptions which will convert their assets from floating to fixed when rates fall below the strike. • This strategy is similar to a Floor. While under a Floor the investor remains floating but with a guaranteed minimum level, here the asset is converted to a fixed rate. • The option can also be used as a speculative instrument for investors who believe fixed rates will fall.**Hedge against cash flow uncertainties**• Used to hedge a portfolio strategy that uses an interest rate swap but where the cash flow of the underlying asset or liability is uncertain. • Uncertainties come from (i) callability, eg, a callable bond or mortgage loan, (ii) exposure to default risk. • Example • Consider a S & L Association entering into a 4-year swap in which it agrees to pay 9% fixed and receive LIBOR. • The fixed rate payments come from a portfolio of mortgage pass-through securities with a coupon rate of 9%. One year later, mortgage rates decline, resulting in large prepayments. • The purchase of a put swaption with a strike rate of 9% would be useful to offset the original swap position.**Management of callable debt**Three years ago, XYZ issued 15-year fixed rate callable debt with a coupon rate of 12%. -3 0 2 12 bond maturity original bond issue today bond call date Strategy The issuer sells a two-year receiver option on a 10-year swap, that gives the holder the right, but not the obligation, to receive the fixed rate of 12%.**Call monetization**By selling the swaption today, the company has committed itself to paying a 12% coupon for the remaining life of the original bond. • The swaption was sold in exchange for an upfront swaption premium received at date 0. Company XYZ Swap Counterparty Swaption Premium Pay 12% Coupon Bondholders**Call-Monetization Cash Flow: Swaption Expiration Date**Interest Rates ³ 12% Company XYZ Swap Counterparty Pay 12% Coupon Bondholders Interest Rates< 12% LIBOR Company XYZ Swap Counterparty 12% Pay FRN Coupon at LIBOR New Bondholders**Disasters for the issuer**• The fixed rate on a 10-year swap was below 12% in two years but its debt refunding rate in the capital market was above 12% (due to credit deterioration) • The company would be forced either to enter into a swap that it does not want or liquidate the position at a disadvantage and not be able to refinance its borrowing profitably.**Cancellable Swap**• One of the counterparties has the right to terminate the transaction on a predetermined date at no cost. • If the client is the payer of the fixed rate and he (counterparty) has the right to cancel the swap, the rate paid will be higher(lower) than that paid under a plain vanilla Swap. • Usually, it is Bermudan (cancellable on more than one date). • A pre-agreed fixed cancellation fee can be paid to the client upon termination.**Use of cancellable swaps**Assume that the following bond is available in the secondary market: Terms of the callable bond Issue Date 1 July 2001 Maturity 1 July 2011 (10 years) Coupon 7.00% pa annual Call provisions Callable at the option of the issuer commencing 1 July 2006 (5 years) and annually thereafter on each coupon date. Initially callable at a price of 101 decreasing by 0.50 each year and thereby callable at par on 1 July 2008 and each coupon date thereafter. Bond price Issued at par An investor purchases the bond and enters into the following swap to convert the fixed rate returns from the bond into floating rate payments priced off LIBOR.**Terms of the cancellable swap**Final Maturity 1 July 2011 Fixed coupon Investor pays 7.00% pa annually (matching the bond coupon). Floating coupon Investor receives 6 months LIBOR + 48 bps pa Swap Termination Investor has the right to terminate the swap commencing 1 July 2005 and each anniversary of the swap. On each termination date, the investor pays the following fee to the swap counterparty: Date Fee (%) 1 July 2006 1.00 1 July 2007 0.50 1 July 2008 to 1 July 2010 0.00**The swap combines a conventional interest rate swap**(investor pays fixed rate and receives LIBOR) with a receiver swaption purchased by the investor to receive fixed rates (at 7.00% pa) and pay floating (at LIBOR plus 48 bps). • The swaption is a Bermudan style exercise. The investor can exercise the option on any annual coupon date commencing 1 July 2006 (triggering a 5 year interest rate swap) and 1 July 2010 (triggering a 1 year interest rate swap). • There are no initial cash flows under this swap. The only initial cash flow is the investment by the investor in the underlying bonds.**The investor’s cash flow on each interest payment date**will be as follows:**If the bond is called, then the investor is paid 101% of the**face value of the bond by the issuer (assuming call on 1 July 2006). The investor passes 1% to the dealer for the right to trigger the swaption and cancel the original 10 year interest rate swap. This effectively gives the investor back 100% of its initial investment.**The pricing of the overall transaction incorporate**• Interest rate swap rate. • Pricing of the swaption purchased by the investor. • The value of the swaption may be embedded in the fixed rate.**Rationale for doing these transactions**• There is a limited universe of non-callable fixed rate bonds. • When interest rates decrease below the coupon, the bond is called. The investor is left with an out-of-the-money interest rate swap position (the swap fixed rate is above market rates). • The swap is expensive to reverse, creating losses for investors. Puttable swaps are structured as a means of mitigating the potential loss resulting from early redemption of the asset swap.**Callable debt management**• In August 1992 (two years ago), a corporation issued 7-year bonds with a fixed coupon rate of 10% payable semiannually on Feb 15 and Aug 15 of each year. • The debt was structured to be callable (at par) offer a 4-year deferment period and was issued at par value of $100 million. • In August 1994, the bonds are trading in the market at a price of 106, reflecting the general decline in market interest rates and the corporation’s recent upgrade in its credit quality.**Question**The corporate treasurer believes that the current interest rate cycle has bottomed. If the bonds were callable today, the firm would realize a considerable savings in annual interest expense. Considerations • The bonds are still in their call protection period. • The treasurer’s fear is that the market rate might rise considerably prior to the call date in August 1996. Notation T = 3-year Treasury yield that prevails in August, 1996 T + BS = refunding rate of corporation, where BS is the company specific bond credit spread T + SS = prevailing 3-year swap fixed rate, where SS stands for the swap spread**Strategy I. Sell a receiver swaption at a strike rate of**9.5% expiring in two years. Initial cash flow: Receive $2.50 million (in-the-money swaption) August 1996 decisions: • Gain on refunding (per settlement period): [10 percent – (T + BS)] if T + BS < 10 percent, 0 if T + BS³ 10 percent. • Loss on unwinding the swap (per settlement period): [9.50 percent – (T + SS)] if T + SS < 9.50 percent, 0 if T + SS ³ 9.50 percent. With BS = 1.00 percent SS = 0.50 percent, these gains and losses in 1996 are:**Gain on**Refunding Gains If BS goes up T 9% If SS goes down Losses Loss on selling receiver swaption**Net Gain**Gains T 9% If SS goes down or BS goes up Losses**Comment on the strategy**By selling the receiver swaption, the company has been able to simulate the sale of the embedded call feature of the bond, thus fully monetizing that option. The only remaining uncertainty is the basis risk associated with unanticipated changes in swap and bond spreads.**Strategy II. Enter an off-market forward swap as the fixed**rate payer Agreeing to pay 9.5% (rather than the at-market rate of 8.55%) for a three-year swap, two years forward. Initial cash flow: Receive $2.25 million since the the fixed rate is above the at-market rate. Assume that the corporation’s refunding spread remains at its current 100 bps level and the 3-year swap spread over Treasuries remains at 50 bps, then the annual reduction in interest rate expense after refunding 10% - (T + 1.0) if the firm is able to refund 0 if it is not. The gain (or loss) on unwinding the swap is the fixed rate at that time = [T + 0.5% - 9.5%]. The two effects offset each other, given the assumed spreads. The corporation has effectively sold the embedded call option for $2.25m.**Gains and losses**August 1996 decisions: • Gain on refunding (per settlement period): [10 percent – (T + BS)] if T + BS < 10 percent, 0 if T + BS³ 10 percent. • Gain (or loss) on unwinding the swap (per settlement period): - [9.50 percent – (T + SS)] if T + SS < 9.50 percent, [(T + SS) – 9.50 percent] if T + SS ³ 9.50 percent. Assuming that BS = 1.00 percent, SS = 0.50 percent, these gains and losses in 1996 are:**Callable Debt Management with a Forward Swap**Gain on Refunding Gain on Unwinding Swap Gains If BS goes up T 9% If SS goes down Losses**Net Gain**Gains T 9% If SS goes down or BS goes up Losses**Comment on the strategy**Since the company stands to gain in August 1996 if rates rise, it has not fully monetized the embedded call options. This is because a symmetric payoff instrument (a forward swap) is used to hedge an asymmetric payoff (option) problem.**Spread-lock interest rate swaps**• Enables an investor to lock in a swap spread and apply it to • an interest rate swap executed at some point in the future. • The investor makes an agreement with the bank on • swap spread, (ii) a Treasury rate. • The sum of the rate and swap spread equals the fixed rate paid by the investor for the life of the swap, which begins at the end of the three month (say) spread-lock. • The bank pays the investor a floating rate. Say, 3-month LIBOR.**Example**• The current 5yr swap rate is 8% while the 5yr benchmark government bond rate is 7.70%, so the current spread is 30bp an historically low level. • A company is looking to pay fixed using an Interest Rate Swap at some point in the year. The company believes however, that the bond rate will continue to fall over the next 6 months. They have therefore decided not to do anything in the short term and look to pay fixed later. • It is now six months later and as they predicted, rates did fall. The current 5 yr bond rate is now 7.40% so the company asks for a 5 yr swap rate and is surprised to learn that the swap rate is 7.90%. While the bond rate fell 30bp, the swap rate only fell 10bp. Why?**Explanations**• The swap spread is largely determined by demand to pay or receive fixed rate. • As more parties wish to pay fixed rate, the "price" increases, and therefore the spread over bond rates increases. • It would appear that as the bond rate fell, more and more companies elected to pay fixed, driving the swap spread from 30bp to 50bp. • While the company has saved 10bp, it could have used a Spread-lock to do better.**When the swap rate was 8% and the bond yield 7.70%, the**company could have asked for a six month Spread-lock on the 5yr Swap spread. • While the spot spread was 30bp, the 6mth forward Spread was say 35bp. • The company could "buy" the Spread-lock for six months at 35bp. At the end of the six months, they can then enter a swap at the then 5yr bond yield plus 35bp, in this example a total of 7.75%. The Spread-lock therefore increases the saving from 10bp to 25bp.**A Spread-lock allows the Interest Rate Swap user to lock in**the forward differential between the Interest Rate Swap rate and the underlying Government Bond Yield (usually of the same or similar tenor). • The Spread-lock is not an option, so the buyer is obliged to enter the swap at the maturity of the Spread-lock.
