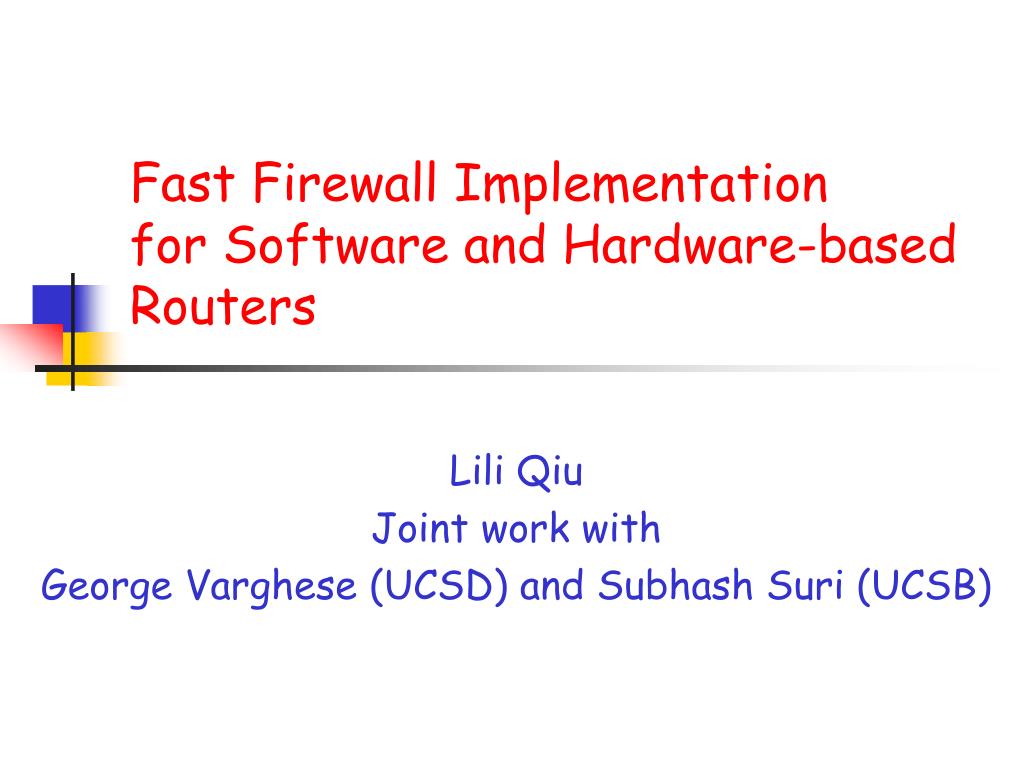

  1. Fast Firewall Implementation for Software and Hardware-based Routers Lili Qiu Joint work with George Varghese (UCSD) and Subhash Suri (UCSB)

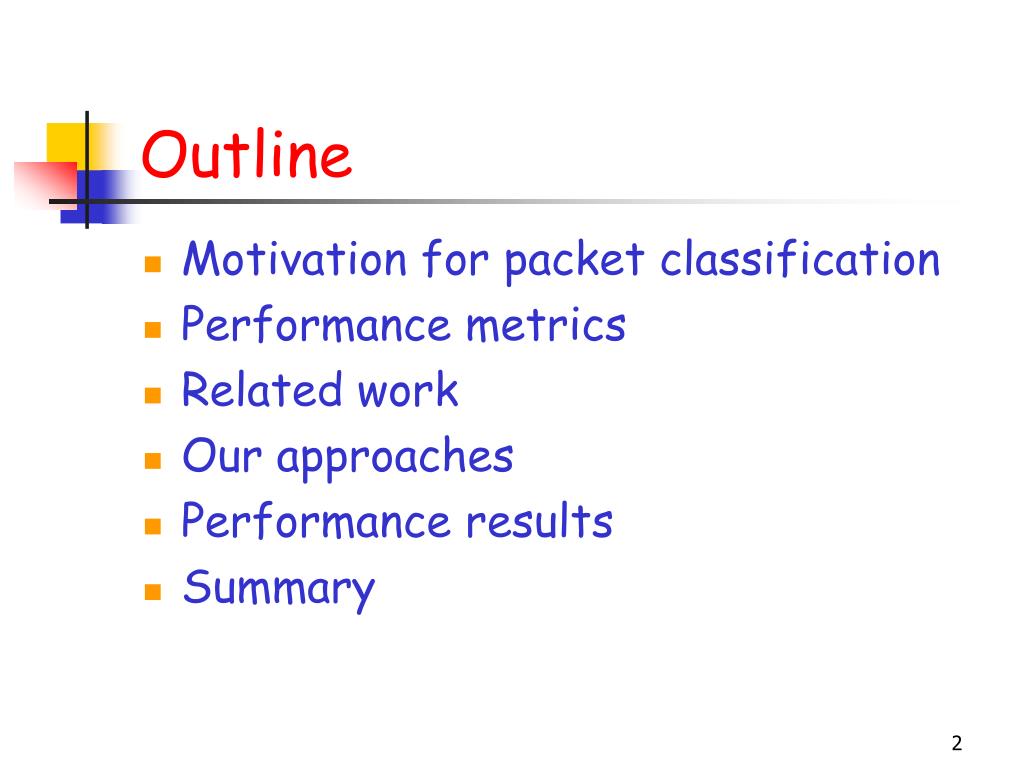

  2. Outline • Motivation for packet classification • Performance metrics • Related work • Our approaches • Performance results • Summary

  3. Motivation • Traditionally, routers forward packets based on the destination field only • Packet classification forward packets based on multiple fields in the packet header • e.g., source IP address, destination IP address, source port, destination port, protocol, type of service (ToS) … • Applications of packet classification • Traffic shaping • Packet filtering • Traffic engineering

  4. Packet Classification Based Router HEADER Forwarding Engine Action Packet Classification Classifier (policy database) Predicate Action ---- ---- ---- ---- Incoming Packet ---- ----

  5. Problem Specification • Each filter specifies • Some criterion on K fields • Associated directive • Cost • Goal: Given a set of filters, find the least cost matching filter for each incoming packet • Example:Rule 1: 24.128.0.0/16 4.0.0.0/8 … udp denyRule 2: 64.248.128.0/20 8.16.192.0/24 … tcp permit…Rule N: 24.128.0.0/16 4.16.128.0/20 … any permit Incoming packet: [24.128.34.8, 4.16.128.3, udp] Answer: rule 1

  6. Performance Metrics • Classification speed • Wire rate lookup for minimum size (40 byte) packets at OC192 (10 Gbps) speeds. • Memory usage • Should use memory linear in the number of rules • Update time • Slow updates are acceptable • Impact on search speed should be minimal

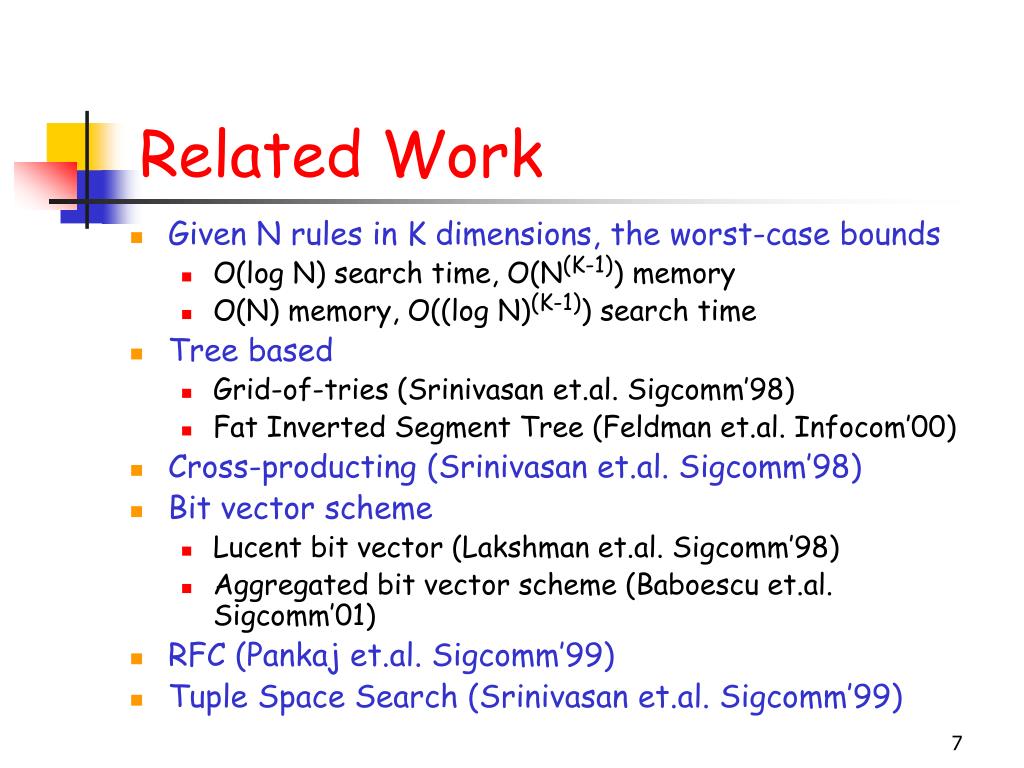

  7. Related Work • Given N rules in K dimensions, the worst-case bounds • O(log N) search time, O(N(K-1)) memory • O(N) memory, O((log N)(K-1)) search time • Tree based • Grid-of-tries (Srinivasan et.al. Sigcomm’98) • Fat Inverted Segment Tree (Feldman et.al. Infocom’00) • Cross-producting (Srinivasan et.al. Sigcomm’98) • Bit vector scheme • Lucent bit vector (Lakshman et.al. Sigcomm’98) • Aggregated bit vector scheme (Baboescu et.al. Sigcomm’01) • RFC (Pankaj et.al. Sigcomm’99) • Tuple Space Search (Srinivasan et.al. Sigcomm’99)

  8. Backtracking Search • A trie is a binary branching tree, with each branch labeled 0 or 1 • The prefix associated with a node is the concatenation of all the bits from the root to the node A 1 0 B D 0 C 0 F1 E F2

  9. Backtracking Search (Cont.) A • Extend to multiple dimensions • Standard backtracking • Depth-first traversal of the tree visiting all the nodes satisfying the given constraints • Example: Search for [00*,0*,0*]Result: F8 • Reason for backtrack • 00* matches *, 0*, 00* 1 0 B 0 0 C 0 0 D H 1 0 E 0 I J 0 0 1 0 F 1 F8 G F3 1 K 1 0 F6 F4 F2 F5 F7 F1

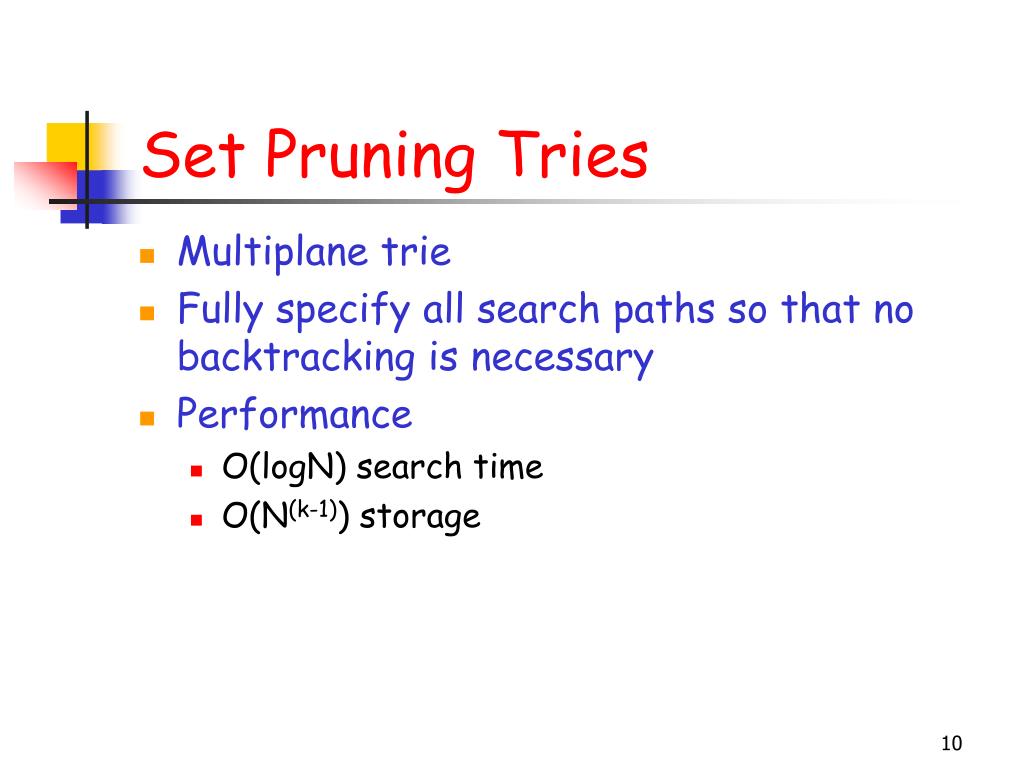

  10. Set Pruning Tries • Multiplane trie • Fully specify all search paths so that no backtracking is necessary • Performance • O(logN) search time • O(N(k-1)) storage

  11. Set Pruning Tries: Conversion • Converting a backtracking trie to a set pruning trie is replacing a general filter with more specific filters

  12. Set Pruning Tries: Example 1 1 0 0 0 1 0 1 1 0 B C D E 1 1 F2 0 0 F2 F2 F2 F2 F A F3 Min(F1,F2) Min(F2,F3) F1 Backtracking Trie Set Pruning Trie Replace [*,*,*] with [0*,0*,*], [0*,0*,0*], [0*,1*,*], [1**,0*,*],[1*,1*,*], and [1*,1*,1*].

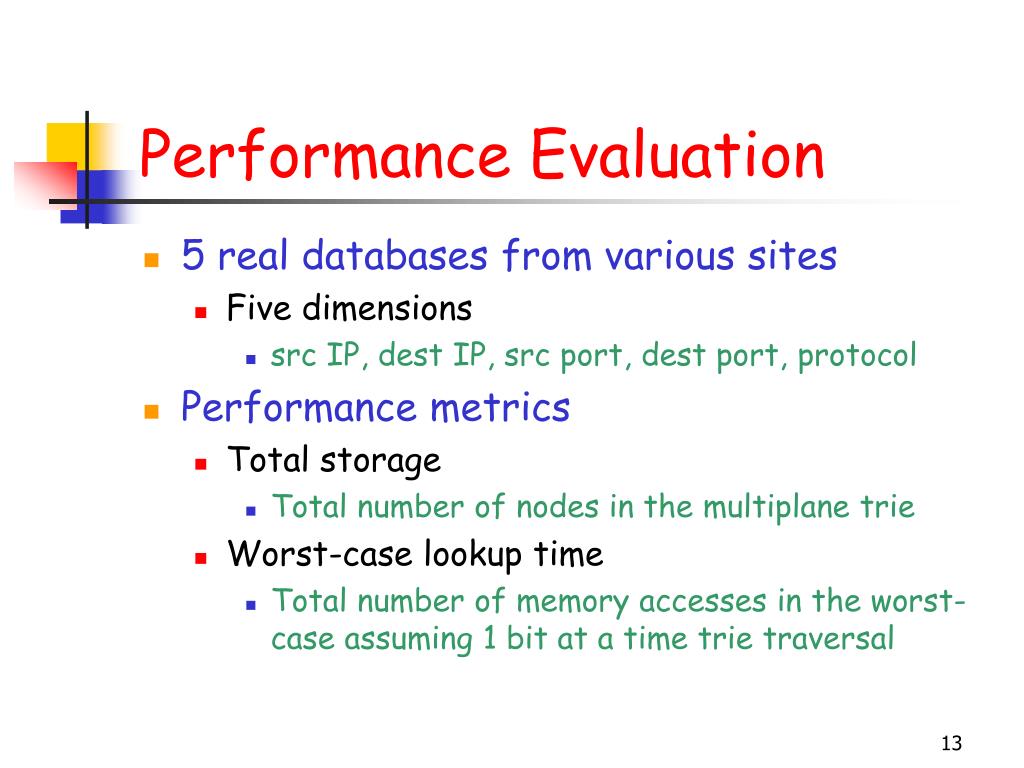

  13. Performance Evaluation • 5 real databases from various sites • Five dimensions • src IP, dest IP, src port, dest port, protocol • Performance metrics • Total storage • Total number of nodes in the multiplane trie • Worst-case lookup time • Total number of memory accesses in the worst-case assuming 1 bit at a time trie traversal

  14. Performance Results Backtracking has small storage and affordable lookup time.

  15. Major Optimizations • Trie compression algorithm • Pipelining the search • Selective pushing • Using minimal hardware

  16. Trie Compression Algorithm 0 • If a path AB satisfies the Compressible Property: • All nodes on its left point to the same place L • All nodes on its right point to the same place R then we compress the entire branches by 3 edges • Center edge with value (AB) pointing to B • Left edge with value < (AB) pointing to L • Right edge with value > (AB) pointing to R • Advantages of compression: save time & storage 0 branch >01010 0 branch < 01010 0 1 0 branch = 01010 F1 1 0 0 1 F3 F1 1 F1 F2 F3 0 F2 F3

  17. Performance Evaluation of Compression Compression reduces the lookup time by a factor of 2 - 5

  18. Pipelining Backtracking • Use pipeline to speed up backtracking • Issues • The amount of register memory passed between pipelining stages need to be small • The amount of main memory need to be small Pipeline Stage 1 Pipeline Stage 2 Pipeline Stage m

  19. Pipelining Backtracking:Limit the amount of registers A • Standard backtracking requires O(KW) state for K-dimensional filters, with each dimension W-bit long • Our approach • Visit more general filters first, and more specific filters later • Example • Search for [00*,0*,0*]A-B-H-J-K-C-D-E-F-GResult: F8 • Performance • K+1 32-bit registers 1 0 B 0 0 C 0 0 D H 1 0 E 0 I J 0 0 1 0 F 1 F8 G F3 1 K 1 0 F6 F4 F2 F5 F7 F1

  20. Pipelining Backtracking: Limit the amount of memory • Simple approach • Store an entire backtracking search trie at every pipelining stage • Storage increases proportionally with the number of pipelining stages • Our approach • Have pipeline stage i store only the trie nodes that will be visited in the stage i

  21. Storage Requirement for Pipeline Storage increases moderately with the number of pipelining stages (i.e. slope < 1).

  22. Trading Storage for Time • Smoothly tradeoff storage for time • Observations • Set pruning tries eliminate all backtracking by pushing down all filters  intensive storage • Eliminate backtracking for filters with large backtracking time • Selective push • Push down the filters with large backtracking time • Iterate until the worst-case backtracking time satisfies our requirement O((logN)(k-1)) Time (e.g. Backtrack) O(N(k-1)) Space (e.g. Set Pruning)

  23. Performance of Selective Push Uncompressed Trie Compressed Trie Lookup time is reduced with moderate increase in storage until we reach the knee of the curve.

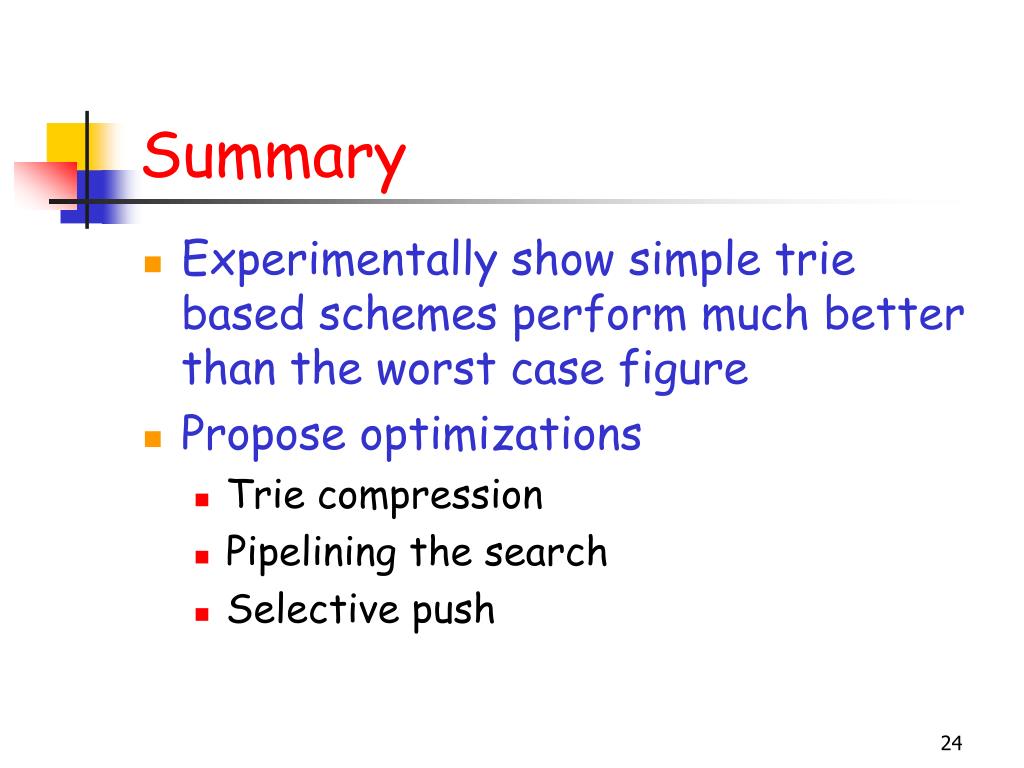

  24. Summary • Experimentally show simple trie based schemes perform much better than the worst case figure • Propose optimizations • Trie compression • Pipelining the search • Selective push

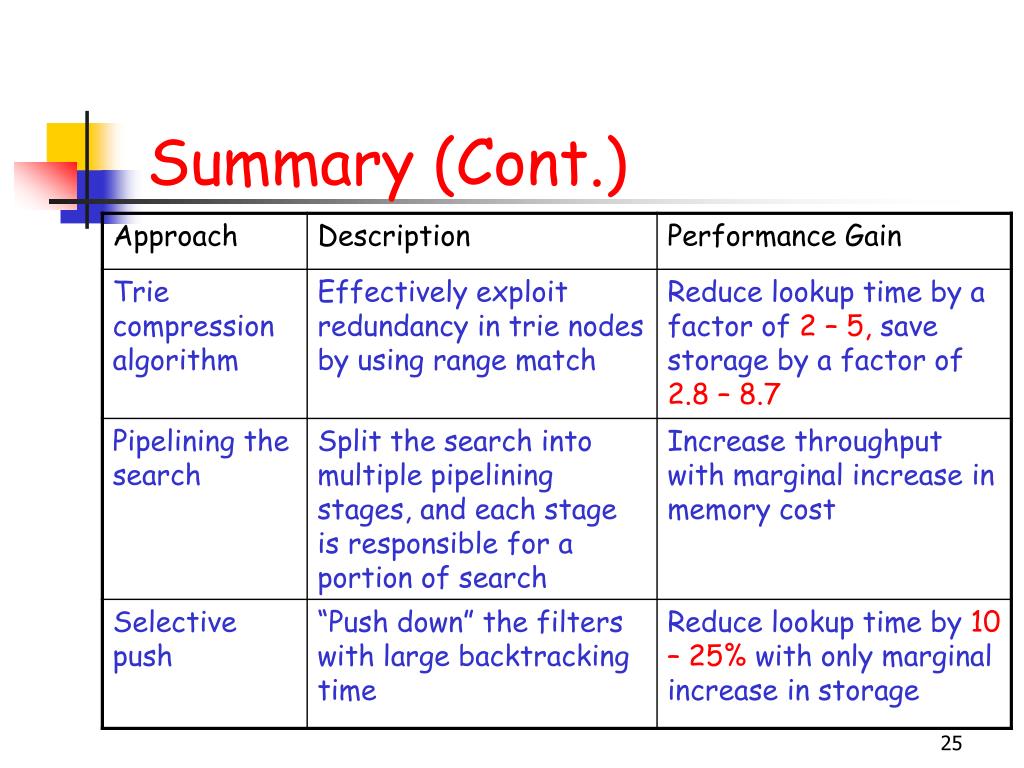

  25. Summary (Cont.)

  26. Example of Selective Pushing Goal: worst-case memory accesses  11 • The filter [0*, 0*, 000*] has 12 memory accesses. • Push the filter down  reduce lookup time • Now the search cost of the filter [0*,0*,001*] becomes 12 memory accesses. So we need to push it down. Done! 0 0 0 0 0 0 0 0 0 0 0 0 F3 0 0 0 0 0 F3 F3 0 0 1 1 1 1 0 0 0 0 0 0 0 0 F2 F2 F2 F2 F1 F1 F1 F1 F1

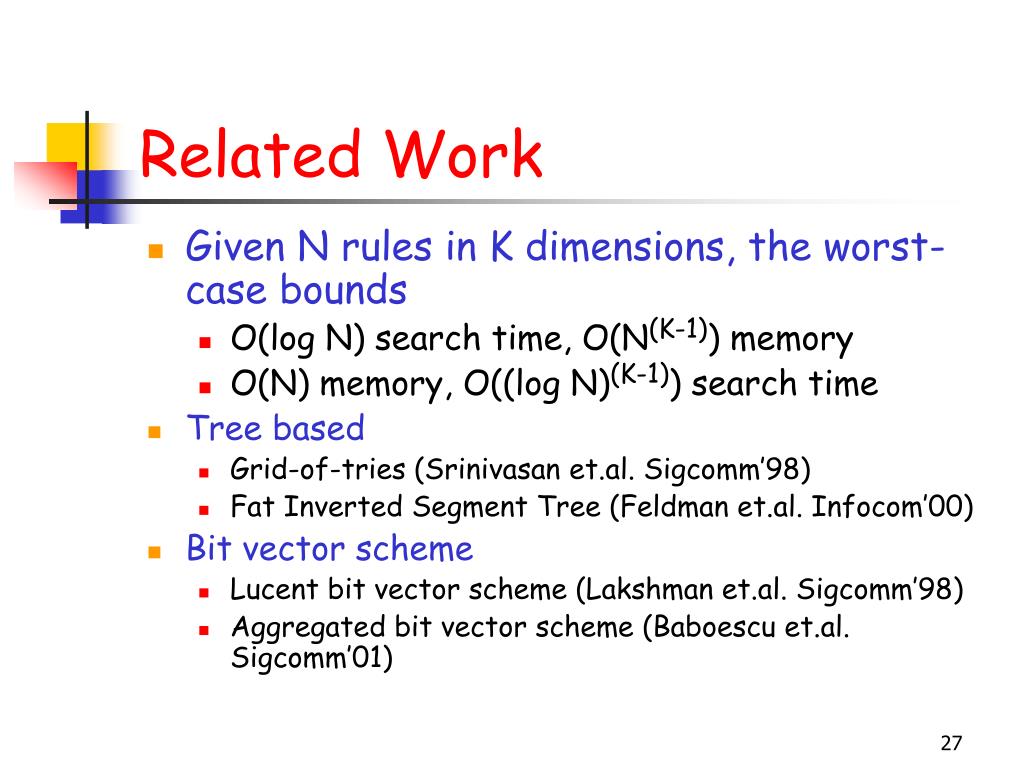

  27. Related Work • Given N rules in K dimensions, the worst-case bounds • O(log N) search time, O(N(K-1)) memory • O(N) memory, O((log N)(K-1)) search time • Tree based • Grid-of-tries (Srinivasan et.al. Sigcomm’98) • Fat Inverted Segment Tree (Feldman et.al. Infocom’00) • Bit vector scheme • Lucent bit vector scheme (Lakshman et.al. Sigcomm’98) • Aggregated bit vector scheme (Baboescu et.al. Sigcomm’01)

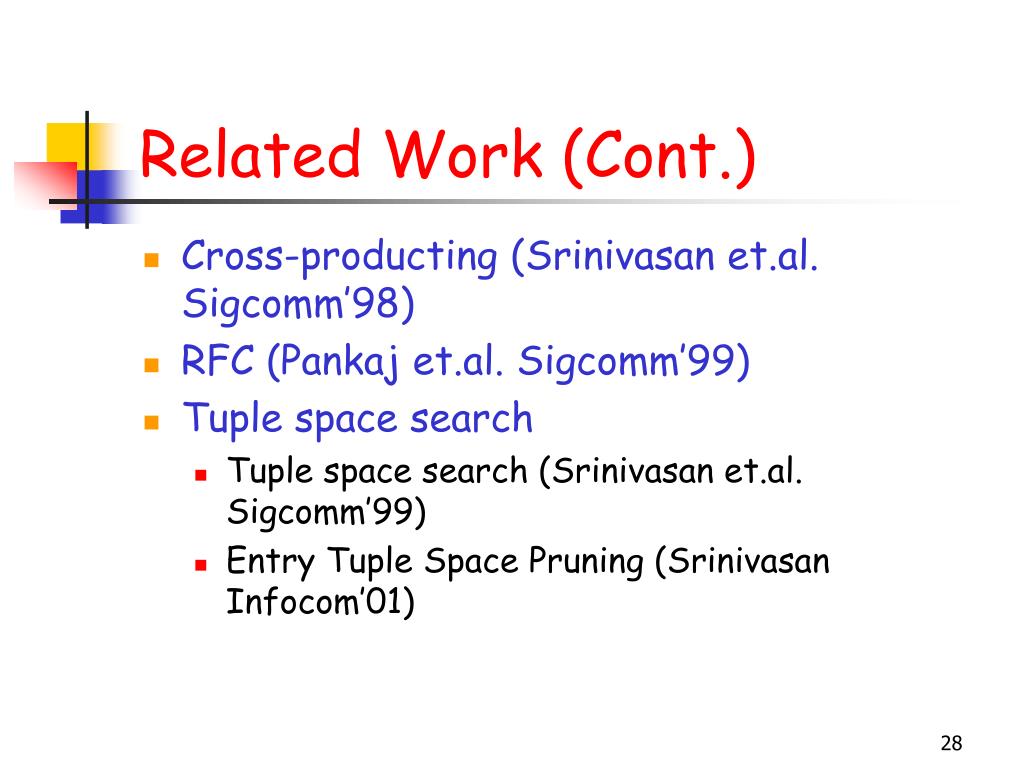

  28. Related Work (Cont.) • Cross-producting (Srinivasan et.al. Sigcomm’98) • RFC (Pankaj et.al. Sigcomm’99) • Tuple space search • Tuple space search (Srinivasan et.al. Sigcomm’99) • Entry Tuple Space Pruning (Srinivasan Infocom’01)

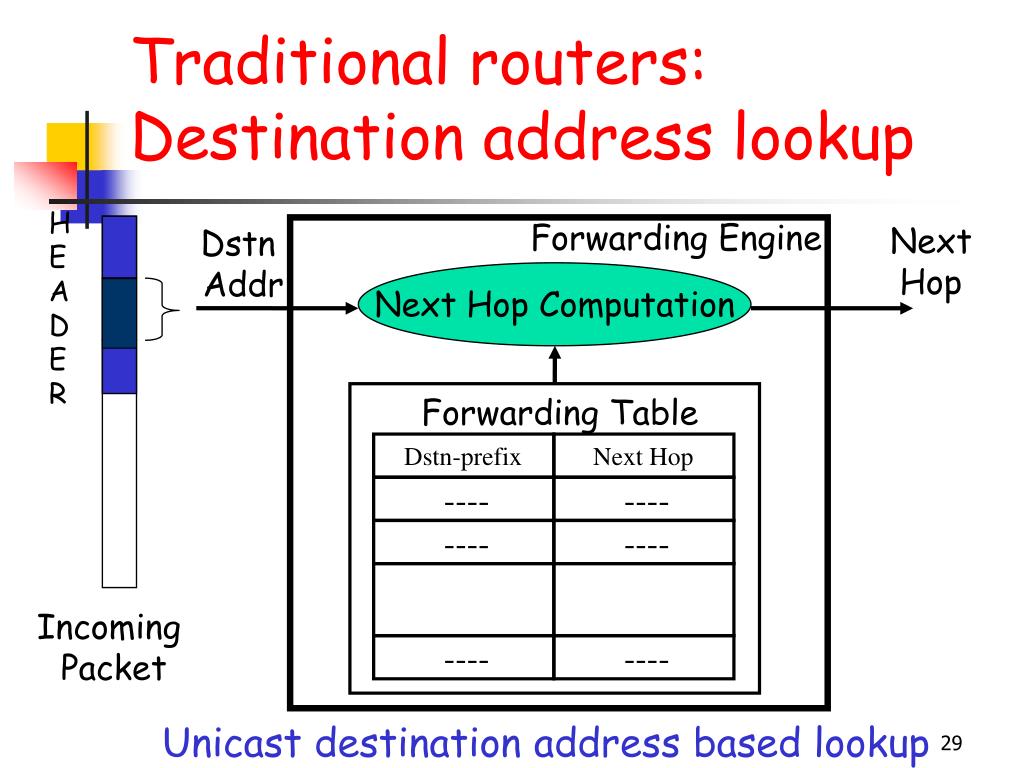

  29. HEADER Traditional routers: Destination address lookup Forwarding Engine Next Hop Dstn Addr Unicast destination address based lookup Next Hop Computation Forwarding Table Dstn-prefix Next Hop ---- ---- ---- ---- Incoming Packet ---- ----

  30. Selective Push • Main idea • Push down the filters with large backtracking time • Iterate until the worst-case backtracking time satisfies our requirement

  31. Packet Classification • Motivation for packet classification • Needed for implementing firewalls and diff-serv • Problem specification • Given a classifier of N rules, find the least cost matching filter for the incoming packets • Example:Rule 1: 24.128.0.0/16 4.0.0.0/8 … udp denyRule 2: 64.248.128.0/20 8.16.192.0/24 … tcp permit…Rule N: 24.0.0.0/8 4.16.128.0/20 … any permit Incoming packet: [24.128.34.8, 4.17.135.3, udp] matches rule 1 • Performance metrics • Classification speed • Memory usage • Update time

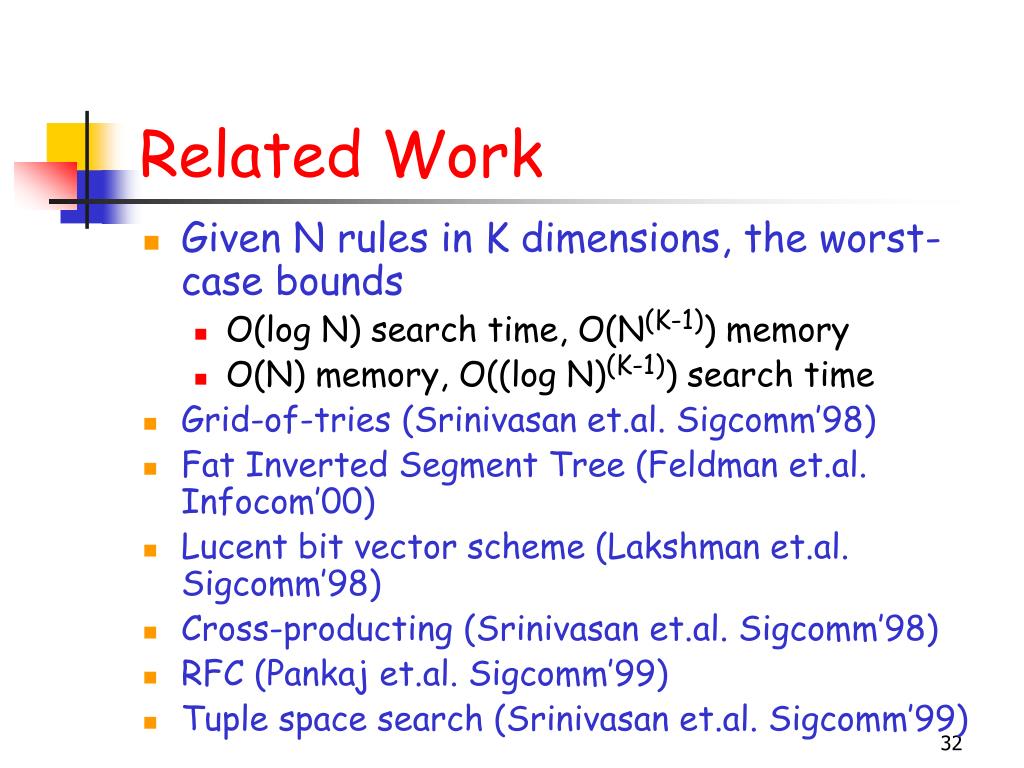

  32. Related Work • Given N rules in K dimensions, the worst-case bounds • O(log N) search time, O(N(K-1)) memory • O(N) memory, O((log N)(K-1)) search time • Grid-of-tries (Srinivasan et.al. Sigcomm’98) • Fat Inverted Segment Tree (Feldman et.al. Infocom’00) • Lucent bit vector scheme (Lakshman et.al. Sigcomm’98) • Cross-producting (Srinivasan et.al. Sigcomm’98) • RFC (Pankaj et.al. Sigcomm’99) • Tuple space search (Srinivasan et.al. Sigcomm’99)

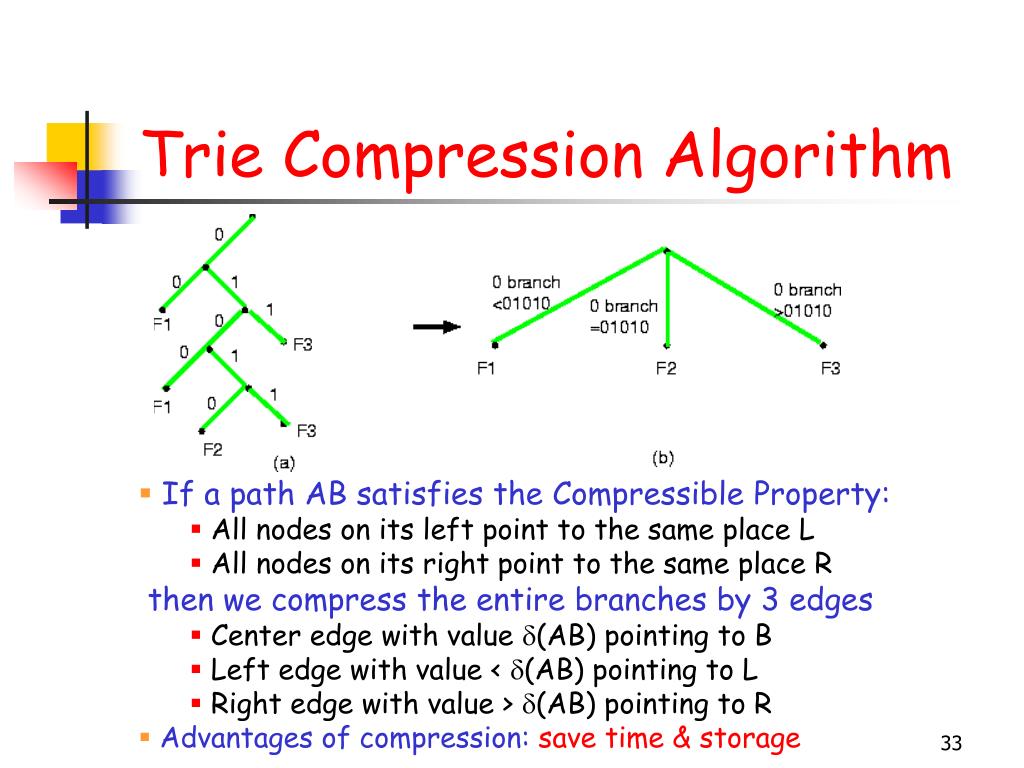

  33. Trie Compression Algorithm • If a path AB satisfies the Compressible Property: • All nodes on its left point to the same place L • All nodes on its right point to the same place R • then we compress the entire branches by 3 edges • Center edge with value (AB) pointing to B • Left edge with value < (AB) pointing to L • Right edge with value > (AB) pointing to R • Advantages of compression: save time & storage

  34. Trie Compression Algorithm 0 0 0 branch >01010 1 0 branch < 01010 F1 1 0 branch = 01010 0 0 1 F3 F1 1 0 F2 F3

  35. Backtracking Search (Cont.) • Extend to multiple dimensions • Backtracking is a depth-first traversal of the tree which visits all the nodes satisfying the given constraints • Example: search for [00*,0*,0*]

  36. Example of Selective Push Goal: worst-case memory accesses < 12 • The filter [0*, 0*, 0000*] has 12 memory accesses. • Push the filter down  reduce lookup time • Now the search cost of the filter [0*,0*,001*] becomes 12 memory accesses. So we need to push it down. Done!

  37. Example of Selective Push Goal: worst-case memory accesses < 12 • The filter [0*, 0*, 0000*] has 12 memory accesses. • Push the filter down  reduce lookup time • Now the search cost of the filter [0*,0*,001*] becomes 12 memory accesses. So we need to push it down. Done!

  38. Using Available Hardware • So far, we have focused on software techniques for packet classification. • Further improve the performance by taking advantage of limited hardware if it is available • By moving some filters (or rules) from software to hardware • Key issue: Which filters to move from software to hardware?Answer: • To reduce lookup time, move the filters with the largest number of memory accesses when using software approach

  39. Challenge of Packet Classification • The general packet classification problem has poor worst-case cost: • Given N arbitrary filters with k packet fields • either the worst-case search time is O((logN)(k-1)) • or the worst-case storage is O(N(k-1))

  40. Pipelining Backtracking • Use pipeline to speed up backtracking • Issues • The amount of register memory passed between pipelining stages need to be small • The amount of main memory need to be small • Our approaches • Propose a backtracking search that only needs K+1 registers (K is the number of dimensions) • Have pipeline stage i store only the trie nodes that will be visited in the stage i

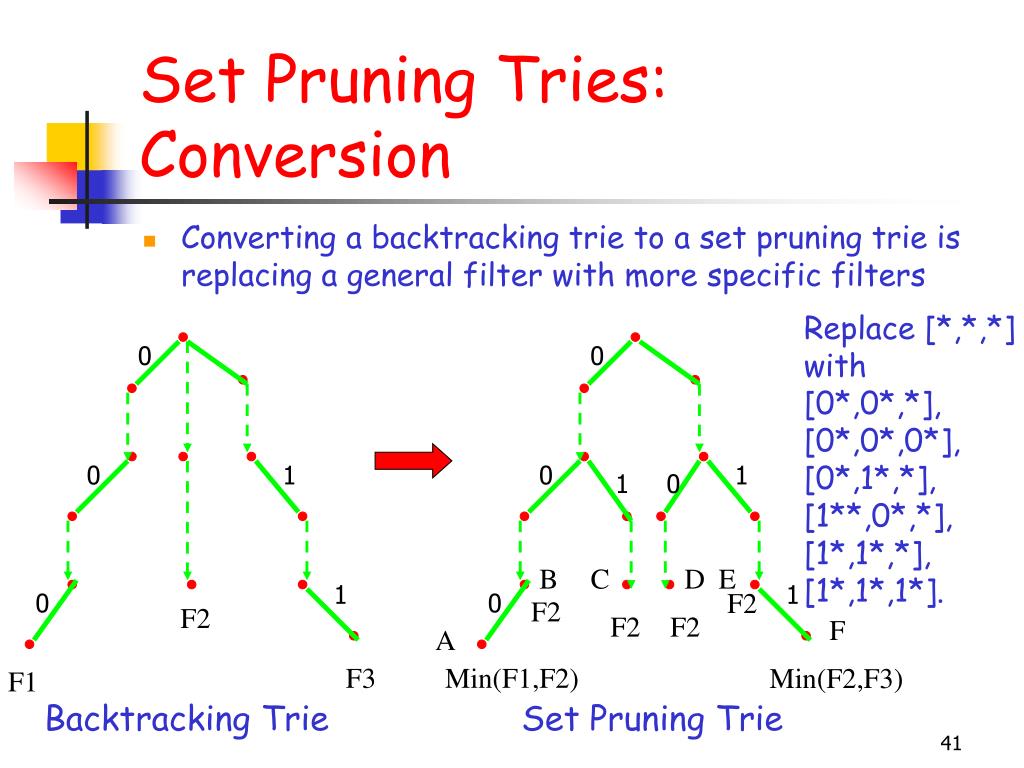

  41. Set Pruning Tries: Conversion • Converting a backtracking trie to a set pruning trie is replacing a general filter with more specific filters Replace [*,*,*] with [0*,0*,*], [0*,0*,0*], [0*,1*,*], [1**,0*,*], [1*,1*,*], [1*,1*,1*]. 0 0 0 1 0 1 1 0 B C D E 1 1 F2 0 0 F2 F2 F2 F2 F A F3 Min(F1,F2) Min(F2,F3) F1 Backtracking Trie Set Pruning Trie
