Intro to Physics

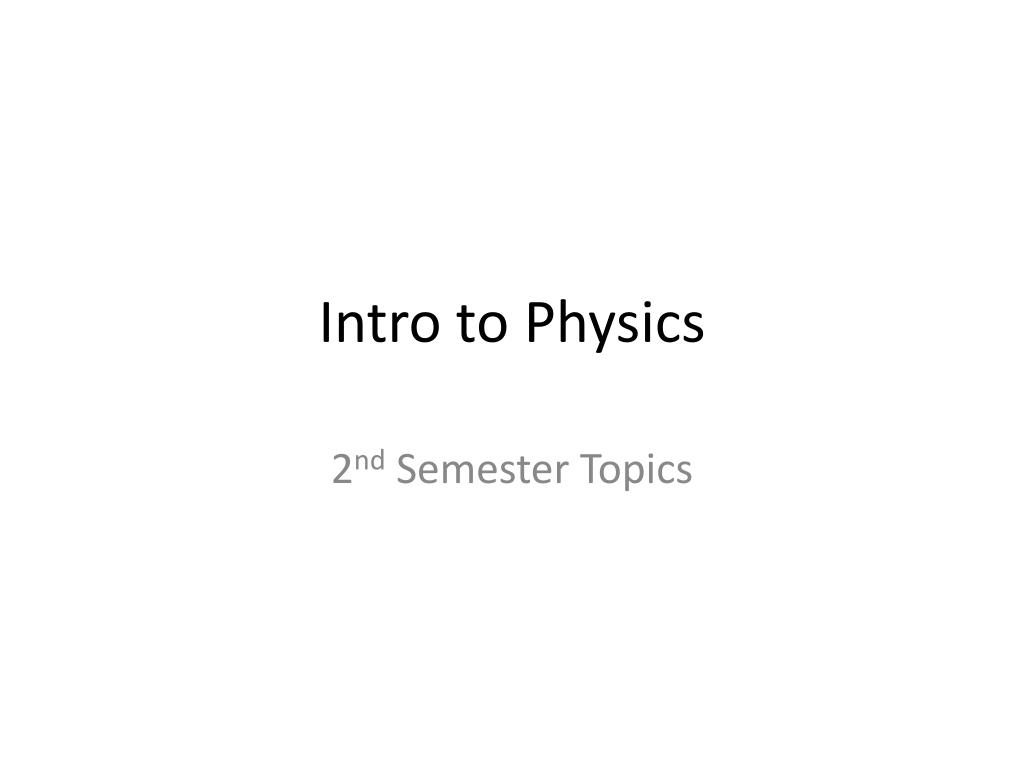

1. Intro to Physics 2nd Semester Topics

2. Momentum and Law of Conservation of Momentum

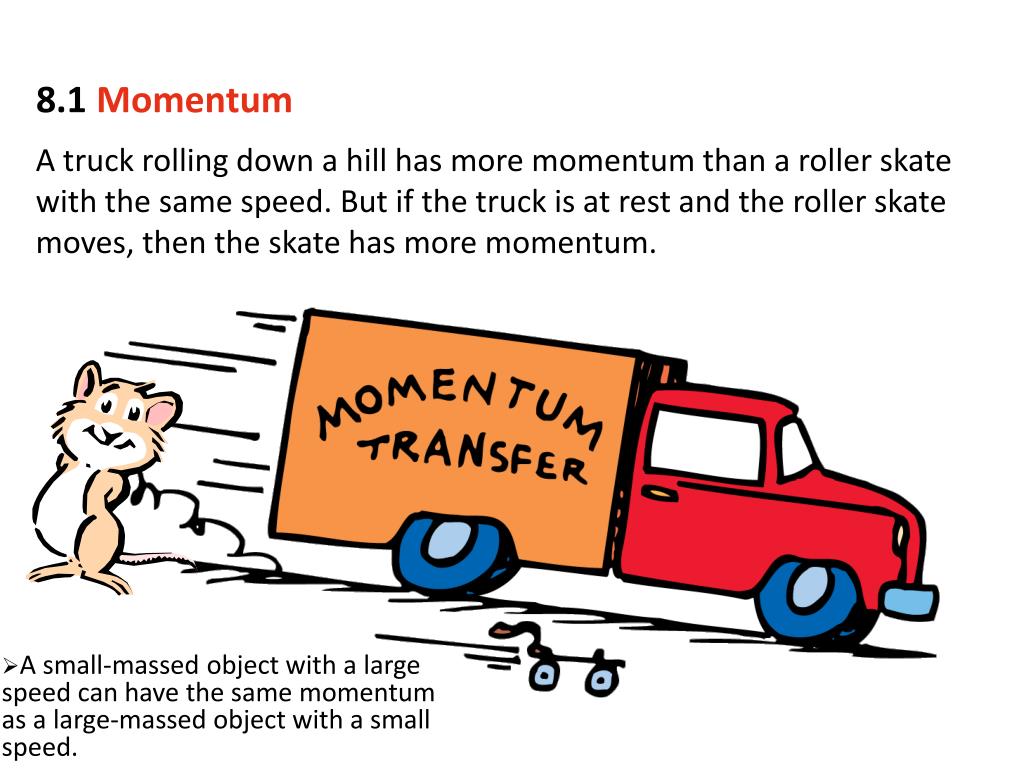

3. 8.1Momentum A truck rolling down a hill has more momentum than a roller skate with the same speed. But if the truck is at rest and the roller skate moves, then the skate has more momentum. • A small-massed object with a large speed can have the same momentum as a large-massed object with a small speed.

4. 8.1Momentum Momentum is affected by the massof the object and its velocity (or speed). Momentum is mass in motion!

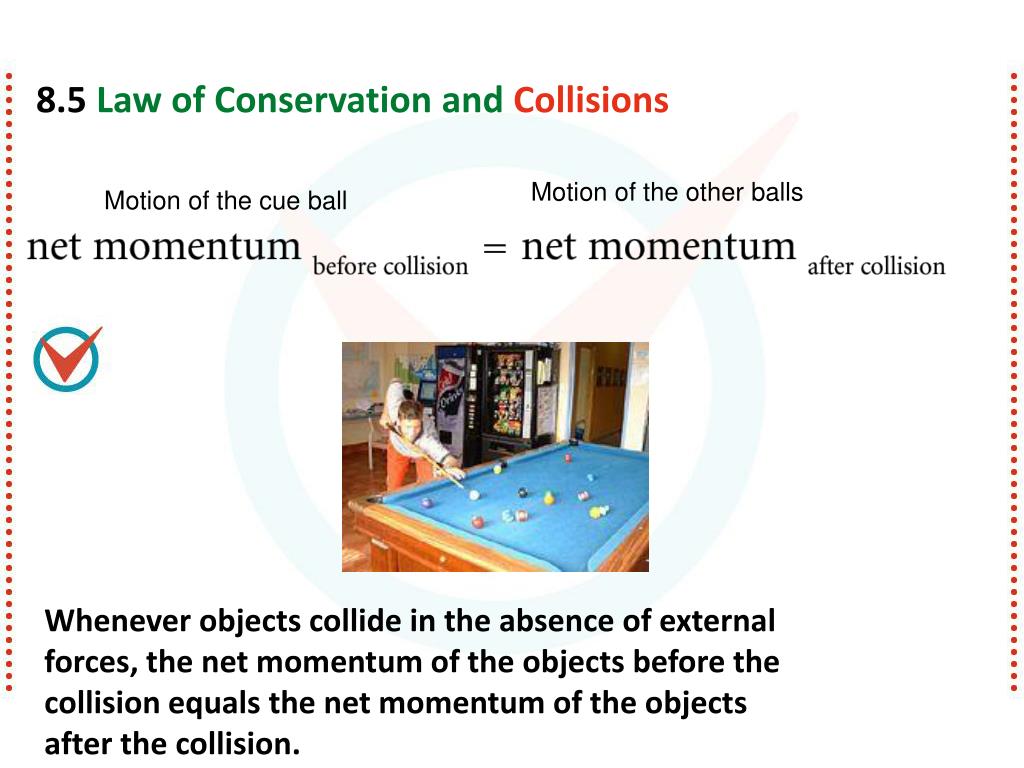

5. 8.5 Law of Conservation and Collisions Motion of the other balls Motion of the cue ball Whenever objects collide in the absence of external forces, the net momentum of the objects before the collision equals the net momentum of the objects after the collision.

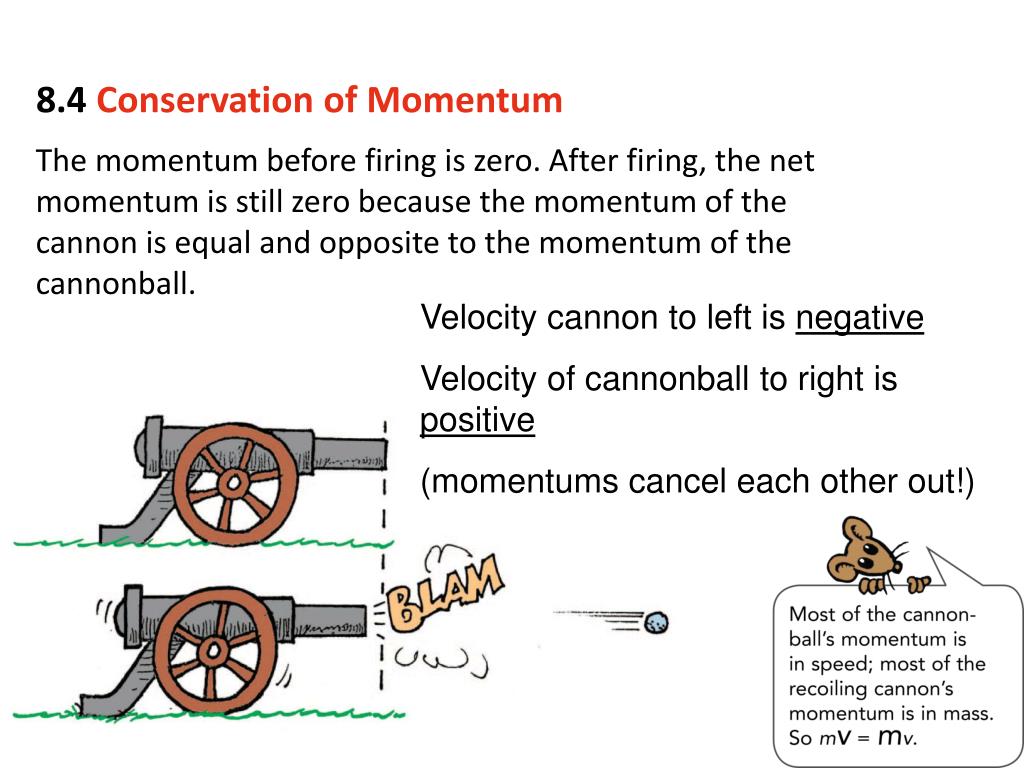

6. 8.4Conservation of Momentum The momentum before firing is zero. After firing, the net momentum is still zero because the momentum of the cannon is equal and opposite to the momentum of the cannonball. Velocity cannon to left is negative Velocity of cannonball to right is positive (momentums cancel each other out!)

7. Impulse

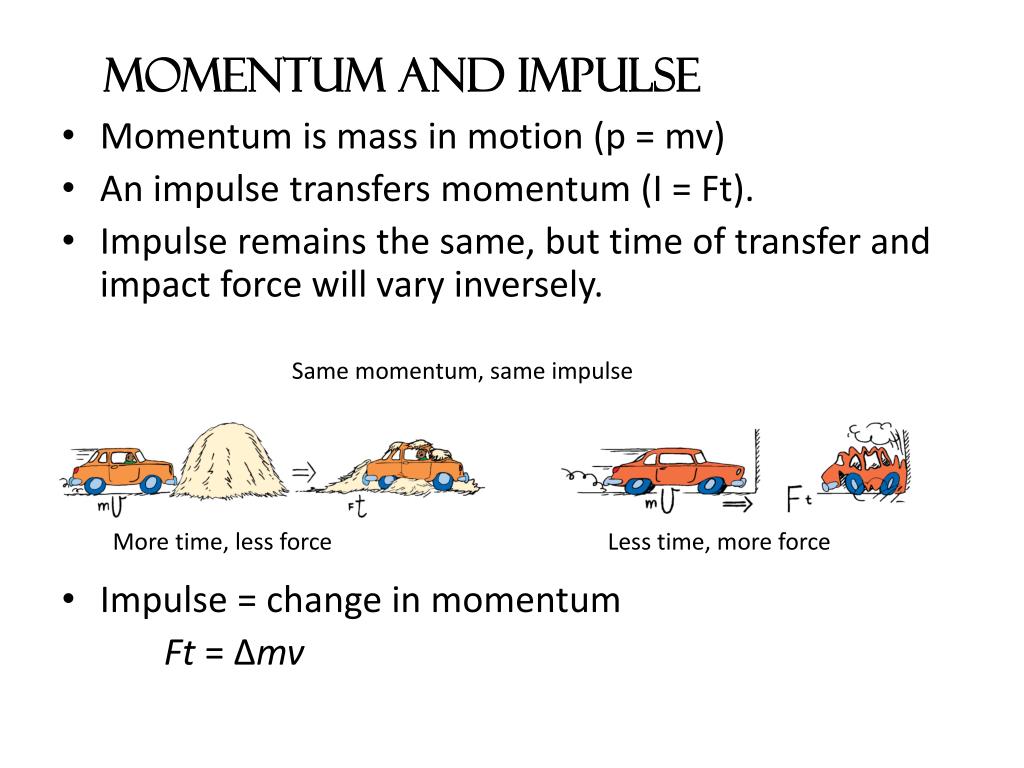

8. Momentum and impulse • Momentum is mass in motion (p = mv) • An impulse transfers momentum (I = Ft). • Impulse remains the same, but time of transfer and impact force will vary inversely. • Impulse = change in momentum Ft = ∆mv Same momentum, same impulse More time, less force Less time, more force

9. Collisions

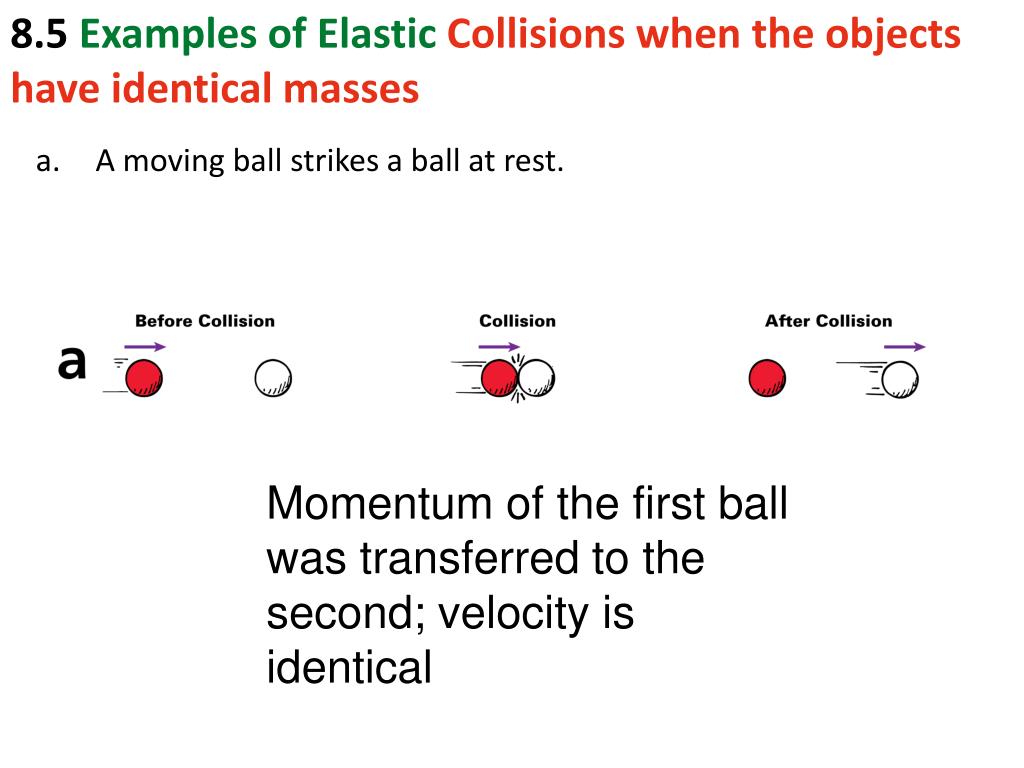

10. 8.5 Examples of Elastic Collisions when the objects have identical masses • A moving ball strikes a ball at rest. Momentum of the first ball was transferred to the second; velocity is identical

11. Start with less mass, end up with more mass Notice how speed changes to conserve momentum (more mass, less speed—inverse relationship!) 8.5 Inelastic Collisions

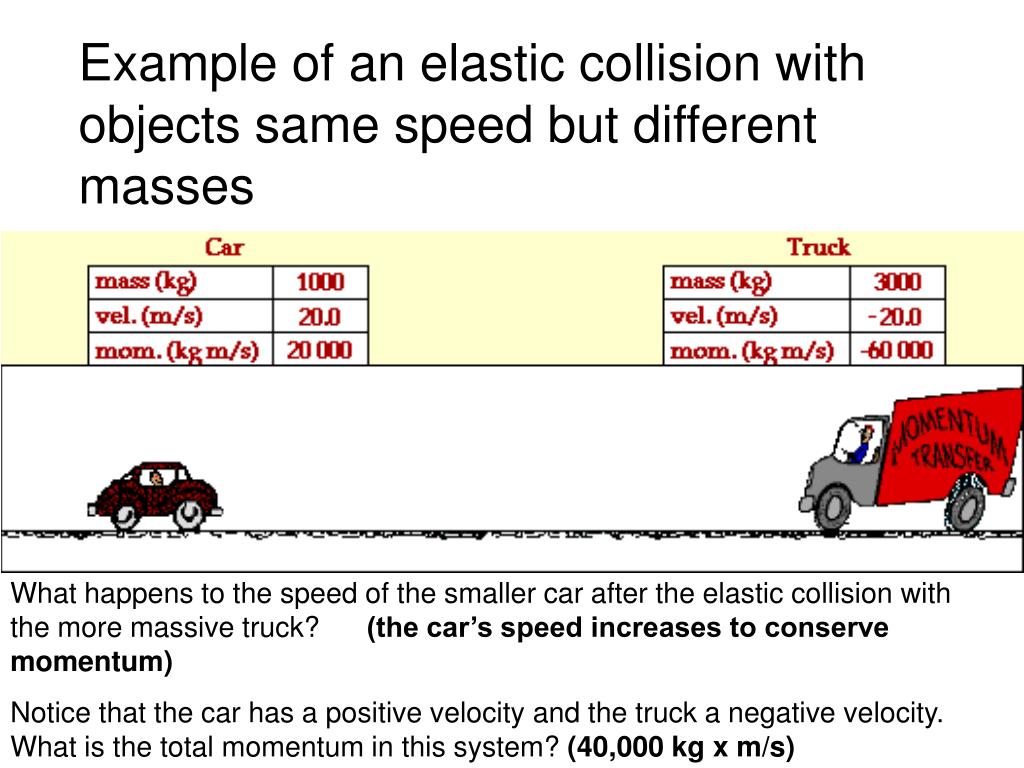

12. Example of an elastic collision with objects same speed but different masses What happens to the speed of the smaller car after the elastic collision with the more massive truck? (the car’s speed increases to conserve momentum) Notice that the car has a positive velocity and the truck a negative velocity. What is the total momentum in this system? (40,000 kg x m/s)

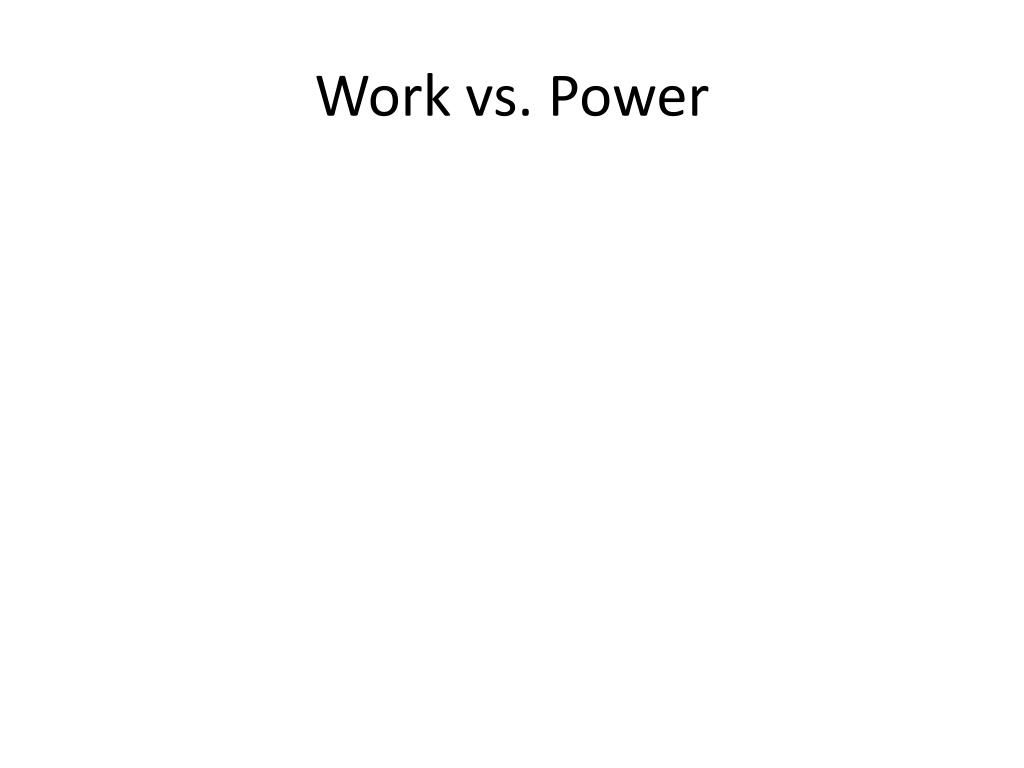

13. Work vs. Power

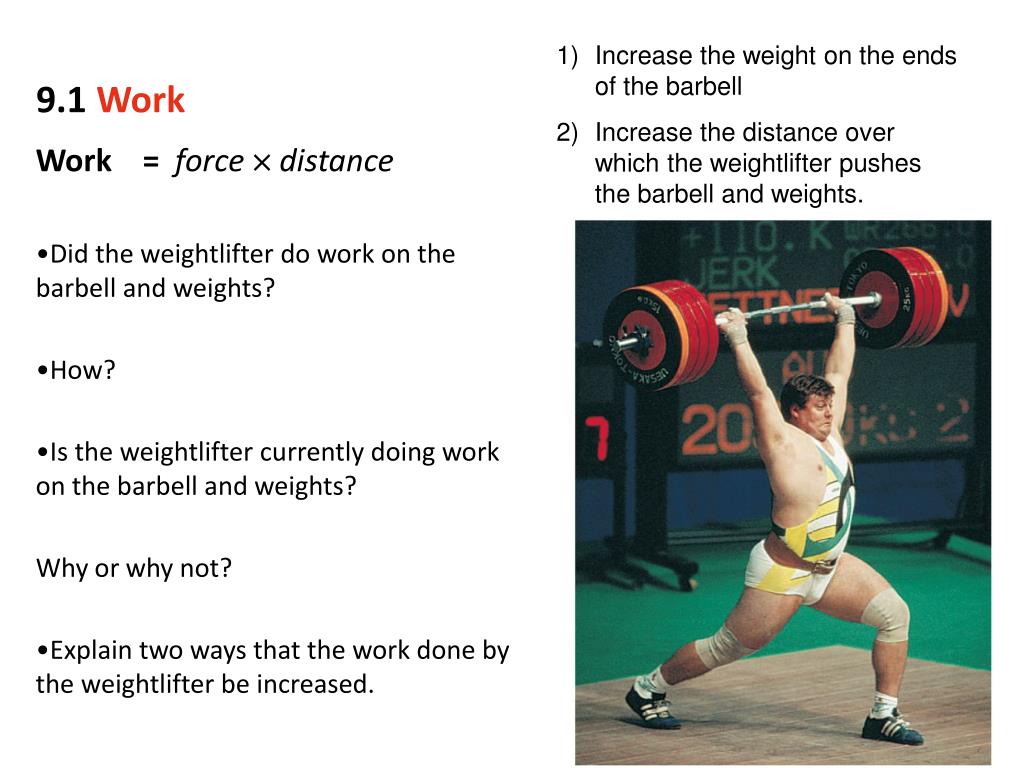

14. Increase the weight on the ends of the barbell • Increase the distance over which the weightlifter pushes the barbell and weights. 9.1Work • Work = force × distance • Did the weightlifter do work on the barbell and weights? • How? • Is the weightlifter currently doing work on the barbell and weights? • Why or why not? • Explain two ways that the work done by the weightlifter be increased.

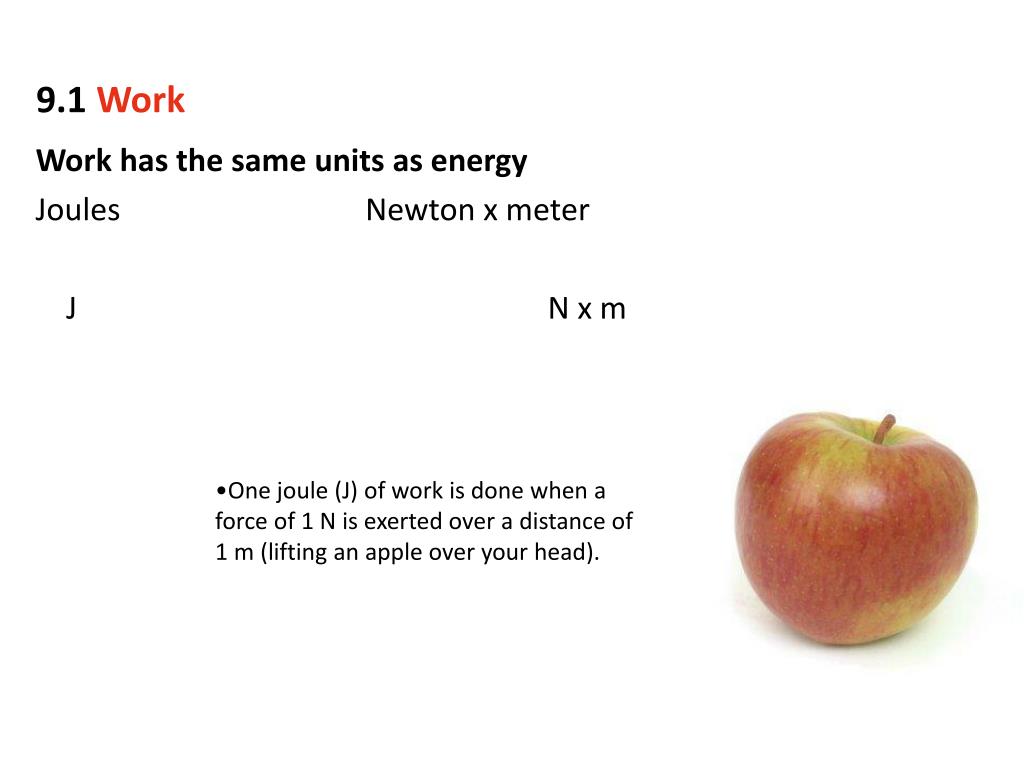

15. 9.1Work Work has the same units as energy Joules Newton x meter J N x m • One joule (J) of work is done when a force of 1 N is exerted over a distance of 1 m (lifting an apple over your head).

16. P = w/t 9.2Power Power is the rate at which work is done. • The unit of power is the joule per second, also known as the watt. • One watt (W) of power is expended when one joule of work is done in one second. • One kilowatt (kW) equals 1000 watts. • One megawatt (MW) equals one million watts.

17. Power 100 W incandescent light bulb How much electrical energy per second? 100 joules per second.

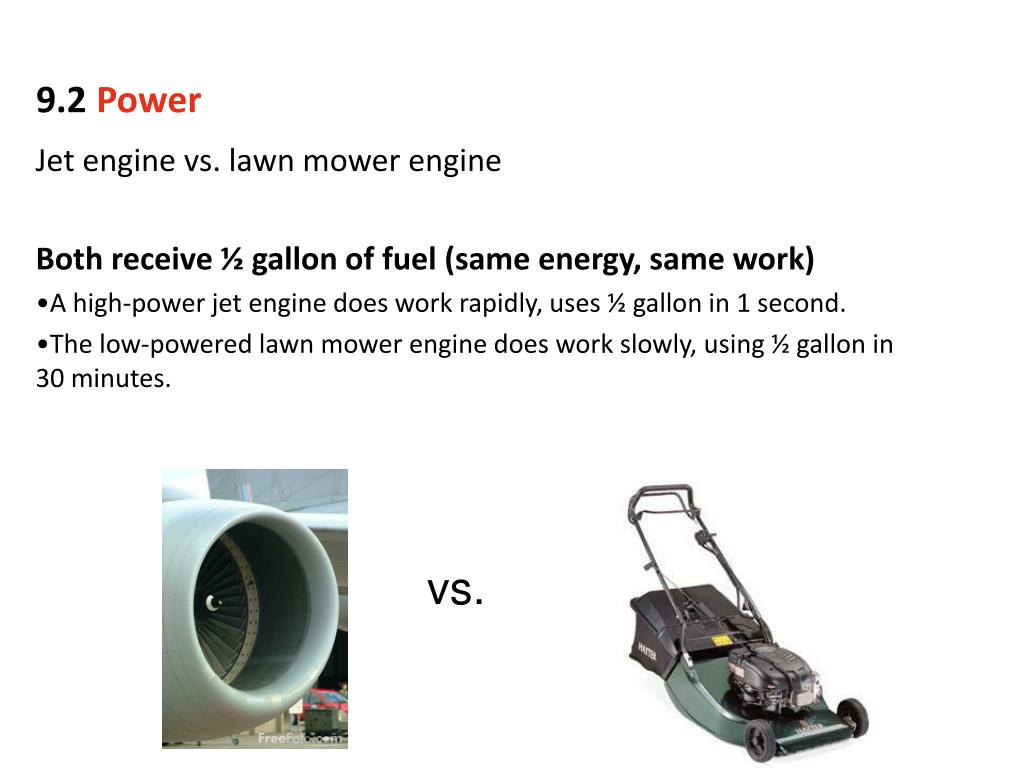

18. 9.2Power • Jet engine vs. lawn mower engine • Both receive ½ gallon of fuel (same energy, same work) • A high-power jet engine does work rapidly, uses ½ gallon in 1 second. • The low-powered lawn mower engine does work slowly, using ½ gallon in 30 minutes. vs.

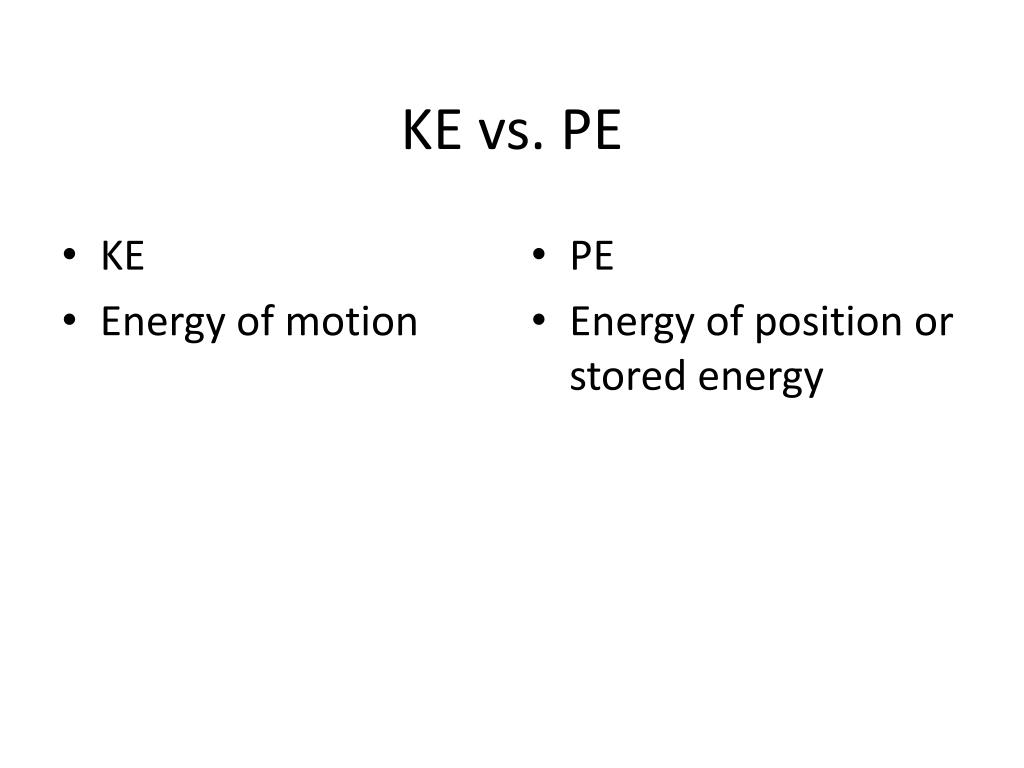

19. KE vs. PE • KE • Energy of motion • PE • Energy of position or stored energy

20. 9.5Kinetic Energy • If an object is moving, then it is capable of doing work. It has energy of motion, or kinetic energy (KE). • The kinetic energy of an object depends on the mass of the object as well as its speed.

21. Kinetic Energy KE increases with speed

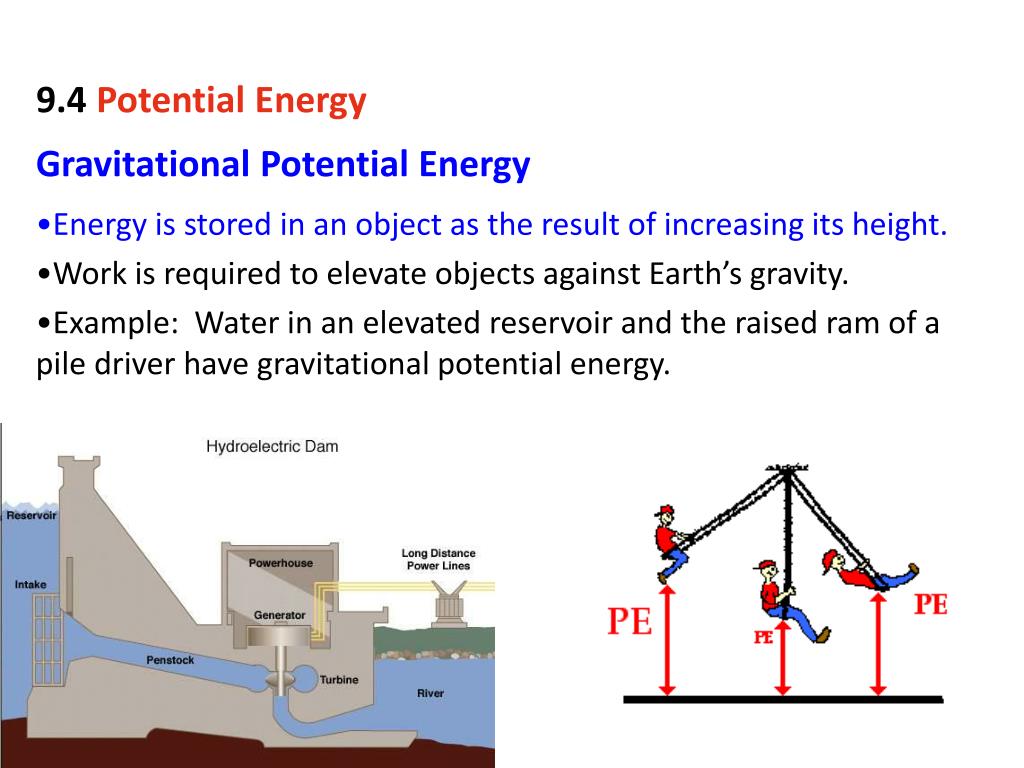

22. 9.4Potential Energy • Energy is stored in an object as the result of increasing its height. • Work is required to elevate objects against Earth’s gravity. • Example: Water in an elevated reservoir and the raised ram of a pile driver have gravitational potential energy. Gravitational Potential Energy

23. 9.4Potential Energy • Energy stored in a stretched or compressed spring or material. • When a bow is drawn back, energy is stored and the bow can do work on the arrow. • These types of potential energy are elastic potential energy. Elastic Potential Energy—potential to do work

24. CHEMICAL POTENTIAL ENERGY • Energy due to the bond position between molecules (stored during bonding). • Potential chemical energy is released from chemical reactions (burning, for example). • Fuels, Food, Batteries, for example.

25. Law of conservation of Energy

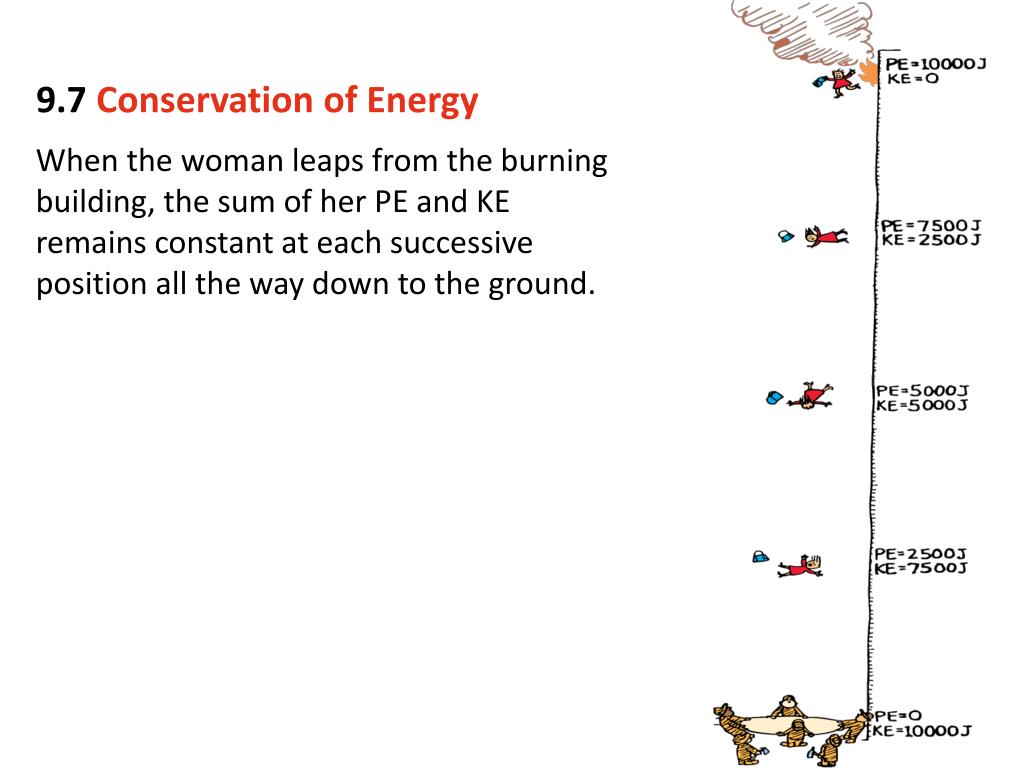

26. 9.7Conservation of Energy When the woman leaps from the burning building, the sum of her PE and KE remains constant at each successive position all the way down to the ground.

27. 9.7 Conservation of Energy Same energy transformation applies 10 J of PE does 8 J useful work on the arrow and 2 J of non-useful work on the molecules that compose the bow and string and arrow. The arrow has 8 J of KE. The 2 J of heat can be called non-useful work (work that is not part of the object’s total mechanical energy).

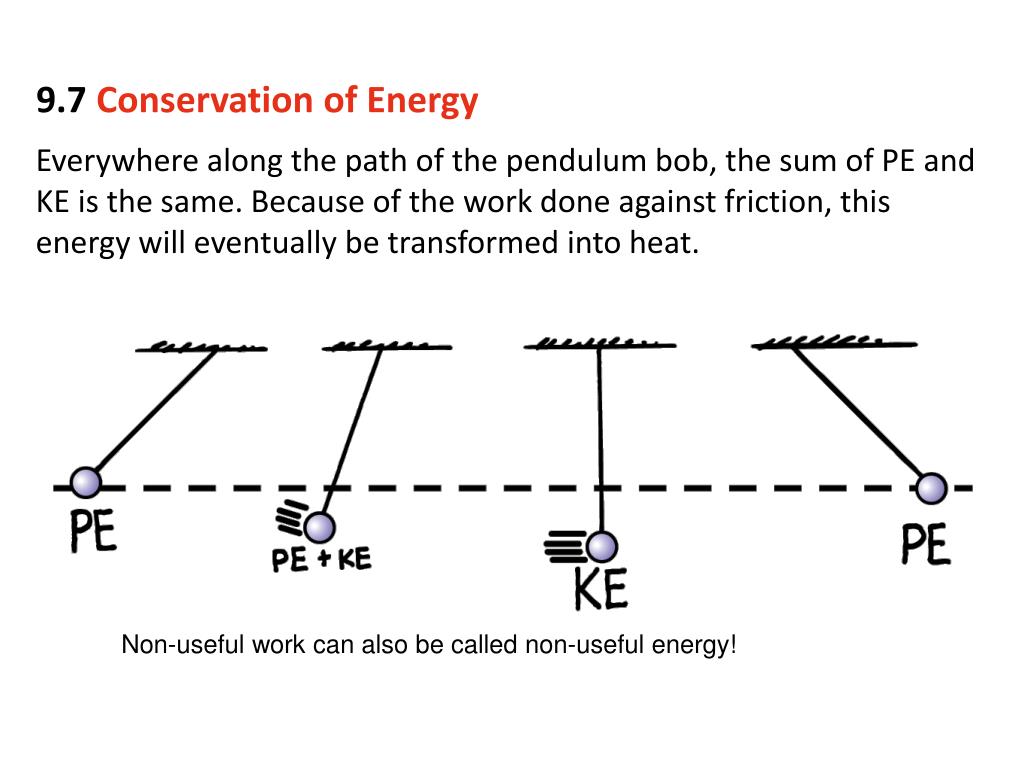

28. 9.7Conservation of Energy Everywhere along the path of the pendulum bob, the sum of PE and KE is the same. Because of the work done against friction, this energy will eventually be transformed into heat. Non-useful work can also be called non-useful energy!

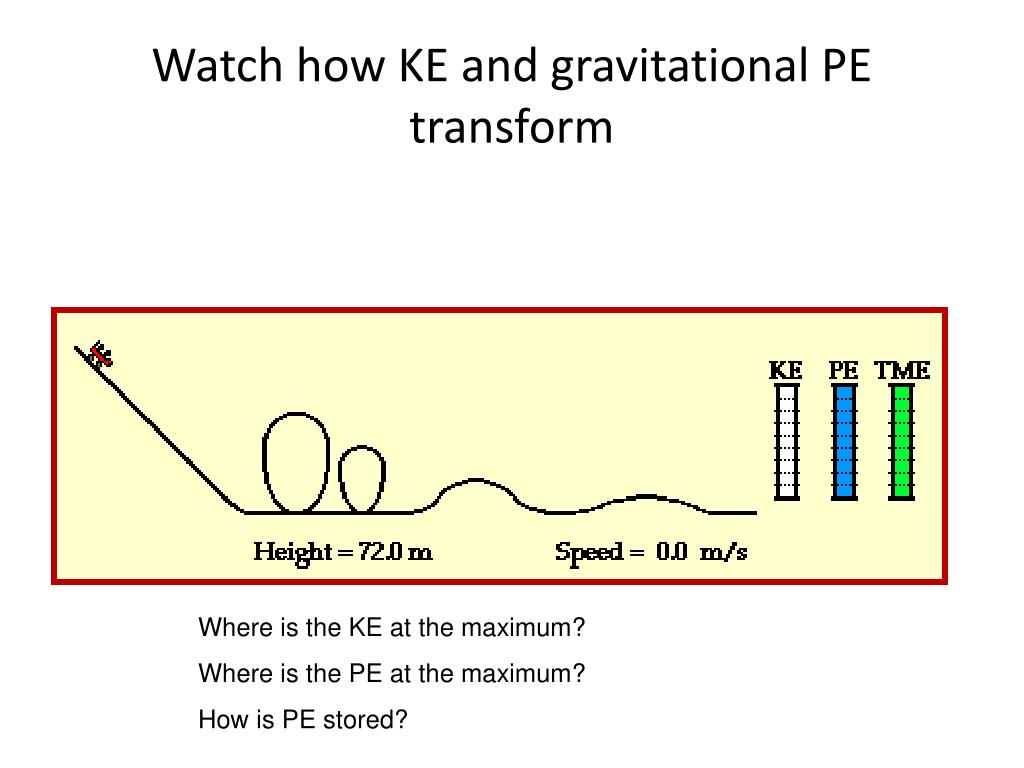

29. Watch how KE and gravitational PE transform Where is the KE at the maximum? Where is the PE at the maximum? How is PE stored?

30. Watch the change in height vs. the change in speed! How does the change in height affect KE and PE?

31. What happens to KE and TME when the brakes are applied? What work is being done?

32. Watch the transfer of KE and PE. What happens to the PE when the skier moves down the hill? What happens to the KE and TME when the skier travels over the unpacked snow? What work is done?

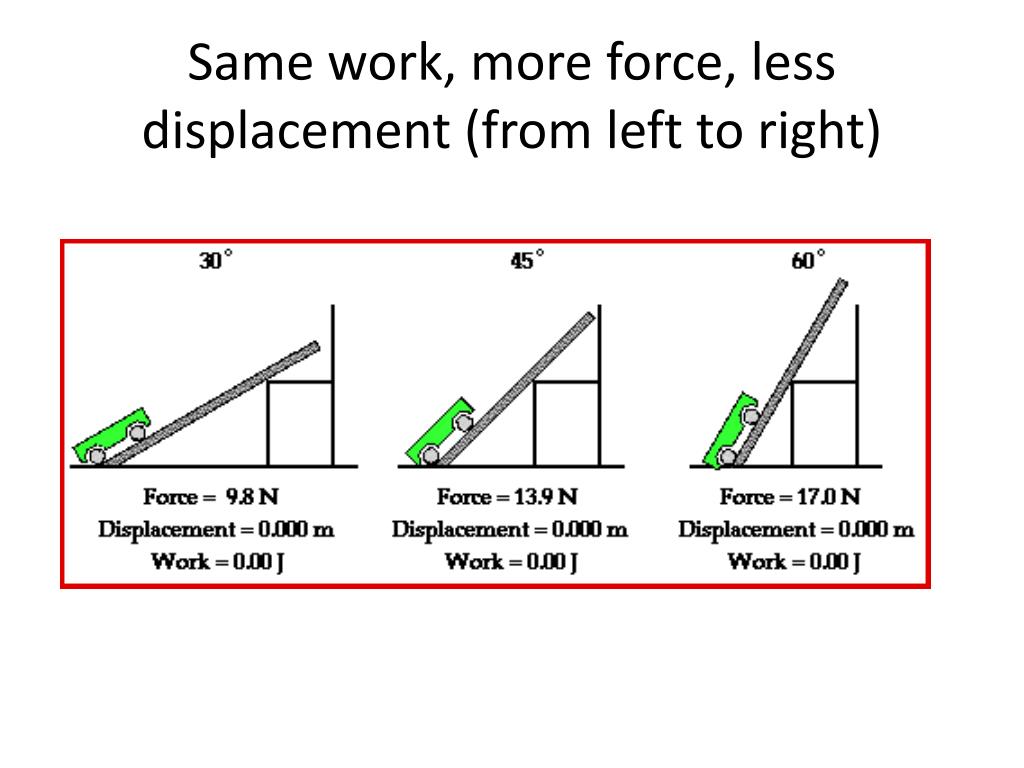

33. Same work, more force, less displacement (from left to right)

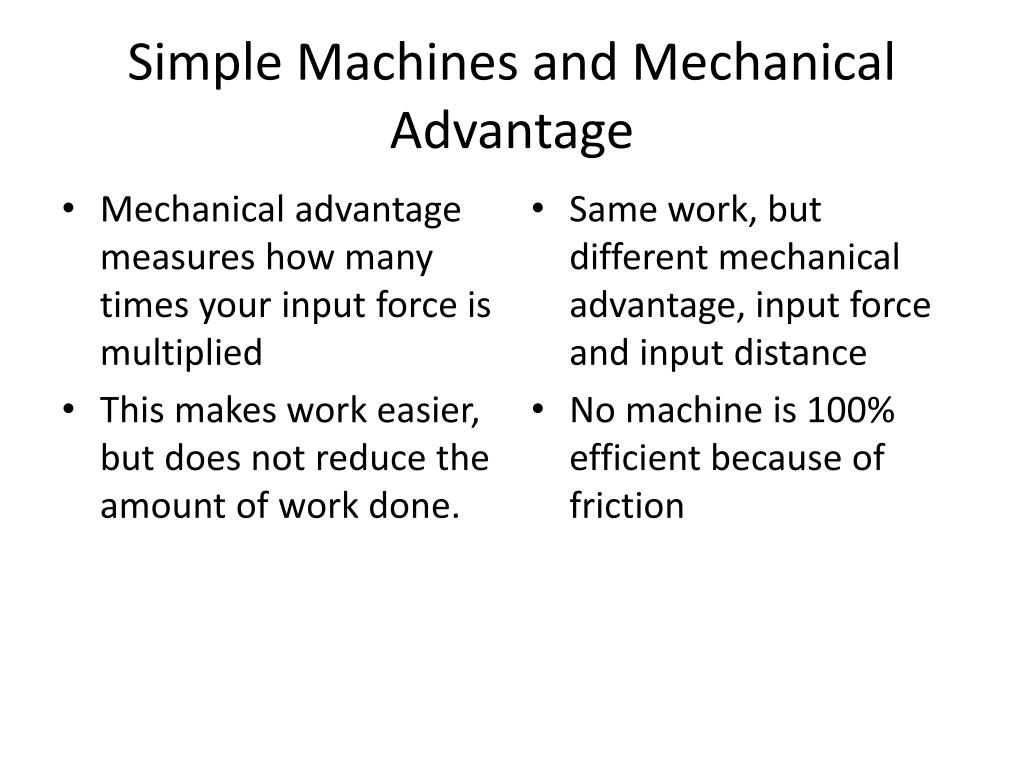

34. Simple Machines and Mechanical Advantage • Mechanical advantage measures how many times your input force is multiplied • This makes work easier, but does not reduce the amount of work done. • Same work, but different mechanical advantage, input force and input distance • No machine is 100% efficient because of friction

35. Which lever would have the highest mechanical advantage? c b a

36. Simple Machines • Two families Lever Inclined plane --Lever --Pulley --Wheel and axle --Ramp --Wedge --Screw

37. Pulley Fixed pulley 1 support rope MA = 1

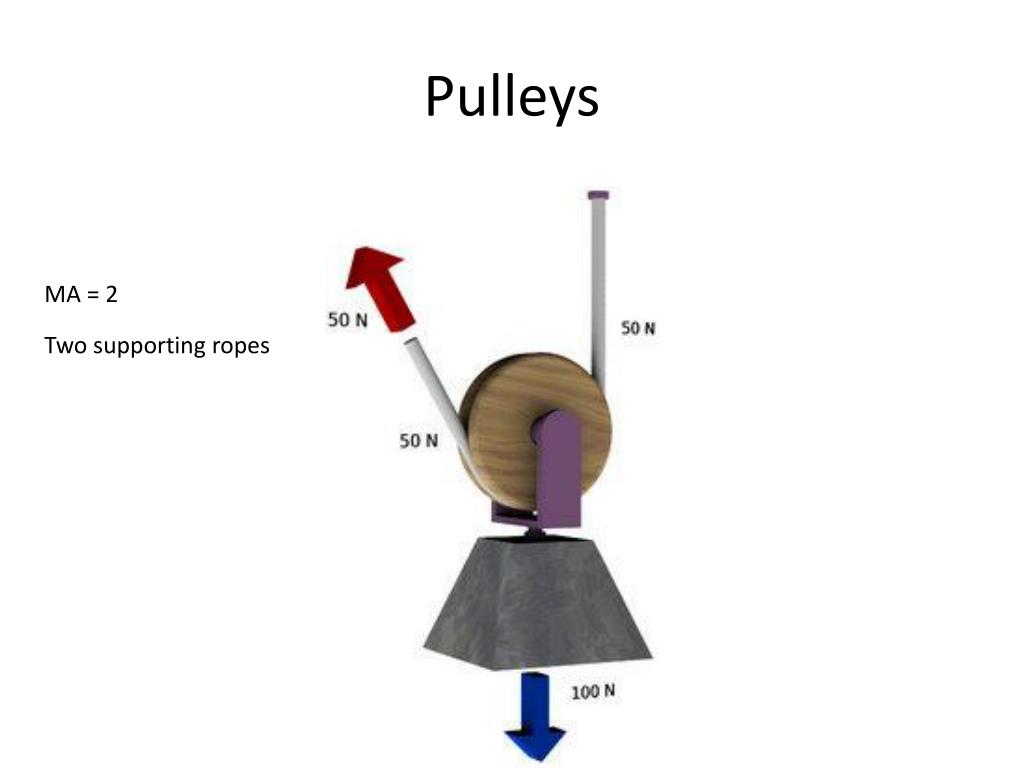

38. Pulleys MA = 2 Two supporting ropes

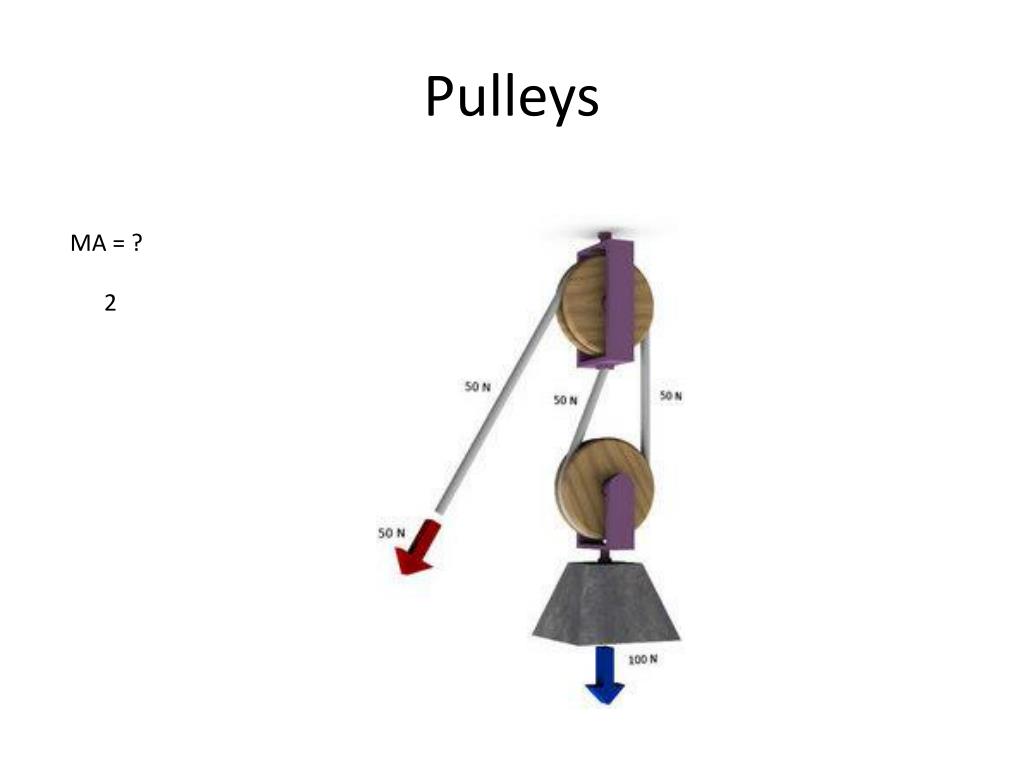

39. Pulleys MA = ? 2

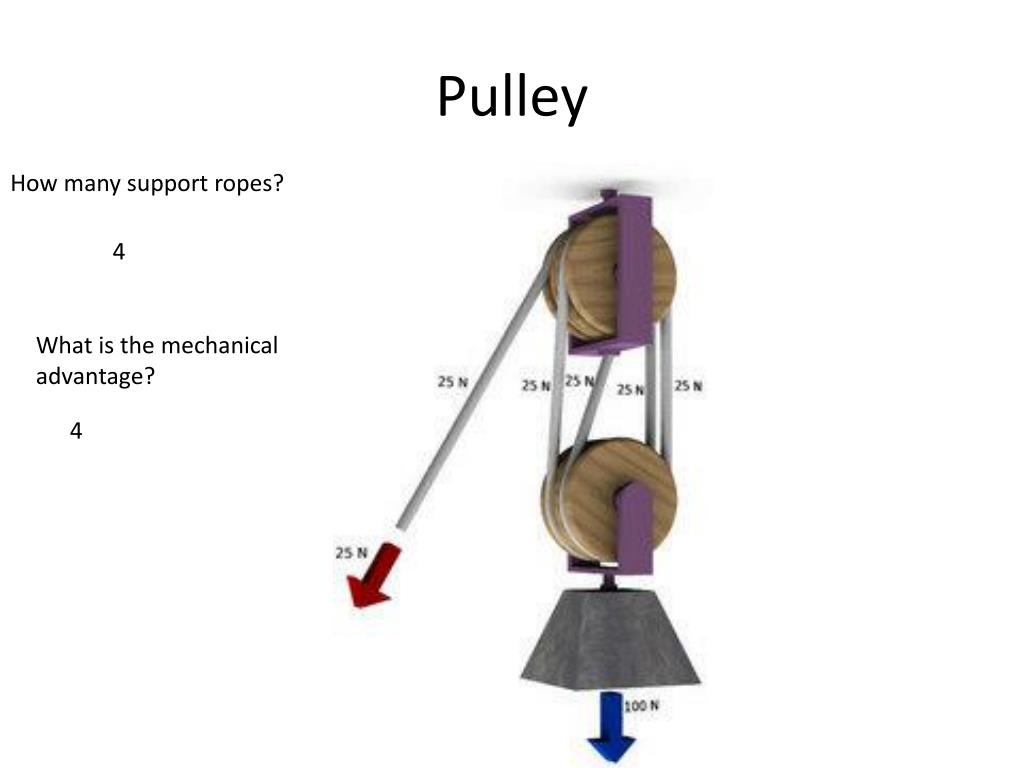

40. Pulley How many support ropes? 4 What is the mechanical advantage? 4

41. Wheel and Axle • Wheel connected to a shaft

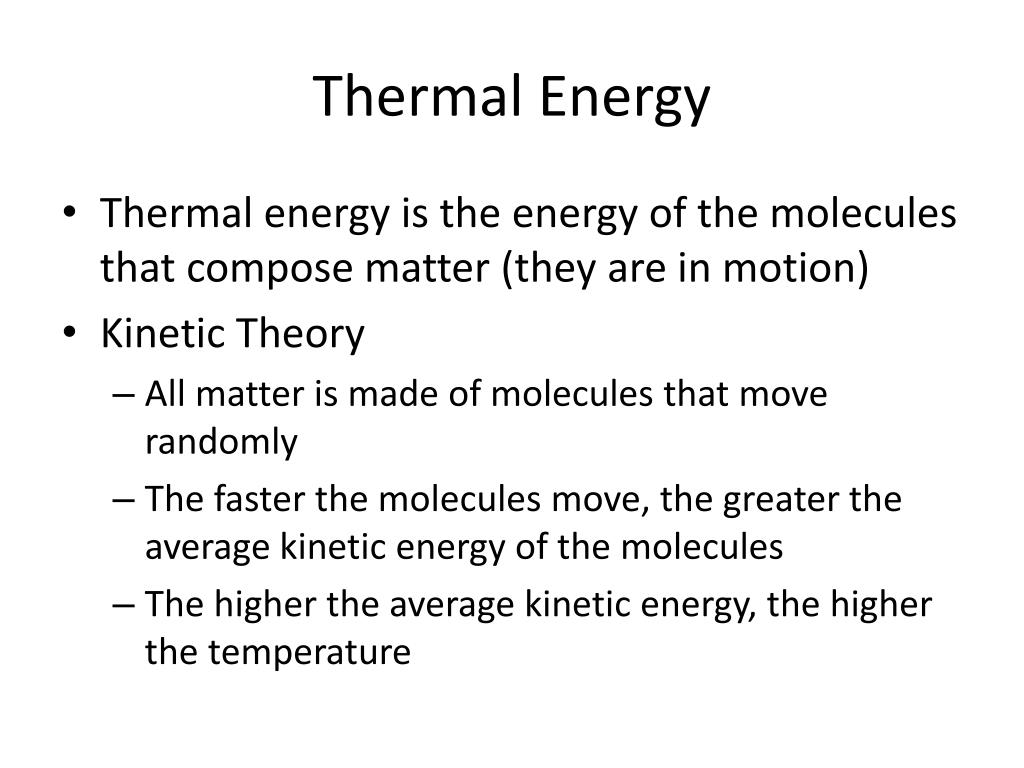

42. Thermal Energy • Thermal energy is the energy of the molecules that compose matter (they are in motion) • Kinetic Theory • All matter is made of molecules that move randomly • The faster the molecules move, the greater the average kinetic energy of the molecules • The higher the average kinetic energy, the higher the temperature

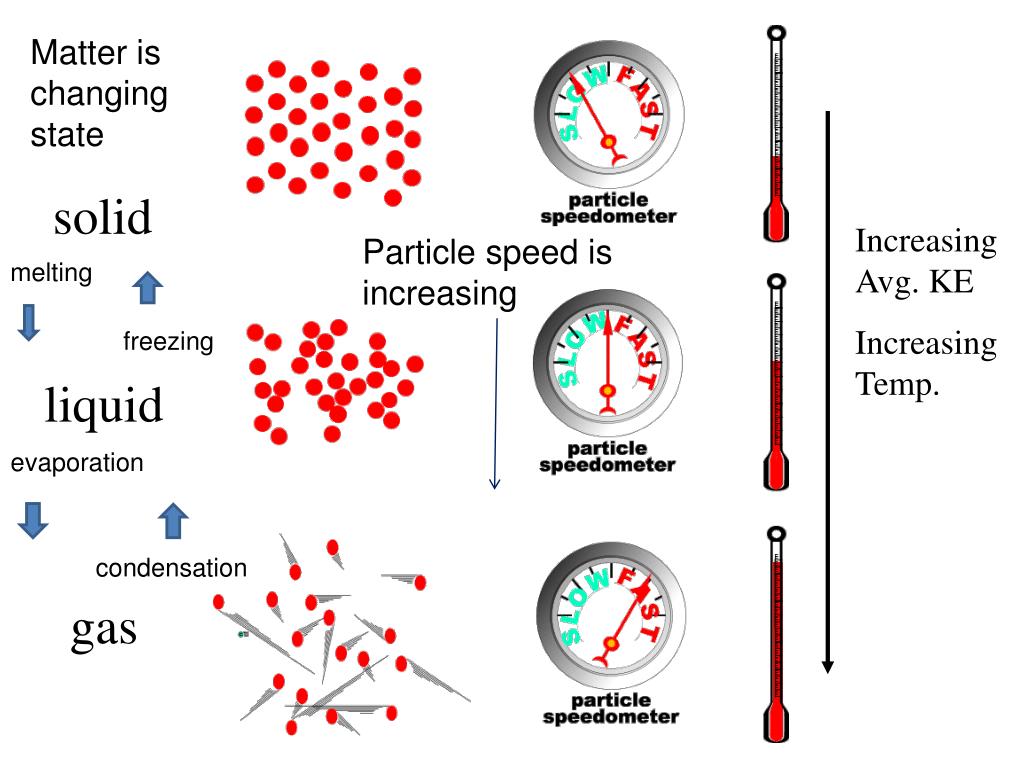

43. Matter is changing state solid Increasing Avg. KE Increasing Temp. Particle speed is increasing melting freezing liquid evaporation condensation gas

44. 21.2Heat • Heat is the quantity of thermal energy transferred • Heat always flows from a substance with a higher temperature to a substance with a lower temperature. • Heat flows only when there is a difference in temperature. • Heat units are calories or joules.

45. Heat and Heat flow

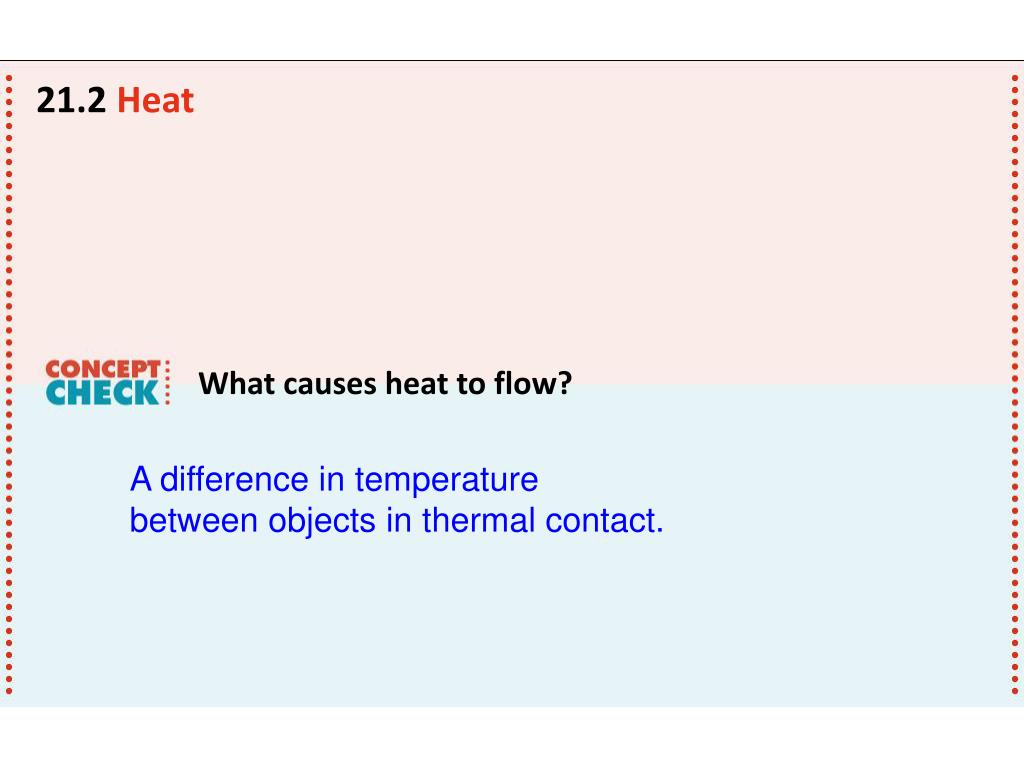

46. 21.2Heat What causes heat to flow? A difference in temperature between objects in thermal contact.

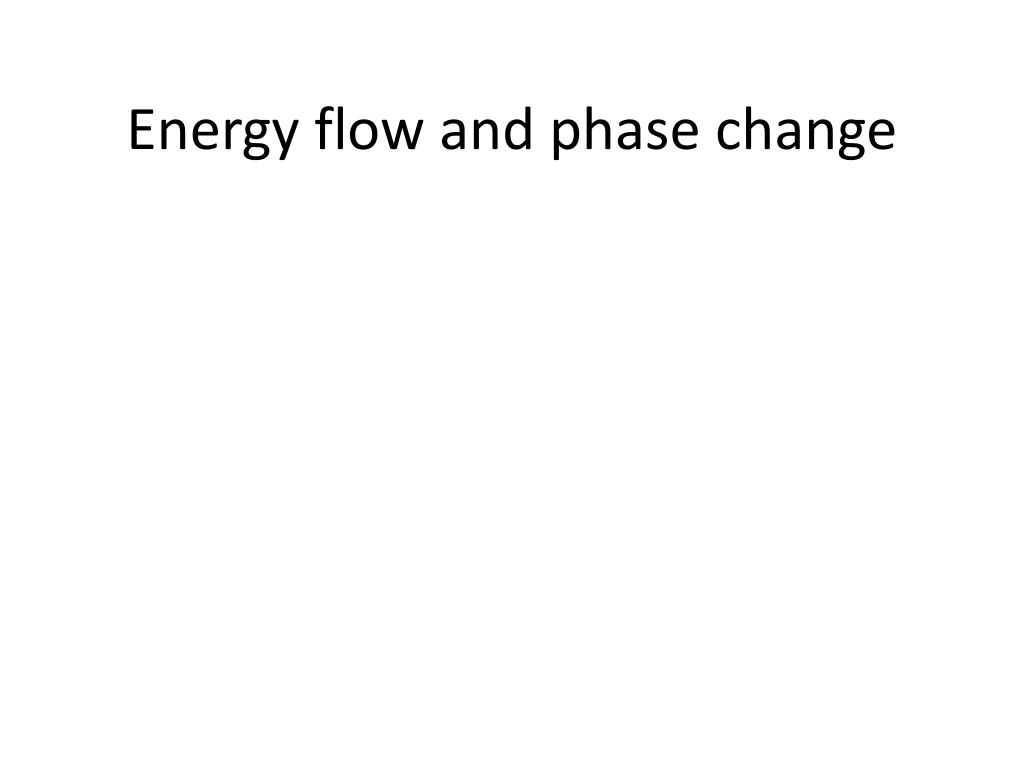

47. Energy flow and phase change

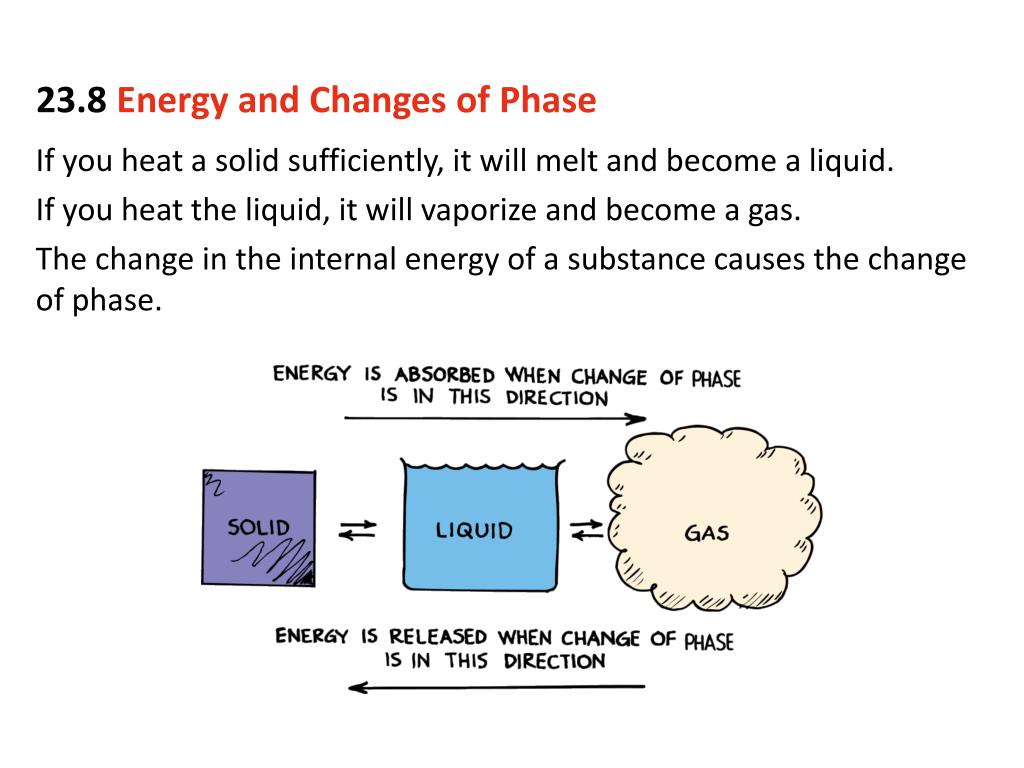

48. 23.8Energy and Changes of Phase If you heat a solid sufficiently, it will melt and become a liquid. If you heat the liquid, it will vaporize and become a gas. The change in the internal energy of a substance causes the change of phase.

49. Three ways thermal energy is transferred

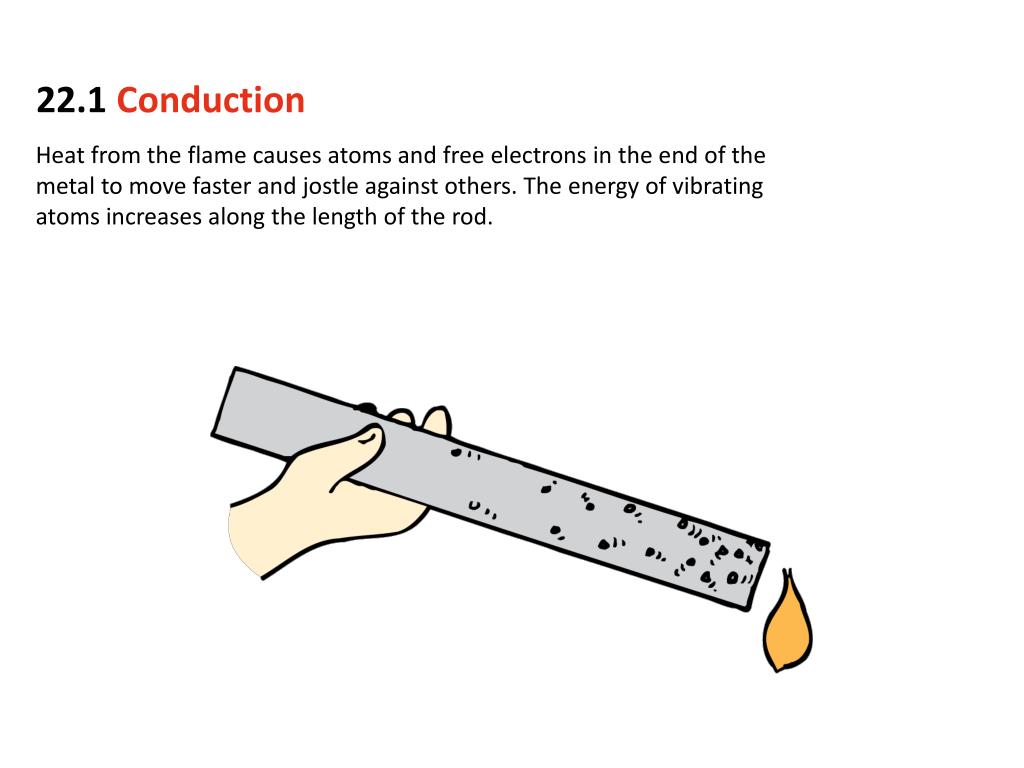

50. 22.1Conduction Heat from the flame causes atoms and free electrons in the end of the metal to move faster and jostle against others. The energy of vibrating atoms increases along the length of the rod.
