DESIGN CONSIDERATIONS

CAREFUL CONTROL OF LARGE NUMBER OF VARIABLES NEEDED- CHARACTERISTICS OF METALS & ALLOYS CAST METHOD OF CASTING MOULD AND DIE MATERIALS MOULD DESIGN PROCESS PARAMETERS- POURING, TEMPERATURE, GATING SYSTEM RATE OF COOLING Etc.Etc. DESIGN CONSIDERATIONS. NITC.

rooney-carpenter
Télécharger la présentation

DESIGN CONSIDERATIONS

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. CAREFUL CONTROL OF LARGE NUMBER OF VARIABLES NEEDED- CHARACTERISTICS OF METALS & ALLOYS CAST METHOD OF CASTING MOULD AND DIE MATERIALS MOULD DESIGN PROCESS PARAMETERS- POURING, TEMPERATURE, GATING SYSTEM RATE OF COOLING Etc.Etc. DESIGN CONSIDERATIONS NITC

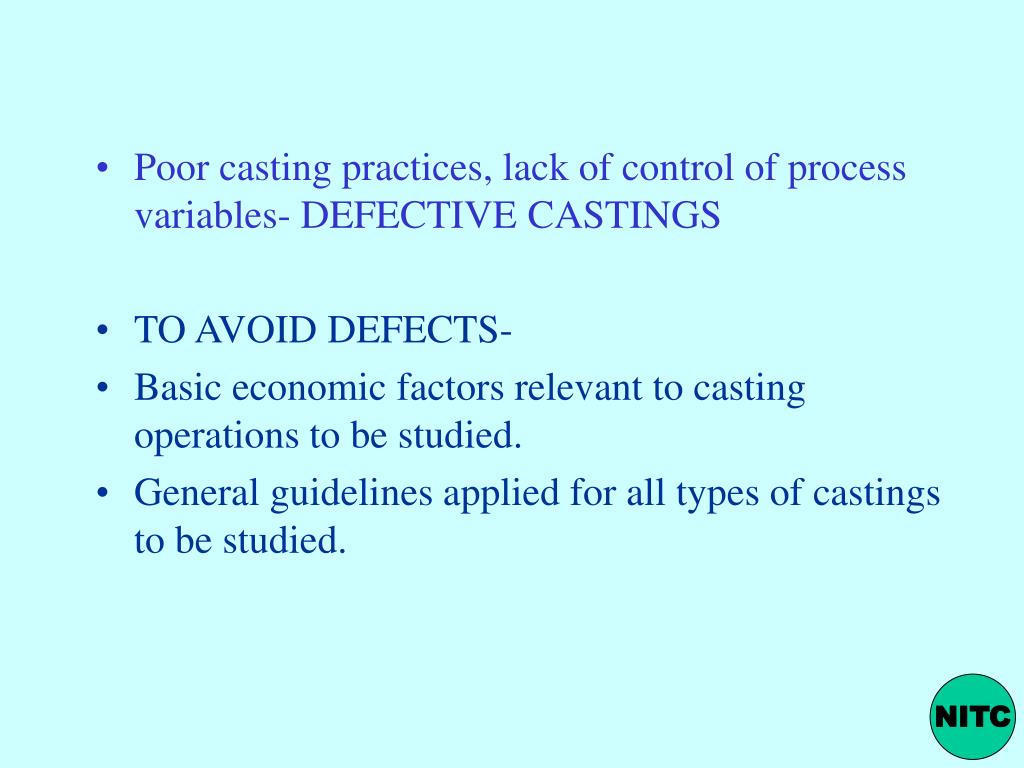

  2. Poor casting practices, lack of control of process variables- DEFECTIVE CASTINGS TO AVOID DEFECTS- Basic economic factors relevant to casting operations to be studied. General guidelines applied for all types of castings to be studied. NITC

  3. Sharp corners, angles, fillets to be avoided Cause cracking and tearing during solidification Fillet radii selection to ensure proper liquid metal flow- 3mm to 25 mm. Too large- volume large & rate of cooling less Location with largest circle inscribed critical. Cooling rate less shrinkage cavities & porosities result- Called HOT SPOTS CORNERS, ANGLES AND SECTION THICKNESS NITC

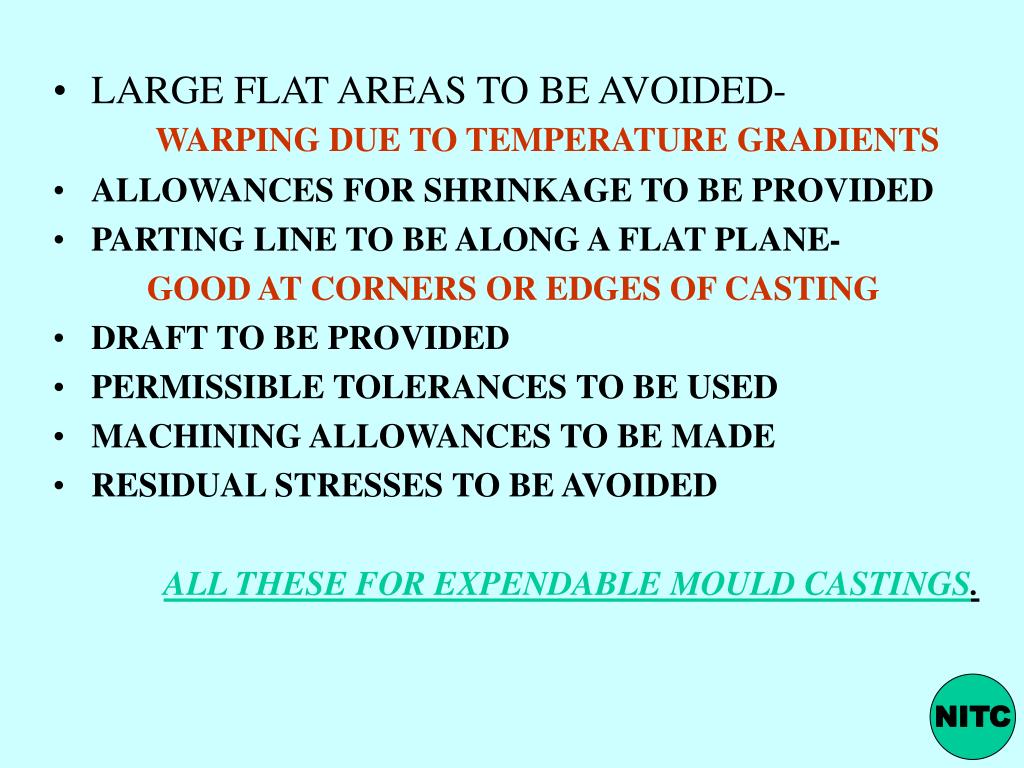

  4. LARGE FLAT AREAS TO BE AVOIDED- WARPING DUE TO TEMPERATURE GRADIENTS ALLOWANCES FOR SHRINKAGE TO BE PROVIDED PARTING LINE TO BE ALONG A FLAT PLANE- GOOD AT CORNERS OR EDGES OF CASTING DRAFT TO BE PROVIDED PERMISSIBLE TOLERANCES TO BE USED MACHINING ALLOWANCES TO BE MADE RESIDUAL STRESSES TO BE AVOIDED ALL THESE FOR EXPENDABLE MOULD CASTINGS. NITC

  5. DESIGN MODIFICATIONS TO AVOID DEFECTS- AVOID SHARP CORNERS MAINTAIN UNIFORM CROSS SECTIONS AVOID SHRINKAGE CAVITIES USE CHILLS TO INCREASE THE RATE OF COOLING STAGGER INTERSECTING REGIONS FOR UNIFORM CROSS SECTIONS REDESIGN BY MAKING PARTING LINE STRAIGHT AVOID THE USE OF CORES, IF POSSIBLE MAINTAIN SECTION THICKNESS UNIFORMITY BY REDESIGNING (in die cast products) NITC

  6. PROPERTIES AND TYPICAL APPLICATIONS OF CAST IRONS, NON FERROUS ALLOYS etc. Tables shall be supplied NITC

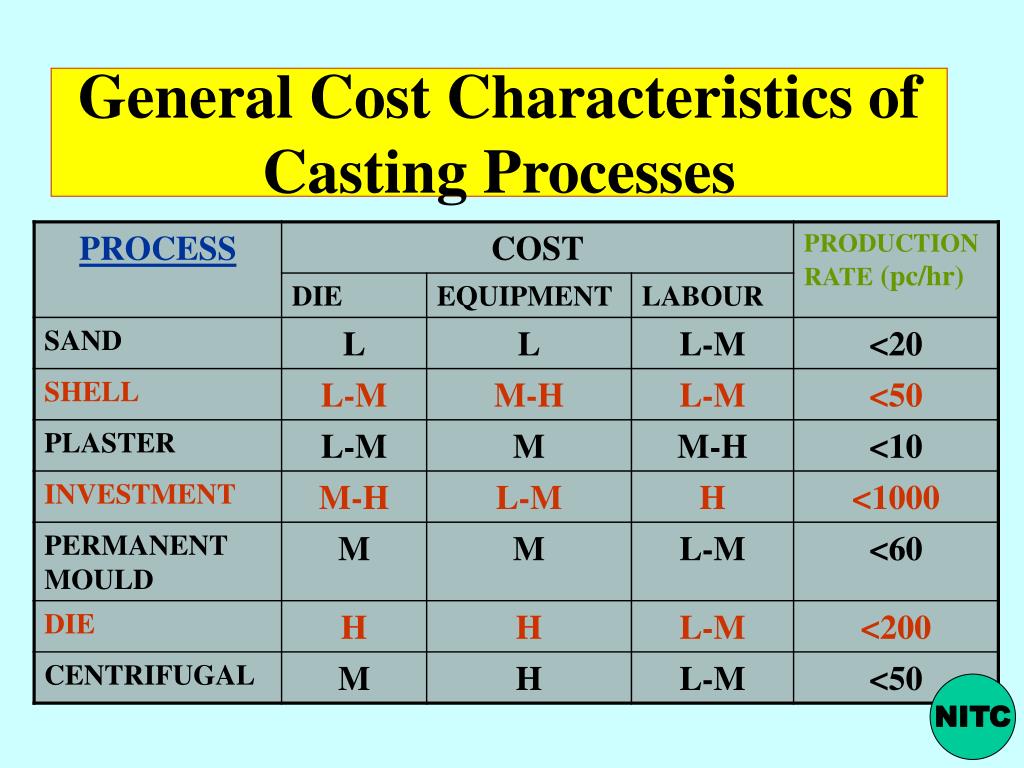

  7. General Cost Characteristics of Casting Processes NITC

  8. THIXOTROPIC DIE CASTINGSome of the die-cast joints used in the Insight's aluminum body are made using a newly developed casting technology invented by Honda engineers, called Thixotropic Die Casting. Thixotropic Die Casting uses aluminum alloy that has been heated to a semi-solid condition, instead of the molten, liquid state normally used in die casting. Pieces made with molten aluminum must be more highly processed and refined before casting. NITC

  9. However, Thixotropic Die Casting requires less energy for smelting (an important consideration since aluminum is more expensive than steel), and owes much of its strength to the controlled formation of discrete aluminum crystals within the metal casting.Thixotropic casting involves vibratory casting of highly thixotropic slips of very high solids loadings that are fluid only under vibration, using porous or nonporous molds. It is quite different from other conventional and new methods for solid casting ceramics, including vibroforming, vibraforming, in situ flocculation, direct coagulation casting, and gel casting.This is demonstrated in Table 1. NITC

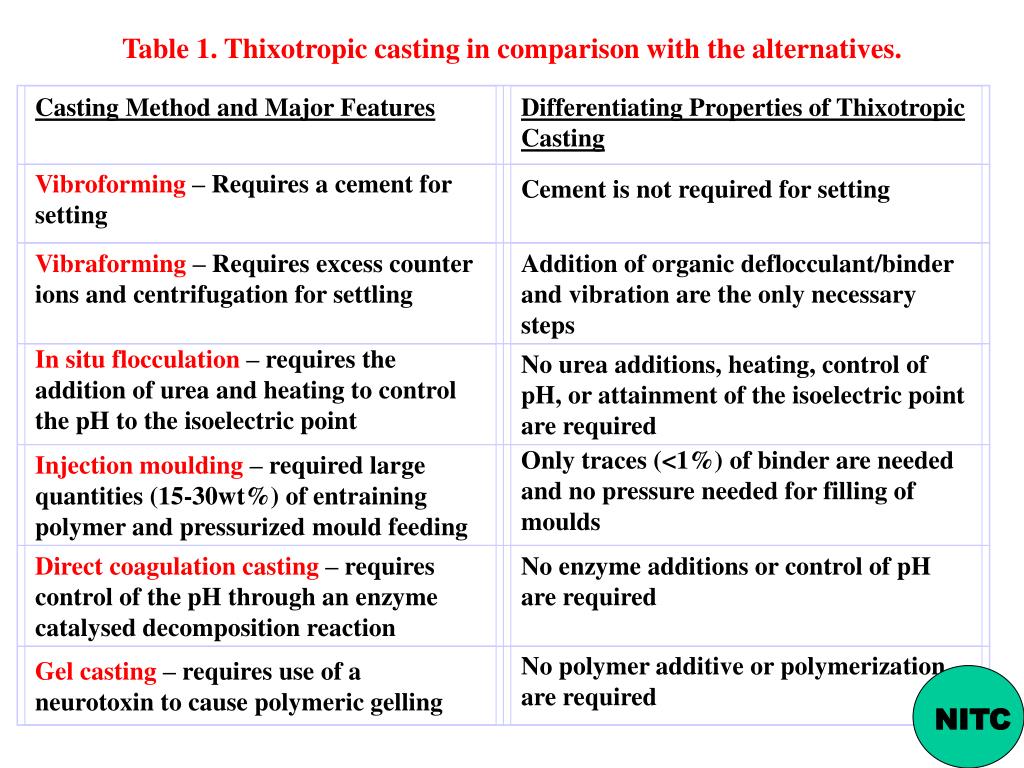

  10. Casting Method and Major Features Differentiating Properties of Thixotropic Casting Vibroforming – Requires a cement for setting Cement is not required for setting Vibraforming – Requires excess counter ions and centrifugation for settling Addition of organic deflocculant/binder and vibration are the only necessary steps In situ flocculation – requires the addition of urea and heating to control the pH to the isoelectric point No urea additions, heating, control of pH, or attainment of the isoelectric point are required Injection moulding – required large quantities (15-30wt%) of entraining polymer and pressurized mould feeding Only traces (<1%) of binder are needed and no pressure needed for filling of moulds Direct coagulation casting – requires control of the pH through an enzyme catalysed decomposition reaction No enzyme additions or control of pH are required Gel casting – requires use of a neurotoxin to cause polymeric gelling No polymer additive or polymerization are required Table 1. Thixotropic casting in comparison with the alternatives. NITC

  11. Thixotropic casting is a little-known derivative of solid slip casting, having reportedly been used in the refractories industry in the early 1970's. Since then, the refractories industry has since largely embraced low-cement and ultra-low-cement castables. It is also a suitable process for forming ceramic matrix composites and metal-ceramic functionally gradient materials. Thixotropic casting involves vibratory casting of highly thixotropic slips of very high solids loadings that are fluid only under vibration, using porous or nonporous molds. It is quite different from other conventional and new methods for solid casting ceramics, including vibroforming, vibraforming, in situ flocculation, direct coagulation casting, and gel casting. (This is demonstrated in Table 1) NITC

  12. NITC

  13. NITC

  14. NITC

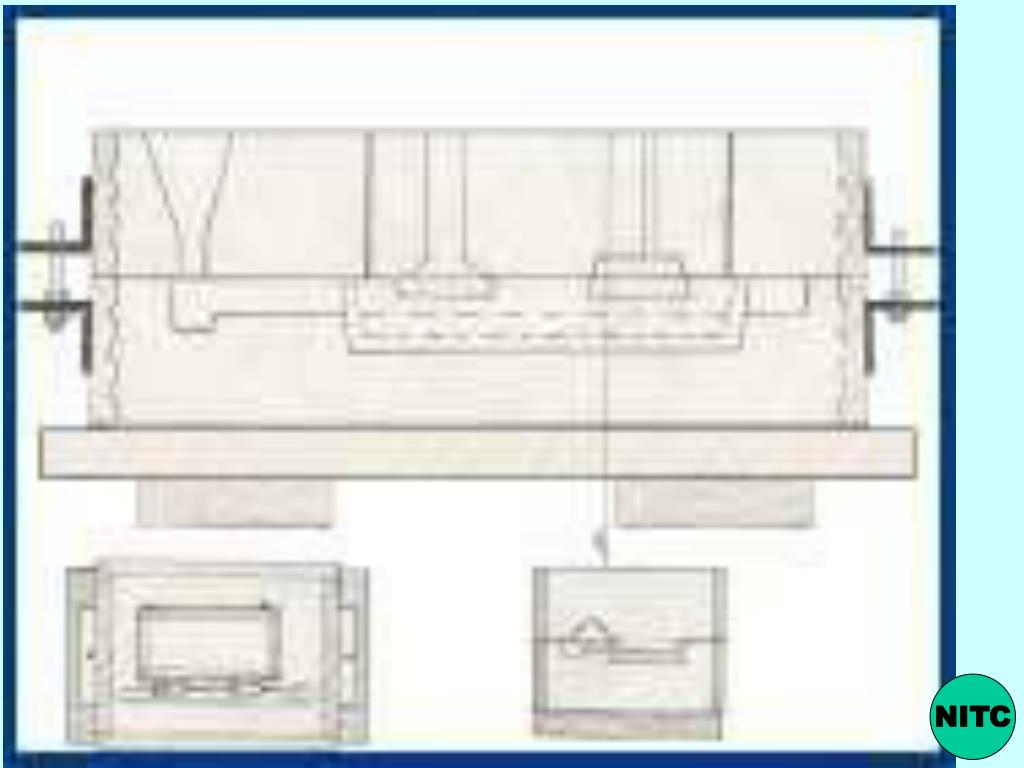

  15. NITC

  16. NITC
