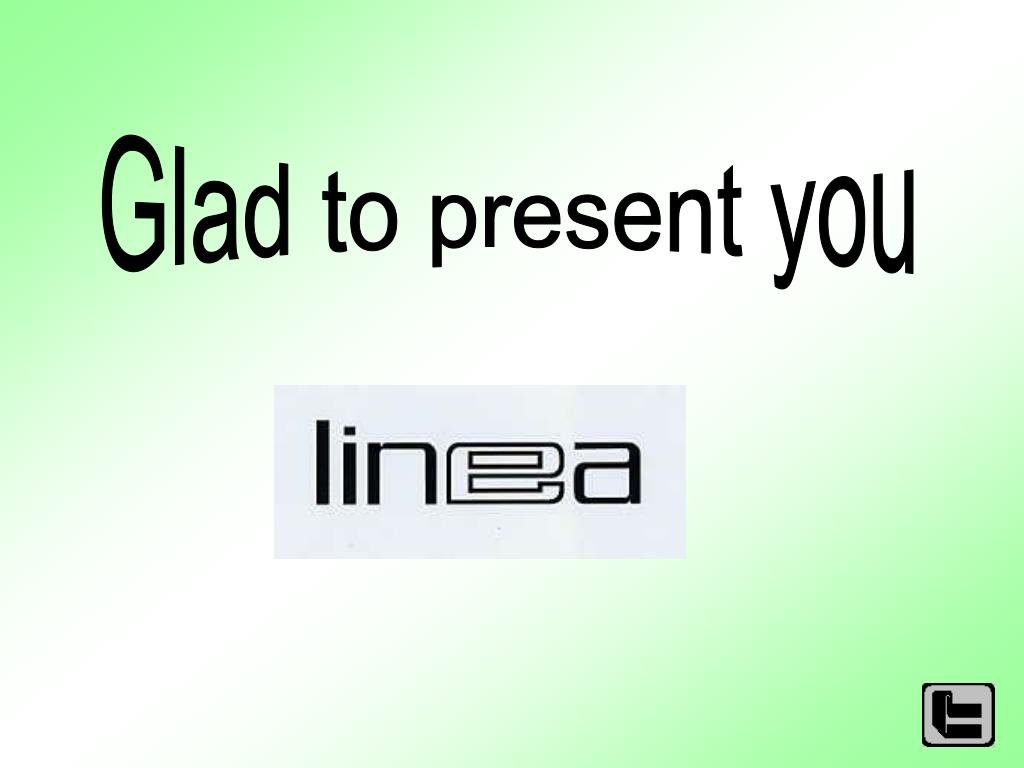

  1. Glad to present you

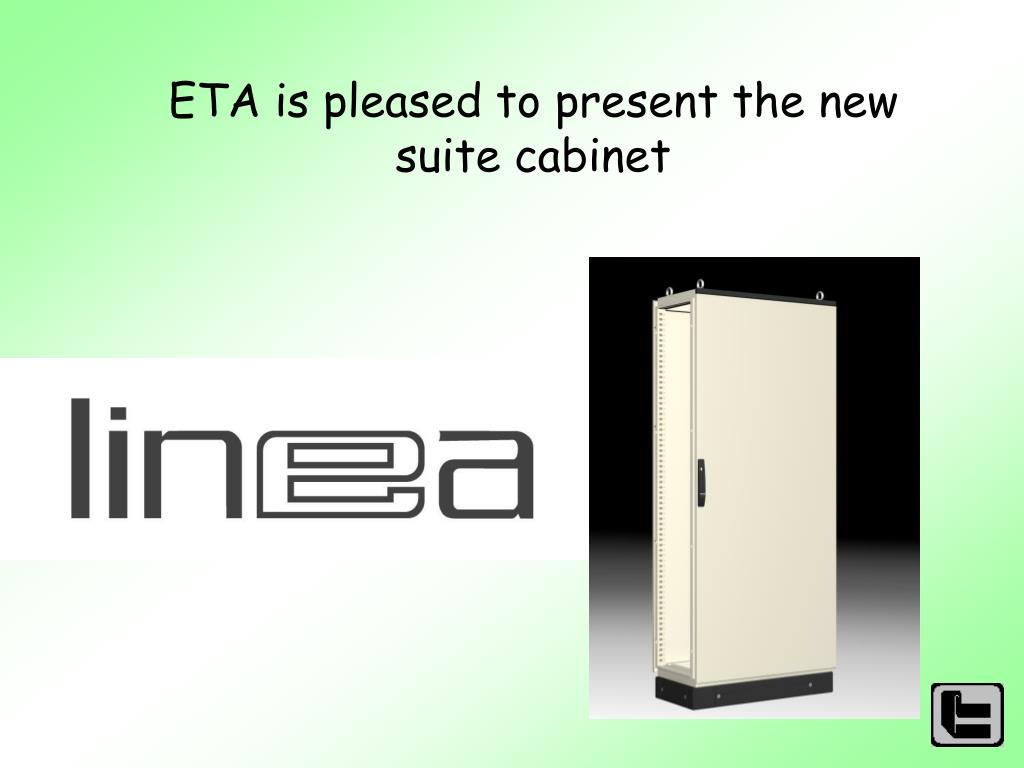

  2. ETA is pleased to present the new suite cabinet

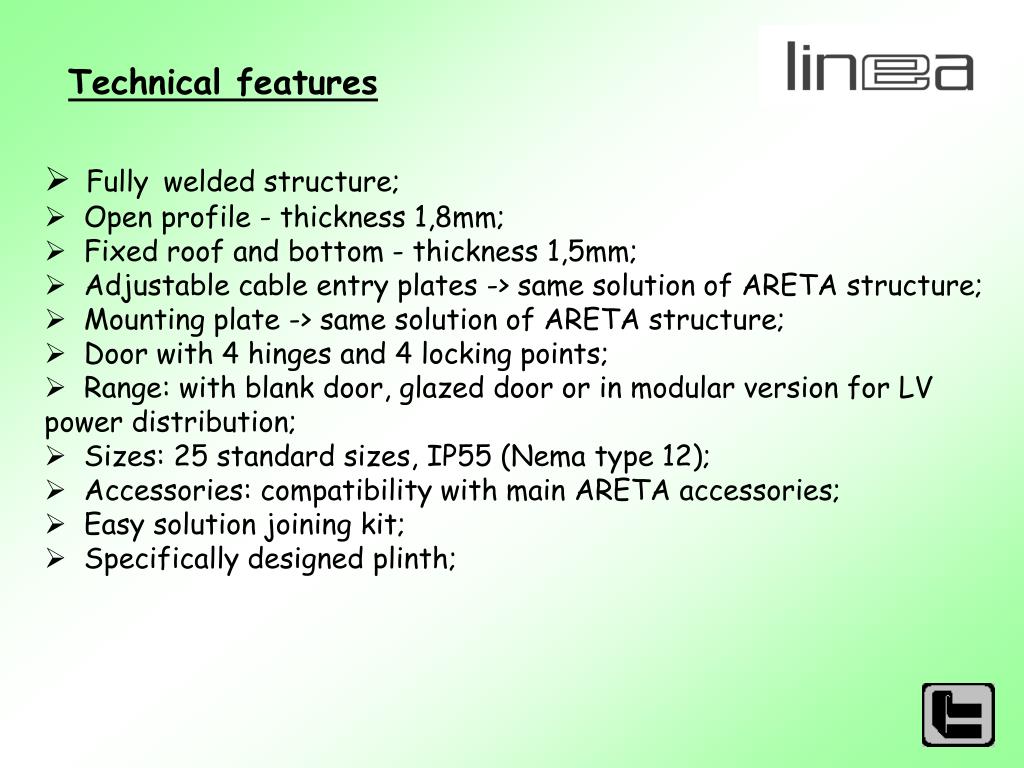

  3. Technical features • Fullywelded structure; • Open profile - thickness 1,8mm; • Fixed roof and bottom - thickness 1,5mm; • Adjustable cable entry plates -> same solution of ARETA structure; • Mounting plate -> same solution of ARETA structure; • Door with 4 hinges and 4 locking points; • Range: with blank door, glazed door or in modular version for LV power distribution; • Sizes: 25 standard sizes, IP55 (Nema type 12); • Accessories: compatibility with main ARETA accessories; • Easy solution joining kit; • Specifically designed plinth;

  4. Have a look at some details…

  5. Range: dimensions and solutions • Blank door cabinet • Linea-……….PR – with blank door and • rear panel • Linea- ………DP – with front and • rear blank doors • 24 dimensions available • Widths: 600-1200 + 300 (C.E.M.) • Heights: 1800-2000 • Depth: 400/500/600 • Mounting plate included • Eyebolts, lateral panels and standard plinths to be ordered separately

  6. Range: dimensions and solutions • Mounting plate: • Full compatibility with ATPL • Front inserted mounting plate included in the supply • Mounting plate adjustable in depth (till alignment with upright rails)

  7. Range: dimensions and solutions Other accessories: • Side panels • Plinth made up of 4 corners and panels • Eyebolts: supplied separately

  8. Range: dimensions and solutions Mounting plate fixing detail Door closing system detail

  9. Range: dimensions and solutions Mounting plate fixing detail

  10. Range: dimensions and solutions Lateral panel fixing detail

  11. Range: dimensions and solutions Section of the mounting plate and of the lateral panel

  12. Range: dimensions and solutions Cabinet with glazed door Linea-…… PX • 18 dimensions available • Mounting plate included • Inner door identical to the Areta one • Modular kit for 600-800 widths

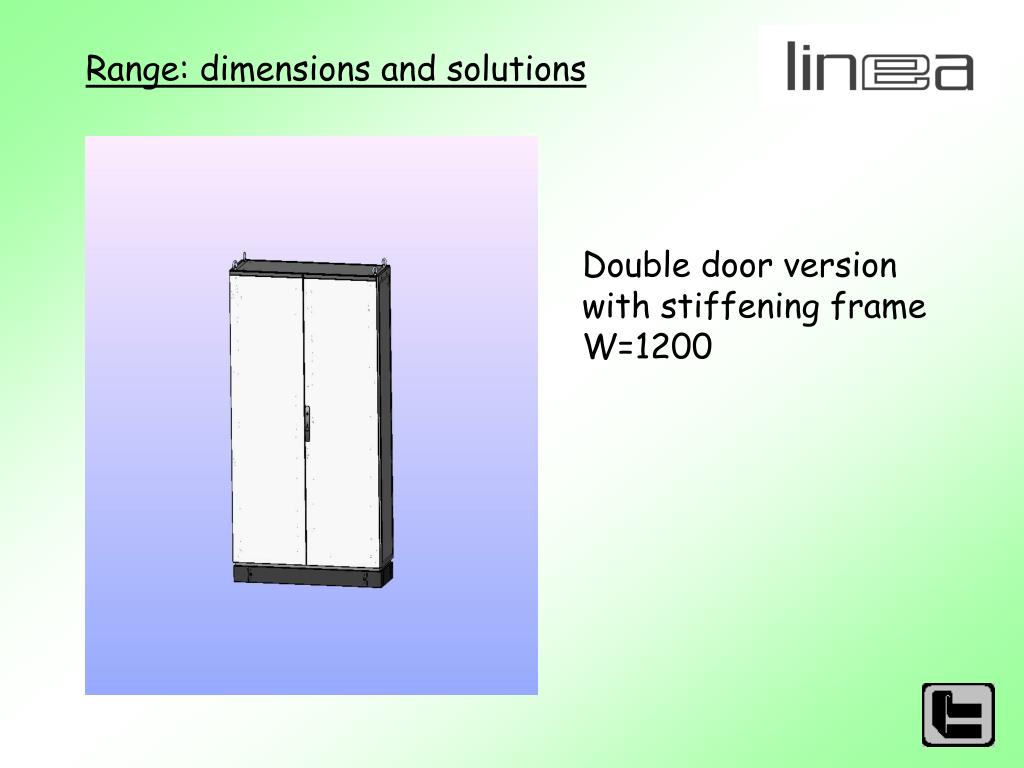

  13. Range: dimensions and solutions Double door version with stiffening frame W=1200

  14. Marketing tools and communication • LINEA leaflet (with the main details) • Updated Product Overview with the new range LINEA (only dimensions and PR codes ) And more… • Updated PQ (instead of Basic) • Updated web site, newsletters and issues

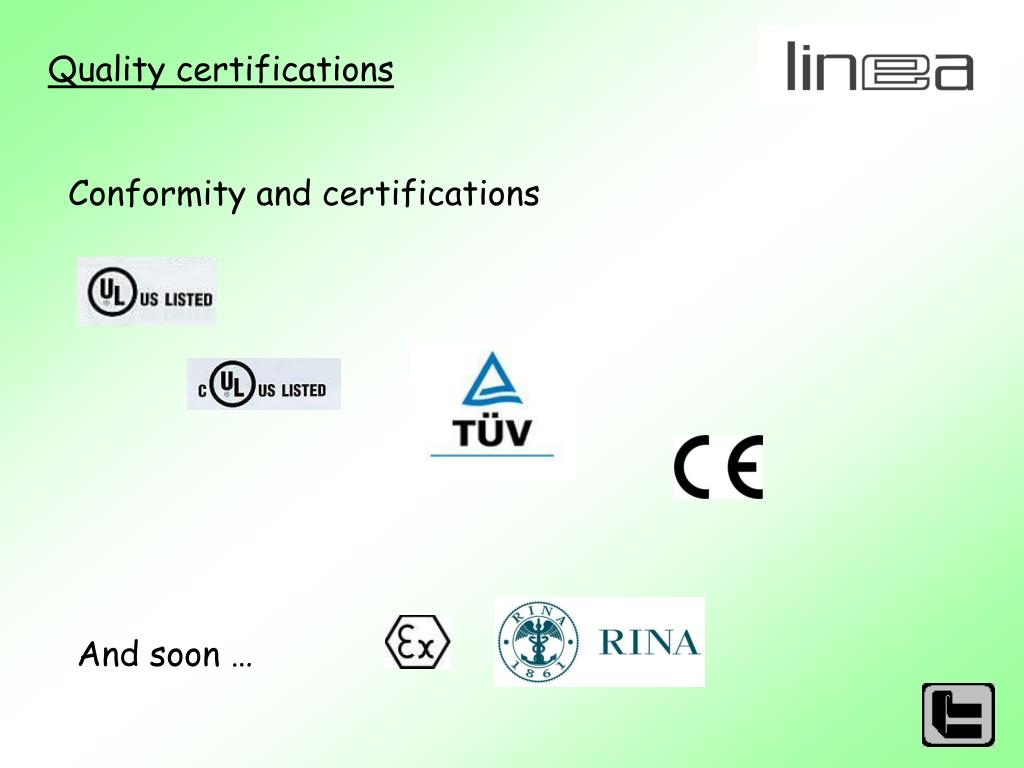

  15. Quality certifications Conformity and certifications And soon …
