1. Low-voltage techniques Mohammad Sharifkhani

2. Reading • Text Book I, Chapter 4 • Text Book II, Section 11.7

3. Power, Energy, Speed • Speed • Energy  Battery lifetime • Instantaneous power  Package, cooling If leakage is ignored, P x Tpd is equal to E; independent of Vth and Speed: work at the slowest speed; lowest VDD to minimize E (and P).

5. Efficient design approaches

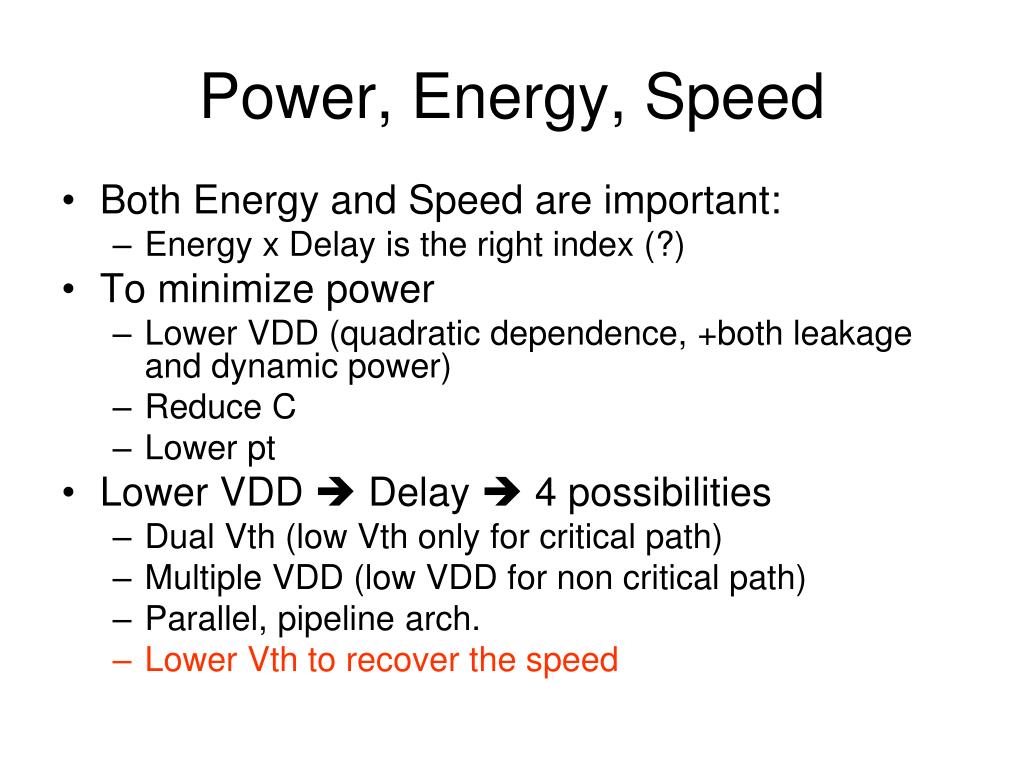

7. Power, Energy, Speed • Both Energy and Speed are important: • Energy x Delay is the right index (?) • To minimize power • Lower VDD (quadratic dependence, +both leakage and dynamic power) • Reduce C • Lower pt • Lower VDD  Delay  4 possibilities • Dual Vth (low Vth only for critical path) • Multiple VDD (low VDD for non critical path) • Parallel, pipeline arch. • Lower Vth to recover the speed

8. VDD scaling

9. VDD scaling

10. VDD scaling

11. VDD scaling vs. delay

12. Processing options

13. Architecture Trade-off for Fixed-rate ProcessingReference Datapath

14. Parallel data path

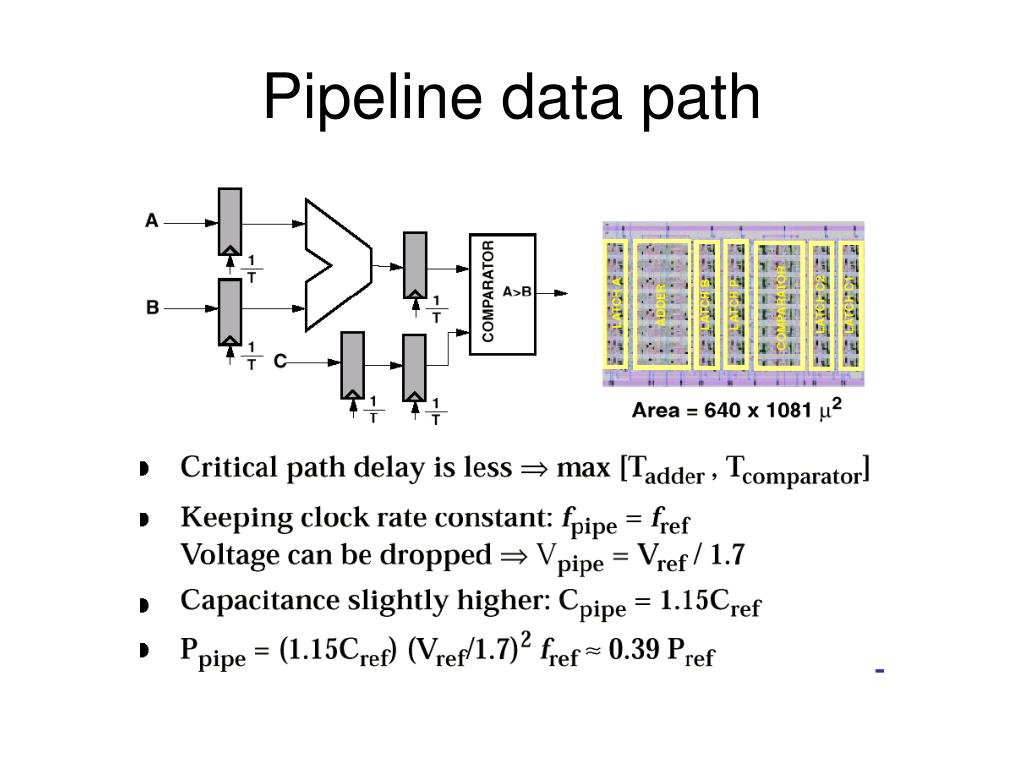

15. Pipeline data path

16. Comparison

19. Multiple supply issues Still on!  DC current

20. Block level voltage scaling

21. Block level multiple supply voltage

22. Multiple VDDs

23. Optimum V2/V1 is around 0.7V Hamada, CICC’01

24. Multiple supply voltages • Two supply voltages per block are optimal • Optimal ratio between the supply voltages is 0.7 • Level conversion is performed on the voltage boundary, using a level-converting flip-flop (LCFF) • An option is to use an asynchronous (combinatorial) level converter • More sensitive to coupling and supply noise

25. Level converting FF

28. Shimazaki, ISSCC’03

31. VDDH drives

36. Inverse discrete cosine

48. Delay sensitivity

49. VDD temporal variation • Design for Dynamically Varying VDD • • Ring oscillator. • • static logic • • Dynamic logic (& tri-state busses). • • Sense amp (& memory cell). • Max. allowed |dVDD/dt| → Min. CDD = 100nF (0.6μm) • Circuits continue to properly operate as VDD changes VDD t

50. Static CMOS
