  1. Introduction to Processor Architecture

  2. Contents • Introduction • Processor architecture overview • ISA(Instruction Set Architecture) • RISC example (SMIPs) • CISC example (Y86) • Processor architecture • Single-cycle processor example(SMIPs) • Pipelining • Control hazard • Branch Predictor • Data hazard • Cache memory

  3. Introduction

  4. Processors • What is the processor? • What’s the difference among them?

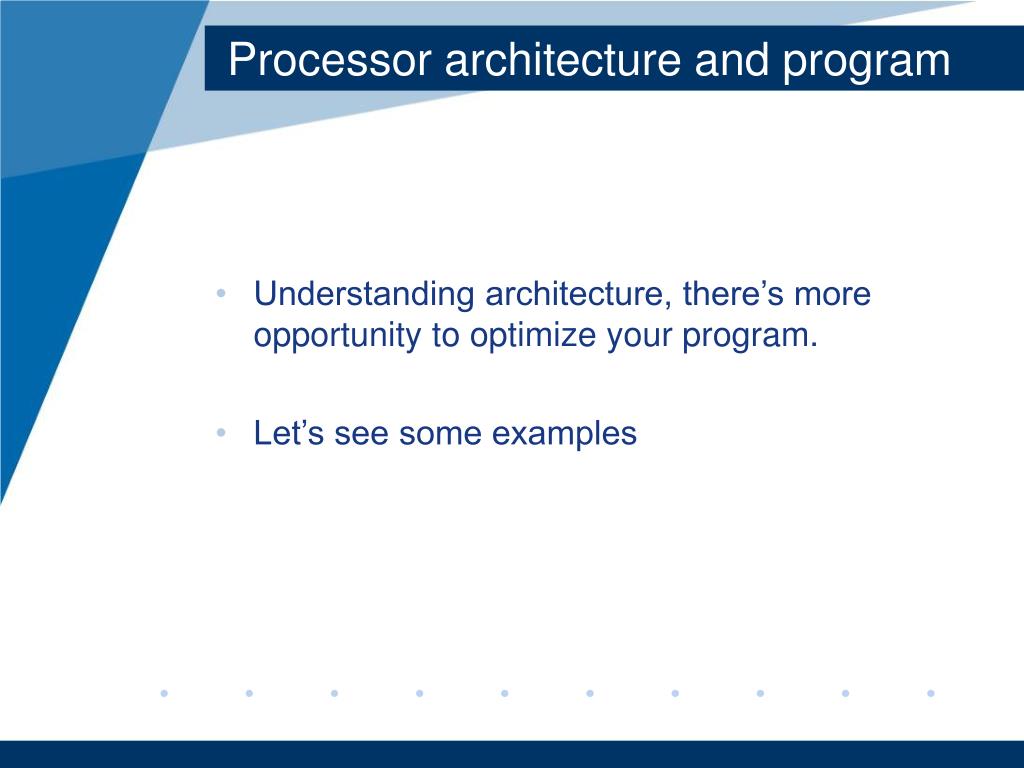

  5. Processor architecture and program • Understanding architecture, there’s more opportunity to optimize your program. • Let’s see some examples

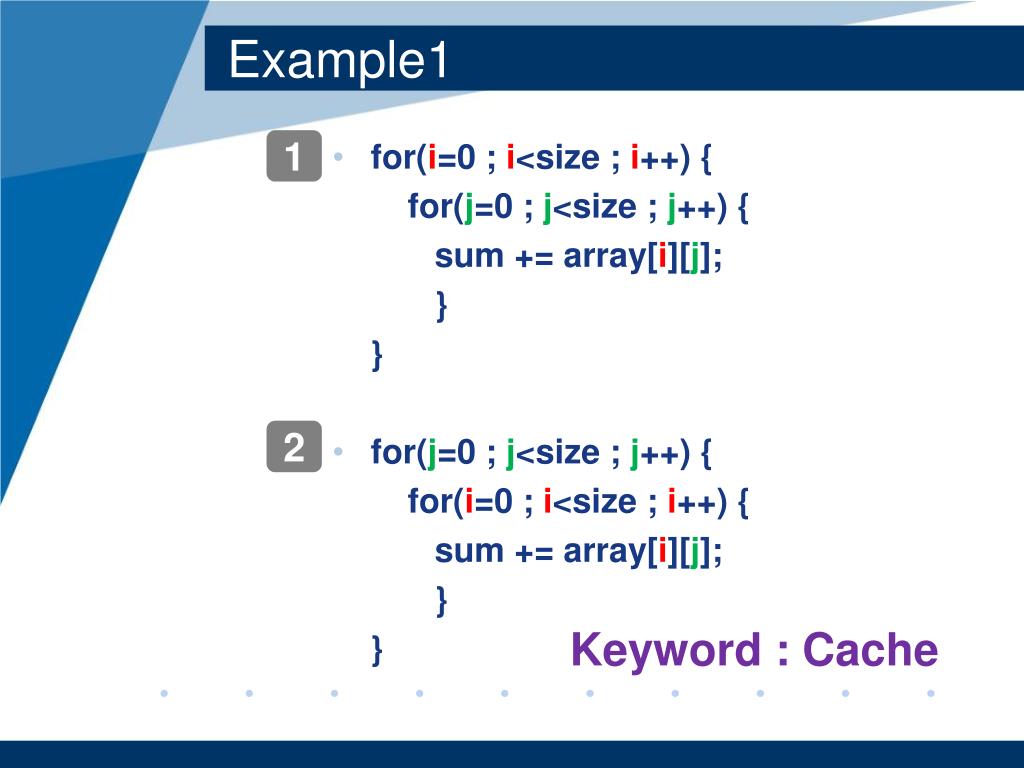

  6. 1 • for(i=0 ; i<size ; i++) { for(j=0 ; j<size ; j++) { sum += array[i][j]; } } • for(j=0 ; j<size ; j++) { for(i=0 ; i<size ; i++) { sum += array[i][j]; } } Example1 2 Keyword : Cache

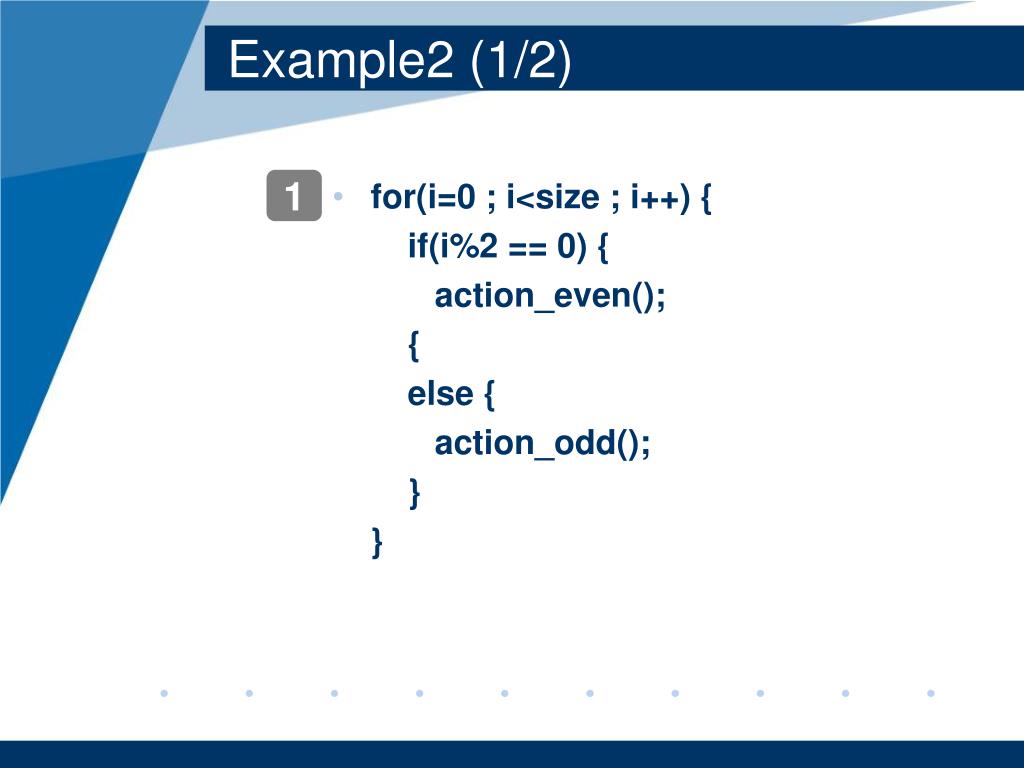

  7. Example2 (1/2) 1 • for(i=0 ; i<size ; i++) { if(i%2 == 0) { action_even(); { else { action_odd(); } }

  8. Example2 (2/2) 2 • for(i=0 ; i<size ; i += 2) { action_even(); } for(i=1 ; i<size ; i+= 2) { action_odd(); } Keyword : Branch predictor and pipeline

  9. Processor architecture overview

  10. Von Neumann Architecture • Input -> process -> output model • Integrated Instruction Memory and Data Memory

  11. Register file Basic components of x86 CPU Status Registers Program Counter Cache Memory Memory (external) Fetch Decode Execution Units Commit CPU pipeline

  12. What is a register? Register file A simple memory element(s.t. edge triggered flip flops)

  13. Register file • A collection of registers • 8 registers are visible • In fact, there are a lot of registers hided for other usages. ex) There are 168 registers in Intel’s Haswell

  14. Program counter • Points the address of instruction that processor should execute next cycle. • %eip is the name of program counter register in X86. • Naming convention differs with ISA, Instruction Set Architecture

  15. Status registers • Also a collection of registers • Boolean registers that represents processor’s status. • Used to evaluate conditions

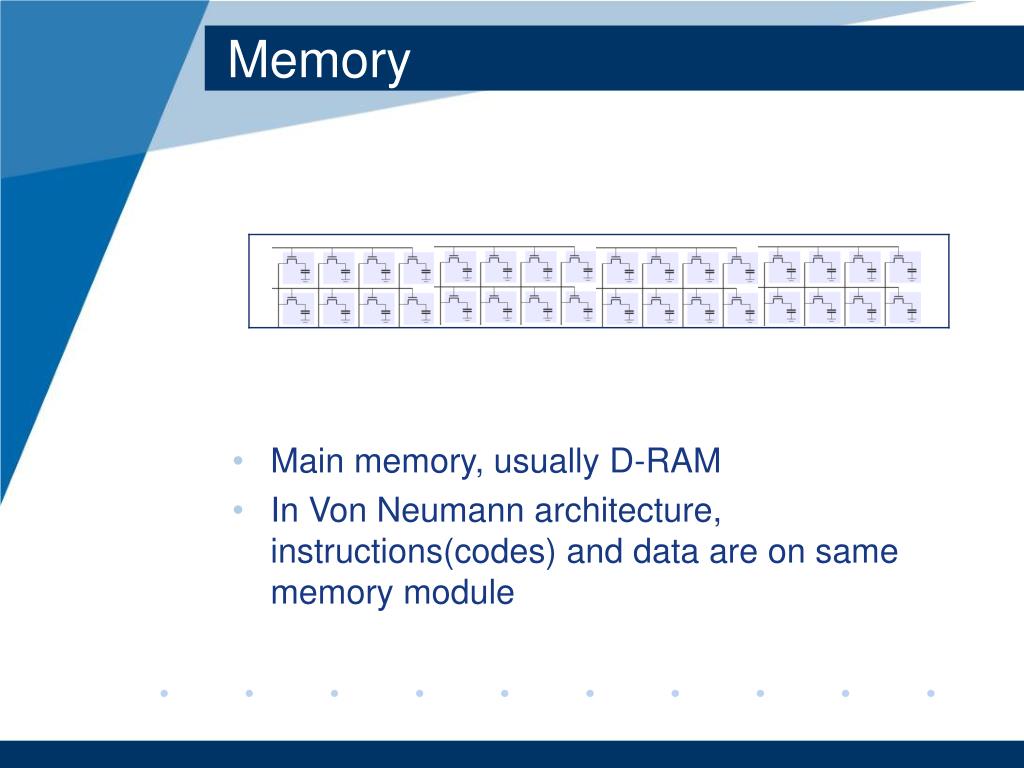

  16. Memory • Main memory, usually D-RAM • InVon Neumann architecture, instructions(codes) and data are on same memory module

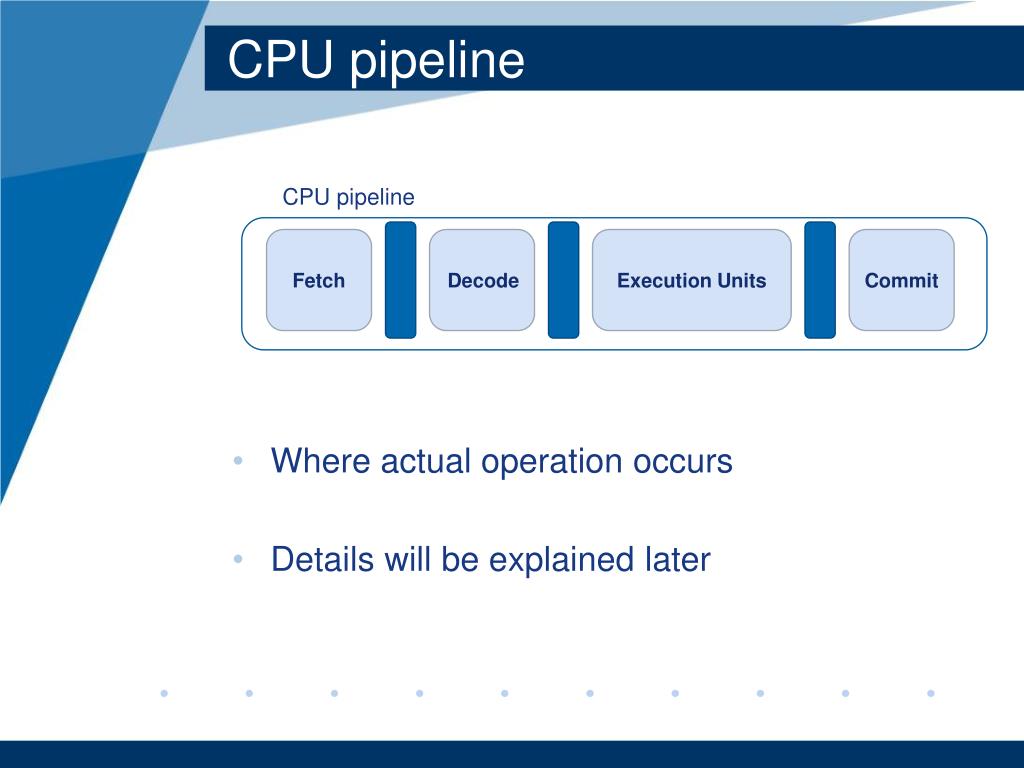

  17. CPU pipeline • Where actual operation occurs • Details will be explained later CPU pipeline Fetch Decode Execution Units Commit

  18. Instruction Set Architecture

  19. Instruction Set Architecture (ISA) • How you actually talk to a Processor

  20. Instruction Set Architecture (ISA) • Mapping between assembly code and machine code • What assembly codes will be included? • How to represent assembly codes in byte codes

  21. Instruction • A command to processor to make processor perform specific task(s) • Ex1) Mov 4(%eax), %esp (x86) -> move the data in the address of (%eax) + 4, to %esp • Ex2) Irmovl %eax, $256 (y86) -> store the value 256 to the register eax

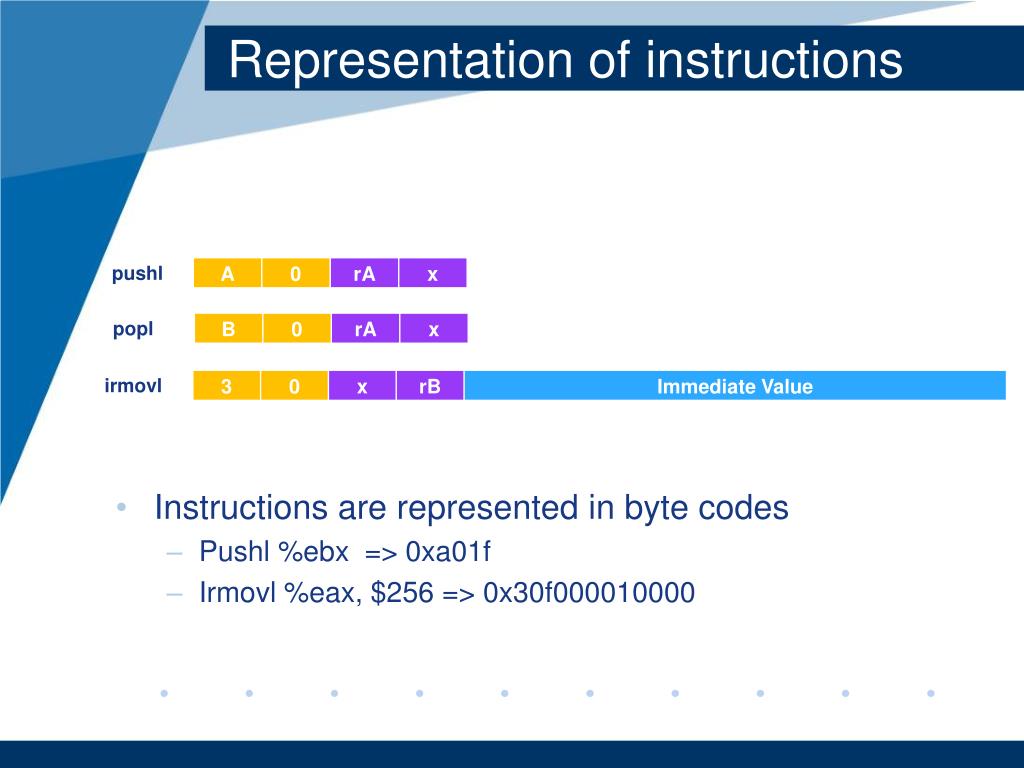

  22. Representation of instructions 0 0 0 1 1 1 2 2 2 3 4 5 6 • Instructions are represented in byte codes • Pushl %ebx => 0xa01f • Irmovl %eax, $256 => 0x30f000010000 pushl popl irmovl

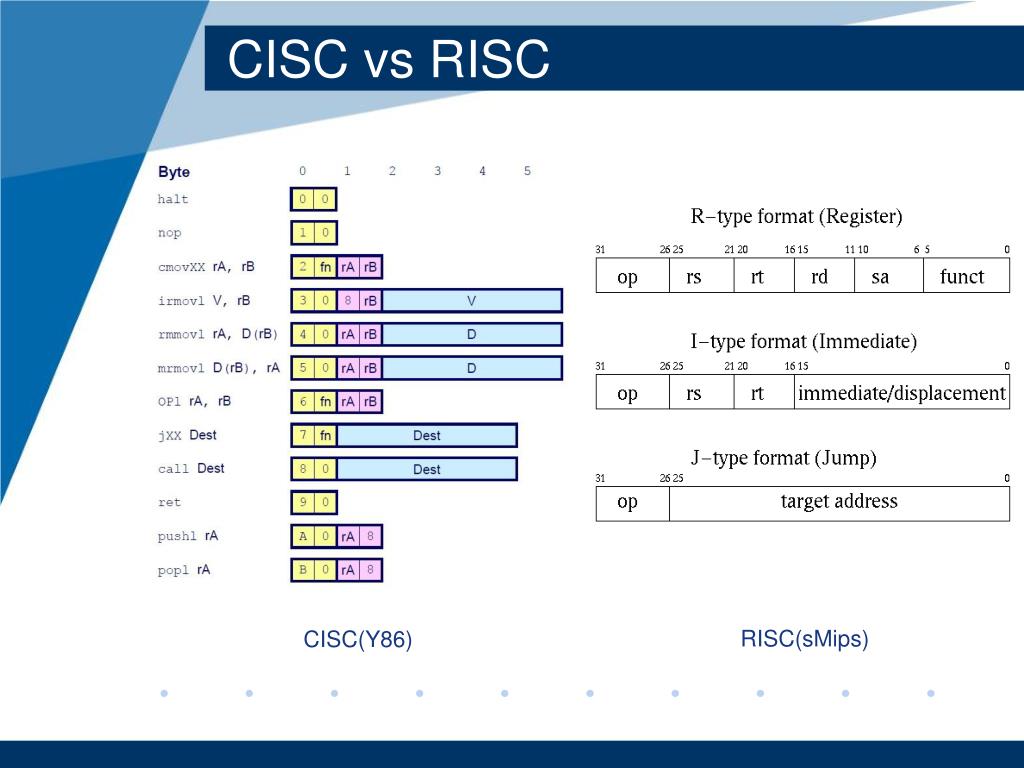

  23. CISC vs RISC RISC(sMips) CISC(Y86)

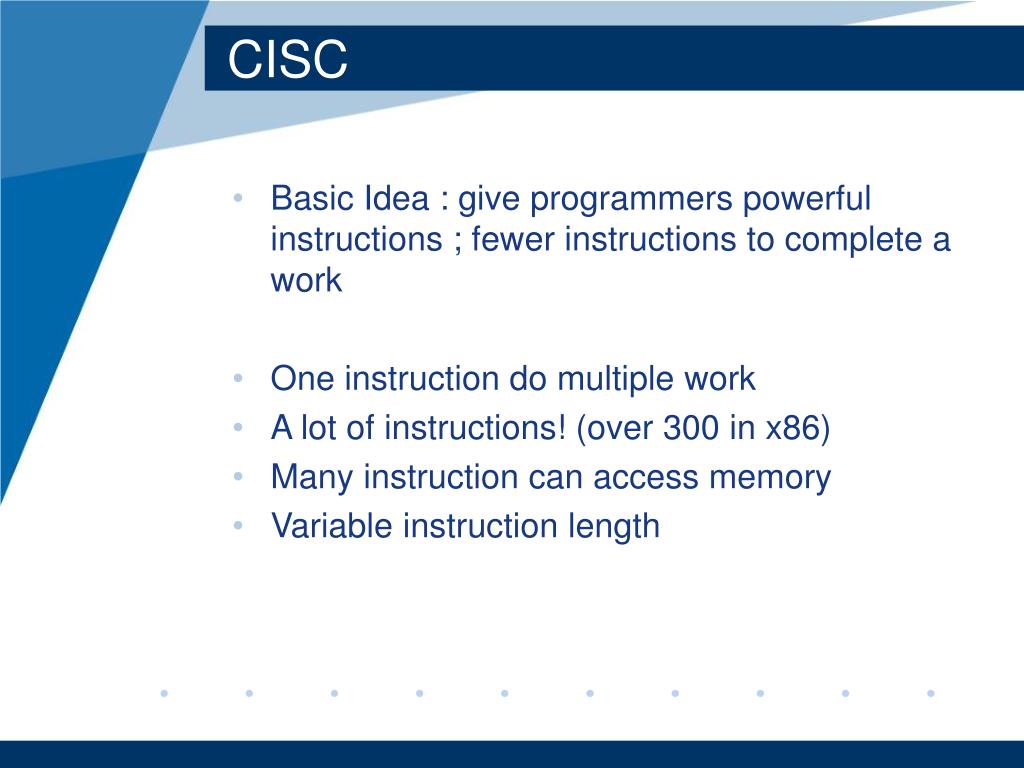

  24. CISC • Basic Idea : give programmers powerful instructions ; fewer instructions to complete a work • One instruction do multiple work • A lot of instructions! (over 300 in x86) • Many instruction can access memory • Variable instruction length

  25. RISC • Basic Idea : Using simple instructions, write a complex program • Each instruction do only one task • Small instructionsset (about 100 in MIPS) • Only load and store instruction can access memory • Fixed instruction length

  26. RISC exampleSMIPs ISA

  27. 6 26 opcode target J-type Instruction formats 6 5 5 5 5 6 opcodersrt rd shamtfunc R-type • Only three formats but the fields are used differently by different types of instructions 6 5 5 16 opcodersrt immediate I-type

  28. 6 5 5 16 addressing mode opcodersrt displacement (rs) + displacement 31 26 25 21 20 16 15 0 6 5 5 5 5 6 0 rsrt rd 0 func rd  (rs) func (rt) opcodersrt immediate rt (rs) op immediate Instruction formats • Computational Instructions • Load/Store Instructions rs is the base register rt is the destination of a Load or the source for a Store

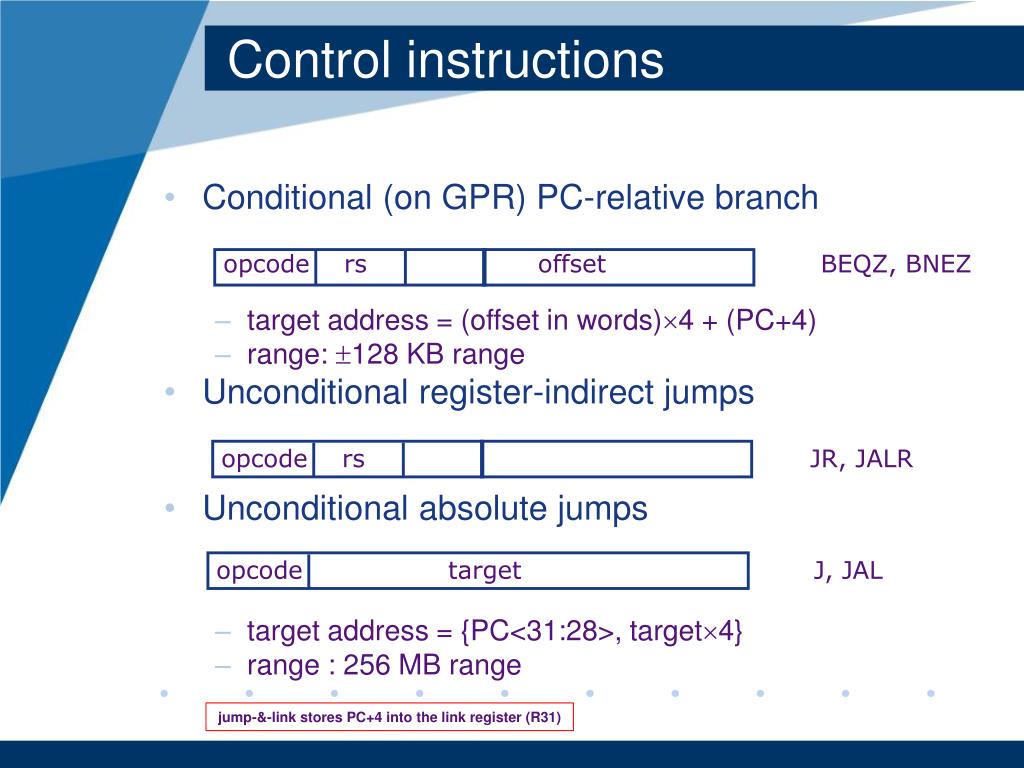

  29. 6 5 5 16 opcoders offset BEQZ, BNEZ 6 5 5 16 opcoders JR, JALR 6 26 opcode target J, JAL Control instructions • Conditional (on GPR) PC-relative branch • target address = (offset in words)4 + (PC+4) • range: 128 KB range • Unconditional register-indirect jumps • Unconditional absolute jumps • target address = {PC<31:28>, target4} • range : 256 MB range jump-&-link stores PC+4 into the link register (R31)

  30. CISC exampleY86 ISA

  31. Instruction formats 1 Byte 2 Bytes 5 Bytes 6 Bytes 0 0 0 0 1 1 1 1 2 2 2 3 3 4 4 5 5 6 • iCd : Instruction code • iFun: Function code • rA, rB : Register index

  32. 1 byte instructions – halt, nop halt 0 0 1 1 nop halt: Used as a sign of program termination - Changes processor state to halt (HLT) nop:No operation. Used as a bubble.

  33. 2 byte instruction – opl 0 1 2 OPl OPl: Perform 4 basic ALU operations; add, sub, and, xor - R[rB] <- R[rB] Op R[rA] - Condition flags are set depending on the result.

  34. 5 byte instruction – call 0 1 2 3 4 5 call dest call - R[esp] <- R[esp] - 4 (Update the stack pointer; move stack top) - M[esp] <- pc + 5 (Store the return address on the stack top) - pc <- Destination (Jump to Destination address)

  35. 6 byte instructions – rmmov, mrmov 0 0 1 1 2 2 3 3 4 4 5 5 6 6 rmmovl rA, Offset(rB) mrmovl Offset(rB), rA rmmovl: Store - target address =R[rB] + offset - M[target address] <- R[rA] mrmovl: Load - source address = R[rB] + offset - R[rA] <- M[source address]

  36. Processor Architecture

  37. Simple processor architecture

  38. Large sequential Logic Simplified version (a lot..) Output(register values) Clock Store Data Load program codes Memory

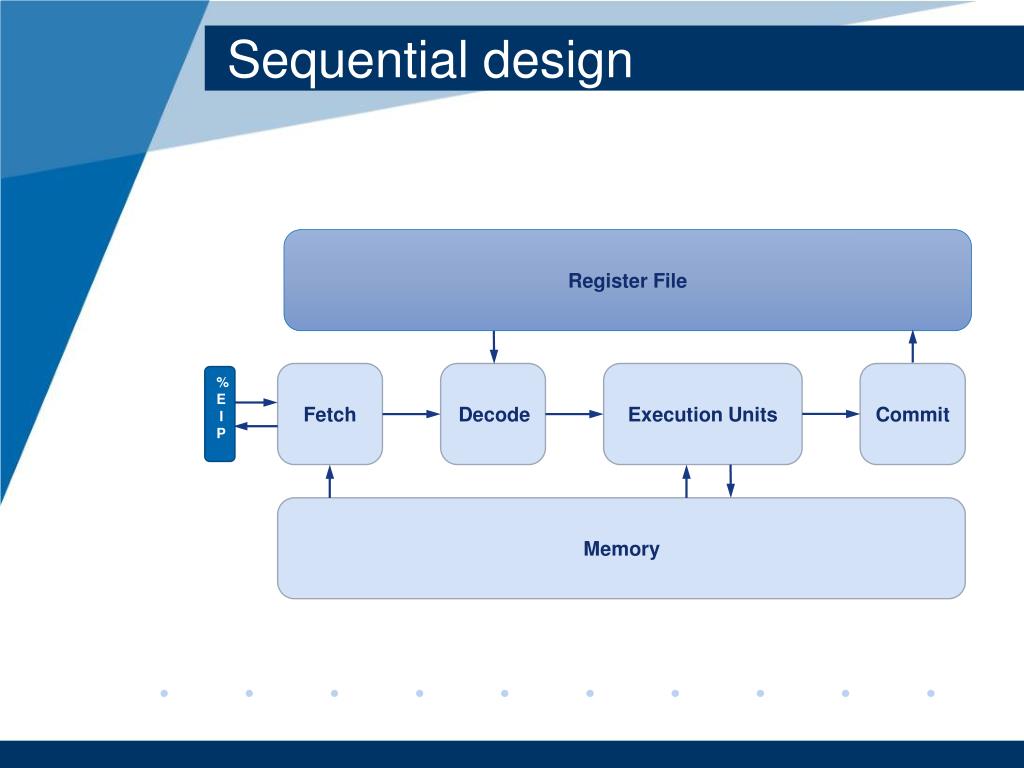

  39. Sequential design Register File % EIP Memory Fetch Decode Execution Units Commit

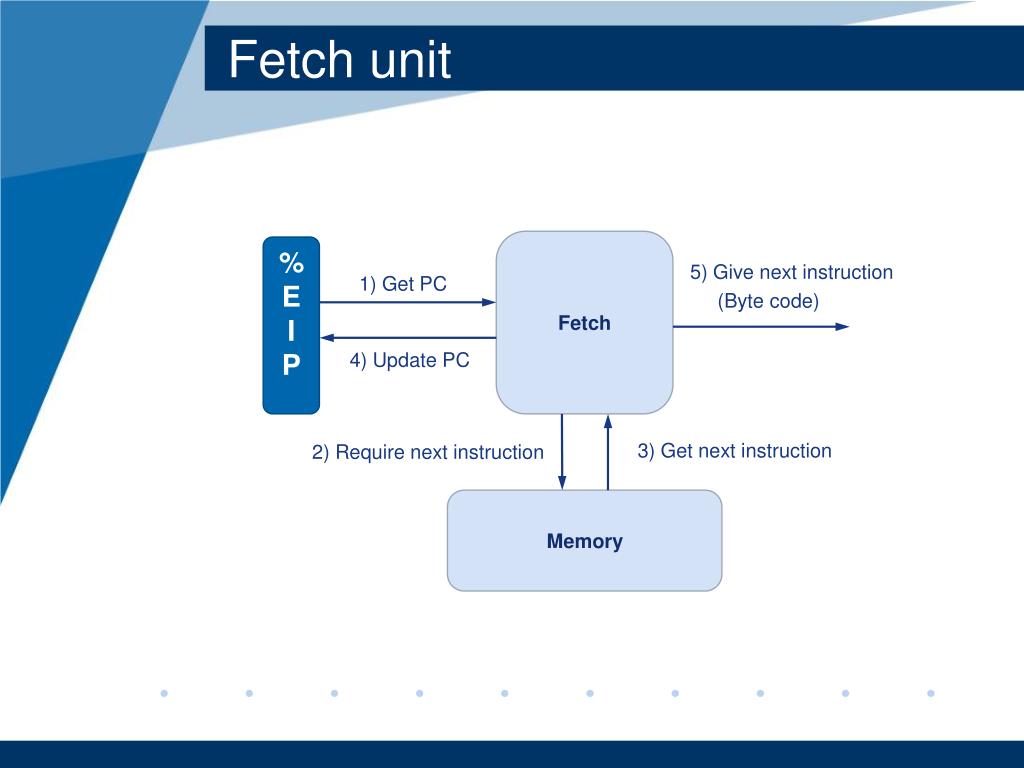

  40. Fetch unit Fetch % E I P 5) Give next instruction (Byte code) 1) Get PC 4) Update PC 3) Get next instruction 2) Require next instruction Memory

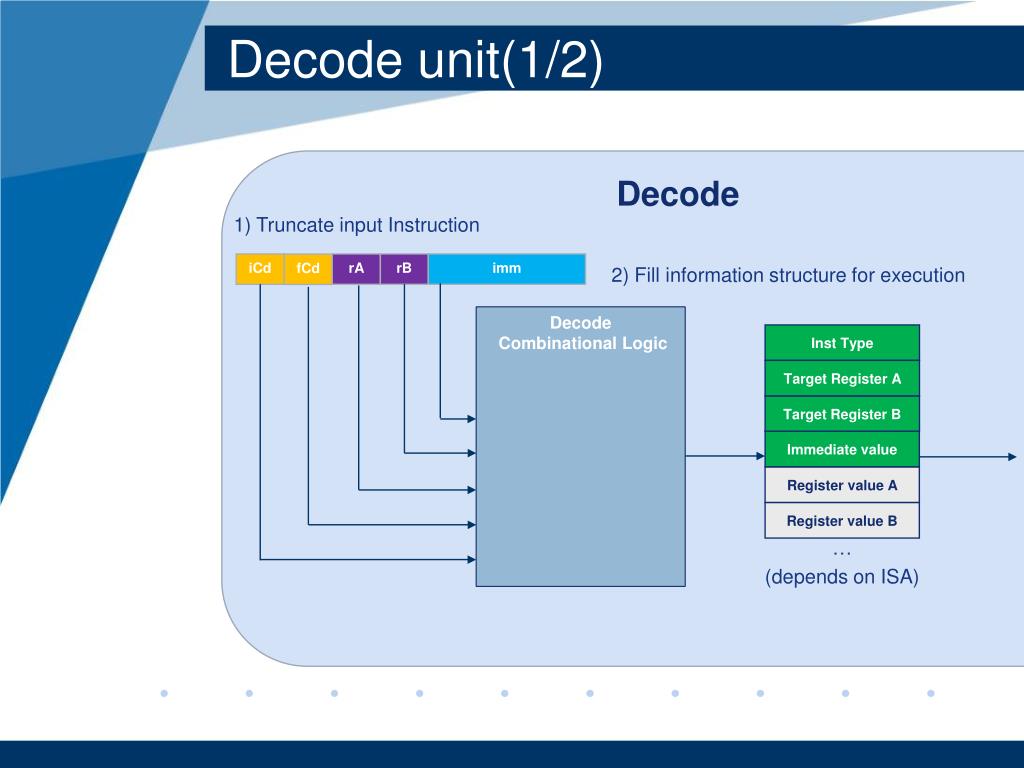

  41. Decode Decode unit(1/2) 1) Truncate input Instruction 2) Fill information structure for execution iCd rA rB imm fCd Decode Combinational Logic Inst Type Target Register A Target Register B Immediate value Register value A Register value B … (depends on ISA)

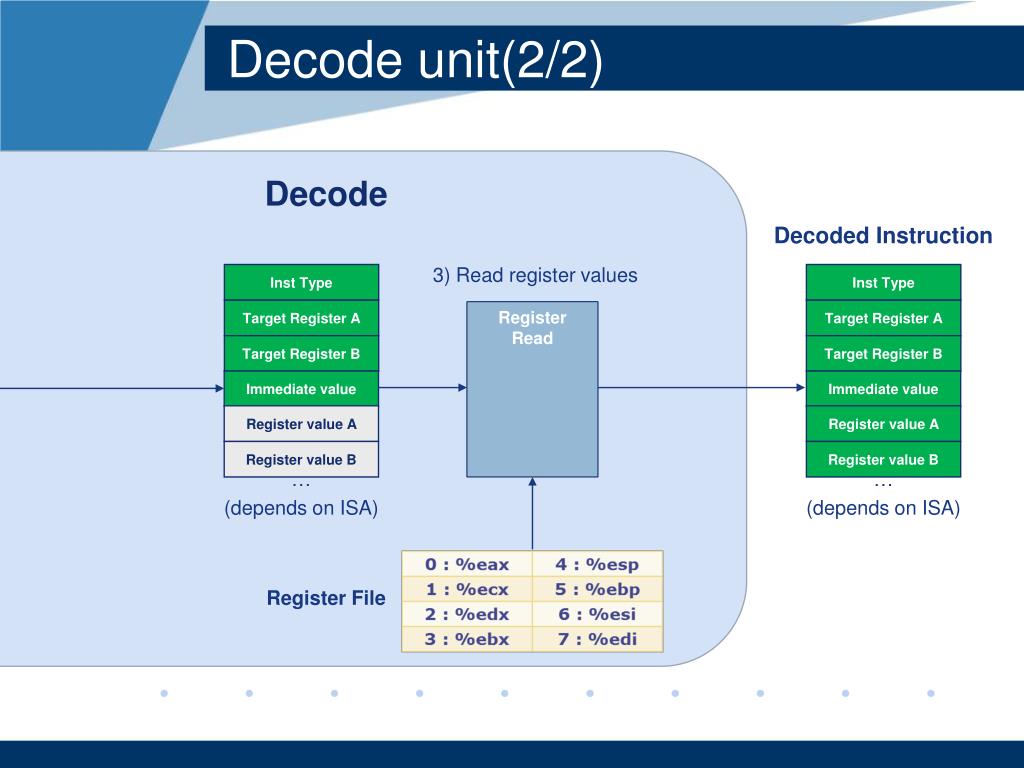

  42. Decode Decode unit(2/2) Decoded Instruction 3) Read register values Register Read Inst Type Inst Type Target Register A Target Register A Target Register B Target Register B Immediate value Immediate value … (depends on ISA) … (depends on ISA) Register value A Register value A Register value B Register value B Register File

  43. Execute Execution unit(1/2) Executed Instruction Execute Combinational Logic Inst Type Inst Type Target Register Target Register A Memory Addr Target Register B Register Data Immediate value Memory Data Register value A ALU Register value B 1) Select input for ALU 3) Using ALU result, fill information structure for memory & register update 2) Perform appropriate ALU operation

  44. Execute Execution unit(2/2) Executed Instruction (updated) Memory Operation Logic Inst Type Inst Type Target Register Target Register Memory Addr Memory Addr Register Data Register Data Memory Data Memory Data 5) Update the field (if load instruction executed) 4) Perform memory operations(Ld, St) Memory

  45. Commit Commit unit Register Update Logic Inst Type Target Register Memory Addr Register Data Memory Data Register File

  46. Single-cycle processor exampleSMIPs

  47. Single-Cycle SMIPS 2 read & 1 write ports SMIPs instructions are all 4 byte-long Register File PC Execute Decode +4 separate Instruction & Data memories Data Memory Inst Memory

  48. Single-Cycle SMIPS module mkProc(Proc); Reg#(Addr) pc <- mkRegU; RFilerf <- mkRFile; IMemoryiMem <- mkIMemory; DMemorydMem <- mkDMemory; Rule doProc() let inst = iMem.req(pc); letdInst = decode(inst); letrVal1 = rf.rd1(validRegValue(dInst.src1)); letrVal2 = rf.rd2(validRegValue(dInst.src2)); leteInst = exec(dInst, rVal1, rVal2, pc); if(eInst.iType== Ld) eInst.data<- dMem.req(MemReq{op: Ld, addr:eInst.addr, data: ?}); else if(eInst.iType == St) let dummy <- dMem.req(MemReq{op: St, addr: eInst.addr, data: eInst.data}); if(isValid(eInst.dst)) rf.wr(validRegValue(eInst.dst), eInst.data); pc <= eInst.brTaken ? eInst.addr : pc + 4; endrule endmodule

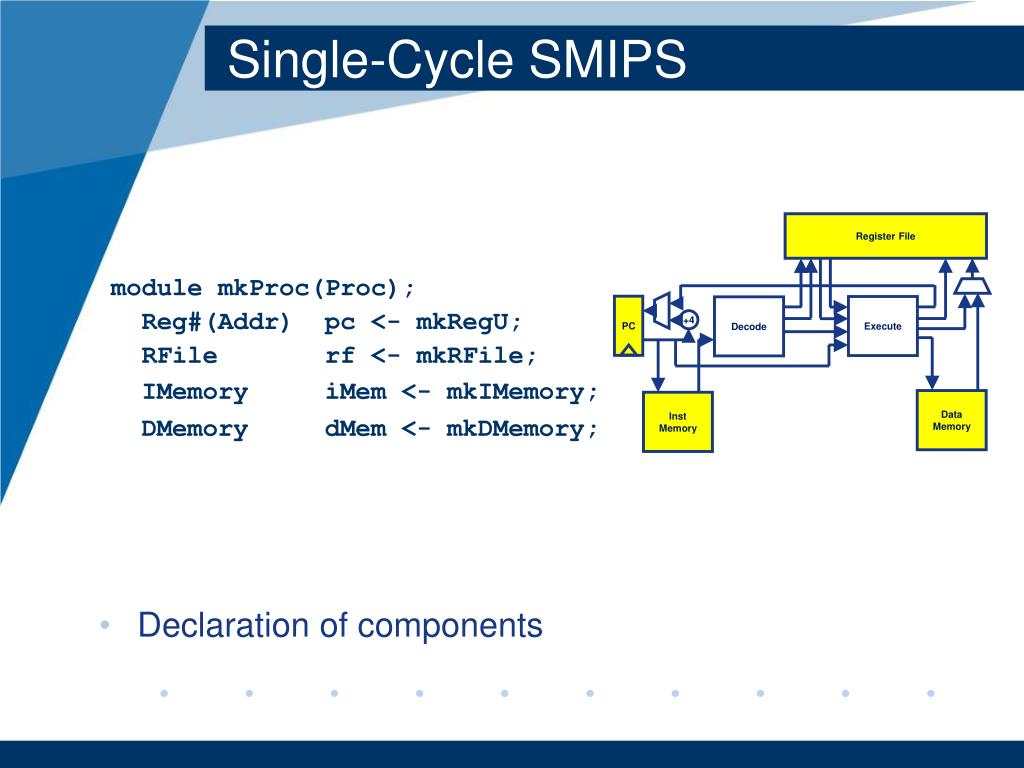

  49. Single-Cycle SMIPS Register File module mkProc(Proc); Reg#(Addr) pc <- mkRegU; RFilerf <- mkRFile; IMemoryiMem <- mkIMemory; DMemorydMem <- mkDMemory; PC Execute Decode +4 Data Memory Inst Memory • Declaration of components

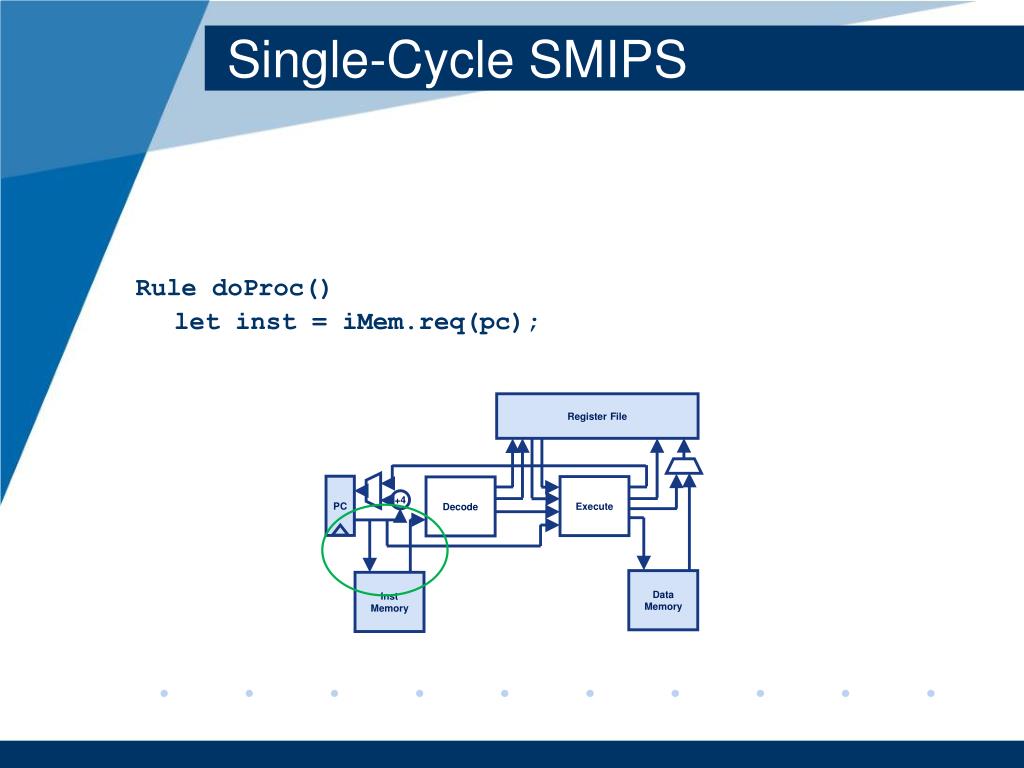

  50. Single-Cycle SMIPS Register File Rule doProc() let inst = iMem.req(pc); PC Execute Decode +4 Data Memory Inst Memory
