  1. Pipelined Implementation

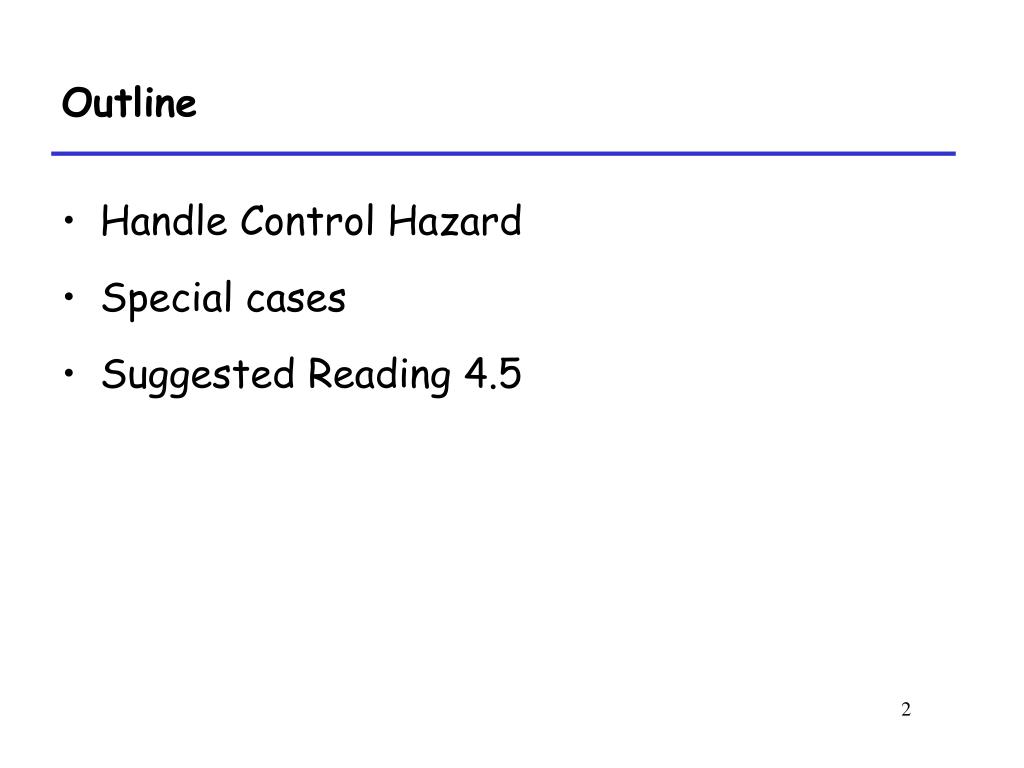

  2. Outline • Handle Control Hazard • Special cases • Suggested Reading 4.5

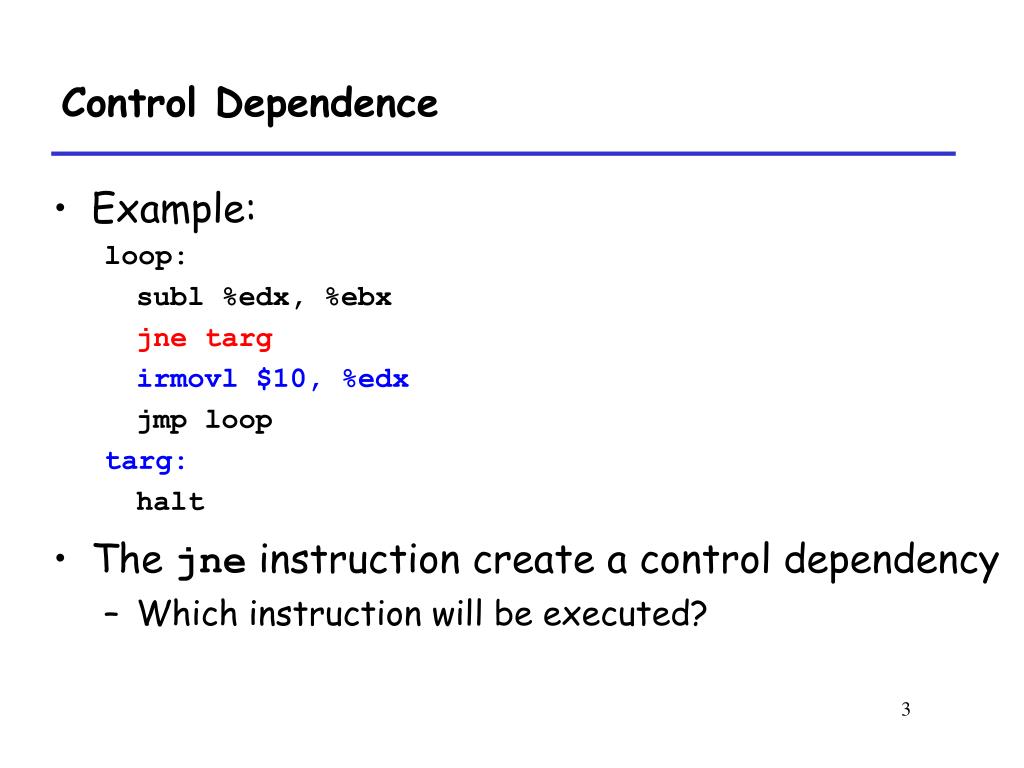

  3. Control Dependence • Example: loop: subl %edx, %ebx jne targ irmovl $10, %edx jmp loop targ: halt • The jne instruction create a control dependency • Which instruction will be executed?

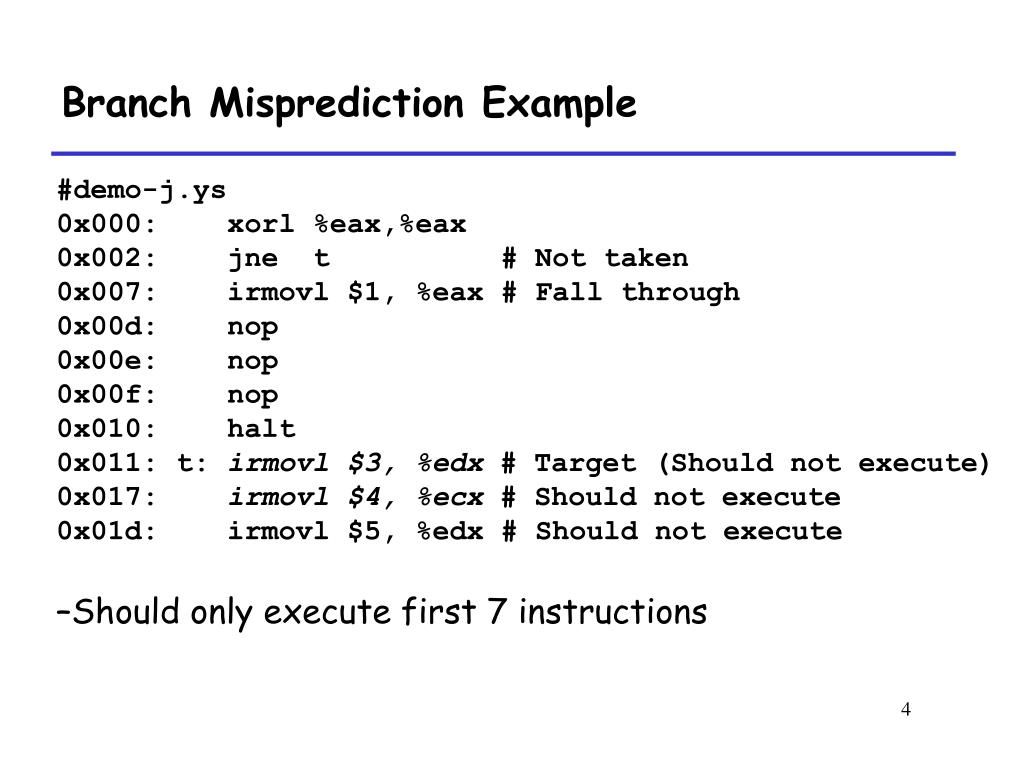

  4. Branch Misprediction Example • #demo-j.ys • 0x000: xorl %eax,%eax • 0x002: jne t # Not taken • 0x007: irmovl $1, %eax # Fall through • 0x00d: nop • 0x00e: nop • 0x00f: nop • 0x010: halt • 0x011: t: irmovl $3, %edx # Target (Should not execute) • 0x017: irmovl $4, %ecx # Should not execute • 0x01d: irmovl $5, %edx # Should not execute • Should only execute first 7 instructions

  5. Select PC int F_predPC = [ f_icode in {IJXX, ICALL} : f_valC; 1: f_valP; ];

  6. Branch Misprediction Trace 1 2 3 4 5 6 7 8 9 1: 0x000: xorl %eax,%eax 2: 0x002: jne T # Not taken 3: 0x00e: irmovl $2, %edx # T 4: 0x014: irmovl $3, %ebx # T+1 5: 0x007: irmovl $1, %eax # Fall Through F D E M W F D E M W F D E M W F D E M W F F D D E E M M W W Cycle 5 # demo-j.ys 0x000: xorl %eax,%eax 0x002: jne T# Not taken 0x007: irmovl $1, %eax 0x00d: halt 0x00e: T:irmovl $2, %edx 0x014: irmovl $3, %ebx 0x01a: halt Memory M_Cnd=0 M_valA=0x007 Excute e_valEf2 E_dstE=%edx Decode D D_valC=3 D_dstE=%ebx Incorrectly execute two instructions at branch target Fetch F f_valCf1 rBf%eax

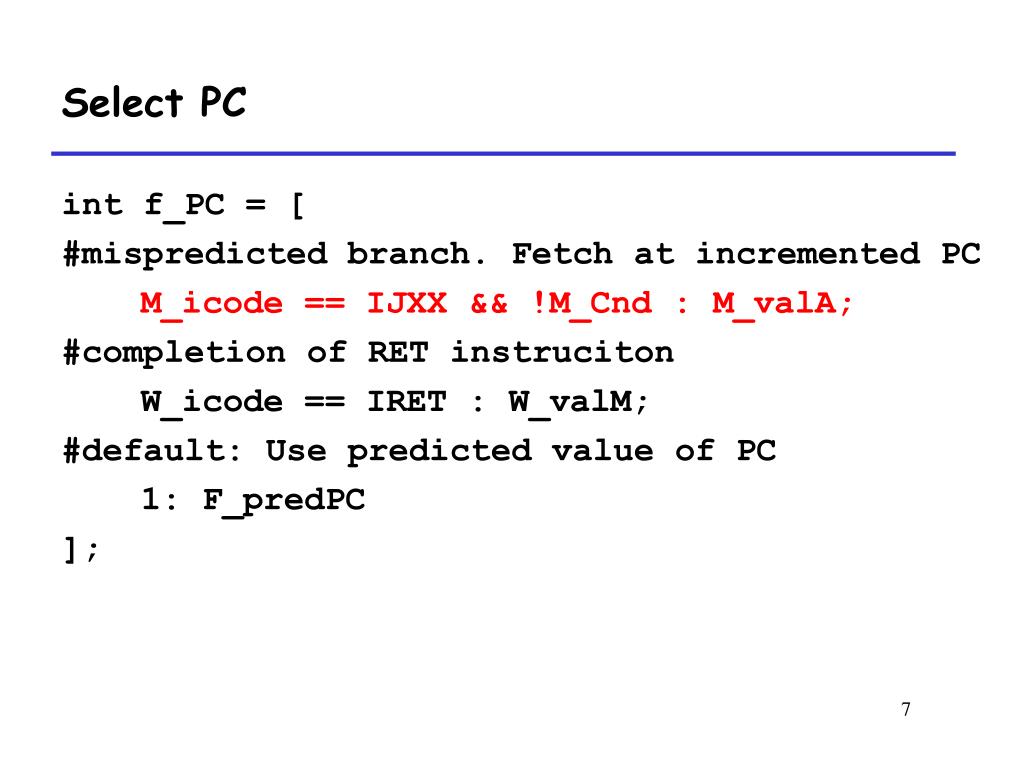

  7. Select PC int f_PC = [ #mispredicted branch. Fetch at incremented PC M_icode == IJXX && !M_Cnd : M_valA; #completion of RET instruciton W_icode == IRET : W_valM; #default: Use predicted value of PC 1: F_predPC ];

  8. Return Example #demo-ret.ys 0x000: irmovl Stack,%esp # Intialize stack pointer 0x006: nop # Avoid hazard on %esp 0x007: nop 0x008: nop 0x009: call p # Procedure call 0x00e: irmovl $5,%esi # Return point 0x014: halt 0x020: .pos 0x20 0x020: p: nop # procedure 0x021: nop 0x022: nop 0x023: ret 0x024: irmovl $1,%eax # Should not be executed 0x02a: irmovl $2,%ecx # Should not be executed 0x030: irmovl $3,%edx # Should not be executed 0x036: irmovl $4,%ebx # Should not be executed 0x100: .pos 0x100 0x100: Stack: # Stack: Stack pointer • Require lots of nops to avoid data hazards

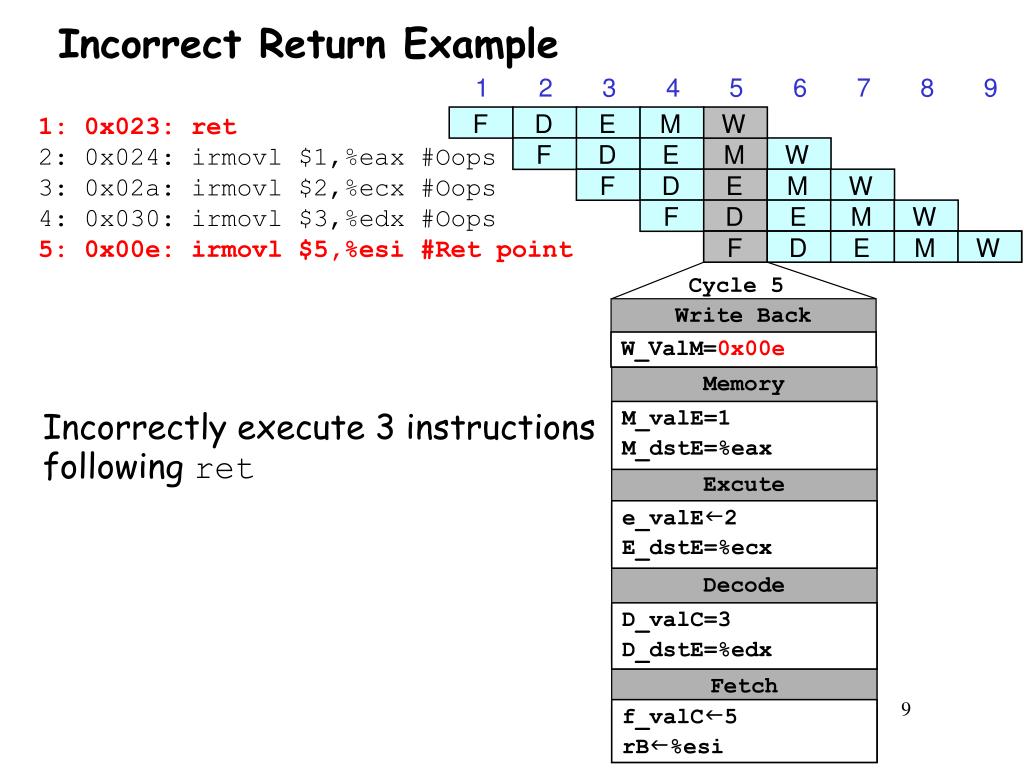

  9. Incorrect Return Example 1 2 3 4 5 6 7 8 9 1: 0x023: ret 2: 0x024: irmovl $1,%eax #Oops 3: 0x02a: irmovl $2,%ecx #Oops 4: 0x030: irmovl $3,%edx #Oops 5: 0x00e: irmovl $5,%esi #Ret point F D E M W F D E M W F D E M W F D E M W F F D D E E M M W W Cycle 5 Write Back W_ValM=0x00e Memory Incorrectly execute 3 instructions following ret M_valE=1 M_dstE=%eax Excute e_valEf2 E_dstE=%ecx Decode D D_valC=3 D_dstE=%edx Fetch F f_valCf5 rBf%esi

  10. Handling Misprediction # demo-j.ys 0x000: xorl %eax,%eax 0x002: jne T# Not taken 0x007: irmovl $1, %eax 0x00d: halt 0x00e: T:irmovl $2, %edx 0x014: irmovl $3, %ebx 0x01a: halt # demo-j2.ys 0x000: xorl %eax,%eax 0x002: jne T# Not taken 0x007: irmovl $1, %eax 0x00d: halt 0x00e: T:nop 0x00f: nop 0x010 irmovl $2, %edx 0x016: irmovl $3, %ebx 0x01c: halt

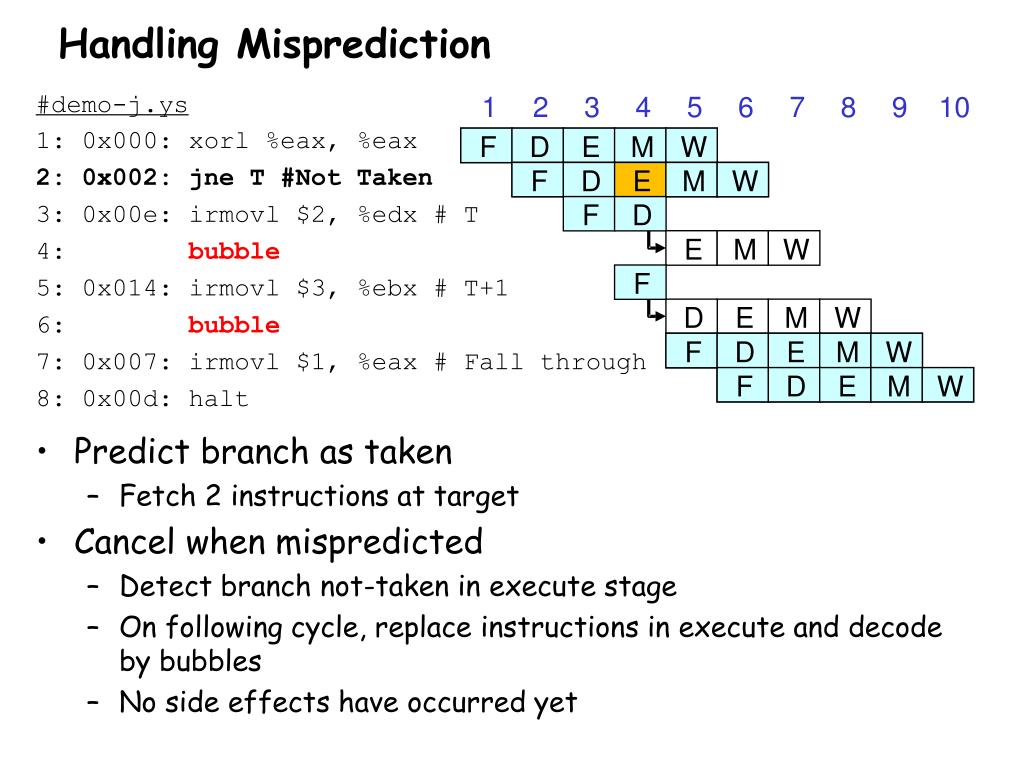

  11. 1 2 3 4 5 6 7 8 9 10 F F D D E E M M W W F F D D E E M M W W F D E M W F D E M W F F D D E E M M W W F F D D E E M M W W Handling Misprediction • #demo-j.ys • 1: 0x000: xorl %eax, %eax • 2: 0x002: jne T #Not Taken • 3: 0x00e: irmovl $2, %edx # T • 4: bubble • 5: 0x014: irmovl $3, %ebx # T+1 • 6: bubble • 7: 0x007: irmovl $1, %eax # Fall through • 8: 0x00d: halt • Predict branch as taken • Fetch 2 instructions at target • Cancel when mispredicted • Detect branch not-taken in execute stage • On following cycle, replace instructions in execute and decode by bubbles • No side effects have occurred yet

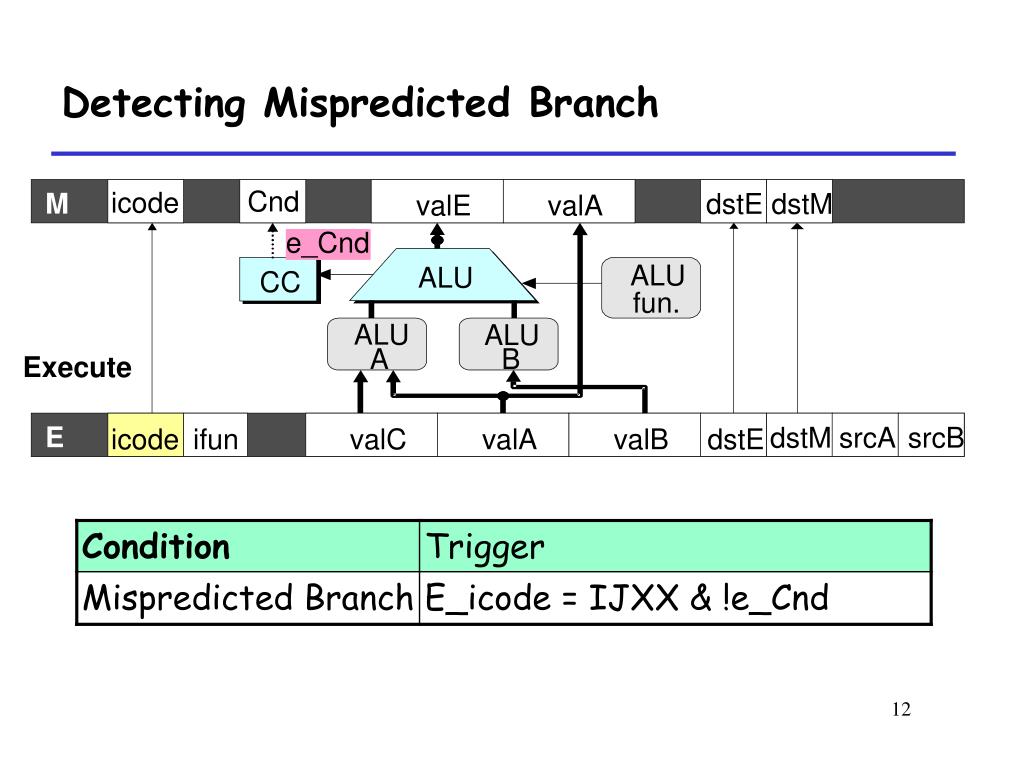

  12. Detecting Mispredicted Branch Cnd icode M dstE dstM valE valA e_Cnd ALU ALU ALU CC CC fun. ALU ALU A B Execute E dstM srcA srcB icode ifun valC valA valB dstE

  13. 1 2 3 4 5 6 7 8 9 10 F F D D E E M M W W F F D D E E M M W W F D E M W F D E M W F F D D E E M M W W F F D D E E M M W W Control for Misprediction #demo-j.ys 1: 0x000: xorl %eax, %eax 2: 0x002: jne T #Not Taken 3: 0x00e: irmovl $2, %edx # T 4: bubble 5: 0x014: irmovl $3, %ebx # T+1 6: bubble 7: 0x007: irmovl $1, %eax # Fall through 8: 0x00d: halt

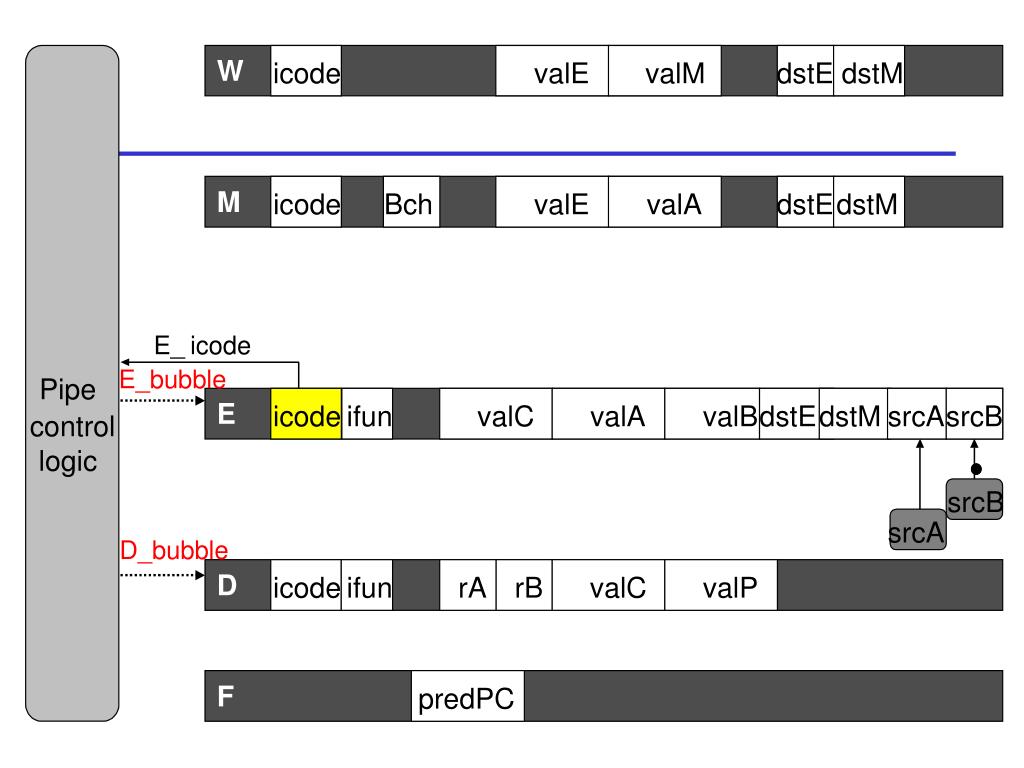

  14. E_ icode W icode valE valM dstE dstM M icode Bch valE valA dstE dstM E_bubble Pipe E icode ifun valC valA valB dstE dstM srcA srcB control logic srcB srcA D_bubble D icode ifun rA rB valC valP F predPC

  15. Return Example #demo-retB.ys 0x000: irmovl Stack,%esp # Intialize stack pointer 0x006: call p # Procedure call 0x00b: irmovl $5,%esi # Return point 0x011: halt 0x020: .pos 0x20 0x020: p: irmovl $-1,%edi # procedure 0x026: ret 0x027: irmovl $1,%eax # Should not be executed 0x02d: irmovl $2,%ecx # Should not be executed 0x033: irmovl $3,%edx # Should not be executed 0x039: irmovl $4,%ebx # Should not be executed 0x100: .pos 0x100 0x100: Stack: # Stack: Stack pointer • Previously executed three additional instructions

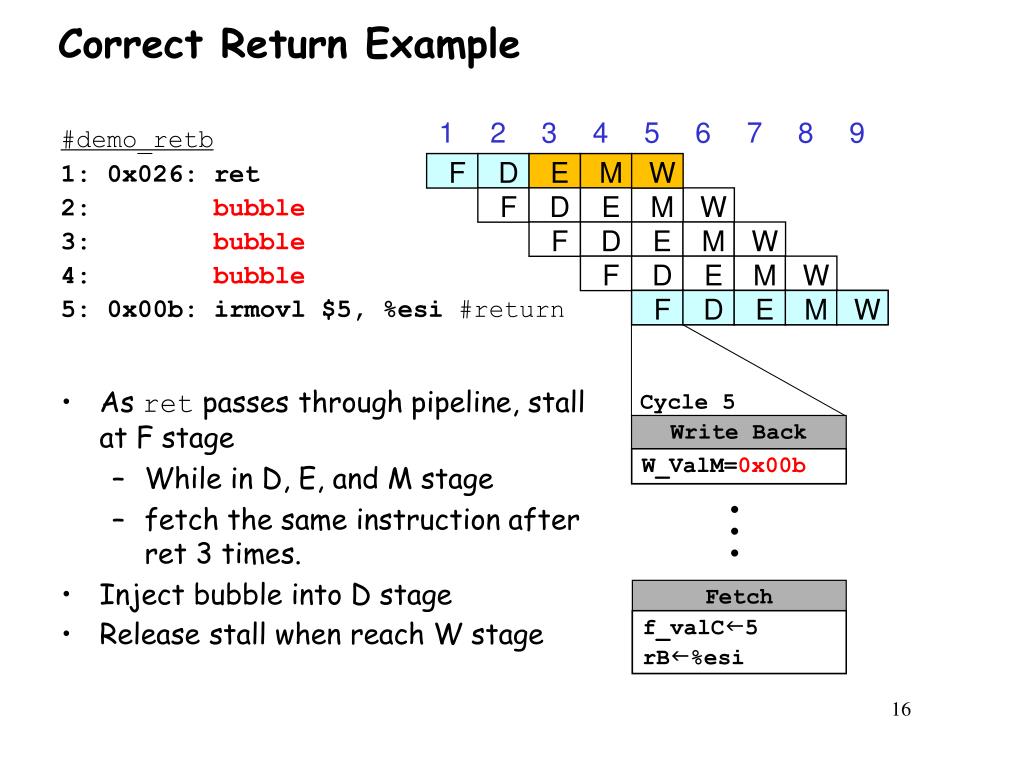

  16. F D E M W F D E M W F D E M W F D E M W F F D D E E M M W W Correct Return Example 1 2 3 4 5 6 7 8 9 #demo_retb 1: 0x026: ret 2: bubble 3: bubble 4: bubble 5: 0x00b: irmovl $5, %esi #return • As ret passes through pipeline, stall at F stage • While in D, E, and M stage • fetch the same instruction after ret 3 times. • Inject bubble into D stage • Release stall when reach W stage Cycle 5 Write Back W_ValM=0x00b • • • Fetch F f_valCf5 rBf%esi

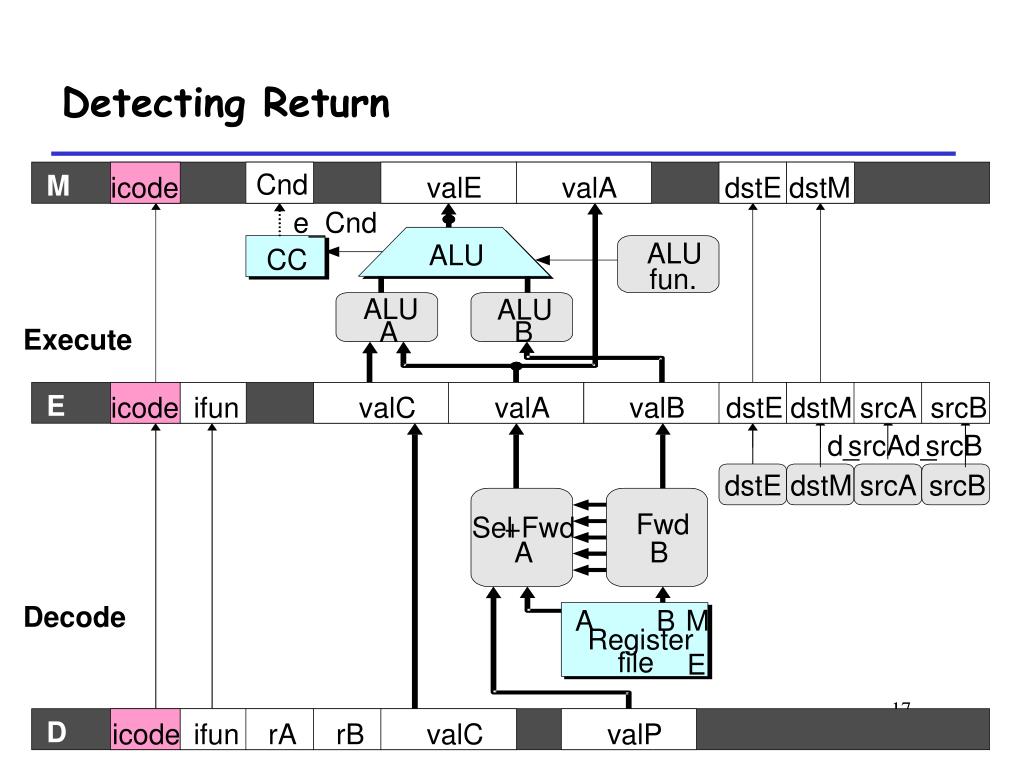

  17. Detecting Return Cnd M icode valE valA dstE dstM e_Cnd ALU ALU ALU CC CC fun. ALU ALU A B Execute E icode ifun valC valA valB dstE dstM srcA srcB d_ srcA d_ srcB dstE dstM srcA srcB Fwd Sel +Fwd A B Decode M A B Register Register file file E D icode ifun rA rB valC valP

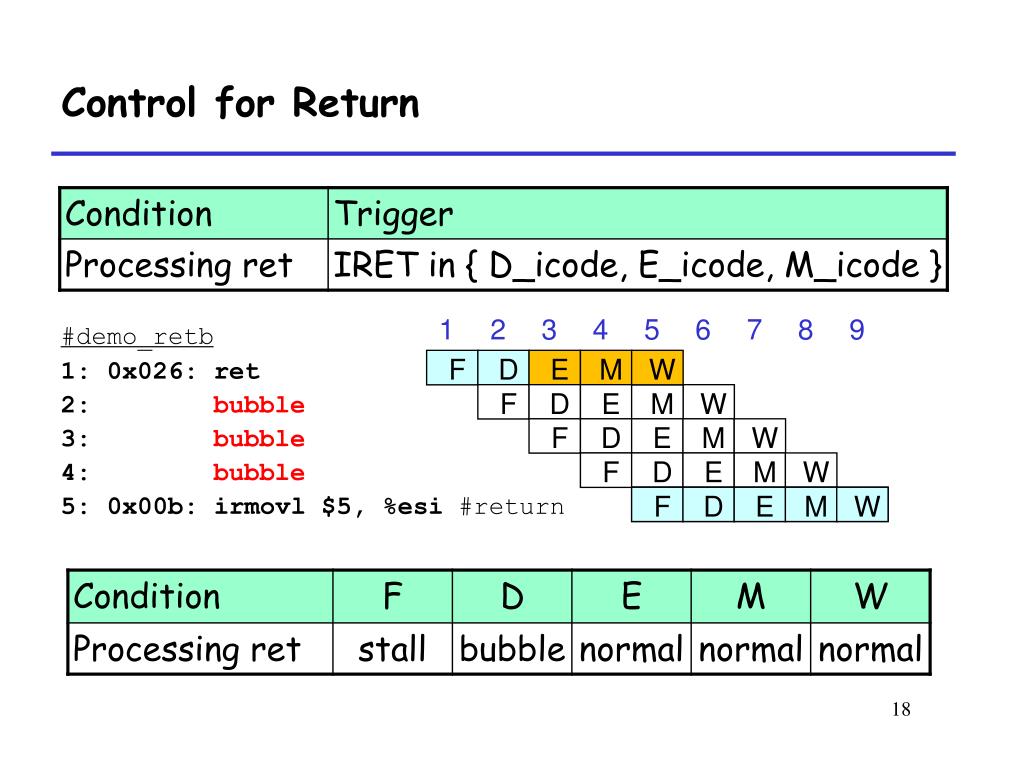

  18. F D E M W F D E M W F D E M W F D E M W F F D D E E M M W W Control for Return 1 2 3 4 5 6 7 8 9 #demo_retb 1: 0x026: ret 2: bubble 3: bubble 4: bubble 5: 0x00b: irmovl $5, %esi #return

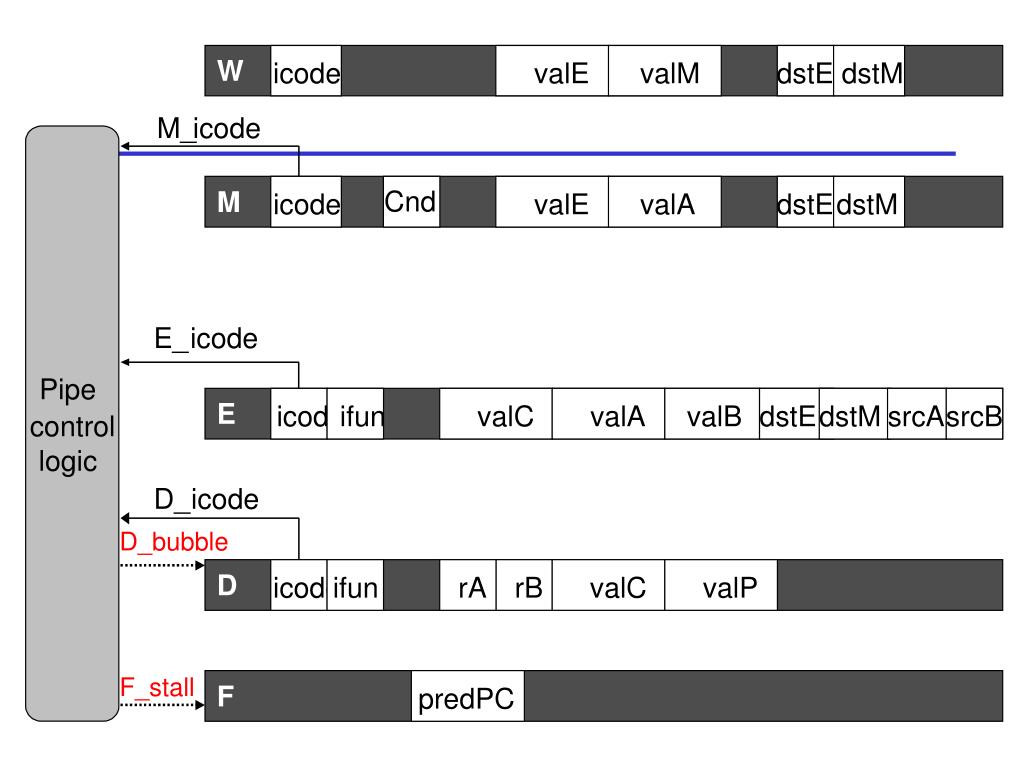

  19. E_ icode D_ icode W icode valE valM dstE dstM M_ icode Cnd M icode valE valA dstE dstM Pipe E icode ifun valC valA valB dstE dstM srcA srcB control logic D_bubble D icode ifun rA rB valC valP F_stall F predPC

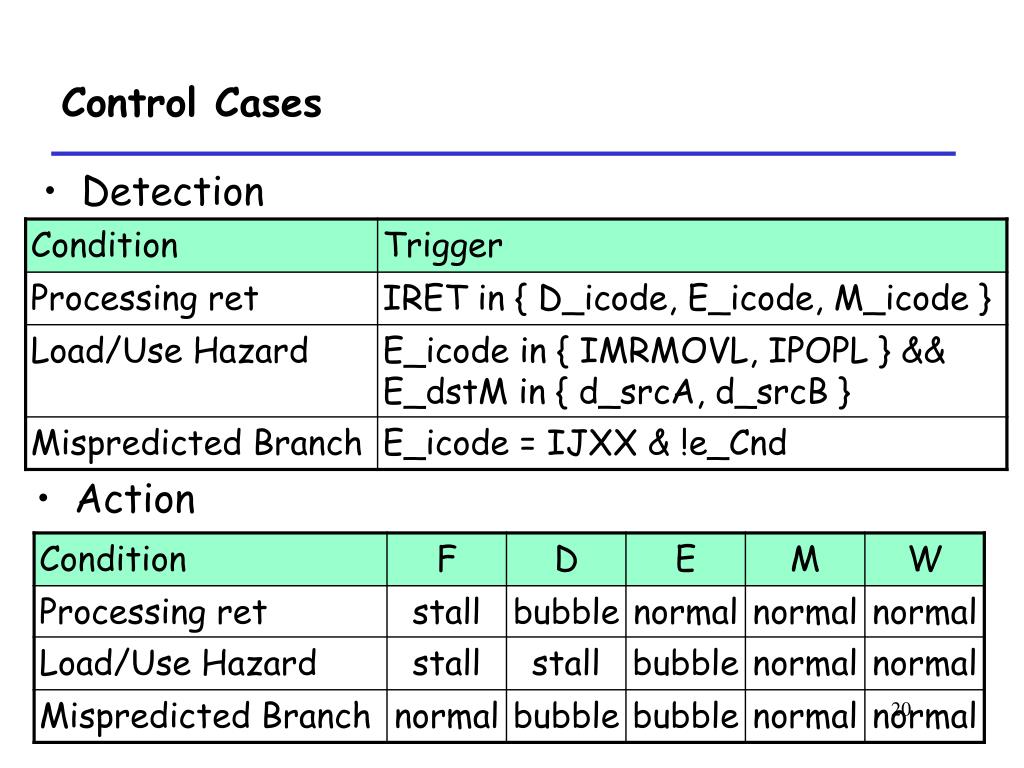

  20. Control Cases • Detection • Action

  21. E_ icode d_ srcB d_ srcA D_ icode W icode valE valM dstE dstM M_ icode M icode Cnd valE valA dstE dstM e_Cnd CC CC E_ dstM E_bubble Pipe E icode ifun valC valA valB dstE dstM srcA srcB control logic srcB srcA D_bubble D icode ifun rA rB valC valP D_stall F_stall F predPC

  22. Implementing Pipeline Control • Combinational logic generates pipeline control signals • Action occurs at start of following cycle

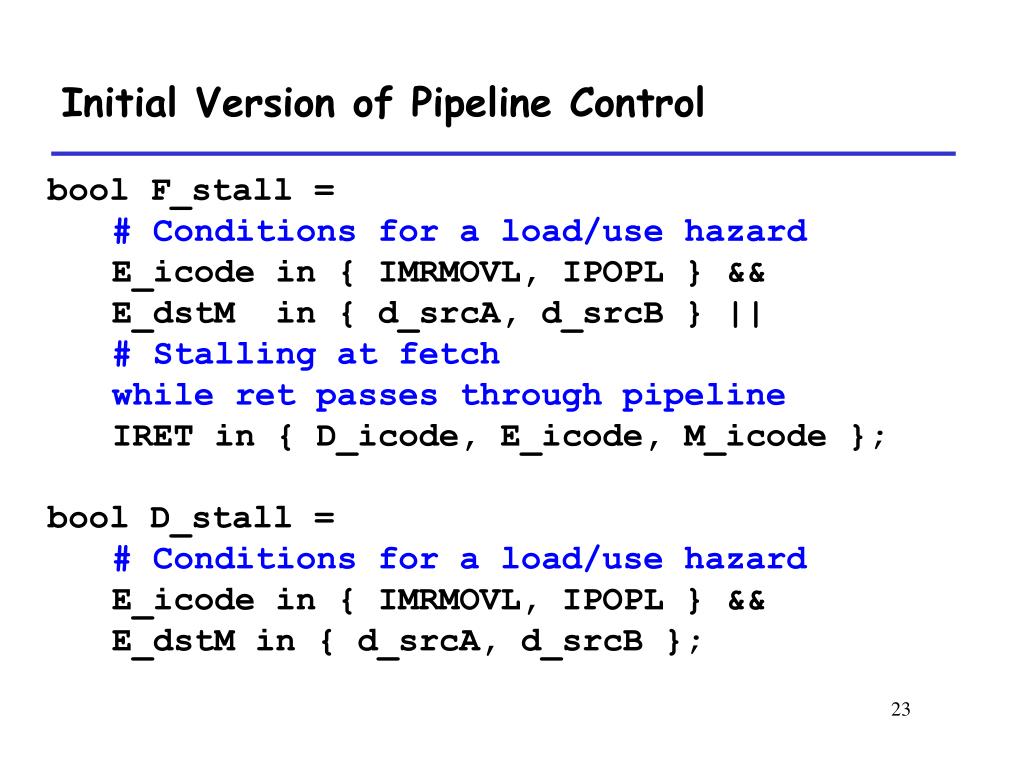

  23. Initial Version of Pipeline Control bool F_stall = # Conditions for a load/use hazard E_icode in { IMRMOVL, IPOPL } && E_dstM in { d_srcA, d_srcB } || # Stalling at fetch while ret passes through pipeline IRET in { D_icode, E_icode, M_icode }; bool D_stall = # Conditions for a load/use hazard E_icode in { IMRMOVL, IPOPL } && E_dstM in { d_srcA, d_srcB };

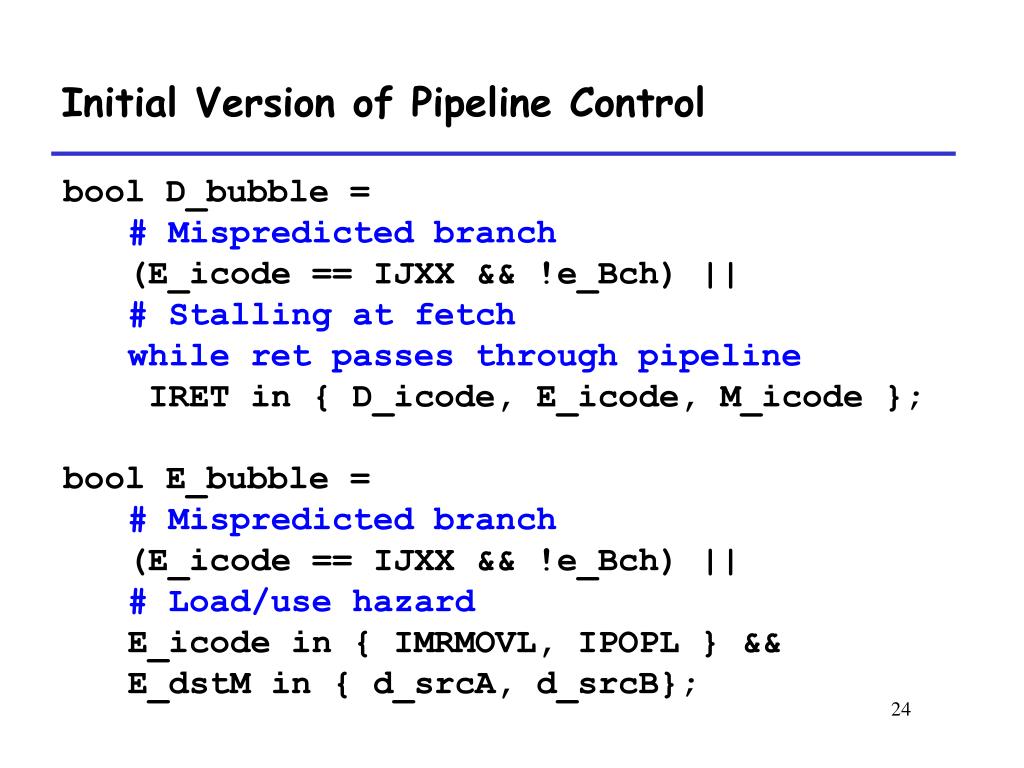

  24. Initial Version of Pipeline Control bool D_bubble = # Mispredicted branch (E_icode == IJXX && !e_Bch) || # Stalling at fetch while ret passes through pipeline IRET in { D_icode, E_icode, M_icode }; bool E_bubble = # Mispredicted branch (E_icode == IJXX && !e_Bch) || # Load/use hazard E_icode in { IMRMOVL, IPOPL } && E_dstM in { d_srcA, d_srcB};

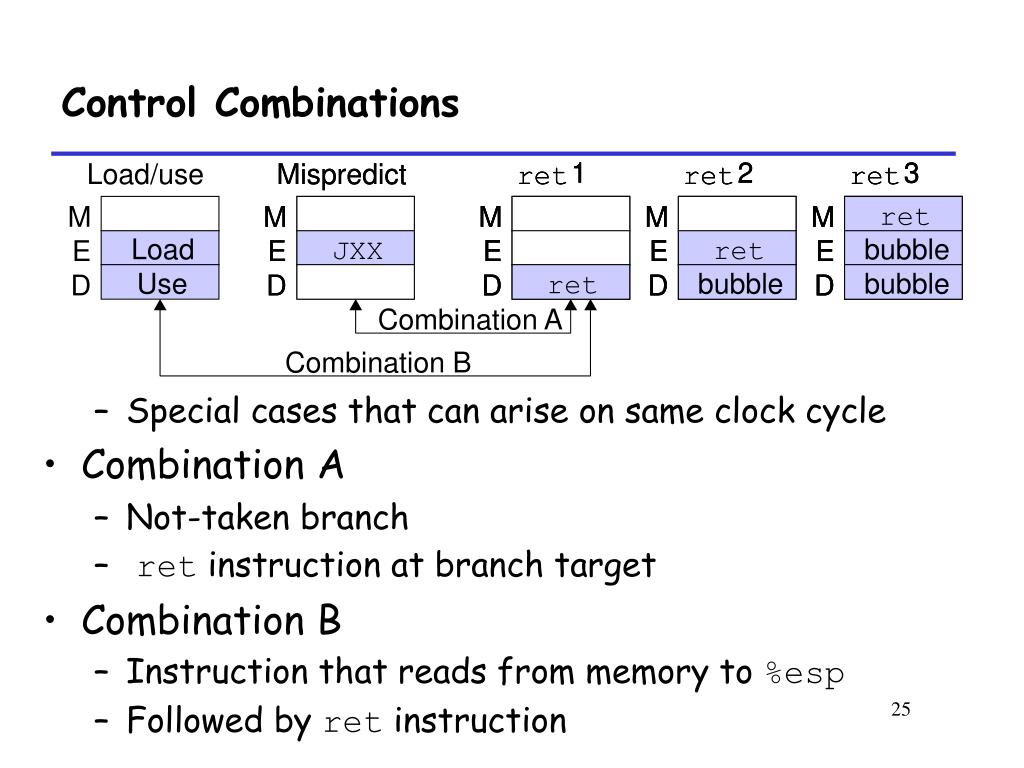

  25. 1 1 1 2 2 2 3 3 3 Load/use Mispredict Mispredict ret ret ret ret ret ret ret ret ret ret ret ret M M M M M M M M M M M M Load bubble bubble bubble JXX JXX ret ret ret E E E E E E E E E E E E Use bubble bubble bubble bubble bubble bubble ret ret ret D D D D D D D D D D D D Combination A Combination B Control Combinations • Special cases that can arise on same clock cycle • Combination A • Not-taken branch • ret instruction at branch target • Combination B • Instruction that reads from memory to %esp • Followed by ret instruction

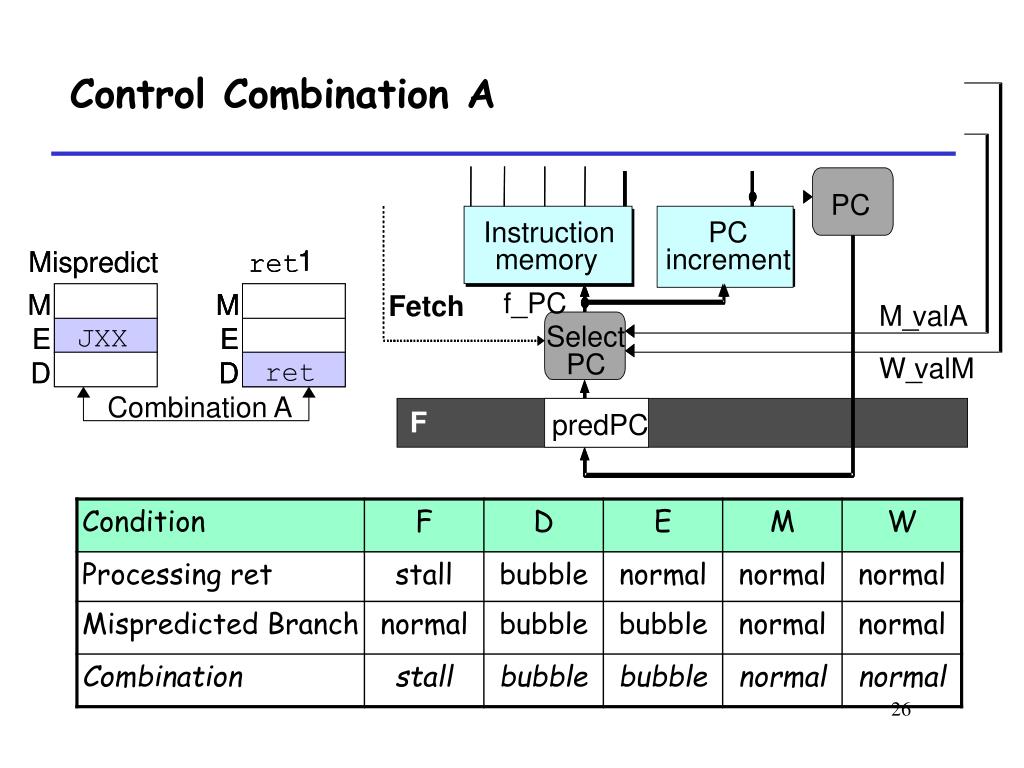

  26. 1 ret M E ret D 1 1 Mispredict Mispredict ret ret M M M M JXX JXX E E E E ret ret D D D D Combination A Control Combination A PC Instruction PC PC memory increment memory f_PC Fetch M_ valA Select PC W_ valM F predPC

  27. Control Combination A • Should handle as mispredicted branch • Stalls F pipeline register • But PC selection logic will be using M_valA anyhow

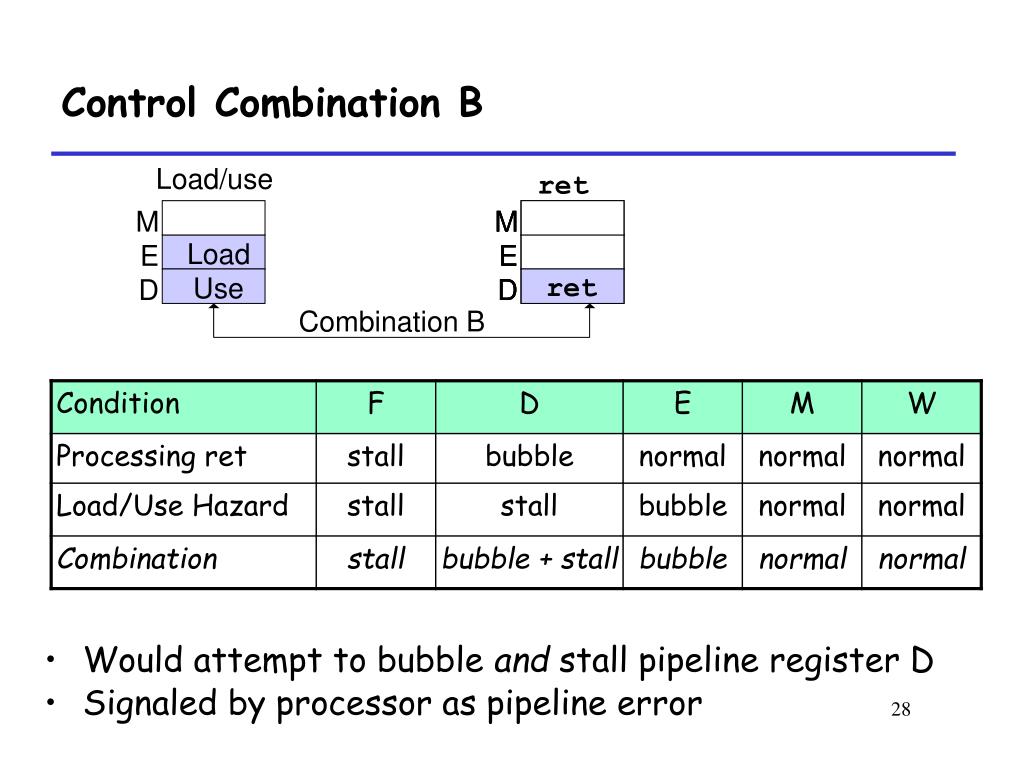

  28. Control Combination B Load/use ret • Would attempt to bubble and stall pipeline register D • Signaled by processor as pipeline error M M M M Load E E E E ret Use ret ret D D D D Combination B

  29. Handling Control Combination B • Load/use hazard should get priority • ret instruction should be held in decode stage for additional cycle

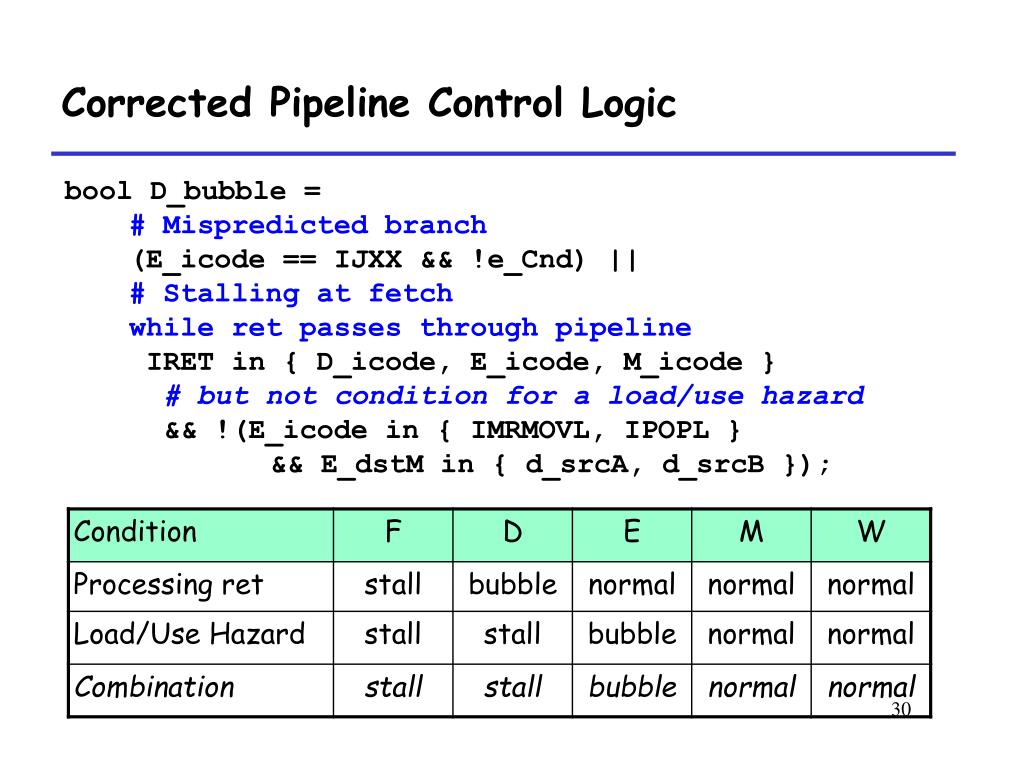

  30. Corrected Pipeline Control Logic bool D_bubble = # Mispredicted branch (E_icode == IJXX && !e_Cnd) || # Stalling at fetch while ret passes through pipeline IRET in { D_icode, E_icode, M_icode } # but not condition for a load/use hazard && !(E_icode in { IMRMOVL, IPOPL } && E_dstM in { d_srcA, d_srcB });

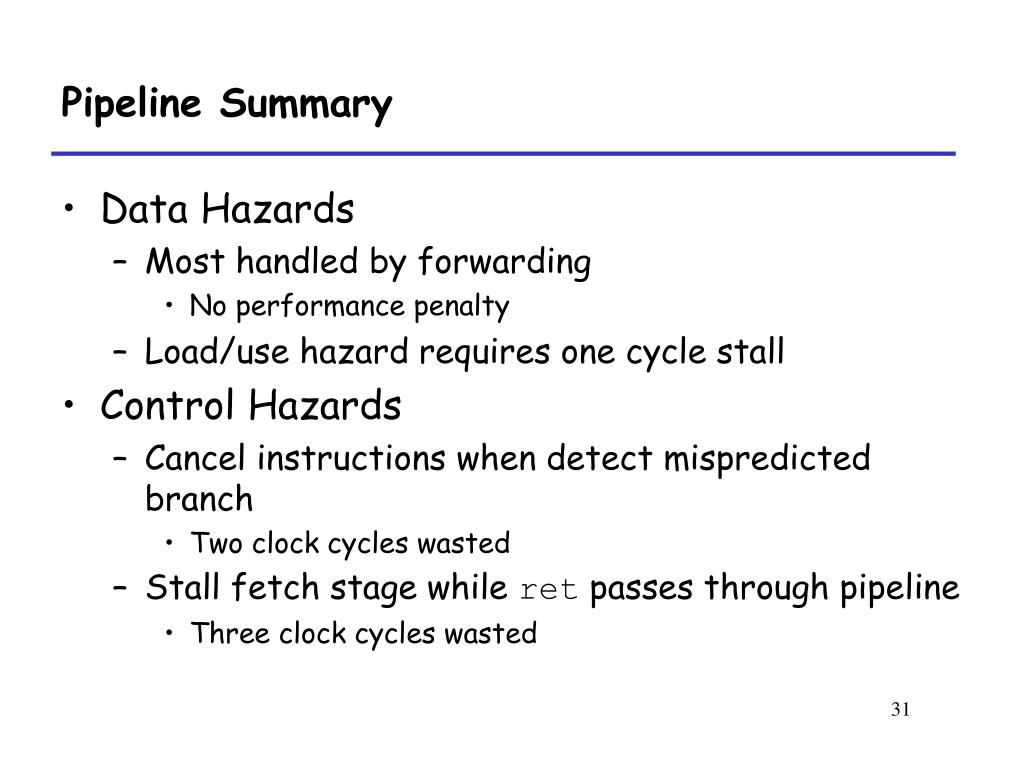

  31. Pipeline Summary • Data Hazards • Most handled by forwarding • No performance penalty • Load/use hazard requires one cycle stall • Control Hazards • Cancel instructions when detect mispredicted branch • Two clock cycles wasted • Stall fetch stage while ret passes through pipeline • Three clock cycles wasted

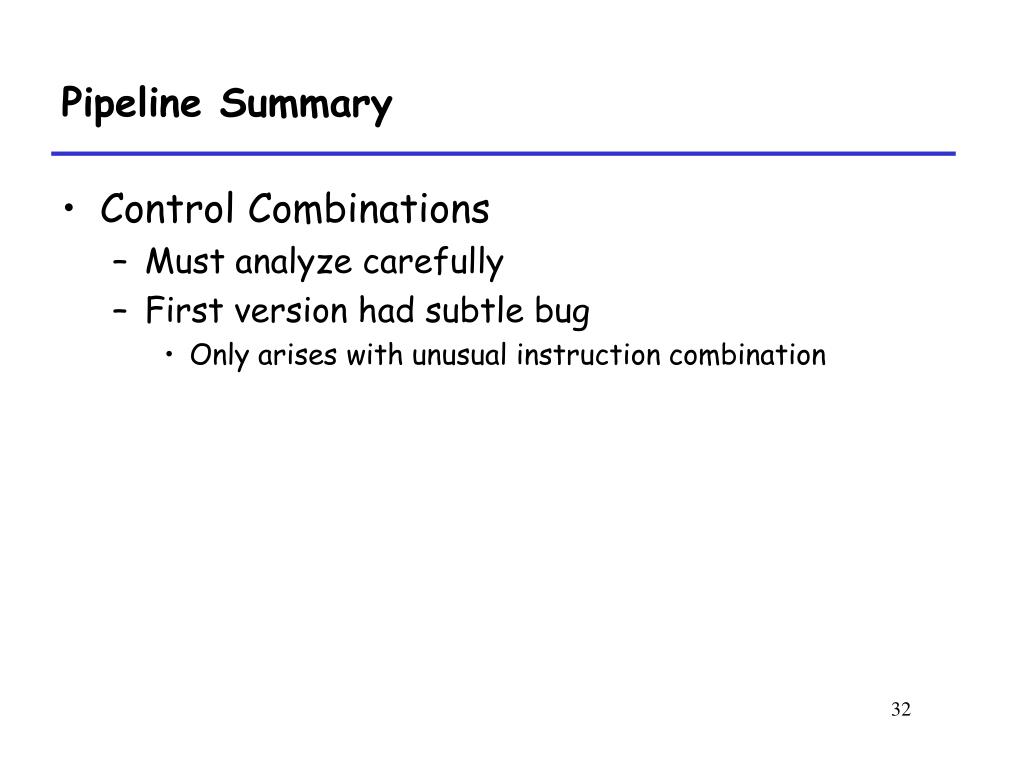

  32. Pipeline Summary • Control Combinations • Must analyze carefully • First version had subtle bug • Only arises with unusual instruction combination
