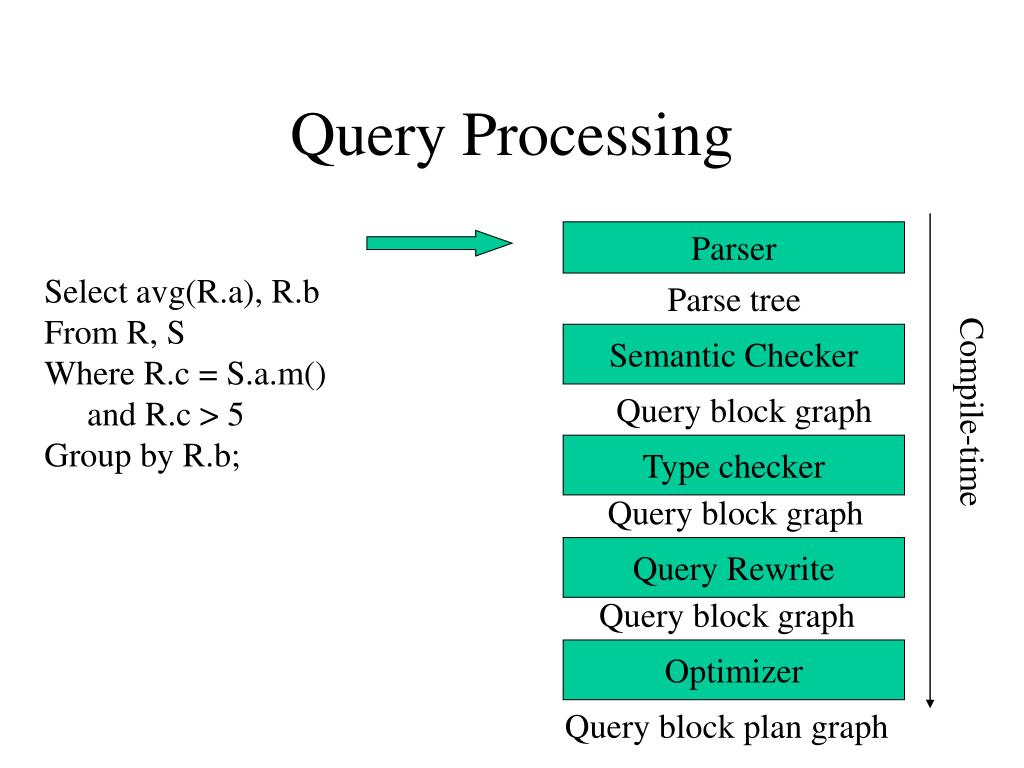

Query Processing. Parser. Select avg(R.a), R.b From R, S Where R.c = S.a.m() and R.c > 5 Group by R.b;. Parse tree. Semantic Checker. Query block graph. Compile-time. Type checker. Query block graph. Query Rewrite. Query block graph. Optimizer. Query block plan graph.

ryder
Télécharger la présentation

Query Processing

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Query Processing Parser Select avg(R.a), R.b From R, S Where R.c = S.a.m() and R.c > 5 Group by R.b; Parse tree Semantic Checker Query block graph Compile-time Type checker Query block graph Query Rewrite Query block graph Optimizer Query block plan graph

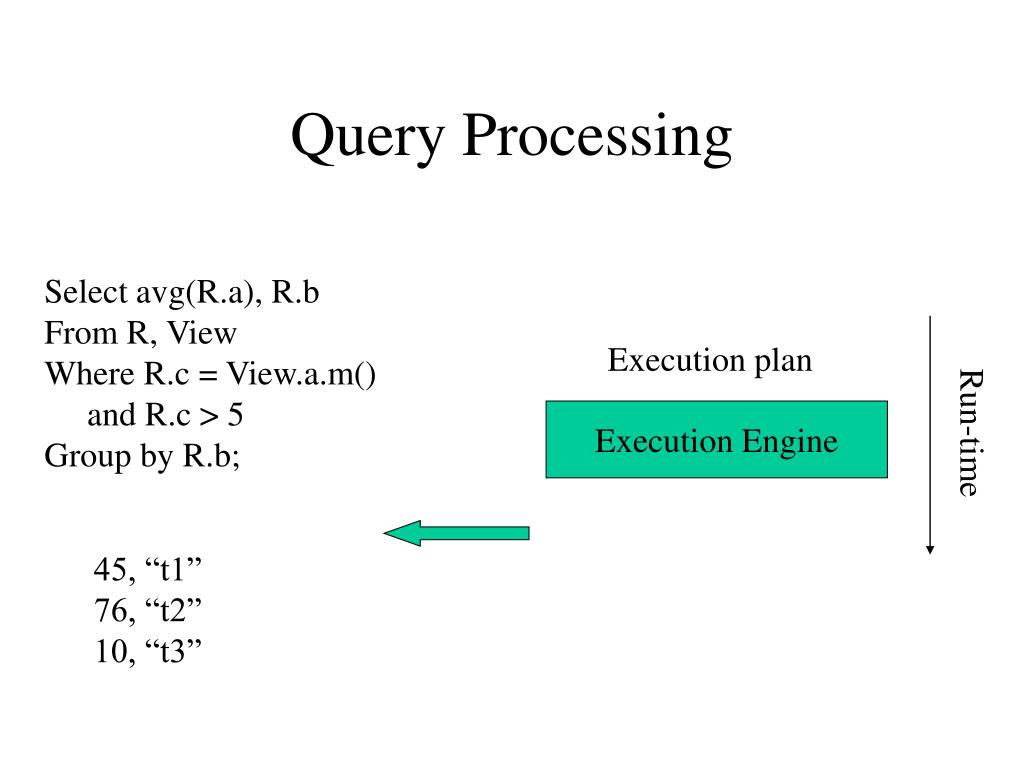

  2. Query Processing Select avg(R.a), R.b From R, View Where R.c = View.a.m() and R.c > 5 Group by R.b; Execution plan Execution Engine Run-time 45, “t1” 76, “t2” 10, “t3”

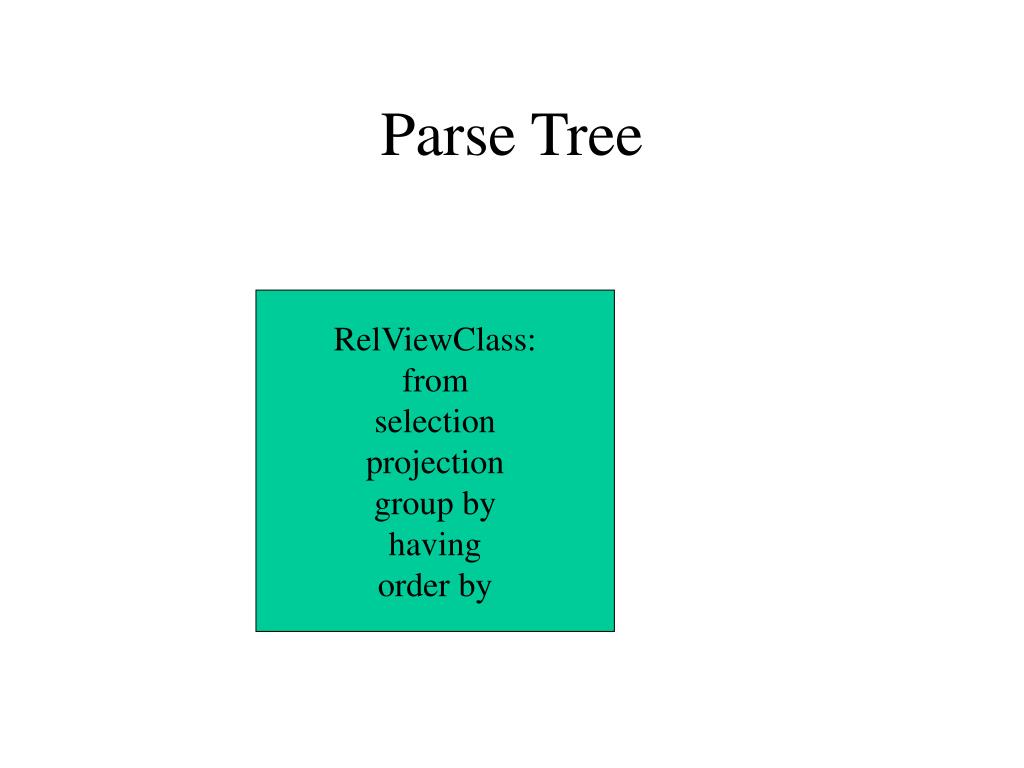

  3. Parse Tree RelViewClass:fromselection projectiongroup byhavingorder by

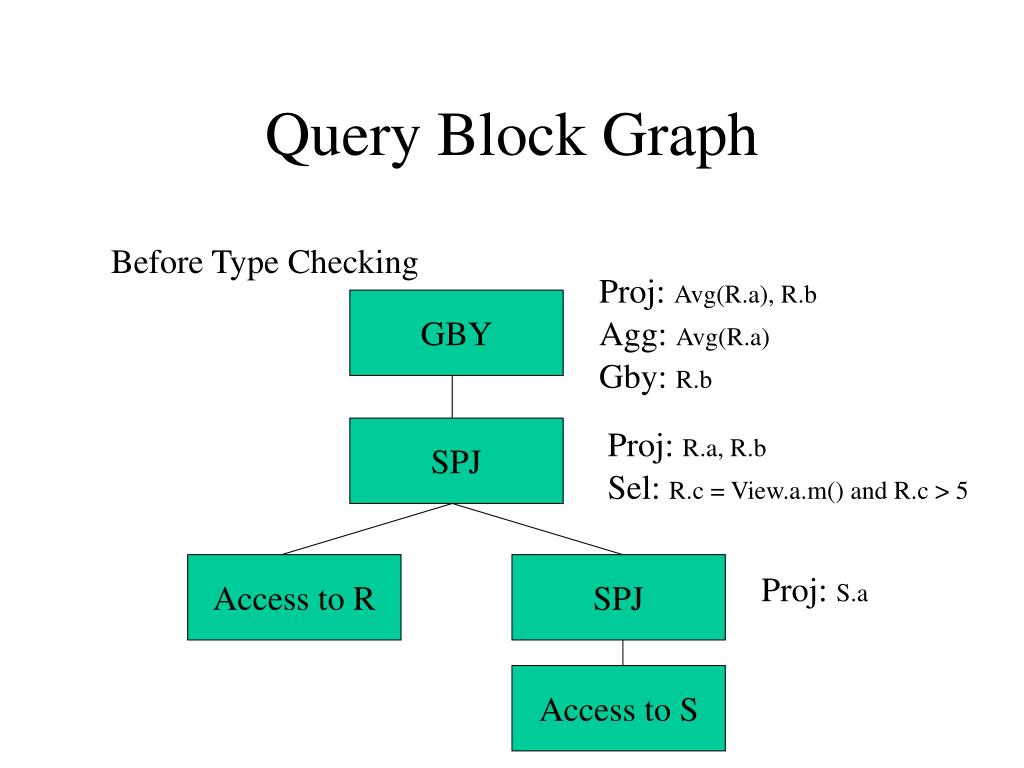

  4. Query Block Graph Before Type Checking Proj: Avg(R.a), R.b GBY Agg: Avg(R.a) Gby: R.b SPJ Proj: R.a, R.b Sel: R.c = View.a.m() and R.c > 5 Access to R SPJ Proj: S.a Access to S

  5. Query Block Graph After type checking Proj: Avg(0(1)), 0(2) GBY Agg: Avg(0(1)) Gby: 0(2) SPJ Proj: 0(1), 0(2) Sel: 0(3) = 1(1).m() and 0(3) > 5 Access to R SPJ Proj: 0(1) Access to S

  6. Query Block Graph After query rewrite Proj: Avg(0(1)), 0(2) GBY Agg: Avg(0(1)) Gby: 0(2) SPJ Proj: 0(1), 0(2) Sel: 0(3) = 1(1).m() and 0(3) > 5 Access to R Access to S

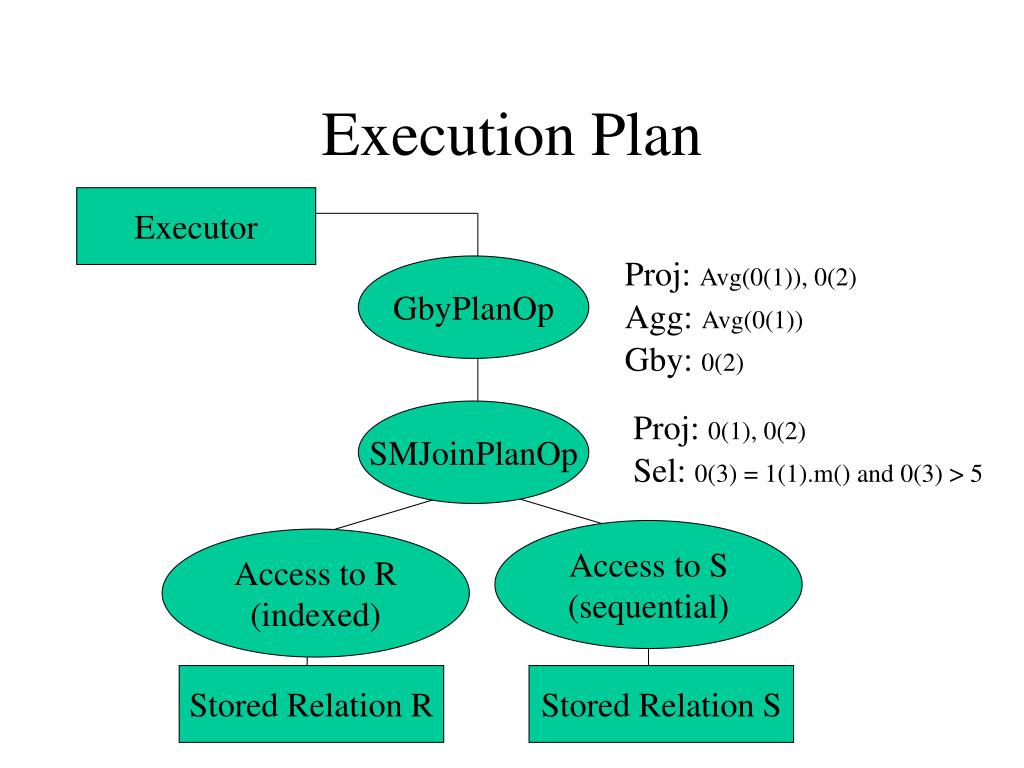

  7. Execution Plan Executor Proj: Avg(0(1)), 0(2) GbyPlanOp Agg: Avg(0(1)) Gby: 0(2) SMJoinPlanOp Proj: 0(1), 0(2) Sel: 0(3) = 1(1).m() and 0(3) > 5 Access to S(sequential) Access to R(indexed) Stored Relation R Stored Relation S

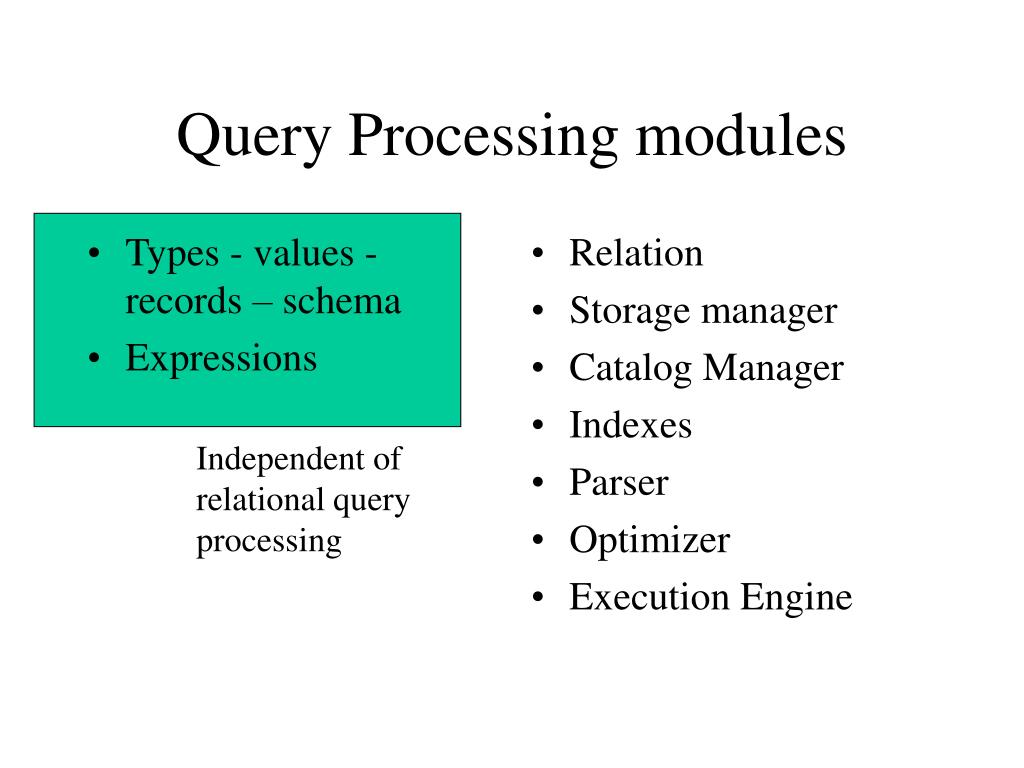

  8. Types - values - records – schema Expressions Relation Storage manager Catalog Manager Indexes Parser Optimizer Execution Engine Query Processing modules Independent of relational query processing

  9. Types and Records Date (Type) Specific Date Type M/D/Cye (Meta-Info) Date Value ValuesArray:[…, Date Value, …] Record offset ADT array RecordSchema: […, Att i, …]

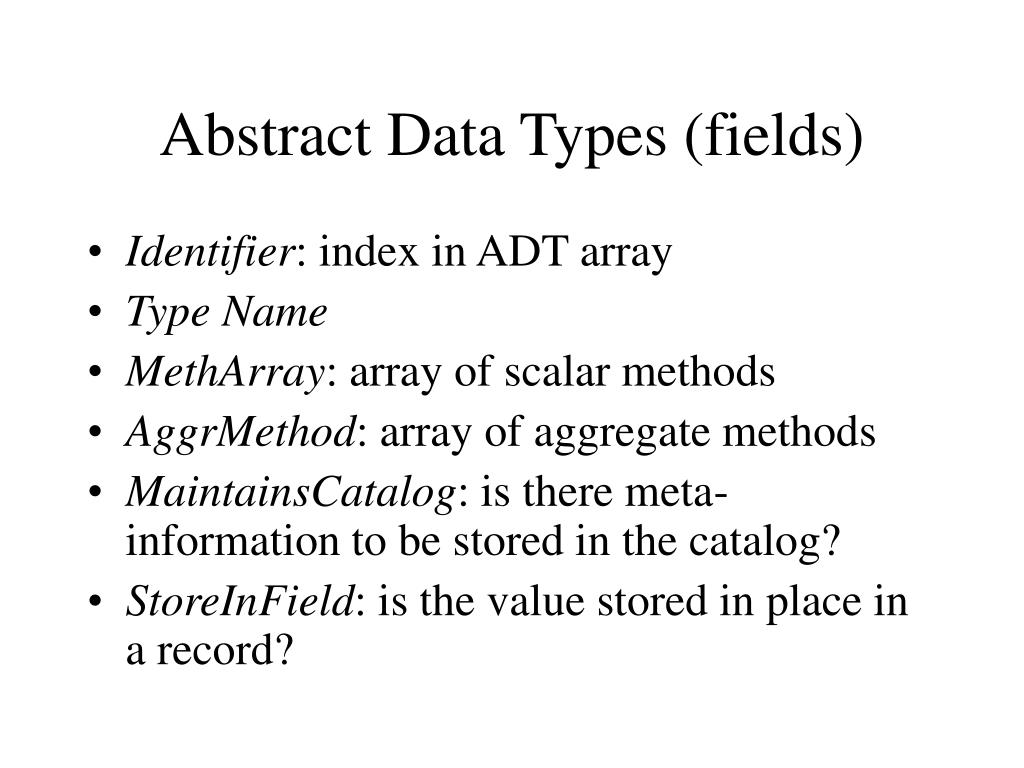

  10. Abstract Data Types (fields) • Identifier: index in ADT array • Type Name • MethArray: array of scalar methods • AggrMethod: array of aggregate methods • MaintainsCatalog: is there meta-information to be stored in the catalog? • StoreInField: is the value stored in place in a record?

  11. MaxObjectSize() TypeCopy() Equals() ReadText(), WriteText() GetMetaInfo() CreateStatsInfo() FuncTypeCheck() FuncOptimize() FuncReorganize() GetMethByIndex() CastCheck() CreateEnv() Abstract Data Types (some methods)

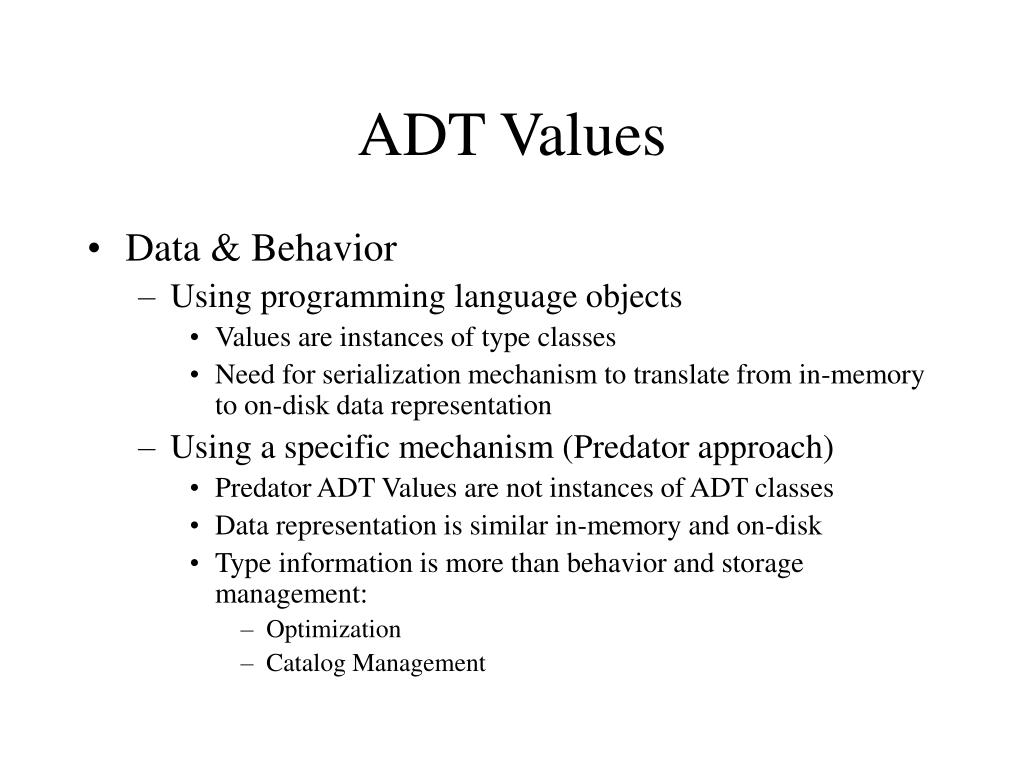

  12. ADT Values • Data & Behavior • Using programming language objects • Values are instances of type classes • Need for serialization mechanism to translate from in-memory to on-disk data representation • Using a specific mechanism (Predator approach) • Predator ADT Values are not instances of ADT classes • Data representation is similar in-memory and on-disk • Type information is more than behavior and storage management: • Optimization • Catalog Management

  13. ADT Values • Header: • 4 bytes of flag: is null, little indian/big indian, … • Value • Padding: • For aligment purpose (value length must be a multiple of 8 bytes) padding header value

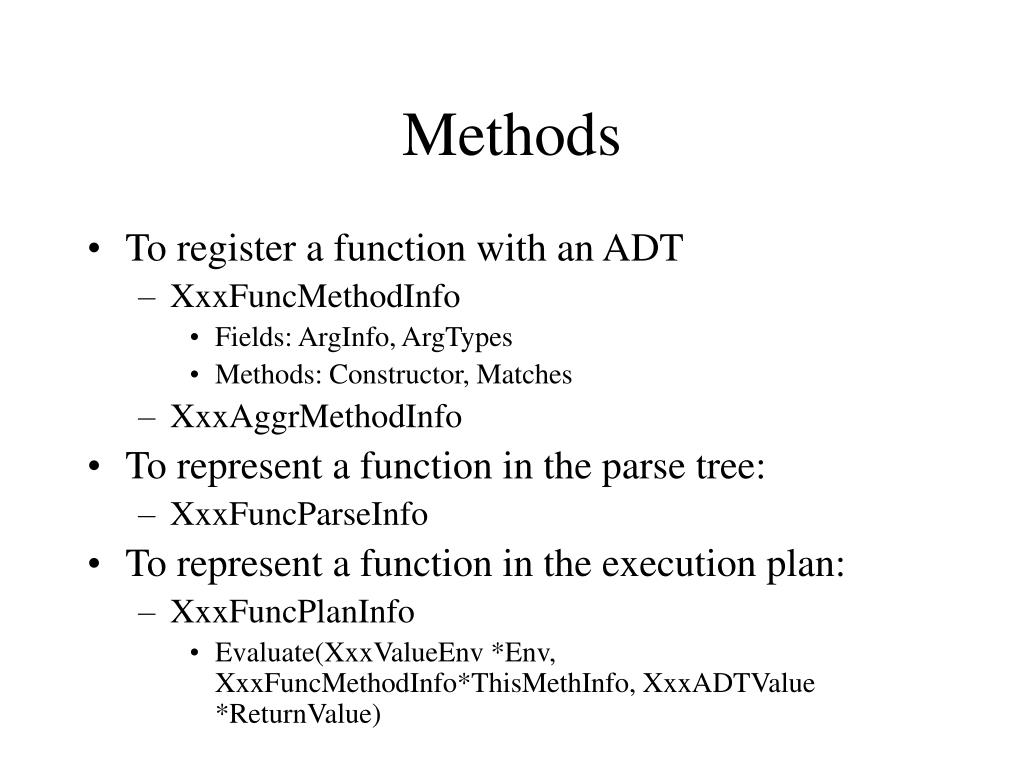

  14. Methods • To register a function with an ADT • XxxFuncMethodInfo • Fields: ArgInfo, ArgTypes • Methods: Constructor, Matches • XxxAggrMethodInfo • To represent a function in the parse tree: • XxxFuncParseInfo • To represent a function in the execution plan: • XxxFuncPlanInfo • Evaluate(XxxValueEnv *Env, XxxFuncMethodInfo*ThisMethInfo, XxxADTValue *ReturnValue)

  15. Record and Record Schema • Record • GetField(int position, RecordSchema* Schema, char*& Field) • Record Schema • GetAttribute • Name • Type • Meta-information • GetOffset • In record structure

  16. Expressions

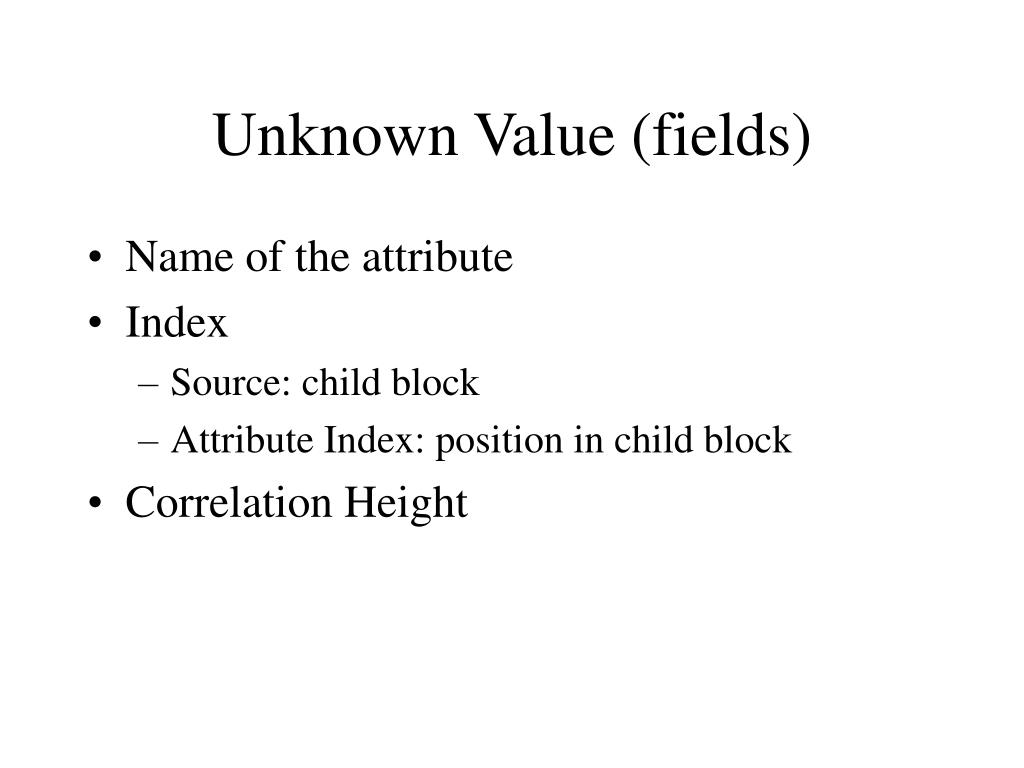

  17. Unknown Value (fields) • Name of the attribute • Index • Source: child block • Attribute Index: position in child block • Correlation Height

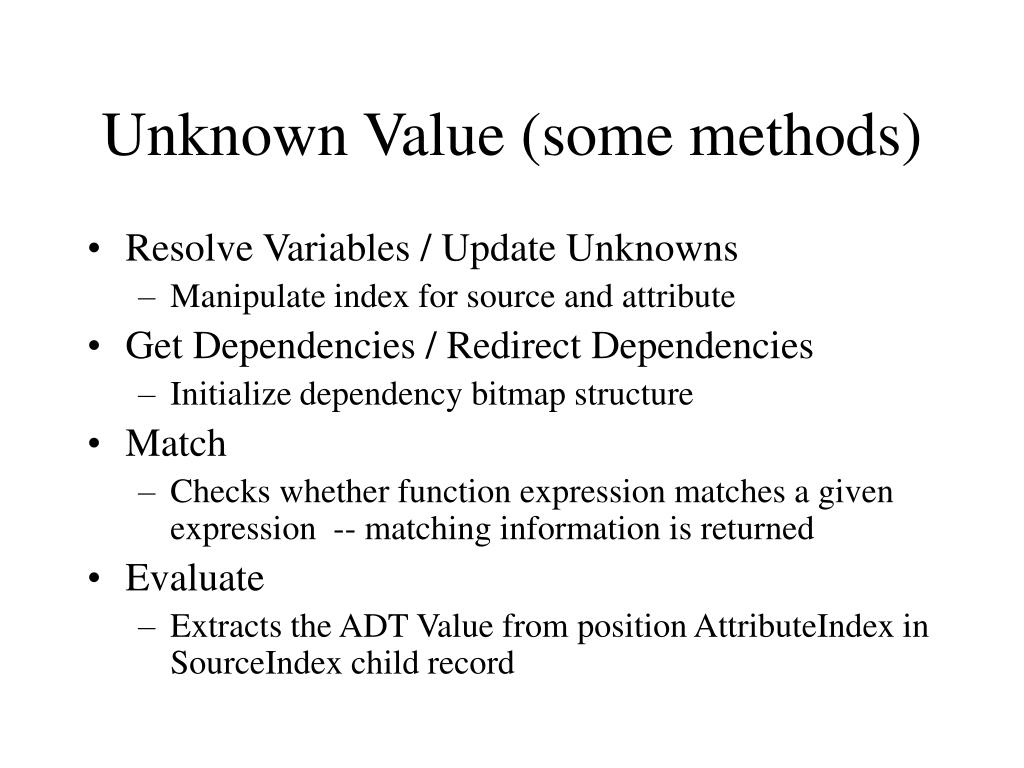

  18. Unknown Value (some methods) • Resolve Variables / Update Unknowns • Manipulate index for source and attribute • Get Dependencies / Redirect Dependencies • Initialize dependency bitmap structure • Match • Checks whether function expression matches a given expression -- matching information is returned • Evaluate • Extracts the ADT Value from position AttributeIndex in SourceIndex child record

  19. Expression & Plan • Function Expression • FuncParseInfo • Owner, Arg • Update Unknowns, GetDependencies, Match • Optimize • Function Plan • FuncPlanInfo • OwnerPlan, ArgPlan • evalOwner, evalArgs • Evaluate

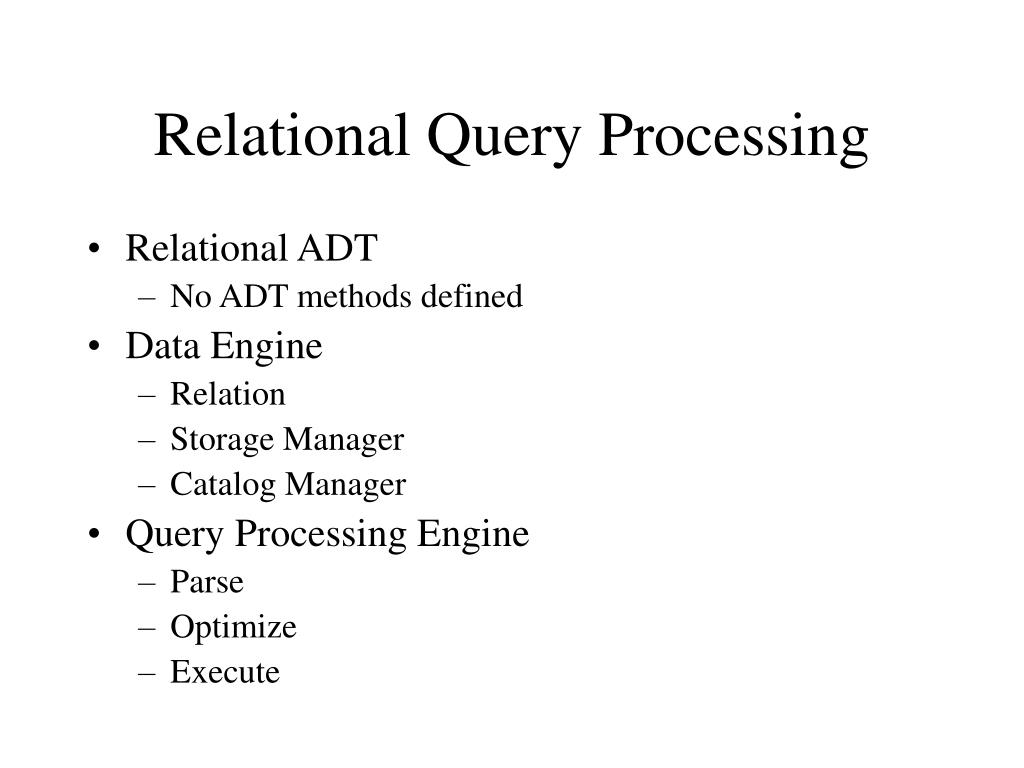

  20. Relational Query Processing • Relational ADT • No ADT methods defined • Data Engine • Relation • Storage Manager • Catalog Manager • Query Processing Engine • Parse • Optimize • Execute

  21. Relation • Relation Type • Stored: Shore File Relation • matchIndex (Expression, MatchedInfo) • chooseAccessPath • Add to / delete from index • Derived • Access • Indexed access • Sequential access: • Init cursor, next item, close cursor • Delete record, insert record, update record

  22. Relation • Relation subclassed as ShoreFileRelation, DerivedRelation, … • RelImplInfo • IndexImplInfo • IndexList • Stored / derived • RelStatsInfo • Cardinality, average tuple size • RelCatalogInfo • Relation name • Record schema

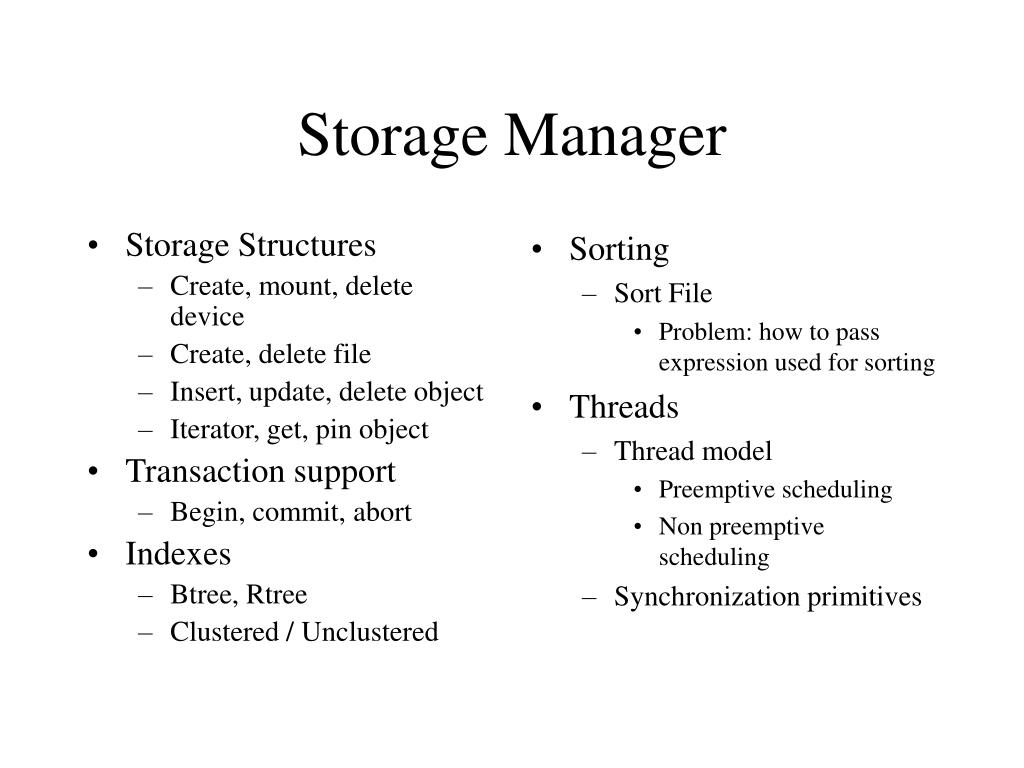

  23. Storage Structures Create, mount, delete device Create, delete file Insert, update, delete object Iterator, get, pin object Transaction support Begin, commit, abort Indexes Btree, Rtree Clustered / Unclustered Sorting Sort File Problem: how to pass expression used for sorting Threads Thread model Preemptive scheduling Non preemptive scheduling Synchronization primitives Storage Manager

  24. Catalog Manager • Catalog relations • _STABLES(tablename, arity) • _SATTRS(tablename, attname, attindex, atttype, key?, attmetainfo) • _SINDXS(tablename, indexname, indexexpression) • _SSTATS • _SATSTATS • One catalog per storage device • GetCatalogRel: Bootstrapping problem

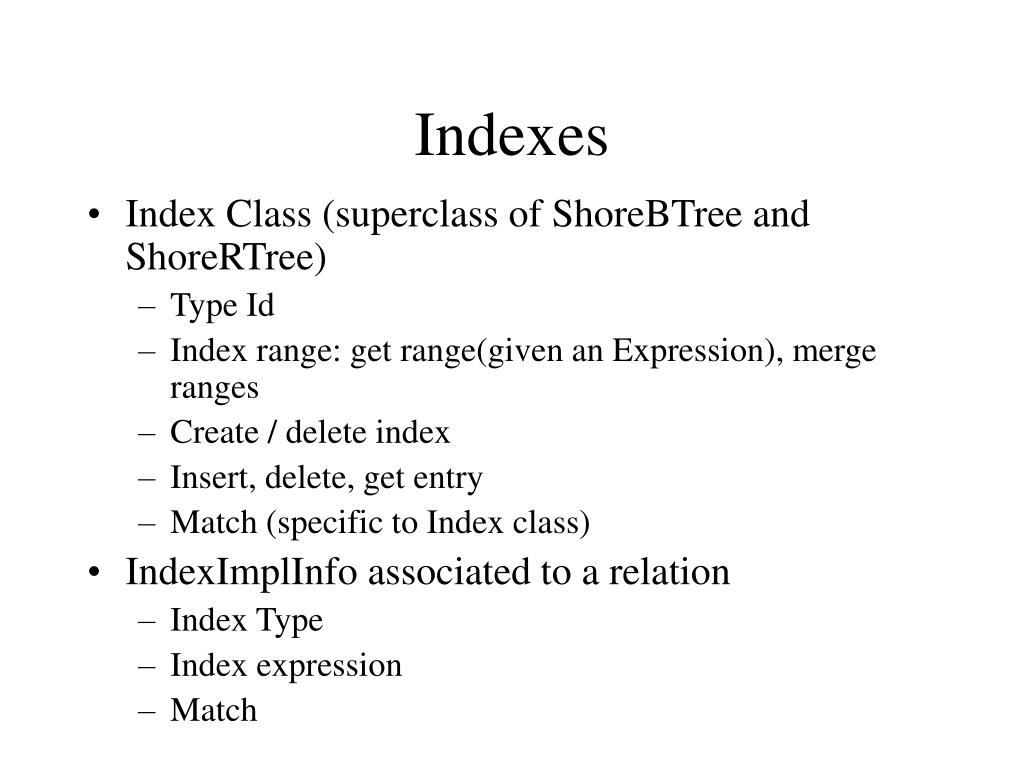

  25. Indexes • Index Class (superclass of ShoreBTree and ShoreRTree) • Type Id • Index range: get range(given an Expression), merge ranges • Create / delete index • Insert, delete, get entry • Match (specific to Index class) • IndexImplInfo associated to a relation • Index Type • Index expression • Match

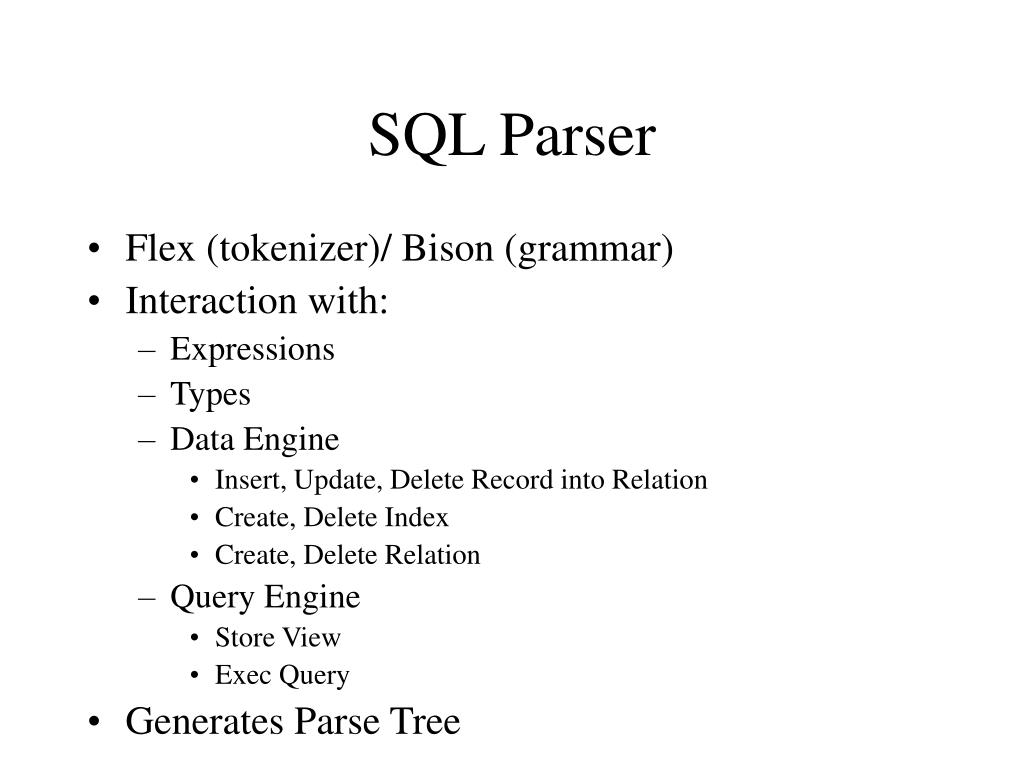

  26. SQL Parser • Flex (tokenizer)/ Bison (grammar) • Interaction with: • Expressions • Types • Data Engine • Insert, Update, Delete Record into Relation • Create, Delete Index • Create, Delete Relation • Query Engine • Store View • Exec Query • Generates Parse Tree

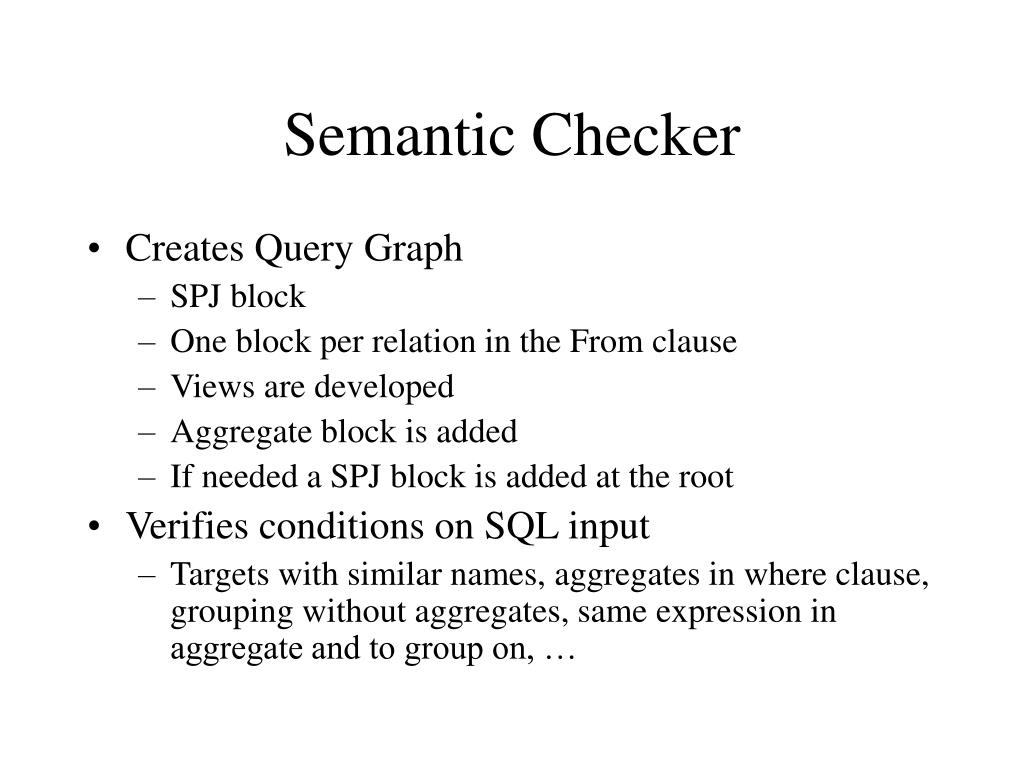

  27. Semantic Checker • Creates Query Graph • SPJ block • One block per relation in the From clause • Views are developed • Aggregate block is added • If needed a SPJ block is added at the root • Verifies conditions on SQL input • Targets with similar names, aggregates in where clause, grouping without aggregates, same expression in aggregate and to group on, …

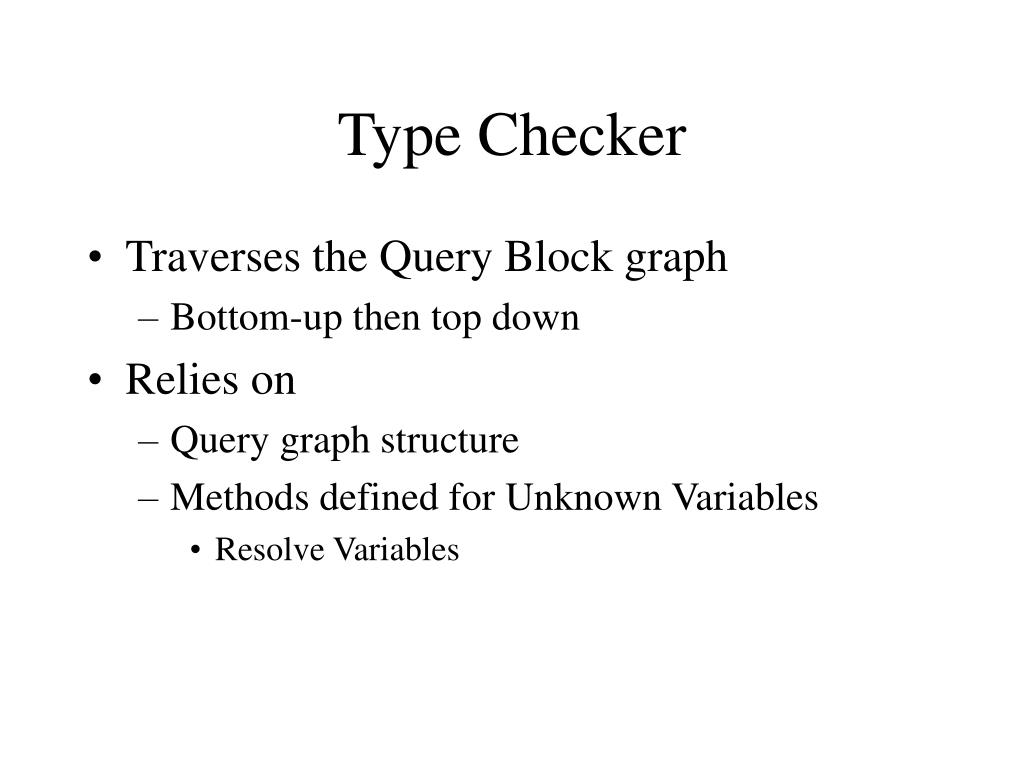

  28. Type Checker • Traverses the Query Block graph • Bottom-up then top down • Relies on • Query graph structure • Methods defined for Unknown Variables • Resolve Variables

  29. Query Rewrite Rules • Rule Engine • Vector list of rules • Execute rules on one downward and one upward pass • Rules • Manipulation across query blocks • Pushing projections, selections • Merging query blocks • Eliminating distinct clauses • Each rule is a class that implements the following method • ApplyRule(RelQueryNode *In, XxxBool &Success, RelQueryNode *Out)

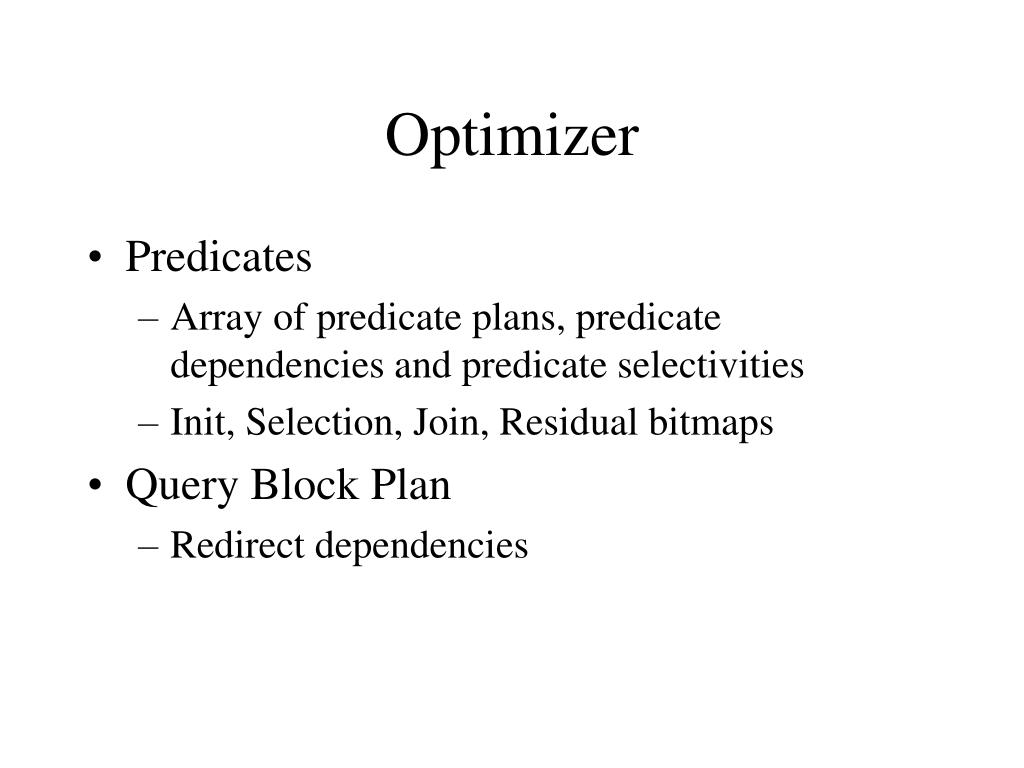

  30. Optimizer • Predicates • Array of predicate plans, predicate dependencies and predicate selectivities • Init, Selection, Join, Residual bitmaps • Query Block Plan • Redirect dependencies

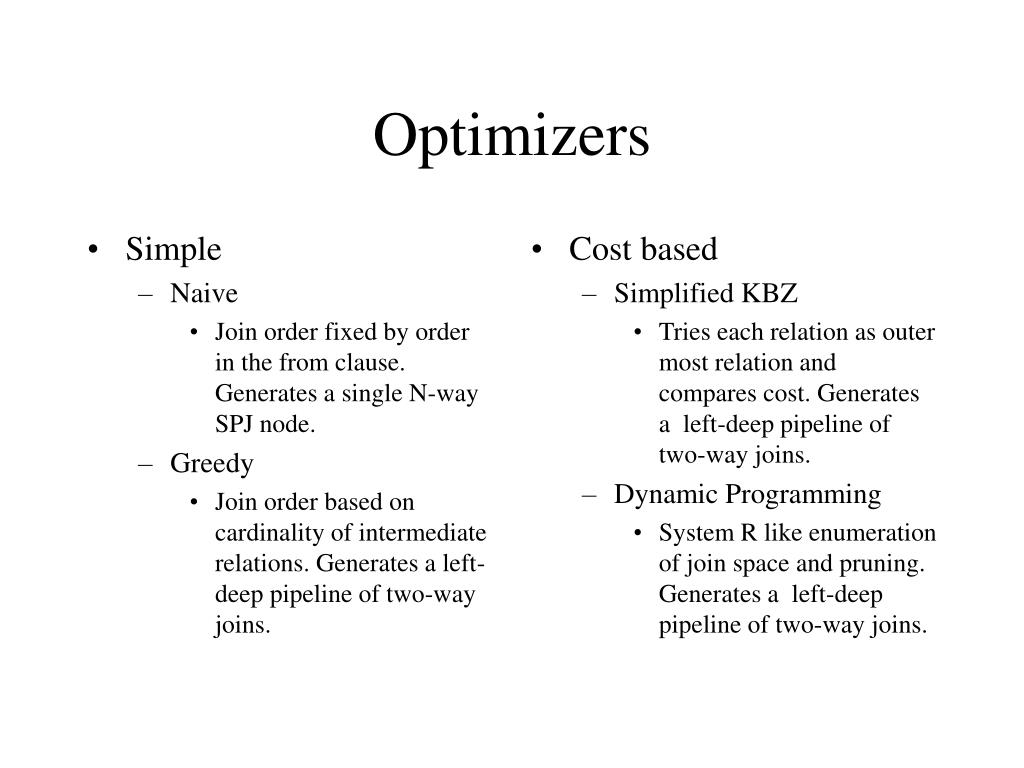

  31. Simple Naive Join order fixed by order in the from clause. Generates a single N-way SPJ node. Greedy Join order based on cardinality of intermediate relations. Generates a left-deep pipeline of two-way joins. Cost based Simplified KBZ Tries each relation as outer most relation and compares cost. Generates a left-deep pipeline of two-way joins. Dynamic Programming System R like enumeration of join space and pruning. Generates a left-deep pipeline of two-way joins. Optimizers

  32. SPJ Naive Optimization phases • Step1: • Generate plan for children blocks • Step2: • Create the predicate bitmap for the selections and joins • Step3: • Construct a remapping of unknown variables depending on schema of children • Step4: • Modify all expressions based on remapping • Step5: • Generate plan operator for SPJ

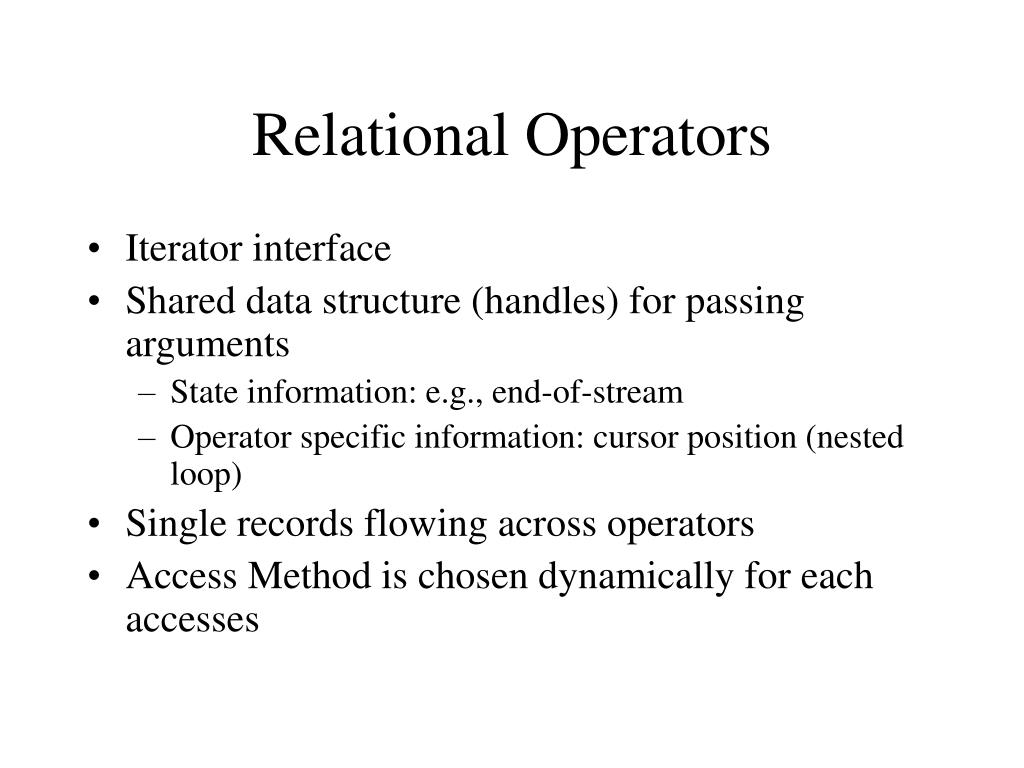

  33. Relational Operators • Iterator interface • Shared data structure (handles) for passing arguments • State information: e.g., end-of-stream • Operator specific information: cursor position (nested loop) • Single records flowing across operators • Access Method is chosen dynamically for each accesses

  34. Execution • Executor: wrapper on top of execution plan • creates a derived relation • Initializes derived relation (recursively initializes execution plan) • Iterates over records • Process resulting records • Write to client • Close iterator • Clean-up

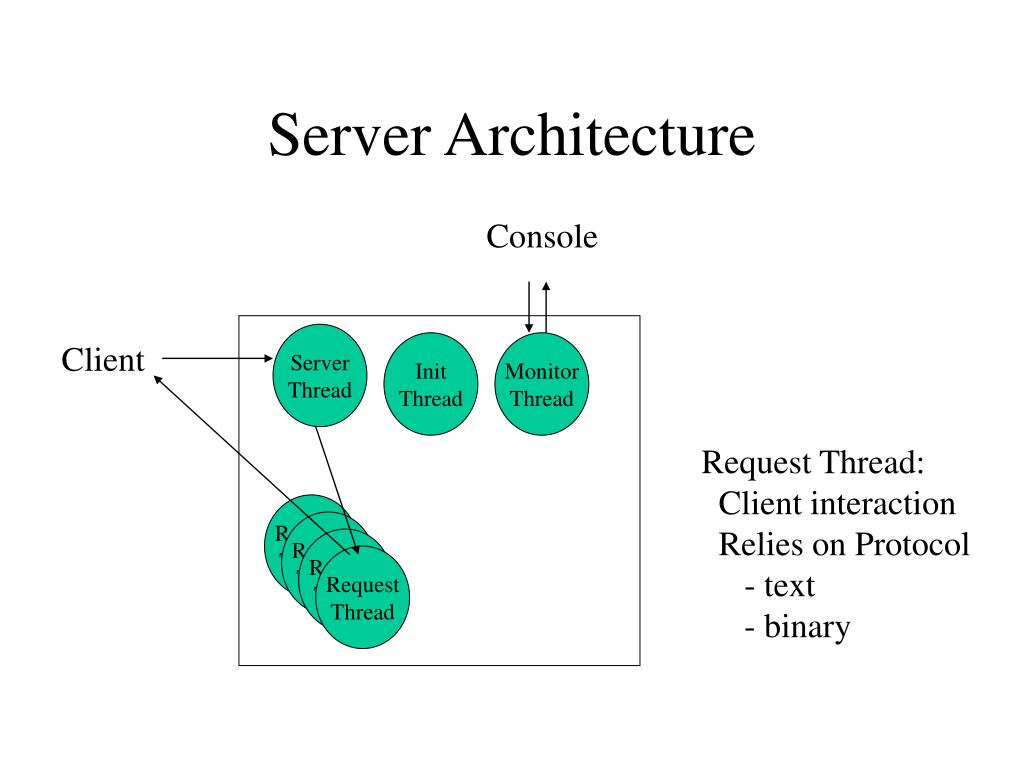

  35. Server Architecture Console Server Thread Client Init Thread Monitor Thread Request Thread: Client interaction Relies on Protocol - text - binary Request Thread Request Thread Request Thread Request Thread

  36. Summary • Predator achieves extensibility by isolating these modules which are independent from the rest of the system • Types and Expressions are used throughout the system and are prone to changes • Predator reuses the clean internal data structures defined in Starbust
