More Angle-Arc Theorems. Lesson 10.6. Congruent Inscribed & Tangent-Chord Angles. Theorem 89: If two inscribed or tangent-chord angles intercept the same arc, then they are congruent. Congruent Inscribed & Tangent-Chord Angles.

Télécharger la présentation
## More Angle-Arc Theorems

**An Image/Link below is provided (as is) to download presentation**
Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.
Content is provided to you AS IS for your information and personal use only.
Download presentation by click this link.
While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.
During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

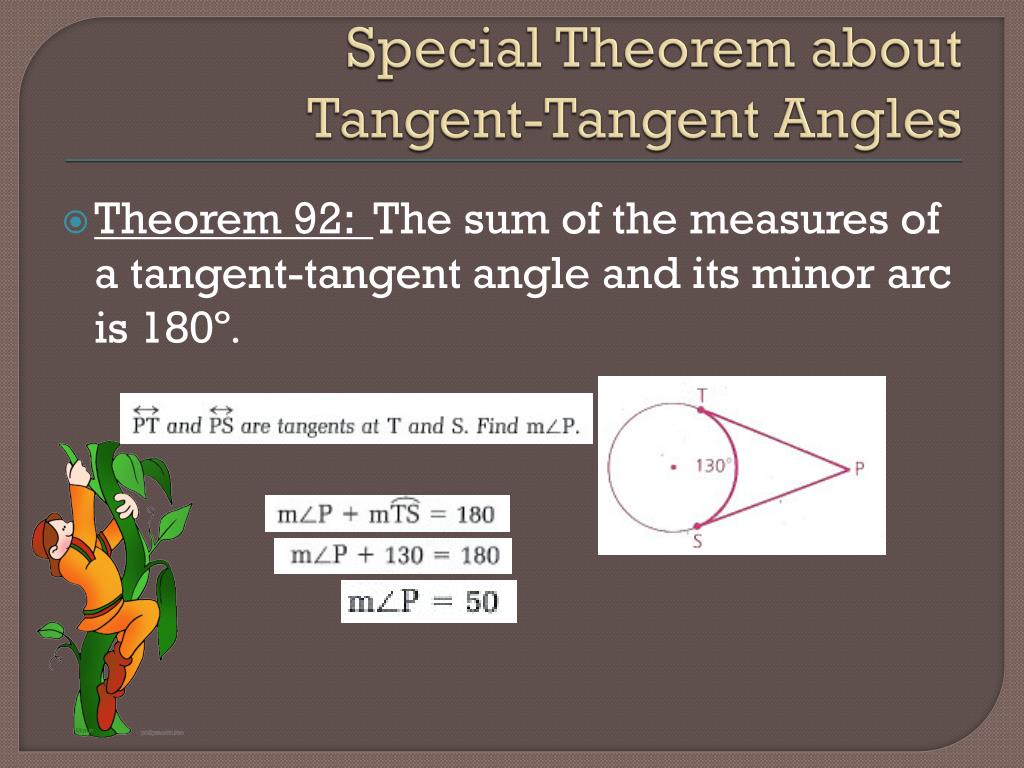

**More Angle-Arc Theorems**Lesson 10.6**Congruent Inscribed & Tangent-Chord Angles**Theorem 89: If two inscribed or tangent-chord angles intercept the same arc, then they are congruent.**Congruent Inscribed & Tangent-Chord Angles**Theorem 90: If two inscribed or tangent-chord angles intercept congruent arcs, then they are congruent.**Angles Inscribed in Semi-Circles**Theorem 91: An angle inscribed in a semicircle is a right angle. Since the measure of an inscribed angle is one-half the measure of its intercepted arc, and a semi-circle is 180º, C is 90º.**Special Theorem about Tangent-Tangent Angles**Theorem 92: The sum of the measures of a tangent-tangent angle and its minor arc is 180º.**A is inscribed in a semicircle, it is a right angle.**• Use the Pythagorean Theorem to solve. • (AB)2 + (AC)2 = (BC)2 • (AB)2 + 402 = 412 • AB = 9 mm**Circle O**• V S • L N • ΔLVE ~ ΔNSE • EV = ELSE EN • EV • EN = EL • SE Given If two inscribed s intercept the same arc, they are . Same as 2 AA (2, 3) Ratios of corresponding sides of ~ triangles are =. Means-Extremes Products Theorem.
