Understanding Newton's Third Law: Action and Reaction Explained

Explore the fundamental concepts of Newton's Third Law of Motion, which states that for every action, there is an equal and opposite reaction. This chapter delves into free body diagrams, illustrating various scenarios such as a rock in free fall, at the peak of its parabolic trajectory, and falling with or without air resistance. Additionally, understand the complexities of forces acting on a rock on a string, sliding with or without friction. Gain a deeper grasp of the interactions of forces through visual aids and practical examples.

salaam
Télécharger la présentation

Understanding Newton's Third Law: Action and Reaction Explained

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Chapter 5 by Robert MacKay

  2. Newton’s Law of Action Reaction (3rd Law) • You can not touch without being touched For every action force there is and equal and oppositely directed reaction force

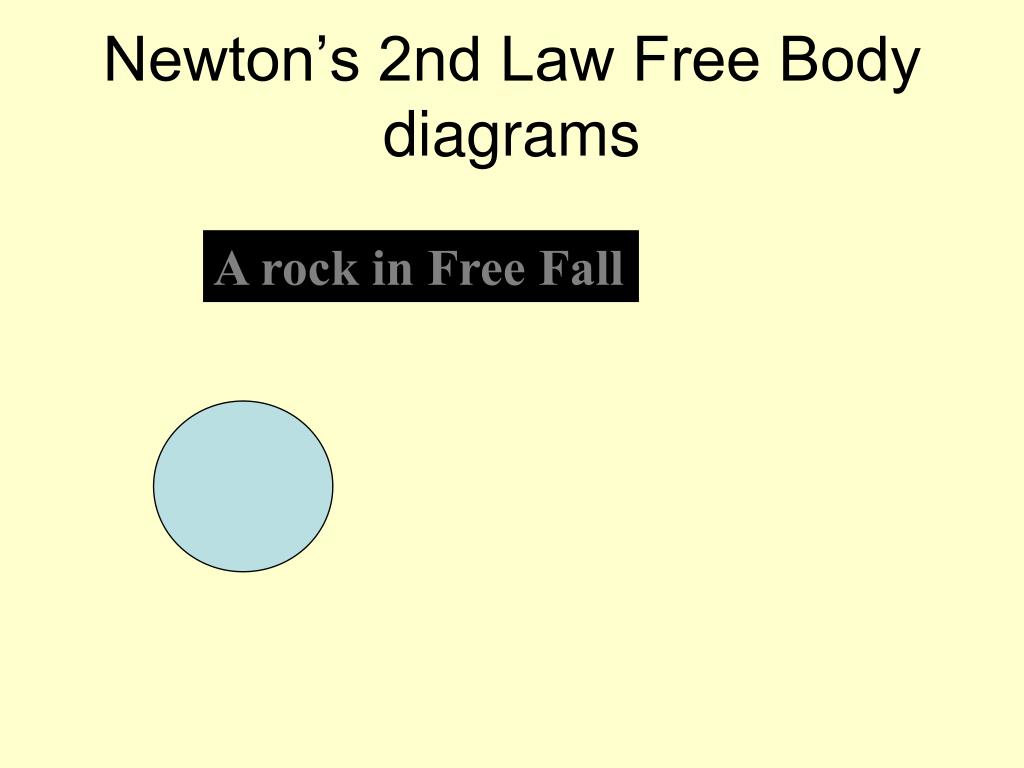

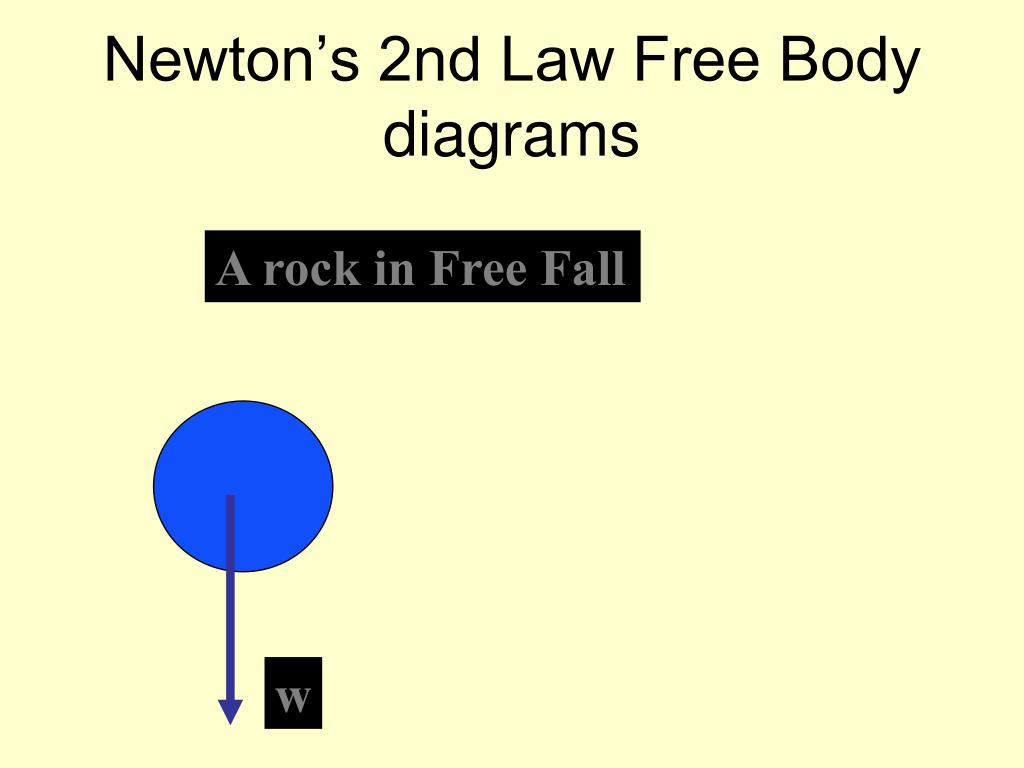

  3. Newton’s 2nd Law Free Body diagrams A rock in Free Fall

  4. Newton’s 2nd Law Free Body diagrams A rock in Free Fall w

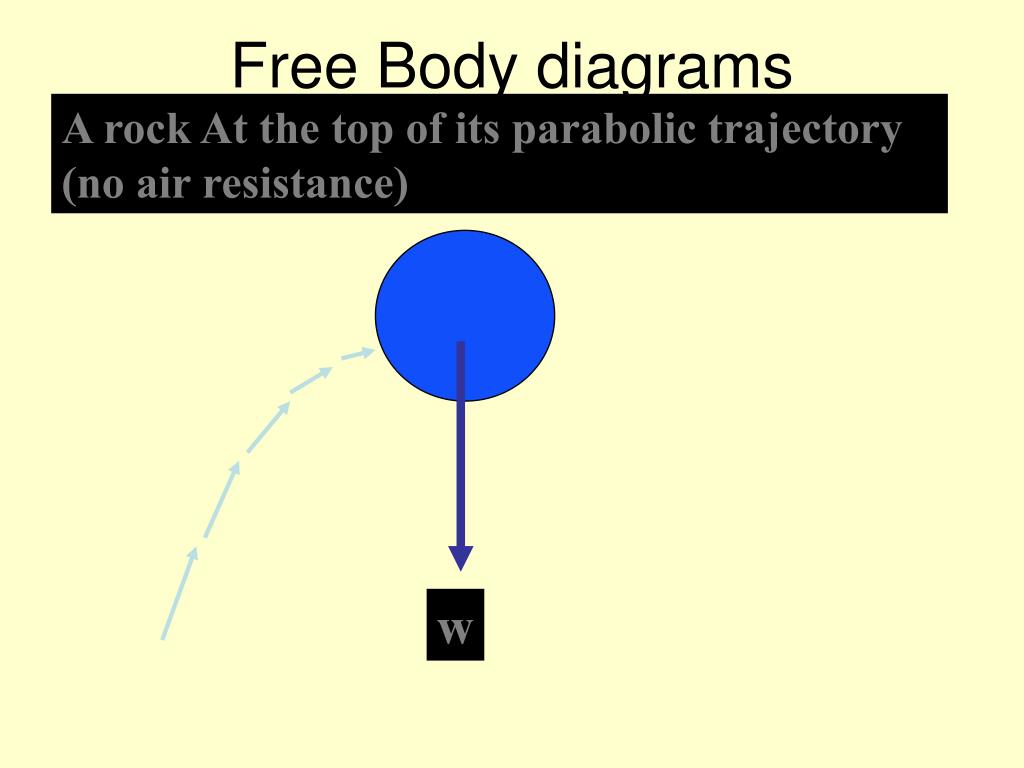

  5. Free Body diagrams A rock At the top of its parabolic trajectory (no air resistance)

  6. Free Body diagrams A rock At the top of its parabolic trajectory (no air resistance) w

  7. Newton’s 2nd Law Free Body diagrams A rock in Free Fall w

  8. Newton’s 2nd Law Free Body diagrams A rock Falling with air resistance

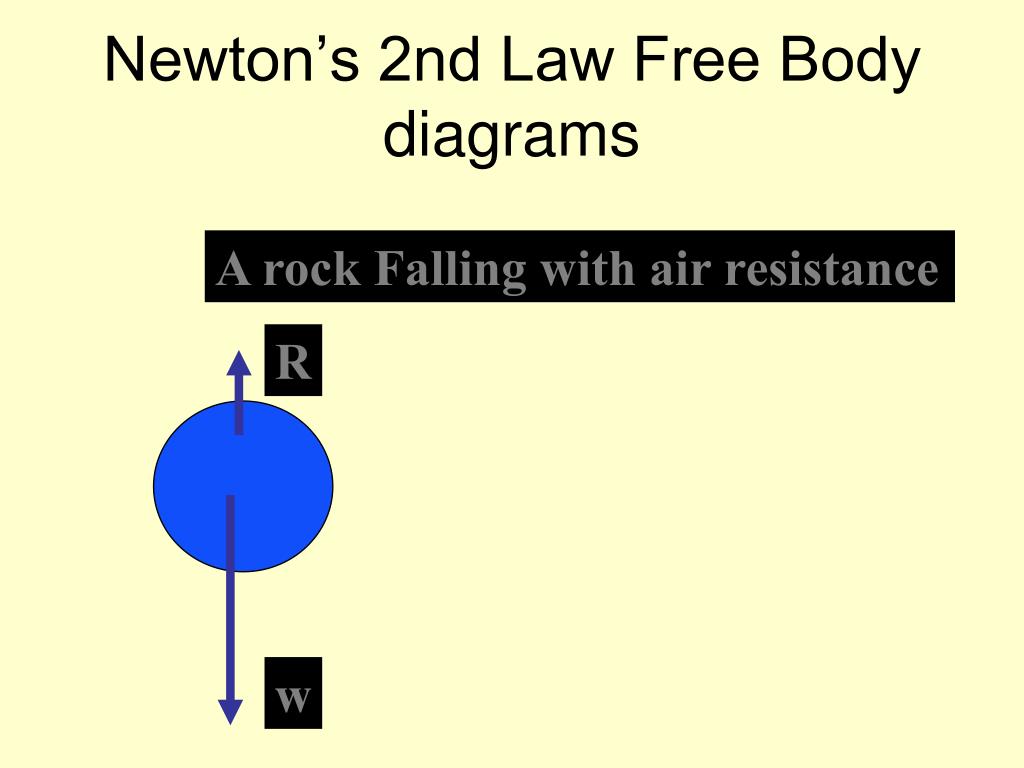

  9. Newton’s 2nd Law Free Body diagrams A rock Falling with air resistance R w

  10. Newton’s 2nd Law Free Body diagrams A rock on a string

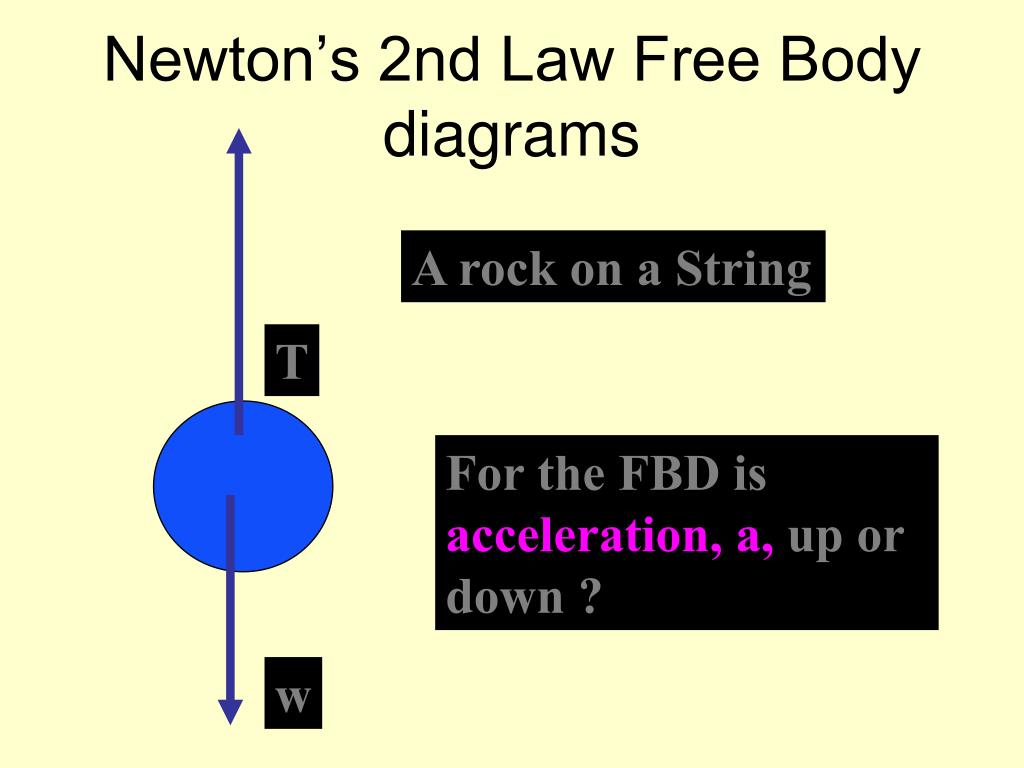

  11. Newton’s 2nd Law Free Body diagrams A rock on a String T For the FBD is acceleration, a, up or down ? w

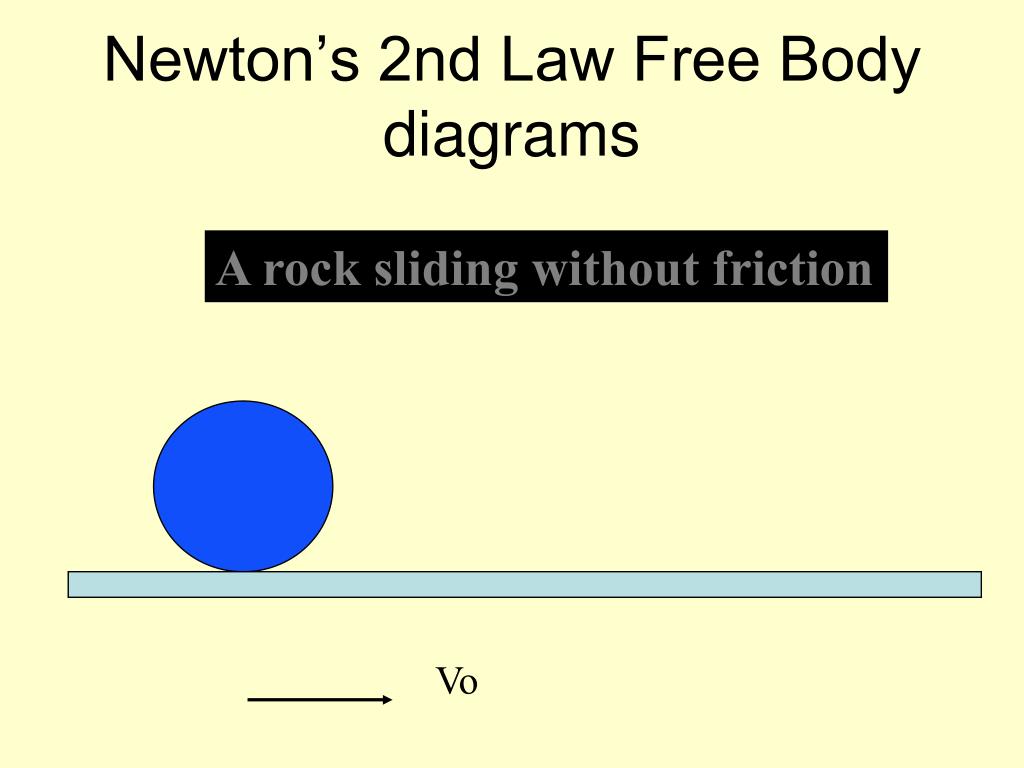

  12. Newton’s 2nd Law Free Body diagrams A rock sliding without friction Vo

  13. Newton’s 2nd Law Free Body diagrams A rock sliding without friction N w

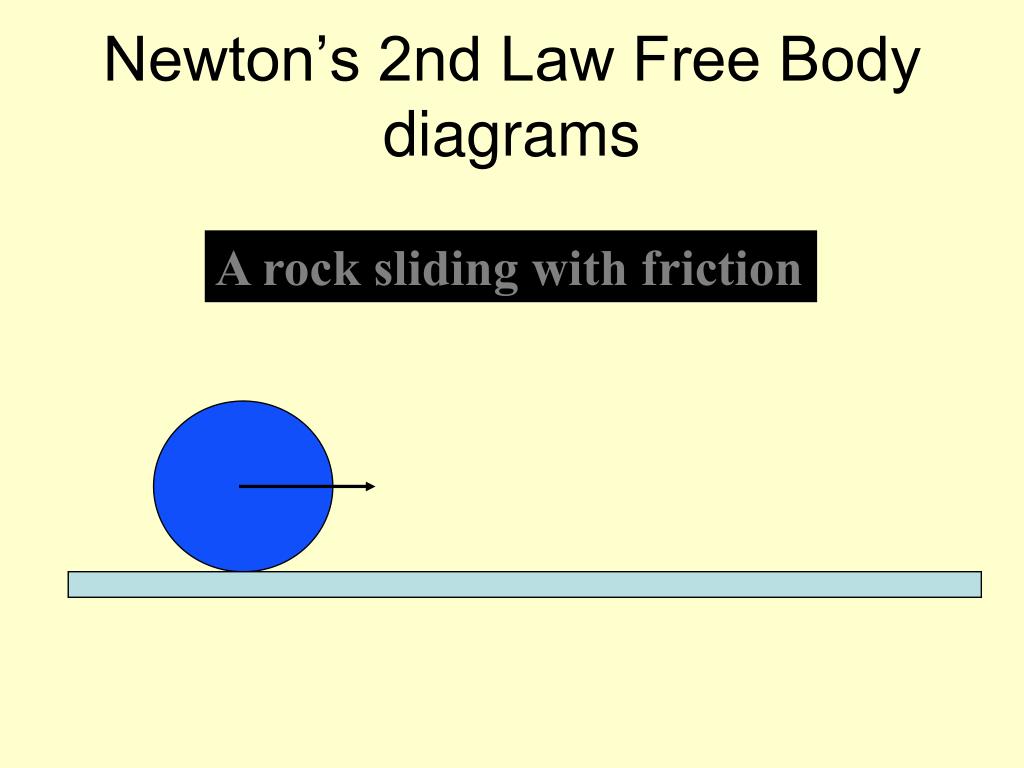

  14. Newton’s 2nd Law Free Body diagrams A rock sliding with friction
