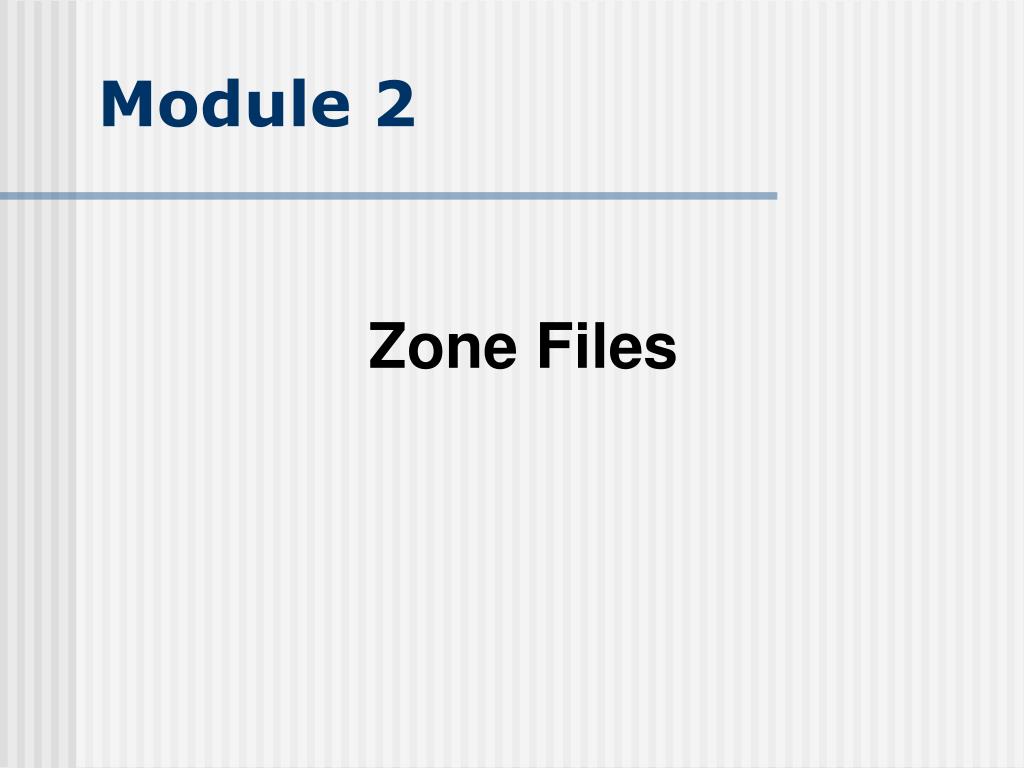

  1. Module 2 Zone Files

  2. Objective • Understand the idea of a zone and how it relates to a domain name • understand zone file structure • Understand the major Resource Record (RRs) used to create zone files • Understand IPv4 Reverse Mapping • Understand which zone files are required

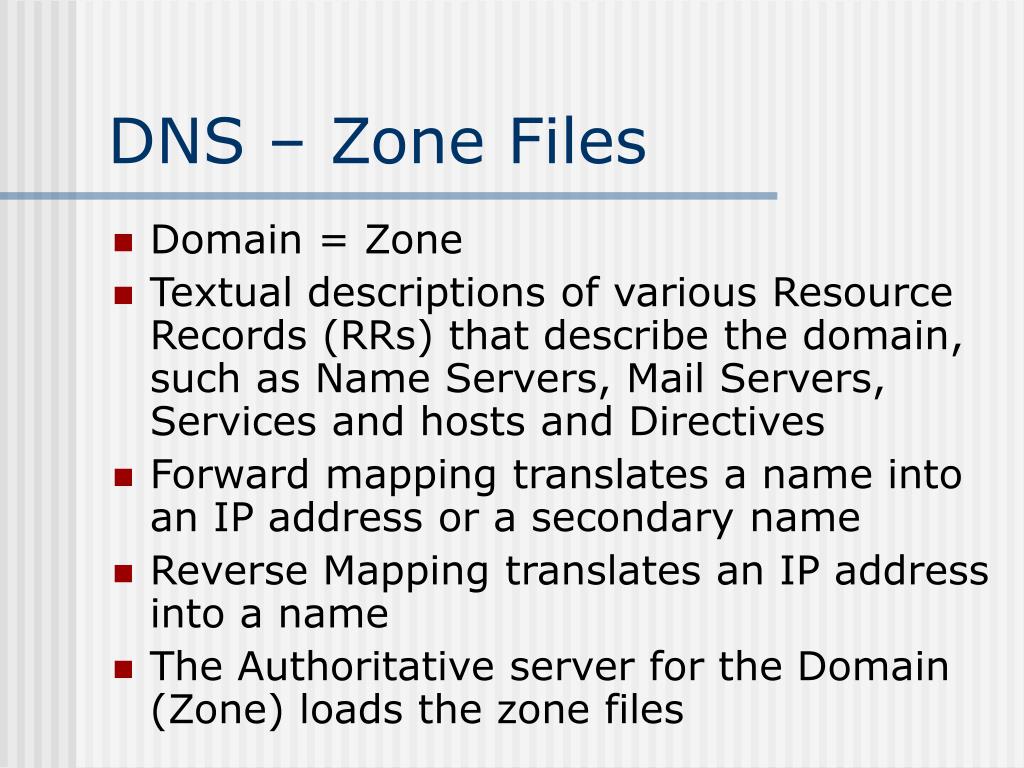

  3. DNS – Zone Files • Domain = Zone • Textual descriptions of various Resource Records (RRs) that describe the domain, such as Name Servers, Mail Servers, Services and hosts and Directives • Forward mapping translates a name into an IP address or a secondary name • Reverse Mapping translates an IP address into a name • The Authoritative server for the Domain (Zone) loads the zone files

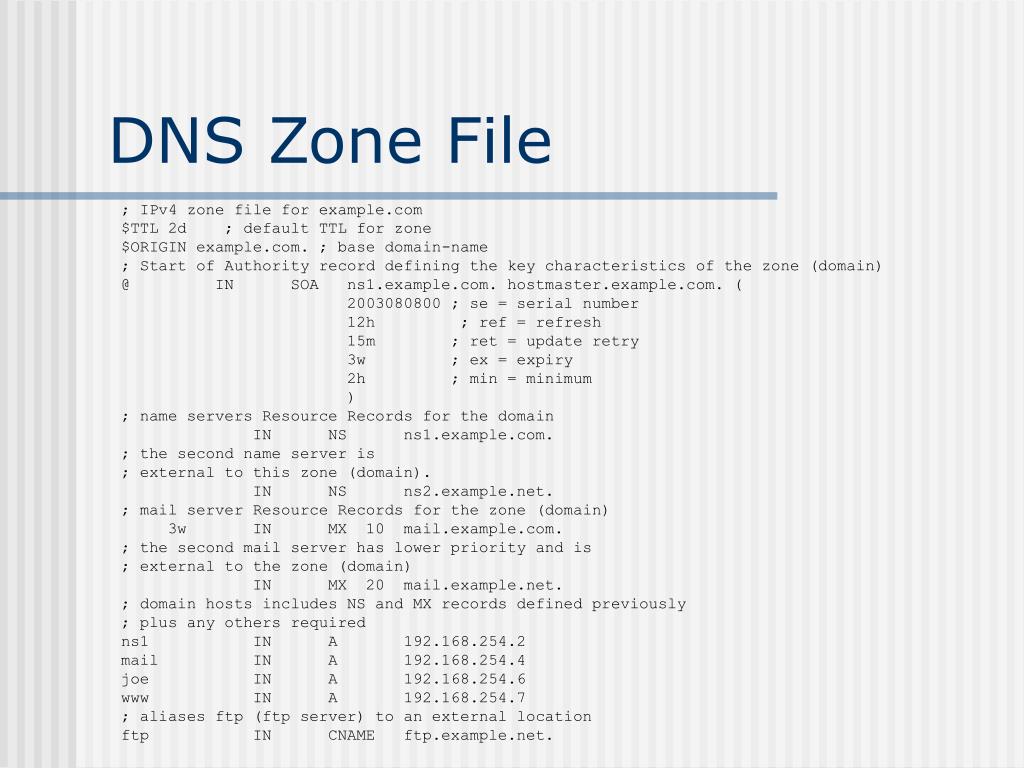

  4. DNS Zone File ; IPv4 zone file for example.com $TTL 2d ; default TTL for zone $ORIGIN example.com. ; base domain-name ; Start of Authority record defining the key characteristics of the zone (domain) @ IN SOA ns1.example.com. hostmaster.example.com. ( 2003080800 ; se = serial number 12h ; ref = refresh 15m ; ret = update retry 3w ; ex = expiry 2h ; min = minimum ) ; name servers Resource Records for the domain IN NS ns1.example.com. ; the second name server is ; external to this zone (domain). IN NS ns2.example.net. ; mail server Resource Records for the zone (domain) 3w IN MX 10 mail.example.com. ; the second mail server has lower priority and is ; external to the zone (domain) IN MX 20 mail.example.net. ; domain hosts includes NS and MX records defined previously ; plus any others required ns1 IN A 192.168.254.2 mail IN A 192.168.254.4 joe IN A 192.168.254.6 www IN A 192.168.254.7 ; aliases ftp (ftp server) to an external location ftp IN CNAME ftp.example.net.

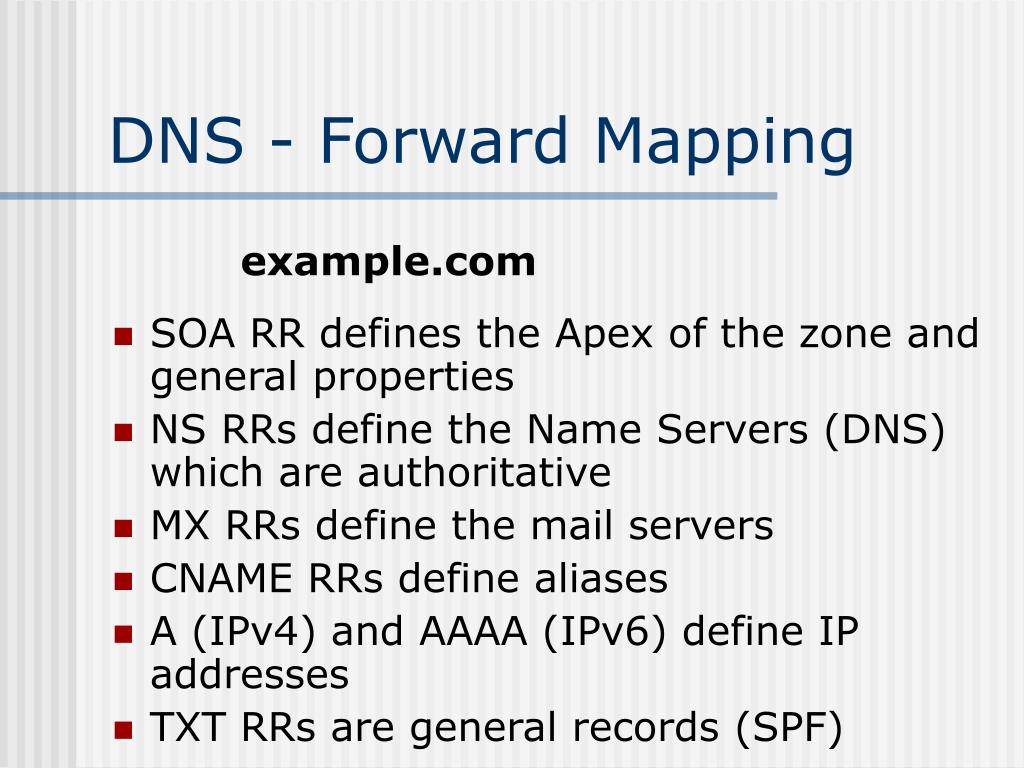

  5. DNS - Forward Mapping • SOA RR defines the Apex of the zone and general properties • NS RRs define the Name Servers (DNS) which are authoritative • MX RRs define the mail servers • CNAME RRs define aliases • A (IPv4) and AAAA (IPv6) define IP addresses • TXT RRs are general records (SPF) example.com

  6. RRs – Generic Format • name or label identifies the record externally, for instance, www • ttl (Time-to-Live) defines how long the RR may be cached in seconds • class = IN = Internet • type of RR, for example, MX • One or more type-specific parameters • TTL and Class can be omitted name ttl class type parameters

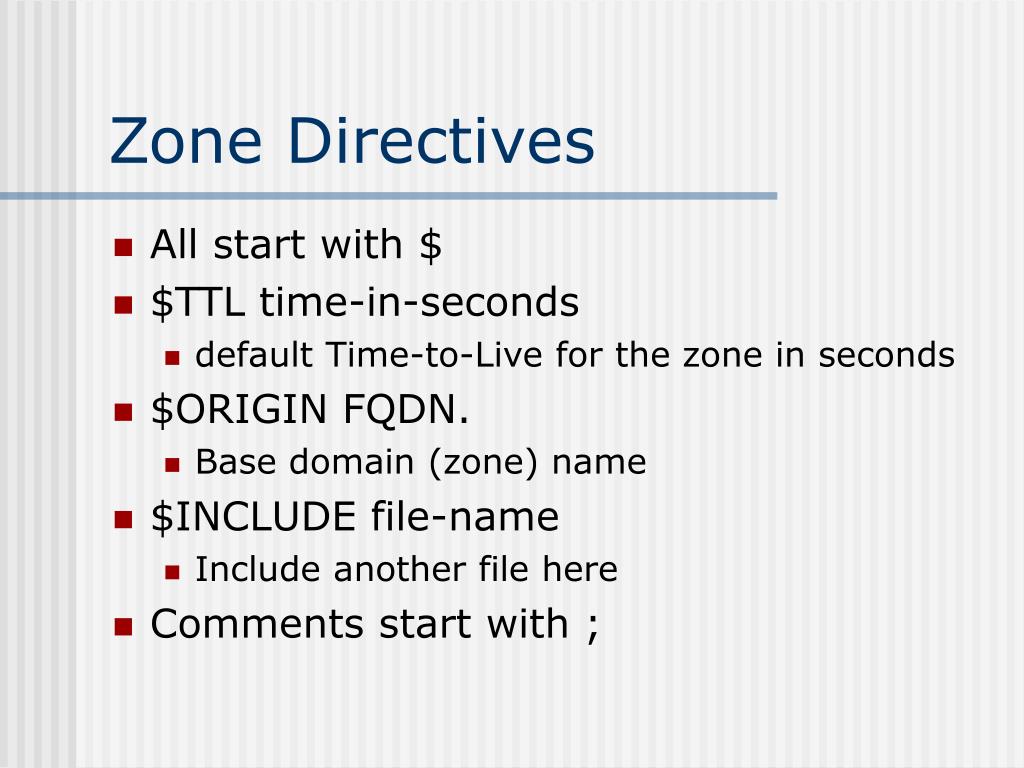

  7. Zone Directives • All start with $ • $TTL time-in-seconds • default Time-to-Live for the zone in seconds • $ORIGIN FQDN. • Base domain (zone) name • $INCLUDE file-name • Include another file here • Comments start with ;

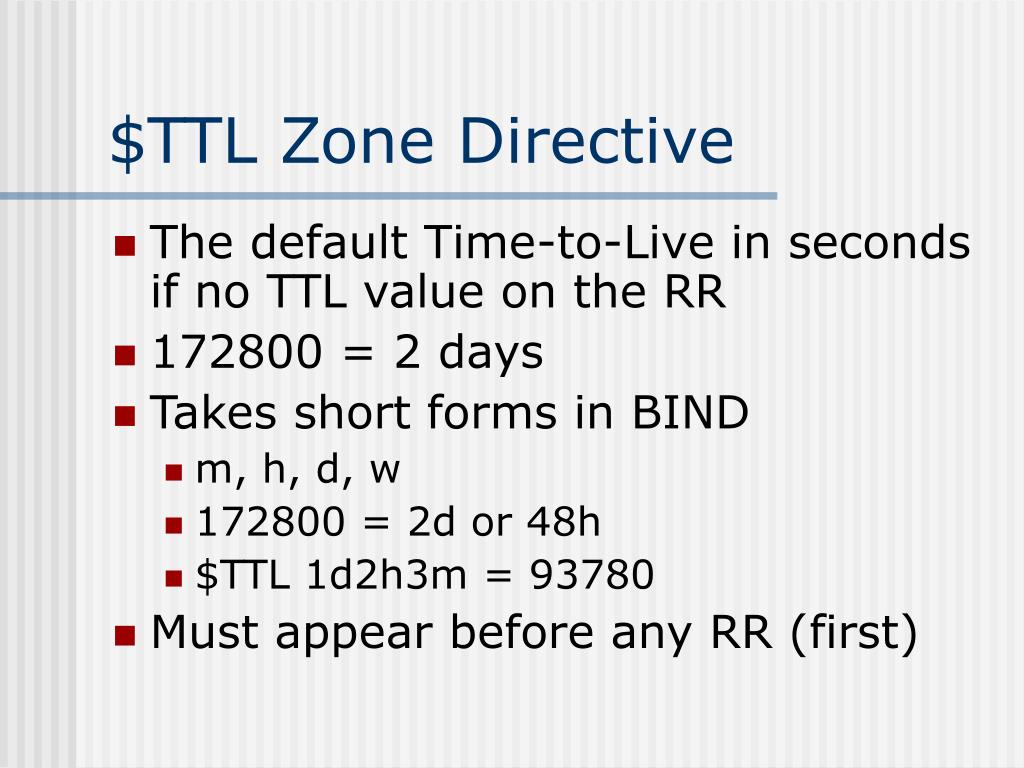

  8. $TTL Zone Directive • The default Time-to-Live in seconds if no TTL value on the RR • 172800 = 2 days • Takes short forms in BIND • m, h, d, w • 172800 = 2d or 48h • $TTL 1d2h3m = 93780 • Must appear before any RR (first)

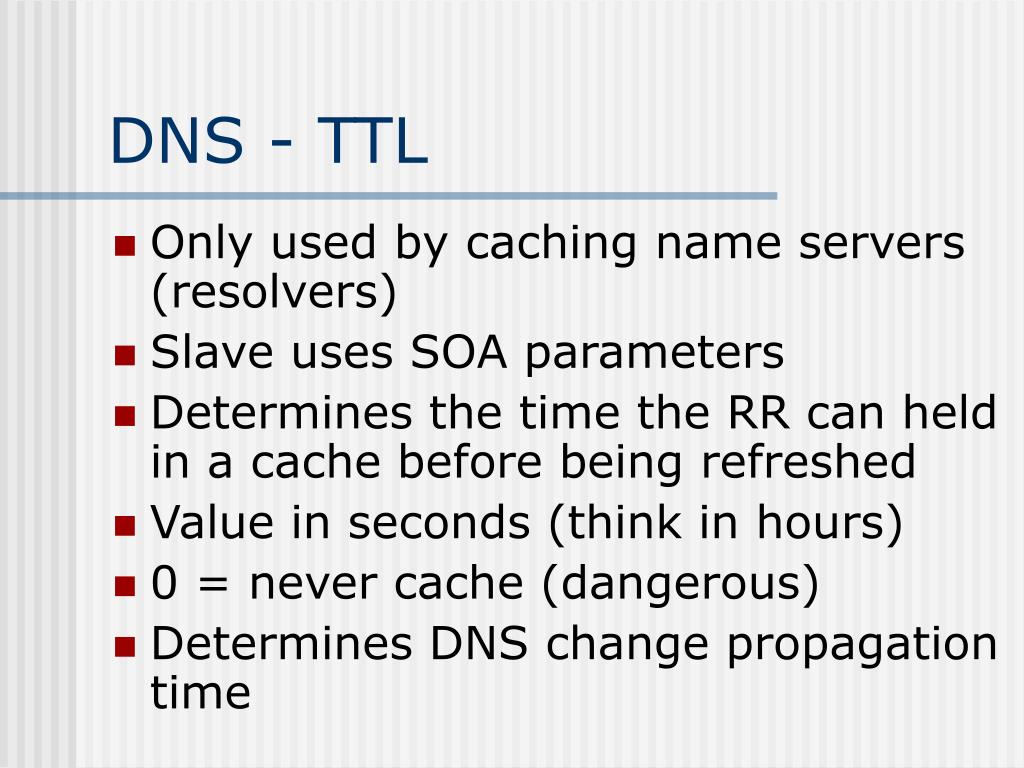

  9. DNS - TTL • Only used by caching name servers (resolvers) • Slave uses SOA parameters • Determines the time the RR can held in a cache before being refreshed • Value in seconds (think in hours) • 0 = never cache (dangerous) • Determines DNS change propagation time

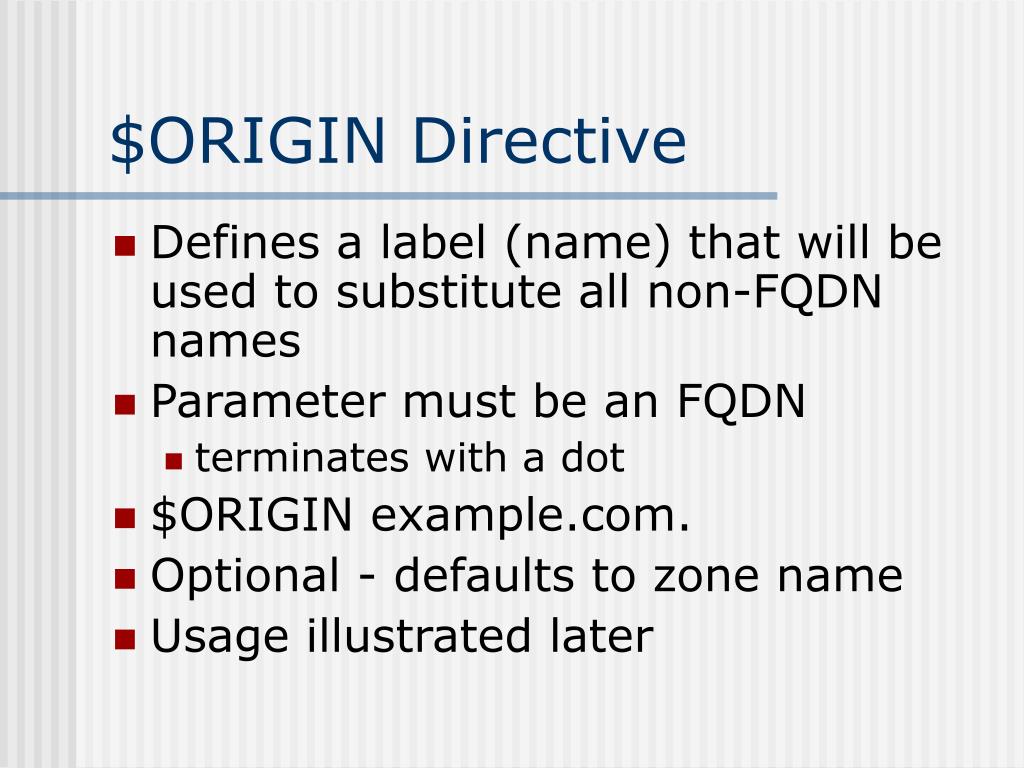

  10. $ORIGIN Directive • Defines a label (name) that will be used to substitute all non-FQDN names • Parameter must be an FQDN • terminates with a dot • $ORIGIN example.com. • Optional - defaults to zone name • Usage illustrated later

  11. DNS Zone File ; IPv4 zone file for example.com $TTL 2d ; default TTL for zone $ORIGIN example.com. ; base domain-name ; Start of Authority record defining the key characteristics of the zone (domain) @ IN SOA ns1.example.com. hostmaster.example.com. ( 2003080800 ; se = serial number 12h ; ref = refresh 15m ; ret = update retry 3w ; ex = expiry 2h ; min = minimum ) ; name servers Resource Records for the domain IN NS ns1.example.com. ; the second name server is ; external to this zone (domain). IN NS ns2.example.net. ; mail server Resource Records for the zone (domain) 3w IN MX 10 mail.example.com. ; the second mail server has lower priority and is ; external to the zone (domain) IN MX 20 mail.example.net. ; domain hosts includes NS and MX records defined previously ; plus any others required ns1 IN A 192.168.254.2 mail IN A 192.168.254.4 joe IN A 192.168.254.6 www IN A 192.168.254.7 ; aliases ftp (ftp server) to an external location ftp IN CNAME ftp.example.net.

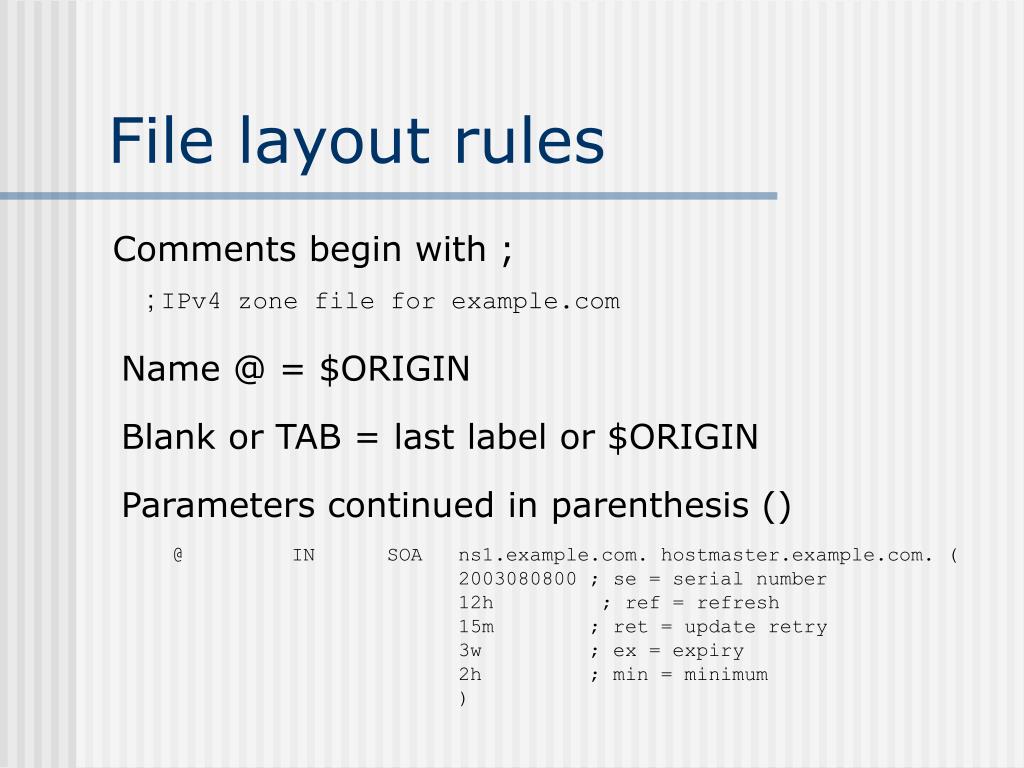

  12. File layout rules Comments begin with ; ; IPv4 zone file for example.com Name @ = $ORIGIN Blank or TAB = last label or $ORIGIN Parameters continued in parenthesis () @ IN SOA ns1.example.com. hostmaster.example.com. ( 2003080800 ; se = serial number 12h ; ref = refresh 15m ; ret = update retry 3w ; ex = expiry 2h ; min = minimum )

  13. DNS – Substitution Rule • If any name (label) in a zone file is not an FQDN the last value of $ORIGIN will be appended to the end of the name (label).

  14. DNS - SOA RR • SOA defines the start of the zone and must be first non-directive entry • pmns = Primary Master Name Server • One of the authoritative name servers OR • if DDNS is used it defines the NS which will be updated • Spec. name is MNAME SOA pmns mail sn refresh retry expiry min

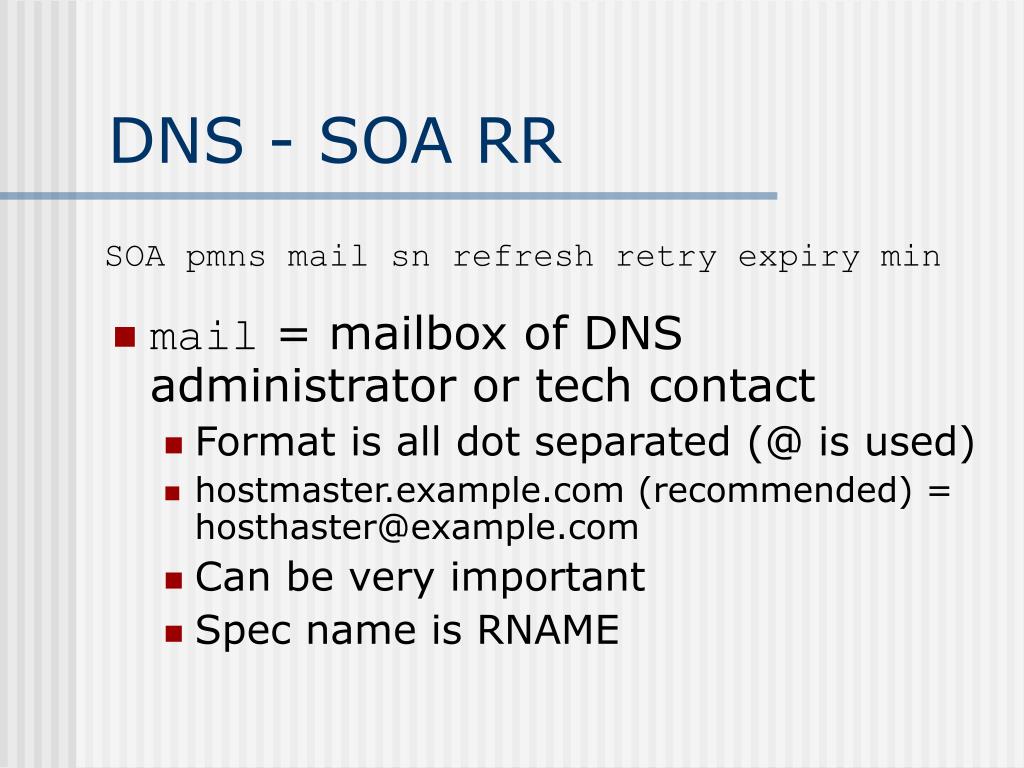

  15. DNS - SOA RR • mail = mailbox of DNS administrator or tech contact • Format is all dot separated (@ is used) • hostmaster.example.com (recommended) = hosthaster@example.com • Can be very important • Spec name is RNAME SOA pmns mail sn refresh retry expiry min

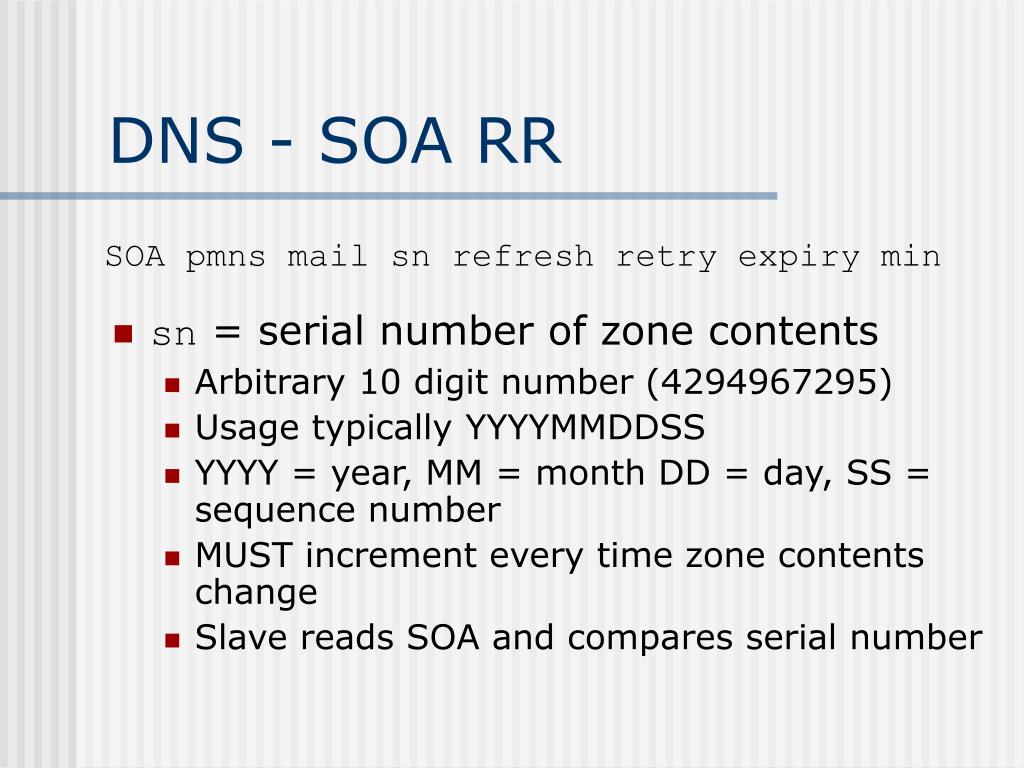

  16. DNS - SOA RR • sn = serial number of zone contents • Arbitrary 10 digit number (4294967295) • Usage typically YYYYMMDDSS • YYYY = year, MM = month DD = day, SS = sequence number • MUST increment every time zone contents change • Slave reads SOA and compares serial number SOA pmns mail sn refresh retry expiry min

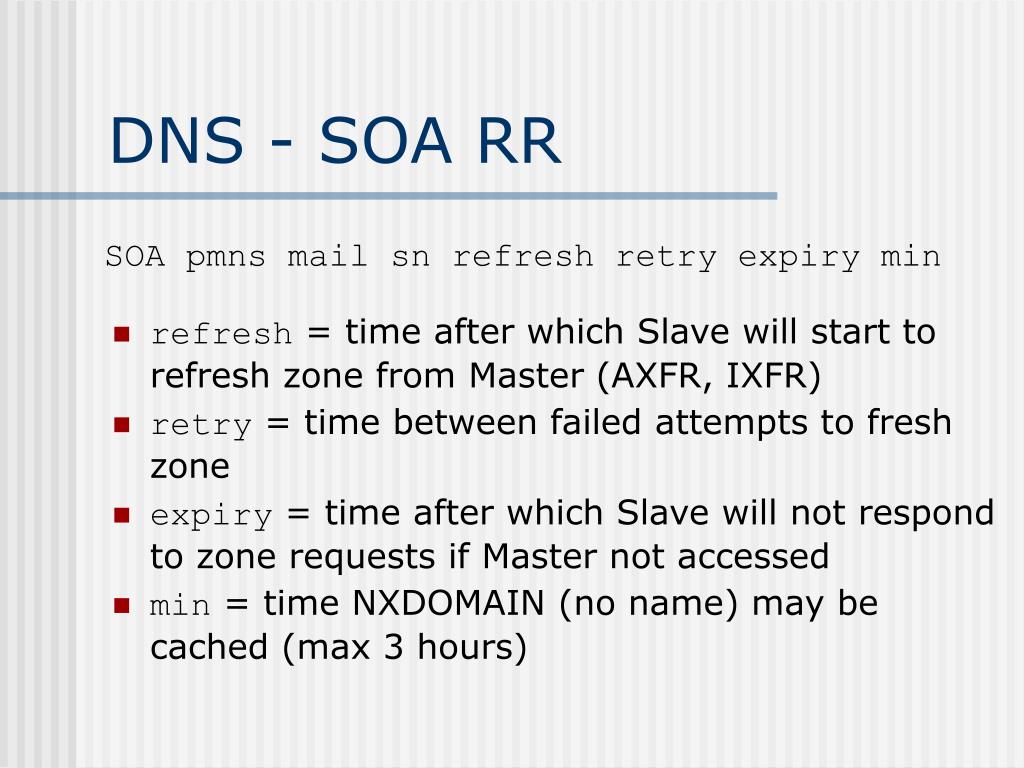

  17. DNS - SOA RR • refresh = time after which Slave will start to refresh zone from Master (AXFR, IXFR) • retry = time between failed attempts to fresh zone • expiry = time after which Slave will not respond to zone requests if Master not accessed • min = time NXDOMAIN (no name) may be cached (max 3 hours) SOA pmns mail sn refresh retry expiry min

  18. DNS – SOA Example @ IN SOA ns1.example.com. hostmaster.example.com. ( 2003080800 ; se = serial number 12h ; ref = refresh 15m ; ret = update retry 3w ; ex = expiry 2h ; min = nxdomain ttl )

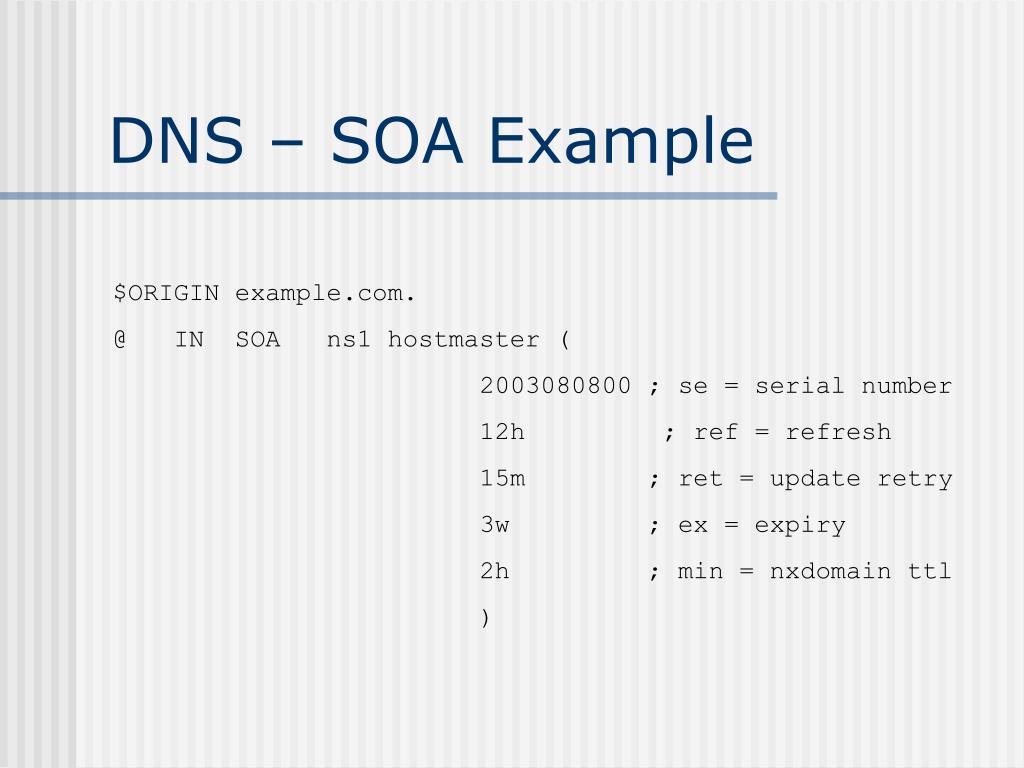

  19. DNS – SOA Example $ORIGIN example.com. @ IN SOA ns1 hostmaster ( 2003080800 ; se = serial number 12h ; ref = refresh 15m ; ret = update retry 3w ; ex = expiry 2h ; min = nxdomain ttl )

  20. DNS - NS RR • NS RRs list all name servers for the domain • At zone apex for this zone • Minimum of two • In-zone servers will need A or AAAA RRs • name = name of an internal or external name server that is authoritative for this domain • NS RRs appear in the zone (authoritative) and the parent (point of delegation – not authoritative) NS name

  21. DNS – NS RRs ; name servers Resource Records for the domain IN NS ns1.example.com. ; could have been ; IN NS ns1 ; the second name server is ; external to this zone (domain). IN NS ns2.example.net.

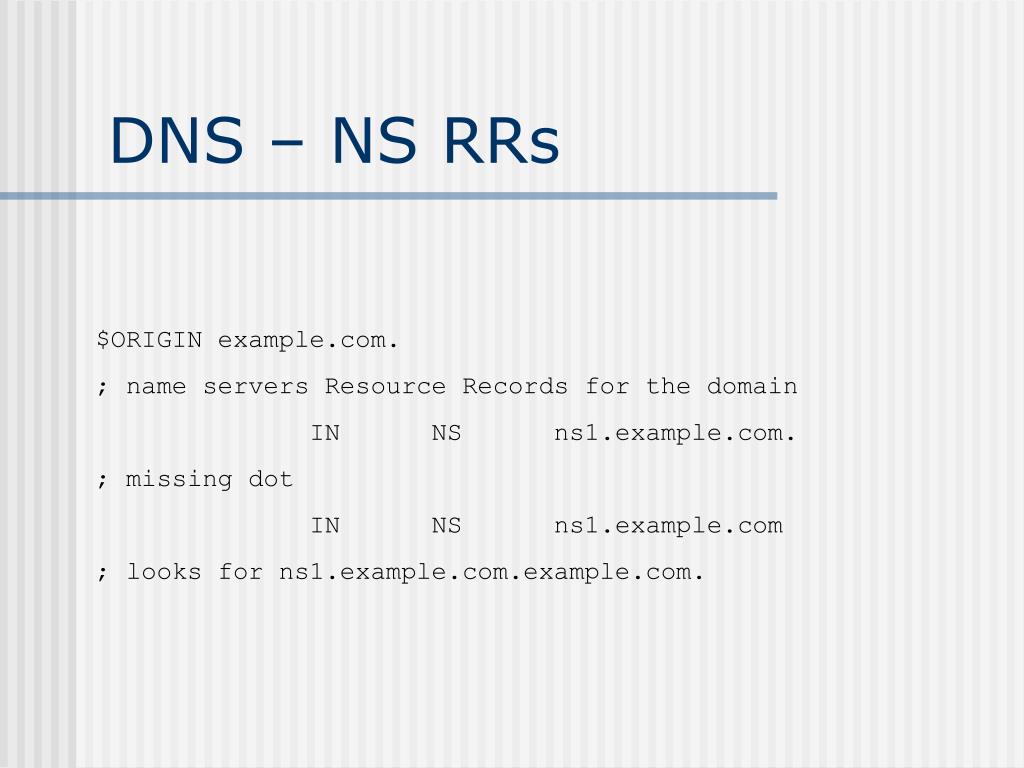

  22. DNS – NS RRs $ORIGIN example.com. ; name servers Resource Records for the domain IN NS ns1.example.com. ; missing dot IN NS ns1.example.com ; looks for ns1.example.com.example.com.

  23. DNS - MX RR • MX RRs list all incoming mail servers for the domain • Defined at zone apex for this zone • One or more • priority = relative priority of defined server (low is most important). Value = 0 – 65535 • name = name of an internal or external mail server for this domain • In-zone servers will have A or AAAA RRs MX priority name

  24. DNS – MX RRs ; mail server Resource Records for the zone (domain) 3w IN MX 10 mail.example.com. ; the second mail server has lower priority and is ; external to the zone (domain) - backup IN MX 20 mail.example.net. 3w = TTL Priority 10 simply means you can add a more important mail server with only one change

  25. DNS - A RR • A RRs list all visible hosts for the zone (domain). • Must include the in-zone NS and MX RRs plus others • IPv4-address = standard dotted quad address (address not a name) A IPv4-address

  26. DNS - AAAA RR • AAAA RRs list all visible IPv6 hosts for the zone (domain). • Mixed with A RRs • Both A and AAAA if dual stacked • IPv6-address = standard colon separated address (address not a name) AAAA IPv6-address

  27. DNS – A RRs ; domain hosts includes NS and MX records defined ;previously plus any others required ns1 IN A 192.168.254.2 mail IN A 192.168.254.4 joe IN A 192.168.254.6 www IN A 192.168.254.7

  28. DNS - CNAME RR • CNAME RRs maps an alias name to a canonical (real) name (A or AAAA RRs) • May point to a host name in-zone or out-of-zone • canonical-name = real name of host • CNAME costs extra access • Alternate is to use multiple A or AAAA RRs CNAME canonical-name

  29. DNS – CNAME RRs ; aliases ftp (ftp server) to an external location ftp IN CNAME ftp.example.net. ; very common use of CNAME mail IN A 192.168.2.3 www IN CNAME mail ; alternate – functionally identical mail IN A 192.168.2.3 www IN A 192.168.2.3

  30. DNS - TXT RRs • TXT RRs may be used to contain any text • Externally visible • Used to define Sender Profile (SPF) RRs (now also SPF RR) • Used to define DKIM RRs • text = enclosed in quotes TXT text

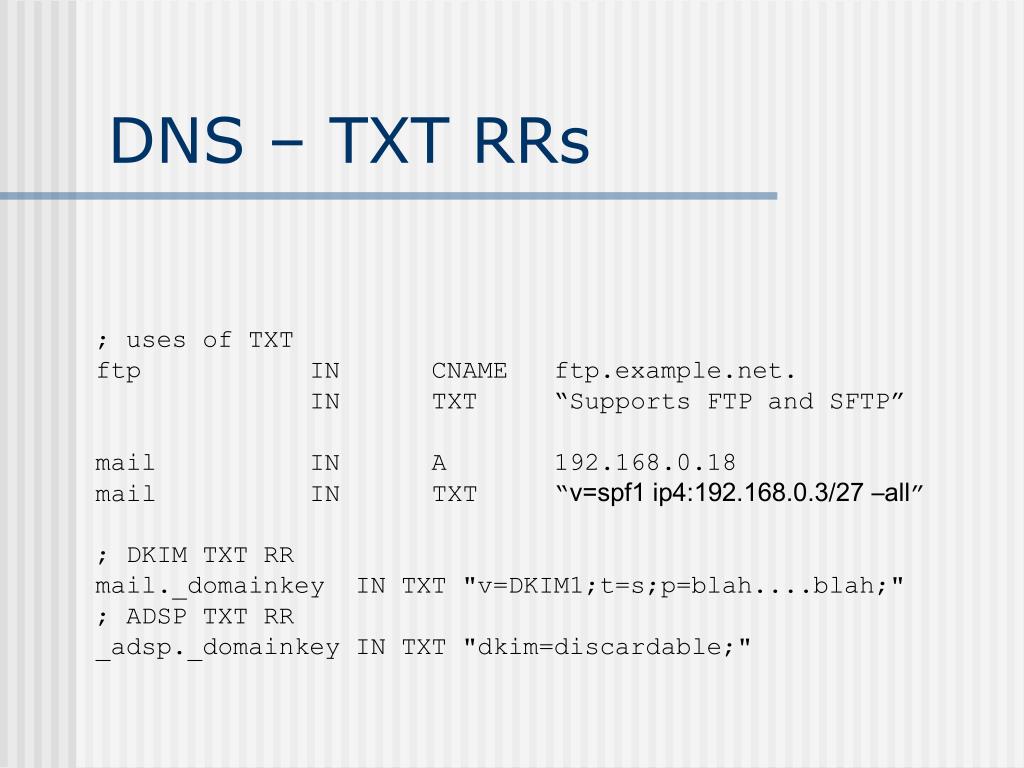

  31. DNS – TXT RRs ; uses of TXT ftp IN CNAME ftp.example.net. IN TXT “Supports FTP and SFTP” mail IN A 192.168.0.18 mail IN TXT “v=spf1 ip4:192.168.0.3/27 –all” ; DKIM TXT RR mail._domainkey IN TXT "v=DKIM1;t=s;p=blah....blah;" ; ADSP TXT RR _adsp._domainkey IN TXT "dkim=discardable;"

  32. DNS – Reverse Mapping • Maps an IP address to a name • Domain name hierarchy is right to left – www.example.com • IP address hierarchy is left to right 192.168.0.1 • Solution • Remove last digit (192.168.0) • Invert number (0.168.192) • Append in-addr.arpa (0.168.192.in-addr.arpa) • Define .1 (and others) in zone file with PTR RR

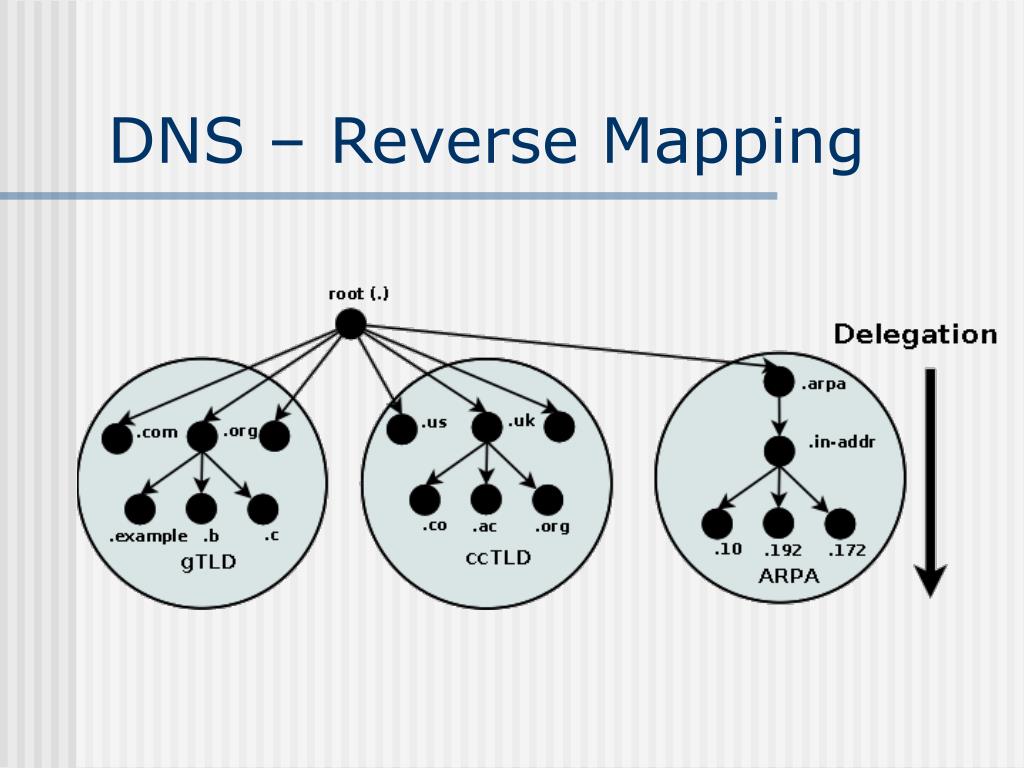

  33. DNS – Reverse Mapping

  34. DNS – Reverse Zone File ; simple reverse mapping zone file for example.com $TTL 2d ; default TTL for zone $ORIGIN 254.168.192.IN-ADDR.ARPA. ; Start of Authority record defining the key characteristics of the zone (domain) @ IN SOA ns1.example.com. hostmaster.example.com. ( 2003080800 ; sn = serial number 12h ; refresh 15m ; retry 3w ; expiry 2h ; min = minimum ) ; name servers Resource Records for the domain IN NS ns1.example.com. ; the second name server is ; external to this zone (domain). IN NS ns2.anotherdomain.com. ; PTR RR maps an IPv4 address to a host name 2 IN PTR ns1.example.com. ..... 4 IN PTR mail.example.com. ..... 16 IN PTR joe.example.com. 17 IN PTR www.example.com. ....

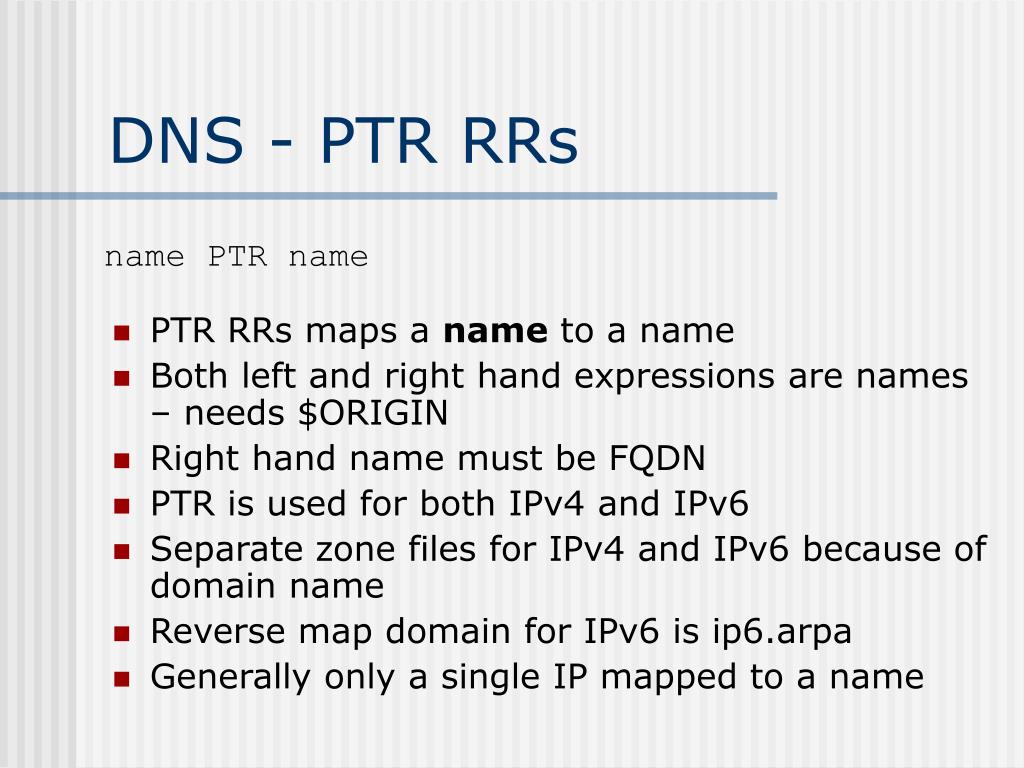

  35. DNS - PTR RRs • PTR RRs maps a name to a name • Both left and right hand expressions are names – needs $ORIGIN • Right hand name must be FQDN • PTR is used for both IPv4 and IPv6 • Separate zone files for IPv4 and IPv6 because of domain name • Reverse map domain for IPv6 is ip6.arpa • Generally only a single IP mapped to a name name PTR name

  36. DNS – PTR RR $ORIGIN 254.168.192.IN-ADDR.ARPA. ... ; PTR RR maps an IPv4 address to a host name 2 IN PTR ns1.example.com. ..... 4 IN PTR mail.example.com. ..... 16 IN PTR joe.example.com. • IN PTR www.example.com. ; could be written as 17. 254.168.192.IN-ADDR.ARPA. IN PTR www.example.com. ... ; missing dot • IN PTR bill.example.com ; maps to bill.example.com.254.168.192.IN-ADDR.ARPA. ....

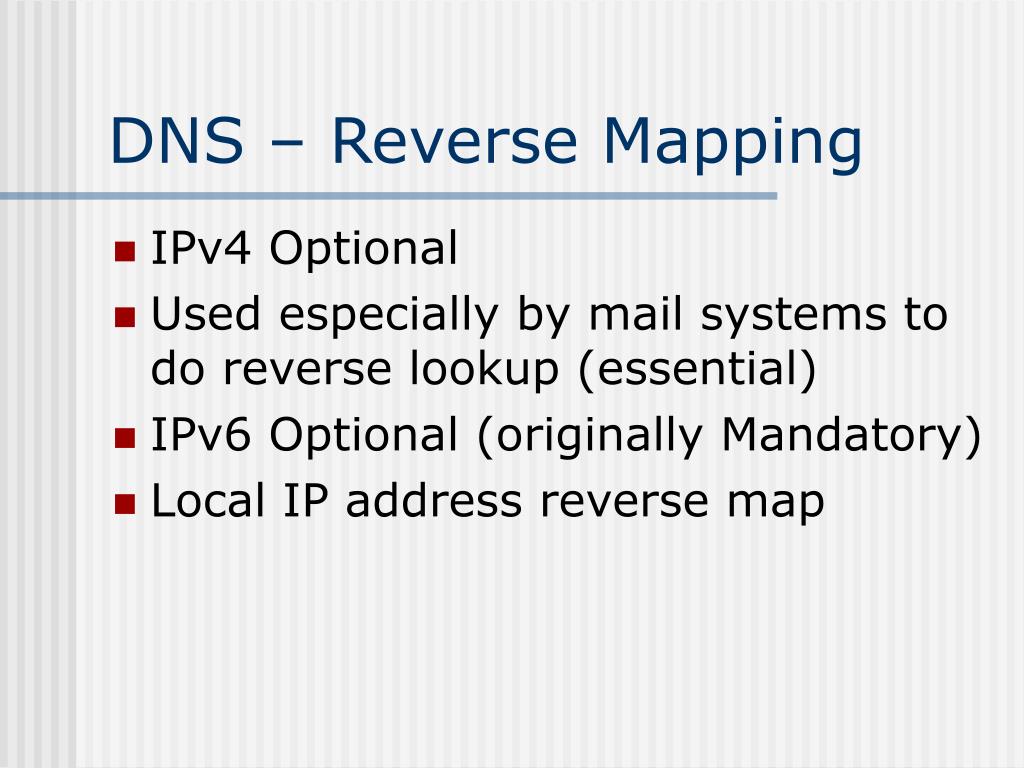

  37. DNS – Reverse Mapping • IPv4 Optional • Used especially by mail systems to do reverse lookup (essential) • IPv6 Optional (originally Mandatory) • Local IP address reverse map

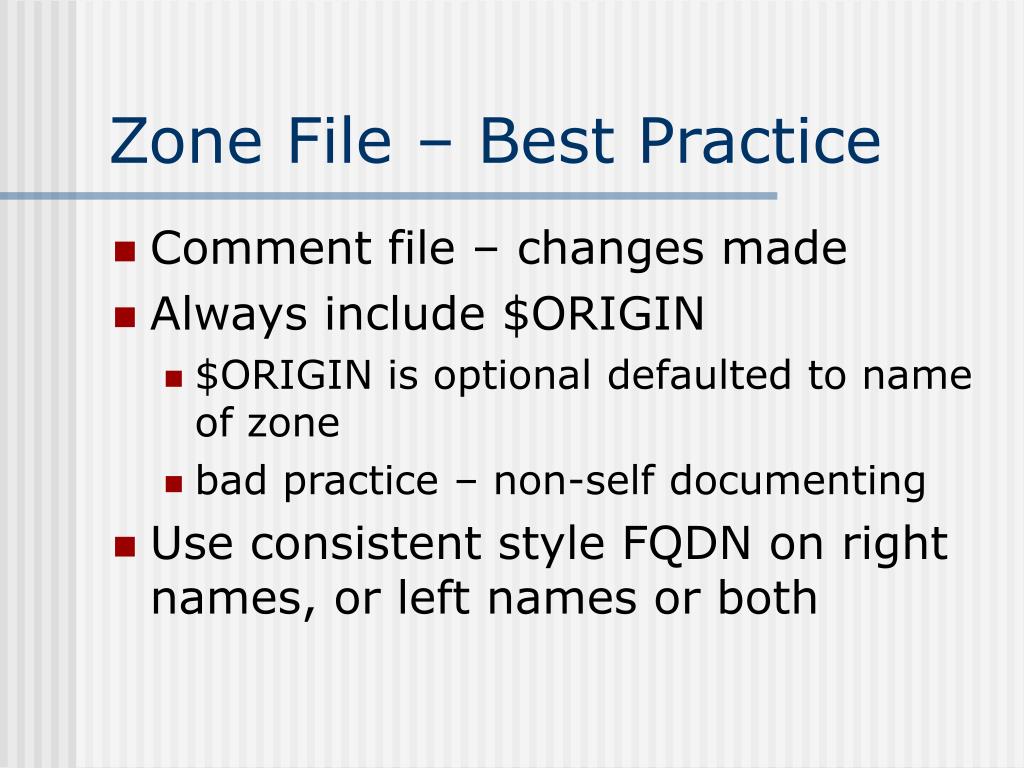

  38. Zone File – Best Practice • Comment file – changes made • Always include $ORIGIN • $ORIGIN is optional defaulted to name of zone • bad practice – non-self documenting • Use consistent style FQDN on right names, or left names or both

  39. Required Zone Files • Depends on name server function • Forward and reverse map for localhost zone • Forward domain = localhost • Reverse map 0.0.127.in-addr.arpa • Hints file if caching server – points to root-servers • Reverse map private IPs (192.168.x, 10.x.x, 172.16.x)

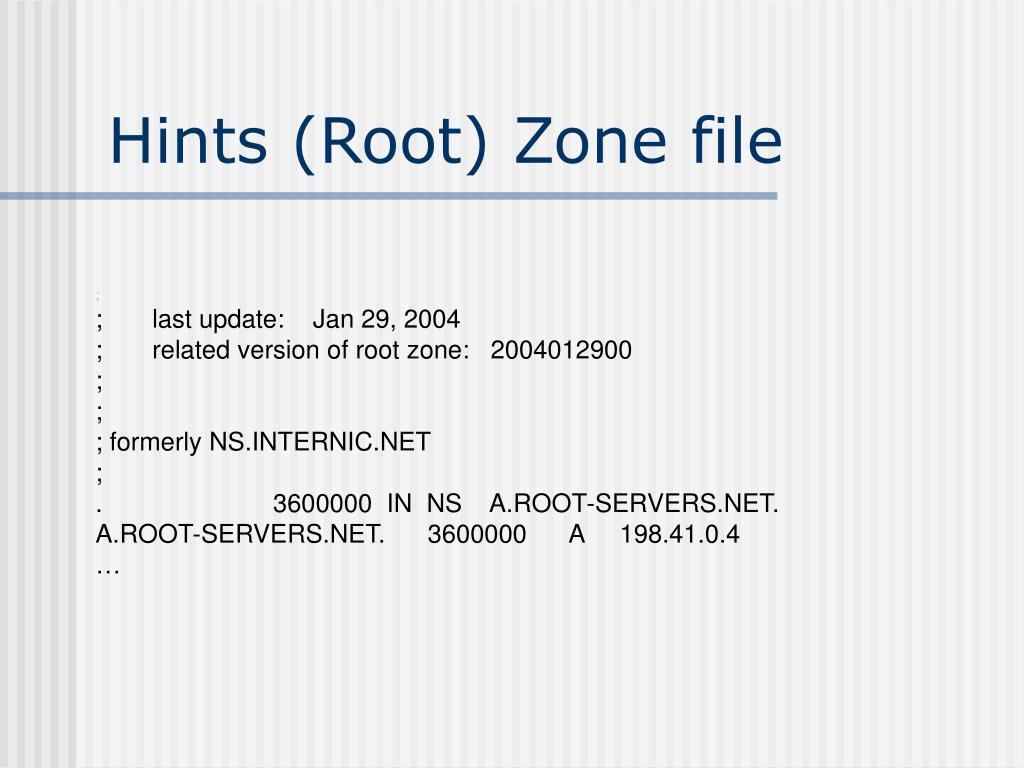

  40. Hints (Root) Zone file ; ; last update: Jan 29, 2004 ; related version of root zone: 2004012900 ; ; ; formerly NS.INTERNIC.NET ; . 3600000 IN NS A.ROOT-SERVERS.NET. A.ROOT-SERVERS.NET. 3600000 A 198.41.0.4 …

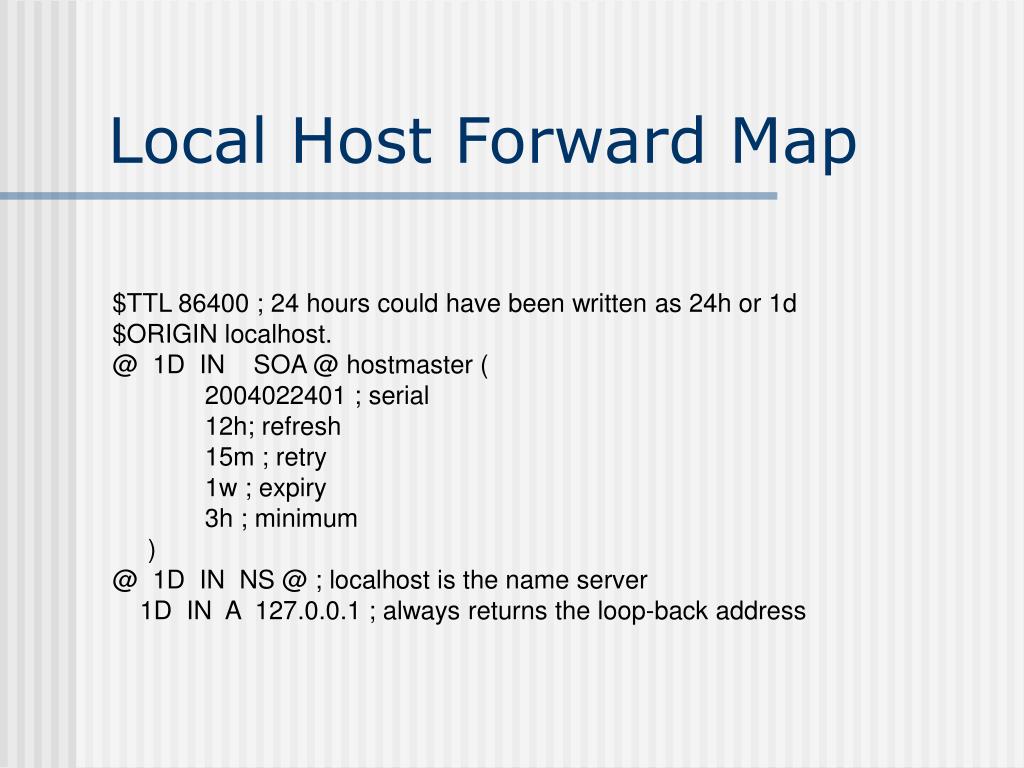

  41. Local Host Forward Map $TTL 86400 ; 24 hours could have been written as 24h or 1d $ORIGIN localhost. @ 1D IN SOA @ hostmaster ( 2004022401 ; serial 12h; refresh 15m ; retry 1w ; expiry 3h ; minimum ) @ 1D IN NS @ ; localhost is the name server 1D IN A 127.0.0.1 ; always returns the loop-back address

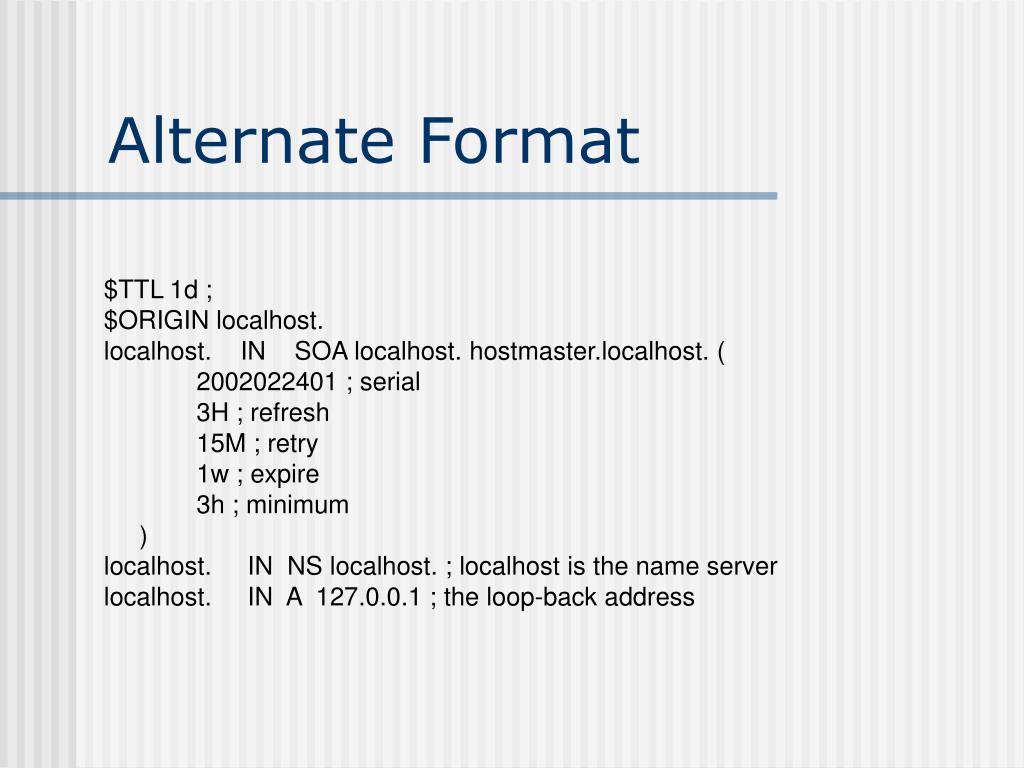

  42. Alternate Format $TTL 1d ; $ORIGIN localhost. localhost. IN SOA localhost. hostmaster.localhost. ( 2002022401 ; serial 3H ; refresh 15M ; retry 1w ; expire 3h ; minimum ) localhost. IN NS localhost. ; localhost is the name server localhost. IN A 127.0.0.1 ; the loop-back address

  43. Localhost Reverse Map $TTL 86400 ; 24 hours ; could use $ORIGIN 0.0.127.IN-ADDR.ARPA. @ IN SOA localhost. hostmaster.localhost. ( 1997022700 ; Serial 3h ; Refresh 15 ; Retry 1w ; Expire 3h ) ; Minimum IN NS localhost. 1 IN PTR localhost.

  44. Quick Quiz • What RR defines a mail server? • What is the first record in a zone file? • What does the $ORIGIN directive do? • How does the slave know to transfer zone? • What is a PTR RR used for? • What value defines how long an RR can be cached?
