Using history invariants to verify observers

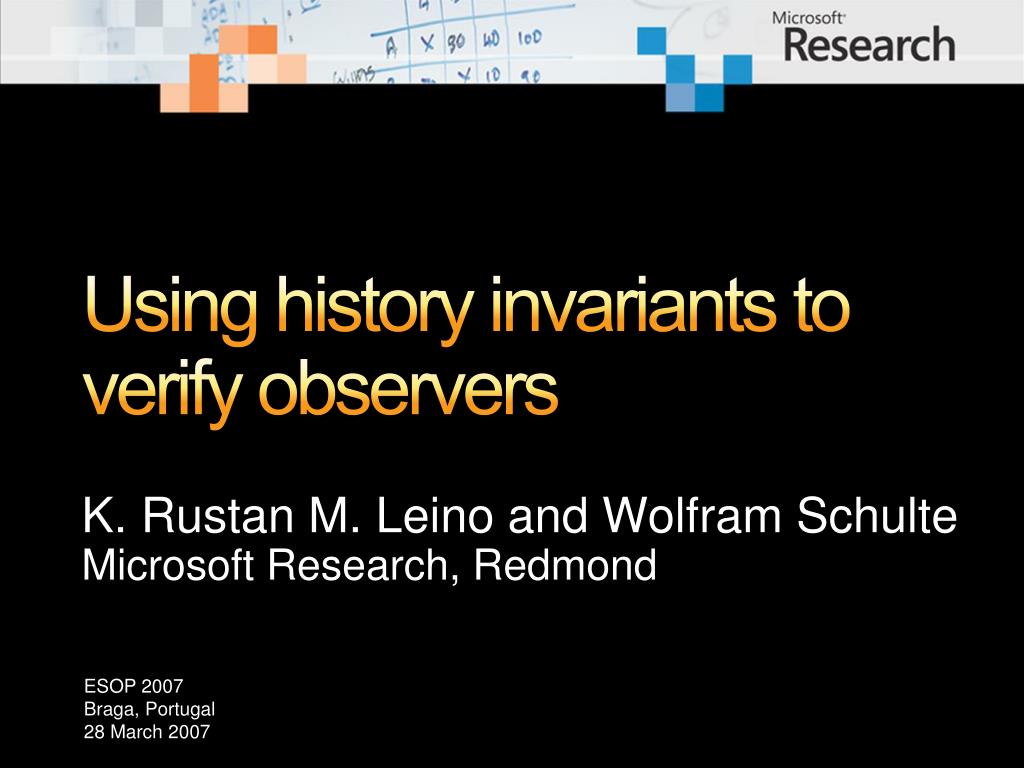

1. Using history invariants to verify observers K. Rustan M. Leino and Wolfram Schulte Microsoft Research, Redmond ESOP 2007Braga, Portugal28 March 2007

2. Overall goal • Specify and statically verify programs • Use modular verification (local reasoning)These require: • Invariants of data structures • Support for common programming patterns

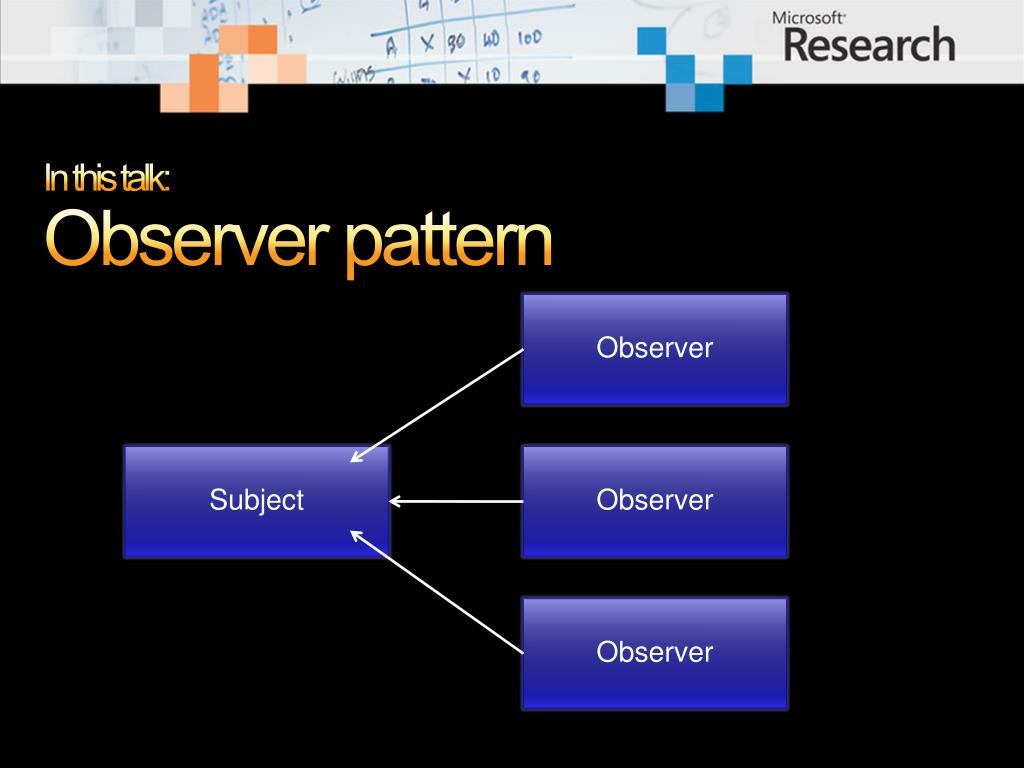

3. In this talk:Observer pattern Observer Subject Observer Observer

4. In this talk:Observer pattern or: Collection / Iterator pattern Iterator Collection Iterator Iterator

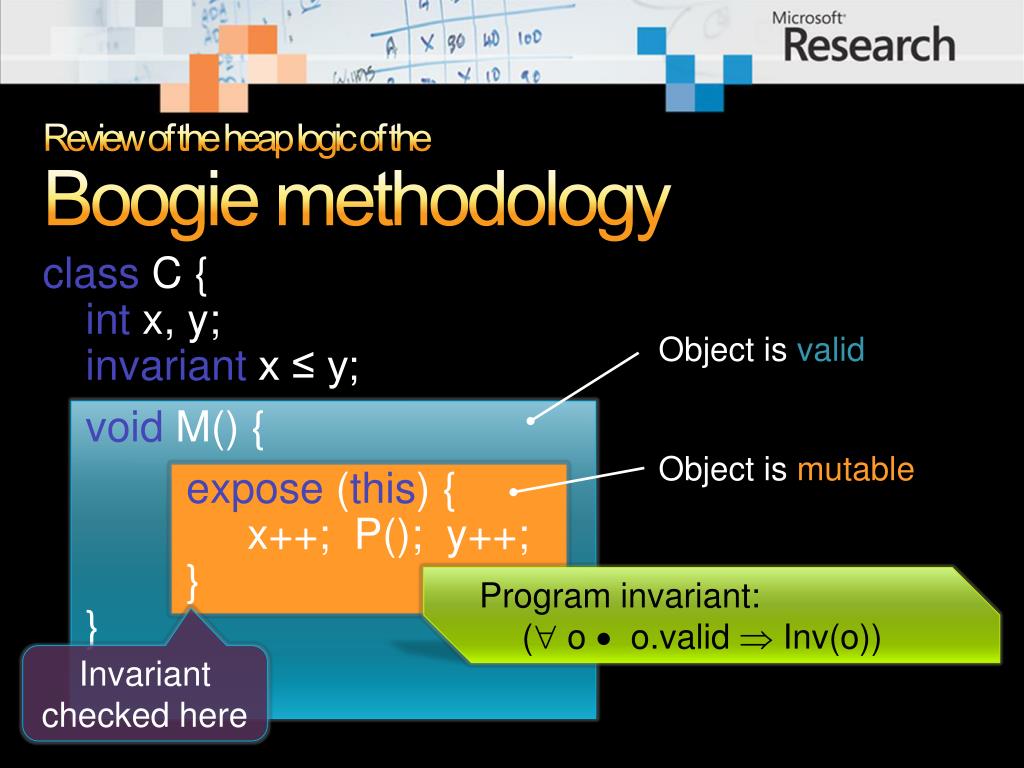

5. Review of the heap logic of theBoogie methodology class C {int x, y;invariant x ≤ y; void M() { expose (this) { x++; P(); y++; }} Object is valid Object is mutable Program invariant:( o o.valid Inv(o)) Invariant checked here

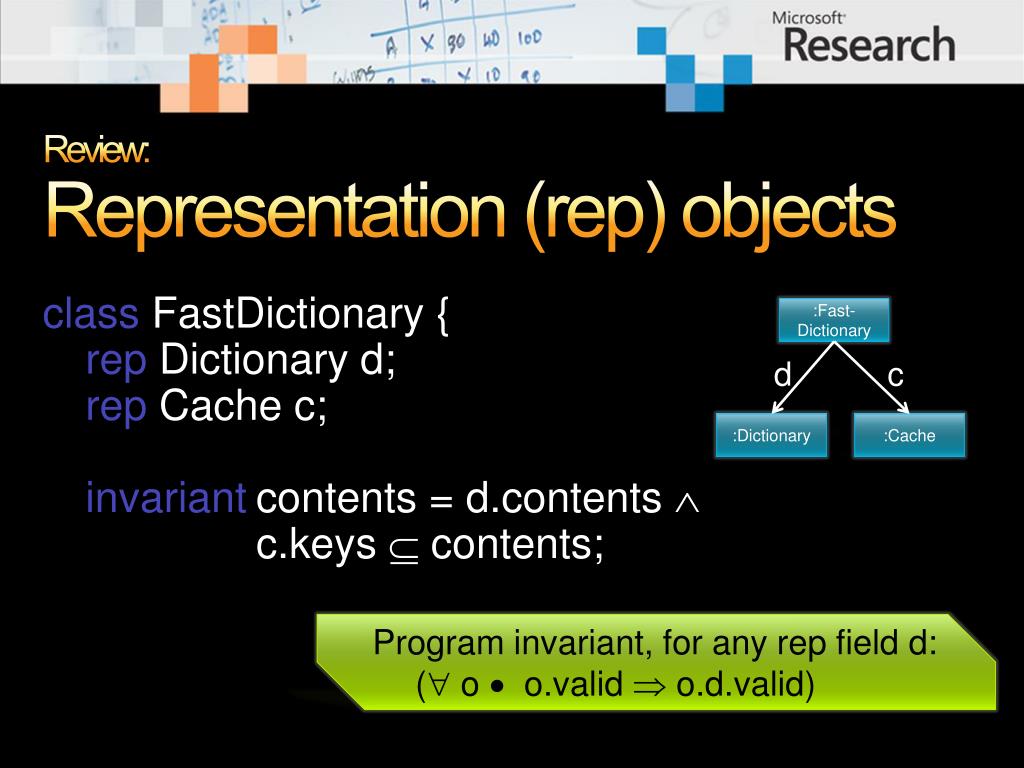

6. Review:Representation (rep) objects classFastDictionary {rep Dictionary d;rep Cache c;invariant contents = d.contentsc.keys  contents; :Fast-Dictionary d c :Dictionary :Cache Program invariant, for any rep field d:( o o.valid o.d.valid)

7. Review:Visibility-based invariants class Node {Node next, prev;invariant (next = null  next.prev = this) (prev = null  prev.next = this); next next next :Node :Node :Node :Node prev prev prev

8. Subject, observers :MyObserver class Subject {int data; List<Observer> observers; …} interface Observer { void Update(); } classMyObserver : Observer { Subject s; int d; invariant d = s.data; … } classYourObserver : Observer { Subject s; int d; invariant d ≤ s.data; … } Note that scannotbe a rep field,because one observer cannot be the sole owner of the subject :MyObserver :Subject :YourObserver

9. Modular verification problem :MyObserver :MyObserver class Subject {int data; List<Observer> observers; void Inc() {expose (this) { data++;foreach (o in observers) {o.Update(); } }} } interface Observer { void Update(); } :Subject :YourObserver Program invariant:( o o.valid Inv(o))

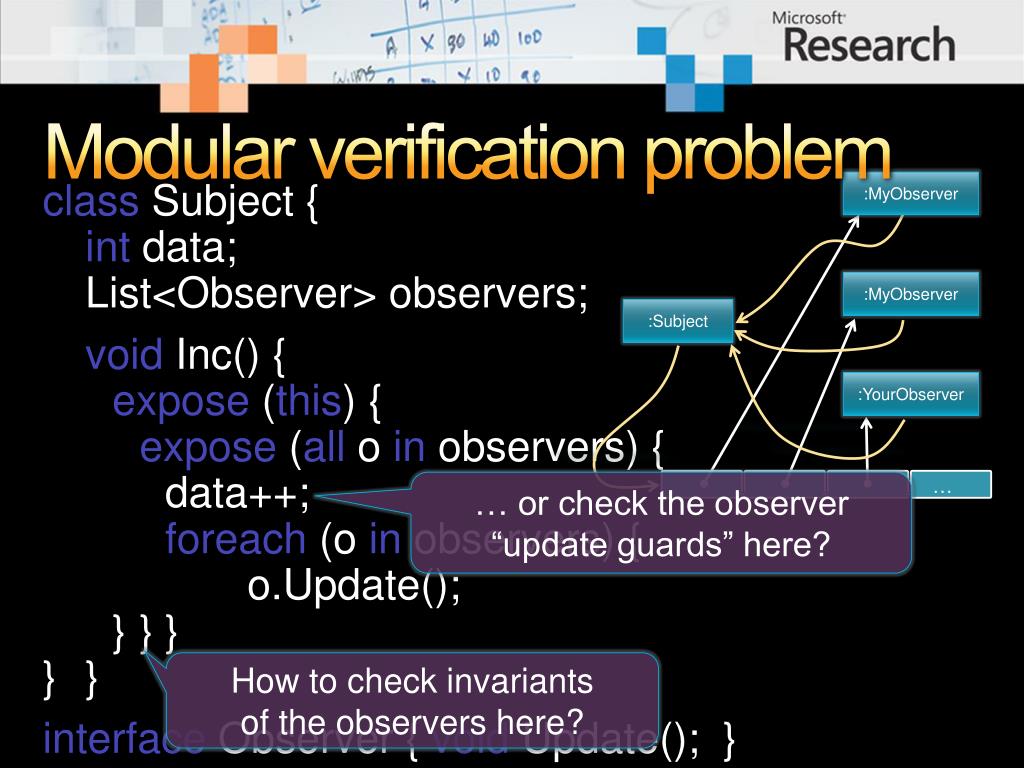

10. Modular verification problem :MyObserver :MyObserver class Subject {int data; List<Observer> observers; void Inc() {expose (this) {expose (all o in observers) { data++;foreach (o in observers) {o.Update(); } } }} } interface Observer { void Update(); } :Subject :YourObserver … or check the observer “update guards” here? How to check invariantsof the observers here?

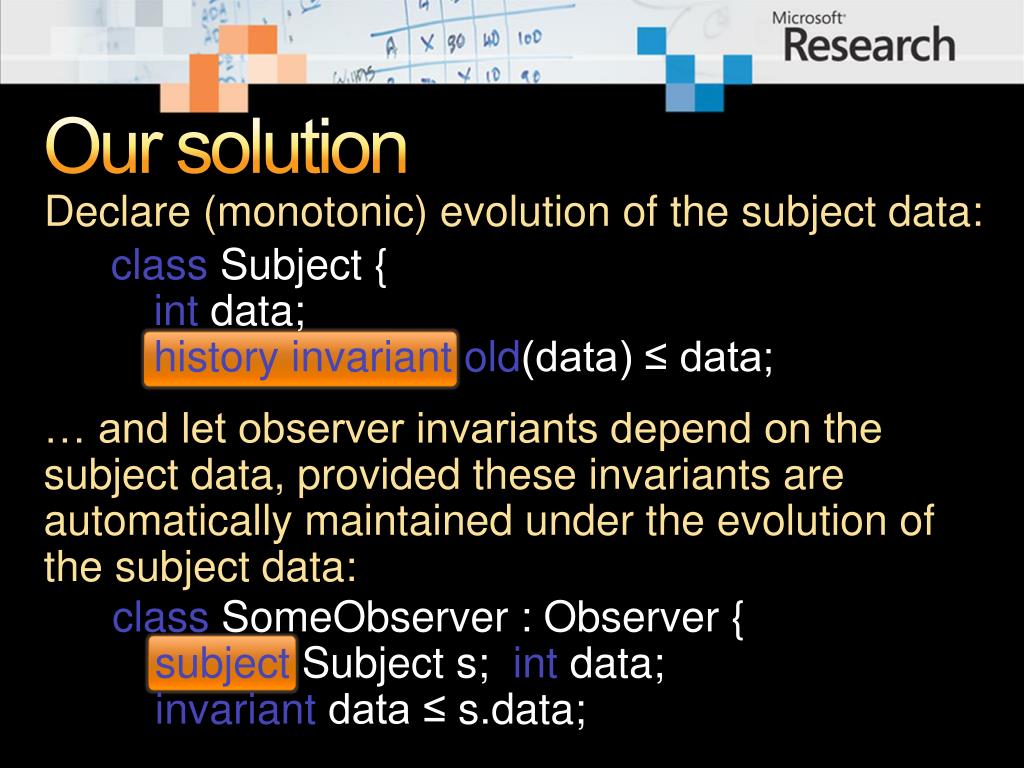

11. Our solution • Declare (monotonic) evolution of the subject data: class Subject {int data;history invariant old(data) ≤ data; • … and let observer invariants depend on the subject data, provided these invariants are automatically maintained under the evolution of the subject data: classSomeObserver : Observer {subject Subject s; int data;invariantdata ≤ s.data;

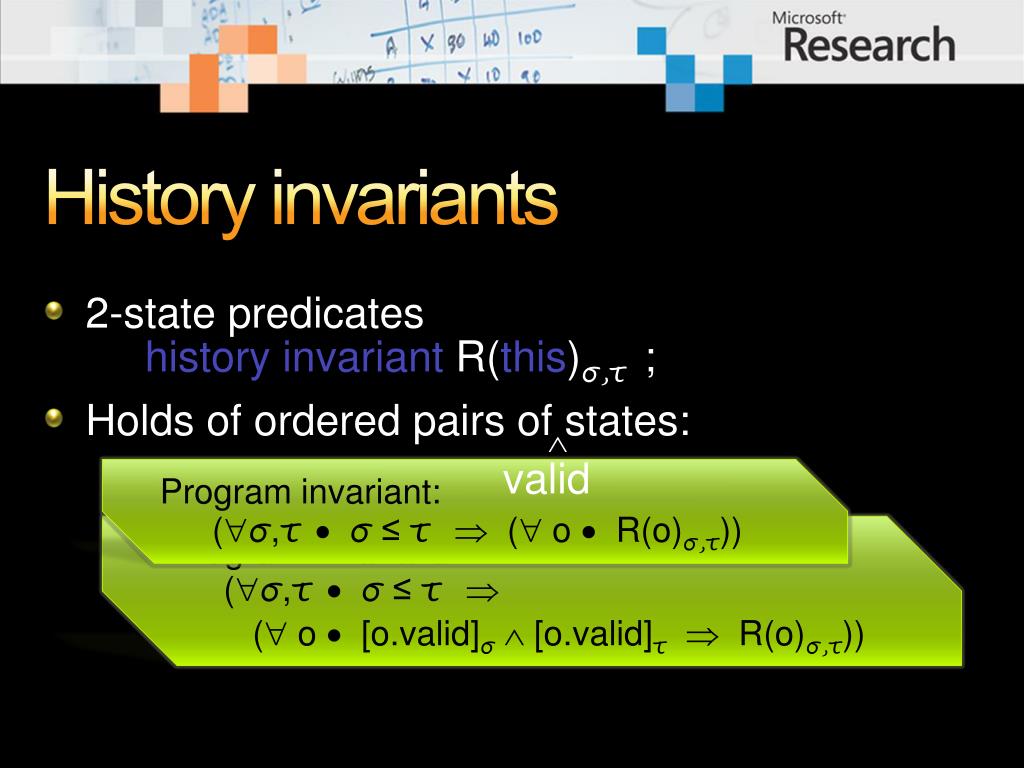

12. History invariants • 2-state predicateshistory invariant R(this)σ,τ; • Holds of ordered pairs of states:  valid Program invariant: (σ,τ σ ≤ τ  ( o  R(o)σ,τ)) Program invariant: (σ,τ σ ≤ τ ( o  [o.valid]σ [o.valid]τ R(o)σ,τ))

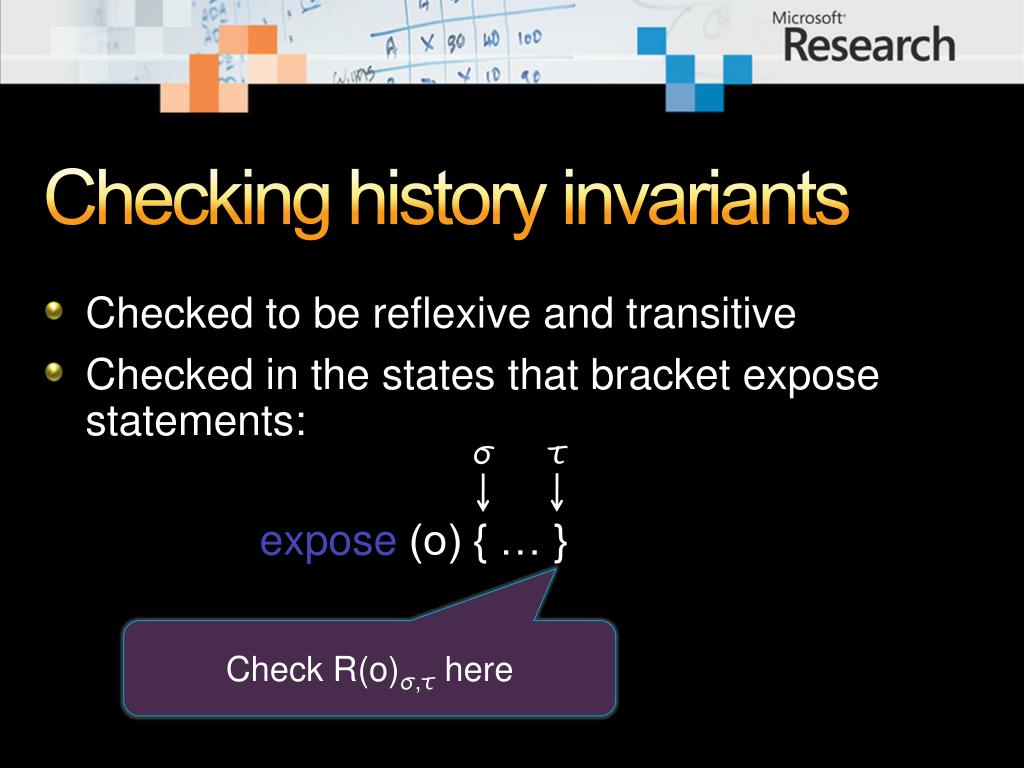

13. Checking history invariants • Checked to be reflexive and transitive • Checked in the states that bracket expose statements: στ expose (o) { … } Check R(o)σ,τ here

14. Observer invariants • class Subject { historyinvariant R(this)σ,τ; … }class Observer {subjectSubject s;invariant Inv(this); Program invariant:( o o.valid o.s.valid Inv(o)) expose (o) { … } check o.s.valid Inv(o) here

15. Checking observer invariants • class Subject { historyinvariant R(this)σ,τ; … }class Observer {subjectSubject s;invariant Inv(this); • Checked to satisfy: (σ,τ σ ≤ τ ( o  [o.valid]σ ( f  [o.f]σ = [o.f]τ)  [o.s.valid]σ [o.s.valid]τ  R(o.s)σ,τ  [Inv(o)]τ))

16. Soundness theorems Program invariant, for any history invariant R: (σ,τ σ ≤ τ ( o  [o.valid]σ [o.valid]τ R(o)σ,τ)) • Proofs: see paper Program invariant, for any object invariant Inv:( o o.valid o.s.valid Inv(o))

17. Specification idiom • class Subject {intver; T data;historyinvariantold(ver) = ver old(data)  data; • class Observer {subjectSubject s;intver; T data;invariant s.ver = ver  s.data  data; temporal relation spatial relation

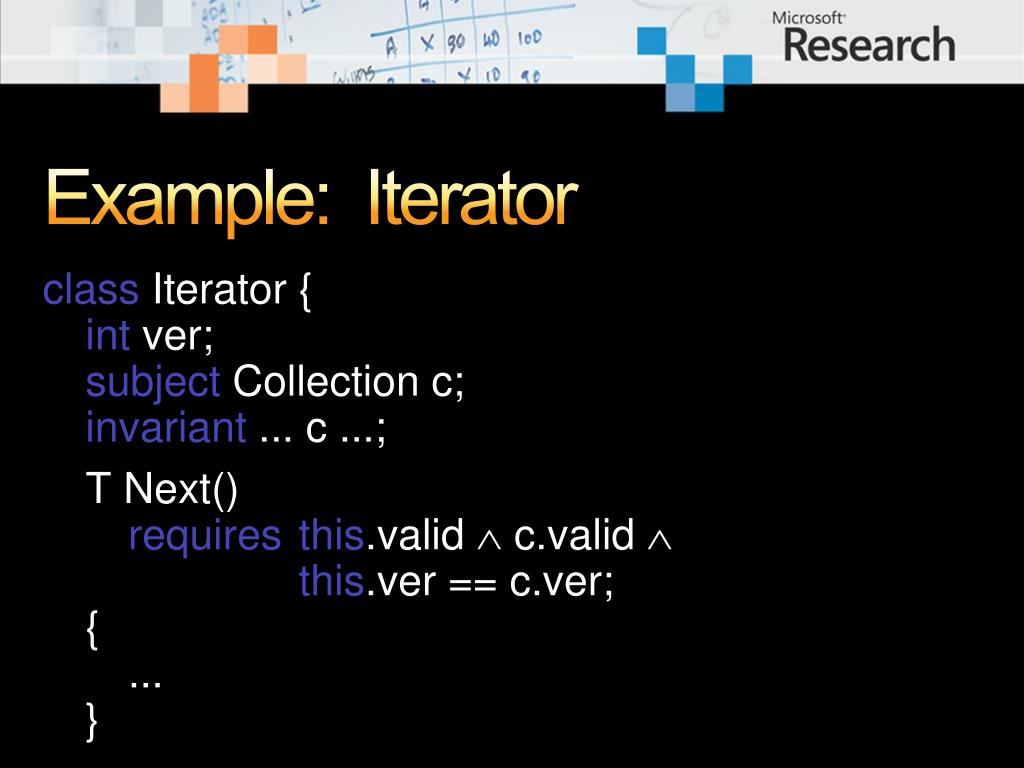

18. Example: Iterator classIterator {intver;subject Collection c;invariant ... c ...; T Next()requires this.validc.validthis.ver == c.ver;{ ...}

19. Related work • History invariants are used elsewhere • assume / guarantee • constraints [Liskov & Wing 1994] • … • Visibility-based invariants [e.g., Leino & Müller 2004] • Update guards [Barnett & Naumann 2004] • Separation logic [e.g., Parkinson & Bierman 2005] • could also benefit from history invariants • Static class invariants [Leino & Müller 2005] • multiple-”owner” situation

20. Conclusion • Local reasoning for observer invariants • Future work: implementation (in Spec#)
